Page 211 of 506

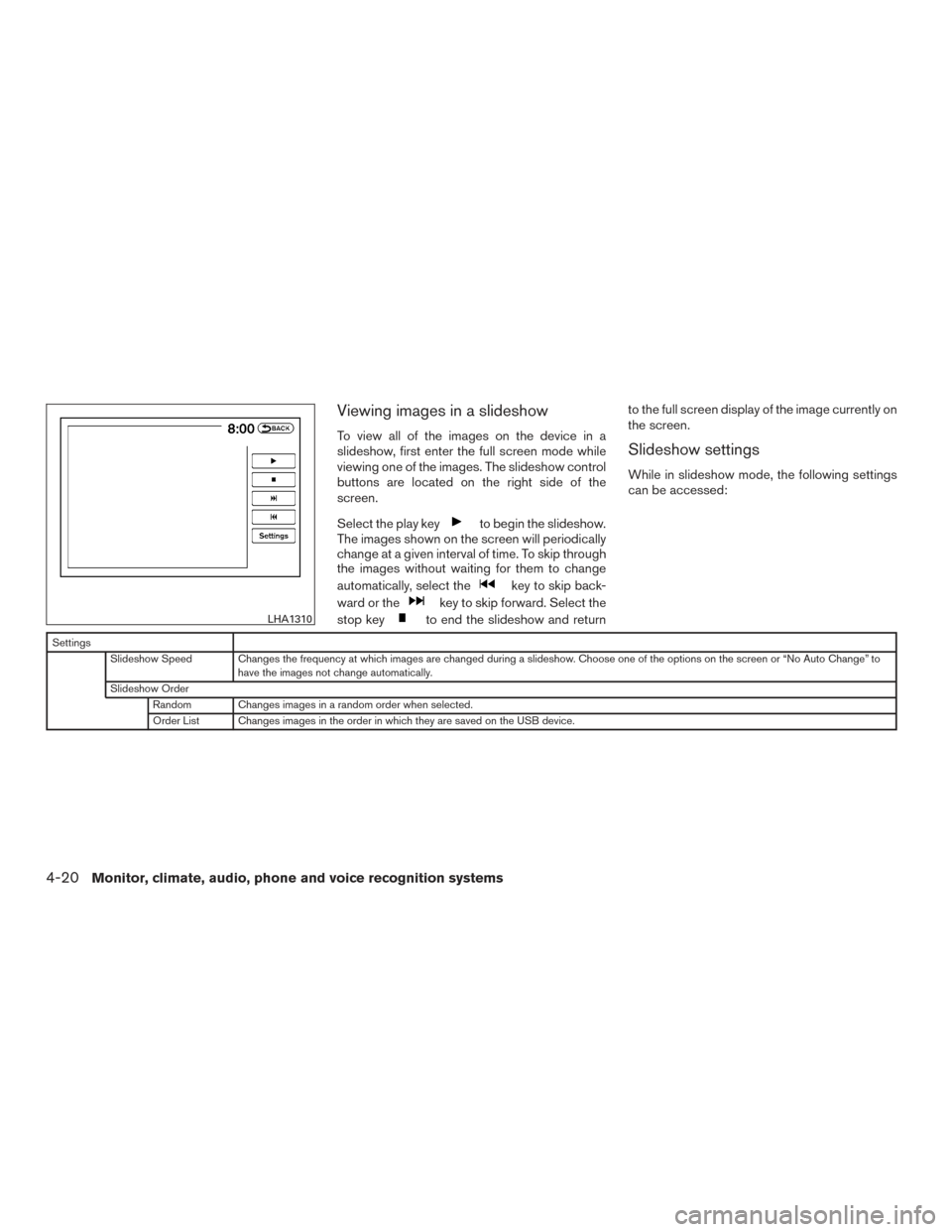

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual Viewing images in a slideshow
To view all of the images on the device in a
slideshow, first enter the full screen mode while
viewing one of the images. The slideshow control
buttons are located on the

Page 212 of 506

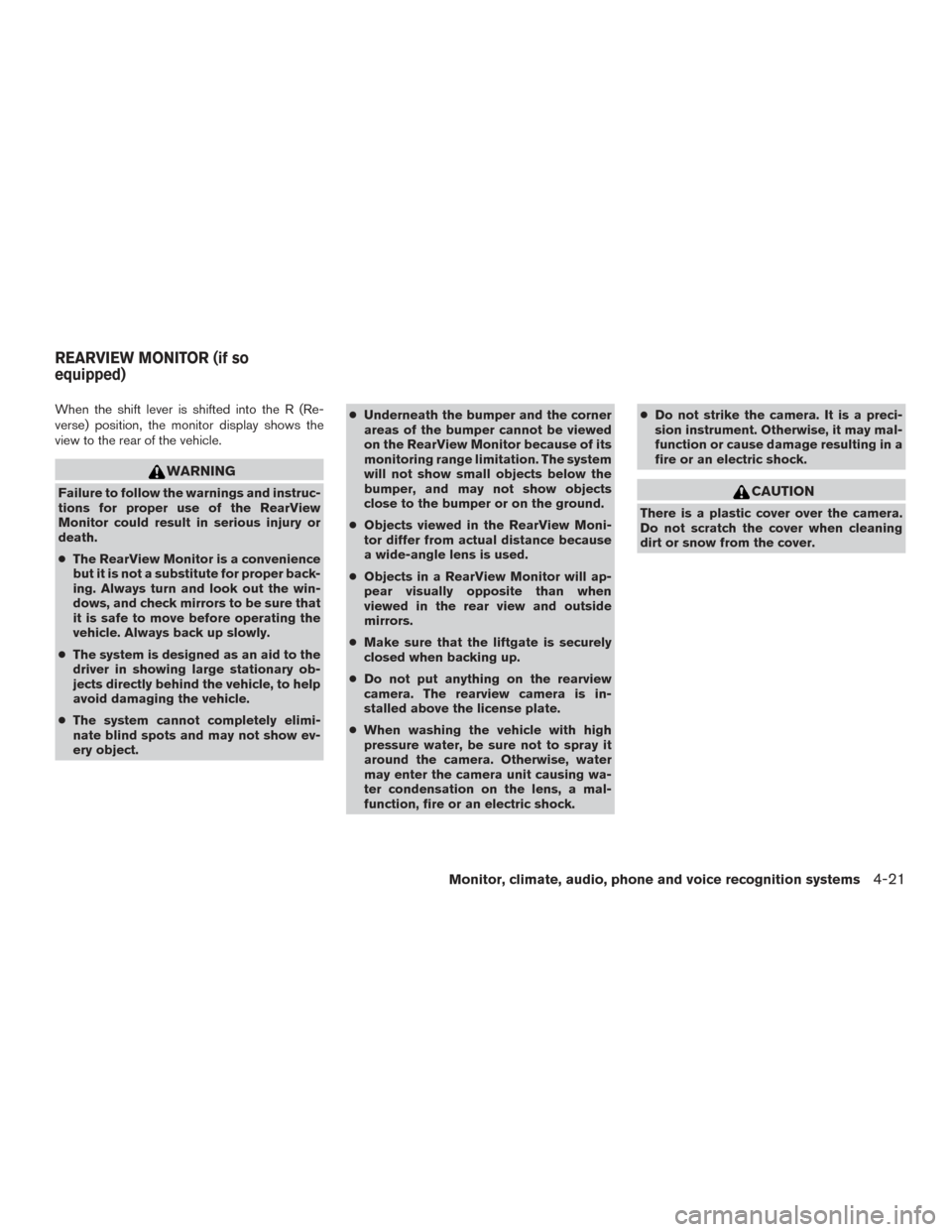

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual When the shift lever is shifted into the R (Re-
verse) position, the monitor display shows the
view to the rear of the vehicle.
WARNING
Failure to follow the warnings and instruc-
tions for proper use

Page 213 of 506

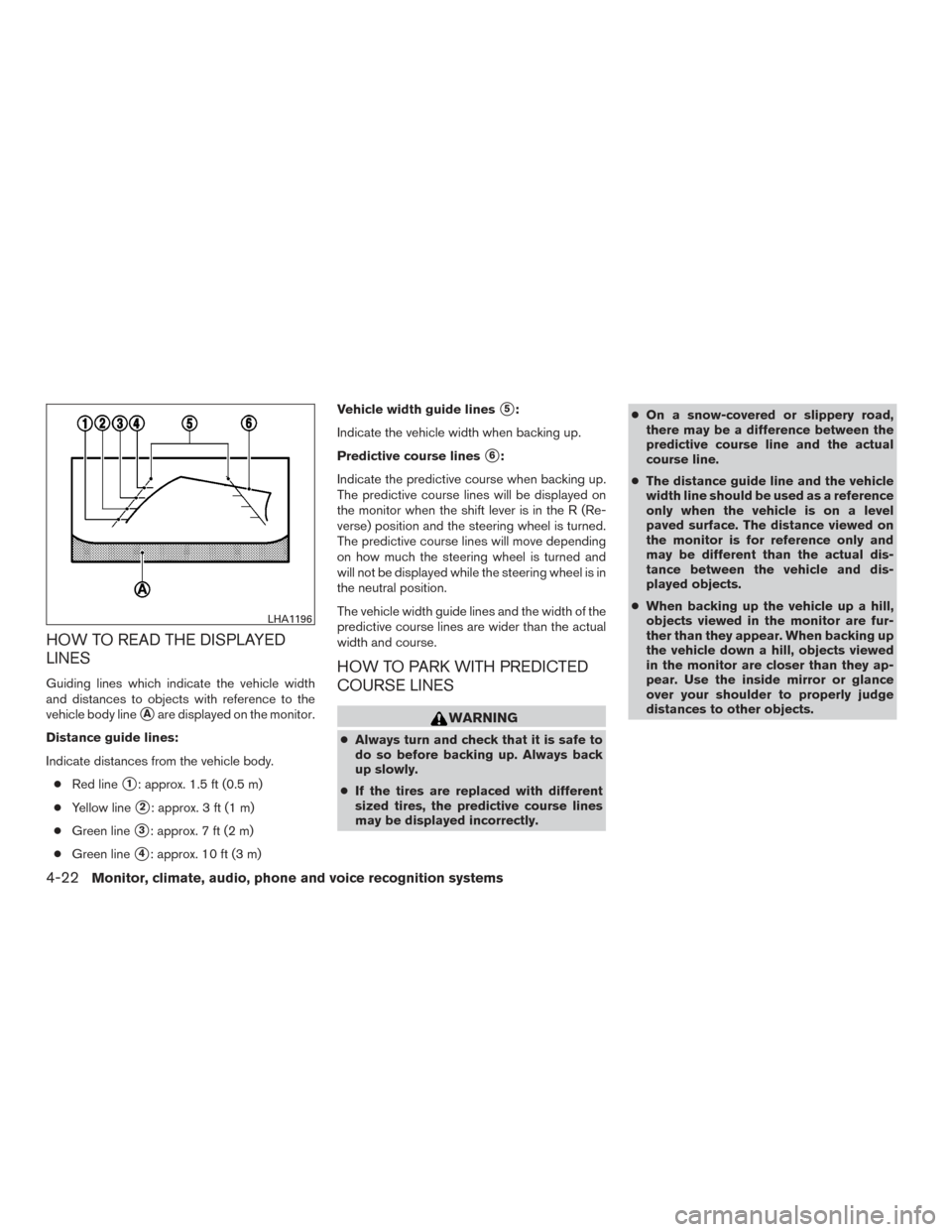

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines:
In

Page 214 of 506

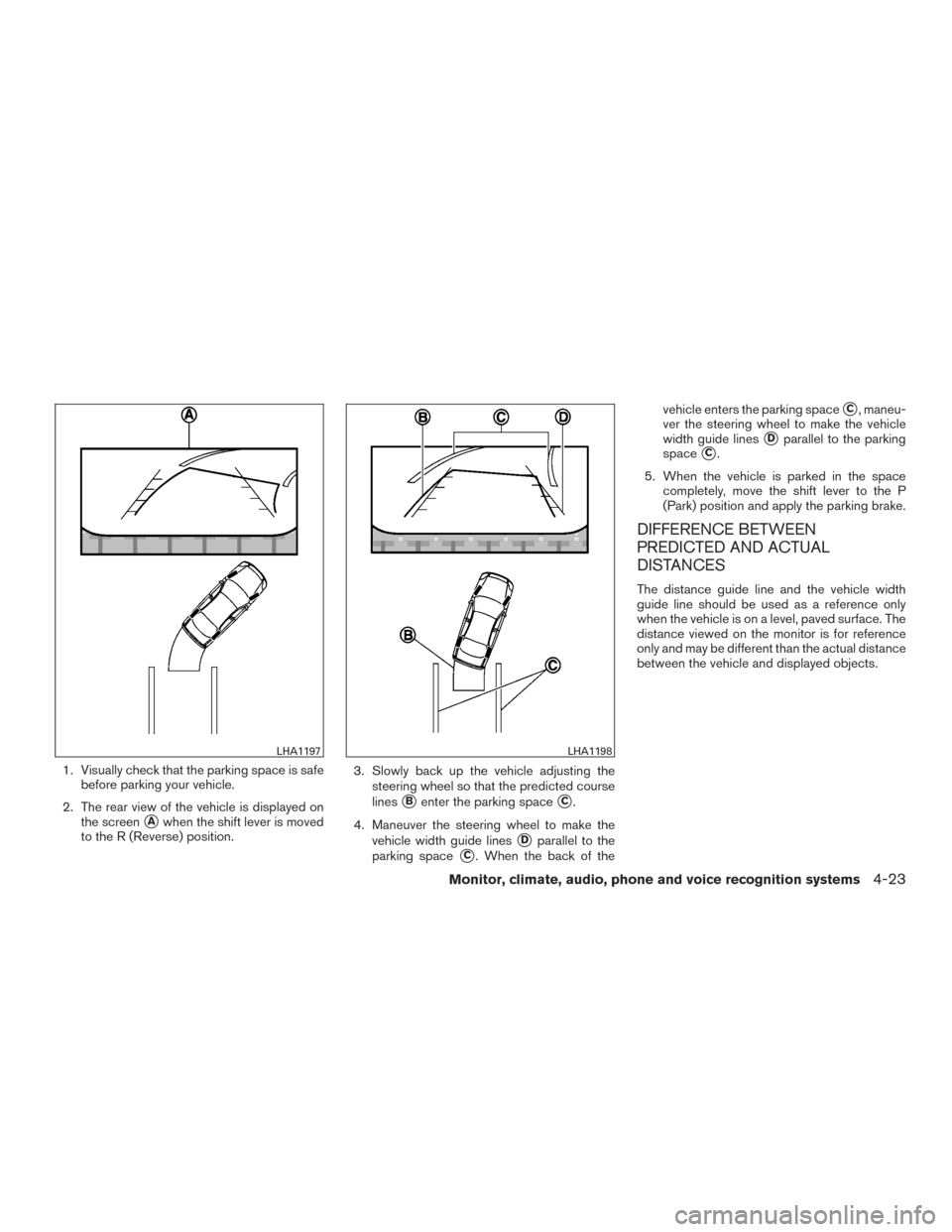

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual 1. Visually check that the parking space is safebefore parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is moved
to the R (Reverse) position. 3.

Page 215 of 506

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display sho

Page 216 of 506

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual the hill is the placeB. Note that any object on
the hill is closer than it appears on the monitor.
Backing up near a projecting object
The predicted course linesAdo not touch the
object in the displ

Page 217 of 506

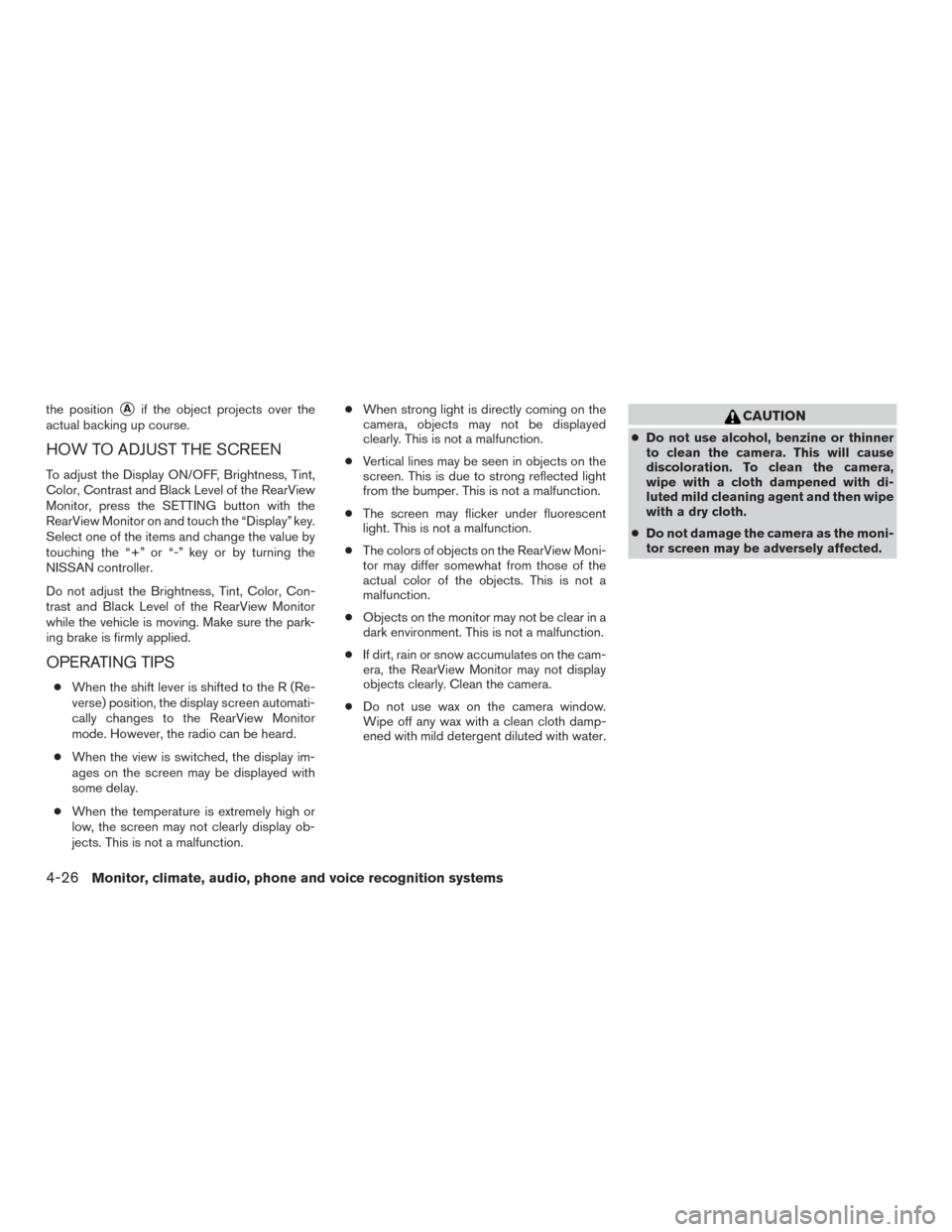

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual the positionAif the object projects over the
actual backing up course.
HOW TO ADJUST THE SCREEN
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
Monitor

Page 218 of 506

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual With the ignition switch in the ON position, press
the CAMERA button or move the shift lever to the
R (Reverse) position to operate the Around
View® Monitor. The monitor displays various
views of the

Page 219 of 506

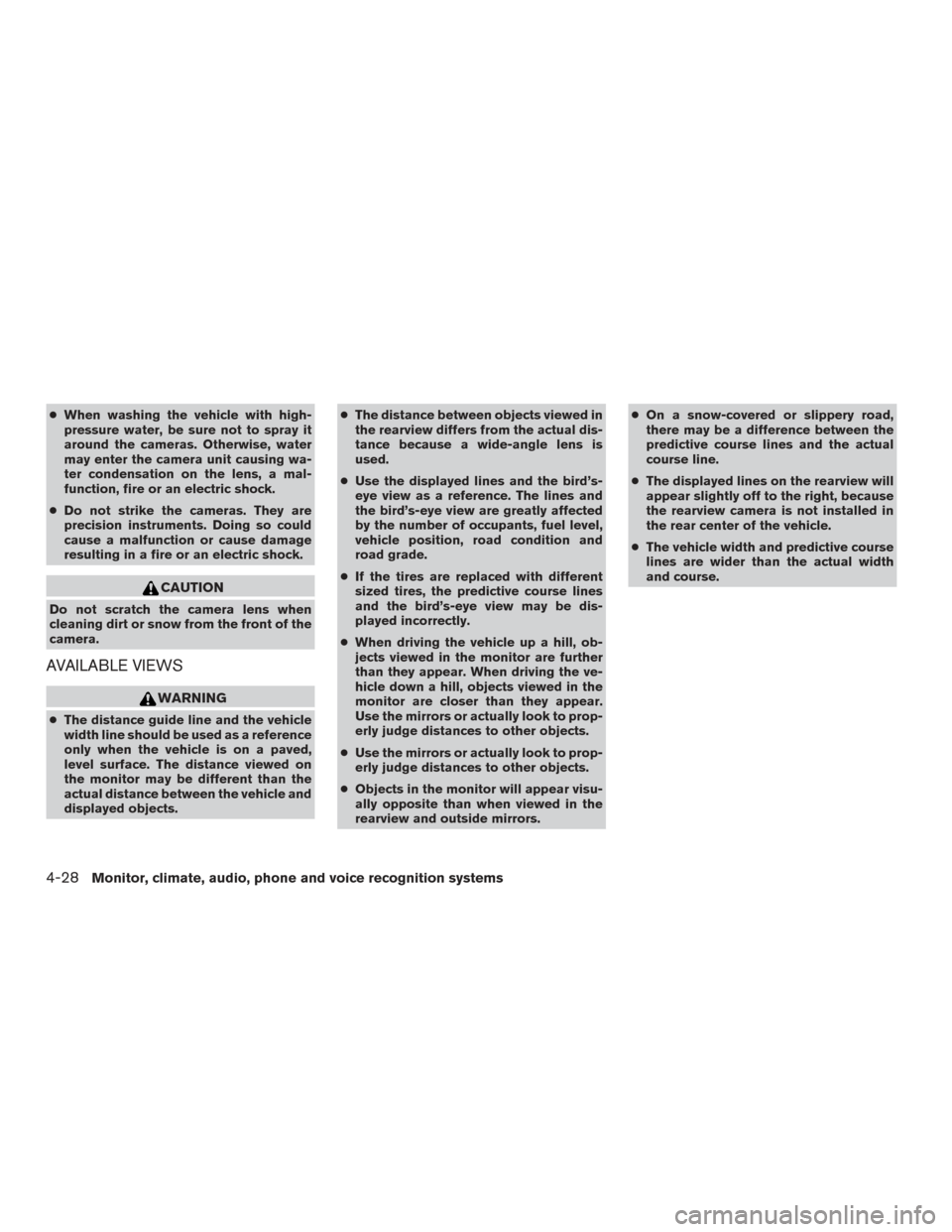

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual ●When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function,

Page 220 of 506

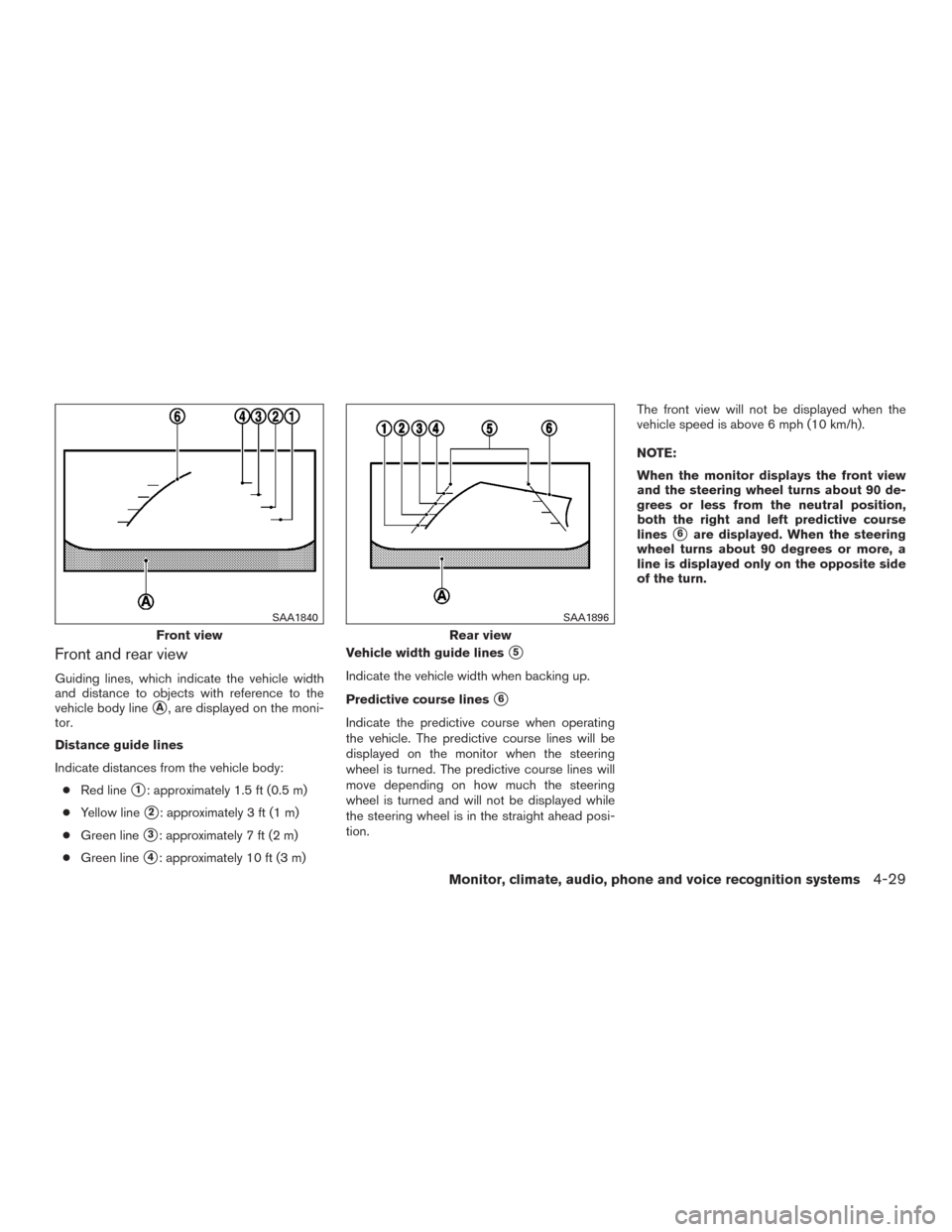

NISSAN PATHFINDER 2015 R52 / 4.G Owners Manual Front and rear view
Guiding lines, which indicate the vehicle width
and distance to objects with reference to the
vehicle body line
A, are displayed on the moni-
tor.
Distance guide lines
Indicate di
