3 Map settings
Map types ........................................................................\
........... 3-22D map ........................................................................\
.......... 3-2
Birdview
TM(3D) map ......................................................... 3-3
Building graphics ................................................................ 3-3
Displaying the current vehicle location ................................ 3-4 Operating with control panel ........................................... 3-4
Operating with touch operation ...................................... 3-4
Moving a map ........................................................................\
.... 3-5 2D map ........................................................................\
.......... 3-5
Birdview
TM(3D) map ......................................................... 3-7
Changing the scale of a map ................................................ 3-8
Operating with zoom buttons (if so equipped) ........... 3-8
Operating with center dial ................................................ 3-9
Operating with touch operation ................................... 3-10
Map scale ........................................................................\
... 3-10 Changing map view .............................................................. 3-11
Available views ............................................................... 3-12
Other settings ................................................................. 3-12
Setting the map view ........................................................... 3-13 Basic operation .............................................................. 3-13
Setting map orientation ................................................ 3-14
Settings long range map view .................................... 3-15
Setting map color ......................................................... 3-15
Changing Birdview
TMangle ........................................ 3-16
Setting left screen display ........................................... 3-17
Looking at information on the map ................................... 3-17
Displaying map icons .................................................... 3-17
Map scrolling information ............................................. 3-18
Map symbols ................................................................... 3-20
Road color ....................................................................... 3-21
Traffic information on map ........................................... 3-21
Page 42 of 241
3-2Map settings
Two types of map views are available: 2D and
BirdviewTM(3D) map.
2D MAP
2D map displays the map in a 2-dimensional
environment similar to a road map.
Screen information
*1Vehicle icon:
Indicates the current vehicle location and
the direction of travel.*2Guide point:
Indicates a guide point on the route.
*3Remaining time and distance to the
destination:
Indicates the approximate remaining time
and distance to the destination or waypoint. This indicator will appear when the destina-
tion or waypoint is set and route guidance
is started.
When the vehicle is not driven on the
suggested route, the screen displays the
direction to the destination and the dis-
tance to the destination from the current
vehicle position.
“Switching estimated arrival time dis-
play” (page 5-28)
*4Suggested route:
Appears in bold yellow during route gui-
dance.
*5/Direction indicator:
Indicates the directional setting of the map.
Touch the icon to change the setting.
: North always pointing up.
: Traveling direction always pointing up.“Setting map orientation” (page 3-14)
*6Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar.
This allows the map scale to be adjusted.
“Operating with touch operation”
(page 3-10)
MAP TYPES
Page 43 of 241
*7Arrow:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
*8Stored location (orange):
Displays the locations that are stored in the
Address Book. Icons can be changed
according to personal preferences.
“Storing location” (page 6-2)
*9Avoid Area (green or blue):
Displays the areas to avoid that are stored
in the Address Book with green or blue
icons. During the route search, the route
guidance is performed by searching for a
route that avoids those areas.
“Storing avoid area” (page 6-7)
*10Street name:
Displays the name of the street the vehicle
is currently driving on.
*11Traffic indicator:
Displays the reception condition of traffic
information transmitted from the provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
No mark: Subscription to NavTraffic service
is not detected.
BirdviewTM(3D) MAP
BirdviewTMdisplays the map from an elevated
perspective. In BirdviewTM, it is easy to recog-
nize an image of the route because it provides a
panoramic view over a long distance.
INFO:
About the Birdview
TMdisplay
. “BirdviewTM” is a registered trademark of
Clarion Co., Ltd.
. The map in Birdview
TMalways appears with
the current forward direction facing up.
BUILDING GRAPHICS
In the area where the building graphics are
stored in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called “Building
footprint graphics”, and on the Birdview
TM
display, these are called “3D building graphics”. The method to look at the map is the same for
the 2D and Birdview
TMmaps.
Building footprint graphics (2D map)
3D building graphics (BirdviewTMmap)
INFO:
In the area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
Map settings3-3
Page 44 of 241
3-4Map settings
OPERATING WITH CONTROL PANEL
The basic map screen displays the current
location (the position where the vehicle mark is
located) . Push
Page 45 of 241
The operations for moving across the map are
different between the 2D and BirdviewTMmaps.
2D MAP
Operating with the multi-function con-
troller
Push one of the directional buttons or the slide
switch. Press and hold a directional button or
the slide switch to move continuously across the
map in a direction.
While moving across the map, the cross pointer
appears.
If the map scale is set to 1/8 mile (200 m) orless, the cross pointer will blink in pink when
positioned on a street, and the street name will
be displayed.
Screen information:
*1Cross pointer
*2Distance from the current location to the
cross pointer
*3Street name
Operating with touch operation
1. Touch the screen.
Displays the cross pointer, and the touched
position is set as the center of the screen.
2. Touch the direction to move to. The mapcontinues to scroll while the screen is
touched.
Map settings3-5
MOVING A MAP
Page 46 of 241
3-6Map settings
INFO:
While driving, one touch continuous scrolling is
disabled. Touch the screen again to scroll
further.
If the map screen is set to the building footprint
graphics, the map cannot be scrolled while
driving.
Fine-adjusting the cursor position:
1. Touch [Slow]. Displays the 8-directional key.
2. Touch the 8-directional key to adjust thecross pointer position. Touch [BACK] to end
the adjustment.
INFO:
Fine-adjusting the cursor position is not possible
while driving.
Page 47 of 241
BirdviewTM(3D) MAP
Operating with multi-function controller
Use the multi-functional controller to move
across the map.
While moving on the map, the cross pointer
appears.
Rotates the map clockwise.
Rotates the map counterclockwise.
The cross pointer moves in the direction
of the arrow.
Once moving on the map, the cross pointer appears.
Screen information:
*1Cross pointer
*2Distance from the vehicle position to the
cross pointer
*3Street name
Operating with touch panel
1. Touch the screen.
Displays the cross pointer and 8-directional
key.
2. Touch the direction to move to. The mapcontinues to scroll while the screen is
touched.
Map settings3-7
Page 48 of 241
3-8Map settings
3. Touch []or[] to change the direction of
the map.
Rotates the map clockwise.
Rotates the map counterclockwise.
INFO:
While driving, scrolling on the map is limited to a
specified distance.
OPERATING WITH ZOOM BUTTONS (if so equipped)
CHANGING THE SCALE OF A MAP
Page 49 of 241
Push
appears on the right side of the screen.
To view the map in detail, push
To view a wider area, push
The scale will automatically disappear when
neither
been pushed for several seconds.
If the scaling operation is not performed for a
specified period of time, the scale display
disappears.
INFO:
Free zoom:
The scale can be changed in smaller steps when
held than when the button is pushed briefly.
When the button is pushed briefly, the scale can
be changed in large steps.
“Other navigation settings” (page 8-7)
OPERATING WITH CENTER DIAL
1. Turn the center dial when the map screen is displayed. The map scale is displayed on the
right side of the screen.
2. Use the center dial to adjust the map scale.
*1Clockwise: Zoom in
*2Counterclockwise: Zoom out
INFO:
Free zoom:
Depending on the setting, using the center dial
to change the map scale may adjust the scale
normally, or it may engage the free zoom (finer
scale adjustment in smaller steps) .
“Other navigation settings” (page 8-7)
Map settings3-9
Page 50 of 241

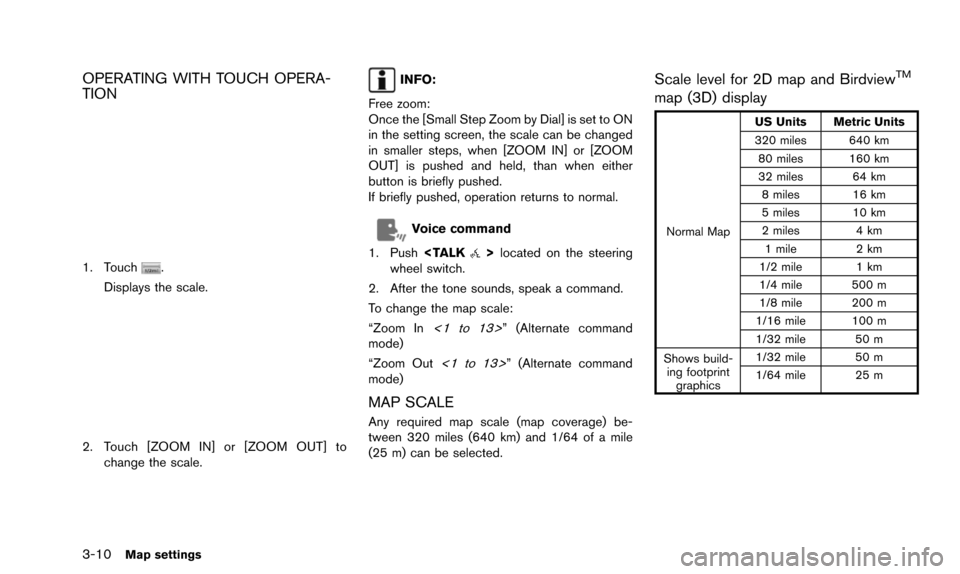

3-10Map settings
OPERATING WITH TOUCH OPERA-
TION
1. Touch.
Displays the scale.
2. Touch [ZOOM IN] or [ZOOM OUT] to change the scale.
INFO:
Free zoom:
Once the [Small Step Zoom by Dial] is set to ON
in the setting screen, the scale can be changed
in smaller steps, when [ZOOM IN] or [ZOOM
OUT] is pushed and held, than when either
button is briefly pushed.
If briefly pushed, operation returns to normal.
Voice command
1. Push
wheel switch.
2. After the tone sounds, speak a command.
To change the map scale:
“Zoom In
<1 to 13>” (Alternate command
mode)
“Zoom Out
<1 to 13>” (Alternate command
mode)
MAP SCALE
Any required map scale (map coverage) be-
tween 320 miles (640 km) and 1/64 of a mile
(25 m) can be selected.
Scale level for 2D map and BirdviewTM
map (3D) display
Normal Map US Units Metric Units
320 miles 640 km 80 miles 160 km
32 miles 64 km8 miles 16 km
5 miles 10 km
2 miles 4 km1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
Shows build- ing footprint graphics 1/32 mile 50 m
1/64 mile 25 m
