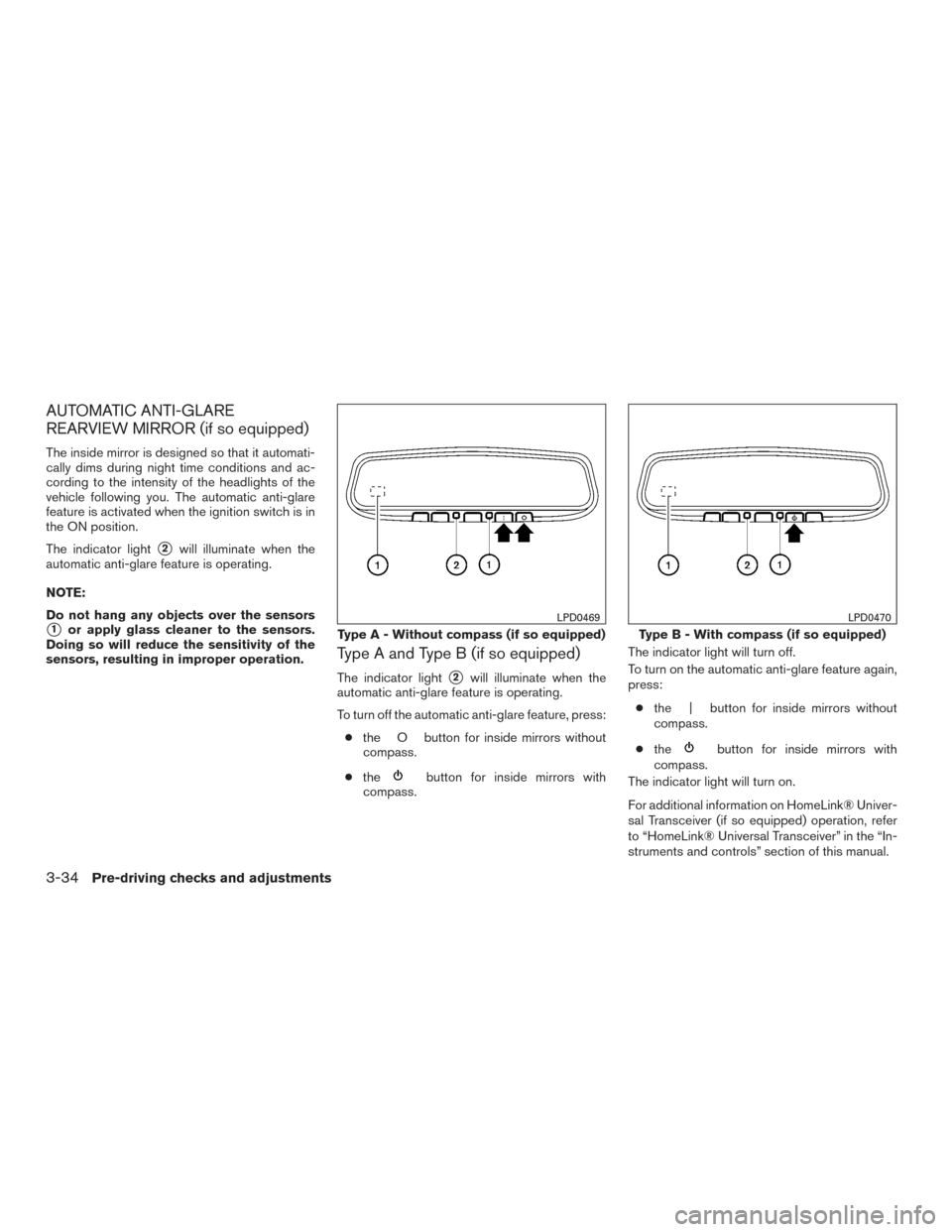

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it automati-
cally dims during night time conditions and ac-
cording to the intensity of the headlights of the
vehicle following you. The automatic anti-glare
feature is activated when the ignition switch is in
the ON position.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
Type A and Type B (if so equipped)
The indicator light2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press:
● the O button for inside mirrors without
compass.
● the
button for inside mirrors with
compass. The indicator light will turn off.
To turn on the automatic anti-glare feature again,
press:
● the | button for inside mirrors without
compass.
● the
button for inside mirrors with
compass.
The indicator light will turn on.
For additional information on HomeLink® Univer-
sal Transceiver (if so equipped) operation, refer
to “HomeLink® Universal Transceiver” in the “In-
struments and controls” section of this manual.
Type A - Without compass (if so equipped)
LPD0469
Type B - With compass (if so equipped)
LPD0470
3-34Pre-driving checks and adjustments
Page 192 of 540
For additional information on the compass dis-
play (if so equipped) , refer to “Compass display”
in the “Instruments and controls” section of this
manual.
OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the left or right
mirror. Adjust each mirror to the desired position
using the large switch
2.
WARNING
● Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
LPD2083
Pre-driving checks and adjustments3-35
Page 193 of 540
Manual folding outside mirrors
Pull the outside mirror toward the door to fold it.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both out-
side mirror surfaces downward to provide better
rear visibility close to the vehicle when the mirror
control switch is in either the L or R position.
The mirrors automatically return to their original
position when you shift out of R (Reverse) .The outside mirror surfaces will return to their
original position when one of the following con-
ditions has occurred:
● The shift lever is moved to any position other
than R (Reverse) .
● The outside mirror control switch is set to the
neutral or center position.
● The ignition switch is placed in the OFF
position.
NOTE:
If the outside mirror control switch is in the
“center” position, the mirror surface will
NOT turn downward when the shift lever is
moved to R (Reverse) .
For additional information, refer to “Automatic
drive positioner” in this section.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, refer to “Rear window and
outside mirror (if so equipped) defroster switch”
in the “Instruments and controls” section of this
manual. The automatic drive positioner system has two
features:
● Memory storage function
● Entry/exit function
LPD2112
AUTOMATIC DRIVE POSITIONER (if
so equipped)
3-36Pre-driving checks and adjustments
Page 194 of 540
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering column
(if so equipped) , and outside mirrors can be stored
in the automatic drive positioner memory. Follow
these procedures to use the memory system.
1. Place the ignition in the ON or ACC position(the vehicle should be stopped while setting
the memory) .
2. Adjust the driver’s seat, steering column (if so equipped) , and outside mirrors to the
desired positions by manually operating
each adjusting switch. For additional infor-
mation, refer to “Seats” in the “Safety—
Seats, seat belts and supplemental restraint system” section of this manual, and
“Tilt/Telescopic Steering” and “Outside mir-
rors” in this section.
3. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
4. The indicator light for the pushed memory switch will come ON and stay ON for ap-
proximately 5 seconds.
5. The chime will sound if the memory has been stored.
NOTE:
If a NEW memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
Confirming memory storage
Push the SET switch. ● If a memory position has not been stored in
the switch (1 or 2) the indicator light for the
respective switch will come ON for approxi-
mately 0.5 seconds.
● If a memory position has been stored in the
switch (1 or 2) then the indicator light for the
respective switch will stay ON for approxi-
mately 5 seconds.
Linking a key fob to a stored memory
position
Each key fob can be linked to a stored memory
position (memory switch 1 or 2) with the follow-
ing procedure.
1. Follow steps 1-3 in the “Memory Storage Function” section for storing the memory
position.
2. The indicator light for the pushed memory switch will come ON. While the indicator
light is ON for 5 seconds, press the
button on the key fob. The indicator light of
the linked memory switch will blink. After the
indicator light goes off, the key fob is linked
to that memory setting.
Once it is linked, when ignition switch is placed in
the OFF position, pressing the
button on
the key fob will move the driver’s seat, steering
wheel and outside mirrors to the linked memory
switch position.
NOTE:
If a NEW memory position is stored in the
linked memory switch, then the key fob will
link the NEW position and overwrites the
previous position.
LPD2113
Pre-driving checks and adjustments3-37
Page 195 of 540
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and automatic operation steering column will au-
tomatically move when the shift lever is in the P
(Park) position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering column will move up:● When the driver’s door is opened with the
ignition switch placed in the OFF position.
● When the ignition switch is changed from
ACC to OFF with the driver’s door open.
The driver’s seat and steering wheel will return to
the previous position: ● When the ignition switch is changed from
ACC or ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or can-
celed through the Vehicle Settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF.
● Switch the Exit Steering UP from ON to
OFF.
Restarting the entry/exit function
If the battery cable is disconnected, or if the fuse
opens, the stored memory positions will be lost
and some of the functions will be restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch in the OFF
position.
The entry/exit function should now work properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memorized
settings can be available for each Intelligent Key. ● Climate control system
● Navigation system (if so equipped)
● Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s pre-
ferred settings. Lock the doors with the Intelligent
Key. Each Intelligent Key may be set with the
driver’s individual preferences. When a new In-
telligent Key is used, “Connection with the key
has been done” will be displayed on the screen
and the memorized settings are available. To engage the memorized settings, perform the
following:
1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
UNLOCK
button on the Intelligent
Key.
3. Place the ignition switch in the “ON” posi- tion. The settings linked to the Intelligent Key
will start.
For additional information, refer to “Heater and air
conditioner (automatic)” in the “Monitor, climate,
audio, phone and voice recognition systems”
section of this manual.
For additional information on using the Naviga-
tion System, refer to the separate Navigation
System Owner’s Manual.
For additional information on using the Audio
system, refer to “Audio system” in the “Monitor,
climate, audio, phone and voice recognition sys-
tems” section of this manual.
3-38Pre-driving checks and adjustments
Page 196 of 540

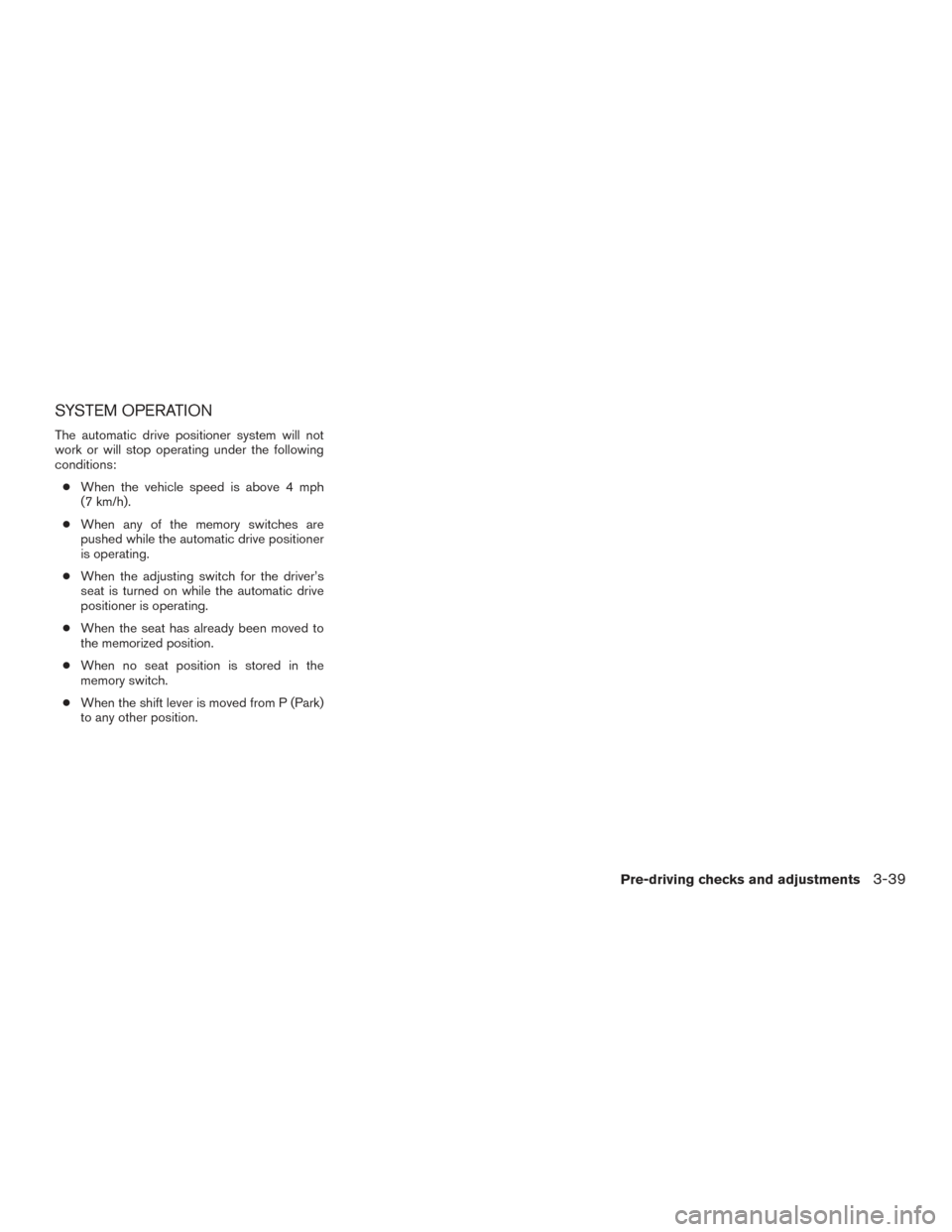

SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:● When the vehicle speed is above 4 mph
(7 km/h).
● When any of the memory switches are
pushed while the automatic drive positioner
is operating.
● When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.
● When the seat has already been moved to
the memorized position.
● When no seat position is stored in the
memory switch.
● When the shift lever is moved from P (Park)
to any other position.
Pre-driving checks and adjustments3-39
Page 197 of 540

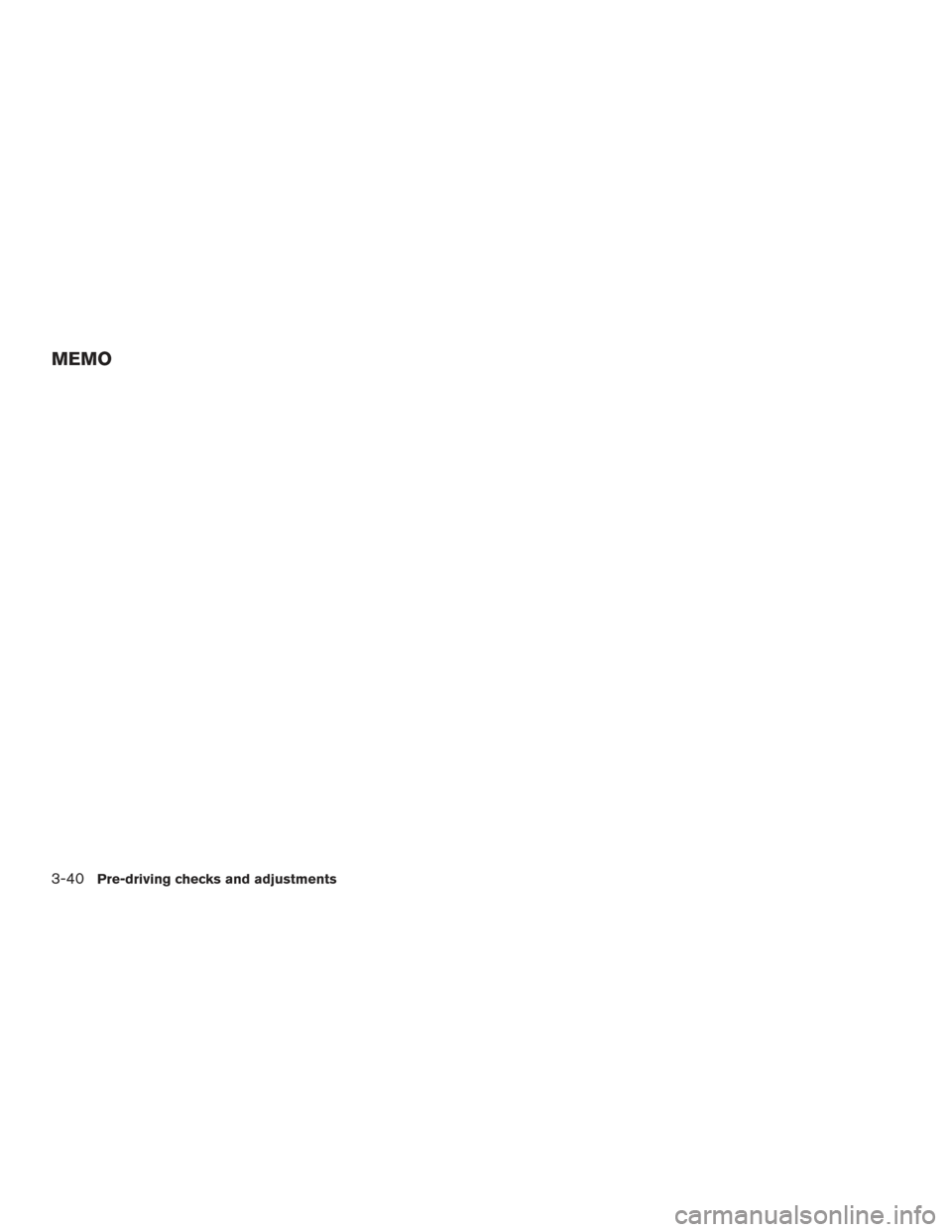

MEMO
3-40Pre-driving checks and adjustments
Page 198 of 540

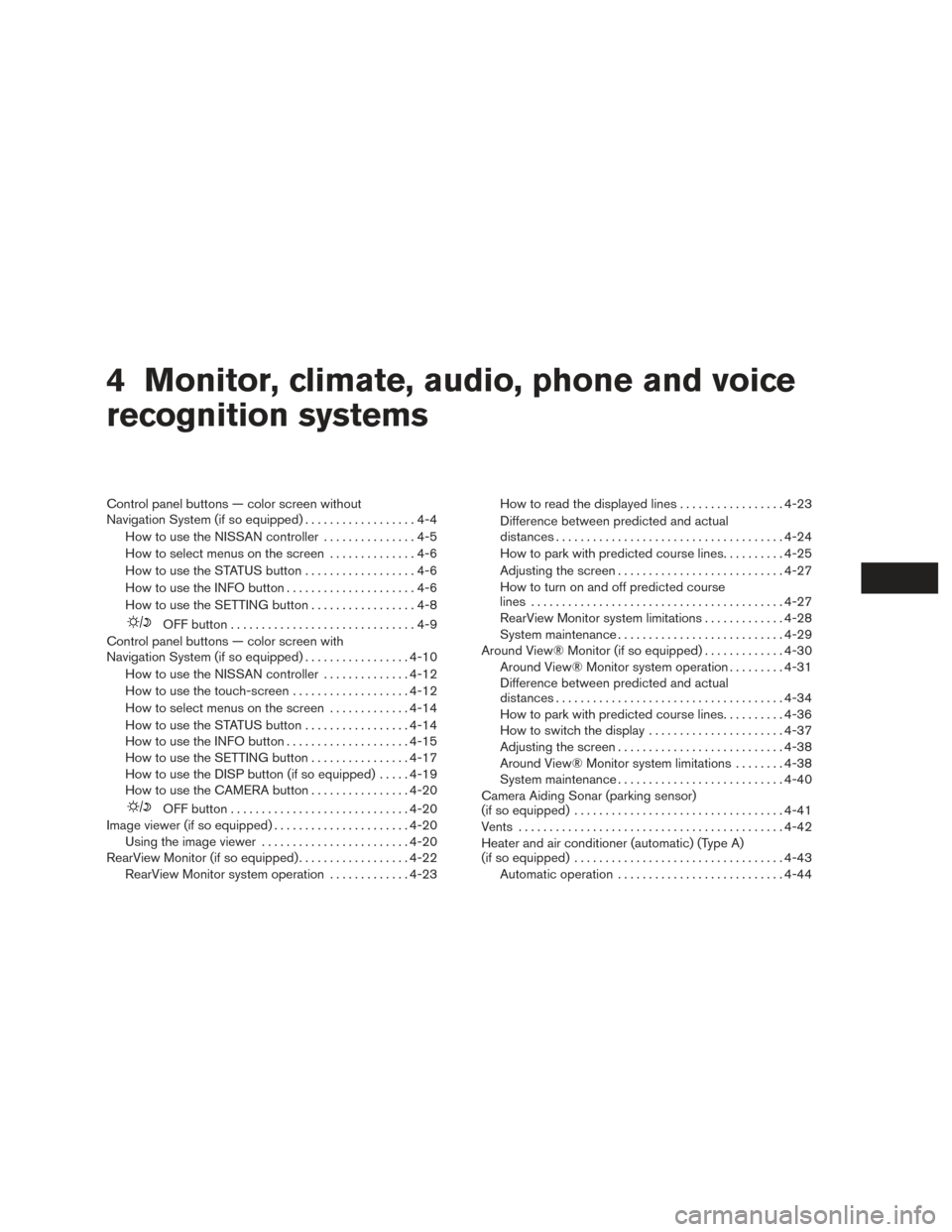

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-4
How to use the NISSAN controller ...............4-5
How to select menus on the screen ..............4-6
How to use the STATUS button ..................4-6
How to use the INFO button .....................4-6
How to use the SETTING button .................4-8
OFF button..............................4-9
Control panel buttons — color screen with
Navigation System (if so equipped) .................4-10
How to use the NISSAN controller ..............4-12
How to use the touch-screen . . .................4-12
How to select menus on the screen .............4-14
How to use the STATUS button .................4-14
How to use the INFO button ....................4-15
How to use the SETTING button ................4-17
How to use the DISP button (if so equipped) .....4-19
How to use the CAMERA button ................4-20
OFF button............................. 4-20
Image viewer (if so equipped) ......................4-20
Using the image viewer ........................ 4-20
RearView Monitor (if so equipped) ..................4-22
RearView Monitor system operation .............4-23 How to read the displayed lines
.................4-23
Difference between predicted and actual
distances ..................................... 4-24
How to park with predicted course lines ..........4-25
Adjusting the screen ........................... 4-27
How to turn on and off predicted course
lines ......................................... 4-27
RearView Monitor system limitations .............4-28
System maintenance ........................... 4-29
Around View® Monitor (if so equipped) .............4-30
Around View® Monitor system operation .........4-31
Difference between predicted and actual
distances ..................................... 4-34
How to park with predicted course lines ..........4-36
How to switch the display ......................4-37
Adjusting the screen ........................... 4-38
Around View® Monitor system limitations ........4-38
System maintenance ........................... 4-40
Camera Aiding Sonar (parking sensor)
(if so equipped) .................................. 4-41
Vents ........................................... 4-42
Heater and air conditioner (automatic) (Type A)
(if so equipped) .................................. 4-43
Automatic operation ........................... 4-44
Page 199 of 540

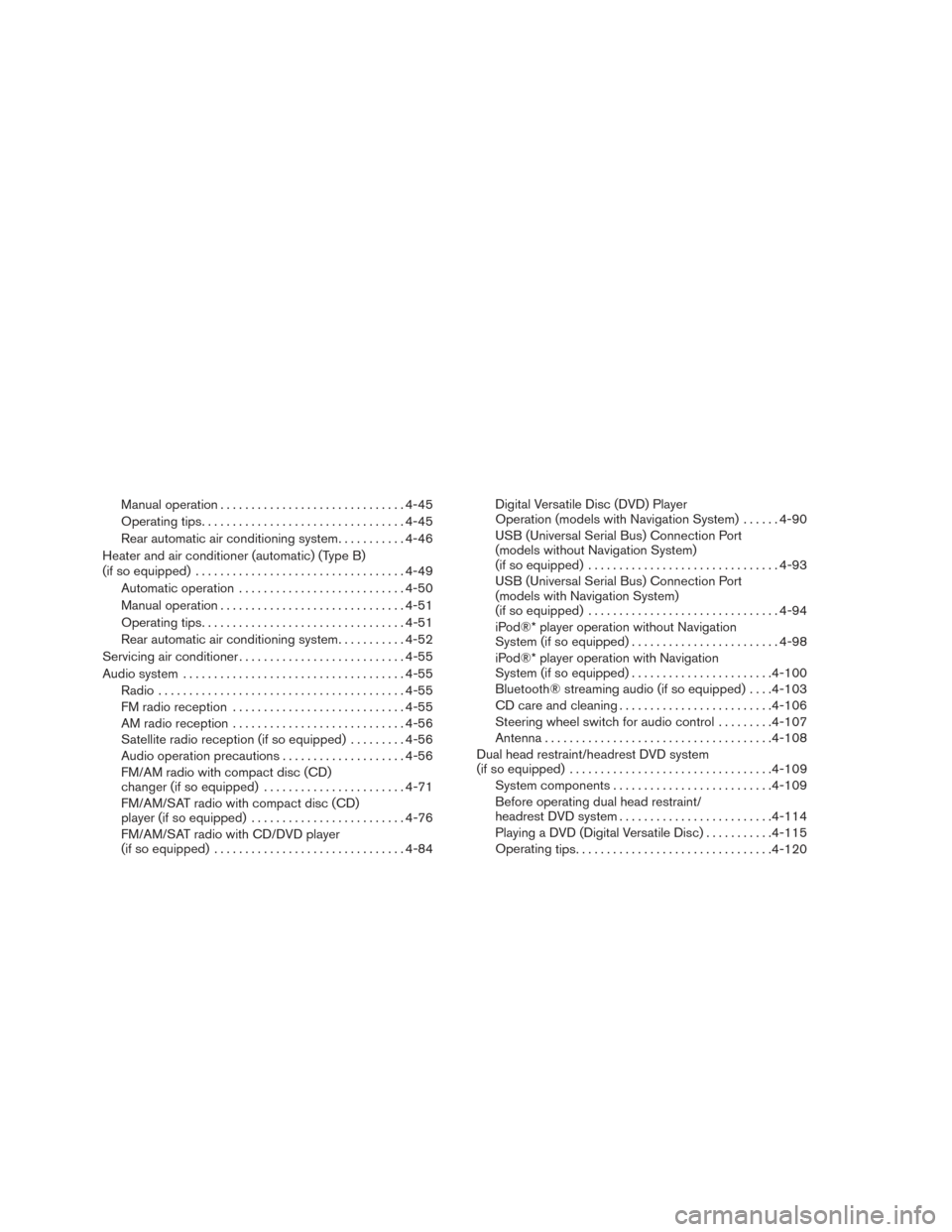

Manual operation.............................. 4-45
Operating tips ................................. 4-45
Rear automatic air conditioning system. . .........4-46
Heater and air conditioner (automatic) (Type B)
(if so equipped) .................................. 4-49
Automatic operation ........................... 4-50
Manual operation .............................. 4-51
Operating tips ................................. 4-51
Rear automatic air conditioning system. . .........4-52
Servicing air conditioner ........................... 4-55
Audio system .................................... 4-55
Radio ........................................ 4-55
FM radio reception ............................ 4-55
AM radio reception ............................ 4-56
Satellite radio reception (if so equipped) .........4-56
Audio operation precautions ....................4-56
FM/AM radio with compact disc (CD)
changer (if so equipped) .......................4-71
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-76
FM/AM/SAT radio with CD/DVD player
(if so equipped) ............................... 4-84Digital Versatile Disc (DVD) Player
Operation (models with Navigation System)
......4-90
USB (Universal Serial Bus) Connection Port
(models without Navigation System)
(if so equipped) ............................... 4-93
USB (Universal Serial Bus) Connection Port
(models with Navigation System)
(if so equipped) ............................... 4-94
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-98
iPod®* player operation with Navigation
System (if so equipped) ....................... 4-100
Bluetooth® streaming audio (if so equipped) ....4-103
CD care and cleaning ......................... 4-106
Steering wheel switch for audio control .........4-107
Antenna ..................................... 4-108
Dual head restraint/headrest DVD system
(if so equipped) ................................. 4-109
System components .......................... 4-109
Before operating dual head restraint/
headrest DVD system ......................... 4-114
Playing a DVD (Digital Versatile Disc) ...........4-115
Operating
tips................................ 4-120
Page 200 of 540

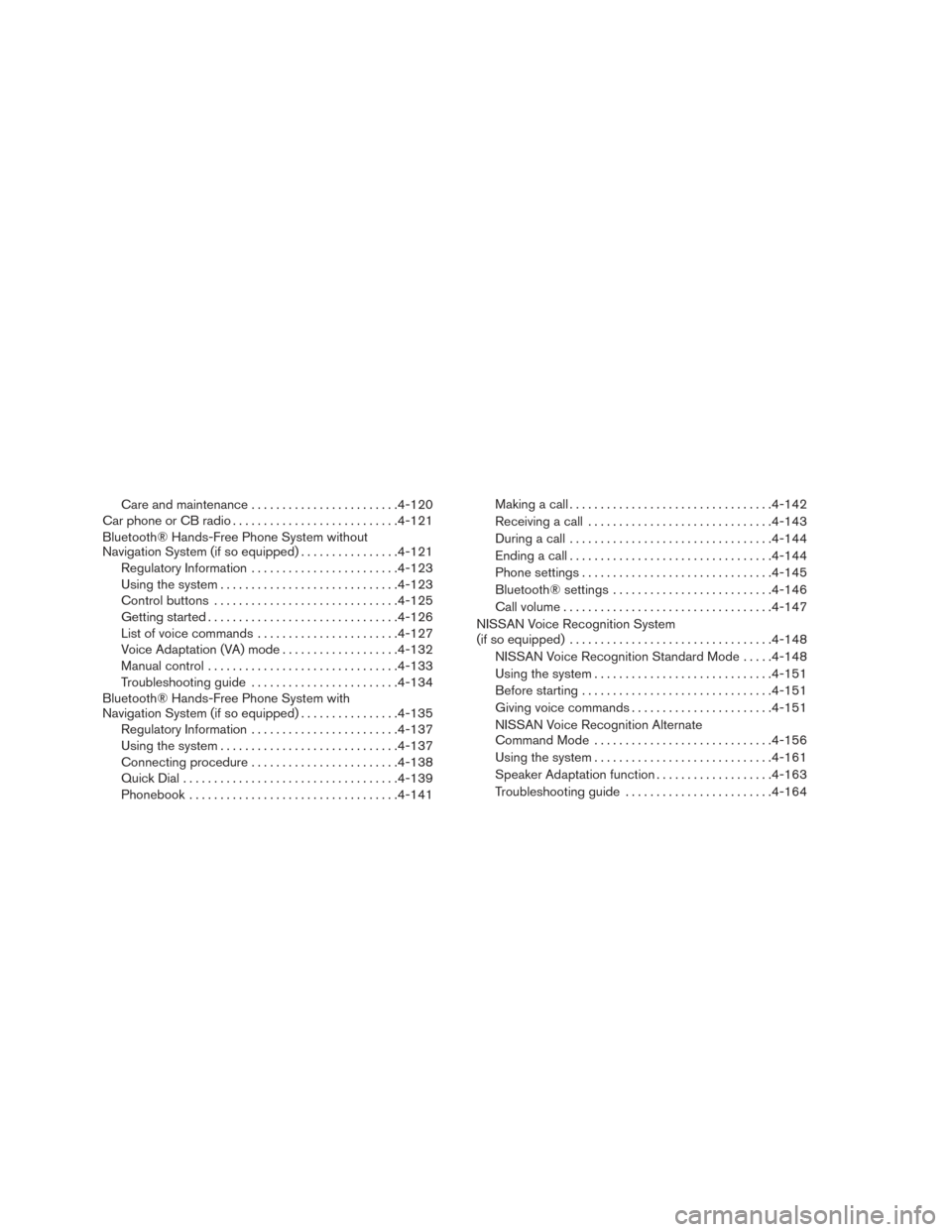

Care and maintenance........................ 4-120
Car phone or CB radio ........................... 4-121
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) ................4-121
Regulatory Information ........................ 4-123
Using the system ............................. 4-123
Control buttons .............................. 4-125
Getting started ............................... 4-126
List of voice commands ....................... 4-127
Voice Adaptation (VA) mode ...................4-132
Manual control ............................... 4-133
Troubleshooting guide ........................ 4-134
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-135
Regulatory Information ........................ 4-137
Using the system ............................. 4-137
Connecting procedure ........................ 4-138
Quick Dial ................................... 4-139
Phonebook .................................. 4-141Making a call .
................................ 4-142
Receiving a call .............................. 4-143
During a call ................................. 4-144
Ending a call ................................. 4-144
Phone settings ............................... 4-145
Bluetooth® settings .......................... 4-146
Call volume .................................. 4-147
NISSAN Voice Recognition System
(if so equipped) ................................. 4-148
NISSAN Voice Recognition Standard Mode .....4-148
Using the system ............................. 4-151
Before starting . . ............................. 4-151
Giving voice commands ....................... 4-151
NISSAN Voice Recognition Alternate
Command Mode ............................. 4-156
Using the system ............................. 4-161
Speaker Adaptation function ...................4-163
Troubleshooting guide ........................ 4-164
