NISSAN PATHFINDER 2017 R52 / 4.G Quick Reference Guide

9

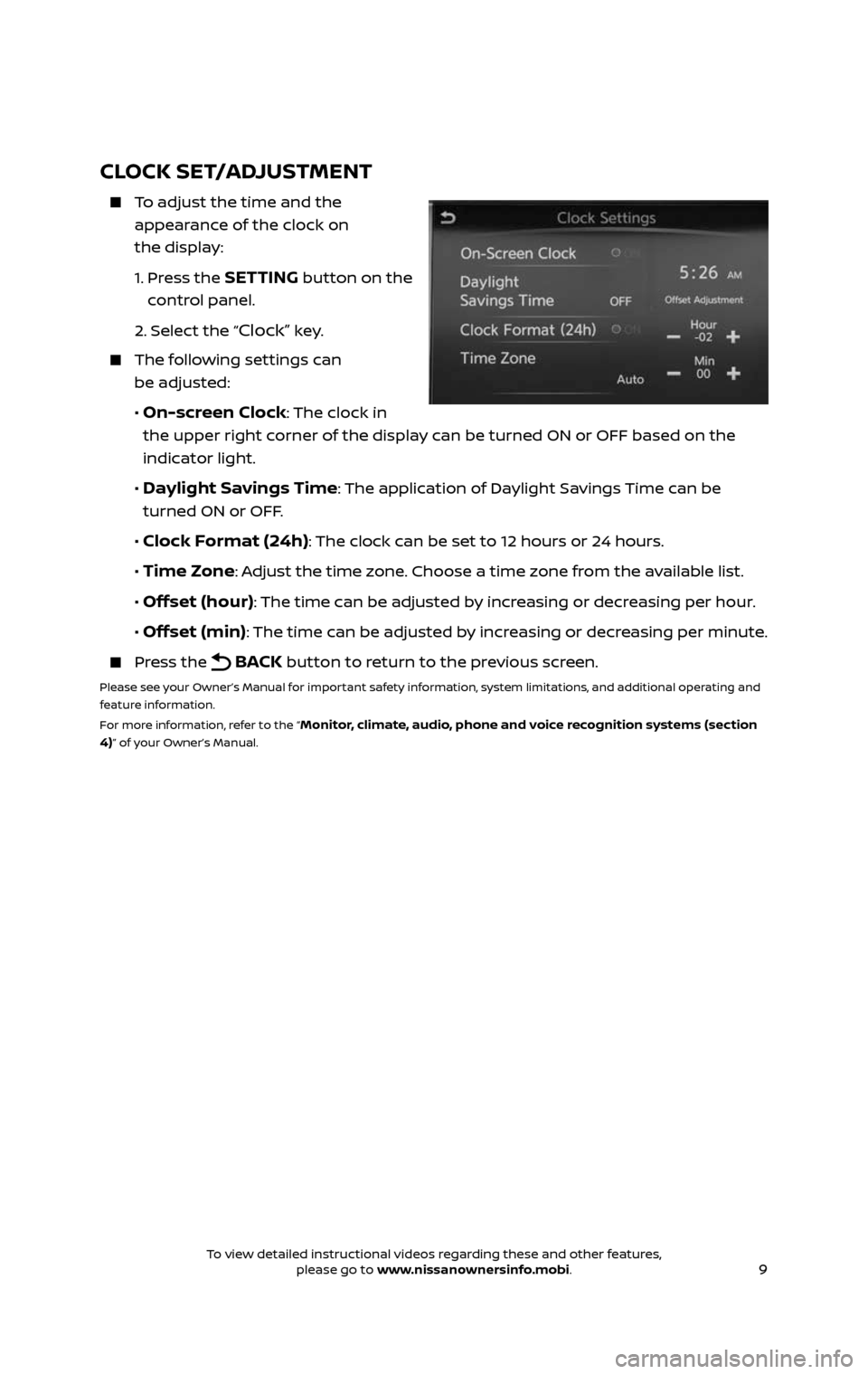

CLOCK SET/ADJUSTMENT
To adjust the time and the
appearance of the clock on
the display:
1. Press the SETTING button on the
control panel.
2. Select the “Clock” key.
The following settings can
be adjusted:
• On-screen Clock: The clock in
the upper right corner of the display can be turned ON or OFF based on the
indicator light.
• Daylight Savings Time: The application of Daylight Savings Time can be
turned ON or OFF.
• Clock Format (24h): The clock can be set to 12 hours or 24 hours.
• Time Zone: Adjust the time zone. Choose a time zone from the available list.
• Offset (hour): The time can be adjusted by increasing or decreasing per hour.
• Offset (min): The time can be adjusted by increasing or decreasing per minute.
Press the BACK button to return to the previous screen.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Monitor, climate, audio, phone and voice recognition systems (section
4)” of your Owner’s Manual.
2485215_17b_Pathfinder_pQRG_111816b.indd 911/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

10

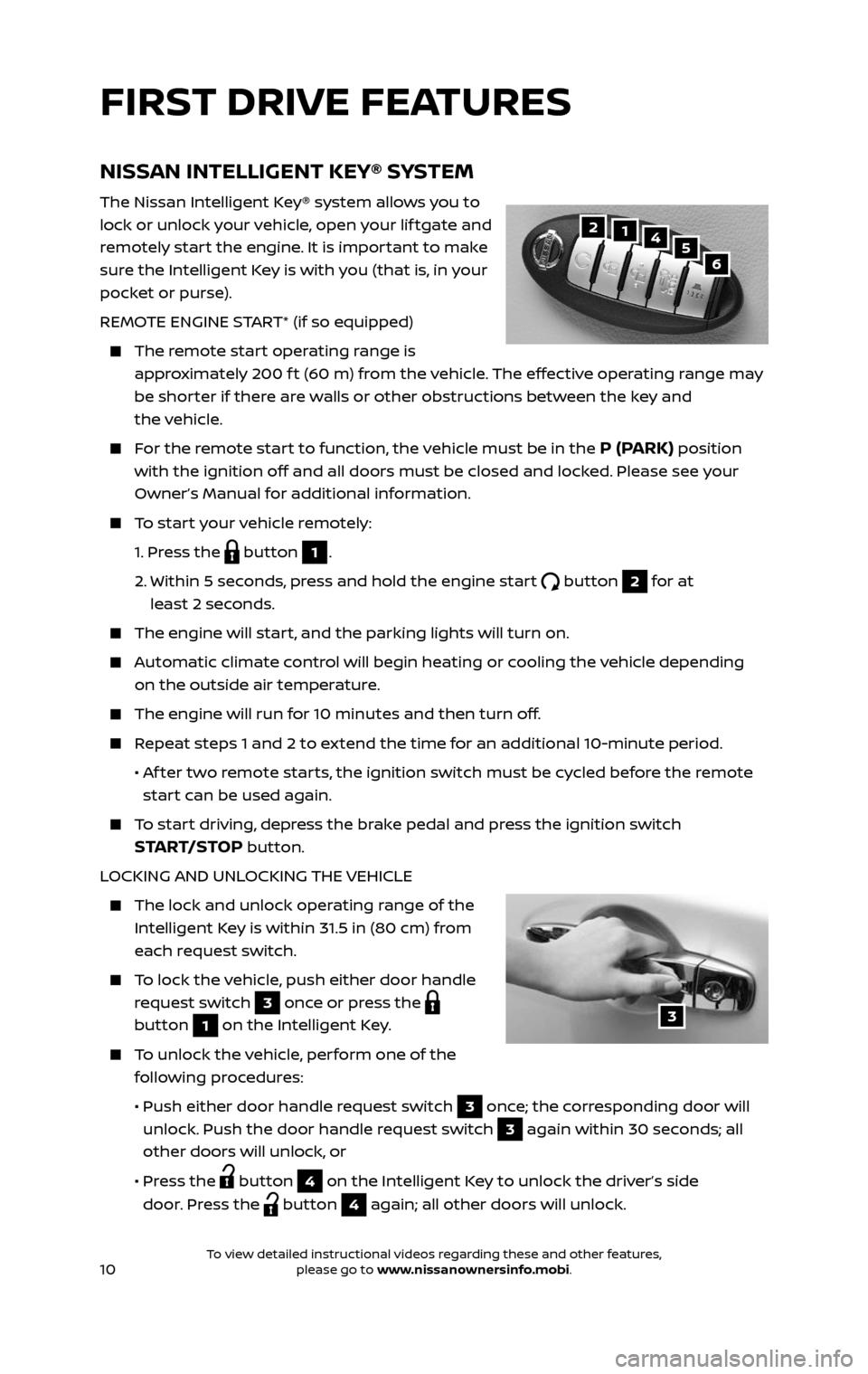

NISSAN INTELLIGENT KEY® SYSTEM
The Nissan Intelligent Key® system allows you to
lock or unlock your vehicle, open your lif tgate and
remotely start the engine. It is important to make
sure the Intelligent Key is with you (that is, in your
pocket or purse).
REMOTE ENGINE START* (if so equipped)
The remote start operating range is
approximately 200 f t (60 m) from the vehicle. The effective operating range may
be shorter if there are walls or other obstructions between the key and
the vehicle.
For the remote start to function, the vehicle must be in the P (PARK) position
with the ignition off and all doors must be closed and locked. Please see your
Owner’s Manual for additional information.
To start your vehicle remotely:
1. Press the button 1.
2. Within 5 sec onds, press and hold the engine start button 2 for at
least 2 seconds.
The engine wil l start, and the parking lights will turn on.
Automatic climate control will begin heating or cooling the vehicle depending
on the outside air temperature.
The engine will run for 10 minutes and then turn off.
Repeat steps 1 and 2 to extend the time for an additional 10-minute period.
• Af ter two remote starts, the ignition switch must be cycled before the remote
start can be used again.
To start driving, depress the brake pedal and press the ignition switch
START/STOP button.
LOCKING AND UNLOCKING THE VEHICLE
The lock and unlock oper ating range of the
Intelligent Key is within 31.5 in (80 cm) from
each request switch.
To lock the vehicle, push either door handle
request switch 3 once or press the
button 1 on the Intelligent Key.
To unlock the vehicle, perform one of the
following procedures:
• Push either door hand le request switch 3 once; the corresponding door will
unlock. Push the door handle request switch
3 again within 30 seconds; all
other doors will unlock, or
• Press the button 4 on the Intelligent Key to unlock the driver’s side
door. Press the
button 4 again; all other doors will unlock.
5124
6
FIRST DRIVE FEATURES
3
2485215_17b_Pathfinder_pQRG_111816b.indd 1011/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

11
LIFTGATE RELEASE (if so equipped)
To open the lif tgate, press the button 5 for longer than 1 second.
To close the lif tgate (if so equipped), press the button 5 again for longer
than 1 second.
PANIC ALARM
The Intel ligent Key can also be used to activate the panic alarm by pressing and
holding the button 6 for more than 1 second. Once activated, the panic
alarm and headlights will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE
If the bat tery of the Intelligent Key is discharged or environmental
conditions interfere with the Intelligent Key operation, start the engine
according to the following procedure:
1. Move the shif t lever to the
P (PARK) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the
Intelligent Key, and a chime will sound.
4. Within 10 sec onds af ter the chime sounds,
press the ignition switch START/STOP
button while depressing the brake pedal and the engine will start.
*State laws may apply; review local laws before using.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Pre-driving checks and adjustments (section 3)”, the “Starting and
driving (section 5)” and the “Do-it-yourself (section 8)” of your Owner’s Manual.
POWER LIFTGATE (if so equipped)
When the lif tgate is closed and locked, the
lif tgate will open automatically by:
• Pushing the power lif tgate switch 1 on
the instrument panel.
• Pushing the lif tgate opener switch 2;
the lif tgate must be unlocked, or you must
have the Intelligent Key with you (that is, in
your pocket or purse).
• Pressing the button 3 on the Nissan
Intelligent Key® for more than 1 second.
The power lif tgate operation can be
turned on or off by the power lif tgate main
switch
4 on the instrument panel.
• When the power lif tgate main switch
4 is pushed to the OFF position, power
operation is not available using the power
lif tgate switch on the lif tgate
5 or the lif tgate opener switch 2 .
14
53
2
2485215_17b_Pathfinder_pQRG_111816b.indd 1111/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

12
FIRST DRIVE FEATURES
STARTING/STOPPING THE ENGINE
It is important to make sure the Nissan Intelligent
Key® is with you (that is, in your pocket or purse).
Depress the brake pedal.
Press the ignition switch START/STOP
button to start the engine.
TURNING THE ENGINE OFF
Move the shif t lever to the P (PARK) position
and apply the parking brake.
Press the ignition switch START/STOP button to turn the engine off.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Starting and driving (section 5)” of your Owner’s Manual.
LIFTGATE POSITION SETTING (if so equipped)
The liftgate can be set to open to a specific height by performing the
following procedure:
1. Open the lif tgate using the request switch or the Intelligent Key.
2. Pull the lif tgate down to the desired position and hold the lif tgate (the lif tgate
will have some resistance when being manually adjusted).
3. While holding the lif tgate in position, press and hold the power lif tgate switch
5 located on the lif tgate for approximately 5 seconds or until three beeps
are heard.
The liftgate will open to the selected position. To change the position of the
lif tgate, repeat steps 1 through 3 for setting the position of the lif tgate.
MOTION-ACTIVATED LIFTGATE (if so equipped)
Motion-Activated Lif tgate operation is
achieved by quickly swinging your leg and
foot straight under the active region
6,
then returning your foot immediately to the
ground in a continuous motion (no pause).
For this feature to work, you must have the
Nissan Intelligent Key within range of the lif tgate (80 cm or 31.5 in), that is in your
hand, pocket or purse.
DO NOT:
• Make physical contact with the underside of the vehicle.
• Hold y our foot under the bumper (no pausing).
• Swing your foot at an angle to the bumper.
• Swipe your foot from side to side.
Af ter 2 seconds, if you have performed the operation correctly, the vehicle will
beep three times and the lif tgate will open.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
ACTIVE REGION
6
2485215_17b_Pathfinder_pQRG_111816b.indd 1211/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13
123
2ND ROW SEATS
To slide the seat forward or backward, pull
the center of the bar
1 up and hold it while
you slide the seat forward or backward to the
desired position. Release the bar
1 to lock
the seat in position.
To recline the seatback, pull up on the recline
handle 2 and lean back. To bring the
seatback forward, pull the lever
2 up and
lean your body forward. Release the lever
2
to lock the seatback in position.
CHILD SEAT ACCESS MODE
This feature is not available on the driver’s side of the 2nd row seat.
If a child saf ety seat is installed on the passenger’s side of the 2nd row seat,
the 3rd row can be accessed without removing the child safety seat.
To access the 3rd row from outside the vehicle, lif t up on the seatback release
lever
3 and move the seat toward the front of the vehicle.
MULTI-MODE
To enter the 3rd row from outside the vehicle, lif t up fully on the seatback release
lever
3. This will release the back of the seat and fold up the seat cushion.
For access to the rear seat, slide the entire seat forward by pushing on the upper
seatback area.
To return the seat to a locked position, push the upper seatback rearward until
the seatback and track are locked. Push the seat cushion down. Locking the
seatback will also lock the track.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Safety—Seats, seat belts and supplemental restraint system (section 1)”
of your Owner’s Manual.
2
3
1
FRONT POWER SEAT ADJUSTMENTS (if so equipped)
To slide the seat forward or backward, push the switch 1 forward or backward.
To recline the seatback, push the switch 2
forward or backward.
SEAT LIFTER (driver’s seat)
To raise or lower the front portion or height of the seat, push the front or back end of the
switch 1 up or down.
POWER LUMBAR SUPPORT (if so equipped for driver’s seat)
To adjust the seat lumbar support, push the front or back end of the switch 3.Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Safety — Seats, seat belts and supplemental restraint system
(section 1)” of your Owner’s Manual.
2485215_17b_Pathfinder_pQRG_111816b.indd 1311/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

14
FIRST DRIVE FEATURES
AUTOMATIC DRIVE POSITIONER (if so equipped)
Two positions for the driver’s seat, steering column (if so equipped) and outside
mirrors can be stored in the automatic drive positioner memory.
Follow this procedure to set the memory positions:
1. Place the ignition switch in the ON or ACC position. (The vehicle should be
stopped while setting the memory.)
2. Adjust the driver’s seat, steering column (if so equipped) and outside mirrors
to the desired positions using the adjusting switches for each feature.
3. Push the SET switch 1, and within 5
seconds, push the memory switch (1 or 2).
4. The indic ator light for the selected memory
switch will illuminate for approximately 5
seconds and a chime will sound when the
memory is stored.
5. The driver’s seat, steering column (if so equipped) and outside mirror positions
are now set to your preferences.
6. These memoriz ed positions can also be linked to your Nissan Intelligent Key®.
To link a memorized position to your Nissan Intelligent Key®, press the unlock
button on the key fob af ter completing the previous step.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
3RD ROW SEATS
To recline the seatback, pull up on
the latch 1 located on the outside
corner of each seatback. Lean back
until the desired angle is obtained.
To bring the seatback forward again, pull up
on the latch 1 and move your body forward. The seatback will move forward.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Safety—Seats, seat belts and supplemental restraint system (section 1)”
of your Owner’s Manual.
1
2485215_17b_Pathfinder_pQRG_111816b.indd 1411/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

15

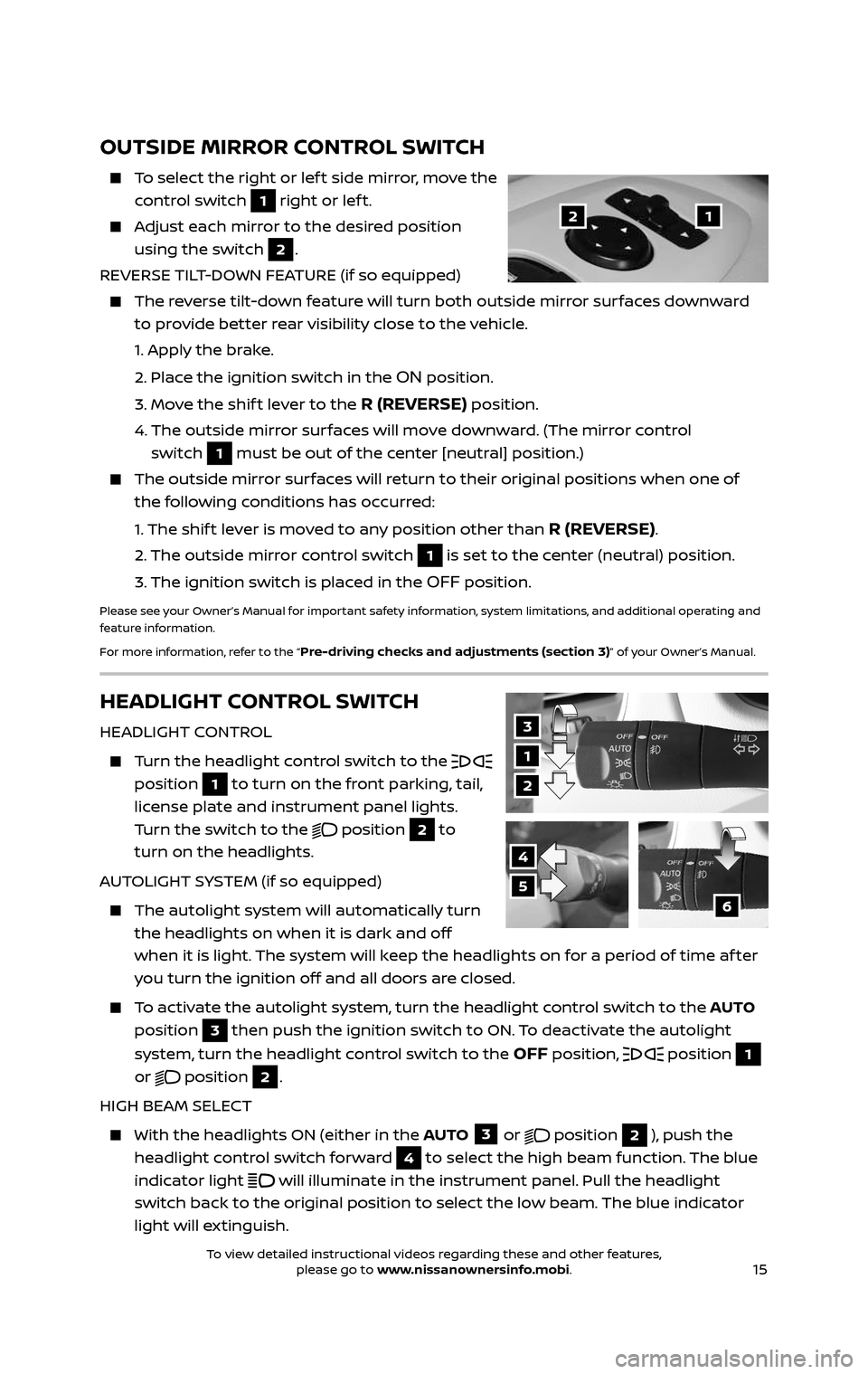

OUTSIDE MIRROR CONTROL SWITCH
To select the right or lef t side mirror, move the
control switch 1 right or lef t.
Adjust each mirror to the desired position
using the switch 2.
REVERSE TILT-DOWN FEATURE (if so equipped)
The reverse tilt-down feature will turn both outside mirror surfaces downward
to provide better rear visibility close to the vehicle.
1. Apply the brake.
2. Place the ignition switch in the ON position.
3. Move the shif t lever to the R (REVERSE) position.
4. The outside mirr or surfaces will move downward. (The mirror control
switch
1 must be out of the center [neutral] position.)
The outside mirr or surfaces will return to their original positions when one of
the following conditions has occurred:
1. The shift lever is moved to any position other than R (REVERSE).
2. The outside mirr or control switch 1 is set to the center (neutral) position.
3. The ignition switch is plac ed in the OFF position.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
12
HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL
Turn the headlight control switch to the
position 1 to turn on the front parking, tail,
license plate and instrument panel lights.
Turn the switch to the
position 2 to
turn on the headlights.
AUTOLIGHT SYSTEM (if so equipped)
The autolight system wil l automatically turn
the headlights on when it is dark and off
when it is light. The system will keep the headlights on for a period of time af ter
you turn the ignition off and all doors are closed.
To activate the autolight system, turn the headlight control switch to the AUTO
position
3 then push the ignition switch to ON. To deactivate the autolight
system, turn the headlight control switch to the
OFF position, position 1
or
position 2.
HIGH BEAM SELECT
With the he adlights ON (either in the AUTO 3 or position 2 ), push the
headlight control switch forward
4 to select the high beam function. The blue
indicator light
will illuminate in the instrument panel. Pull the headlight
switch back to the original position to select the low beam. The blue indicator
light will extinguish.
3
1
2
4
56
2485215_17b_Pathfinder_pQRG_111816b.indd 1511/18/16 1:45 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

16

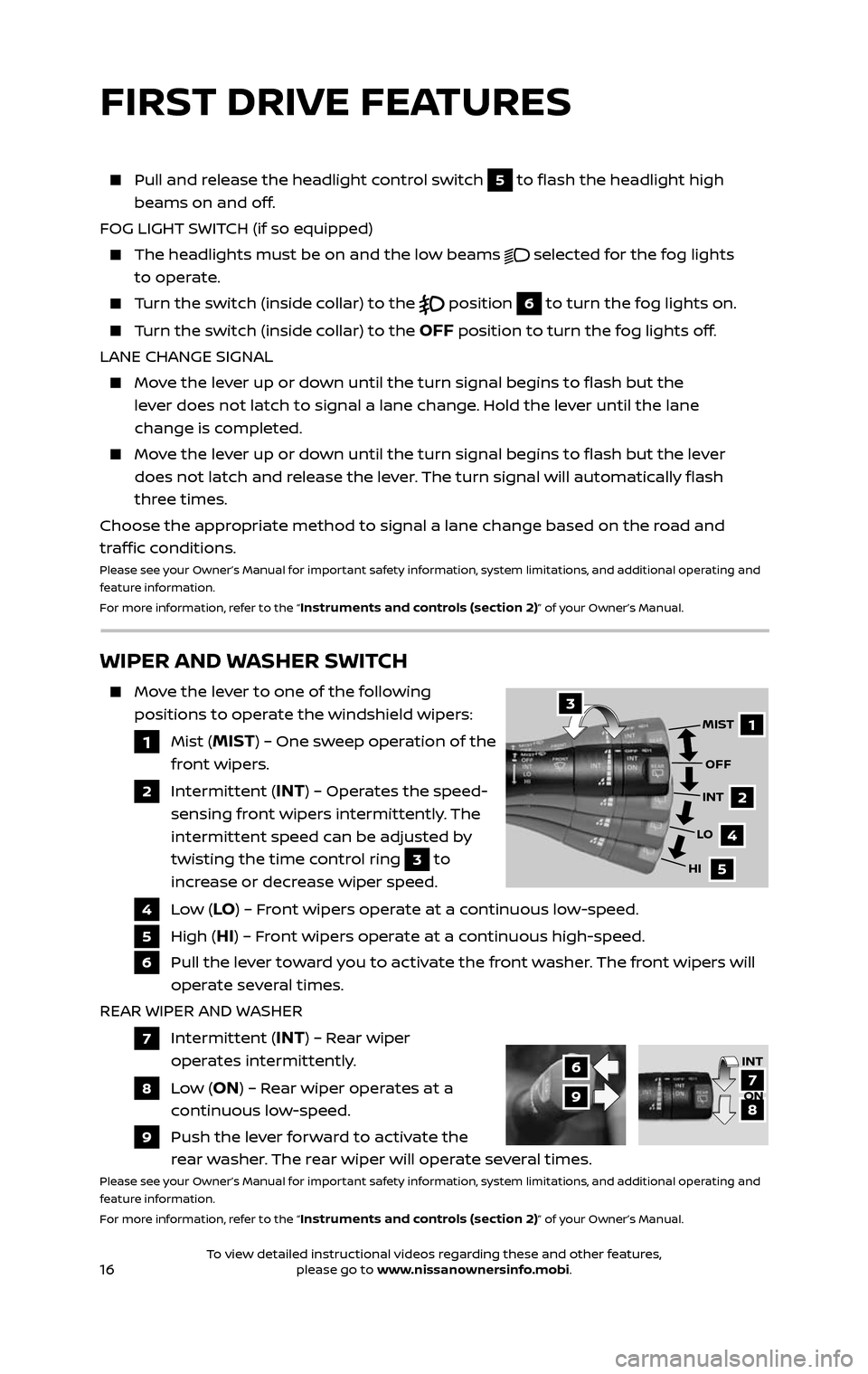

WIPER AND WASHER SWITCH
Move the lever to one of the following
positions to operate the windshield wipers:
1 Mist (MIST) – One sweep operation of the
front wipers.
2 Intermittent (INT) – Operates the speed-
sensing front wipers intermittently. The
intermittent speed can be adjusted by
twisting the time control ring
3 to
increase or decrease wiper speed.
4 Low (LO) – Front wipers operate at a continuous low-speed.
5 High (HI) – Front wipers operate at a continuous high-speed.
6 Pull the lever toward you to activate the front washer. The front wipers will
operate several times.
REAR WIPER AND WASHER
7 Intermittent (INT) – Rear wiper
operates intermittently.
8 Low (ON) – Rear wiper operates at a
continuous low-speed.
9 Push the lev er forward to activate the
rear washer. The rear wiper will operate several times.Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Instruments and controls (section 2)” of your Owner’s Manual.
1
2
4
5
MIST
OFF
INT
LO
HI3
6
97
8
INT
ON
FIRST DRIVE FEATURES
Pull and release the headlight control switch 5 to flash the headlight high
beams on and off.
FOG LIGHT SWITCH (if so equipped)
The headlights must be on and the low beams selected for the fog lights
to operate.
Turn the switch (inside collar) to the position 6 to turn the fog lights on.
Turn the switch (inside collar) to the OFF position to turn the fog lights off.
LANE CHANGE SIGNAL
Move the lever up or down until the turn signal begins to flash but the
lever does not latch to signal a lane change. Hold the lever until the lane
change is completed.
Move the lever up or down until the turn signal begins to flash but the lever
does not latch and release the lever. The turn signal will automatically flash
three times.
Choose the appropriate method to signal a lane change based on the road and
traffic conditions.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Instruments and controls (section 2)” of your Owner’s Manual.
2485215_17b_Pathfinder_pQRG_111816b.indd 1611/18/16 1:45 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

17
123
5
7
9
6
8
4
HEATER AND AIR CONDITIONER (automatic)
1 AUTO BUTTON/DRIVER’S SIDE TEMPER ATURE CONTROL DIAL
The auto mode may be used year-round. Press the AUTO button to turn
the system on, and the system will automatically control the inside
temperature (automatic cooling and/or dehumidified heating), air flow
distribution and fan speed.
Turn the driver ’s side temperature control dial to the lef t for cooler air or to
the right for warmer air.
2 DUAL BUTTON/PASSENGER’S SIDE TEMPERATURE CONTROL DIAL
Press the DUAL button to turn the passenger ’s side temperature controls
on or off. This will allow the passenger ’s side temperature to be adjusted
independently from the driver ’s side by turning the passenger ’s side
temperature control dial.
Turn the passenger ’s side temperature control dial lef t for cooler air or right
for warmer air.
USB (Universal Serial Bus) CONNECTION PORT/iPod®
INTERFACE (if so equipped)
The USB por ts 1 are located in the center
console under the armrest.
When a c ompatible USB memory device or
iPod® is plugged into the USB port:
• A confirmation message appears. Select
“ Yes” if you prefer to use the device with Voice Recognition in which song titles
and artist names are registered in the system.
• Compatible audio files stored on the device can be played through the
vehicle’s audio system and front display.
If two USB devices are plugged in at the same time, the device that was plugged
in first can play music in the vehicle while the second device will only charge. To
play music on the second device, unplug both and plug the second device in first.
This vehicle is equipped with AUDIO IN and VIDEO IN inputs 2. This will allow
you to play audio and video through your vehicle from an external source.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Monitor, climate, audio, phone and voice recognition systems (section
4)” of your Owner’s Manual.
12
2485215_17b_Pathfinder_pQRG_111816b.indd 1711/18/16 1:45 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

18
FIRST DRIVE FEATURES
3 ON•OFF BUTTON/FAN SPEED CONTROL DIAL
Turn the fan speed control dial lef t to decrease fan speed or right to increase
fan speed.
Press the ON•OFF button to turn the system on or off.
4 MODE BUTTON
Press the MODE button to cycle through the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side and foot vents.
Air flows mainly from the foot vents.
Air flows from the front defroster and foot vents.
5 AIR RECIRCULATION BUTTON
Press the air recirculation button to recirculate interior air inside the
vehicle. The indicator light on the button will illuminate. This system is used to
avoid certain outside odors and to help adjust the inside vehicle temperature
more effectively.
The air recirculation mode cannot be activated when the climate control
system is in the front defroster mode .
6 REAR AIR CONDITIONER
To control the rear automatic air
conditioning system with the front air
conditioner control panel:
• Turn on the front climate control system
by pressing the ON•OFF button 3.
• Pr ess the REAR ON•OFF button.
When the r ear automatic air conditioning
system is on, the indicator light on the REAR ON•OFF button will illuminate.
To display the “Rear Air-conditioning” screen:
• Press the CLIMATE button.
• Touch the “Rear CLIMATE” key.
• Use the on-scr een keys to adjust temperature, system on/off, fan speed and
automatic functions.
To turn off the rear automatic air conditioning system from the front controls,
press the REAR ON•OFF button.
The rear passenger controls and system are unavailable until the REAR
ON•OFF button is illuminated.
7 DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Press the front defroster button to turn the system on. The A/C
automatically turns on when the front defroster mode is selected. This
feature removes humidity from the air.
Turn the temperature control dial 1 to set the desired temperature.
To defrost the front and side windows, set the temperature control 1 and
fan speed control
3 to their maximum settings.
2485215_17b_Pathfinder_pQRG_111816b.indd 1811/18/16 1:45 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
