Page 291 of 474

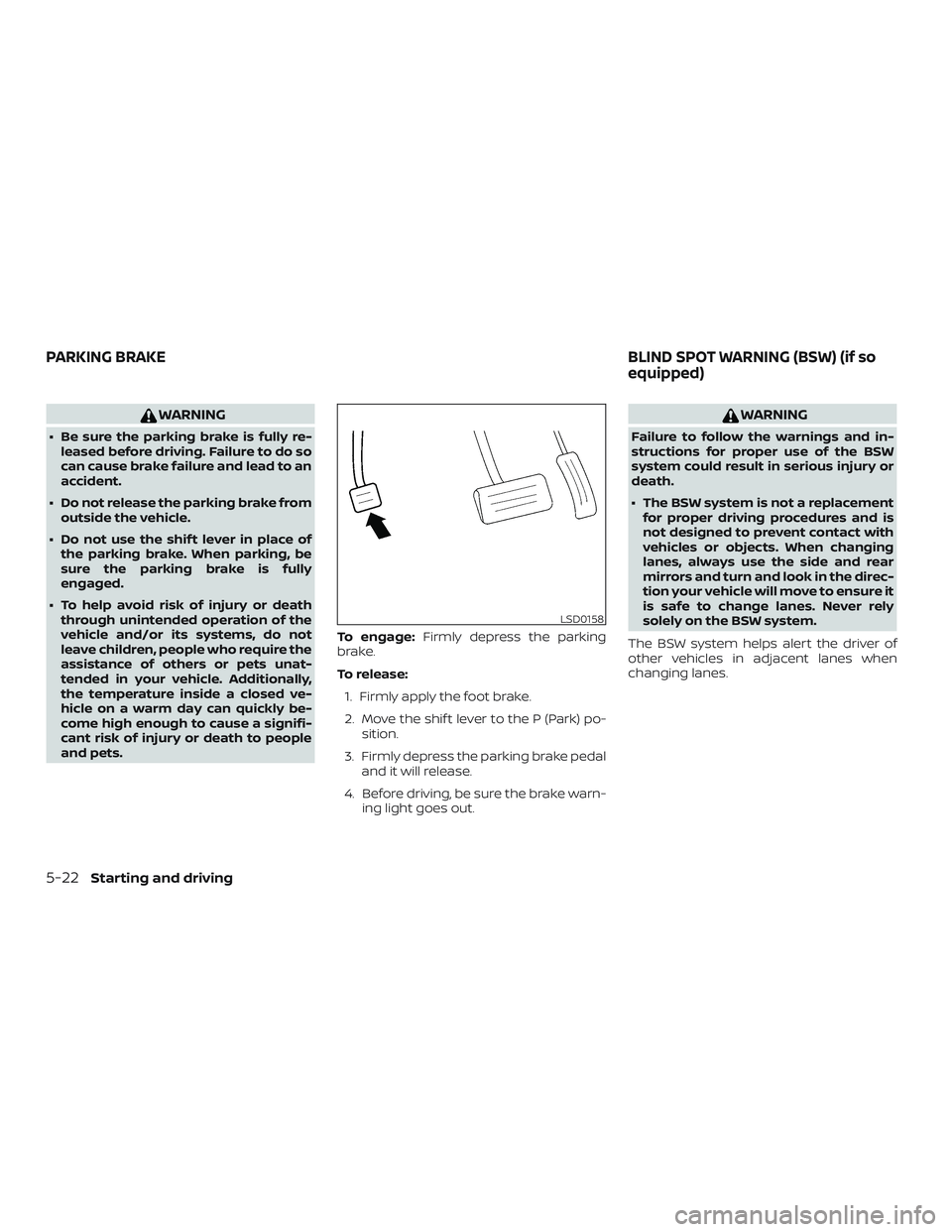

NISSAN PATHFINDER 2018  Owner´s Manual WARNING
∙ Be sure the parking brake is fully re-leased before driving. Failure to do so
can cause brake failure and lead to an
accident.
∙ Do not release the parking brake from outside the vehicle

Page 292 of 474

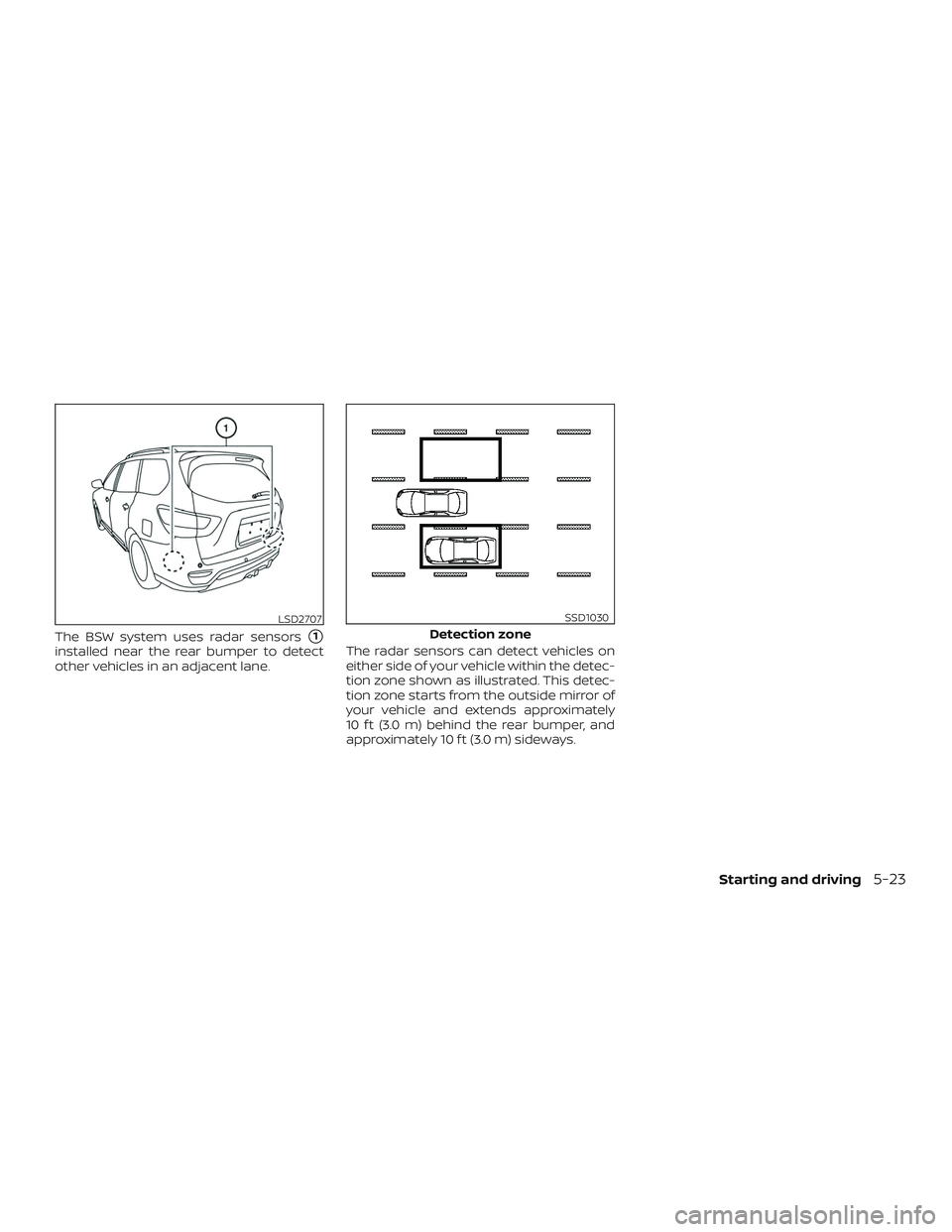

NISSAN PATHFINDER 2018  Owner´s Manual The BSW system uses radar sensors1
installed near the rear bumper to detect
other vehicles in an adjacent lane.The radar sensors can detect vehicles on
either side of your vehicle within the detec-
t

Page 293 of 474

NISSAN PATHFINDER 2018  Owner´s Manual 1. Side BSW/RCTA Indicator Light
2. BSW/RCTA Indicator
BSW SYSTEM OPERATION
The BSW system operates above approxi-
mately 20 mph (32km/h).
If the radar sensors detect a vehicle in the
detection zone,

Page 294 of 474

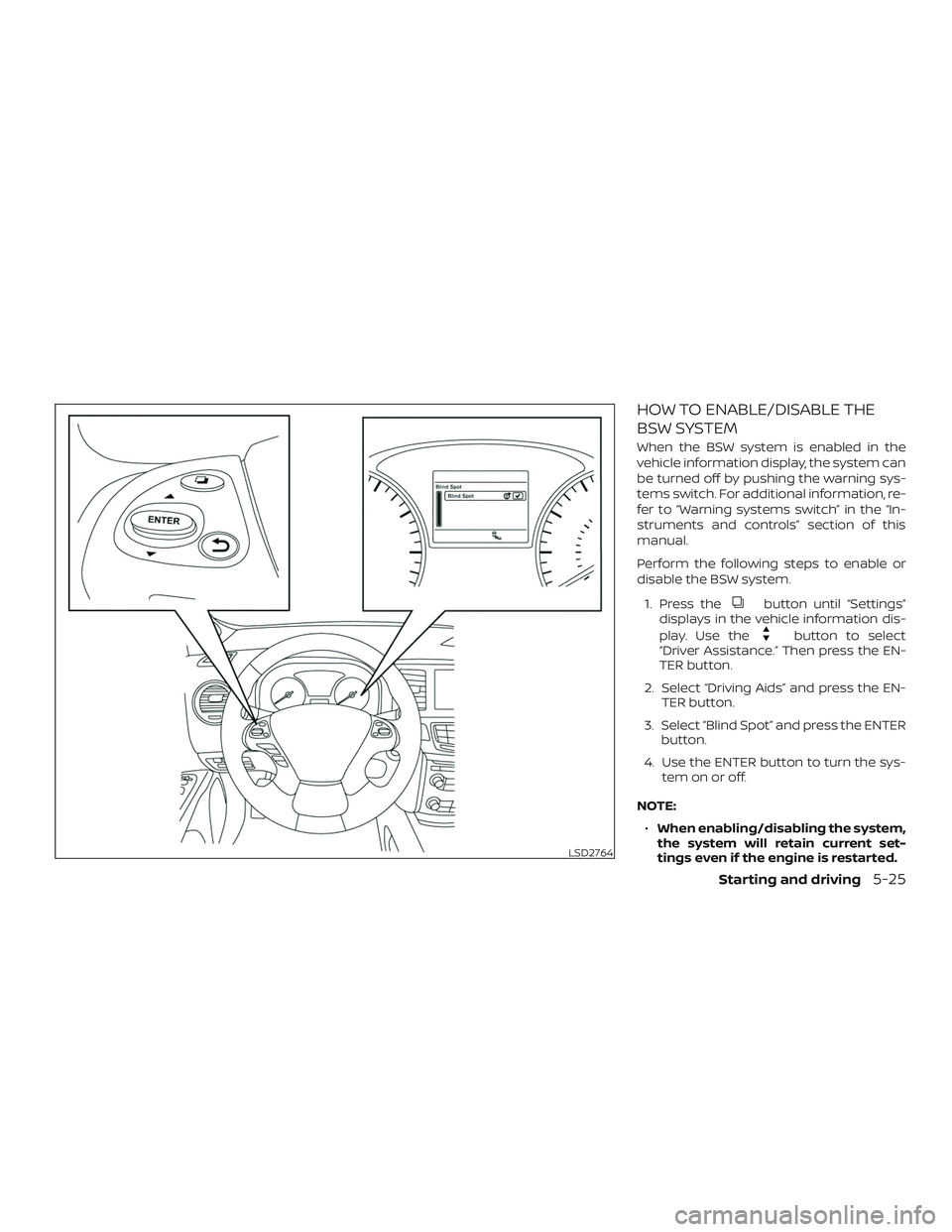

NISSAN PATHFINDER 2018  Owner´s Manual HOW TO ENABLE/DISABLE THE
BSW SYSTEM
When the BSW system is enabled in the
vehicle information display, the system can
be turned off by pushing the warning sys-
tems switch. For additional information

Page 295 of 474

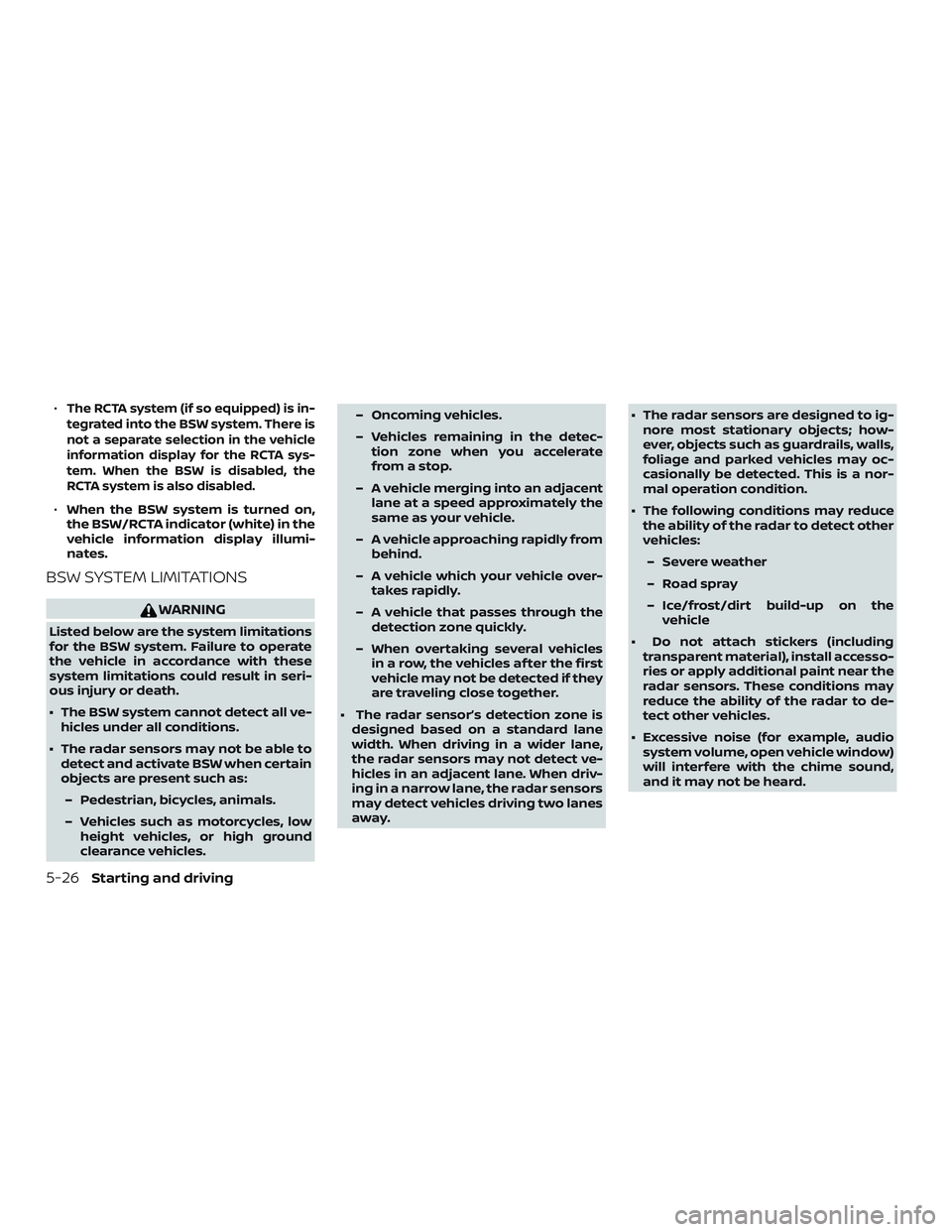

NISSAN PATHFINDER 2018  Owner´s Manual ∙The RCTA system (if so equipped) is in-
tegrated into the BSW system. There is
not a separate selection in the vehicle
information display for the RCTA sys-
tem. When the BSW is disabled, the
RCTA

Page 296 of 474

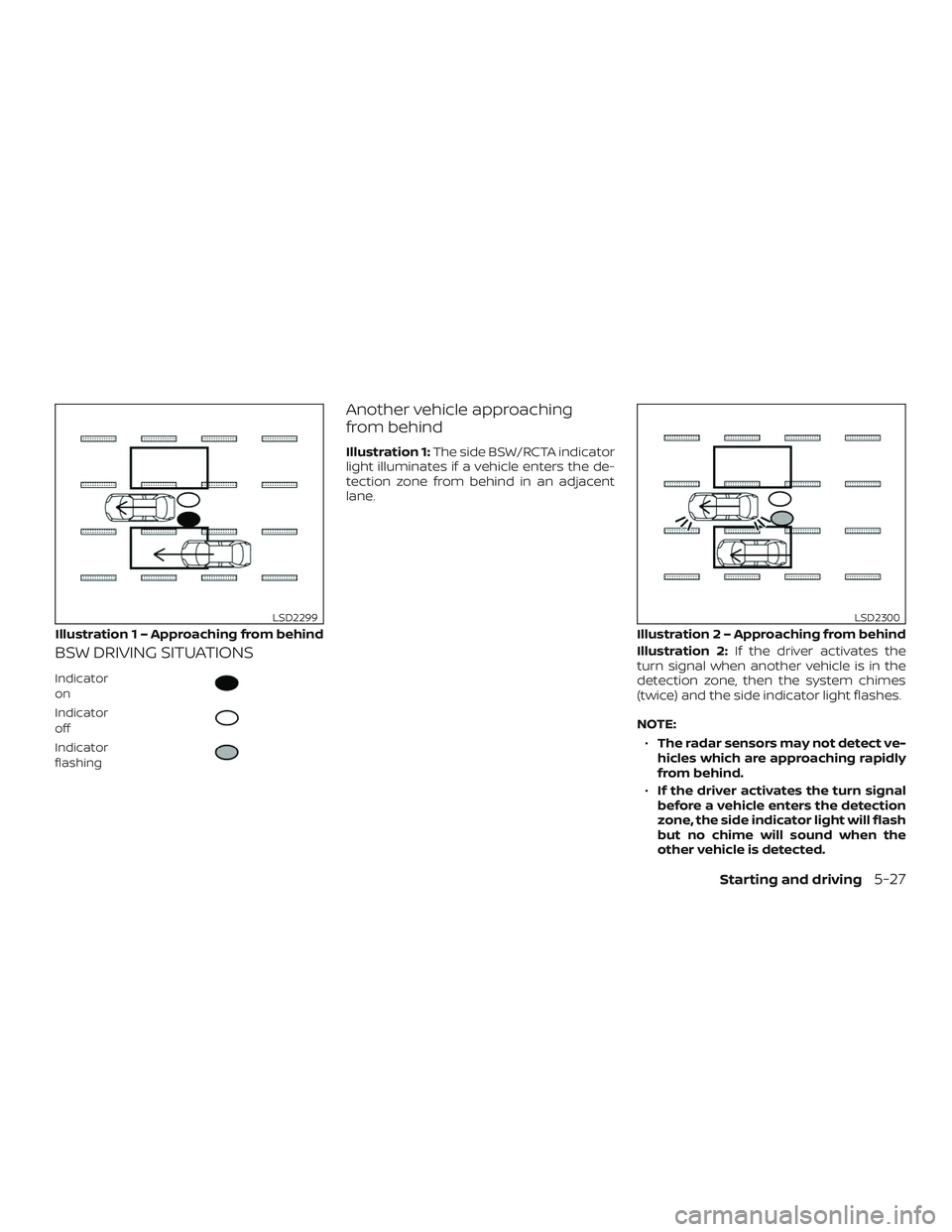

NISSAN PATHFINDER 2018  Owner´s Manual BSW DRIVING SITUATIONS
Indicator
on
Indicator
off
Indicator
flashing
Another vehicle approaching
from behind
Illustration 1:The side BSW/RCTA indicator
light illuminates if a vehicle enters the de-
te

Page 297 of 474

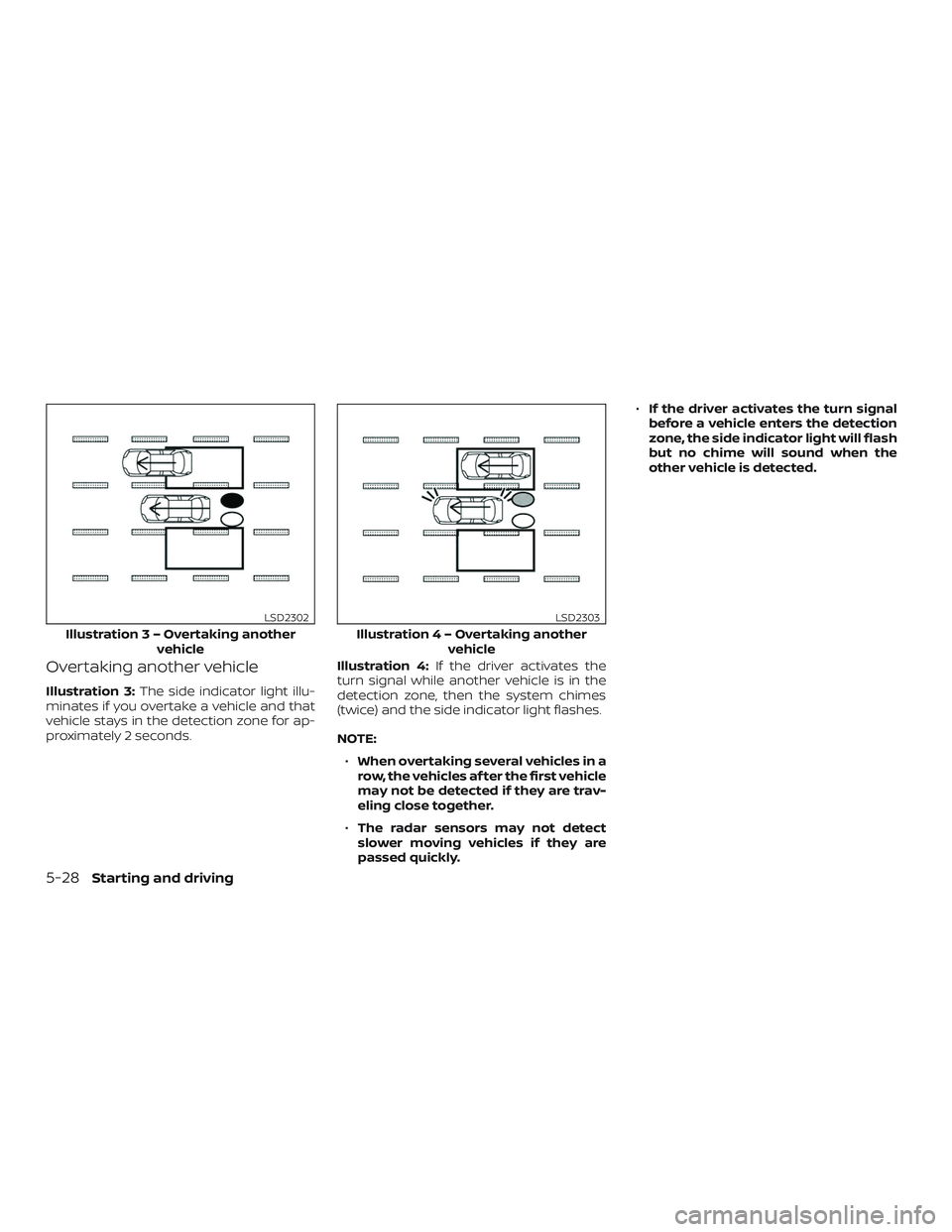

NISSAN PATHFINDER 2018  Owner´s Manual Overtaking another vehicle
Illustration 3:The side indicator light illu-
minates if you overtake a vehicle and that
vehicle stays in the detection zone for ap-
proximately 2 seconds. Illustration 4:
I

Page 298 of 474

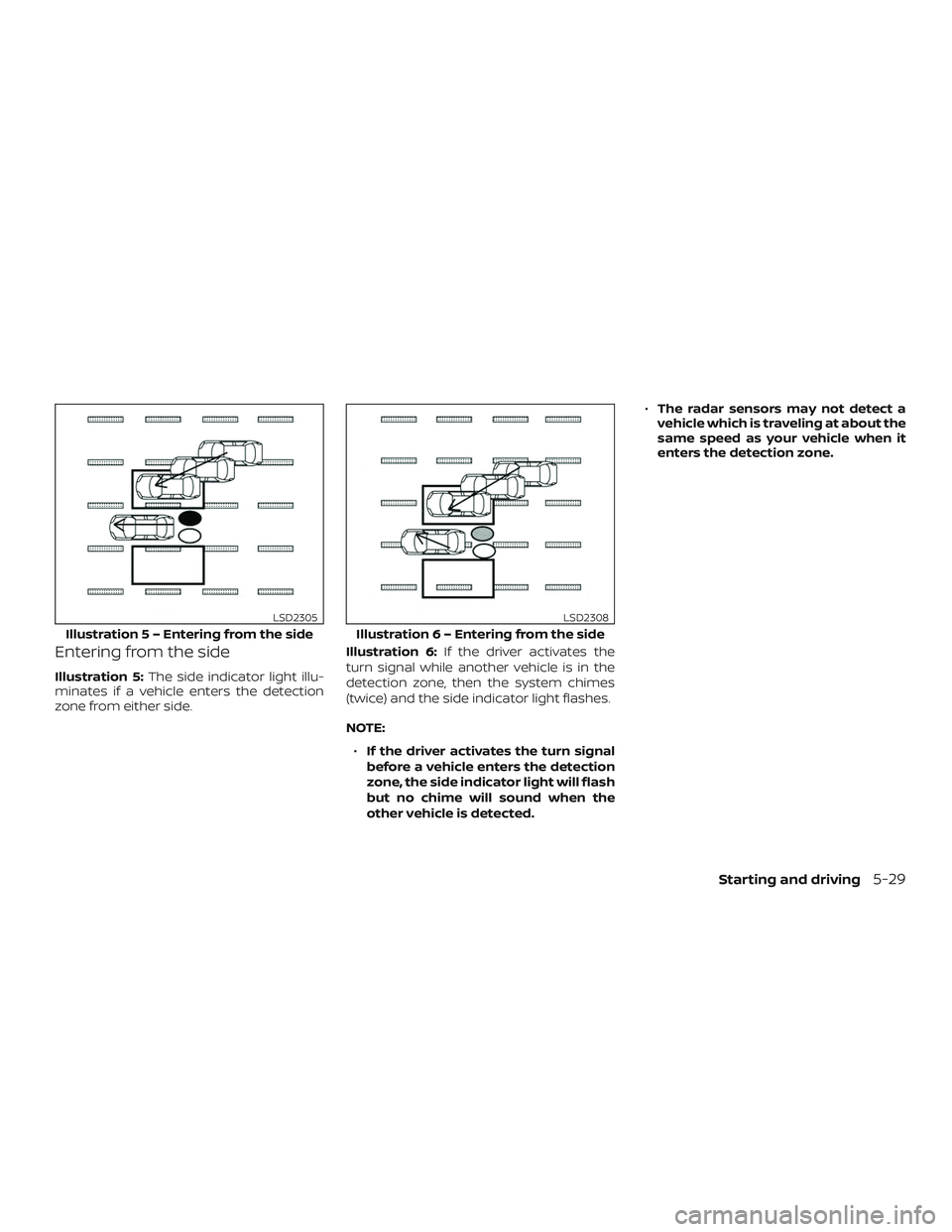

NISSAN PATHFINDER 2018  Owner´s Manual Entering from the side
Illustration 5:The side indicator light illu-
minates if a vehicle enters the detection
zone from either side. Illustration 6:
If the driver activates the
turn signal while anot

Page 299 of 474

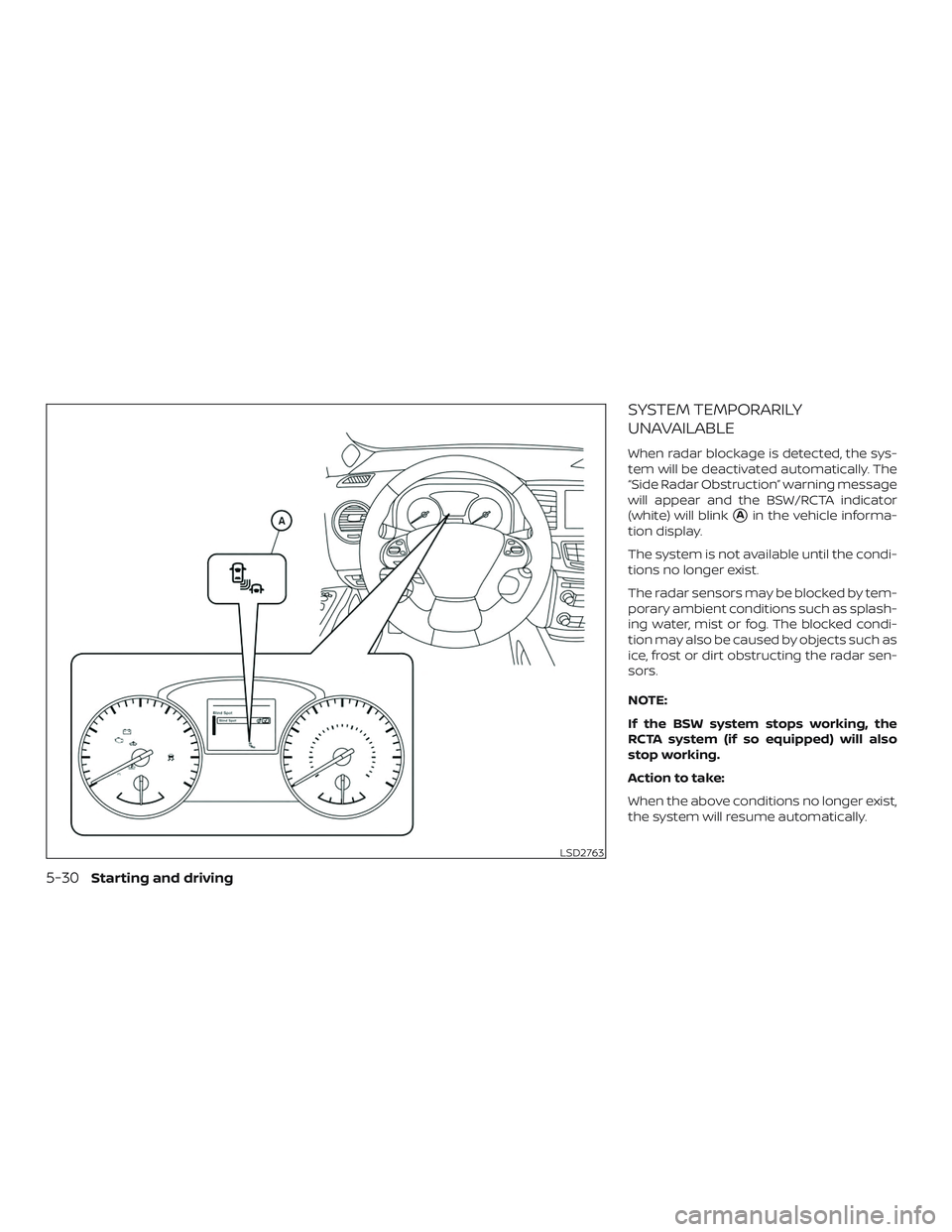

NISSAN PATHFINDER 2018  Owner´s Manual SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the sys-
tem will be deactivated automatically. The
“Side Radar Obstruction” warning message
will appear and the BSW/RCTA indicator

Page 300 of 474

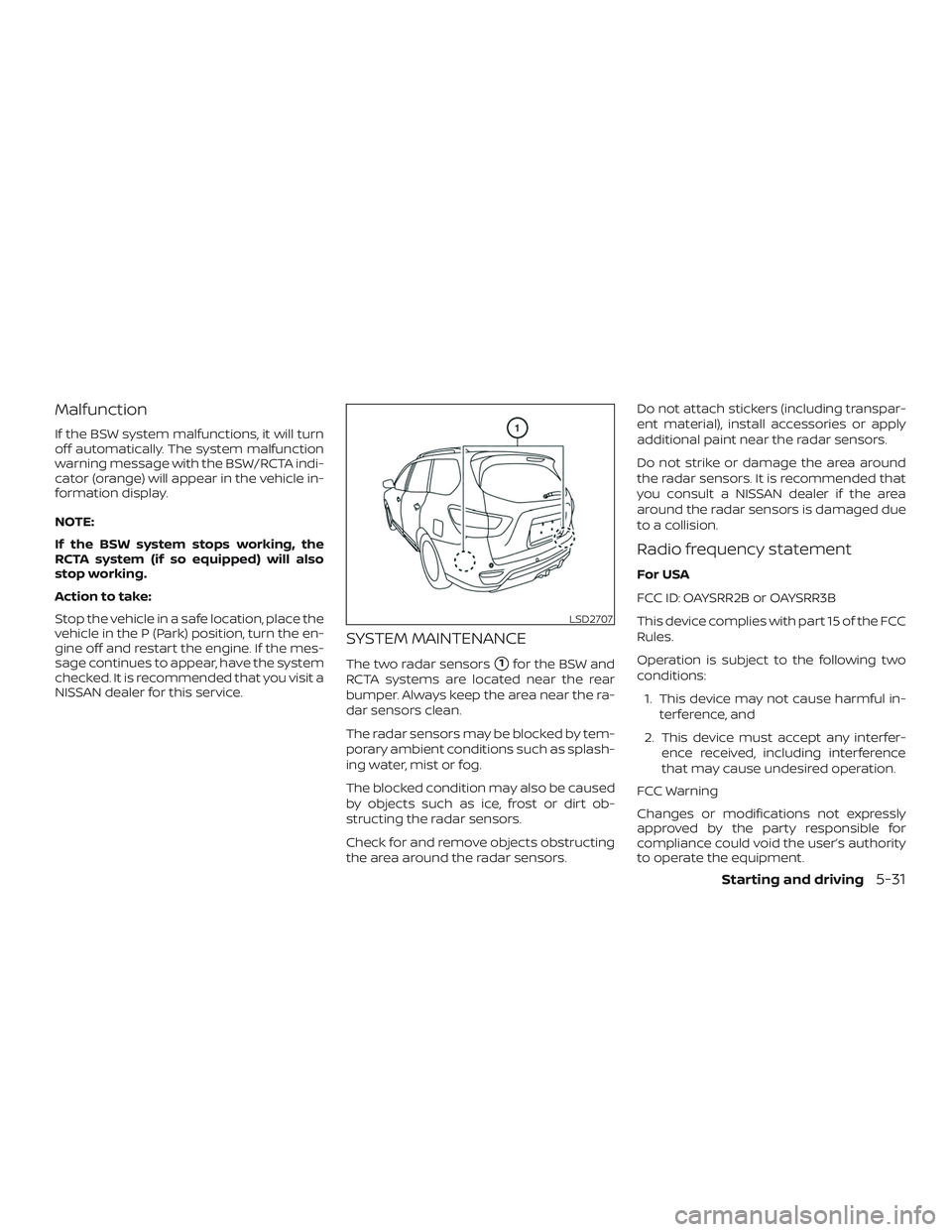

NISSAN PATHFINDER 2018  Owner´s Manual Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the BSW/RCTA indi-
cator (orange) will appear in the vehicle in-
formation displ
