Page 311 of 474

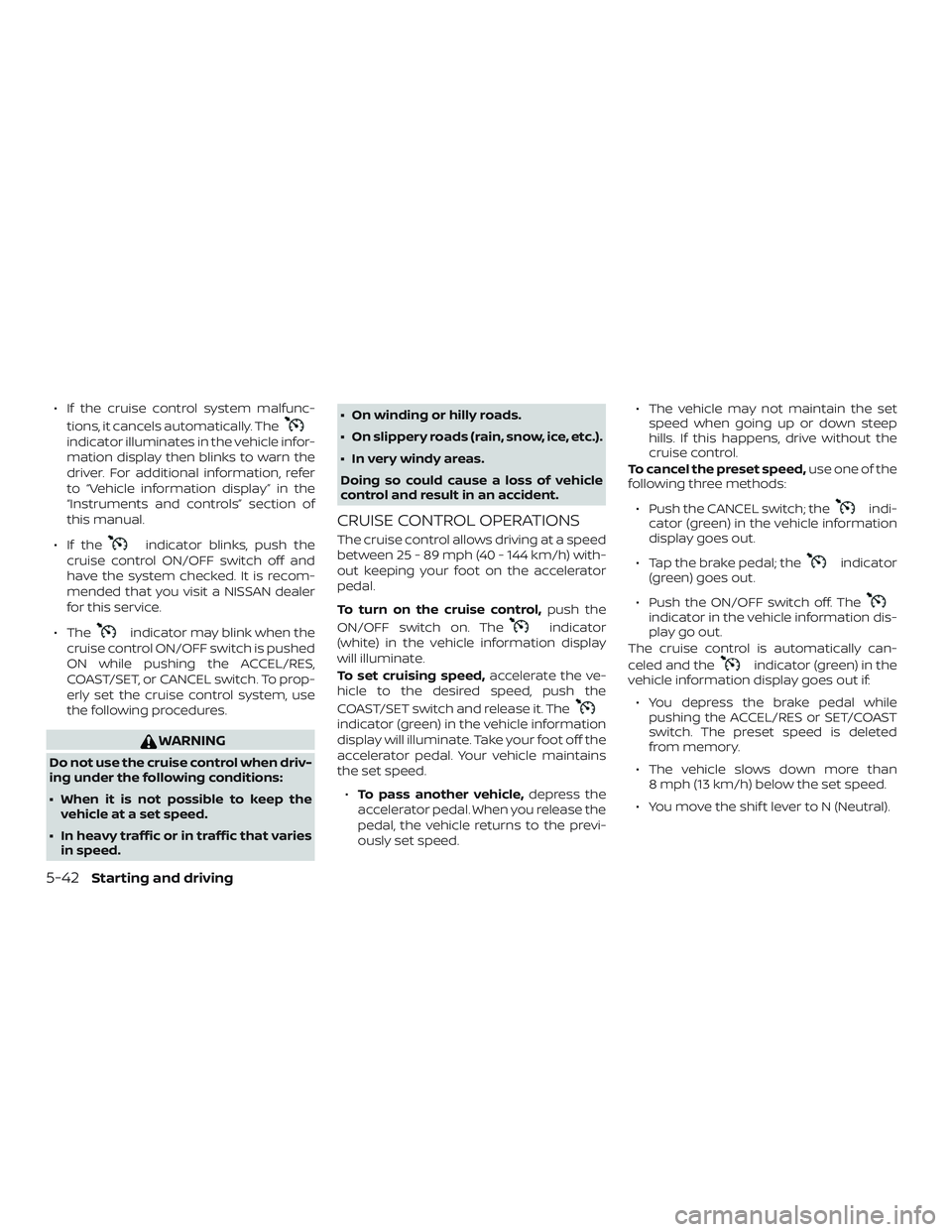

NISSAN PATHFINDER 2018  Owner´s Manual ∙ If the cruise control system malfunc-tions, it cancels automatically. The
indicator illuminates in the vehicle infor-
mation display then blinks to warn the
driver. For additional information, ref

Page 312 of 474

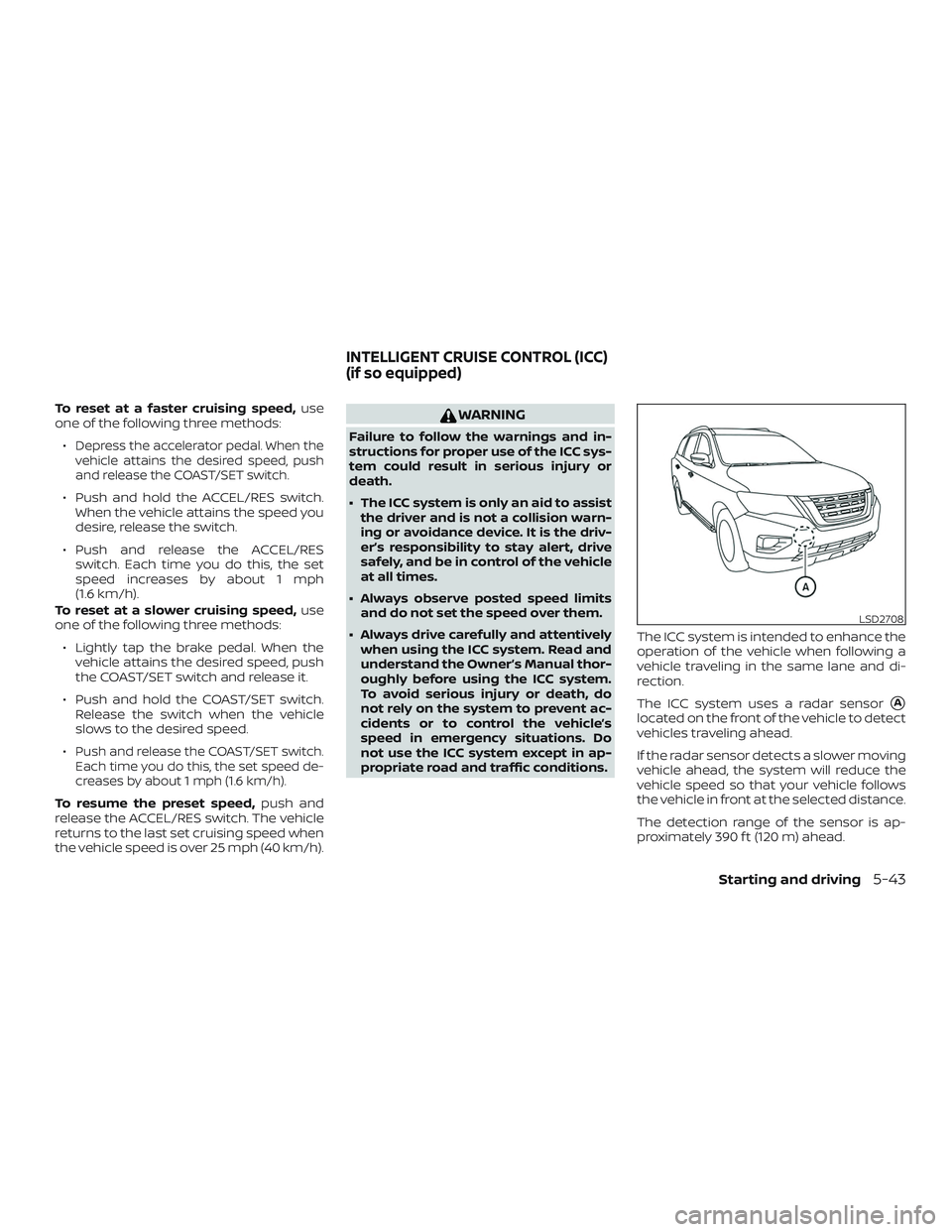

NISSAN PATHFINDER 2018  Owner´s Manual To reset at a faster cruising speed,use
one of the following three methods:
∙
Depress the accelerator pedal. When the
vehicle attains the desired speed, push
and release the COAST/SET switch.
∙ Pu

Page 313 of 474

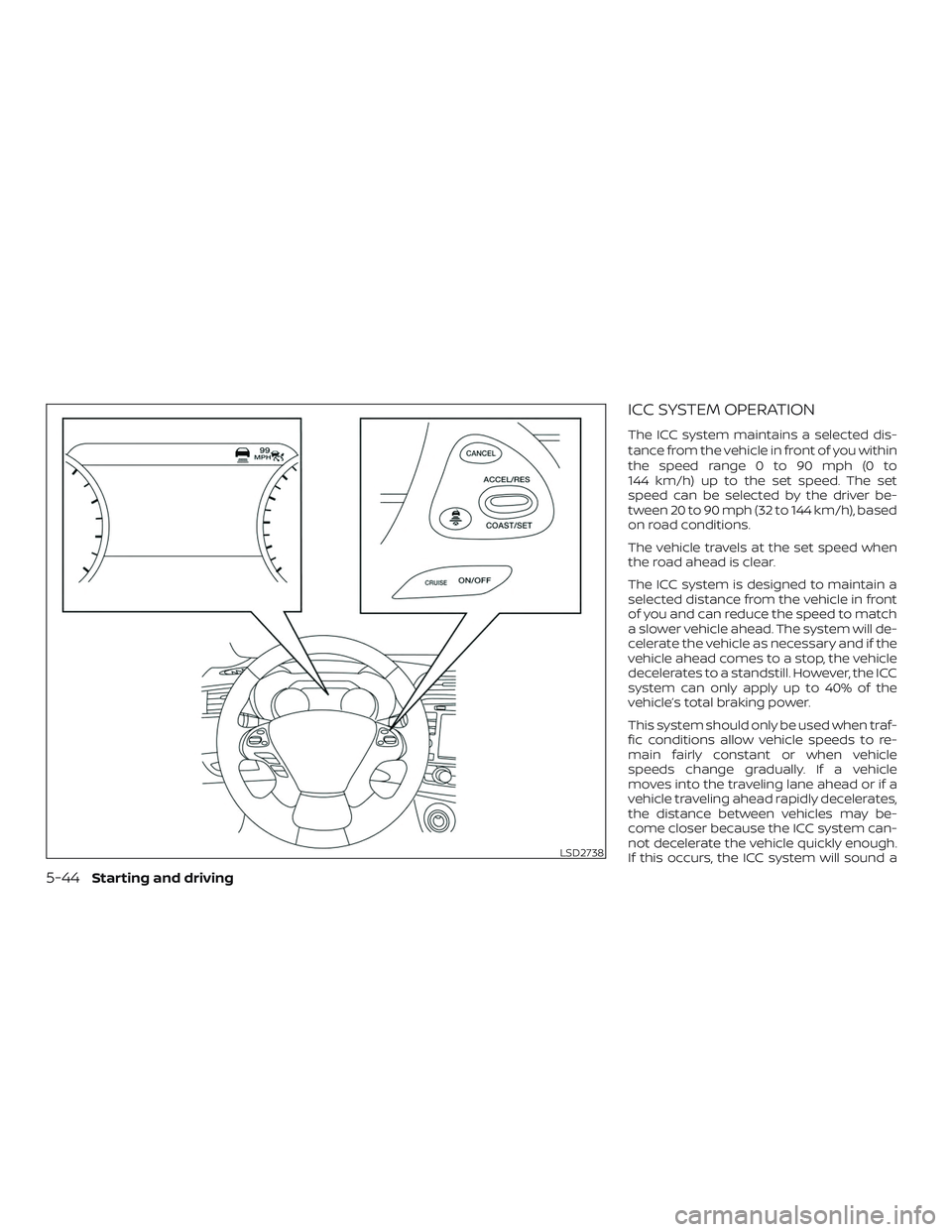

NISSAN PATHFINDER 2018  Owner´s Manual ICC SYSTEM OPERATION
The ICC system maintains a selected dis-
tance from the vehicle in front of you within
the speed range 0 to 90 mph (0 to
144 km/h) up to the set speed. The set
speed can be select

Page 314 of 474

NISSAN PATHFINDER 2018  Owner´s Manual warning chime and blink the system dis-
play to notif y the driver to take necessary
action.
For additional information, refer to “Ap-
proach warning” in this section.
The following items are cont

Page 315 of 474

NISSAN PATHFINDER 2018  Owner´s Manual Depress the accelerator to properly accel-
erate your vehicle when acceleration is re-
quired for a lane change. Depress the brake
pedal when deceleration is required to
maintain a safe distance to th

Page 316 of 474

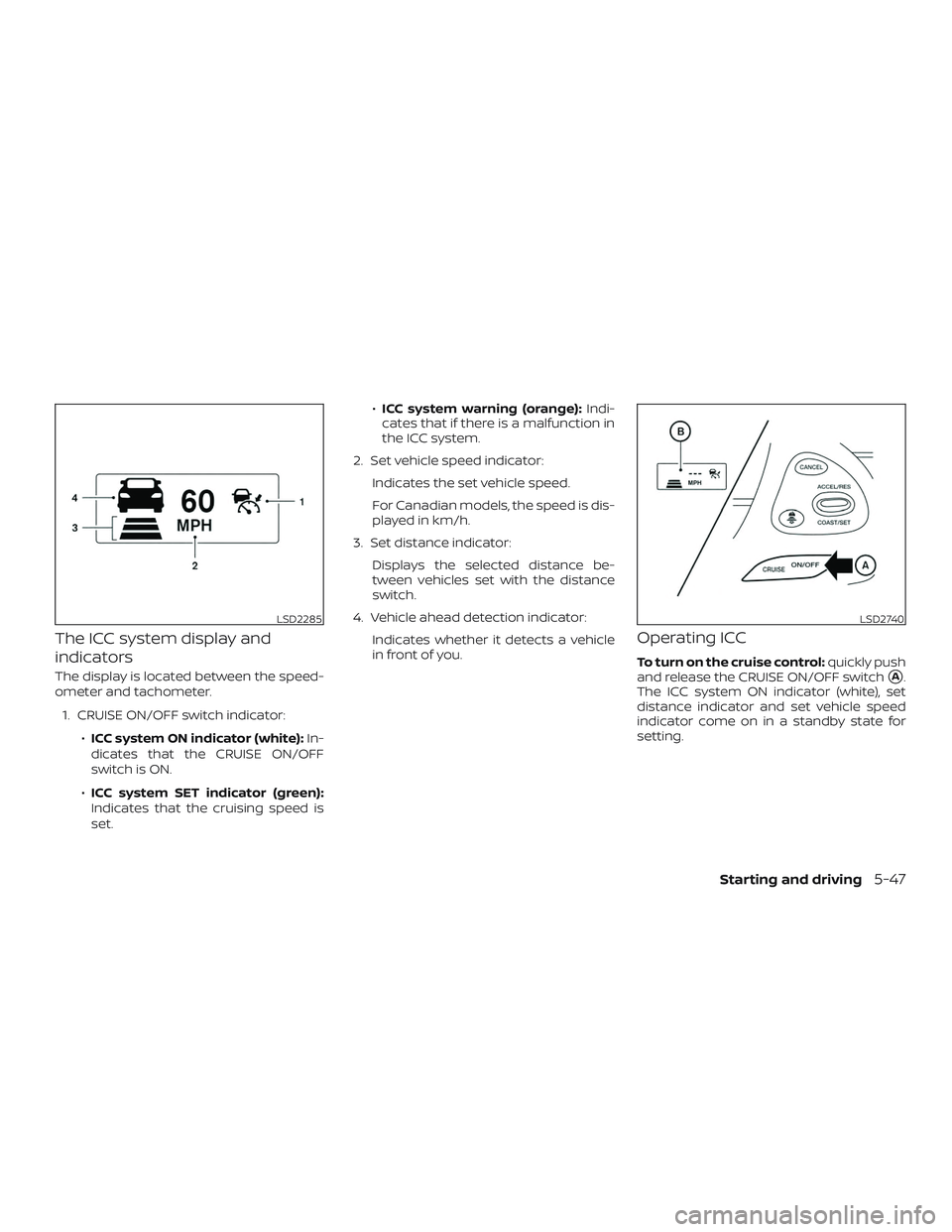

NISSAN PATHFINDER 2018  Owner´s Manual The ICC system display and
indicators
The display is located between the speed-
ometer and tachometer.1. CRUISE ON/OFF switch indicator: ∙ICC system ON indicator (white): In-
dicates that the CRUISE

Page 317 of 474

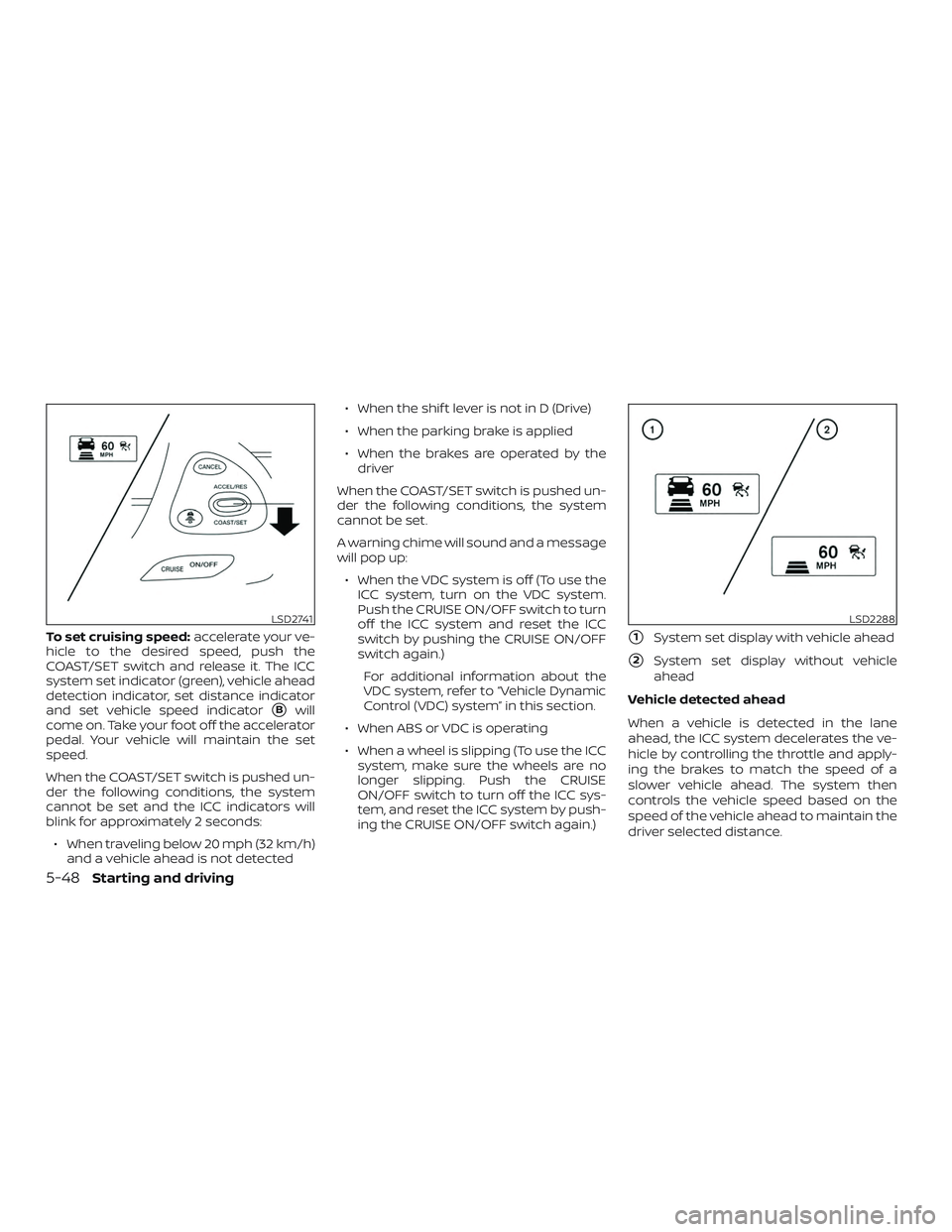

NISSAN PATHFINDER 2018  Owner´s Manual To set cruising speed:accelerate your ve-
hicle to the desired speed, push the
COAST/SET switch and release it. The ICC
system set indicator (green), vehicle ahead
detection indicator, set distance in

Page 318 of 474

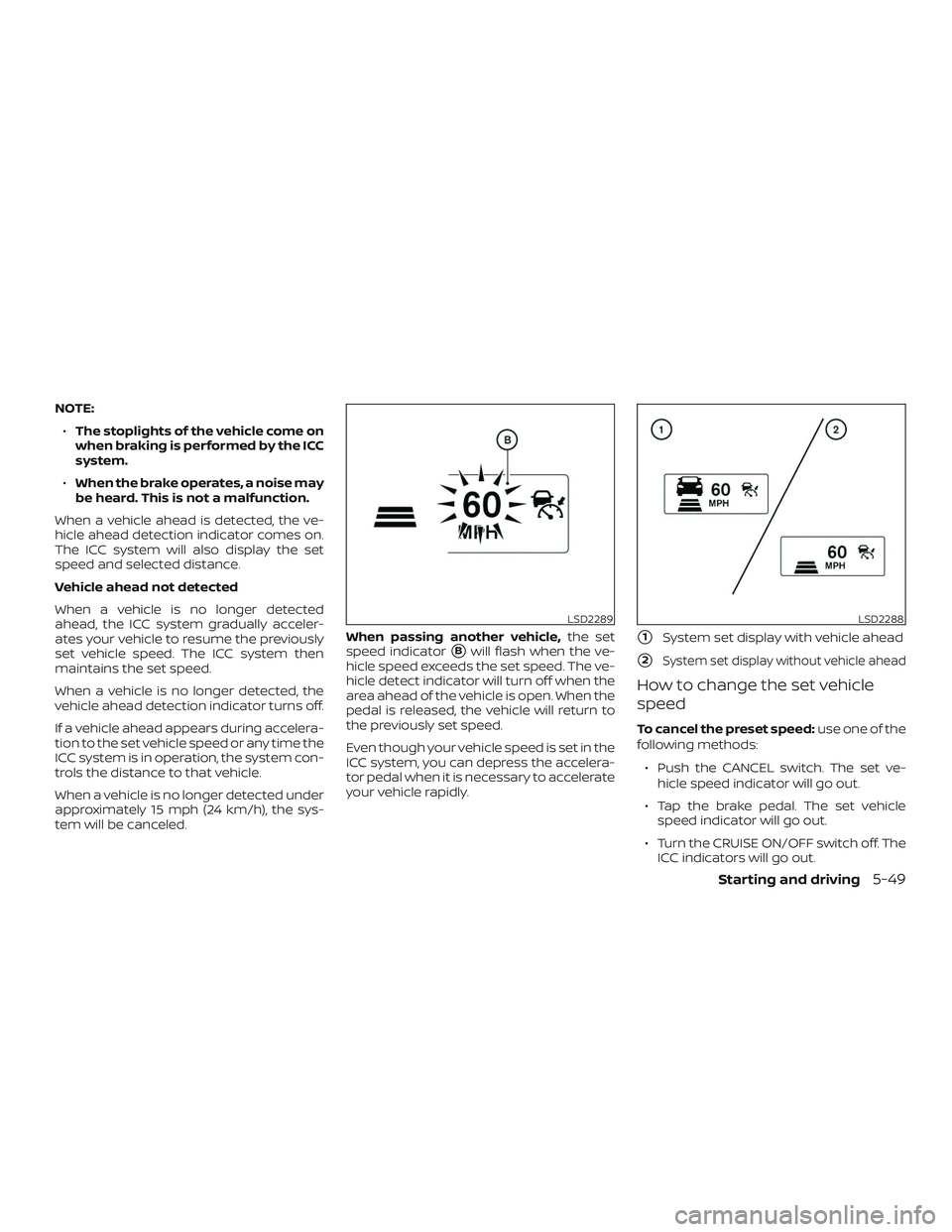

NISSAN PATHFINDER 2018  Owner´s Manual NOTE:∙ The stoplights of the vehicle come on
when braking is performed by the ICC
system.
∙ When the brake operates, a noise may
be heard. This is not a malfunction.
When a vehicle ahead is detect

Page 319 of 474

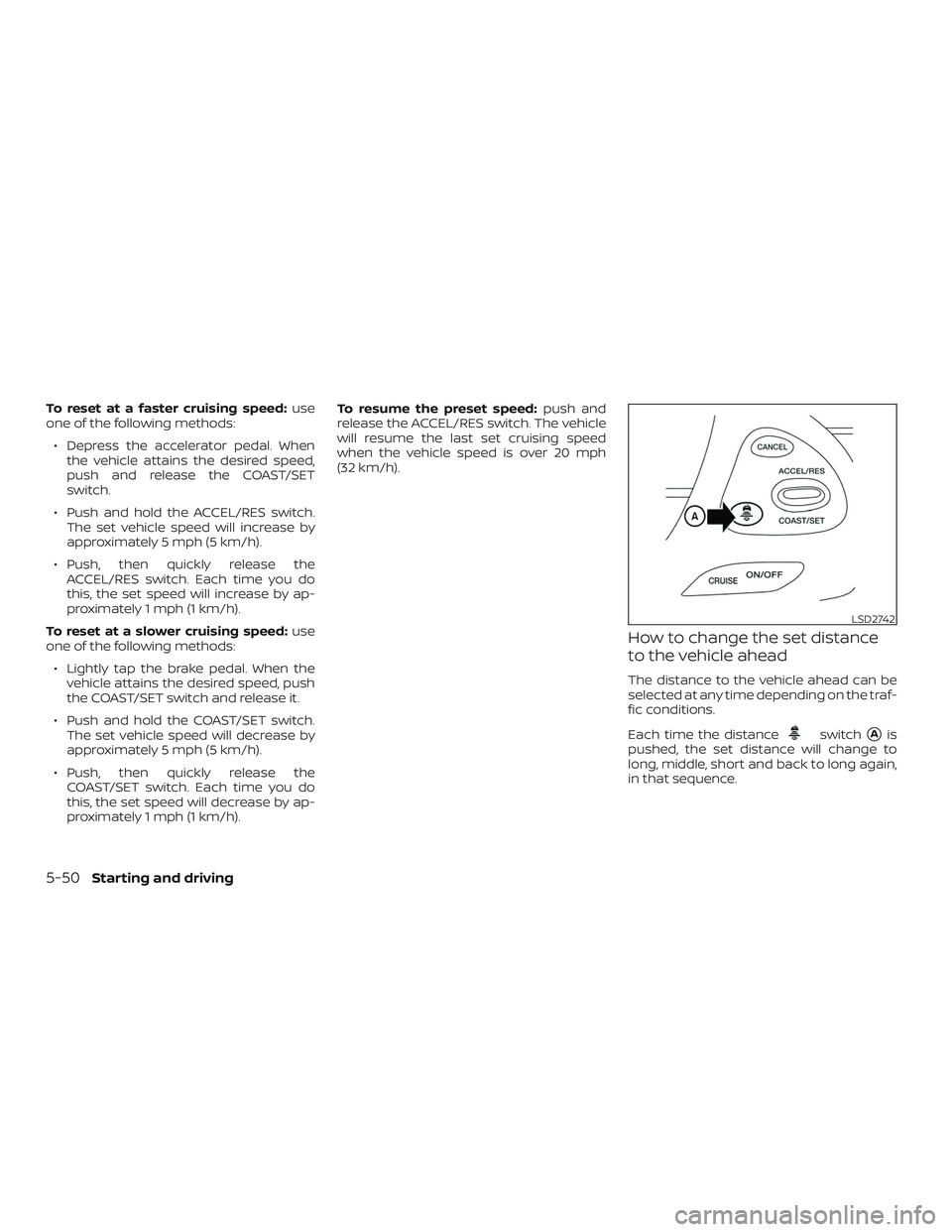

NISSAN PATHFINDER 2018  Owner´s Manual To reset at a faster cruising speed:use
one of the following methods:
∙ Depress the accelerator pedal. When the vehicle attains the desired speed,
push and release the COAST/SET
switch.
∙ Push and

Page 320 of 474

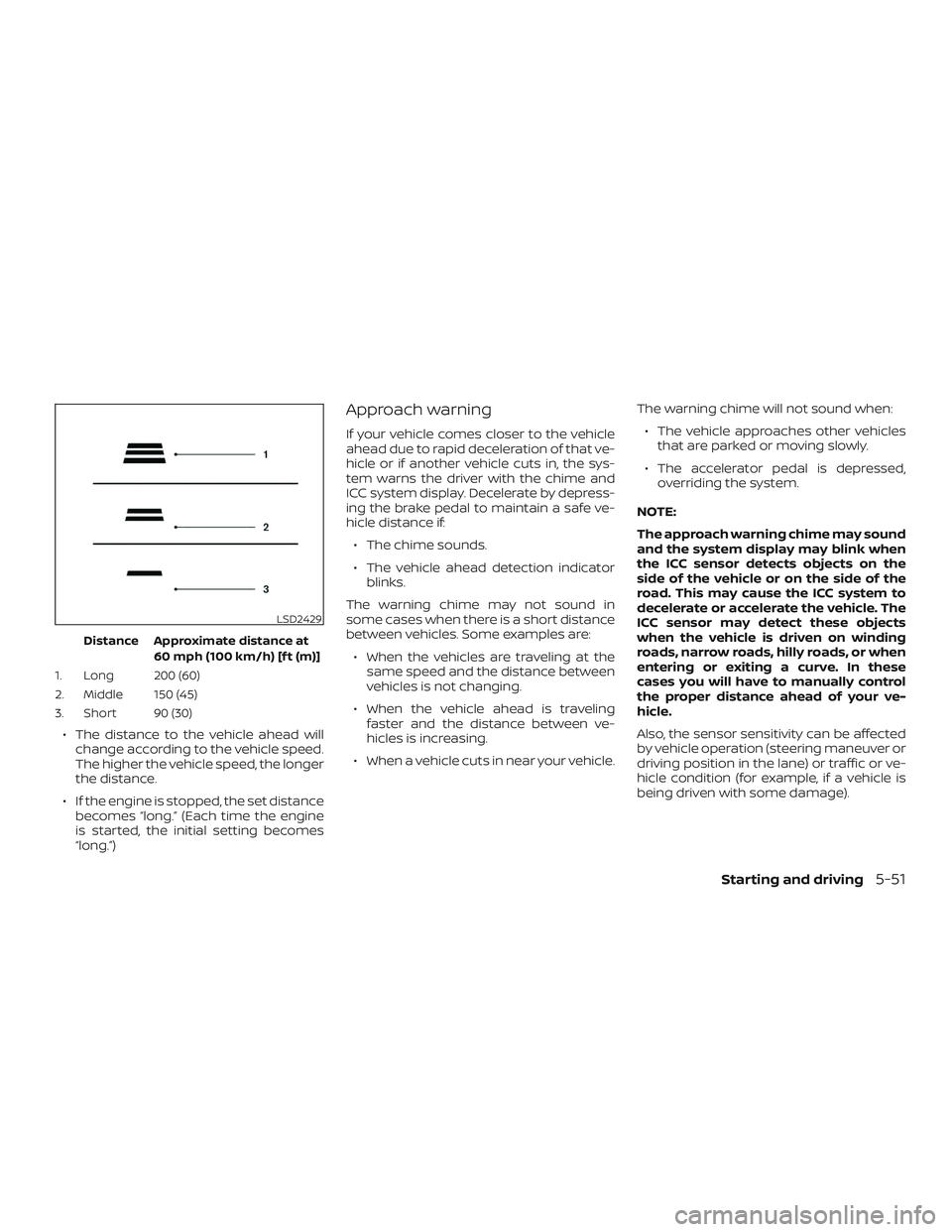

NISSAN PATHFINDER 2018  Owner´s Manual Distance Approximate distance at60 mph (100 km/h) [f t (m)]
1. Long 200 (60)
2. Middle 150 (45)
3. Short 90 (30)
∙ The distance to the vehicle ahead will change according to the vehicle speed.
The h
