NISSAN PATHFINDER 2019 Owner´s Manual

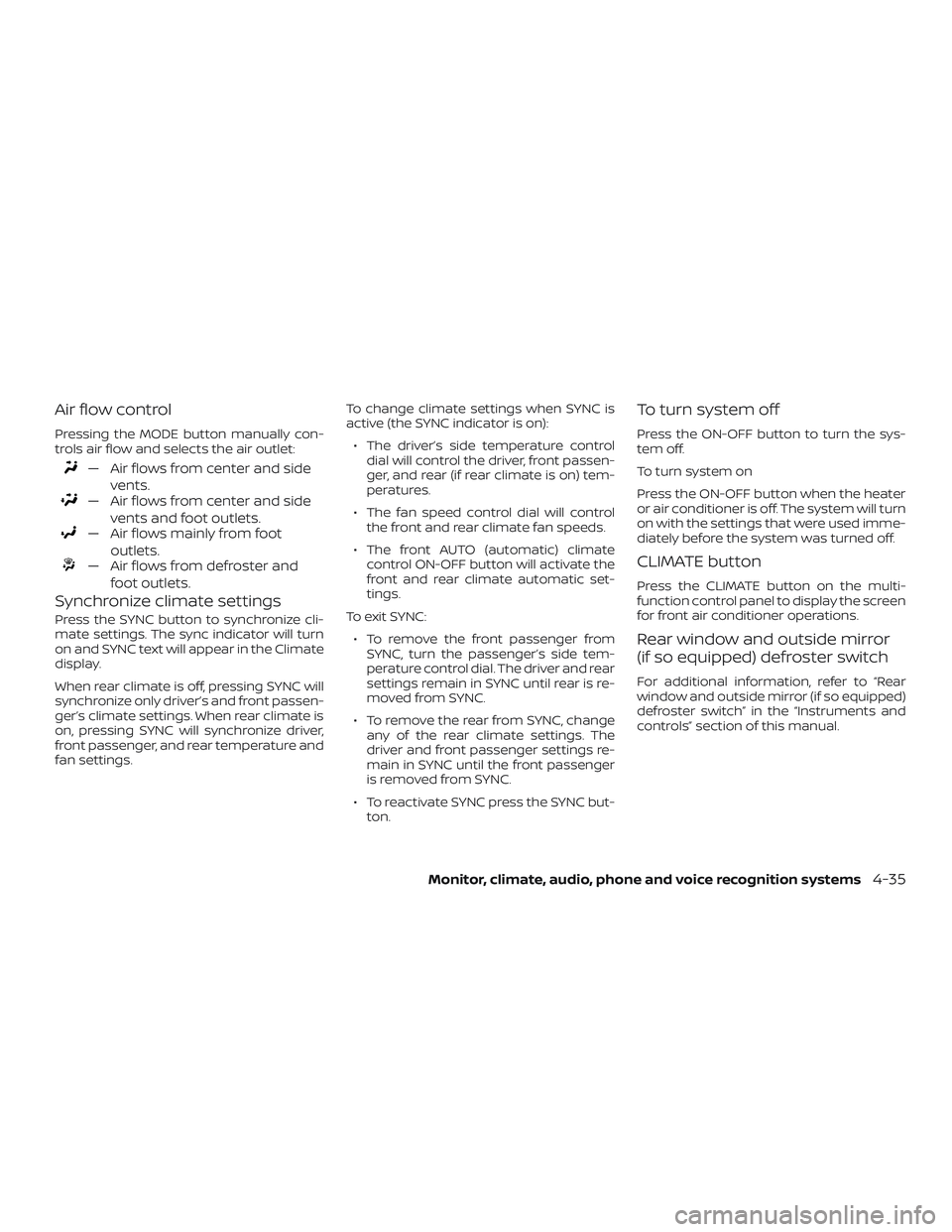

Air flow control
Pressing the MODE button manually con-
trols air flow and selects the air outlet:
— Air flows from center and sidevents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from footoutlets.
— Air flows from defroster andfoot outlets.
Synchronize climate settings
Press the SYNC button to synchronize cli-
mate settings. The sync indicator will turn
on and SYNC text will appear in the Climate
display.
When rear climate is off, pressing SYNC will
synchronize only driver’s and front passen-
ger’s climate settings. When rear climate is
on, pressing SYNC will synchronize driver,
front passenger, and rear temperature and
fan settings. To change climate settings when SYNC is
active (the SYNC indicator is on):
∙ The driver’s side temperature control dial will control the driver, front passen-
ger, and rear (if rear climate is on) tem-
peratures.
∙ The fan speed control dial will control the front and rear climate fan speeds.
∙ The front AUTO (automatic) climate control ON-OFF button will activate the
front and rear climate automatic set-
tings.
To exit SYNC: ∙ To remove the front passenger from SYNC, turn the passenger’s side tem-
perature control dial. The driver and rear
settings remain in SYNC until rear is re-
moved from SYNC.
∙ To remove the rear from SYNC, change any of the rear climate settings. The
driver and front passenger settings re-
main in SYNC until the front passenger
is removed from SYNC.
∙ To reactivate SYNC press the SYNC but- ton.
To turn system off
Press the ON-OFF button to turn the sys-
tem off.
To turn system on
Press the ON-OFF button when the heater
or air conditioner is off. The system will turn
on with the settings that were used imme-
diately before the system was turned off.
CLIMATE button
Press the CLIMATE button on the multi-
function control panel to display the screen
for front air conditioner operations.
Rear window and outside mirror
(if so equipped) defroster switch
For additional information, refer to “Rear
window and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.
Monitor, climate, audio, phone and voice recognition systems4-35

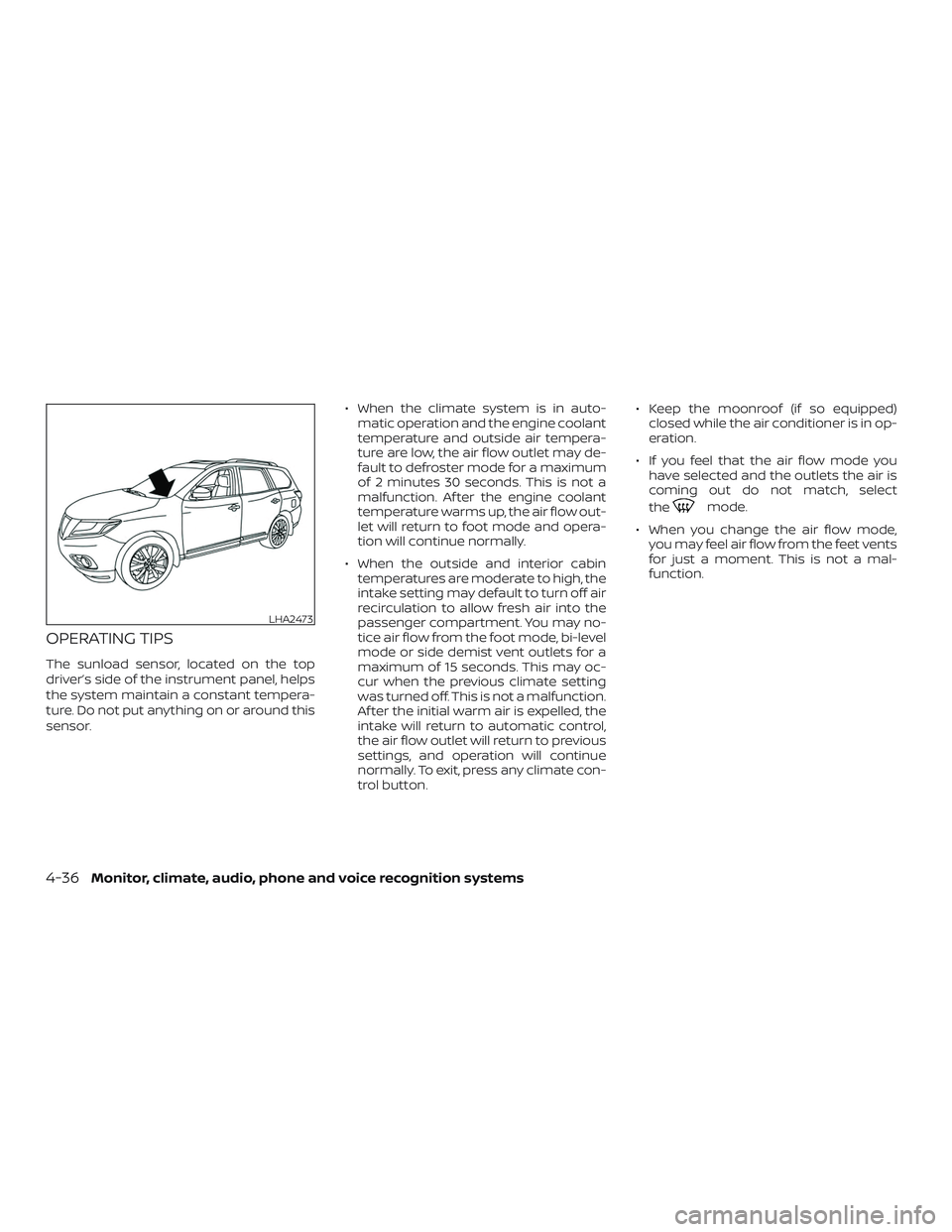

OPERATING TIPS
The sunload sensor, located on the top
driver’s side of the instrument panel, helps
the system maintain a constant tempera-
ture. Do not put anything on or around this
sensor.∙ When the climate system is in auto-
matic operation and the engine coolant
temperature and outside air tempera-
ture are low, the air flow outlet may de-
fault to defroster mode for a maximum
of 2 minutes 30 seconds. This is not a
malfunction. Af ter the engine coolant
temperature warms up, the air flow out-
let will return to foot mode and opera-
tion will continue normally.
∙ When the outside and interior cabin temperatures are moderate to high, the
intake setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may no-
tice air flow from the foot mode, bi-level
mode or side demist vent outlets for a
maximum of 15 seconds. This may oc-
cur when the previous climate setting
was turned off. This is not a malfunction.
Af ter the initial warm air is expelled, the
intake will return to automatic control,
the air flow outlet will return to previous
settings, and operation will continue
normally. To exit, press any climate con-
trol button. ∙ Keep the moonroof (if so equipped)
closed while the air conditioner is in op-
eration.
∙ If you feel that the air flow mode you have selected and the outlets the air is
coming out do not match, select
the
mode.
∙ When you change the air flow mode, you may feel air flow from the feet vents
for just a moment. This is not a mal-
function.
LHA2473
4-36Monitor, climate, audio, phone and voice recognition systems

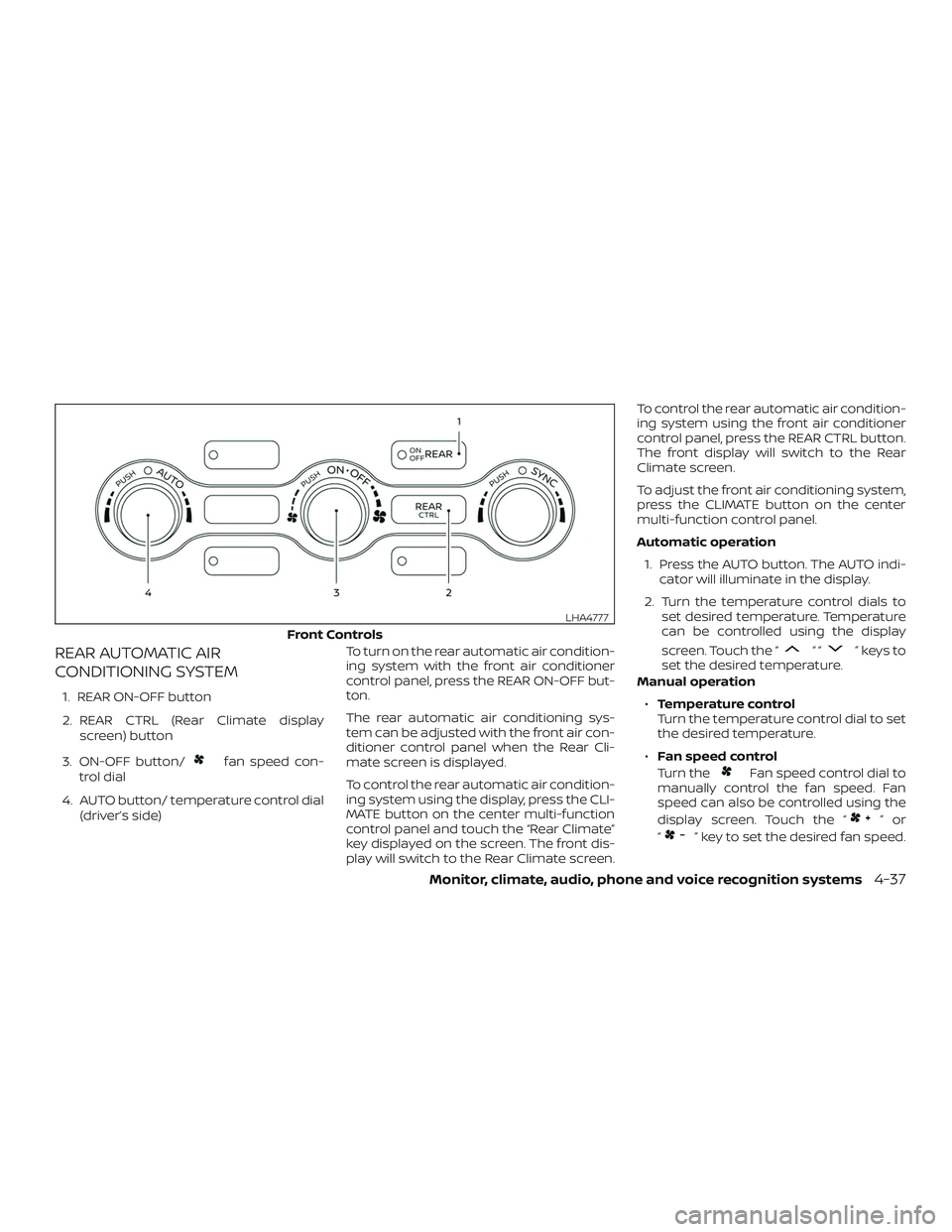

REAR AUTOMATIC AIR
CONDITIONING SYSTEM
1. REAR ON-OFF button
2. REAR CTRL (Rear Climate displayscreen) button
3. ON-OFF button/
fan speed con-
trol dial
4. AUTO button/ temperature control dial (driver’s side) To turn on the rear automatic air condition-
ing system with the front air conditioner
control panel, press the REAR ON-OFF but-
ton.
The rear automatic air conditioning sys-
tem can be adjusted with the front air con-
ditioner control panel when the Rear Cli-
mate screen is displayed.
To control the rear automatic air condition-
ing system using the display, press the CLI-
MATE button on the center multi-function
control panel and touch the “Rear Climate”
key displayed on the screen. The front dis-
play will switch to the Rear Climate screen. To control the rear automatic air condition-
ing system using the front air conditioner
control panel, press the REAR CTRL button.
The front display will switch to the Rear
Climate screen.
To adjust the front air conditioning system,
press the CLIMATE button on the center
multi-function control panel.
Automatic operation
1. Press the AUTO button. The AUTO indi- cator will illuminate in the display.
2. Turn the temperature control dials to set desired temperature. Temperature
can be controlled using the display
screen. Touch the “
““”keysto
set the desired temperature.
Manual operation
∙ Temperature control
Turn the temperature control dial to set
the desired temperature.
∙ Fan speed control
Turn the
Fan speed control dial to
manually control the fan speed. Fan
speed can also be controlled using the
display screen. Touch the “
”or
“
” key to set the desired fan speed.
Front Controls
LHA4777
Monitor, climate, audio, phone and voice recognition systems4-37

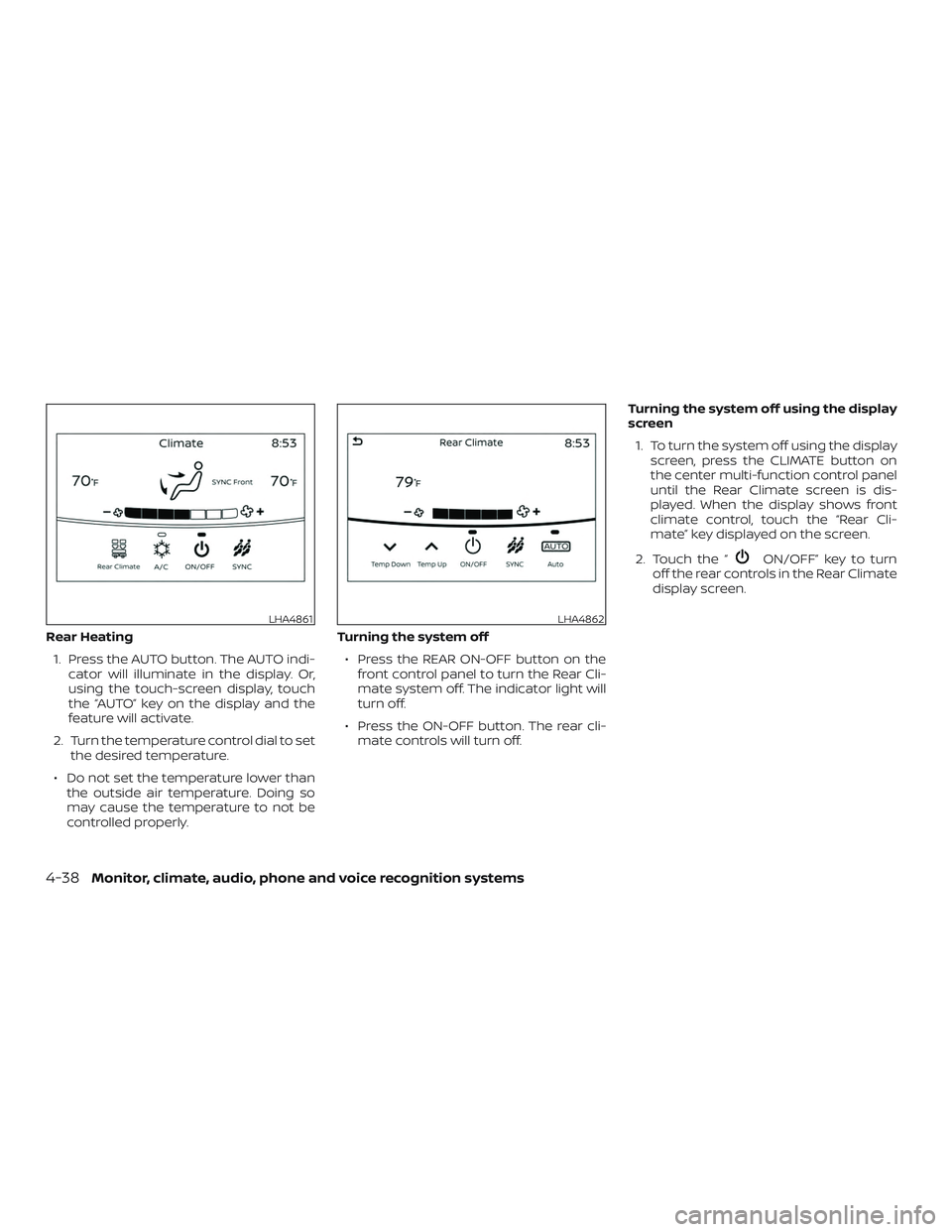

Rear Heating1. Press the AUTO button. The AUTO indi- cator will illuminate in the display. Or,
using the touch-screen display, touch
the “AUTO” key on the display and the
feature will activate.
2. Turn the temperature control dial to set the desired temperature.
∙ Do not set the temperature lower than the outside air temperature. Doing so
may cause the temperature to not be
controlled properly. Turning the system off
∙ Press the REAR ON-OFF button on the front control panel to turn the Rear Cli-
mate system off. The indicator light will
turn off.
∙ Press the ON-OFF button. The rear cli- mate controls will turn off. Turning the system off using the display
screen
1. To turn the system off using the display screen, press the CLIMATE button on
the center multi-function control panel
until the Rear Climate screen is dis-
played. When the display shows front
climate control, touch the “Rear Cli-
mate” key displayed on the screen.
2. Touch the “
ON/OFF” key to turn
off the rear controls in the Rear Climate
display screen.
LHA4861LHA4862
4-38Monitor, climate, audio, phone and voice recognition systems

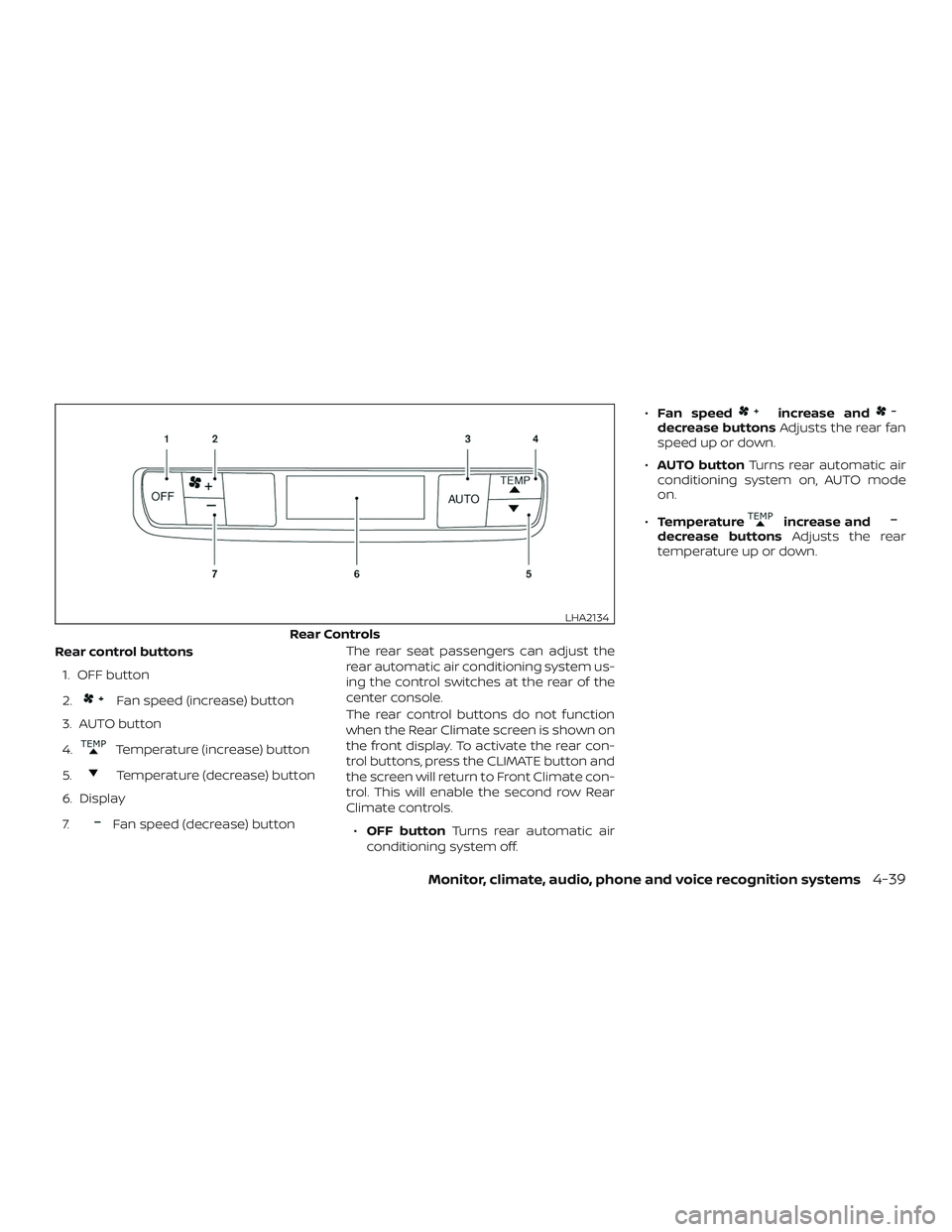

Rear control buttons1. OFF button
2.
Fan speed (increase) button
3. AUTO button
4.
Temperature (increase) button
5.
Temperature (decrease) button
6. Display
7.
Fan speed (decrease) button The rear seat passengers can adjust the
rear automatic air conditioning system us-
ing the control switches at the rear of the
center console.
The rear control buttons do not function
when the Rear Climate screen is shown on
the front display. To activate the rear con-
trol buttons, press the CLIMATE button and
the screen will return to Front Climate con-
trol. This will enable the second row Rear
Climate controls.
∙ OFF button Turns rear automatic air
conditioning system off. ∙
Fan speed
increase anddecrease buttons Adjusts the rear fan
speed up or down.
∙ AUTO button Turns rear automatic air
conditioning system on, AUTO mode
on.
∙ Temperature
increase anddecrease buttons Adjusts the rear
temperature up or down.
Rear Controls
LHA2134
Monitor, climate, audio, phone and voice recognition systems4-39

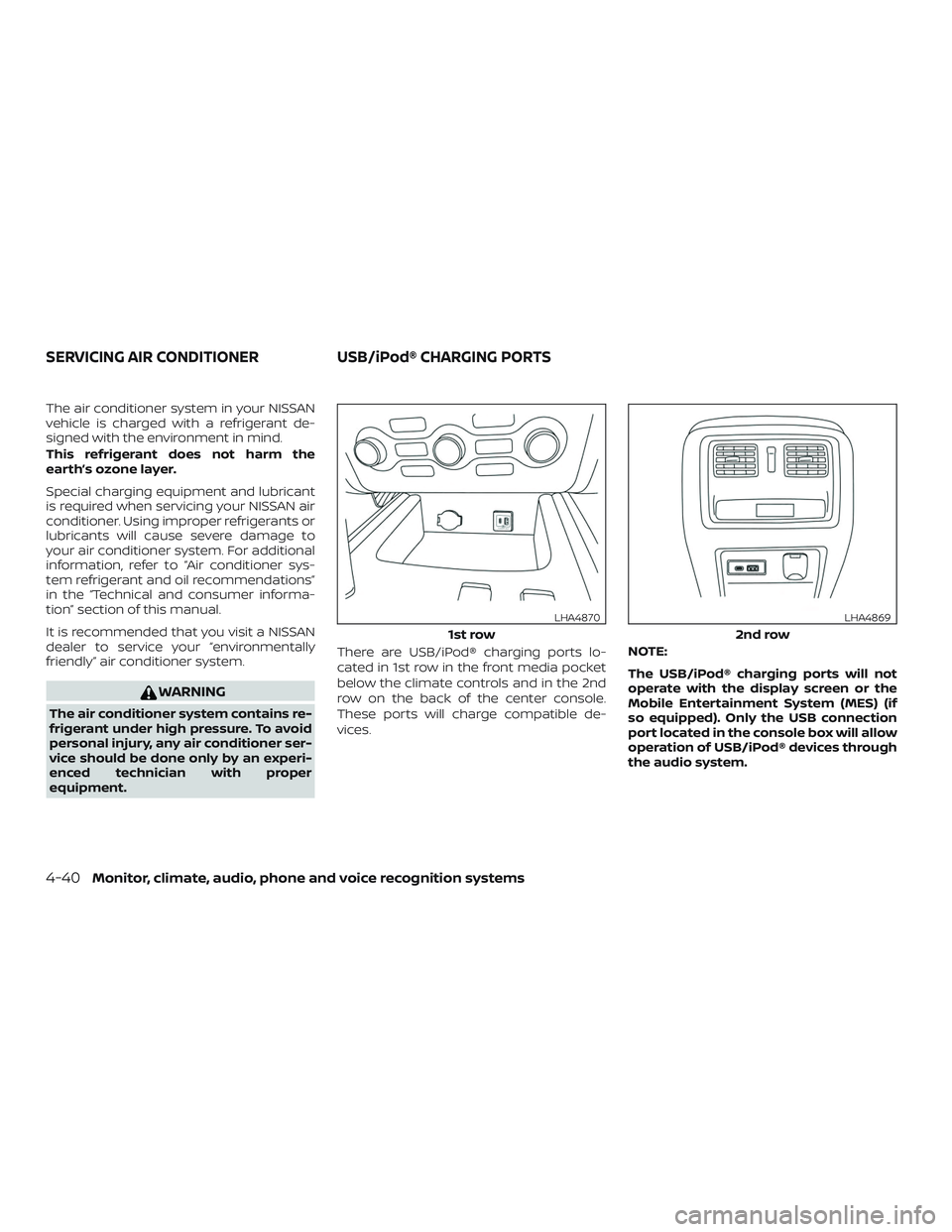

The air conditioner system in your NISSAN
vehicle is charged with a refrigerant de-
signed with the environment in mind.
This refrigerant does not harm the
earth’s ozone layer.
Special charging equipment and lubricant
is required when servicing your NISSAN air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to
your air conditioner system. For additional
information, refer to “Air conditioner sys-
tem refrigerant and oil recommendations”
in the “Technical and consumer informa-
tion” section of this manual.
It is recommended that you visit a NISSAN
dealer to service your “environmentally
friendly” air conditioner system.
WARNING
The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced technician with proper
equipment.There are USB/iPod® charging ports lo-
cated in 1st row in the front media pocket
below the climate controls and in the 2nd
row on the back of the center console.
These ports will charge compatible de-
vices.
NOTE:
The USB/iPod® charging ports will not
operate with the display screen or the
Mobile Entertainment System (MES) (if
so equipped). Only the USB connection
port located in the console box will allow
operation of USB/iPod® devices through
the audio system.
1st row
LHA4870
2nd row
LHA4869
SERVICING AIR CONDITIONER
USB/iPod® CHARGING PORTS
4-40Monitor, climate, audio, phone and voice recognition systems

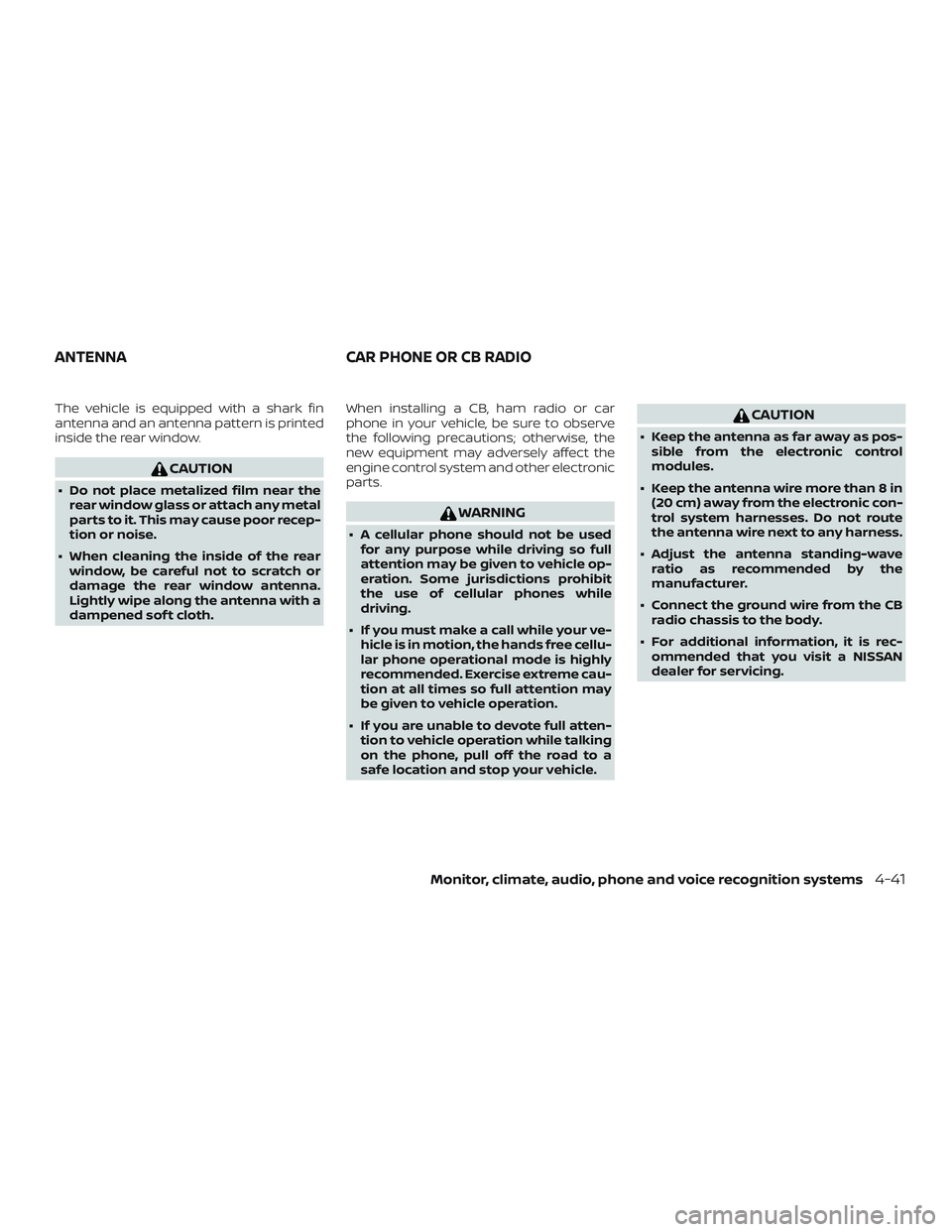

The vehicle is equipped with a shark fin
antenna and an antenna pattern is printed
inside the rear window.
CAUTION
∙ Do not place metalized film near therear window glass or attach any metal
parts to it. This may cause poor recep-
tion or noise.
∙ When cleaning the inside of the rear window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with a
dampened sof t cloth. When installing a CB, ham radio or car
phone in your vehicle, be sure to observe
the following precautions; otherwise, the
new equipment may adversely affect the
engine control system and other electronic
parts.
WARNING
∙ A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle op-
eration. Some jurisdictions prohibit
the use of cellular phones while
driving.
∙ If you must make a call while your ve- hicle is in motion, the hands free cellu-
lar phone operational mode is highly
recommended. Exercise extreme cau-
tion at all times so full attention may
be given to vehicle operation.
∙ If you are unable to devote full atten- tion to vehicle operation while talking
on the phone, pull off the road to a
safe location and stop your vehicle.
CAUTION
∙ Keep the antenna as far away as pos-sible from the electronic control
modules.
∙ Keep the antenna wire more than 8 in (20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.
∙ Adjust the antenna standing-wave ratio as recommended by the
manufacturer.
∙ Connect the ground wire from the CB radio chassis to the body.
∙ For additional information, it is rec- ommended that you visit a NISSAN
dealer for servicing.
ANTENNA CAR PHONE OR CB RADIO
Monitor, climate, audio, phone and voice recognition systems4-41

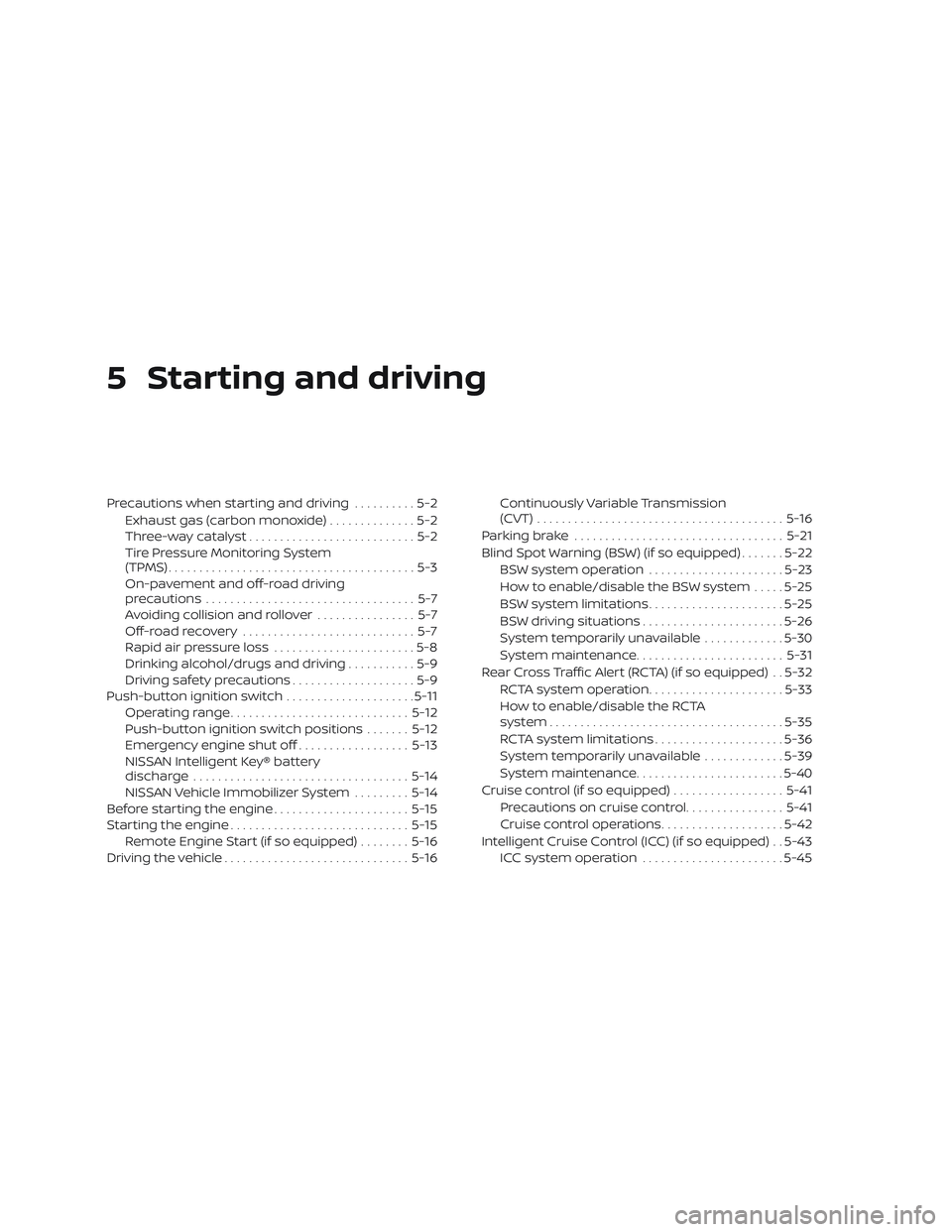

5 Starting and driving
Precautions when starting and driving..........5-2
Exhaust gas (carbon monoxide) ..............5-2
Three-way catalyst ...........................5-2
Tire Pressure Monitoring System
(TPMS)........................................5-3
On-pavement and off-road driving
precautions ..................................5-7
Avoiding collision and rollover ................5-7
Off-roadrecovery ............................5-7
Rapid air pressure loss .......................5-8
Drinking alcohol/drugs and driving ...........5-9
Driving safety precautions ....................5-9
Push-button ignition switch .....................5-11
Operating range ............................. 5-12
Push-button ignition switch positions .......5-12
Emergency engine shut off ..................5-13
NISSAN Intelligent Key® battery
discharge ................................... 5-14
NISSAN Vehicle Immobilizer System .........5-14
Before starting the engine ......................5-15
Starting the engine ............................. 5-15
Remote Engine Start (if so equipped) ........5-16
Driving the vehicle .............................. 5-16Continuously Variable Transmission
(CVT)
........................................ 5-16
Parking brake .................................. 5-21
Blind Spot Warning (BSW) (if so equipped) .......5-22
BSW system operation ......................5-23
How to enable/disable the BSW system .....5-25
BSW system limitations ......................5-25
BSW driving situations .......................5-26
System temporarily unavailable .............5-30
System maintenance ........................ 5-31
Rear Cross Traffic Alert (RCTA) (if so equipped) . . 5-32 RCTA system operation ......................5-33
How to enable/disable the RCTA
system ...................................... 5-35
RCTA system limitations .....................5-36
System temporarily unavailable .............5-39
System maintenance ........................ 5-40
Cruise control (if so equipped) ..................5-41
Precautions on cruise control ................5-41
Cruise control operations ....................5-42
Intelligent
Cruise Control (ICC) (if so equipped) . . 5-43
ICC system operation .......................5-45

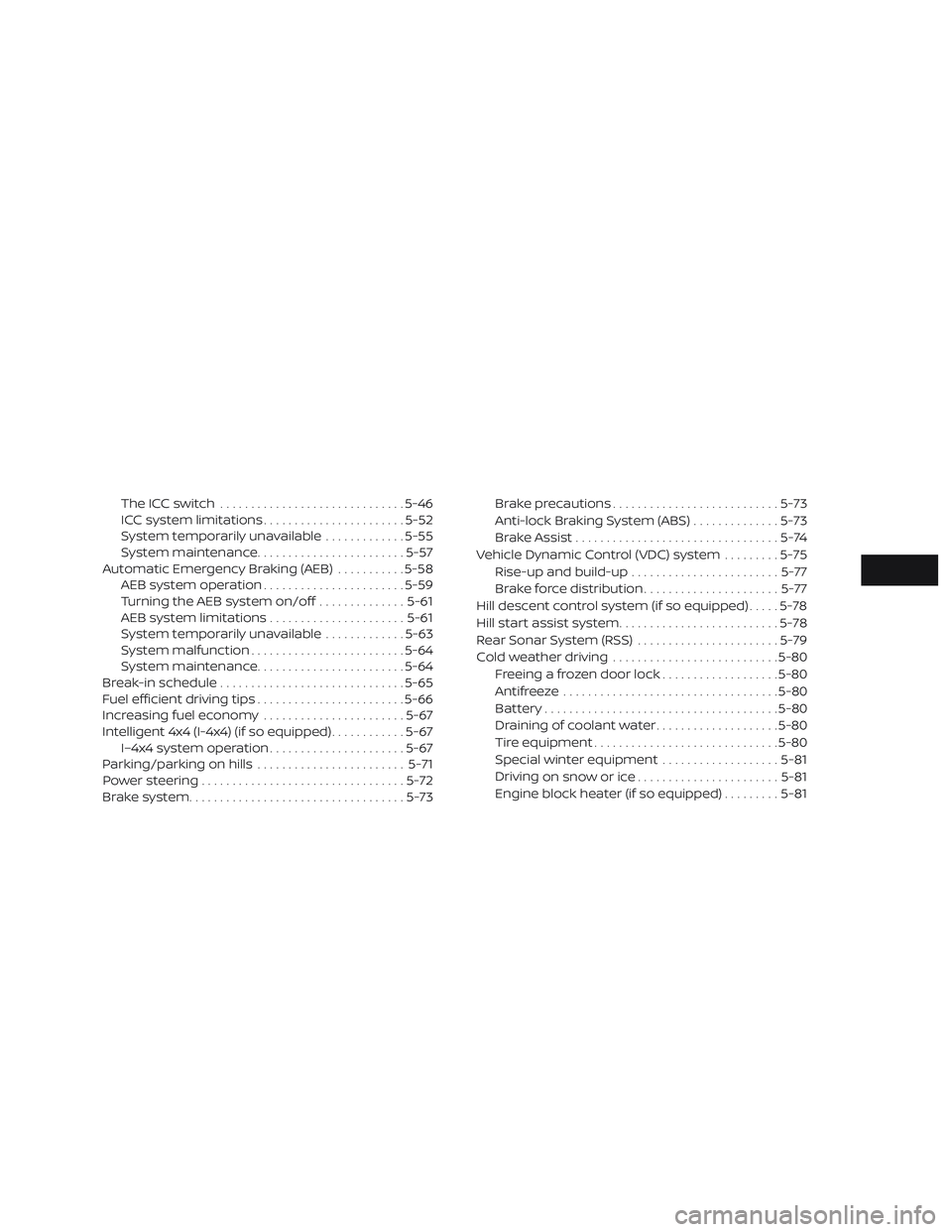

The ICC switch.............................. 5-46
ICC system limitations .......................5-52
System temporarily unavailable .............5-55
System maintenance ........................ 5-57
Automatic Emergency Braking (AEB) ...........5-58
AEB system operation .......................5-59
Turning the AEB system on/off ..............5-61
AEB system limitations ......................5-61
System temporarily unavailable .............5-63
System malfunction ......................... 5-64
System maintenance ........................ 5-64
Break-in schedule .............................. 5-65
Fuel efficient driving tips ........................5-66
Increasing fuel economy .......................5-67
Intelligent 4x4 (I-4x4) (if so equipped) ............5-67
I–4x4 system operation ......................5-67
Parking/parking on hills ........................5-71
Power steering ................................. 5-72
Brake system ................................... 5-73Brake precautions
........................... 5-73
Anti-lock Braking System (ABS) ..............5-73
Brake Assist .................................5-74
Vehicle Dynamic Control (VDC) system .........5-75
Rise-up and build-up ........................ 5-77
Brake force distribution ......................5-77
Hill descent control system (if so equipped) .....5-78
Hill start assist system .......................... 5-78
Rear Sonar System (RSS) .......................5-79
Cold weather driving ........................... 5-80
Freeing a frozen door lock ...................5-80
Antifreeze ................................... 5-80
Battery...................................... 5-80
Draining of coolant water ....................5-80
Tire equipment .............................. 5-80
Special winter equipment ...................5-81
Driving

on snow or ice ....................... 5-81
Engine block heater (if so equipped) .........5-81

WARNING
∙ Do not leave children or adults whowould normally require the assis-
tance of others alone in your vehicle.
Pets should also not be lef t alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
EXHAUST GAS (carbon monoxide)
WARNING
∙ Do not breathe exhaust gases; theycontain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death. ∙ If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the ve-
hicle inspected immediately.
∙ Do not run the engine in closed spaces such as a garage.
∙ Do not park the vehicle with the en- gine running for any extended length
of time.
∙ Keep the rear vent windows, lif tgates, doors and trunk lids (if so equipped)
closed while driving, otherwise ex-
haust gases could be drawn into the
passenger compartment. If you must
drive with one of these open, follow
these precautions:
1. Open all the windows.
2. Set the
air recirculation but-
ton to off and the fan control dial to
high to circulate the air.
∙ If electrical wiring or other cable con- nections must pass to a trailer
through the seal on the lif tgate or the
body, follow the manufacturer’s rec-
ommendation to prevent carbon
monoxide entry into the vehicle. ∙ The exhaust system and body should
be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service.
b. You suspect that exhaust fumes are entering into the passenger
compartment.
c. You notice a change in the sound of the exhaust system.
d. You have had an accident involving damage to the exhaust system,
underbody, or rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission con-
trol device installed in the exhaust system.
Exhaust gases in the three-way catalyst
are burned at high temperatures to help
reduce pollutants.
WARNING
∙ The exhaust gas and the exhaust sys-tem are very hot. Keep people, ani-
mals or flammable materials away
from the exhaust system
components.
PRECAUTIONS WHEN STARTING AND
DRIVING
5-2Starting and driving
