NISSAN PATHFINDER 2019 Owner´s Manual

MEMO
Illustrated table of contents0-11

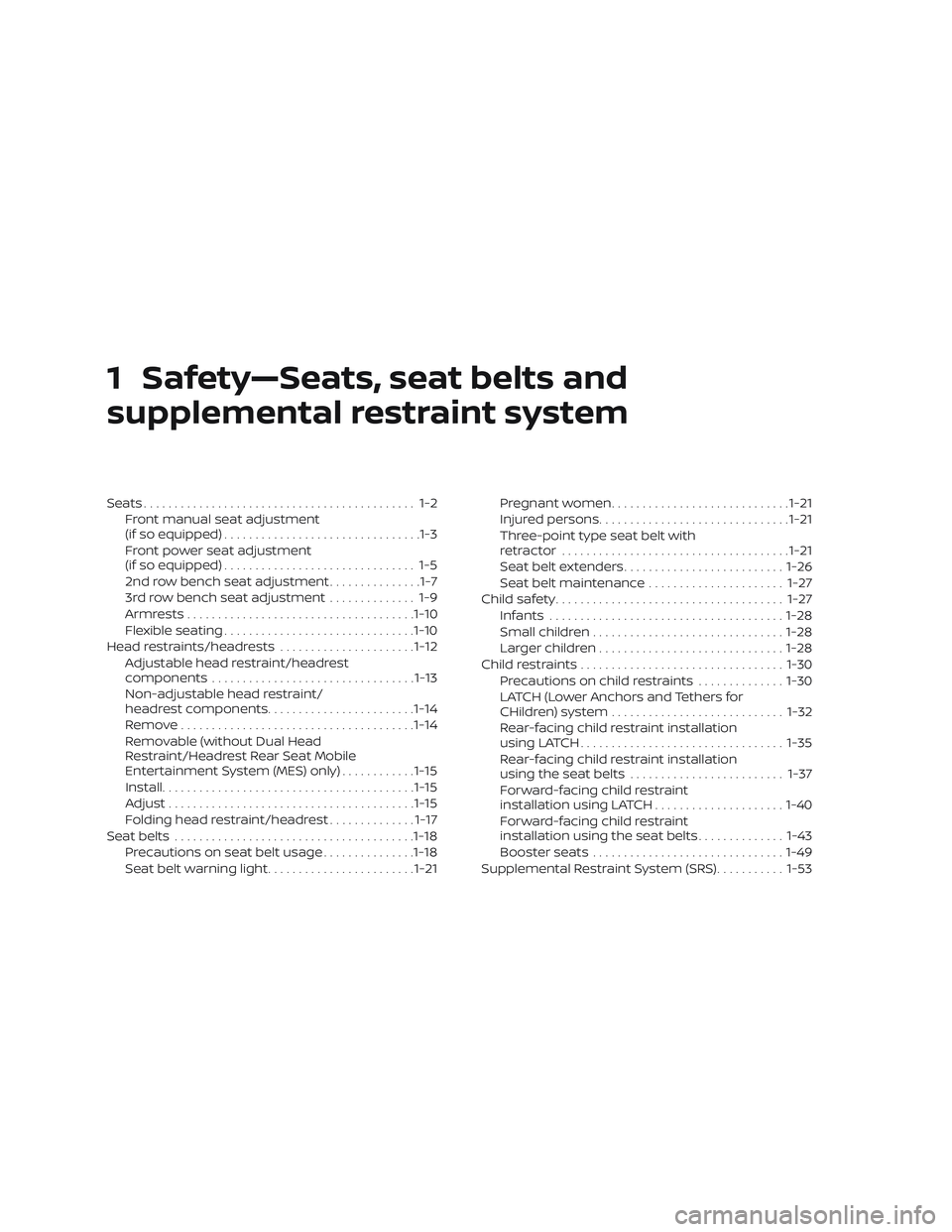

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(if so equipped) ................................1-3
Front power seat adjustment
(if so equipped) ............................... 1-5
2nd row bench seat adjustment ...............1-7
3rd row bench seat adjustment .............. 1-9
Armrests ..................................... 1-10
Flexible seating ............................... 1-10
Head restraints/headrests ......................1-12
Adjustable head restraint/headrest
components ................................. 1-13
Non-adjustable head restraint/
headrest components ........................ 1-14
Remove...................................... 1-14
Removable (without Dual Head
Restraint/Headrest Rear Seat Mobile
Entertainment System (MES) only) ............1-15
Install ......................................... 1-15
Adjust ........................................ 1-15
Folding head restraint/headrest ..............1-17
Seatbelts ....................................... 1-18
Precautions on seat belt usage ...............1-18
Seat belt warning light ........................ 1-21Pregnant women
............................. 1-21
Injured persons ............................... 1-21
Three-point type seat belt with
retractor ..................................... 1-21
Seat belt extenders .......................... 1-26
Seat belt maintenance ......................1-27
Child safety ..................................... 1-27
Infants ...................................... 1-28
Small children ............................... 1-28
Larger children .............................. 1-28
Child restraints ................................. 1-30
Precautions on child restraints ..............1-30
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-32
Rear-facing child restraint installation
using LATCH ................................. 1-35
Rear-facing child restraint installation
using the seat belts ......................... 1-37
Forward-facing child restraint
installation using LATCH .....................1-40
Forward-facing child restraint
installation using the seat belts ..............1-43
Booster
seats............................... 1-49

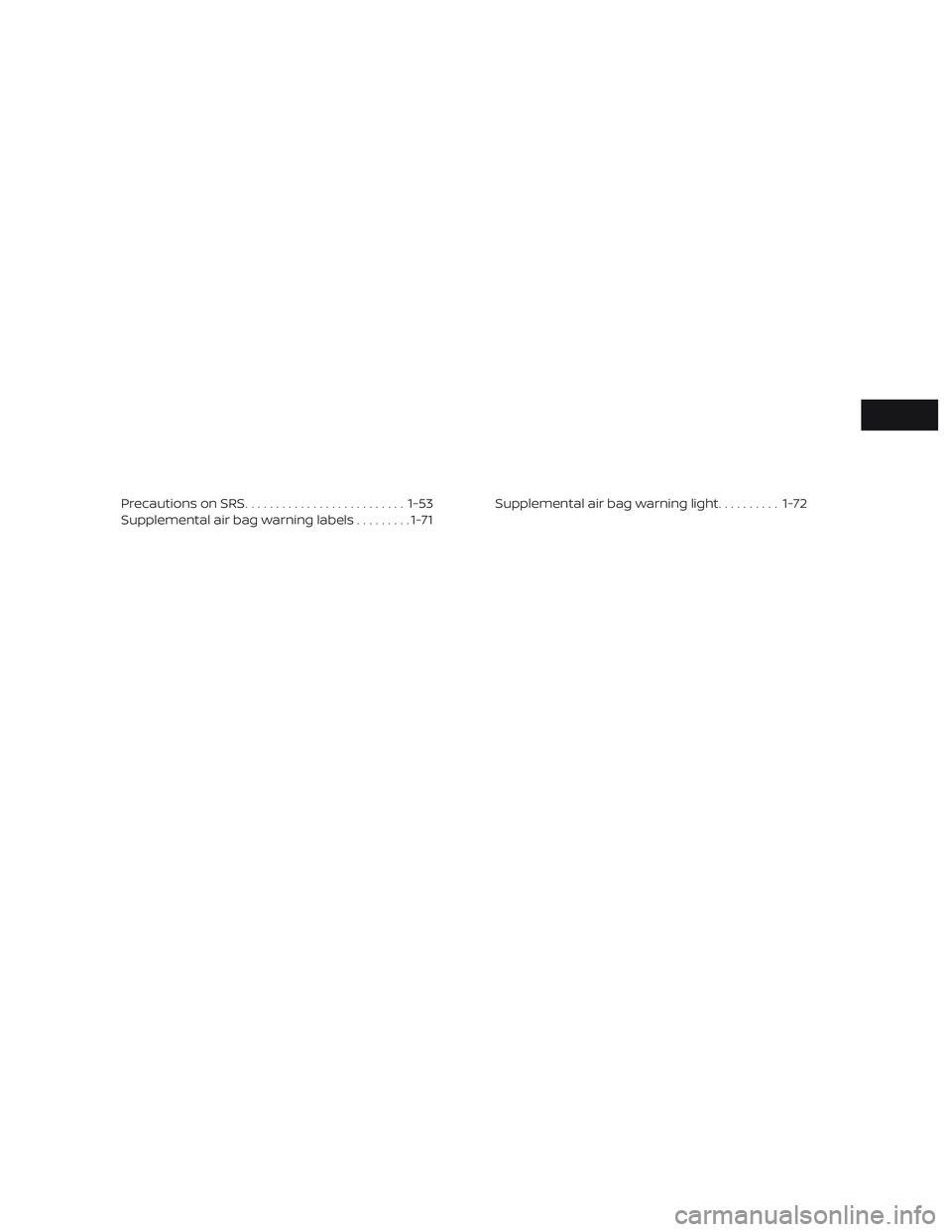

Supplemental Restraint System (SRS) ...........1-53

Precautions on SRS.......................... 1-53
Supplemental air bag warning labels .........1-71 Supplemental air bag warning light
..........1-72

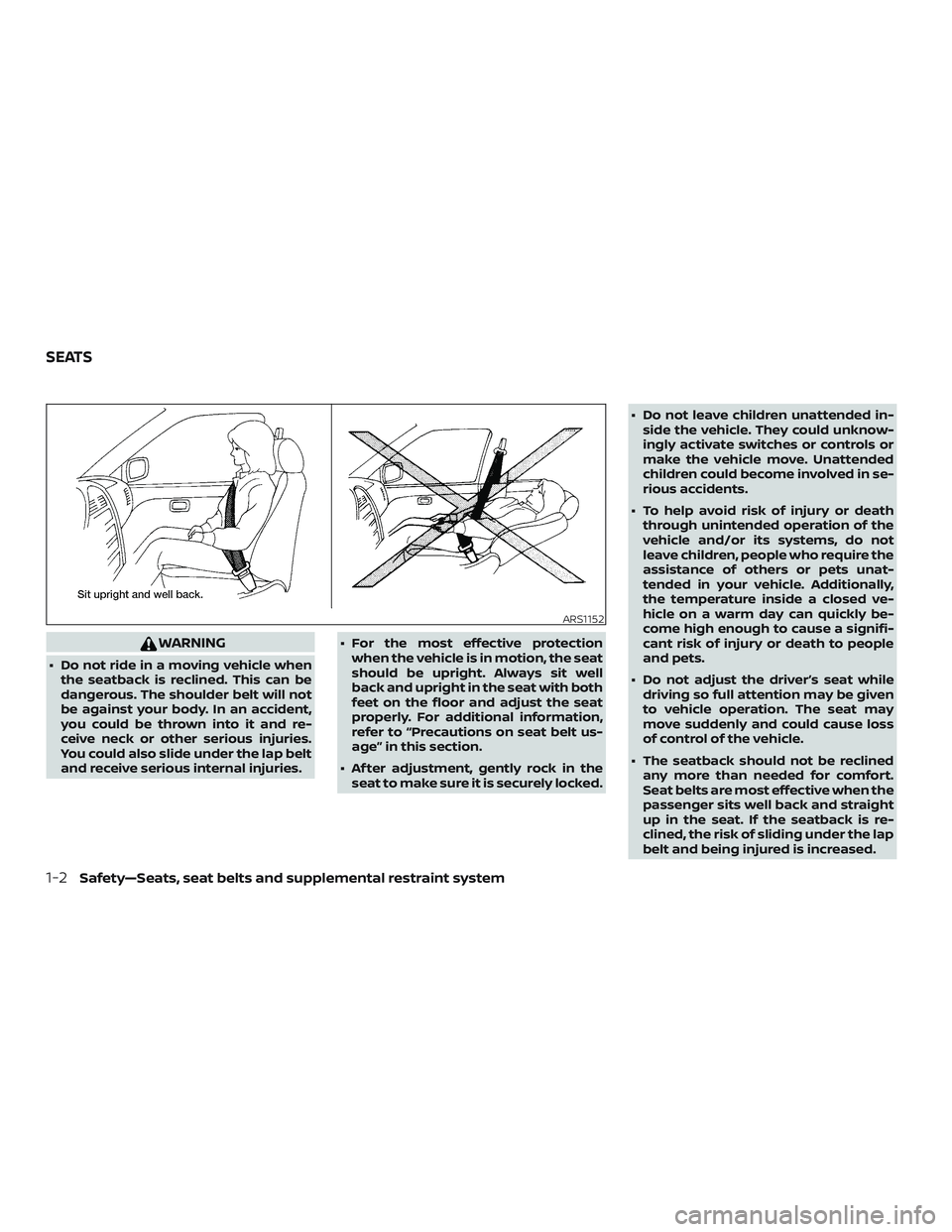

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

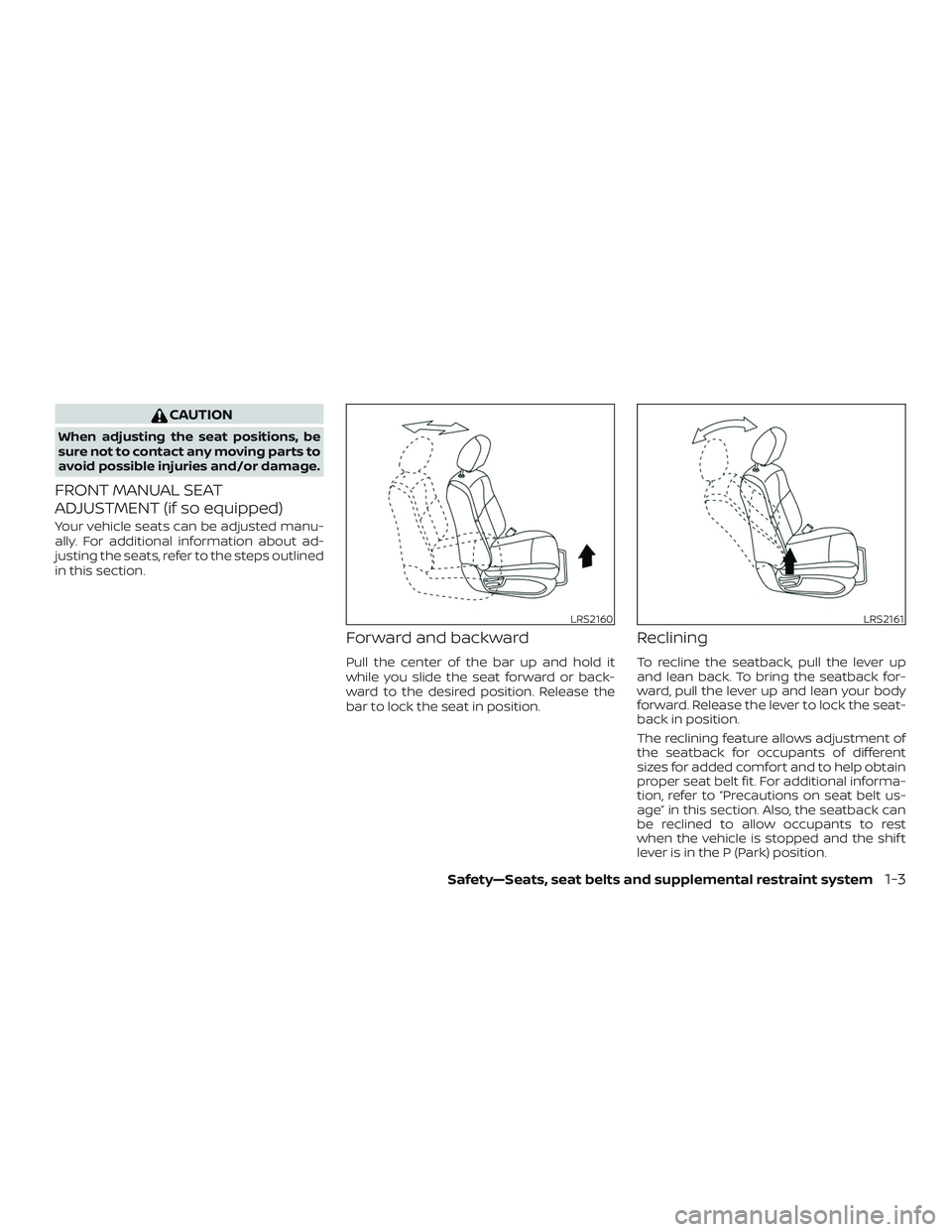

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS2160LRS2161
Safety—Seats, seat belts and supplemental restraint system1-3

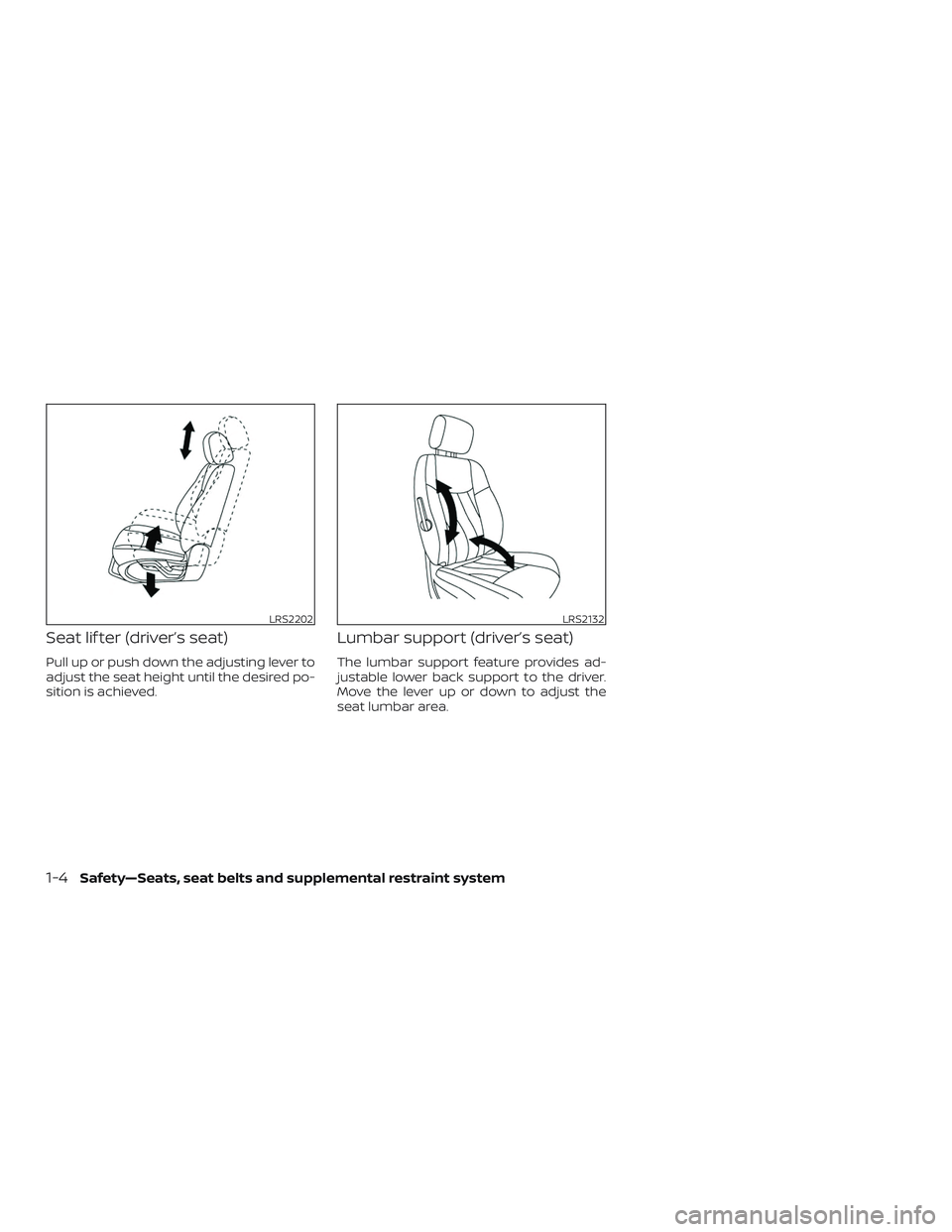

Seat lif ter (driver’s seat)
Pull up or push down the adjusting lever to
adjust the seat height until the desired po-
sition is achieved.
Lumbar support (driver’s seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Move the lever up or down to adjust the
seat lumbar area.
LRS2202LRS2132
1-4Safety—Seats, seat belts and supplemental restraint system

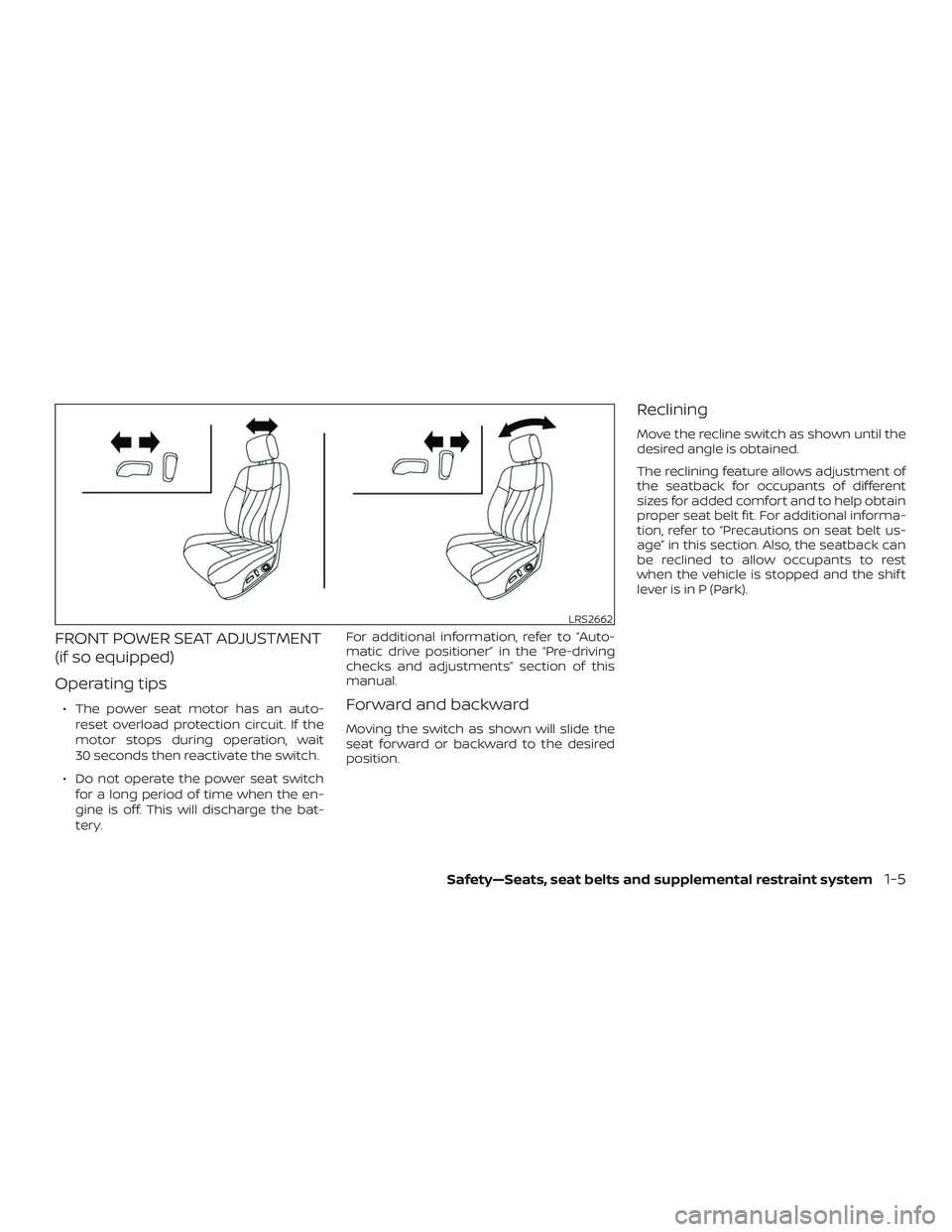

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
∙ The power seat motor has an auto-reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the en-
gine is off. This will discharge the bat-
tery. For additional information, refer to “Auto-
matic drive positioner” in the “Pre-driving
checks and adjustments” section of this
manual.Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
LRS2662
Safety—Seats, seat belts and supplemental restraint system1-5

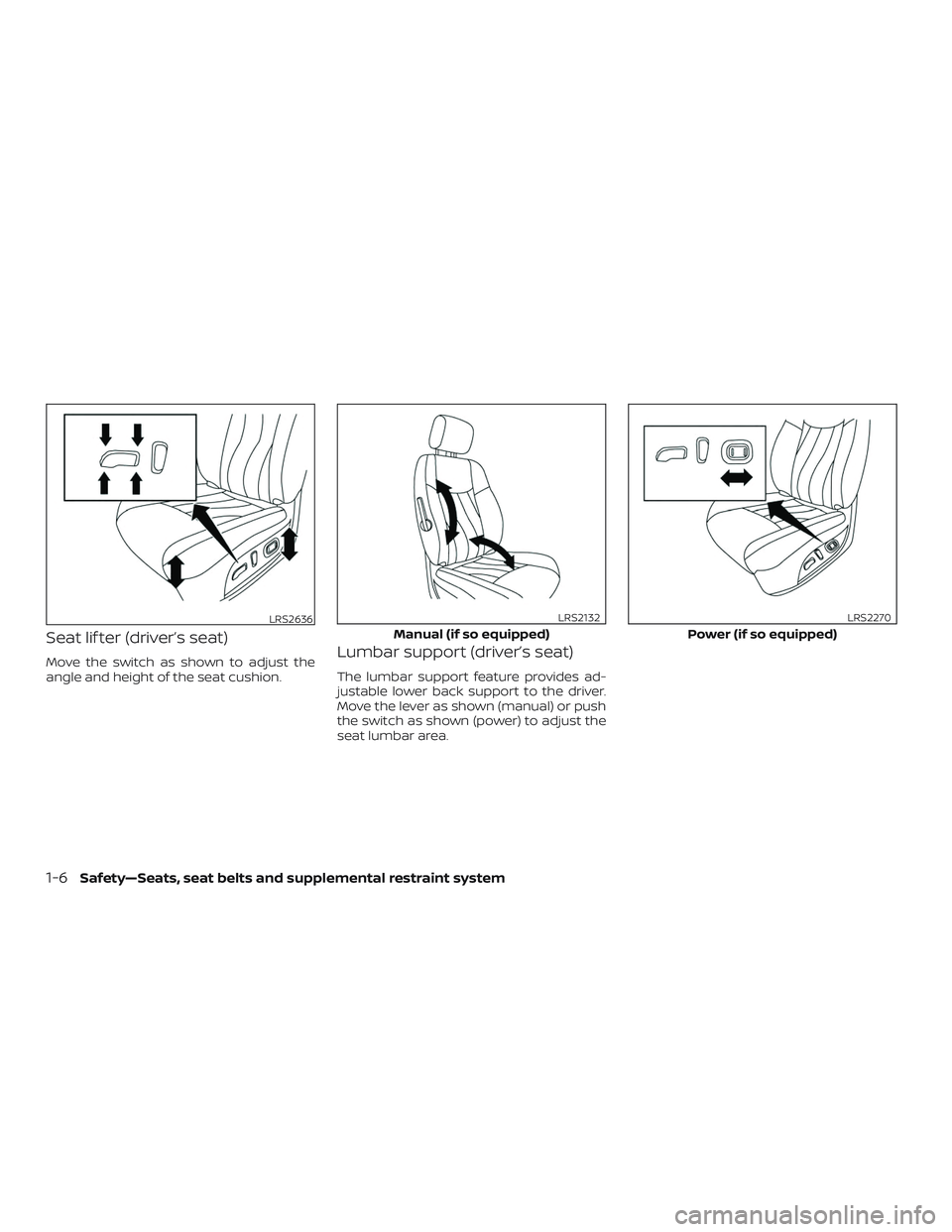

Seat lif ter (driver’s seat)
Move the switch as shown to adjust the
angle and height of the seat cushion.Lumbar support (driver’s seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Move the lever as shown (manual) or push
the switch as shown (power) to adjust the
seat lumbar area.
LRS2636
Manual (if so equipped)
LRS2132
Power (if so equipped)
LRS2270
1-6Safety—Seats, seat belts and supplemental restraint system

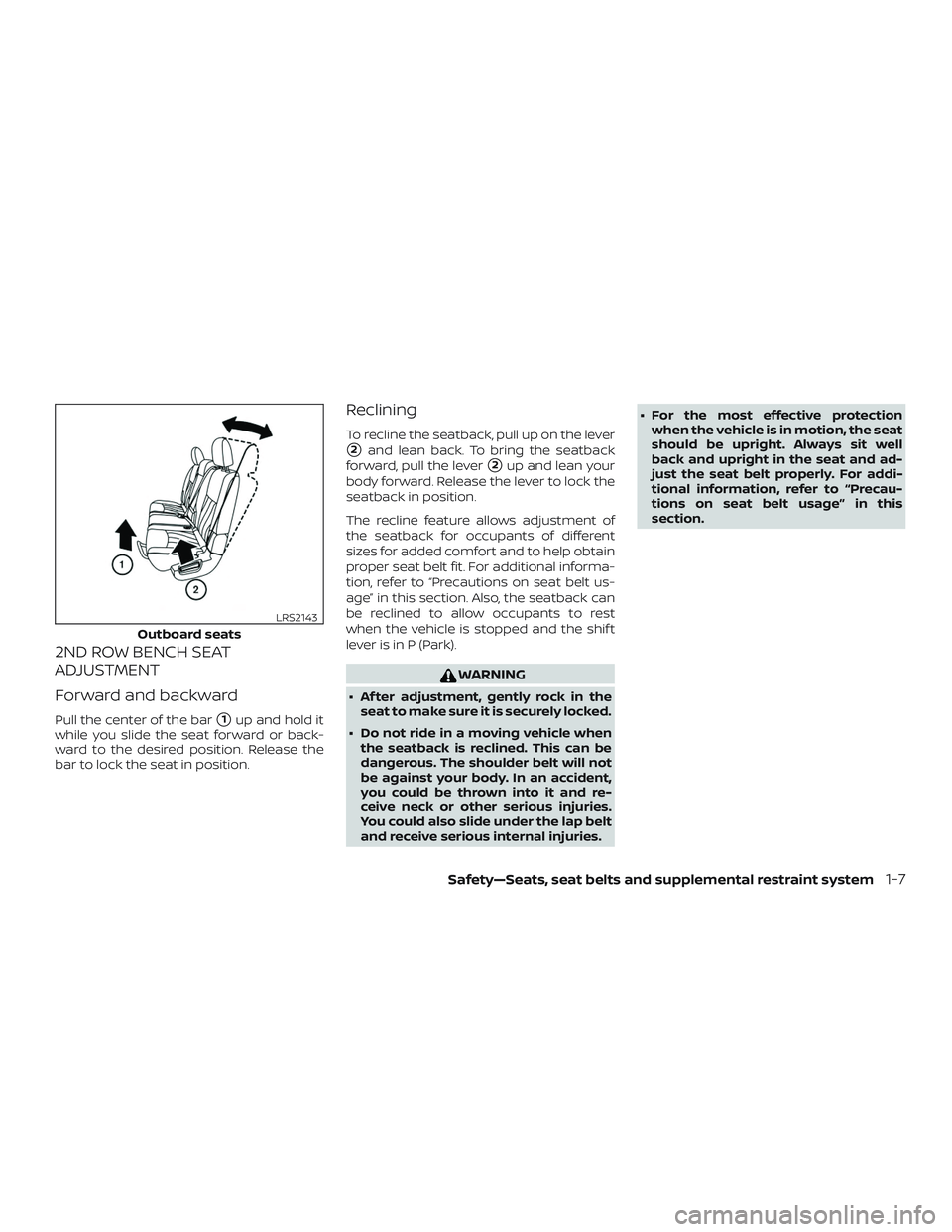

2ND ROW BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the bar1up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull up on the lever
2and lean back. To bring the seatback
forward, pull the lever
2up and lean your
body forward. Release the lever to lock the
seatback in position.
The recline feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
WARNING
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not ride in a moving vehicle when the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat and ad-
just the seat belt properly. For addi-
tional information, refer to “Precau-
tions on seat belt usage” in this
section.
Outboard seats
LRS2143
Safety—Seats, seat belts and supplemental restraint system1-7

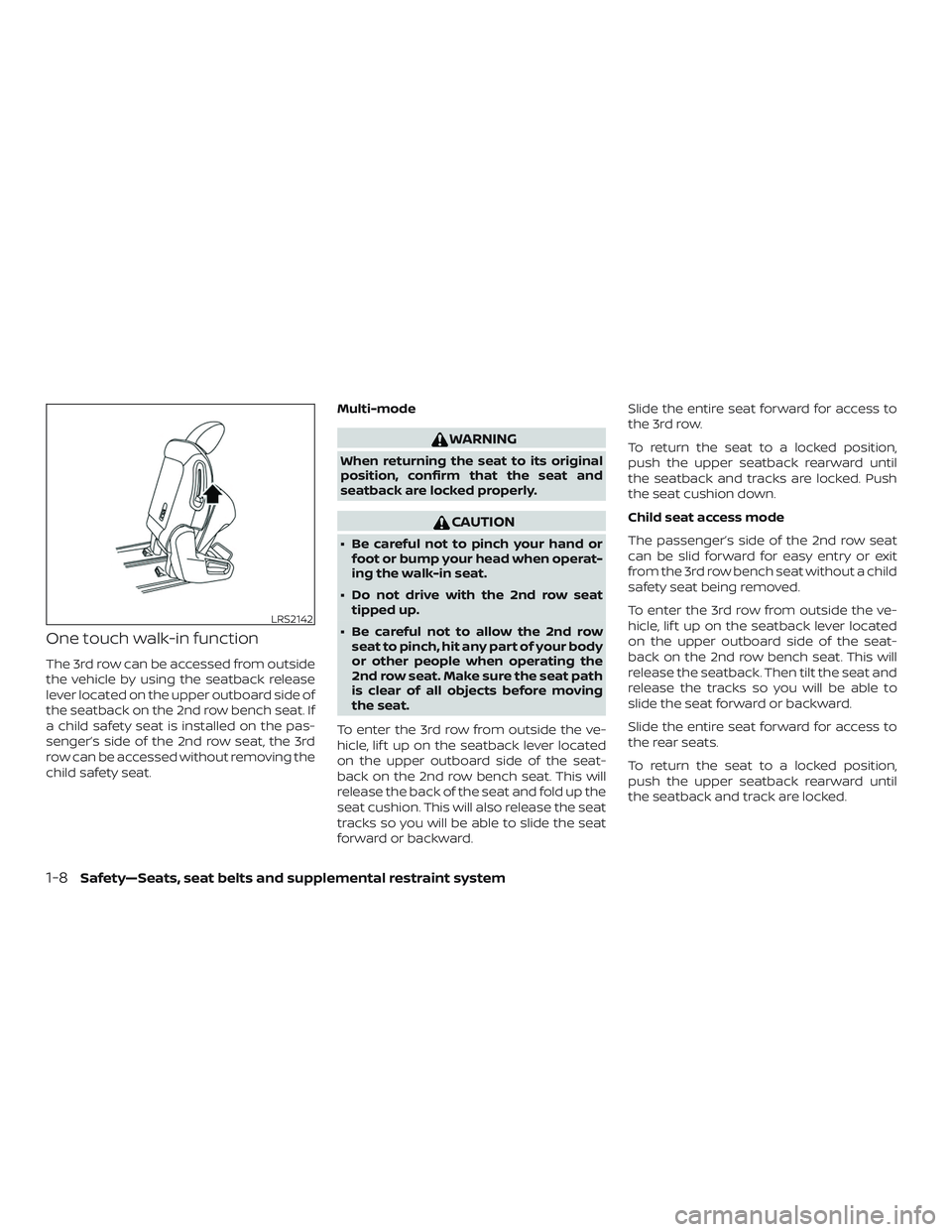

One touch walk-in function
The 3rd row can be accessed from outside
the vehicle by using the seatback release
lever located on the upper outboard side of
the seatback on the 2nd row bench seat. If
a child safety seat is installed on the pas-
senger’s side of the 2nd row seat, the 3rd
row can be accessed without removing the
child safety seat.Multi-mode
WARNING
When returning the seat to its original
position, confirm that the seat and
seatback are locked properly.
CAUTION
∙ Be careful not to pinch your hand or
foot or bump your head when operat-
ing the walk-in seat.
∙ Do not drive with the 2nd row seat tipped up.
∙ Be careful not to allow the 2nd row seat to pinch, hit any part of your body
or other people when operating the
2nd row seat. Make sure the seat path
is clear of all objects before moving
the seat.
To enter the 3rd row from outside the ve-
hicle, lif t up on the seatback lever located
on the upper outboard side of the seat-
back on the 2nd row bench seat. This will
release the back of the seat and fold up the
seat cushion. This will also release the seat
tracks so you will be able to slide the seat
forward or backward. Slide the entire seat forward for access to
the 3rd row.
To return the seat to a locked position,
push the upper seatback rearward until
the seatback and tracks are locked. Push
the seat cushion down.
Child seat access mode
The passenger’s side of the 2nd row seat
can be slid forward for easy entry or exit
from the 3rd row bench seat without a child
safety seat being removed.
To enter the 3rd row from outside the ve-
hicle, lif t up on the seatback lever located
on the upper outboard side of the seat-
back on the 2nd row bench seat. This will
release the seatback. Then tilt the seat and
release the tracks so you will be able to
slide the seat forward or backward.
Slide the entire seat forward for access to
the rear seats.
To return the seat to a locked position,
push the upper seatback rearward until
the seatback and track are locked.
LRS2142
1-8Safety—Seats, seat belts and supplemental restraint system
