Page 111 of 647

NISSAN PATHFINDER 2022  Owner´s Manual 1. Vents (P. 4-31)
2. Headlight/fog light (if so equipped)/turn signal switch (P. 2-78) 3. Paddle shif ter (P. 5-21)
4. Driver supplemental air bag (P. 1-61)
Horn (P. 2-85) 5. Meters and gauges (P. 2-

Page 112 of 647

NISSAN PATHFINDER 2022  Owner´s Manual 18. Electronic parking brake (P. 5-23)Automatic brake hold switch (P. 5-25)
19. Power outlet (P. 2-96)
20. Driver heated seat switch
(if so equipped) (P. 2-86)
Driver climate-controlled seat switch
(i

Page 113 of 647

NISSAN PATHFINDER 2022  Owner´s Manual 1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Twin trip odometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
This v

Page 114 of 647

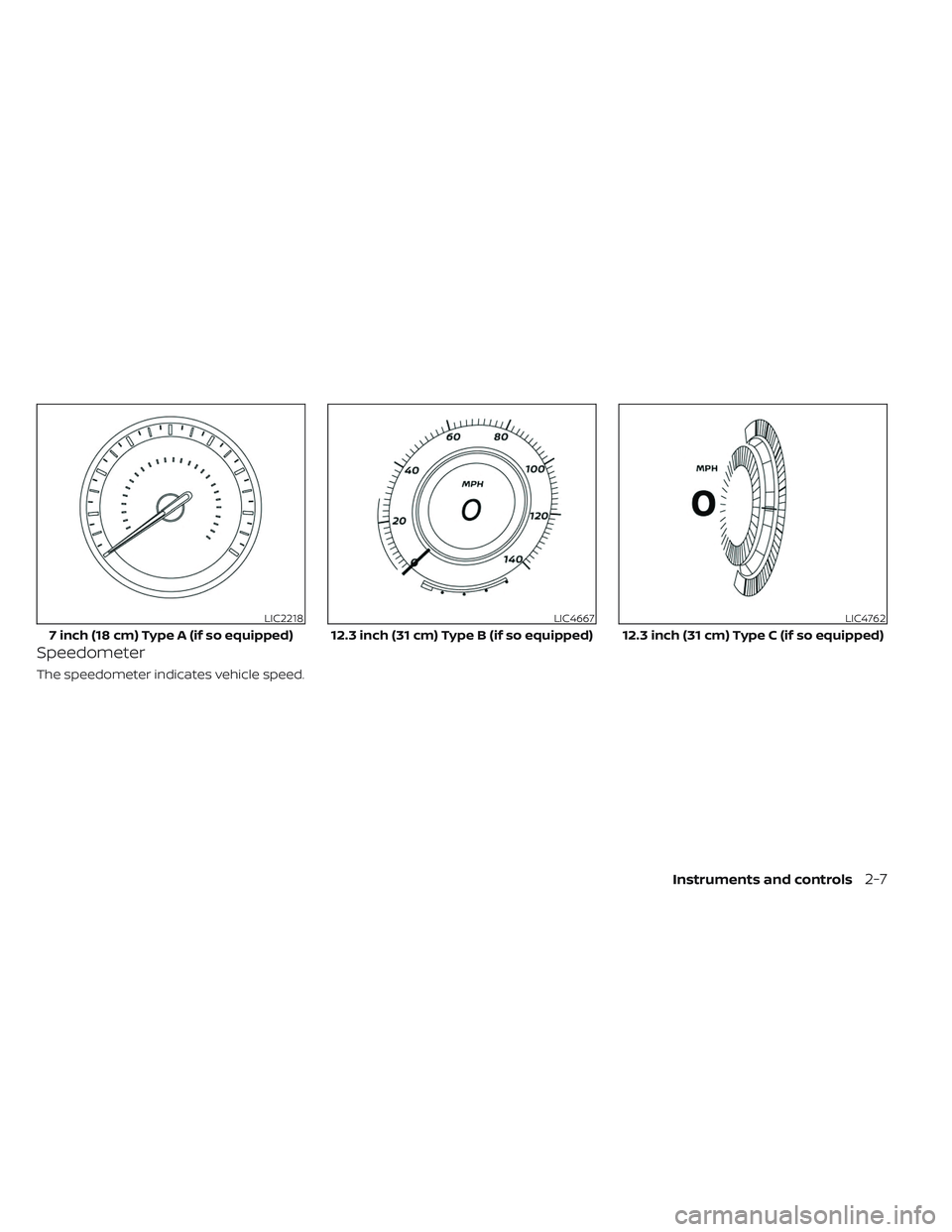

NISSAN PATHFINDER 2022  Owner´s Manual Speedometer
The speedometer indicates vehicle speed.
LIC2218
7 inch (18 cm) Type A (if so equipped)
LIC4667
12.3 inch (31 cm) Type B (if so equipped)
LIC4762
12.3 inch (31 cm) Type C (if so equipped)

Page 115 of 647

NISSAN PATHFINDER 2022  Owner´s Manual Odometer
The odometerO1is displayed in the vehicle
information display when the ignition
switch is placed in the ON position.
The odometer records the total distance
the vehicle has been driven.TACHOM

Page 116 of 647

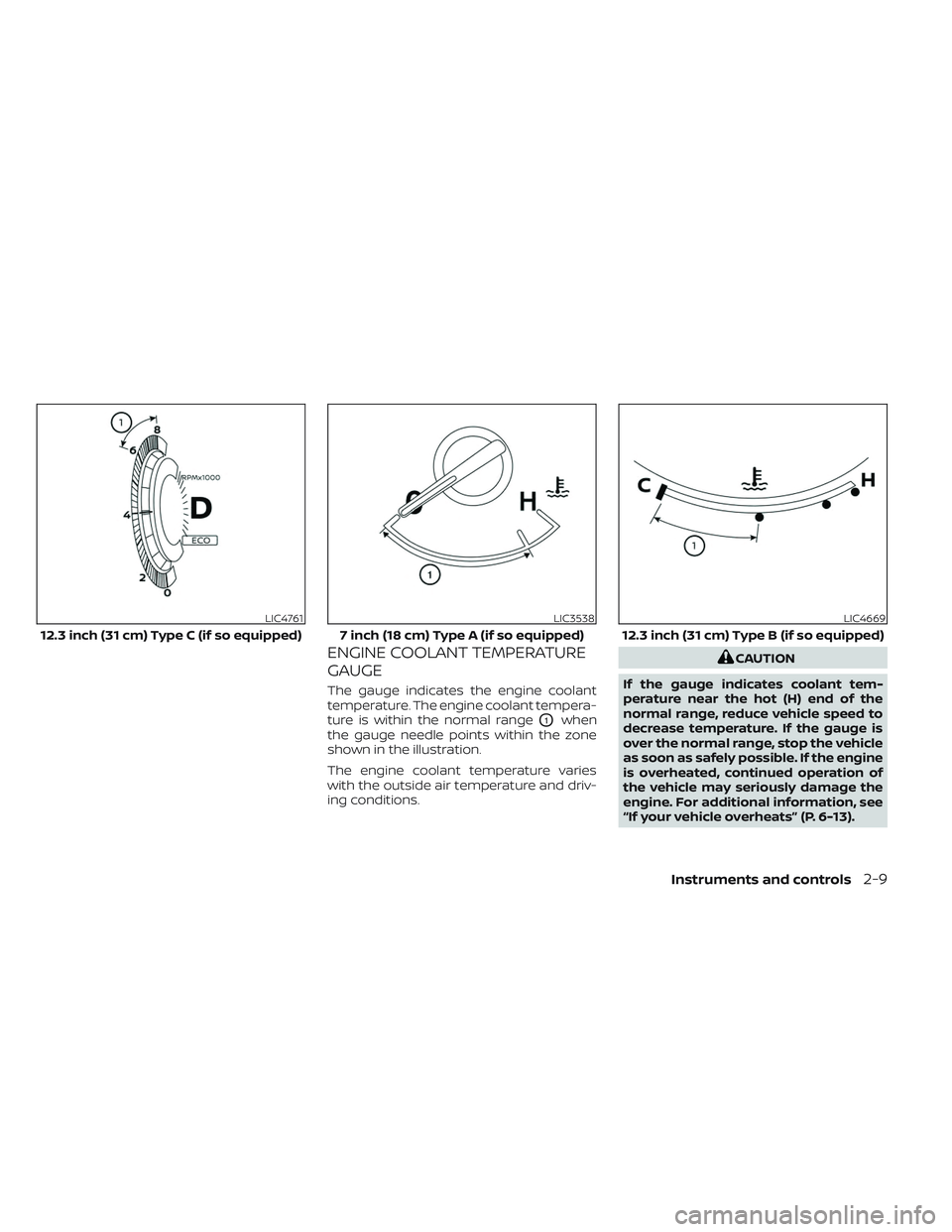

NISSAN PATHFINDER 2022  Owner´s Manual ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant
temperature. The engine coolant tempera-
ture is within the normal range
O1when
the gauge needle points within the zone
shown in

Page 117 of 647

NISSAN PATHFINDER 2022  Owner´s Manual FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.
The gauge needle returns to 0 (Empt

Page 118 of 647

NISSAN PATHFINDER 2022  Owner´s Manual NOTE:
• The DTE value af ter refill is estimatedbased on recent fuel economy and
amount of fuel added.
• If a small amount of fuel is added, or the ignition is on during refueling, the
display may

Page 119 of 647

NISSAN PATHFINDER 2022  Owner´s Manual Warning/Indicator light (red)Warning/Indicator light (yellow) Warning/Indicator light (other)
orBrake warning lightorAnti-lock Braking System (ABS)
warning lightAutomatic brake hold indicator light
(w

Page 120 of 647

NISSAN PATHFINDER 2022  Owner´s Manual Warning/Indicator light (red)Warning/Indicator light (yellow) Warning/Indicator light (other)
Supplemental air bag warning lightMaster warning light (if so equipped)
Rear Automatic Braking (RAB) warni
