NISSAN PATHFINDER 2022 Owner´s Manual

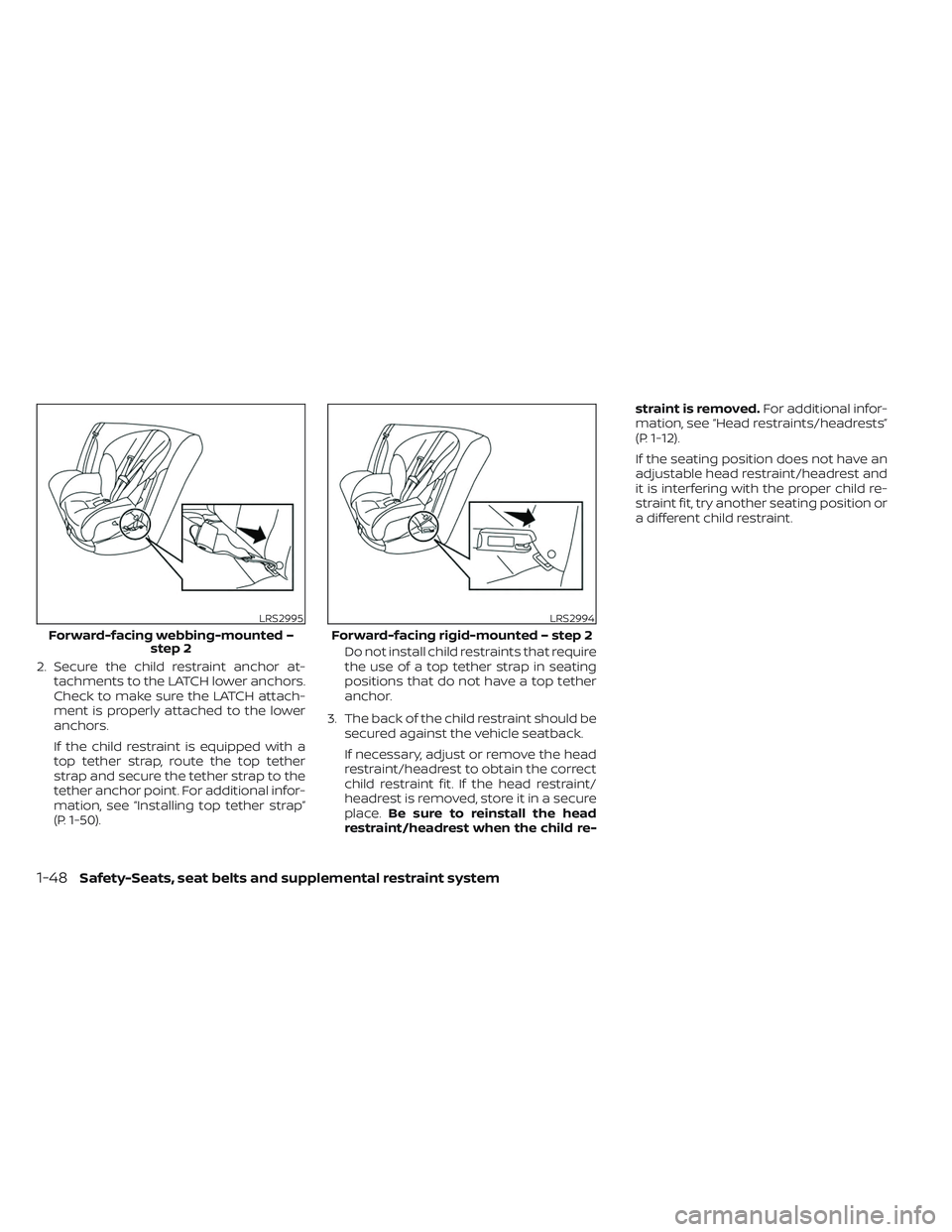

2. Secure the child restraint anchor at-tachments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point. For additional infor-
mation, see “Installing top tether strap”
(P. 1-50). Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.
3. The back of the child restraint should be secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint/headrest when the child re- straint is removed.
For additional infor-
mation, see “Head restraints/headrests”
(P. 1-12).
If the seating position does not have an
adjustable head restraint/headrest and
it is interfering with the proper child re-
straint fit, try another seating position or
a different child restraint.
LRS2995
Forward-facing webbing-mounted – step 2
LRS2994
Forward-facing rigid-mounted – step 2
1-48Safety-Seats, seat belts and supplemental restraint system

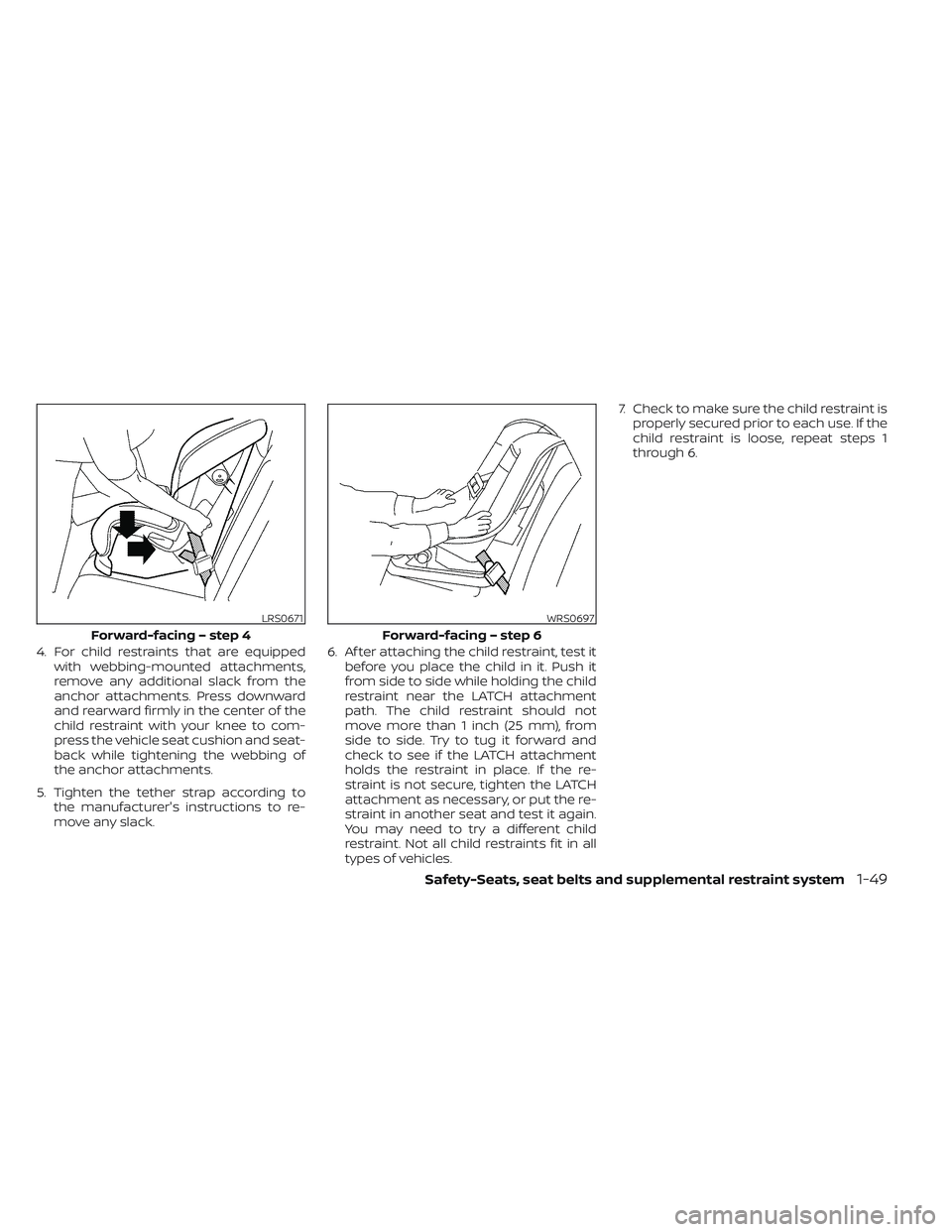

4. For child restraints that are equippedwith webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your knee to com-
press the vehicle seat cushion and seat-
back while tightening the webbing of
the anchor attachments.
5. Tighten the tether strap according to the manufacturer's instructions to re-
move any slack. 6. Af ter attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not
move more than 1 inch (25 mm), from
side to side. Try to tug it forward and
check to see if the LATCH attachment
holds the restraint in place. If the re-
straint is not secure, tighten the LATCH
attachment as necessary, or put the re-
straint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles. 7. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 6.
LRS0671
Forward-facing – step 4
WRS0697
Forward-facing – step 6
Safety-Seats, seat belts and supplemental restraint system1-49

Installing top tether strap
1Top tether strap
2Anchor point
The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.
First, secure the child restraint with the
LATCH lower anchors. OUTBOARD SEATING POSITIONS
1. Remove the head restraint/headrest
and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information about head
restraint/headrest adjustment, removal
and installation, see “Head restraints/
headrests” (P. 1-12).
2. Position the top tether strap
O1over the
seatback.
3. Secure the tether strap to the tether an- chor point
O2as shown. 4. Tighten the tether strap according to
the manufacturer’s instructions to re-
move any slack.
CENTER SEATING POSITION (if so equipped)
1. Position the top tether strapO1as
shown.
2. Secure the tether strap to the tether an- chor point
O2as shown.
3. Tighten the tether strap according to the manufacturer’s instructions to re-
move any slack. Make sure the head
restraint/headrest does not contact the
top tether strap.
LRS2553
2nd row bench seat (if so equipped)
LRS3364
2nd row captain’s seats (if so equipped)
1-50Safety-Seats, seat belts and supplemental restraint system

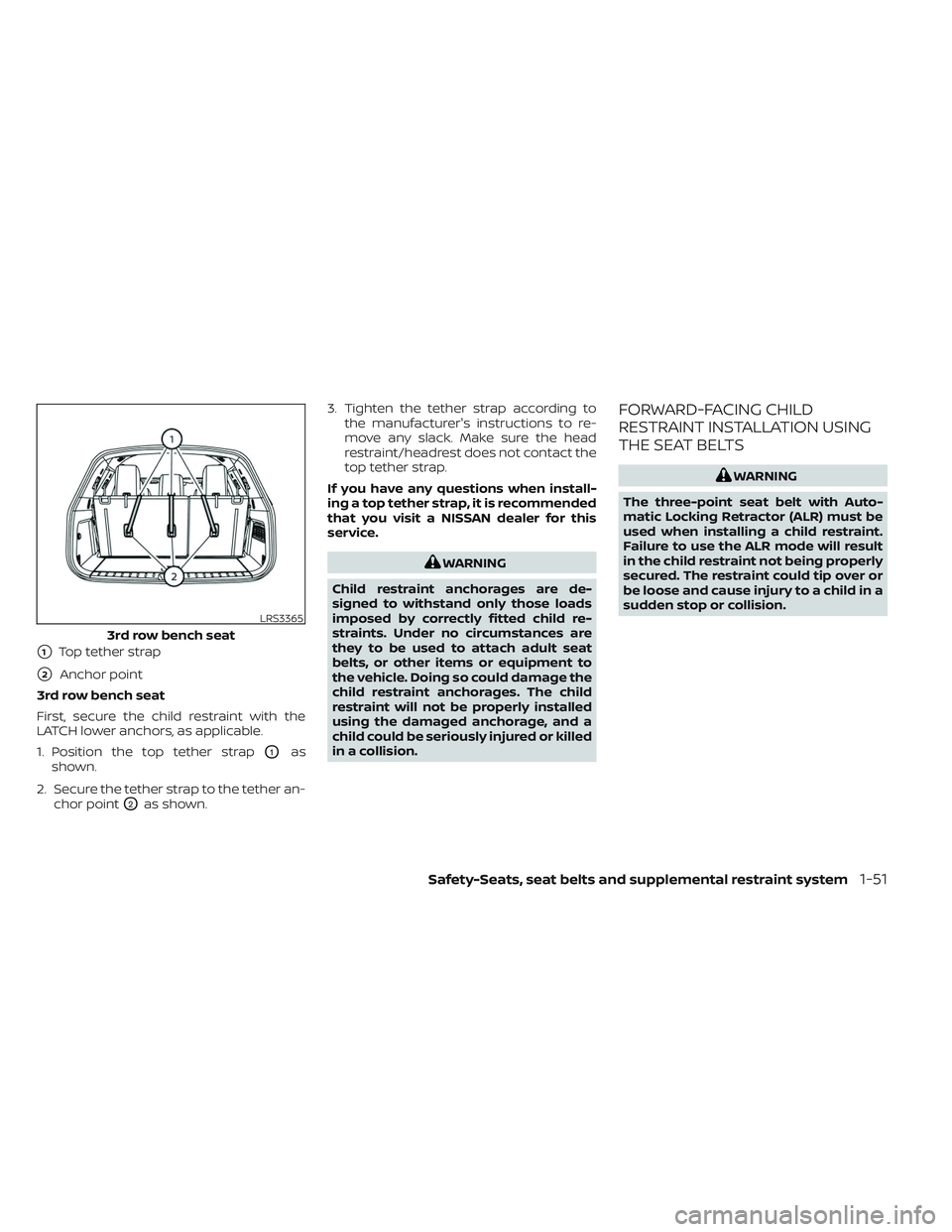

1Top tether strap
2Anchor point
3rd row bench seat
First, secure the child restraint with the
LATCH lower anchors, as applicable.
1. Position the top tether strap
O1as
shown.
2. Secure the tether strap to the tether an- chor point
O2as shown. 3. Tighten the tether strap according to
the manufacturer's instructions to re-
move any slack. Make sure the head
restraint/headrest does not contact the
top tether strap.
If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.
WARNING
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or killed
in a collision.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result
in the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision.
LRS3365
3rd row bench seat
Safety-Seats, seat belts and supplemental restraint system1-51

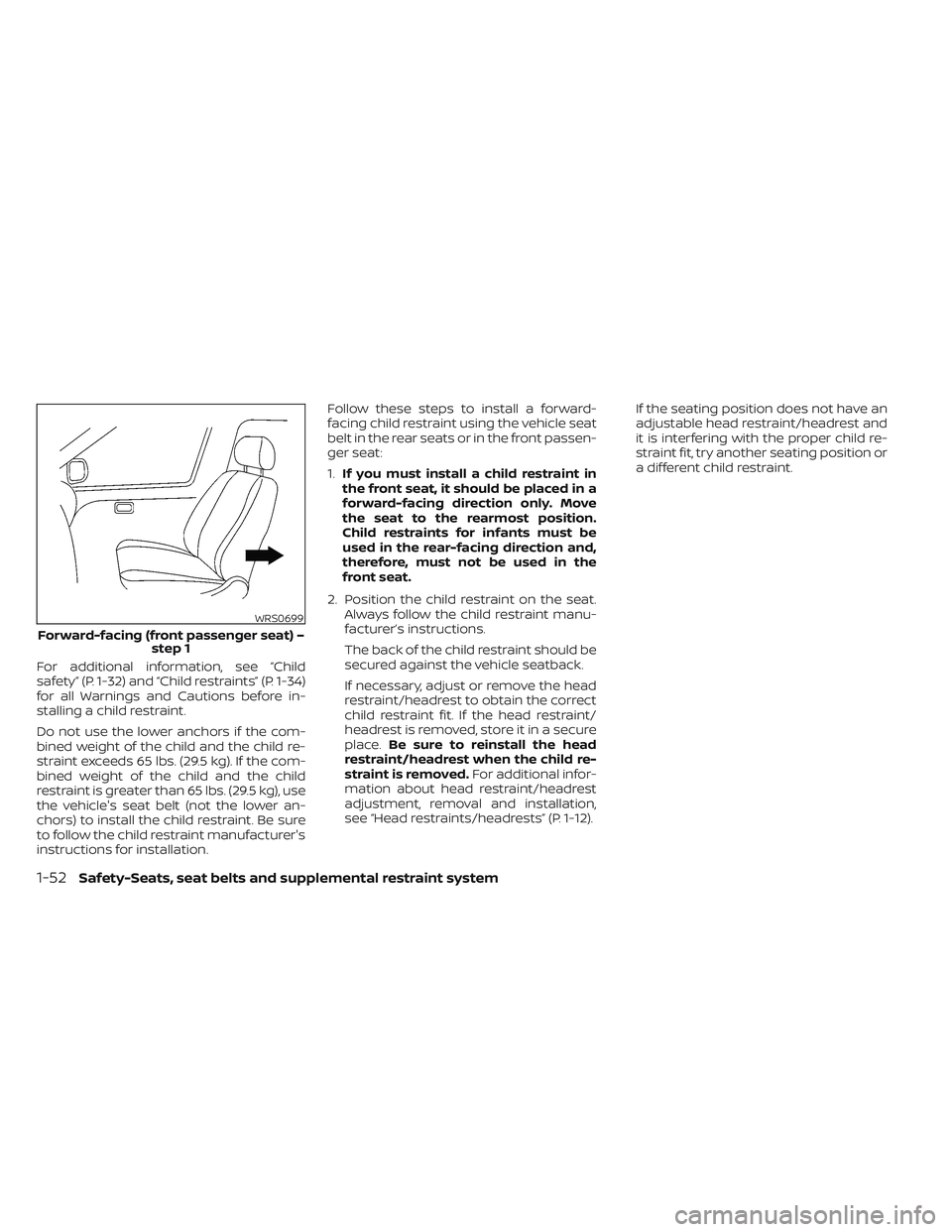

For additional information, see “Child
safety” (P. 1-32) and “Child restraints” (P. 1-34)
for all Warnings and Cautions before in-
stalling a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and the child
restraint is greater than 65 lbs. (29.5 kg), use
the vehicle's seat belt (not the lower an-
chors) to install the child restraint. Be sure
to follow the child restraint manufacturer's
instructions for installation.Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front passen-
ger seat:
1.
If you must install a child restraint in
the front seat, it should be placed in a
forward-facing direction only. Move
the seat to the rearmost position.
Child restraints for infants must be
used in the rear-facing direction and,
therefore, must not be used in the
front seat.
2. Position the child restraint on the seat. Always follow the child restraint manu-
facturer’s instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint/headrest when the child re-
straint is removed. For additional infor-
mation about head restraint/headrest
adjustment, removal and installation,
see “Head restraints/headrests” (P. 1-12). If the seating position does not have an
adjustable head restraint/headrest and
it is interfering with the proper child re-
straint fit, try another seating position or
a different child restraint.
WRS0699
Forward-facing (front passenger seat) –
step 1
1-52Safety-Seats, seat belts and supplemental restraint system

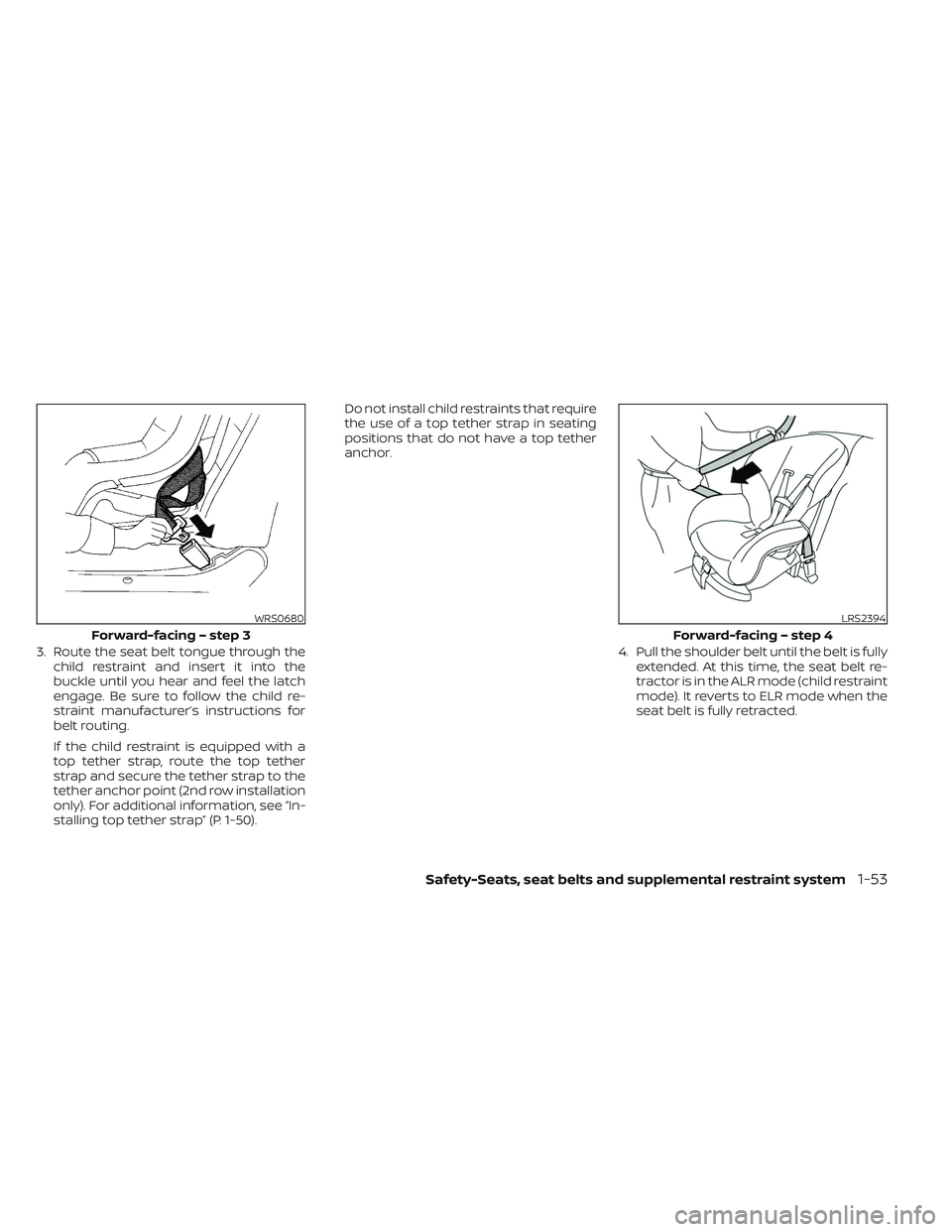

3. Route the seat belt tongue through thechild restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point (2nd row installation
only). For additional information, see “In-
stalling top tether strap” (P. 1-50). Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.
4. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to ELR mode when the
seat belt is fully retracted.
WRS0680
Forward-facing – step 3
LRS2394
Forward-facing – step 4
Safety-Seats, seat belts and supplemental restraint system1-53

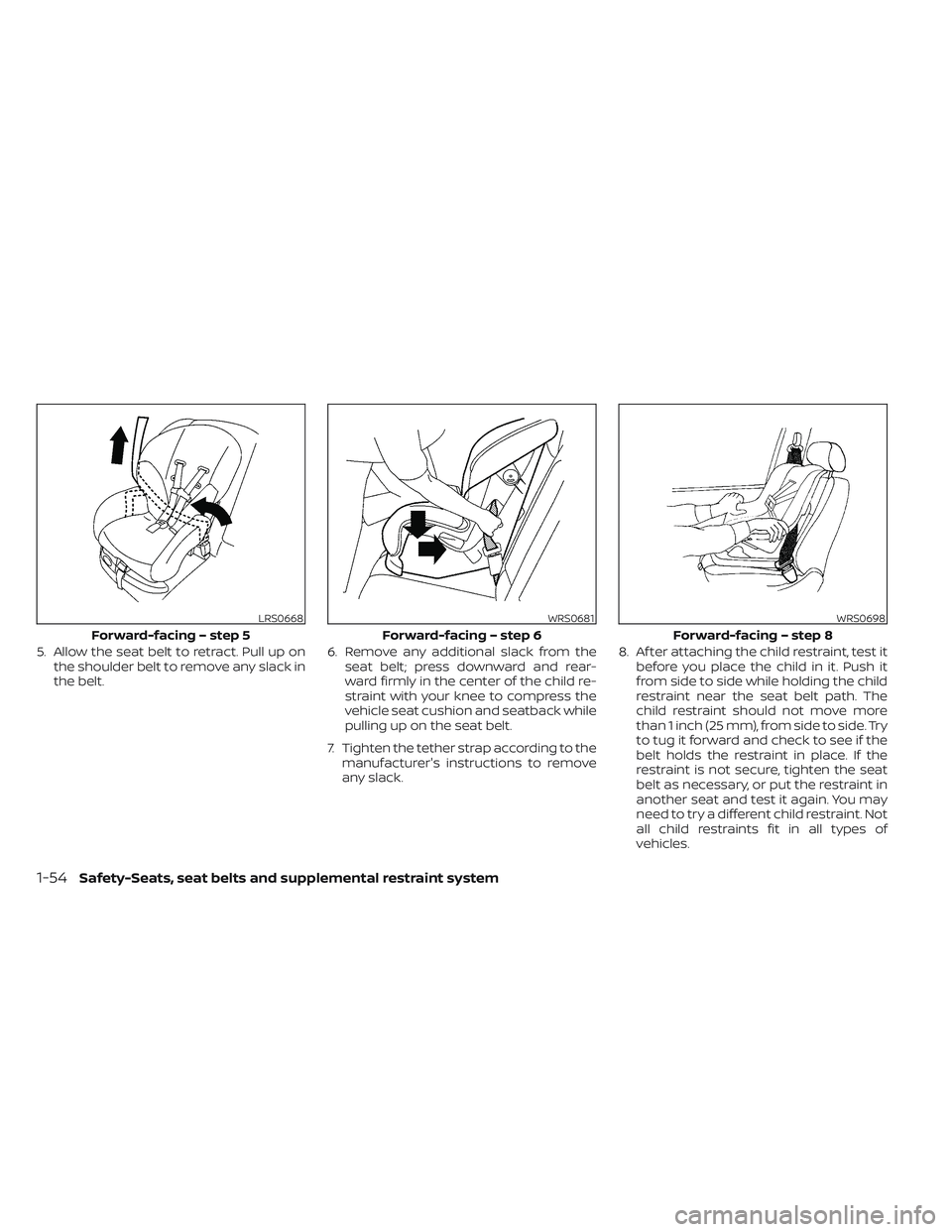

5. Allow the seat belt to retract. Pull up onthe shoulder belt to remove any slack in
the belt. 6. Remove any additional slack from the
seat belt; press downward and rear-
ward firmly in the center of the child re-
straint with your knee to compress the
vehicle seat cushion and seatback while
pulling up on the seat belt.
7. Tighten the tether strap according to the manufacturer's instructions to remove
any slack. 8. Af ter attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side. Try
to tug it forward and check to see if the
belt holds the restraint in place. If the
restraint is not secure, tighten the seat
belt as necessary, or put the restraint in
another seat and test it again. You may
need to try a different child restraint. Not
all child restraints fit in all types of
vehicles.
LRS0668
Forward-facing – step 5
WRS0681
Forward-facing – step 6
WRS0698
Forward-facing – step 8
1-54Safety-Seats, seat belts and supplemental restraint system

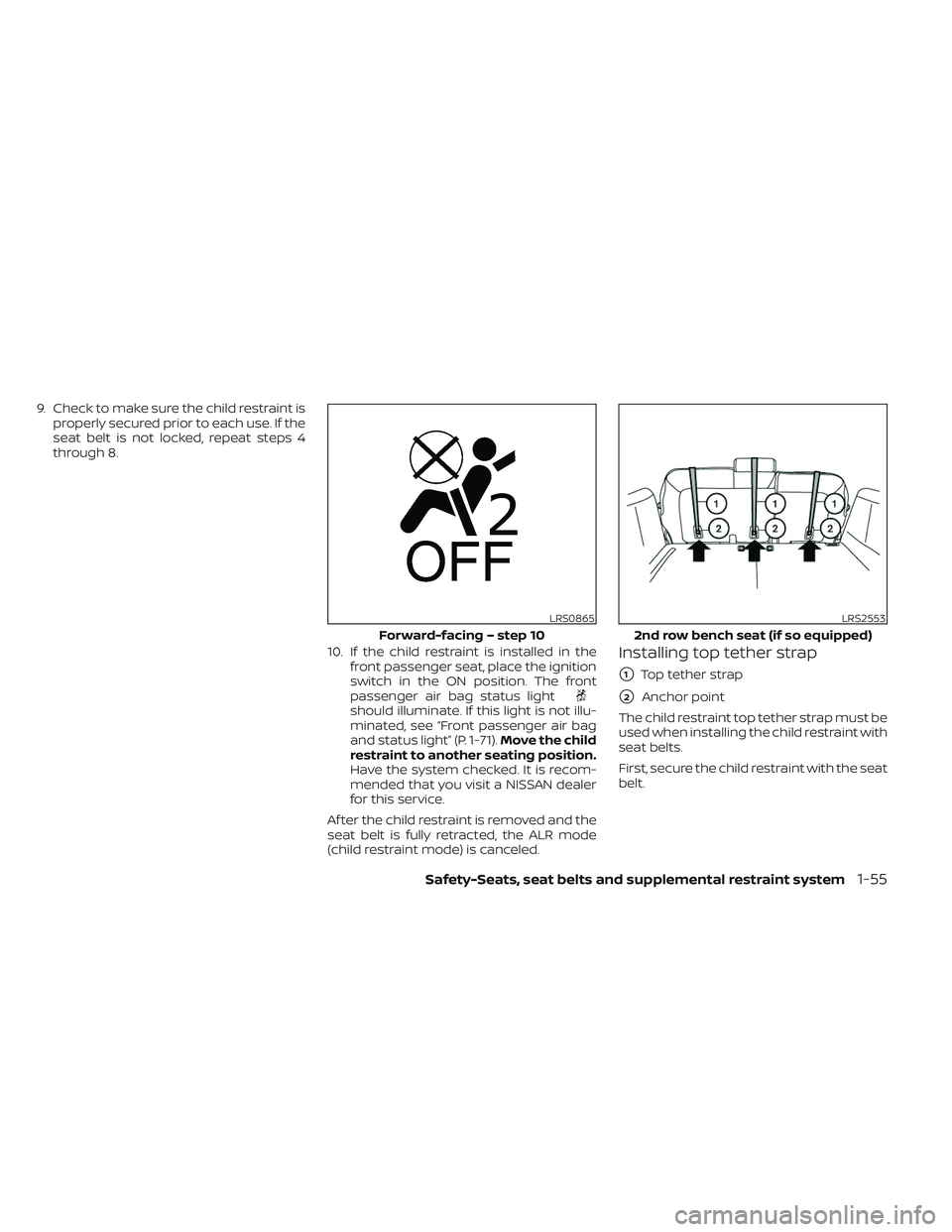

9. Check to make sure the child restraint isproperly secured prior to each use. If the
seat belt is not locked, repeat steps 4
through 8.
10. If the child restraint is installed in thefront passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light
should illuminate. If this light is not illu-
minated, see “Front passenger air bag
and status light” (P. 1-71). Move the child
restraint to another seating position.
Have the system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.
Af ter the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.
Installing top tether strap
1Top tether strap
2Anchor point
The child restraint top tether strap must be
used when installing the child restraint with
seat belts.
First, secure the child restraint with the seat
belt.
LRS0865
Forward-facing – step 10
LRS2553
2nd row bench seat (if so equipped)
Safety-Seats, seat belts and supplemental restraint system1-55

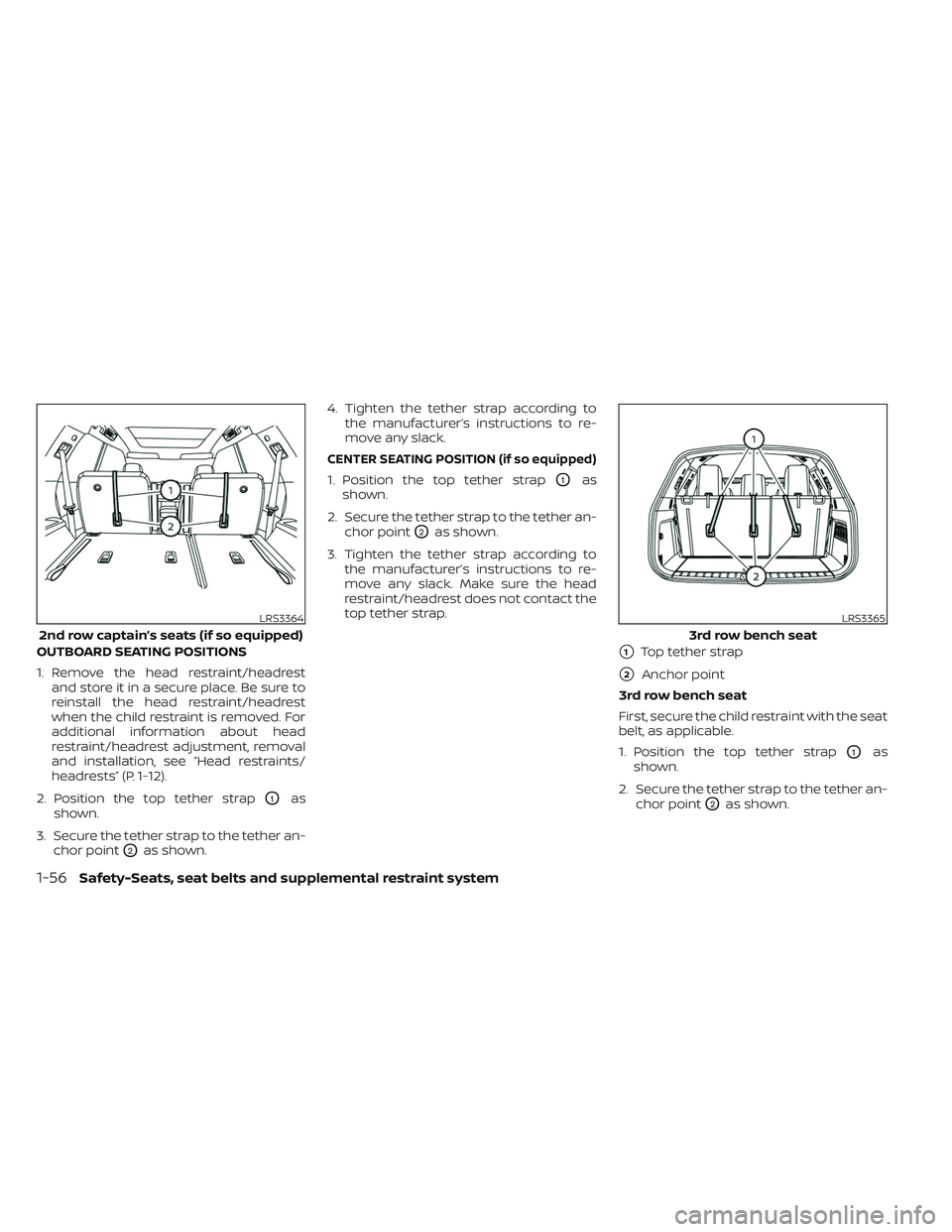

OUTBOARD SEATING POSITIONS
1. Remove the head restraint/headrestand store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information about head
restraint/headrest adjustment, removal
and installation, see “Head restraints/
headrests” (P. 1-12).
2. Position the top tether strap
O1as
shown.
3. Secure the tether strap to the tether an- chor point
O2as shown. 4. Tighten the tether strap according to
the manufacturer’s instructions to re-
move any slack.
CENTER SEATING POSITION (if so equipped)
1. Position the top tether strapO1as
shown.
2. Secure the tether strap to the tether an- chor point
O2as shown.
3. Tighten the tether strap according to the manufacturer’s instructions to re-
move any slack. Make sure the head
restraint/headrest does not contact the
top tether strap.
1Top tether strap
2Anchor point
3rd row bench seat
First, secure the child restraint with the seat
belt, as applicable.
1. Position the top tether strap
O1as
shown.
2. Secure the tether strap to the tether an- chor point
O2as shown.
LRS3364
2nd row captain’s seats (if so equipped)
LRS3365
3rd row bench seat
1-56Safety-Seats, seat belts and supplemental restraint system

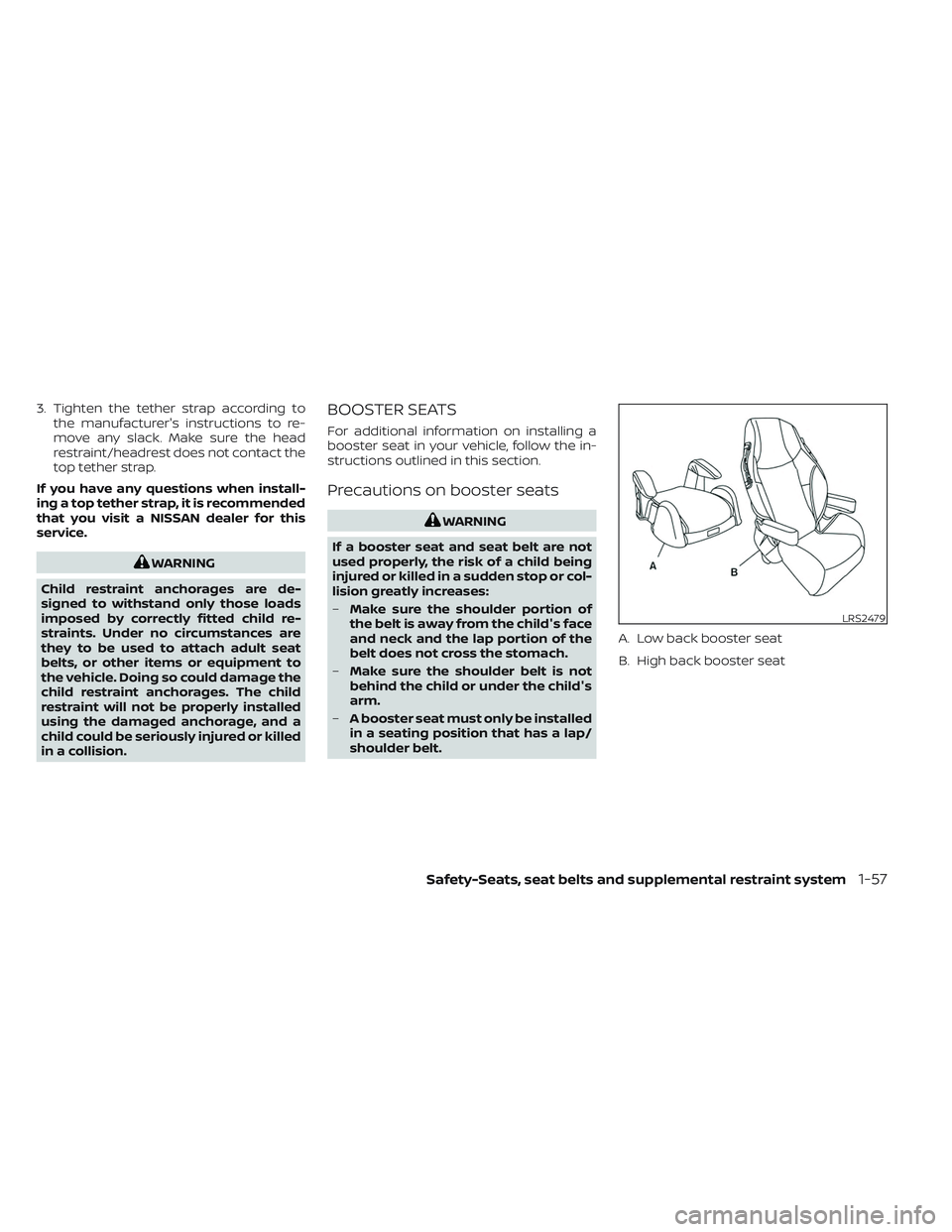

3. Tighten the tether strap according tothe manufacturer's instructions to re-
move any slack. Make sure the head
restraint/headrest does not contact the
top tether strap.
If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.
WARNING
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or killed
in a collision.
BOOSTER SEATS
For additional information on installing a
booster seat in your vehicle, follow the in-
structions outlined in this section.
Precautions on booster seats
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured or killed in a sudden stop or col-
lision greatly increases:
– Make sure the shoulder portion of
the belt is away from the child's face
and neck and the lap portion of the
belt does not cross the stomach.
– Make sure the shoulder belt is not
behind the child or under the child's
arm.
– A booster seat must only be installed
in a seating position that has a lap/
shoulder belt.
LRS2479
A. Low back booster seat
B. High back booster seat
Safety-Seats, seat belts and supplemental restraint system1-57
