display NISSAN PATHFINDER 2022 Owner´s Manual

1. Vents (P. 4-31)
2. Headlight/fog light (if so equipped)/turn signal switch (P. 2-78) 3. Paddle shif ter (P. 5-21)
4. Driver supplemental air bag (P. 1-61)
Horn (P. 2-85) 5. Meters and gauges (P. 2-6)
Warning and indicator lights (P. 2-12)
Vehicle information display
(P. 2-22, 2-45)
6. Cruise control switches (if so equipped)
(P. 5-85)
ProPILOT Assist switches
(if so equipped) (P. 5-86)
Bluetooth® Hands-Free Phone System*
7. Wiper and washer switch (P. 2-73) Rear window wiper and washer switch
(P. 2-76)
8. Center display* Navigation system* (if so equipped)
9. Audio controls*
10. Front passenger supplemental air bag
(P. 1-61)
11. Front passenger supplemental knee air
bag (P. 1-78)
12. Glove box (P. 2-104)
13. Passenger heated seat switch
(if so equipped) (P. 2-86)
Passenger climate-controlled seat
switch (if so equipped) (P. 2-85)
14. Automatic heater and air conditioning
controls (P. 4-32)
15. Heated steering wheel switch
(if so equipped) (P. 2-88)
16. Hazard warning flasher switch (P. 6-2)
17. Idling stop OFF switch (if so equipped)
(P. 5-189)
LII2671
INSTRUMENT PANEL
0-6Illustrated table of contents

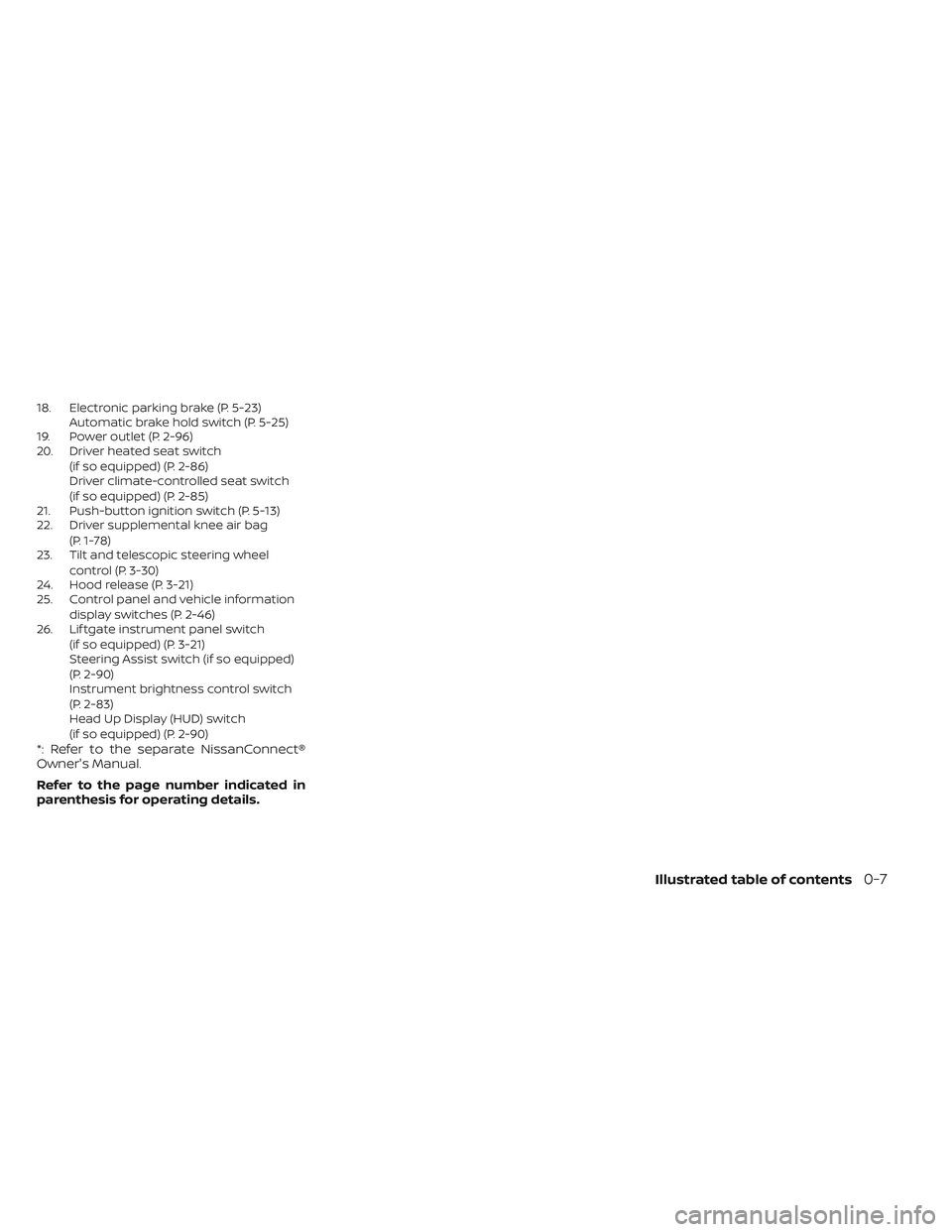

18. Electronic parking brake (P. 5-23)Automatic brake hold switch (P. 5-25)
19. Power outlet (P. 2-96)
20. Driver heated seat switch
(if so equipped) (P. 2-86)
Driver climate-controlled seat switch
(if so equipped) (P. 2-85)
21. Push-button ignition switch (P. 5-13)
22. Driver supplemental knee air bag
(P. 1-78)
23. Tilt and telescopic steering wheel
control (P. 3-30)
24. Hood release (P. 3-21)
25. Control panel and vehicle information
display switches (P. 2-46)
26. Lif tgate instrument panel switch
(if so equipped) (P. 3-21)
Steering Assist switch (if so equipped)
(P. 2-90)
Instrument brightness control switch
(P. 2-83)
Head Up Display (HUD) switch
(if so equipped) (P. 2-90)
*: Refer to the separate NissanConnect®
Owner's Manual.
Refer to the page number indicated in
parenthesis for operating details.
Illustrated table of contents0-7

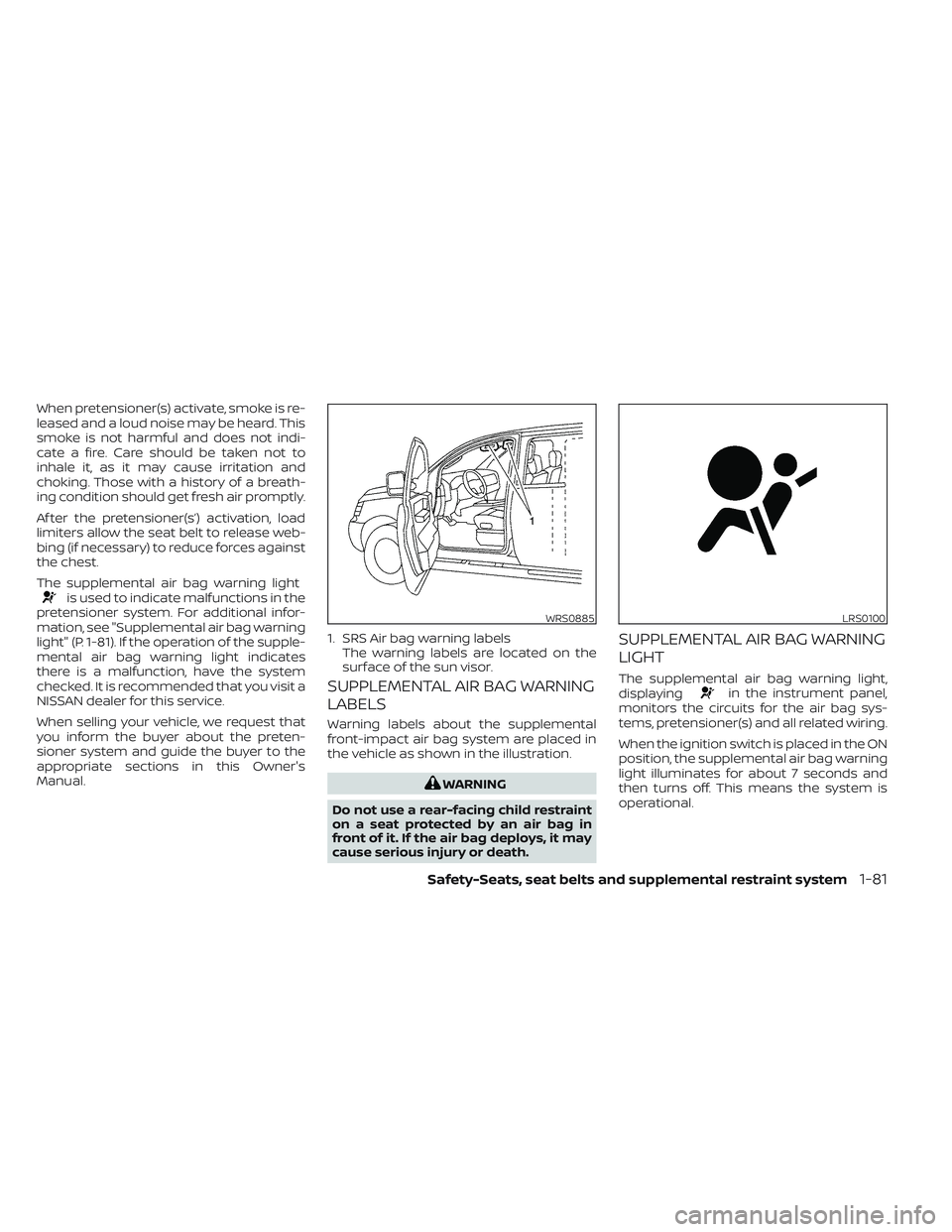

When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.
Af ter the pretensioner(s’) activation, load
limiters allow the seat belt to release web-
bing (if necessary) to reduce forces against
the chest.
The supplemental air bag warning light
is used to indicate malfunctions in the
pretensioner system. For additional infor-
mation, see "Supplemental air bag warning
light" (P. 1-81). If the operation of the supple-
mental air bag warning light indicates
there is a malfunction, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.
When selling your vehicle, we request that
you inform the buyer about the preten-
sioner system and guide the buyer to the
appropriate sections in this Owner's
Manual.
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.
WARNING
Do not use a rear-facing child restraint
on a seat protected by an air bag in
front of it. If the air bag deploys, it may
cause serious injury or death.
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displayingin the instrument panel,
monitors the circuits for the air bag sys-
tems, pretensioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
WRS0885
1. SRS Air bag warning labels The warning labels are located on the
surface of the sun visor.
LRS0100
Safety-Seats, seat belts and supplemental restraint system1-81

2 Instruments and controls
Instrument panel................................2-4
Meters and gauges .............................2-6
Speedometer and odometer .................2-6
Tachometer ..................................2-8
Engine coolant temperature gauge ..........2-9
Fuel gauge .................................. 2-10
Distance To Empty (DTE) ....................2-10
Warning lights, indicator lights and audible
reminders ...................................... 2-12
Checking lights .............................. 2-13
Warning/Indicator lights (red) ...............2-13
Warning/Indicator lights (yellow) ............2-16
Warning/Indicator lights (other) .............2-21
Audible reminders ........................... 2-22
Vehicle information display 7 inch (18 cm)
Type A (if so equipped) ......................... 2-22
How to use the vehicle information
display ...................................... 2-23
Startup display .............................. 2-23
Trip computer ............................... 2-24
Oil control system (if so equipped) ...........2-27
Settings ..................................... 2-28
Vehicle information display warnings
and indicators ............................... 2-37
Vehicle information display 12.3 inch (31 cm)
Type B (if so equipped) ......................... 2-45How to use the vehicle information
display
...................................... 2-46
Startup display .............................. 2-46
Trip computer ...............................2-47
Changing the meter screen view ............2-50
Oil control system (if so equipped) ...........2-51
Settings ..................................... 2-52
Vehicle information display warnings
and indicators ............................... 2-61
Security systems ............................... 2-71
Vehicle security system .....................2-71
NISSAN Vehicle Immobilizer System .........2-72
Wiper and washer switch .......................2-73
Switch operation ............................ 2-73
Rain-sensing auto wiper system
(if so equipped) .............................. 2-75
Rear switch operation .......................2-76
R

ear window and outside mirror
(if so equipped) defroster switch ...............2-77
Headlight and turn signal switch ...............2-78
Headlight control switch ....................2-78
LED Daytime Running Lights (DRL)
system ...................................... 2-82
Instrument brightness control ..............2-83
Turn signal switch ........................... 2-83
Fog light switch (if so equipped) .............2-84

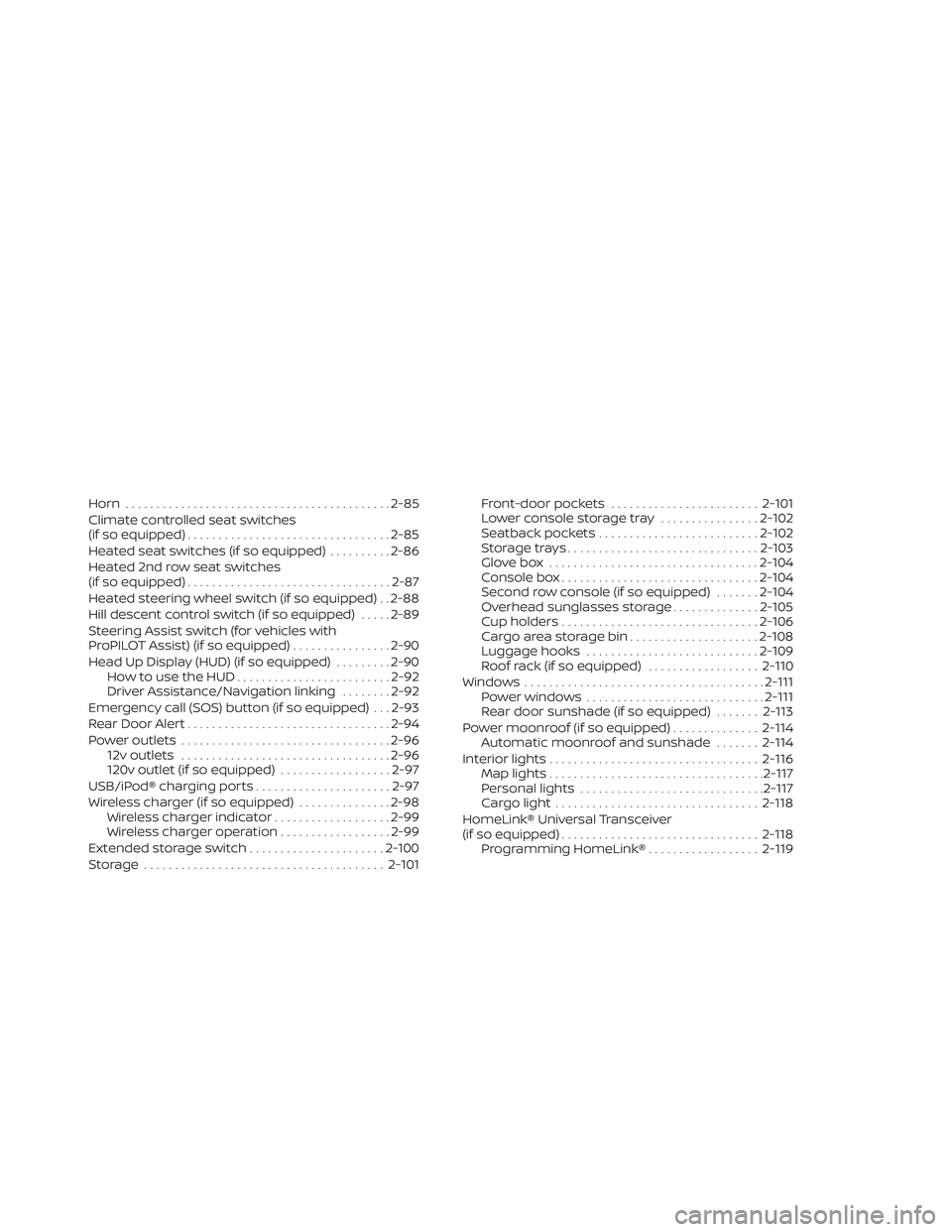

Horn........................................... 2-85
Climate controlled seat switches
(if so equipped) ................................. 2-85
Heated seat switches (if so equipped) ..........2-86
Heated 2nd row seat switches
(if so equipped) ................................. 2-87
Heated steering wheel switch (if so equipped) . . 2-88
Hill descent control switch (if so equipped) .....2-89
Steering Assist switch (for vehicles with
ProPILOT Assist) (if so equipped) ................2-90
Head Up Display (HUD) (if so equipped) .........2-90
HowtousetheHUD......................... 2-92
Driver Assistance/Navigation linking ........2-92
Emergency call (SOS) button (if so equipped) . . . 2-93
Rear Door Alert ................................. 2-94
Power outlets .................................. 2-96
12v outlets .................................. 2-96
120v outlet (if so equipped) ..................2-97
USB/iPod® charging ports ......................2-97
Wireless charger (if so equipped) ...............2-98
Wireless charger indicator ...................2-99
Wireless charger operation ..................2-99
Extended storage switch ......................2-100
Storage ....................................... 2-101Front-door pockets
........................ 2-101
Lower console storage tray ................2-102
Seatback pockets .......................... 2-102
Storagetrays............................... 2-103
Glovebox .................................. 2-104
Console box ................................ 2-104
Second row console (if so equipped) .......2-104
Overhead sunglasses storage ..............2-105
Cup holders ................................ 2-106
Cargo area storage bin .....................2-108
Luggage hooks ............................ 2-109
Roof rack (if so equipped) ..................2-110
Windows ....................................... 2-111
Power windows ............................. 2-111
Rear door sunshade (if so equipped) .......2-113
Power moonroof (if so equipped) ..............2-114
Automatic
moonroof and sunshade .......2-114
Interior lights .................................. 2-116
Map lights ................................... 2-117
Personal lights .............................. 2-117
Cargo light ................................. 2-118
HomeLink® Universal Transceiver
(if so equipped) ................................ 2-118
Programming HomeLink® ..................2-119

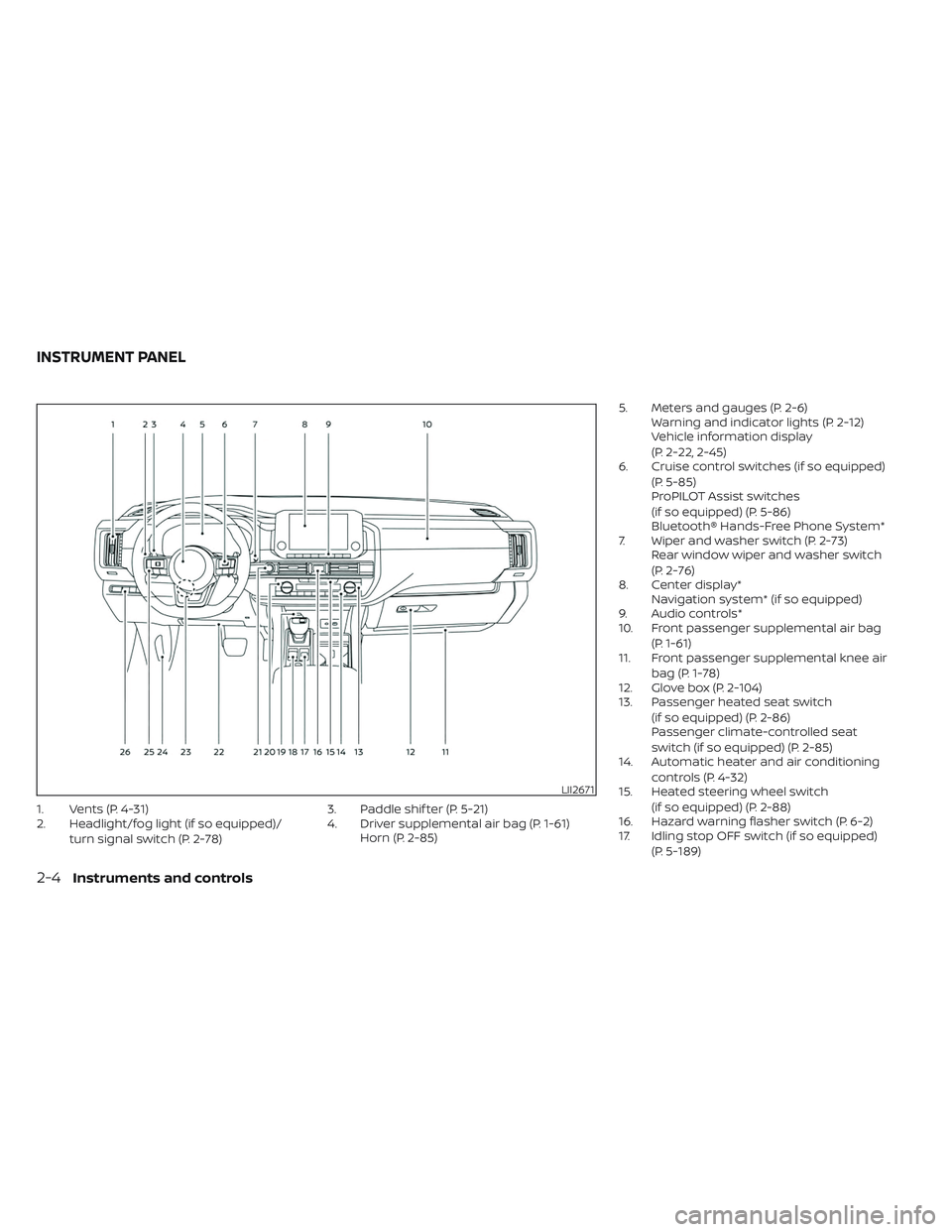

1. Vents (P. 4-31)
2. Headlight/fog light (if so equipped)/turn signal switch (P. 2-78) 3. Paddle shif ter (P. 5-21)
4. Driver supplemental air bag (P. 1-61)
Horn (P. 2-85) 5. Meters and gauges (P. 2-6)
Warning and indicator lights (P. 2-12)
Vehicle information display
(P. 2-22, 2-45)
6. Cruise control switches (if so equipped)
(P. 5-85)
ProPILOT Assist switches
(if so equipped) (P. 5-86)
Bluetooth® Hands-Free Phone System*
7. Wiper and washer switch (P. 2-73) Rear window wiper and washer switch
(P. 2-76)
8. Center display* Navigation system* (if so equipped)
9. Audio controls*
10. Front passenger supplemental air bag
(P. 1-61)
11. Front passenger supplemental knee air
bag (P. 1-78)
12. Glove box (P. 2-104)
13. Passenger heated seat switch
(if so equipped) (P. 2-86)
Passenger climate-controlled seat
switch (if so equipped) (P. 2-85)
14. Automatic heater and air conditioning
controls (P. 4-32)
15. Heated steering wheel switch
(if so equipped) (P. 2-88)
16. Hazard warning flasher switch (P. 6-2)
17. Idling stop OFF switch (if so equipped)
(P. 5-189)
LII2671
INSTRUMENT PANEL
2-4Instruments and controls

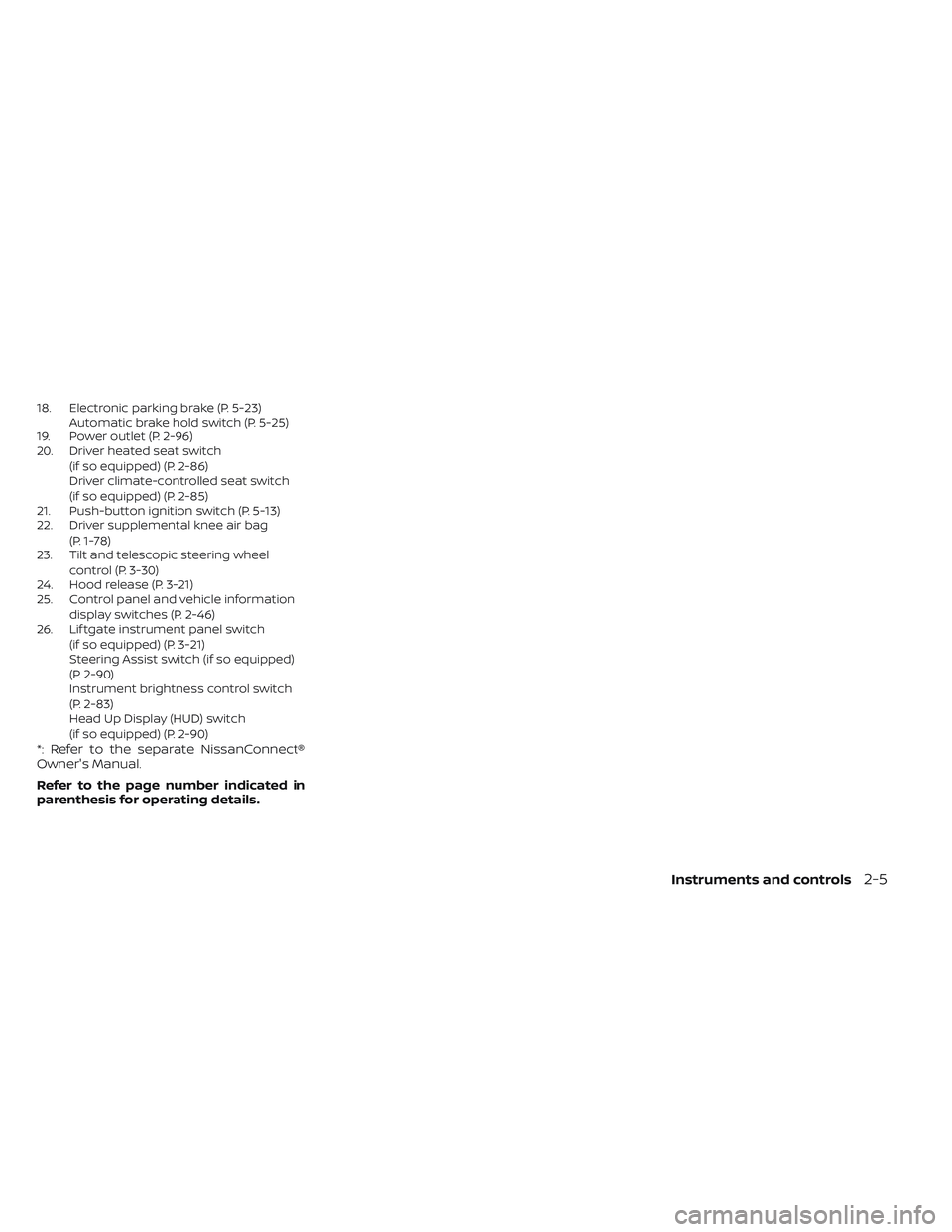

18. Electronic parking brake (P. 5-23)Automatic brake hold switch (P. 5-25)
19. Power outlet (P. 2-96)
20. Driver heated seat switch
(if so equipped) (P. 2-86)
Driver climate-controlled seat switch
(if so equipped) (P. 2-85)
21. Push-button ignition switch (P. 5-13)
22. Driver supplemental knee air bag
(P. 1-78)
23. Tilt and telescopic steering wheel
control (P. 3-30)
24. Hood release (P. 3-21)
25. Control panel and vehicle information
display switches (P. 2-46)
26. Lif tgate instrument panel switch
(if so equipped) (P. 3-21)
Steering Assist switch (if so equipped)
(P. 2-90)
Instrument brightness control switch
(P. 2-83)
Head Up Display (HUD) switch
(if so equipped) (P. 2-90)
*: Refer to the separate NissanConnect®
Owner's Manual.
Refer to the page number indicated in
parenthesis for operating details.
Instruments and controls2-5

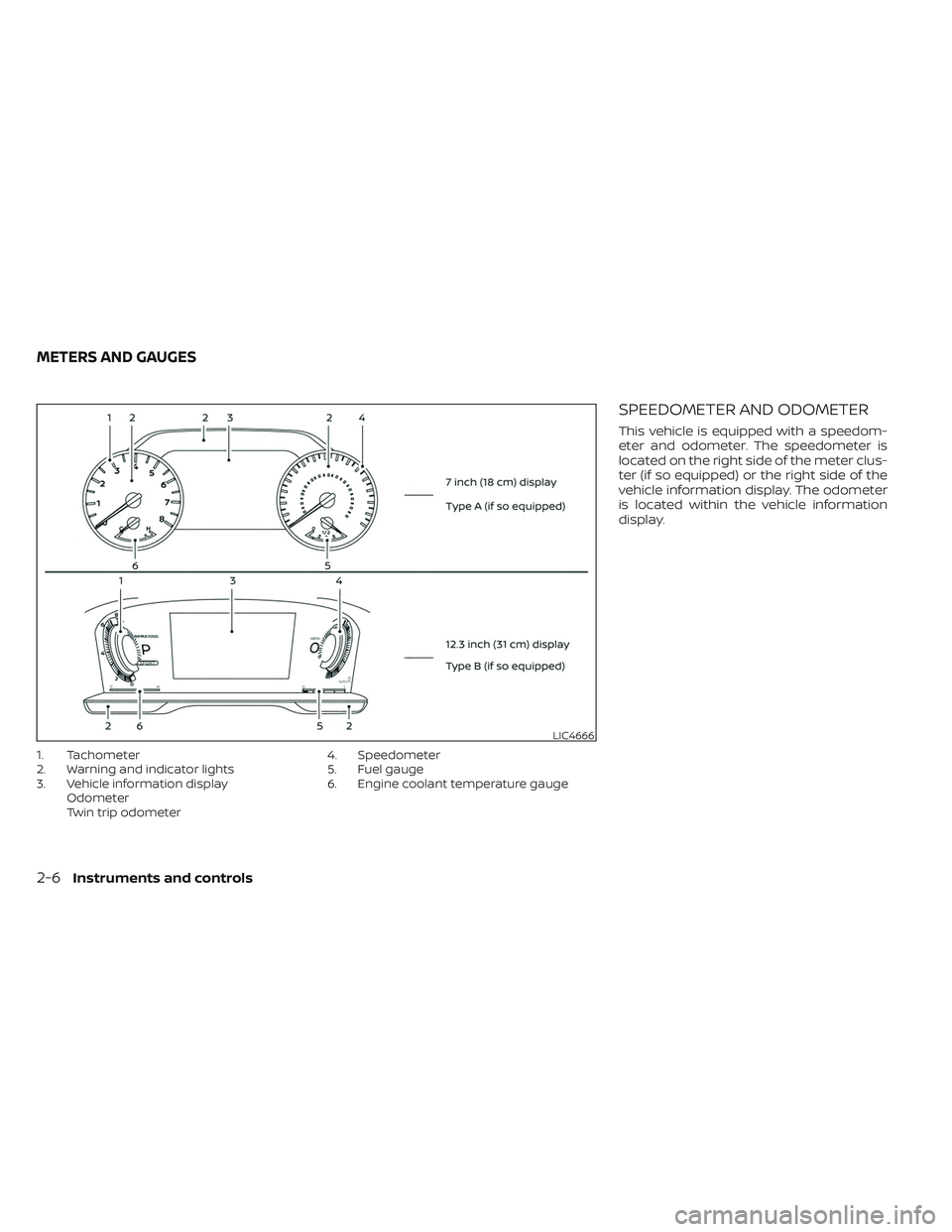

1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Twin trip odometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter (if so equipped) or the right side of the
vehicle information display. The odometer
is located within the vehicle information
display.
LIC4666
METERS AND GAUGES
2-6Instruments and controls

Odometer
The odometerO1is displayed in the vehicle
information display when the ignition
switch is placed in the ON position.
The odometer records the total distance
the vehicle has been driven.TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
the engine into the red zone
O1.
CAUTION
When engine speed approaches the
red zone, reduce engine speed. Operat-
ing the engine in the red zone may
cause serious engine damage.
LIC4732LIC2219
7 inch (18 cm) Type A (if so equipped)
LIC4668
12.3 inch (31 cm) Type B (if so equipped)
2-8Instruments and controls

FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.
The gauge needle returns to 0 (Empty) af-
ter the ignition switch is placed in the OFF
position.
The low fuel warning message shows in
the vehicle information display when the
amount of fuel in the tank is getting low. Refill the fuel tank before the gauge reg-
isters 0 (Empty).
Theindicates that the fuel-filler door
is located on the driver's side of the vehicle.
CAUTION
• If the vehicle runs out of fuel, the
Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
Af ter a few driving trips, the
light
should turn off. If the light remains on
af ter a few driving trips, have the ve-
hicle inspected. It is recommended
that you visit a NISSAN dealer for this
service.
• For additional information, see “Mal-
function Indicator Light (MIL)”
(P. 2-19) or “Malfunction Indicator
(MIL)” (P. 2-64).
DISTANCE TO EMPTY (DTE)
Displays the estimated distance the ve-
hicle can be driven before refueling. The
value is calculated based on recent fuel
economy, the amount of fuel remaining in
the fuel tank, and the actual fuel
consumption.
Changes in driving patterns or conditions
can cause the DTE value to vary. As a result,
the value displayed may differ from the ac-
tual distance that can be driven.
DTE display will change to “---” when the
fuel level in the tank is getting low, prior to
the fuel gauge reaching 0 (Empty).
LIC2222
7 inch (18 cm) Type A (if so equipped)
LIC4670
12.3 inch (31 cm) Type B (if so equipped)
2-10Instruments and controls
