12. Remove traction motor inverter cover (1) .
13. Disconnect negative (-) battery cable and cover it withinsulated tape.
14. Perform the dismantling operation. Refer to
Dismantling Information (DG–41).

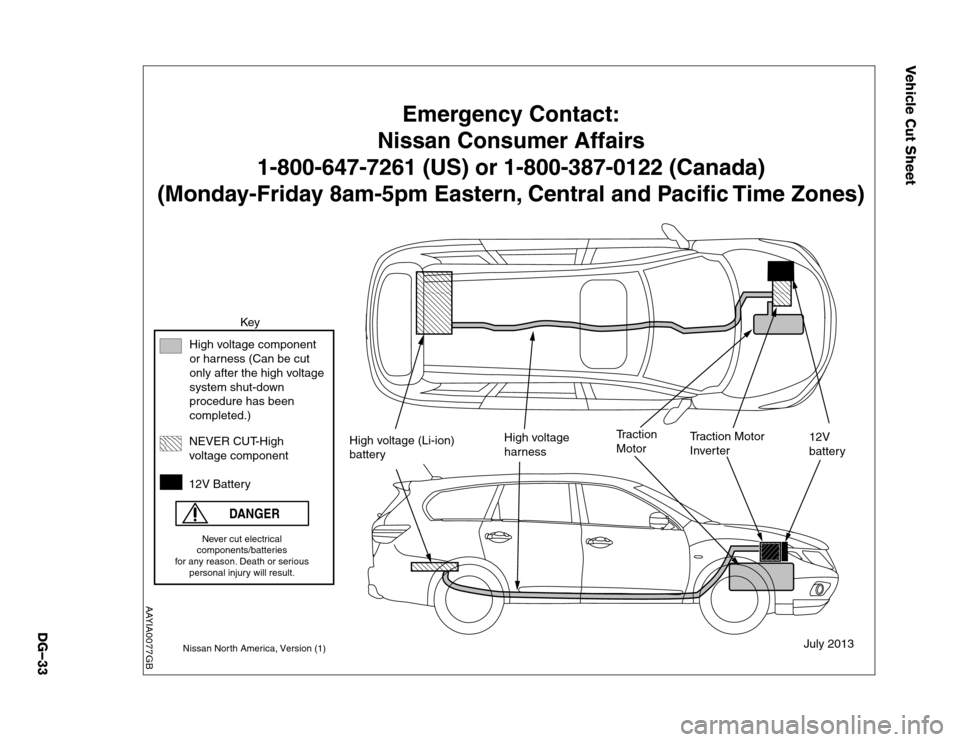

3-4.2 Cutting the Vehicle Body
•Do not cut into high voltage related areas to avoid severe personal injury or death.
•
Do not cut into the Li-ion battery to avoid severe personal injury or death.
•
When removing parts, NEVER touch the high voltage parts or the insides of the
exposed orange-colored high voltage cables to avoid severe personal injury or death.
Personal Protective Equipment (PPE) must always be worn when touching or
working on high voltage components.
• To avoid unintended reinstallation and risk of electrical shock and severe personal injury or death, the dismantler should carry the fuses or service plug on his/her person while
work is in progress.
Do not cut air bag parts to avoid unintended deployment of the air bags and the risk of
severe personal injury or death.
If approximately (10) minutes have passed since the rescuer shut down the high voltage system [refer to
3-4.1 High Voltage System Shut-Down Procedure (DG–21)], then the dismantler can cut the vehicle except
for the Li-ion battery.
1
AAYIA0273ZZ
AAYIA0274ZZ
DG–31
Page 32 of 50
DO NOT cut the Li-ion battery due to possible electrocution risk and electrolyte solution leakage.
SRS Air Bag System Components Location
The SRS air bag system must not be cut as there is a risk of short circuit and unintentional deployment of
the SRS. However, the vehicle can be cut (except inflators) under the following conditions:• The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12V battery negative (-) cable has been
disconnected and the high voltage system has been shut down.
1. Crash zone sensor 2. Pressure sensors (passenger side door shown; driver side door similar)3. Supplemental front-impact air
bag modules
4. Front seat-mounted side-
impact supplemental air bag 5. Roof-mounted curtain side-
impact and rollover supplemental
air bag inflators6. Air bag control unit (ACU)
7. Occupant classification system
control unit 8. Occupant classification sen-
sors (weight sensors – located on
passenger seat frame)9. Seat belts with pretensioners
10. B-pillar satellite sensors (LH
shown, RH similar) 11. Satellite sensors (LH shown,
RH similar)
4
891011
53
21
67AAYIA0324ZZ
