NISSAN PATHFINDER HYBRID 2014 R52 / 4.G Dismantling Guide

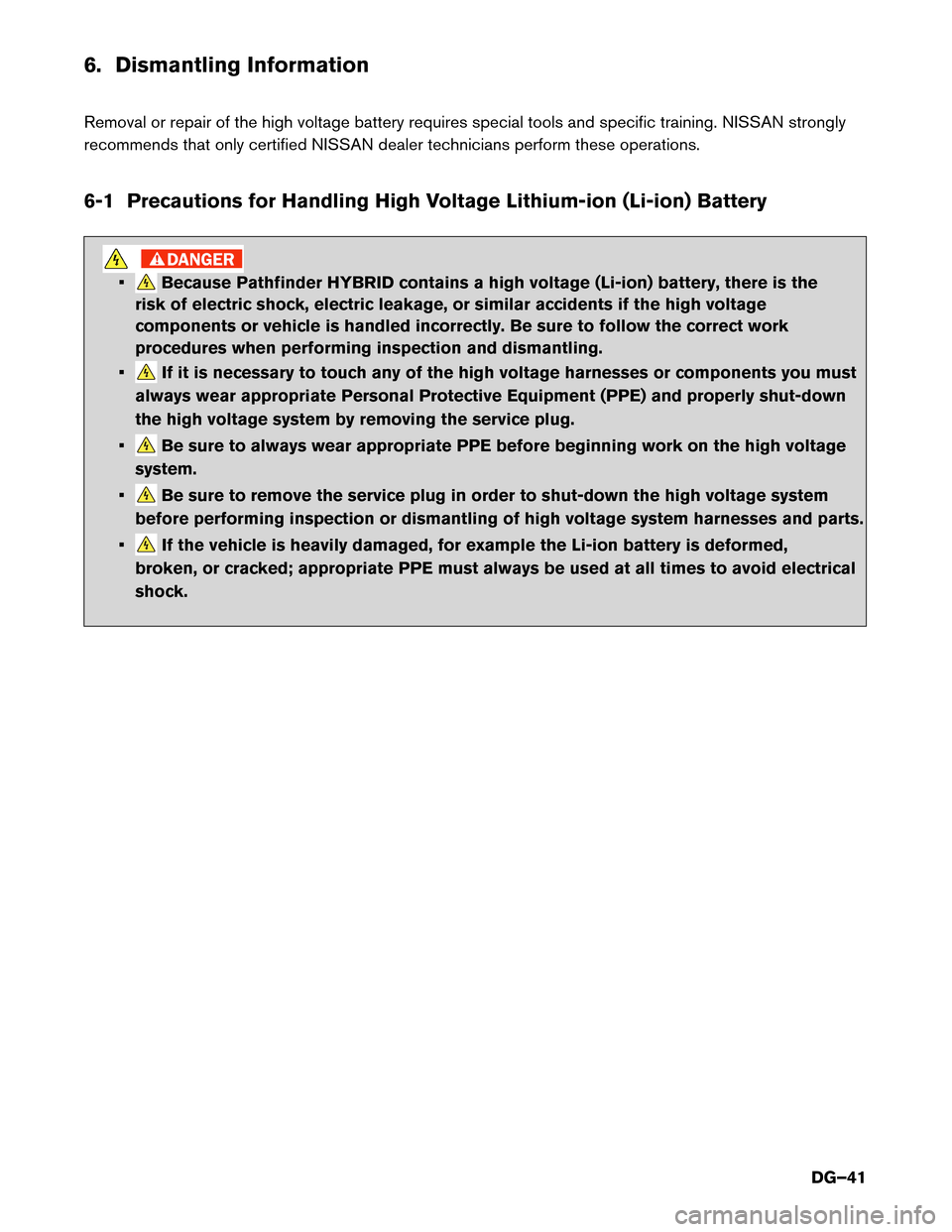

6. Dismantling Information
Removal or repair of the high voltage battery requires special tools and specific training. NISSAN strongly
recommends that only certified NISSAN dealer technicians perform these operations.
6-1 Precautions for Handling High Voltage Lithium-ion (Li-ion) Battery
•Because Pathfinder HYBRID contains a high voltage (Li-ion) battery, there is the
risk of electric shock, electric leakage, or similar accidents if the high voltage
components or vehicle is handled incorrectly. Be sure to follow the correct work
procedures when performing inspection and dismantling.
•
If it is necessary to touch any of the high voltage harnesses or components you must
always wear appropriate Personal Protective Equipment (PPE) and properly shut-down
the high voltage system by removing the service plug.
•
Be sure to always wear appropriate PPE before beginning work on the high voltage
system.
•
Be sure to remove the service plug in order to shut-down the high voltage system
before performing inspection or dismantling of high voltage system harnesses and parts.
•
If the vehicle is heavily damaged, for example the Li-ion battery is deformed,
broken, or cracked; appropriate PPE must always be used at all times to avoid electrical shock.
DG–41

•The colors of the high voltage harnesses and connectors are all orange. OrangeHigh
Voltage labels are applied to the Li-ion battery and other high voltage devices. Do not
touch the Li-ion battery or other high voltage devices without always wearing appropriate
PPE.
•
Clearly identify the persons responsible for high voltage work and ensure that other
persons do not touch the vehicle. When not working, cover high voltage parts with an
insulating cover sheet and sign or similar item to prevent other persons from contactingthem.
•
Be sure to put the removed service plug in your pocket and carry it with you so
another person does not accidentally reinstall it while work is in progress.
•
The high voltage battery retains high voltage at all times. Personal Protective
Equipment (PPE) must always be worn when touching or working on high voltage
components to avoid risk of electrical shock and severe personal injury or death.
•
Immediately insulate disconnected high voltage connectors and terminals with
insulated tape.
•
The vehicle contains parts that contain powerful magnets. If a person who is wearing a
pacemaker or other medical device is close to these parts, the medical device may be
affected by the magnets. Such persons must not perform work on the vehicle.
•
Because this vehicle uses components that contain high voltage and powerful
magnetism, do not carry any metal products which may cause short circuits, or any
magnetic media (cash cards, credit cards, etc.) which may be damaged when working on
the vehicle.
•
Keep removed Li-ion battery packs away from rain to avoid electric shock.
• Do not heat removed battery packs higher than 158° F (70° C) .
DG–42

6-2 Lithium-ion (Li-ion) Battery Pack Removal
6-2.1 Exploded Views

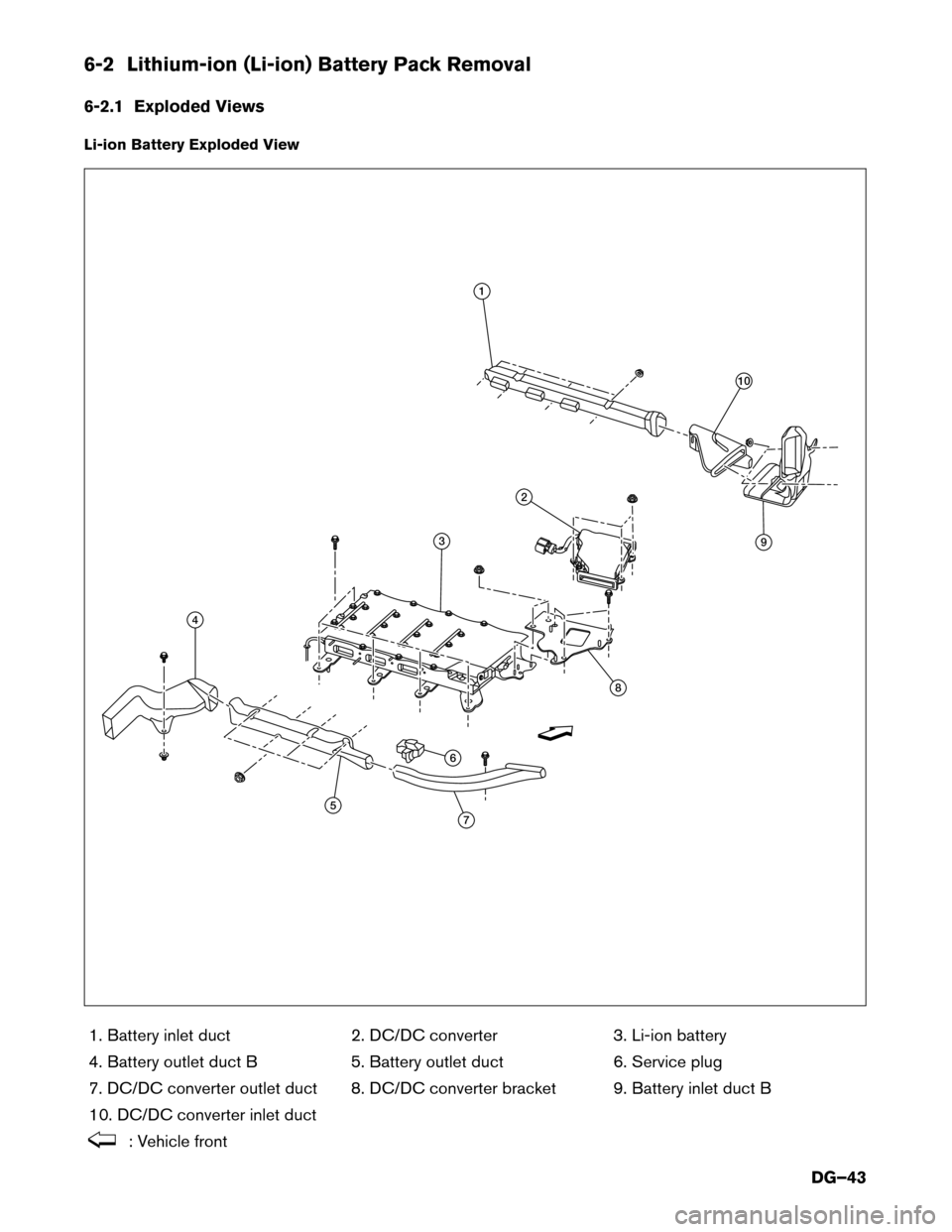

Li-ion Battery Exploded View1. Battery inlet duct 2. DC/DC converter 3. Li-ion battery
4. Battery outlet duct B 5. Battery outlet duct 6. Service plug
7. DC/DC converter outlet duct 8. DC/DC converter bracket 9. Battery inlet duct B
10. DC/DC converter inlet duct
: Vehicle front
4
3
5
6
7
8
2
1
10
9
DG–43

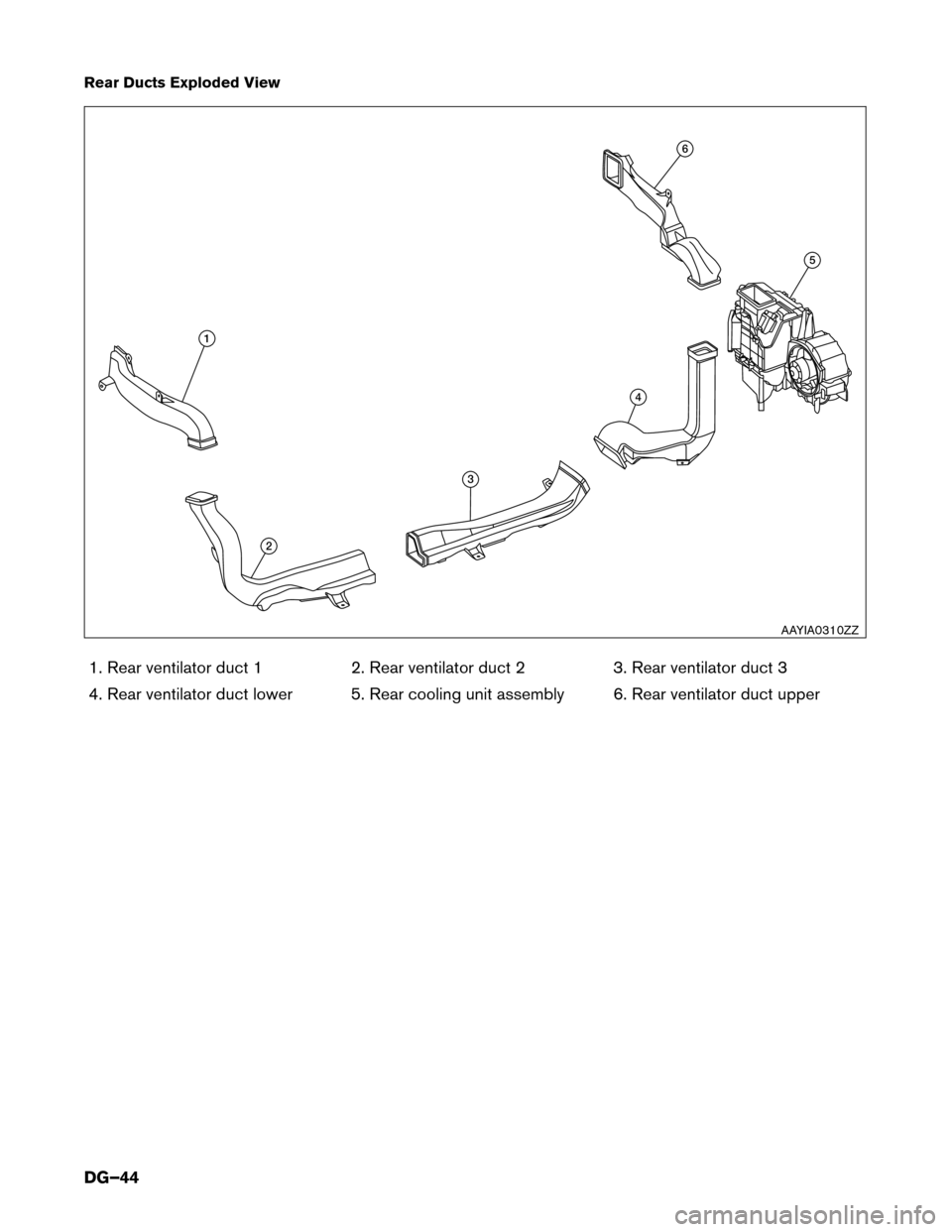

Rear Ducts Exploded View1. Rear ventilator duct 1 2. Rear ventilator duct 2 3. Rear ventilator duct 3
4. Rear ventilator duct lower 5. Rear cooling unit assembly 6. Rear ventilator duct upper
1
2
3
4
5
6
AAYIA0310ZZ
DG–44

6-2.2 Removal Procedure1. Discharge high voltage battery. Refer to
Discharge Procedures (DG–19).
2. Remove the service plug. Refer to
Alternate Procedure 2 (Remove Service Plug) (DG–27).
3. Release clips that retain the seat back board to the storage box lid.
4. Open the storage box lid.
5. Remove the BOSE subwoofer (2) (if equipped) from the storage box (5) using the following steps.
a. Remove spare tire clamp (1) from bracket (4) .
b. Lift subwoofer (2) to disconnect harness (3) then remove subwoofer (2) from storage box (5) .
6. Remove back door kicking plate by releasing the back door kicking plate clips and pawls using a suitable tool.
: Pawl
: Clip
7. Remove storage box screws and storage box.
8. Release the storage box side finisher clips using a suitable tool, then remove.
9. Remove the third row seat front bolts covers and bolts (2) .
10. Pull the third row seatback release lever (1) and fold down the seatbacks (LH/RH) .
1
2
3
4
5
AAYIA0305ZZ
AAYIA0306ZZ
1
2
AAYIA0307ZZ
DG–45

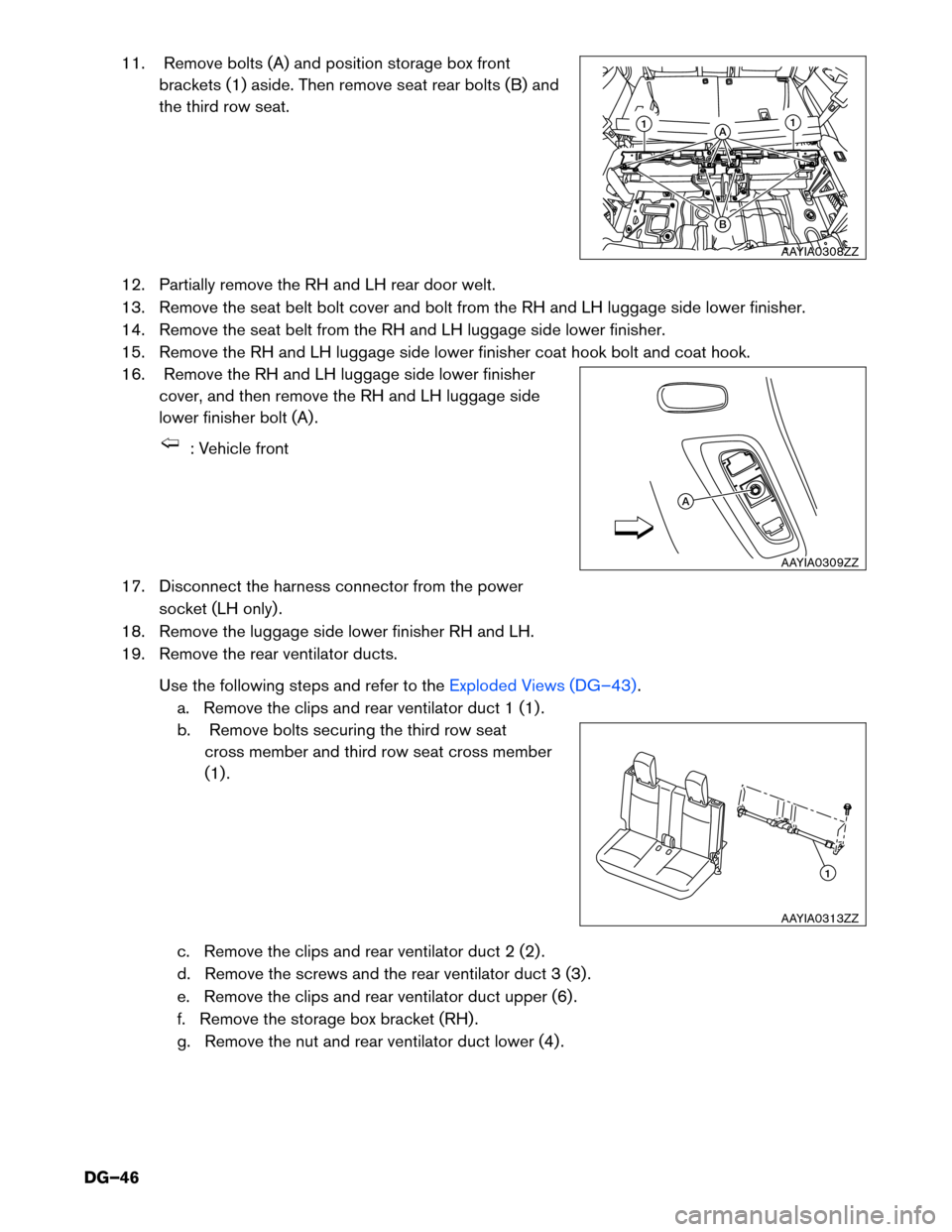

11. Remove bolts (A) and position storage box frontbrackets (1) aside. Then remove seat rear bolts (B) and
the third row seat.
12. Partially remove the RH and LH rear door welt.
13. Remove the seat belt bolt cover and bolt from the RH and LH luggage side lower finisher.
14. Remove the seat belt from the RH and LH luggage side lower finisher.
15. Remove the RH and LH luggage side lower finisher coat hook bolt and coat hook.
16. Remove the RH and LH luggage side lower finisher cover, and then remove the RH and LH luggage side
lower finisher bolt (A) .
: Vehicle front
17. Disconnect the harness connector from the power socket (LH only) .
18. Remove the luggage side lower finisher RH and LH.
19. Remove the rear ventilator ducts.
Use the following steps and refer to the
Exploded Views (DG–43).
a. Remove the clips and rear ventilator duct 1 (1) .
b. Remove bolts securing the third row seat cross member and third row seat cross member
(1) .
c. Remove the clips and rear ventilator duct 2 (2) .
d. Remove the screws and the rear ventilator duct 3 (3) .
e. Remove the clips and rear ventilator duct upper (6) .
f. Remove the storage box bracket (RH) .
g. Remove the nut and rear ventilator duct lower (4) .
11A
B
AAYIA0308ZZ
A
AAYIA0309ZZ
1
AAYIA0313ZZ
DG–46

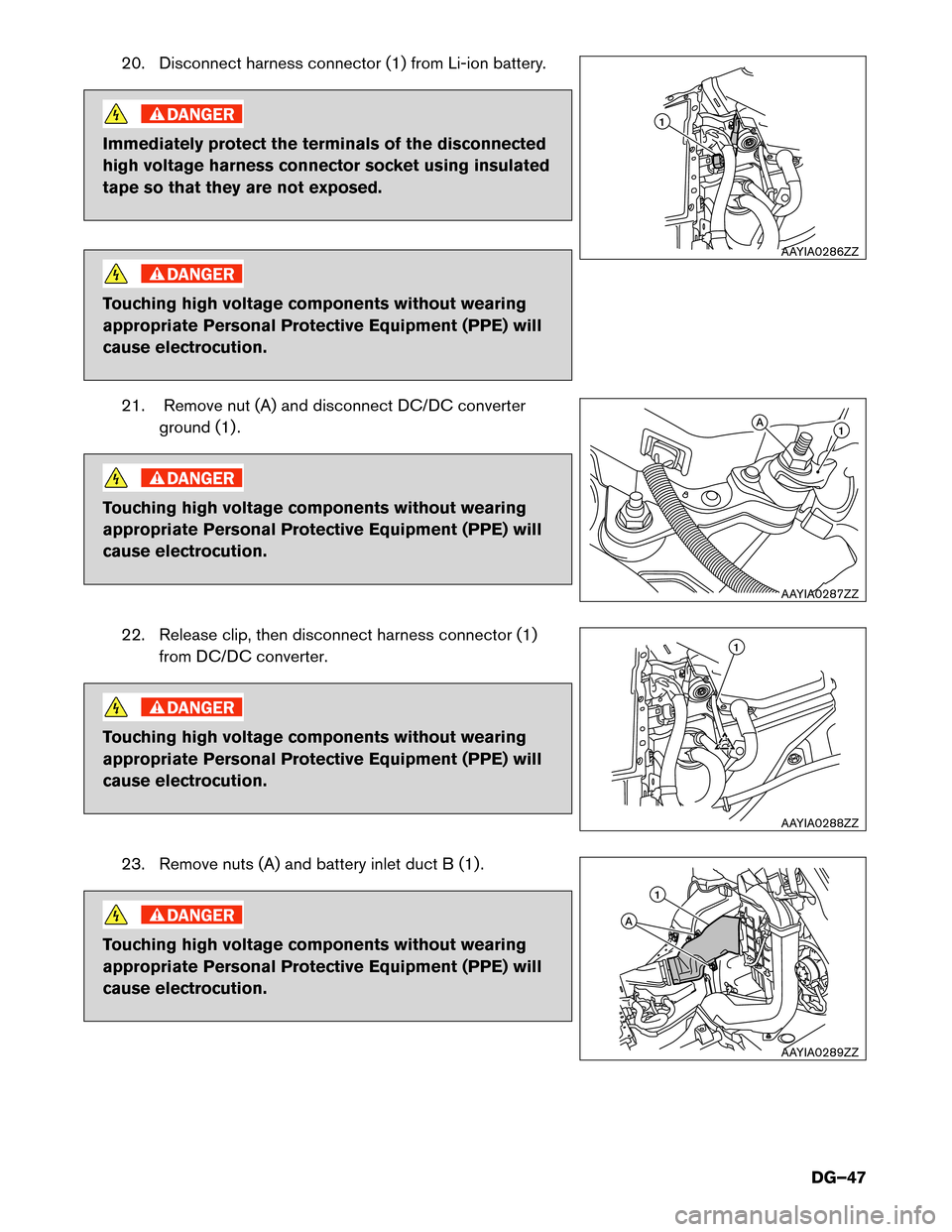

20. Disconnect harness connector (1) from Li-ion battery.
Immediately protect the terminals of the disconnected
high voltage harness connector socket using insulated
tape so that they are not exposed.
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.21. Remove nut (A) and disconnect DC/DC converter ground (1) .
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
22. Release clip, then disconnect harness connector (1) from DC/DC converter.
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
23. Remove nuts (A) and battery inlet duct B (1) .
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
1
AAYIA0286ZZ
A1
AAYIA0287ZZ
1
AAYIA0288ZZ
1
A
AAYIA0289ZZ
DG–47

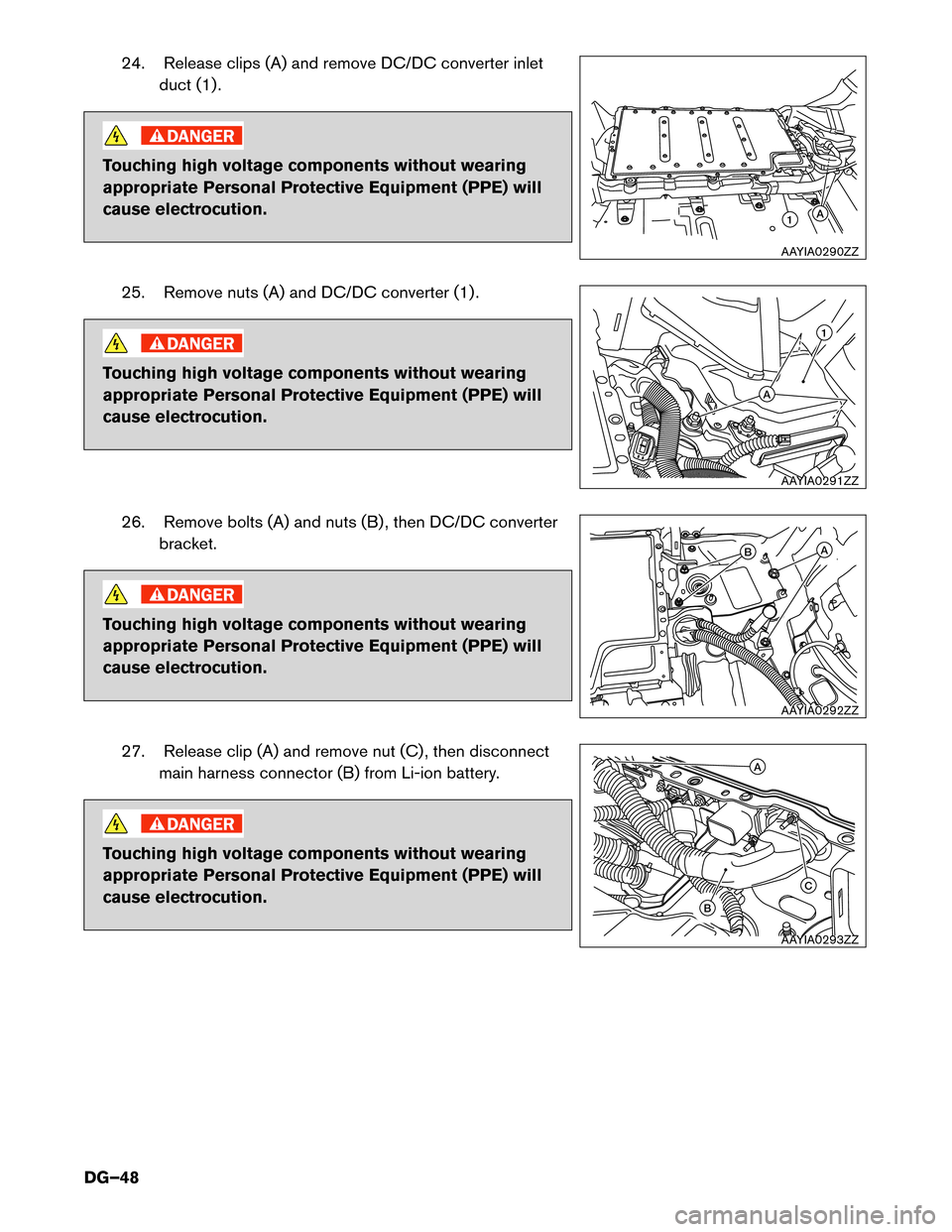

24. Release clips (A) and remove DC/DC converter inletduct (1) .
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
25. Remove nuts (A) and DC/DC converter (1) .
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
26. Remove bolts (A) and nuts (B) , then DC/DC converter bracket.
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
27. Release clip (A) and remove nut (C) , then disconnect main harness connector (B) from Li-ion battery.
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
1A
AAYIA0290ZZ
1
A
AAYIA0291ZZ
BA
AAYIA0292ZZ
A
C
B
AAYIA0293ZZ
DG–48

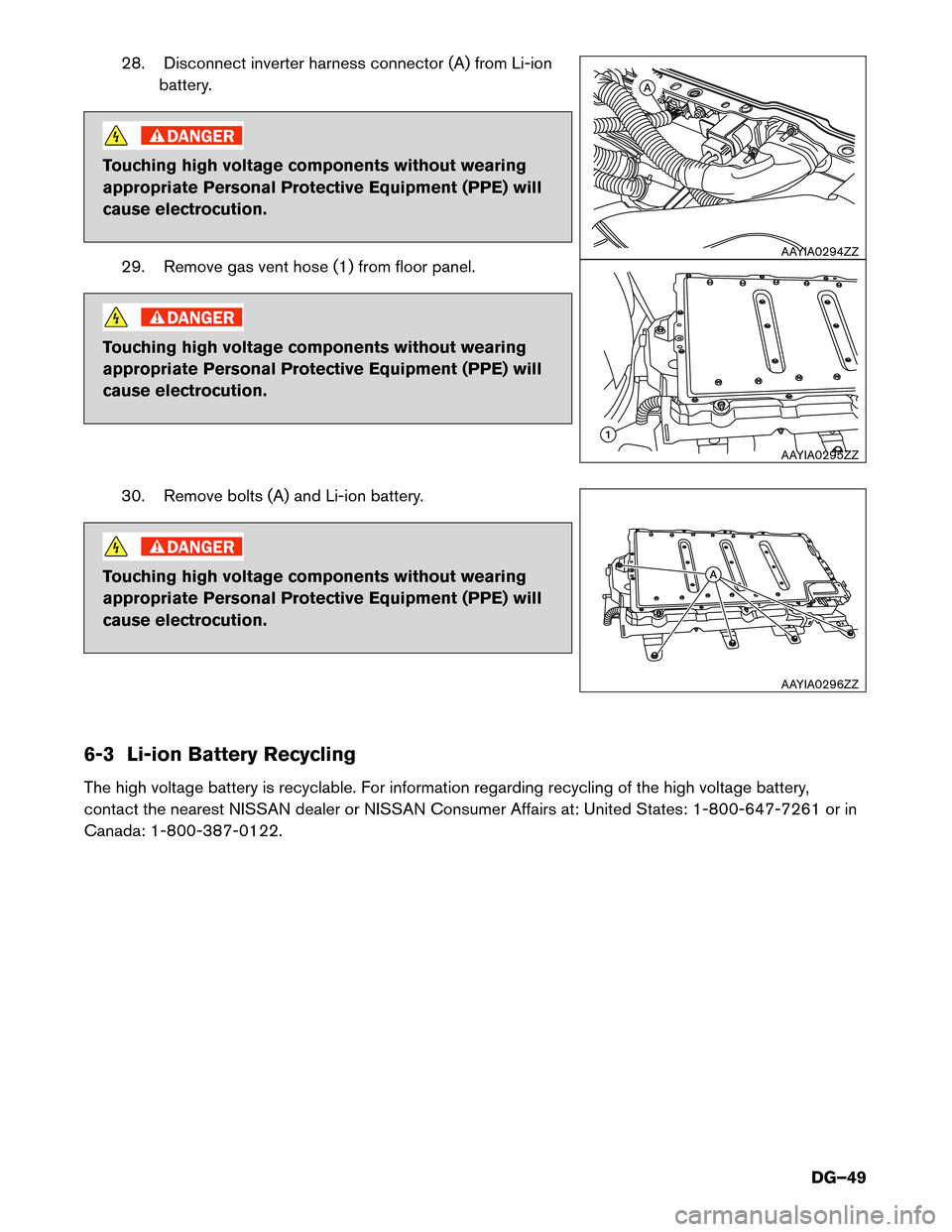

28. Disconnect inverter harness connector (A) from Li-ionbattery.
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
29. Remove gas vent hose (1) from floor panel.
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
30. Remove bolts (A) and Li-ion battery.
Touching high voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
6-3 Li-ion Battery Recycling
The high voltage battery is recyclable. For information regarding recycling of the high voltage battery,
contact the nearest NISSAN dealer or NISSAN Consumer Affairs at: United States: 1-800-647-7261 or in
Canada: 1-800-387-0122.
