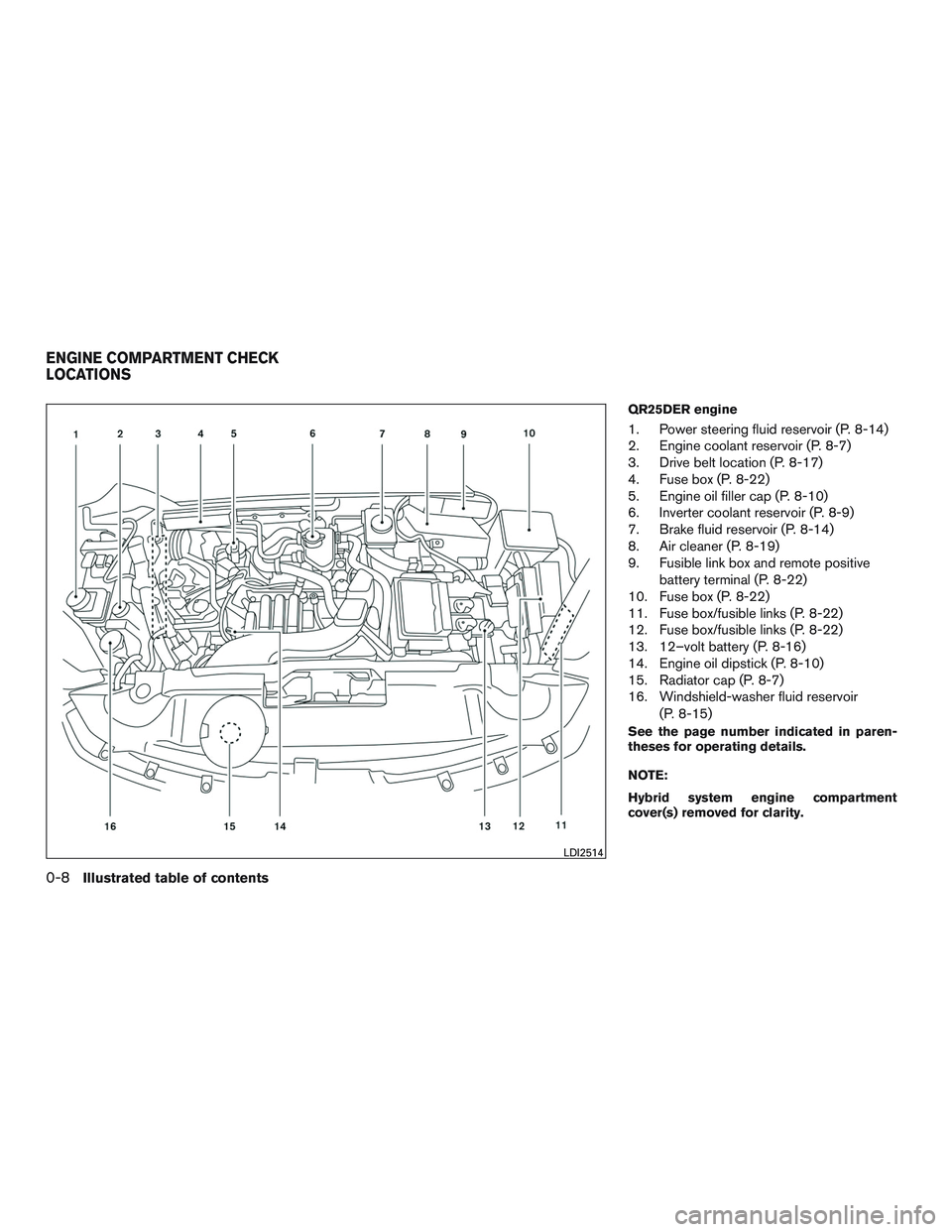

NISSAN PATHFINDER HYBRID 2015 Owner's Guide

QR25DER engine
1. Power steering fluid reservoir (P. 8-14)
2. Engine coolant reservoir (P. 8-7)
3. Drive belt location (P. 8-17)
4. Fuse box (P. 8-22)
5. Engine oil filler cap (P. 8-10)
6. Inverter coolant reservoir (P. 8-9)
7. Brake fluid reservoir (P. 8-14)
8. Air cleaner (P. 8-19)
9. Fusible link box and remote positive
battery terminal (P. 8-22)
10. Fuse box (P. 8-22)
11. Fuse box/fusible links (P. 8-22)
12. Fuse box/fusible links (P. 8-22)
13. 12–volt battery (P. 8-16)
14. Engine oil dipstick (P. 8-10)
15. Radiator cap (P. 8-7)
16. Windshield-washer fluid reservoir
(P. 8-15)
See the page number indicated in paren-
theses for operating details.
NOTE:
Hybrid system engine compartment
cover(s) removed for clarity.
LDI2514
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

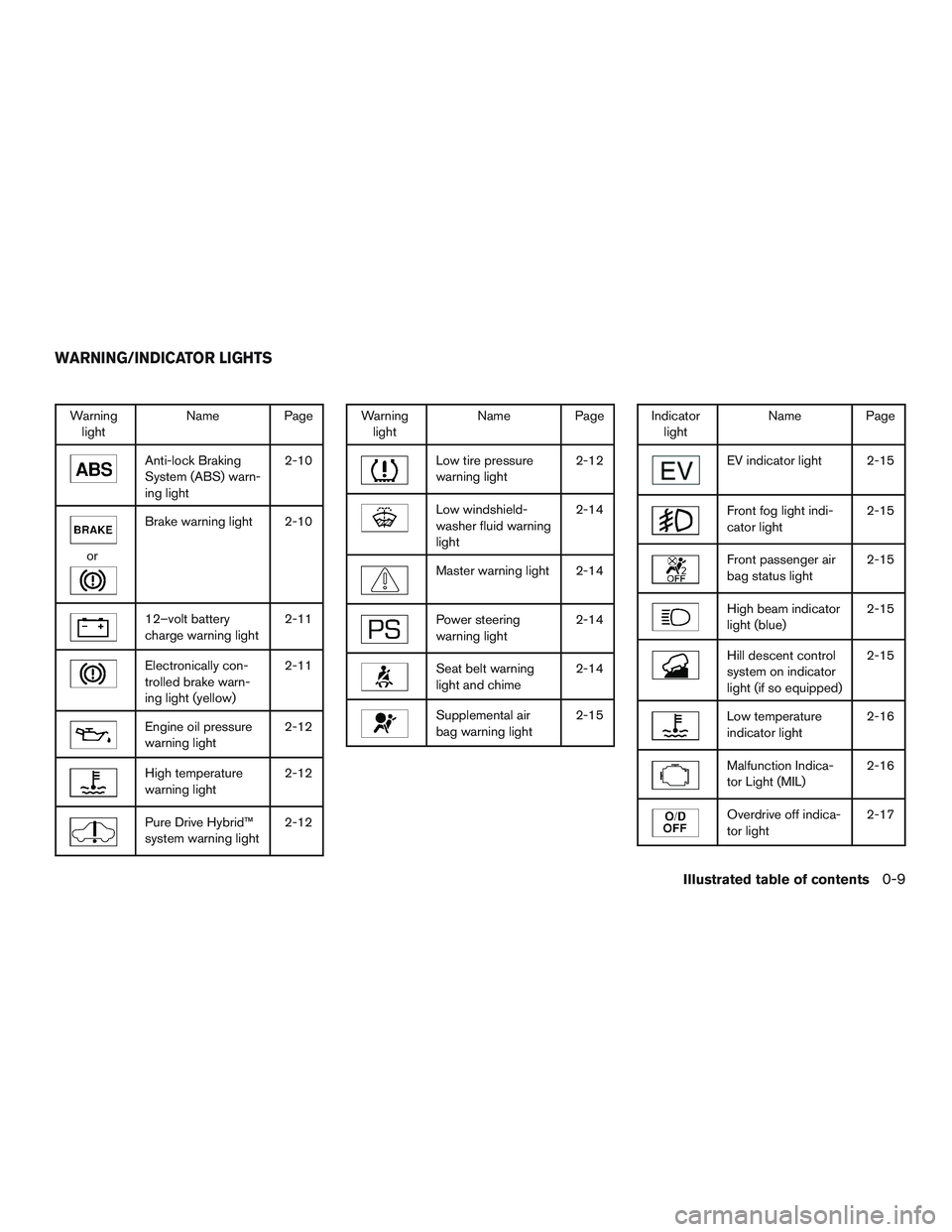

Warning
lightName Page
Anti-lock Braking
System (ABS) warn-
ing light2-10
or
Brake warning light 2-10
12–volt battery
charge warning light2-11
Electronically con-
trolled brake warn-
ing light (yellow)2-11
Engine oil pressure
warning light2-12
High temperature
warning light2-12
Pure Drive Hybrid™
system warning light2-12
Warning
lightName Page
Low tire pressure
warning light2-12
Low windshield-
washer fluid warning
light2-14
Master warning light 2-14
Power steering
warning light2-14
Seat belt warning
light and chime2-14
Supplemental air
bag warning light2-15
Indicator
lightName Page
EV indicator light 2-15
Front fog light indi-
cator light2-15
Front passenger air
bag status light2-15
High beam indicator
light (blue)2-15
Hill descent control
system on indicator
light (if so equipped)2-15
Low temperature
indicator light2-16
Malfunction Indica-
tor Light (MIL)2-16
Overdrive off indica-
tor light2-17
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

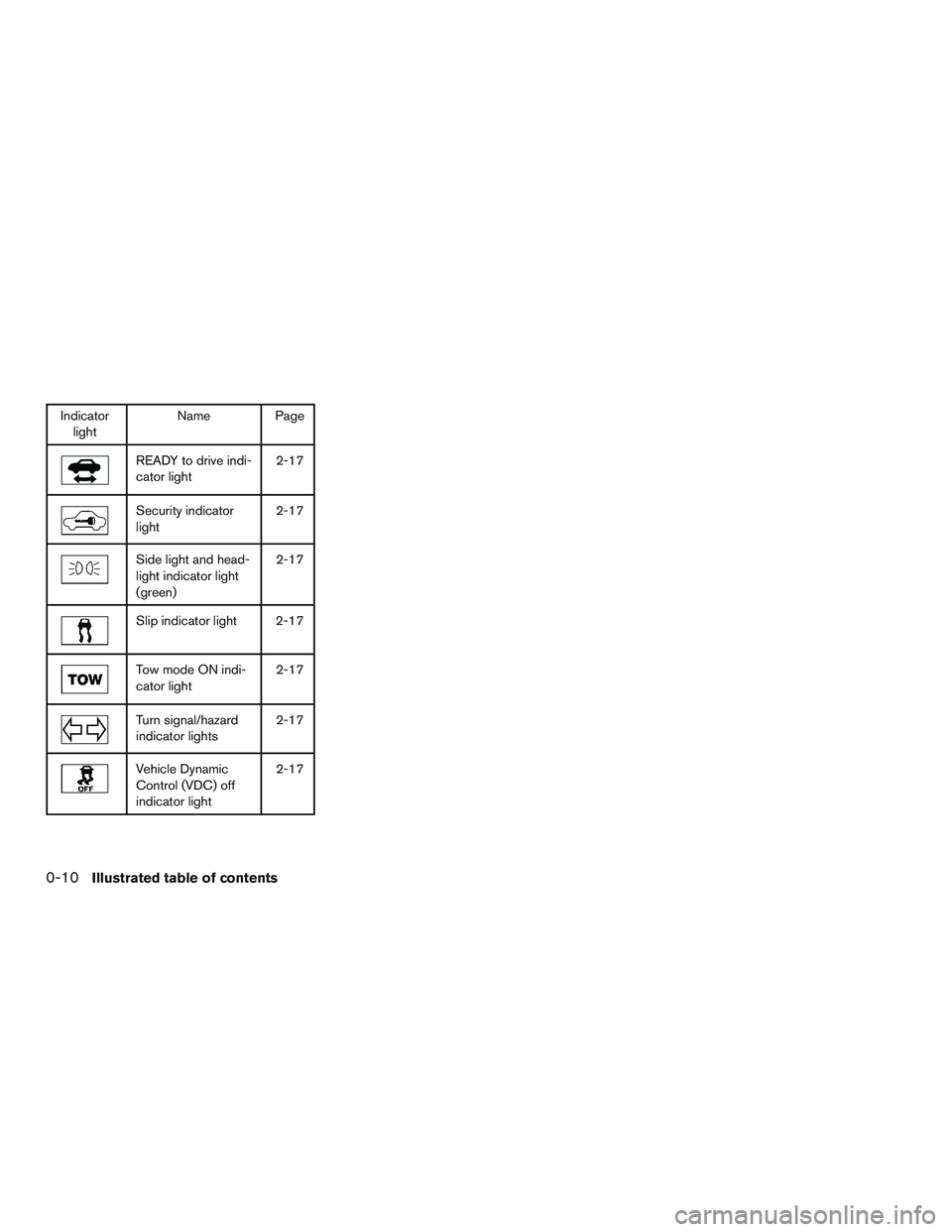

Indicator
lightName Page
READY to drive indi-
cator light2-17
Security indicator
light2-17
Side light and head-
light indicator light
(green)2-17
Slip indicator light 2-17
Tow mode ON indi-
cator light2-17
Turn signal/hazard
indicator lights2-17
Vehicle Dynamic
Control (VDC) off
indicator light2-17
0-10Illustrated table of contents

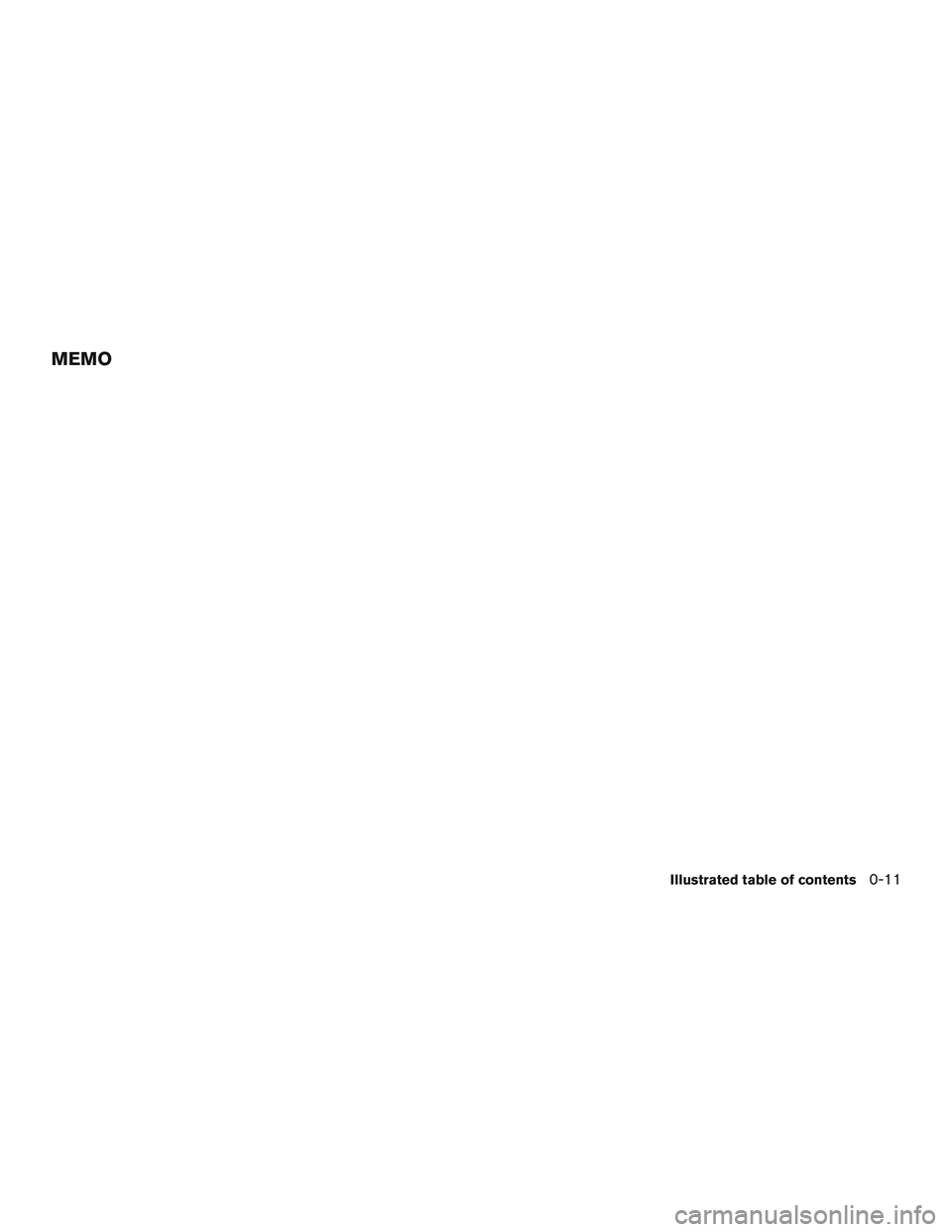

MEMO
Illustrated table of contents0-11

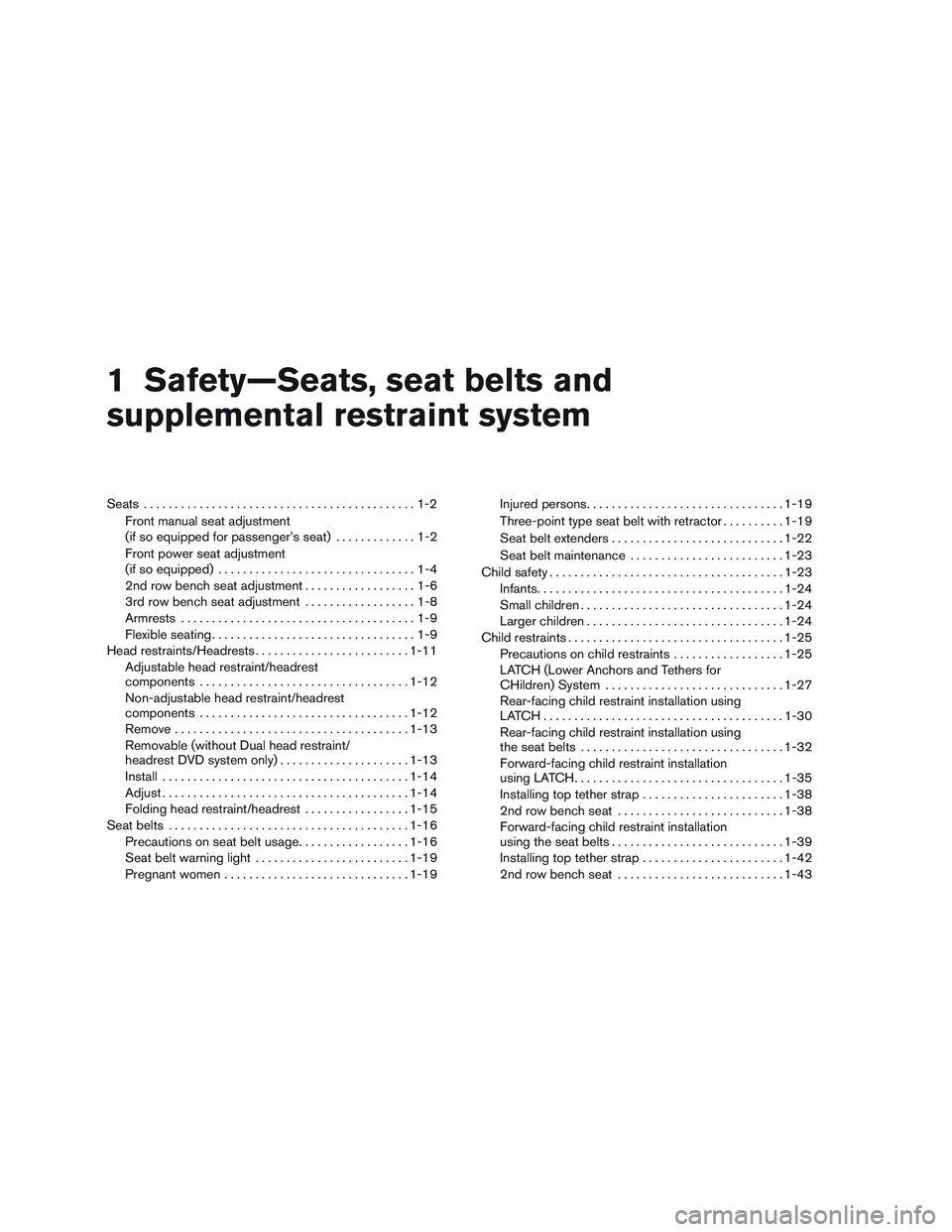

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment
(if so equipped for passenger’s seat).............1-2
Front power seat adjustment
(if so equipped)................................1-4
2nd row bench seat adjustment..................1-6
3rd row bench seat adjustment..................1-8
Armrests......................................1-9
Flexible seating.................................1-9
Head restraints/Headrests.........................1-11
Adjustable head restraint/headrest
components..................................1-12
Non-adjustable head restraint/headrest
components..................................1-12
Remove......................................1-13
Removable (without Dual head restraint/
headrest DVD system only).....................1-13
Install........................................1-14
Adjust........................................1-14
Folding head restraint/headrest.................1-15
Seat belts.......................................1-16
Precautions on seat belt usage..................1-16
Seat belt warning light.........................1-19
Pregnant women..............................1-19Injured persons................................1-19
Three-point type seat belt with retractor..........1-19
Seat belt extenders............................1-22
Seat belt maintenance.........................1-23
Child safety......................................1-23
Infants........................................1-24
Small children.................................1-24
Larger children................................1-24
Child restraints...................................1-25
Precautions on child restraints..................1-25
LATCH (Lower Anchors and Tethers for
CHildren) System.............................1-27
Rear-facing child restraint installation using
LATCH.......................................1-30
Rear-facing child restraint installation using
the seat belts.................................1-32
Forward-facing child restraint installation
using LATCH..................................1-35
Installing top tether strap
.......................1-38
2nd row bench seat...........................1-38
Forward-facing child restraint installation
using the seat belts............................1-39
Installing top tether strap.......................1-42
2nd row bench seat...........................1-43

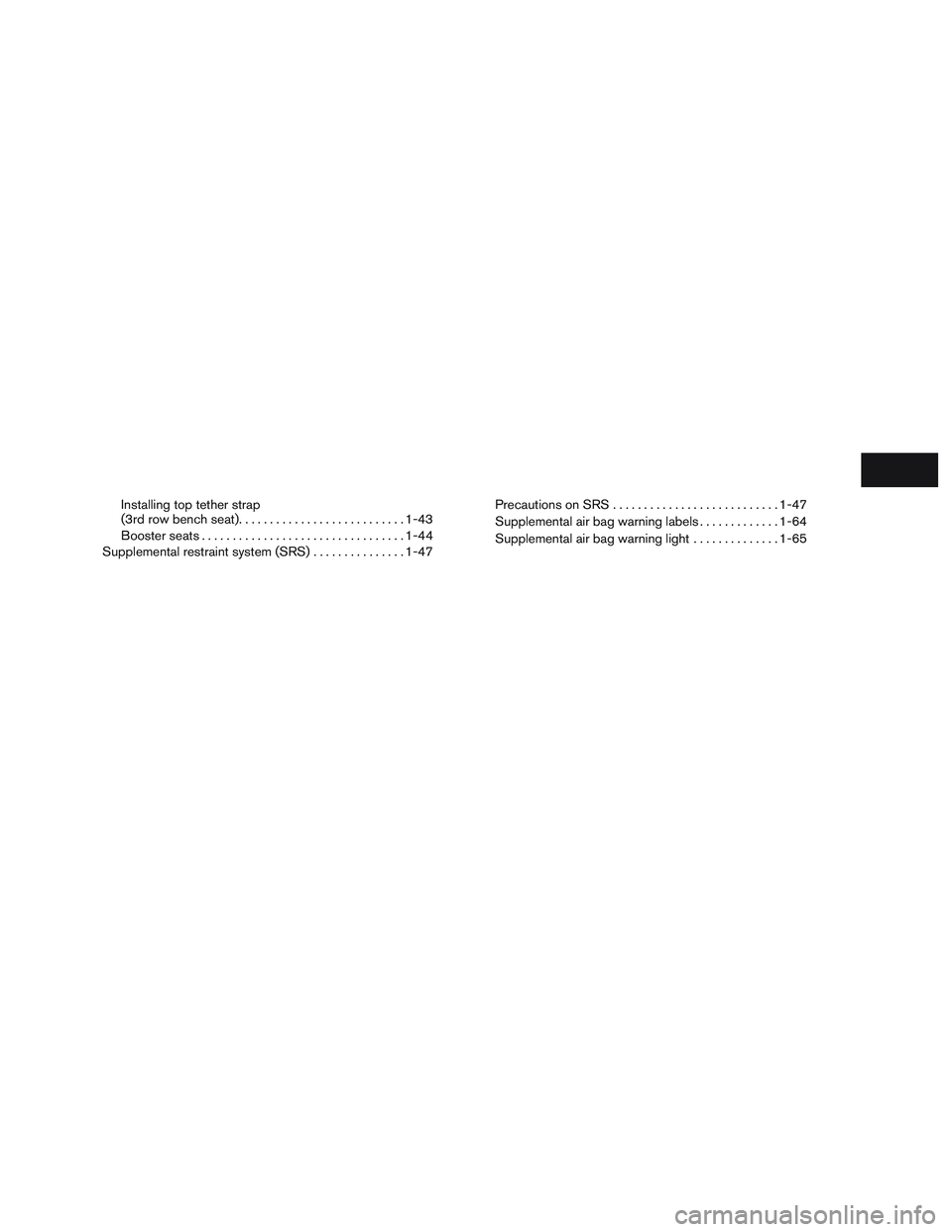

Installing top tether strap
(3rd row bench seat)...........................1-43
Booster seats.................................1-44
Supplemental restraint system (SRS)...............1-47Precautions on SRS...........................1-47
Supplemental air bag warning labels.............1-64
Supplemental air bag warning light..............1-65

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.●For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.
●After adjustment, gently rock in the seat
to make sure it is securely locked.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.●Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
●The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped for
passenger’s seat)
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

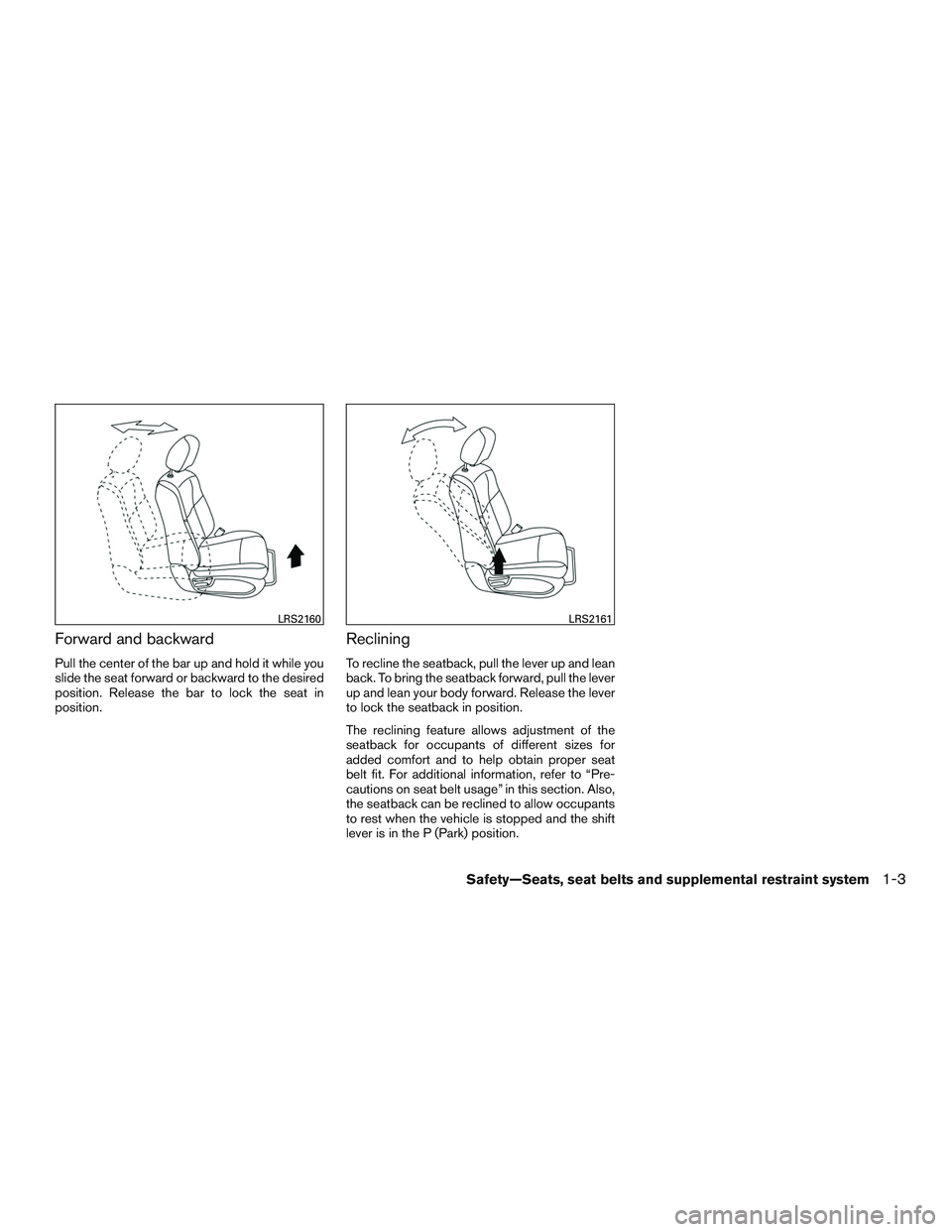

Forward and backward
Pull the center of the bar up and hold it while you
slide the seat forward or backward to the desired
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in the P (Park) position.
LRS2160LRS2161
Safety—Seats, seat belts and supplemental restraint system1-3

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
●Do not operate the power seat switch for a
long period of time when the Hybrid System
is not in the READY mode. This will dis-
charge the vehicle battery.For additional information, refer to “Automatic
drive positioner” in “Pre-driving checks and ad-
justments” for automatic drive positioner opera-
tion.Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .
LRS2130
1-4Safety—Seats, seat belts and supplemental restraint system

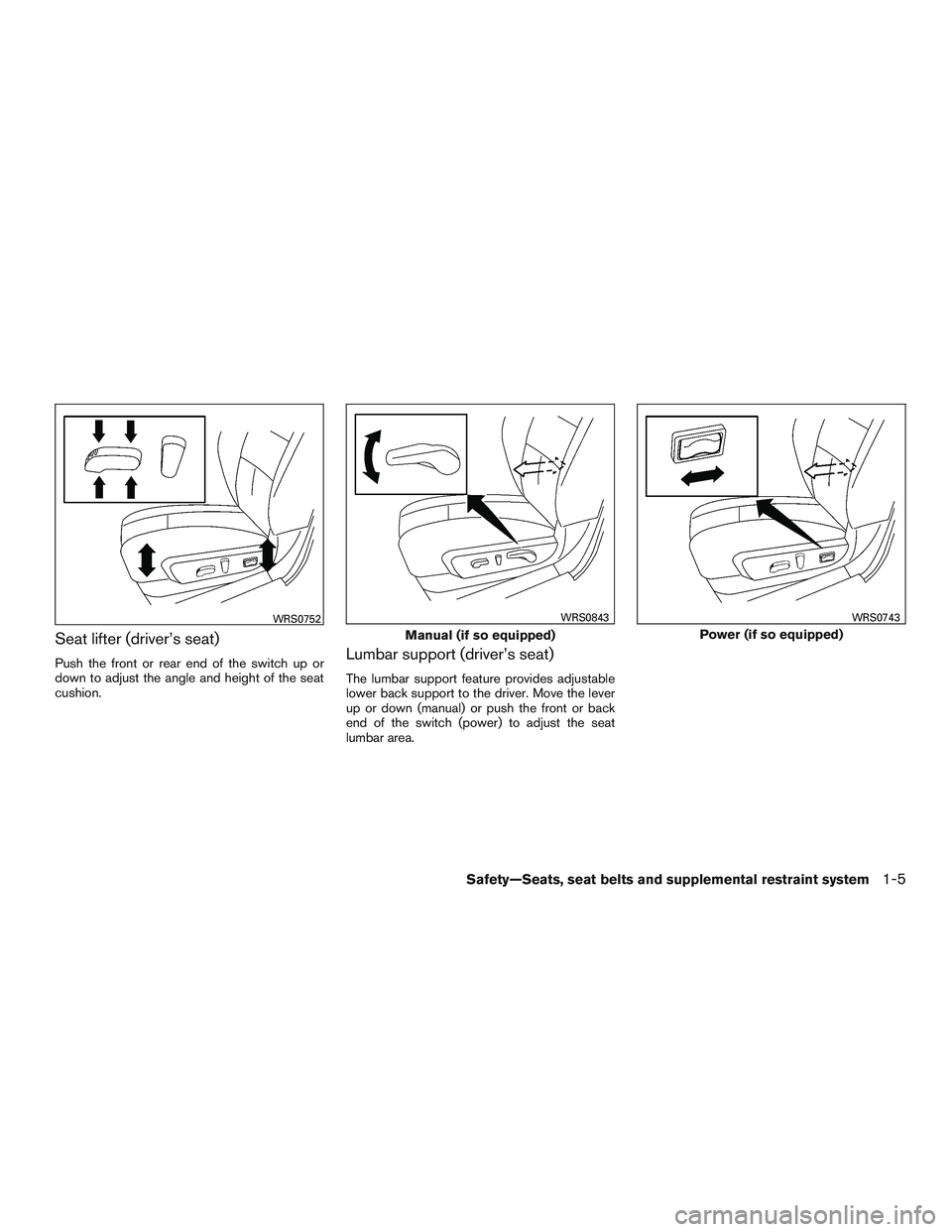

Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.Lumbar support (driver’s seat)
The lumbar support feature provides adjustable
lower back support to the driver. Move the lever
up or down (manual) or push the front or back
end of the switch (power) to adjust the seat
lumbar area.
WRS0752
Manual (if so equipped)
WRS0843
Power (if so equipped)
WRS0743
Safety—Seats, seat belts and supplemental restraint system1-5
