NISSAN PATROL 2001 Electronic Repair Manual

Back Door and Rear Window Defogger
Harness/LHD Models
CEL222M
GROUND DISTRIBUTION/WAGON AND HARDTOP MODELS
EL-2024

Engine Room Harness/RHD Models
CEL223M
GROUND DISTRIBUTION/WAGON AND HARDTOP MODELS
EL-2025

Main Harness/RHD Models
CEL224M
GROUND DISTRIBUTION/WAGON AND HARDTOP MODELS
EL-2026

CEL225M
GROUND DISTRIBUTION/WAGON AND HARDTOP MODELS
Main Harness/RHD Models (Cont'd)
EL-2027

CEL226M
GROUND DISTRIBUTION/WAGON AND HARDTOP MODELS
Main Harness/RHD Models (Cont'd)
EL-2028

Wiring Diagram Ð START Ð/M/T Models
TEL383M
STARTING SYSTEM
EL-2029

Wiring Diagram Ð START Ð/A/T Models
TEL384M
STARTING SYSTEM
EL-2030

Construction
MEL744IA
MEL656KA
STARTING SYSTEM
EL-2031

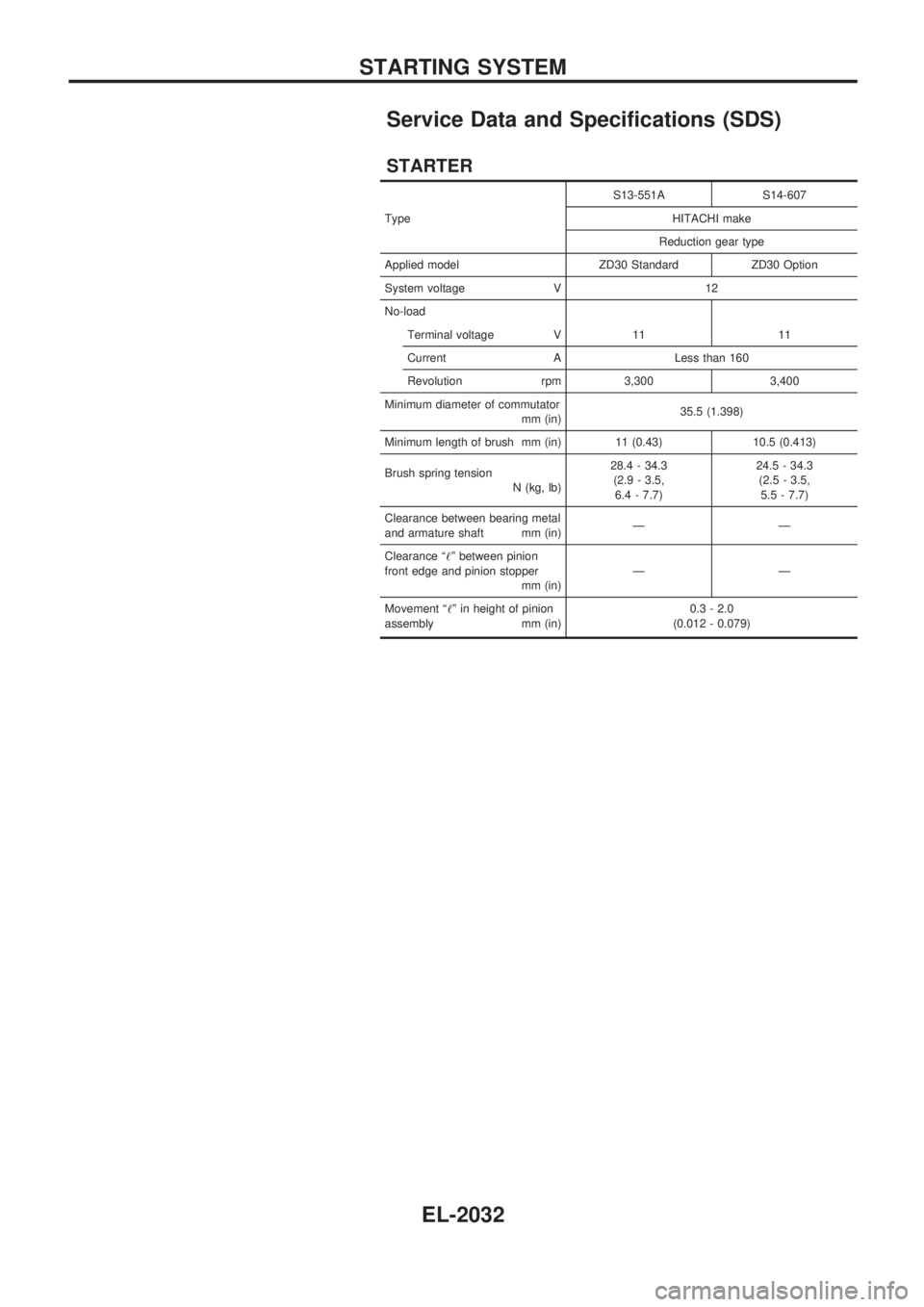

Service Data and Specifications (SDS)
STARTER
TypeS13-551A S14-607
HITACHI make
Reduction gear type
Applied model ZD30 Standard ZD30 Option
System voltage V 12
No-load
Terminal voltage V 11 11
Current A Less than 160
Revolution rpm 3,300 3,400
Minimum diameter of commutator
mm (in)35.5 (1.398)
Minimum length of brush mm (in) 11 (0.43) 10.5 (0.413)
Brush spring tension
N (kg, lb)28.4 - 34.3
(2.9 - 3.5,
6.4 - 7.7)24.5 - 34.3
(2.5 - 3.5,
5.5 - 7.7)
Clearance between bearing metal
and armature shaft mm (in)ÐÐ
Clearance ª!º between pinion
front edge and pinion stopper
mm (in)ÐÐ
Movement ª!º in height of pinion
assembly mm (in)0.3 - 2.0
(0.012 - 0.079)
STARTING SYSTEM
EL-2032

Wiring Diagram Ð CHARGE Ð
TEL483M
CHARGING SYSTEM
EL-2033
