4 CHECK HEAT UP SWITCH POWER SUPPLY CIRCUIT
1. Turn heat up switch ªOFFº.
2. Turn ignition switch ªOFFº.
3. Disconnect heat up switch harness connector.
4. Turn ignition switch ªONº.
5. Check voltage between heat up switch terminal 1 and ground with CONSULT-II or tester.
SEC016E
OK or NG
OKcGO TO 6.
NGcGO TO 5.
5 DETECT MALFUNCTIONING PART
Check the following.
+Fuse block (J/B) connector M3
+10A fuse
+Harness for open or short between heat up switch and fuse
cRepair open circuit or short to ground or short to power in harness or connectors.
6 CHECK HEAT UP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 59 and heat up switch terminals 3, 5. Refer to Wiring Diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OKcGO TO 8.
NGcGO TO 7.
7 DETECT MALFUNCTIONING PART
Check the following.
+Harness connectors M51, F6
+Harness for open or short between heat up switch and ECM
cRepair open circuit or short to ground or short to power in harness or connectors.
HEAT UP SWITCHZD30DDTi
Diagnostic Procedure (Cont'd)
EC-4056

8 CHECK HEAT UP SWITCH INDICATOR LAMP GROUND CIRCUIT FOR OPEN OR SHORT
1. Check harness continuity between heat up switch terminal 6 and ground.
Refer to Wiring Diagram.
Continuity should exist.
2. Also check harness for short to power.
OK or NG
OKcGO TO 9.
NGcRepair open circuit or short to power in harness or connectors.
9 CHECK HEAT UP SWITCH INDICATOR LAMP
Check harness continuity between heat up switch terminals 5 and 6 under the following conditions.
SEC018E
OK or NG
OKcGO TO 10.
NGcReplace heat up switch.
10 CHECK HEAT UP SWITCH
Check continuity between heat up switch terminals 1 and 3 under the following conditions.
SEC017E
OK or NG
OKcGO TO 11.
NGcReplace heat up switch.
11 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-107 in Service Manual (Publication No. SM9E-Y61CG3).
cINSPECTION END
HEAT UP SWITCHZD30DDTi
Diagnostic Procedure (Cont'd)
EC-4057

Wiring Diagram
TEC530M
AIR CONDITIONER CONTROLZD30DDTi
EC-4058

Circuit Diagram
TEC539M
ENGINE AND EMISSION CONTROL OVERALL SYSTEMTD42Ti
EC-4059

Vehicle Speed Sensor (VSS)
TEC540M
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMSTD42Ti
EC-4060

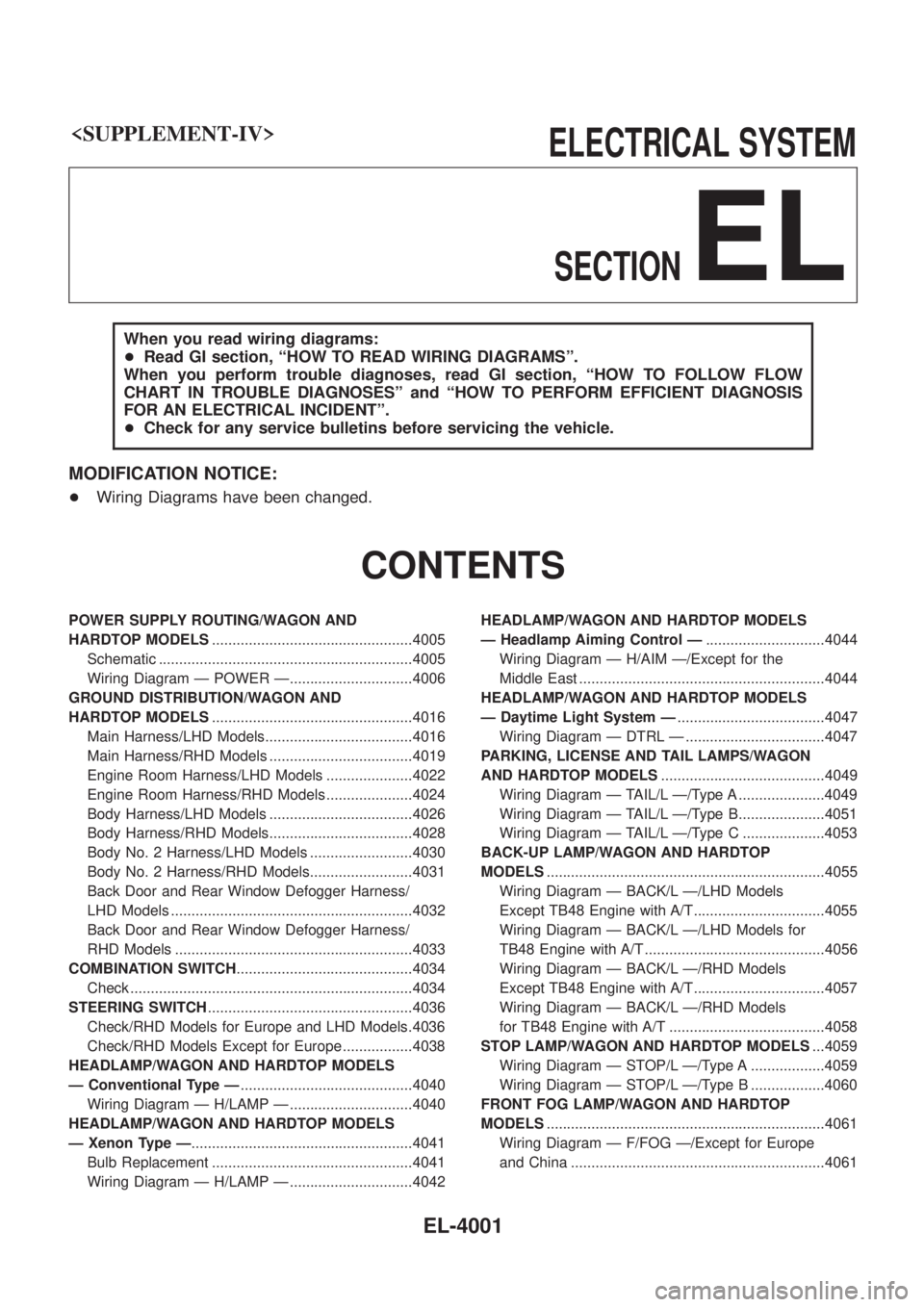

ELECTRICALSYSTEM
SECTION
EL
When you read wiring diagrams:
+ Read GI section, ªHOW TO READ WIRING DIAGRAMSº.
When you perform trouble diagnoses, read GI section, ªHOW TO FOLLOW FLOW
CHART IN TROUBLE DIAGNOSESº and ªHOW TO PERFORM EFFICIENT DIAGNOSIS
FOR AN ELECTRICAL INCIDENTº.
+ Check for any service bulletins before servicing the vehicle.
MODIFICATION NOTICE:
+ Wiring Diagrams have been changed.
CONTENTS
POWER SUPPLY ROUTING/WAGON AND
HARDTOP MODELS .................................................4005
Schematic ..............................................................4005
Wiring Diagram Ð POWER Ð..............................4006
GROUND DISTRIBUTION/WAGON AND
HARDTOP MODELS .................................................4016
Main Harness/LHD Models....................................4016
Main Harness/RHD Models ...................................4019
Engine Room Harness/LHD Models .....................4022
Engine Room Harness/RHD Models .....................4024
Body Harness/LHD Models ...................................4026
Body Harness/RHD Models...................................4028
Body No. 2 Harness/LHD Models .........................4030
Body No. 2 Harness/RHD Models.........................4031
Back Door and Rear Window Defogger Harness/
LHD Models ...........................................................4032
Back Door and Rear Window Defogger Harness/
RHD Models ..........................................................4033
COMBINATION SWITCH ...........................................4034
Check .....................................................................4034
STEERING SWITCH ..................................................4036
Check/RHD Models for Europe and LHD Models.4036
Check/RHD Models Except for Europe .................4038
HEADLAMP/WAGON AND HARDTOP MODELS
Ð Conventional Type Ð ..........................................4040
Wiring Diagram Ð H/LAMP Ð ..............................4040
HEADLAMP/WAGON AND HARDTOP MODELS
Ð Xenon Type Ð ......................................................4041
Bulb Replacement .................................................4041
Wiring Diagram Ð H/LAMP Ð ..............................4042 HEADLAMP/WAGON AND HARDTOP MODELS
Ð Headlamp Aiming Control Ð
.............................4044
Wiring Diagram Ð H/AIM Ð/Except for the
Middle East ............................................................4044
HEADLAMP/WAGON AND HARDTOP MODELS
Ð Daytime Light System Ð ....................................4047
Wiring Diagram Ð DTRL Ð ..................................4047
PARKING, LICENSE AND TAIL LAMPS/WAGON
AND HARDTOP MODELS ........................................4049
Wiring Diagram Ð TAIL/L Ð/Type A .....................4049
Wiring Diagram Ð TAIL/L Ð/Type B.....................4051
Wiring Diagram Ð TAIL/L Ð/Type C ....................4053
BACK-UP LAMP/WAGON AND HARDTOP
MODELS ....................................................................4055
Wiring Diagram Ð BACK/L Ð/LHD Models
Except TB48 Engine with A/T................................4055
Wiring Diagram Ð BACK/L Ð/LHD Models for
TB48 Engine with A/T ............................................4056
Wiring Diagram Ð BACK/L Ð/RHD Models
Except TB48 Engine with A/T................................4057
Wiring Diagram Ð BACK/L Ð/RHD Models
for TB48 Engine with A/T ......................................4058
STOP LAMP/WAGON AND HARDTOP MODELS ...4059
Wiring Diagram Ð STOP/L Ð/Type A ..................4059
Wiring Diagram Ð STOP/L Ð/Type B ..................4060
FRONT FOG LAMP/WAGON AND HARDTOP
MODELS ....................................................................4061
Wiring Diagram Ð F/FOG Ð/Except for Europe
and China ..............................................................4061
EL-4001

Wiring Diagram Ð F/FOG Ð/RHD Models for
Europe and China..................................................4062
Wiring Diagram Ð F/FOG Ð/LHD Models for
Europe ...................................................................4063
REAR FOG LAMP/WAGON AND HARDTOP
MODELS ....................................................................4064
Wiring Diagram Ð R/FOG Ð/For Europe and
China......................................................................4064
TURN SIGNAL AND HAZARD WARNING LAMPS/
WAGON AND HARDTOP MODELS .........................4067
Schematic ..............................................................4067
Wiring Diagram Ð TURN Ð/Type A .....................4068
Wiring Diagram Ð TURN Ð/Type B .....................4073
Wiring Diagram Ð TURN Ð/Type C.....................4075
Wiring Diagram Ð TURN Ð/Type D.....................4077
ILLUMINATION/WAGON AND HARDTOP
MODELS ....................................................................4079
Schematic ..............................................................4079
Wiring Diagram Ð ILL Ð ......................................4080
INTERIOR ROOM LAMP/WAGON AND HARDTOP
MODELS Ð With Timer Ð .......................................4088
Schematic/LHD Models Except for China .............4088
Wiring Diagram Ð ROOM/L Ð/LHD Models
Except for China ....................................................4089
Wiring Diagram Ð ROOM/L Ð/RHD Models for
Europe ...................................................................4092
INTERIOR ROOM LAMP/WAGON AND HARDTOP
MODELS Ð Without Timer Ð .................................4094
Wiring Diagram Ð ROOM/L Ð/RHD Models........4094
METER AND GAUGES/WAGON AND HARDTOP
MODELS ....................................................................4095
Combination Meter ................................................4095
Schematic ..............................................................4096
Wiring Diagram Ð METER Ð...............................4097
COMPASS AND THERMOMETER/WAGON AND
HARDTOP MODELS .................................................4099
Wiring Diagram Ð COMPAS Ð ............................4099
WARNING LAMPS/WAGON AND HARDTOP
MODELS ....................................................................4100
Schematic ..............................................................4100
Wiring Diagram Ð WARN Ð ................................4102
WARNING CHIME/WAGON AND HARDTOP
MODELS .................................................................... 4113
Wiring Diagram Ð CHIME Ð/Except for Europe
and with Theft Warning System Models................ 4113
Wiring Diagram Ð CHIME Ð/LHD Models for
Europe ................................................................... 4114
Wiring Diagram Ð CHIME Ð/RHD Models for
Europe ................................................................... 4115
Wiring Diagram Ð CHIME Ð/With Theft Warning
System Models ...................................................... 4116 FRONT WIPER AND WASHER/WAGON AND
HARDTOP MODELS
................................................. 4117
Wiring Diagram Ð WIPER Ð ............................... 4117
REAR WIPER AND WASHER/WAGON AND
HARDTOP MODELS ................................................. 4118
Wiring Diagram Ð WIP/R Ð ................................. 4118
HEADLAMP WASHER/WAGON AND HARDTOP
MODELS ....................................................................4122
Wiring Diagram Ð HLC Ð ....................................4122
HORN/WAGON AND HARDTOP MODELS ..............4124
Wiring Diagram Ð HORN Ð.................................4124
WIPER DEICER/WAGON AND HARDTOP
MODELS ....................................................................4125
Wiring Diagram Ð DEICER Ð..............................4125
REAR WINDOW DEFOGGER/WAGON AND
HARDTOP MODELS .................................................4126
Wiring Diagram Ð DEF Ð/LHD Models Without
Theft Warning System ...........................................4126
Wiring Diagram Ð DEF Ð/RHD Models Except
for Europe and With Theft Warning System .........4128
Wiring Diagram Ð DEF Ð/LHD Models With
Theft Warning System ...........................................4130
Wiring Diagram Ð DEF Ð/RHD Models for
Europe ...................................................................4132
Wiring Diagram Ð DEF Ð/RHD Models With
Theft Warning System ...........................................4134
AUDIO/WAGON AND HARDTOP MODELS .............4136
Schematic/LHD Models with Sub-harness ............4136
Wiring Diagram Ð AUDIO Ð/LHD Models with
Sub-harness...........................................................4137
Schematic/RHD Models with Sub-harness ...........4140
Wiring Diagram Ð AUDIO Ð/RHD Models with
Sub-harness...........................................................4141
Schematic/LHD Models without Sub-harness .......4144
Wiring Diagram Ð AUDIO Ð/LHD Models
without Sub-harness ..............................................4145
Schematic/RHD Models without Sub-harness ......4149
Wiring Diagram Ð AUDIO Ð/RHD Models
without Sub-harness ..............................................4150
Wiring Diagram Ð CD AUTO CHANGER Ð ........4154
Wiring Diagram Ð REMOTE Ð ............................4155
Wiring Diagram Ð P/ANT Ð/LHD Models............4159
Wiring Diagram Ð P/ANT Ð/RHD Models ...........4160
TELEPHONE (PRE WIRE) ........................................4161
Wiring Diagram Ð PHONE Ð ..............................4161
NAVIGATION SYSTEM .............................................4162
System Description ................................................4162
Precautions for NAVI Control Unit Replacement ..4173
Component Parts And Harness Connector
Location .................................................................4173
Schematic ..............................................................4174
Wiring Diagram Ð NAVI Ð ...................................4175
CONTENTS(Cont'd)
EL-4002

Terminals and Reference Value for NAVI Control
Unit........................................................................\
.4183
Terminals and Reference Value for Display ..........4185
Terminals and Reference Value for NAVI Switch ..4186
Terminals and Reference Value for Transfer Unit .4187
Terminals and Reference Value for Voice
Change Relay ........................................................4188
Self-Diagnosis Function .........................................4189
Self-Diagnosis Mode..............................................4189
Con®rmation/Adjustment Mode .............................4192
Trouble Diagnoses.................................................4198
Example of Symptoms Judged Not Malfunction ...4218
Program Loading ...................................................4226
DOOR MIRROR/WAGON AND HARDTOP
MODELS ....................................................................4227
Wiring Diagram Ð MIRROR Ð/LHD Models........4227
Wiring Diagram Ð MIRROR Ð/RHD Models .......4229
HEATED SEAT/WAGON AND HARDTOP
MODELS ....................................................................4231
Wiring Diagram Ð HSEAT Ð................................4231
AUTOMATIC SPEED CONTROL DEVICE (ASCD)/
WAGON AND HARDTOP MODELS .........................4233
Schematic/TB48 and TD42Ti Engine Models .......4233
Wiring Diagram Ð ASCD Ð/TB48 and TD42Ti
Engine Models .......................................................4234
POWER WINDOW/WAGON AND HARDTOP
MODELS ....................................................................4238
Schematic ..............................................................4238
Wiring Diagram Ð WINDOW Ð ...........................4239
POWER DOOR LOCK/WAGON AND HARDTOP
MODELS ....................................................................4244
Schematic/Without Theft Warning System
Models ...................................................................4244
Wiring Diagram Ð D/LOCK Ð/Without Theft
Warning System Models ........................................4245
Schematic/With Theft Warning System Models ....4249
Wiring Diagram Ð D/LOCK Ð/LHD Models With
Theft Warning System ...........................................4250
Wiring Diagram Ð D/LOCK Ð/RHD Models With
Theft Warning System ...........................................4254
POWER DOOR LOCK/WAGON AND HARDTOP
MODELS ....................................................................4258
Schematic Ð Super Lock Ð .................................4258
Wiring Diagram Ð S/LOCK Ð ..............................4259
MULTI-REMOTE CONTROL SYSTEM/WAGON
AND HARDTOP MODELS ........................................4264
Wiring Diagram Ð MULTI Ð/LHD Models Except
for Europe, The Middle East and With Theft
Warning System ....................................................4264
Wiring Diagram Ð MULTI Ð/RHD Models
Except for Europe, South Africa and With Theft
Warning System ....................................................4266 Schematic/With Theft Warning System Models ....4268
Wiring Diagram Ð MULTI Ð/LHD Models with
Theft Warning System ...........................................4269
Wiring Diagram Ð MULTI Ð/RHD Models with
Theft Warning System ...........................................4273
Wiring Diagram Ð MULTI Ð/LHD Models for
Europe and The Middle East.................................4276
THEFT WARNING SYSTEM/WAGON AND
HARDTOP MODELS .................................................4278
Schematic ..............................................................4278
Wiring Diagram Ð THEFT Ð/LHD Models ...........4279
Wiring Diagram Ð THEFT Ð/RHD Models ..........4284
SUPER LOCK CONTROL UNIT/WAGON AND
HARDTOP MODELS .................................................4290
Schematic/RHD Models for Europe ......................4290
UNIFIED METER CONTROL UNIT (TIME
CONTROL SYSTEM)/WAGON AND HARDTOP
MODELS ....................................................................4292
Schematic/Except RHD Models for Europe and
With Theft Warning System Models ......................4292
NATS (Nissan Anti-Theft System)/TB48DE
ENGINE MODELS FOR EUROPE ............................4293
Wiring Diagram Ð NATS Ð ..................................4293
NATS (Nissan Anti-Theft System)/ZD ENGINE
MODELS ....................................................................4295
Wiring Diagram Ð NATS Ð/LHD Models for
Europe ...................................................................4295
Wiring Diagram Ð NATS Ð/RHD Models for
Europe ...................................................................4297
LOCATION OF ELECTRICAL UNITS/WAGON
AND HARDTOP MODELS ........................................4300
Engine Compartment .............................................4300
Passenger Compartment Ð LHD Models .............4302
Passenger Compartment Ð RHD Models ............4304
HARNESS LAYOUT ..................................................4307
How to Read Harness Layout ...............................4307
HARNESS LAYOUT/WAGON AND HARDTOP
MODELS ....................................................................4308
Main Harness/LHD Models....................................4308
Main Harness/RHD Models ...................................4312
Engine Room Harness/LHD Models .....................4316
Engine Room Harness/RHD Models .....................4322
Engine Harness .....................................................4328
Body Harness/LHD Models ...................................4330
Body Harness/RHD Models...................................4334
Body No. 2 Harness/LHD Models .........................4338
Body No. 2 Harness/RHD Models.........................4340
Chassis Harness....................................................4342
Front Door Harness (Driver side) ..........................4343
Front Door Harness (Passenger side) ..................4344
Rear Door Harness................................................4345
CONTENTS(Cont'd)
EL-4003

Back Door Harness and Rear Window Defogger
Harness..................................................................4346
WIRING DIAGRAM CODES (CELL CODES) ...........4347
Wiring Diagram Codes (Cell Codes) .....................4347

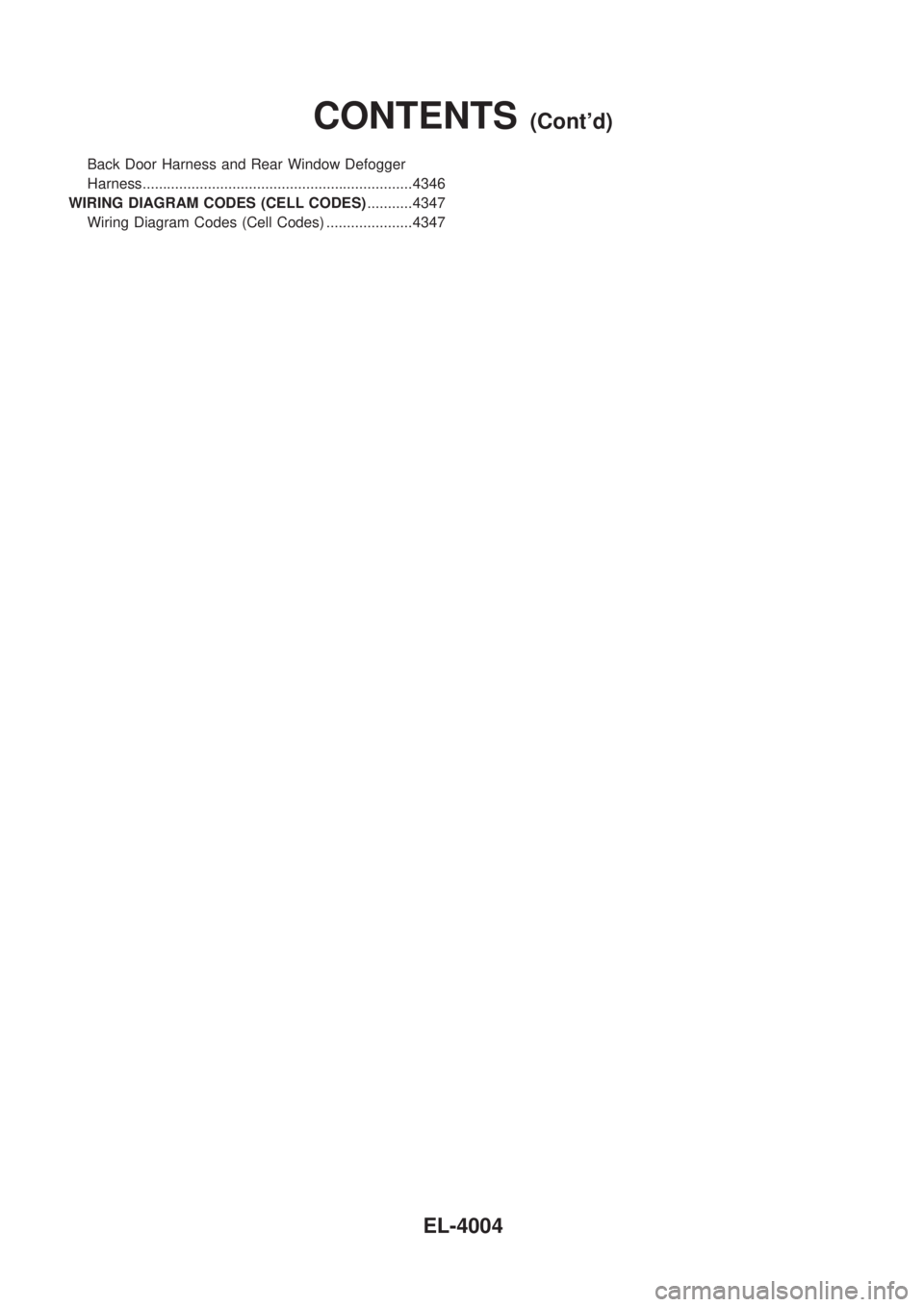

CONTENTS(Cont'd)
EL-4004

Schematic
TEL961M
POWER SUPPLY ROUTING/WAGON AND HARDTOP MODELS
EL-4005
