NISSAN PATROL 2006 Service Manual

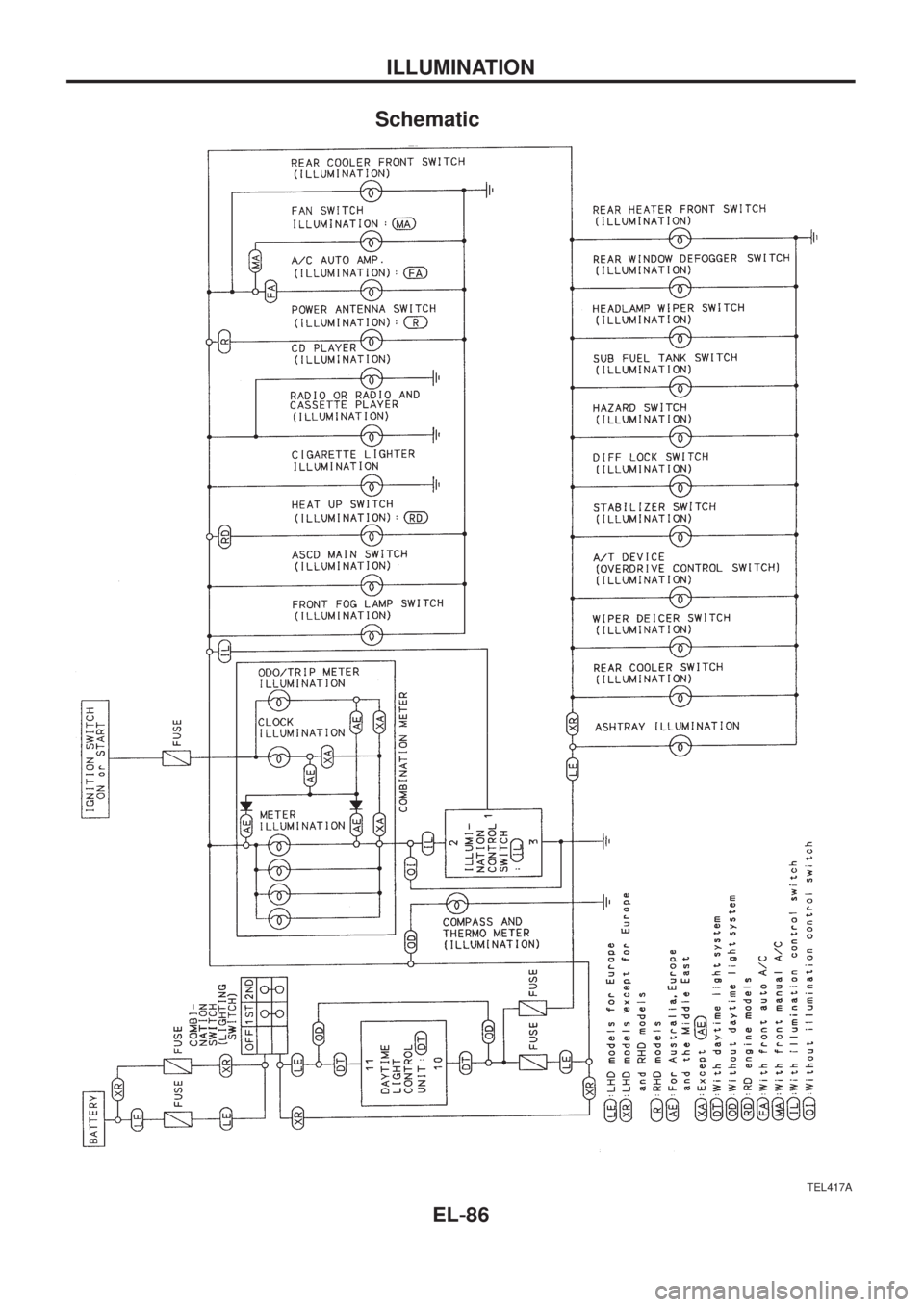

Schematic
TEL417A
ILLUMINATION
EL-86

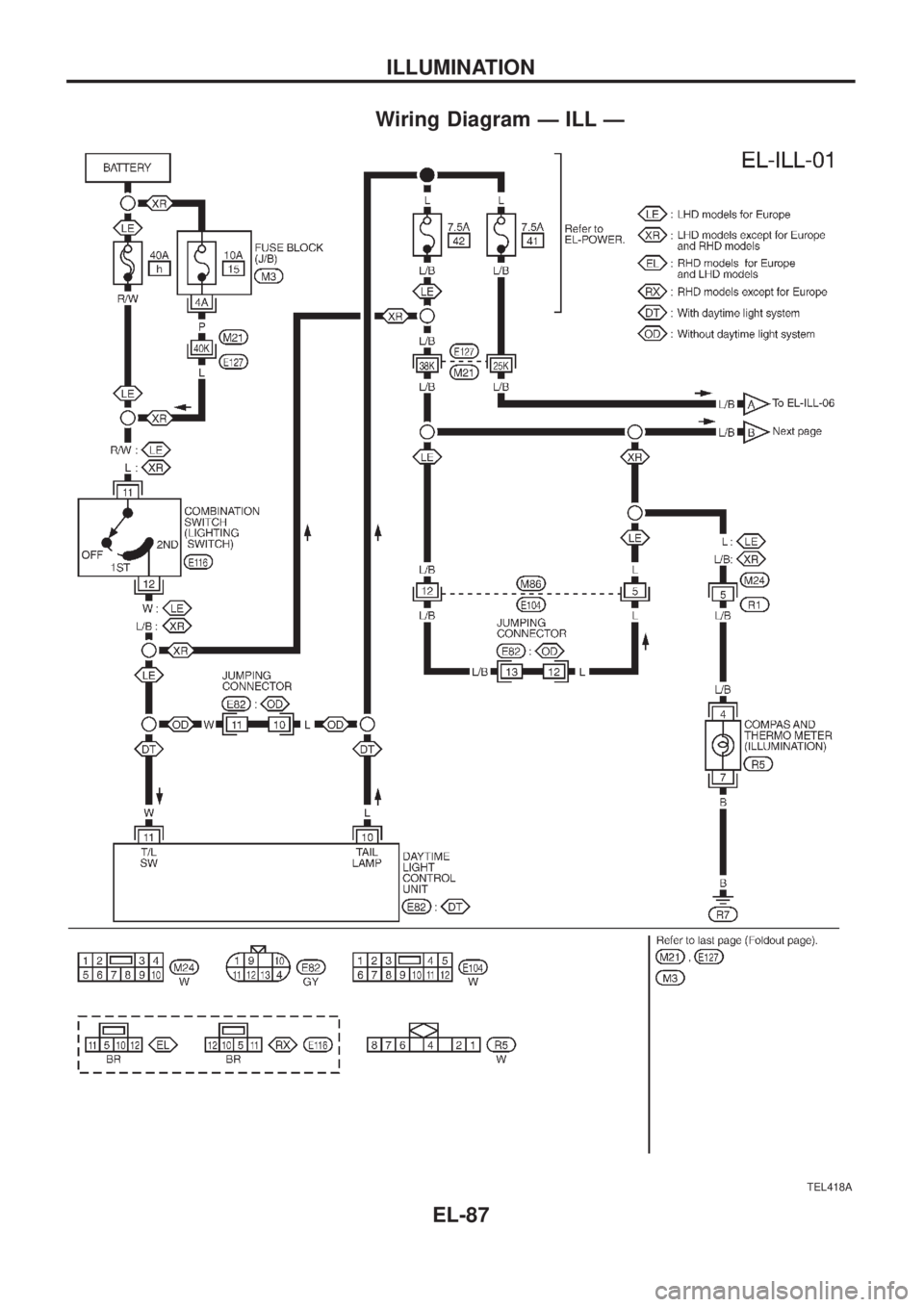

Wiring Diagram Ð ILL Ð
TEL418A
ILLUMINATION
EL-87

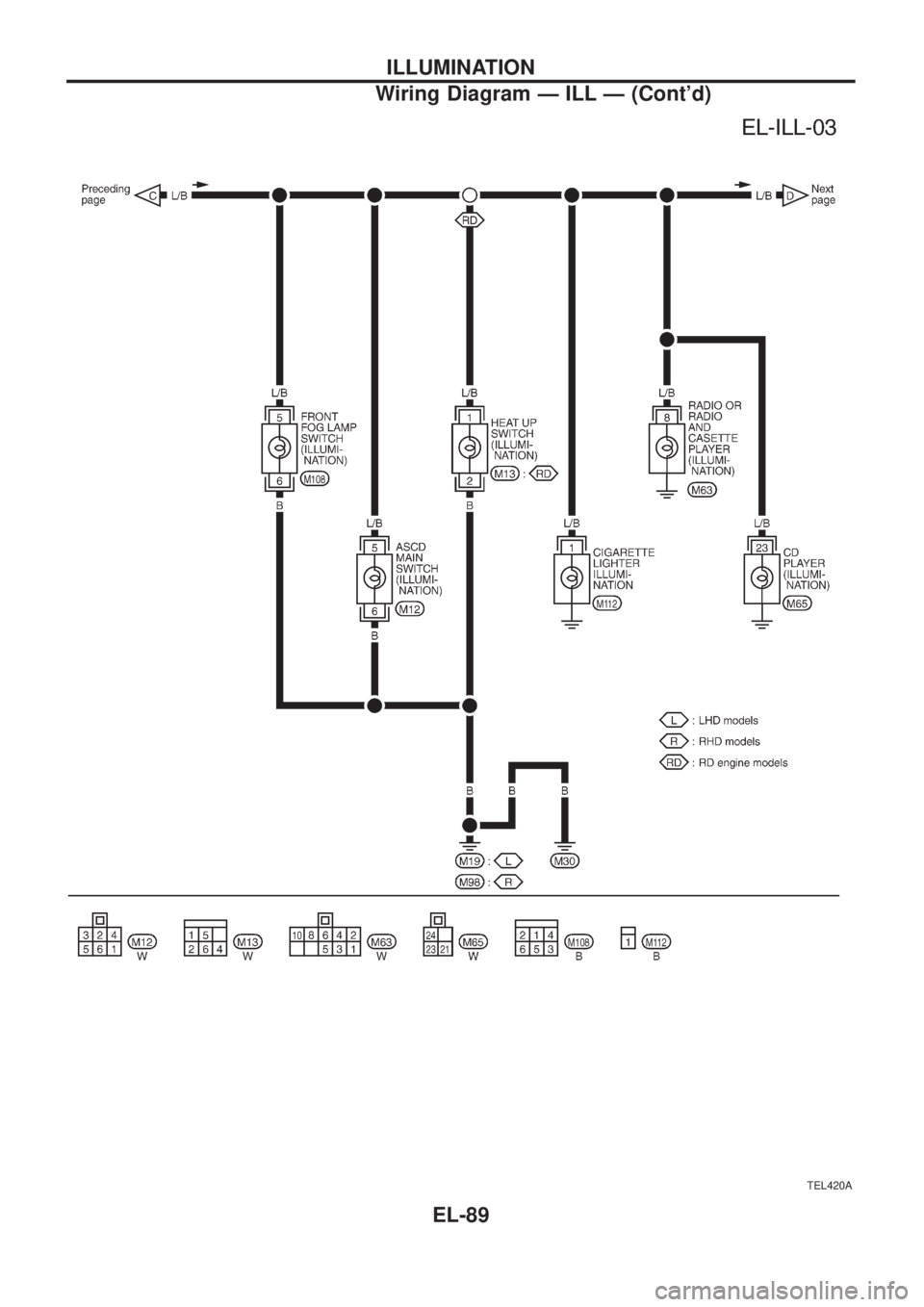

TEL419A
ILLUMINATION

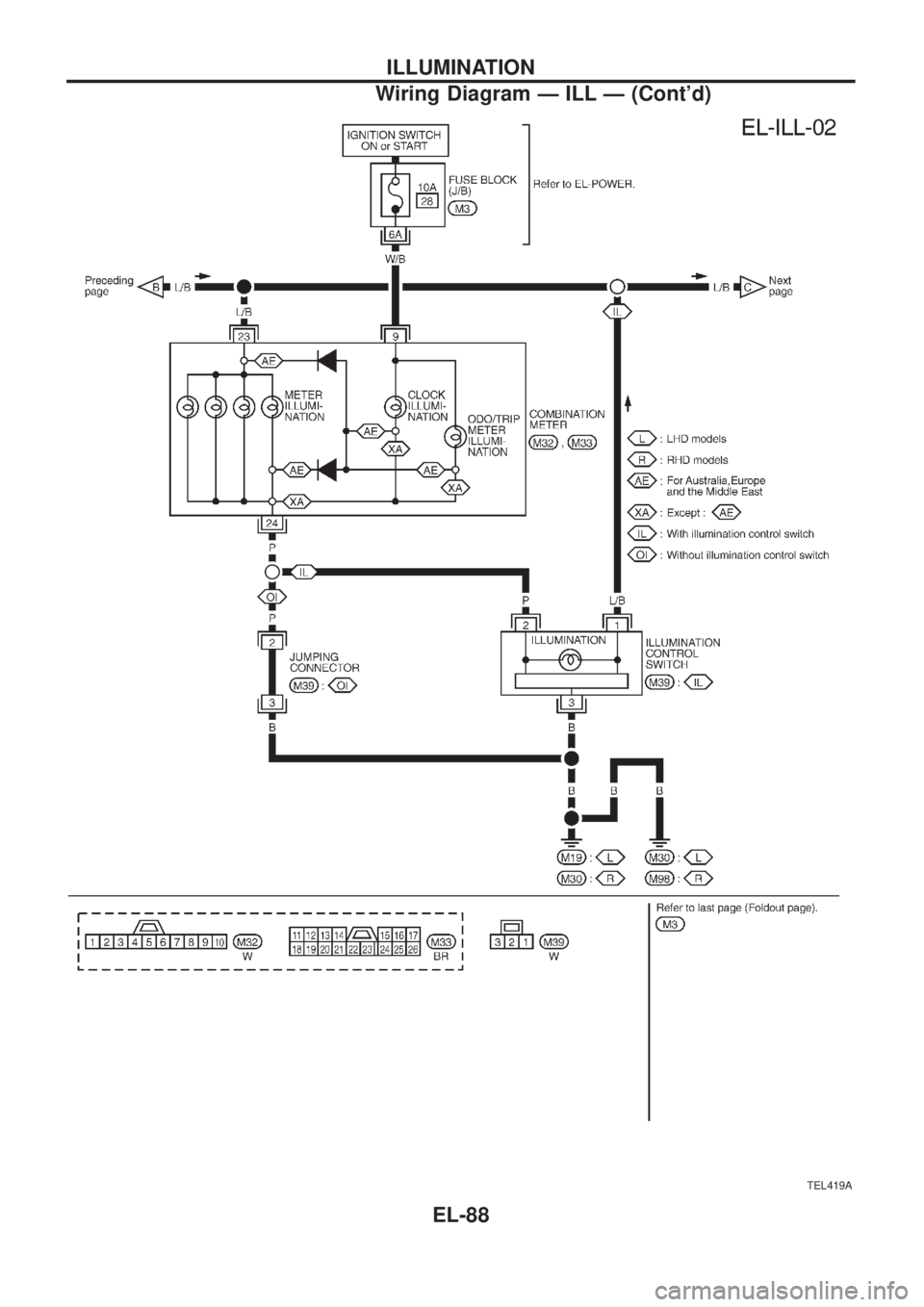

Wiring Diagram Ð ILL Ð (Cont'd)
EL-88

TEL420A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-89

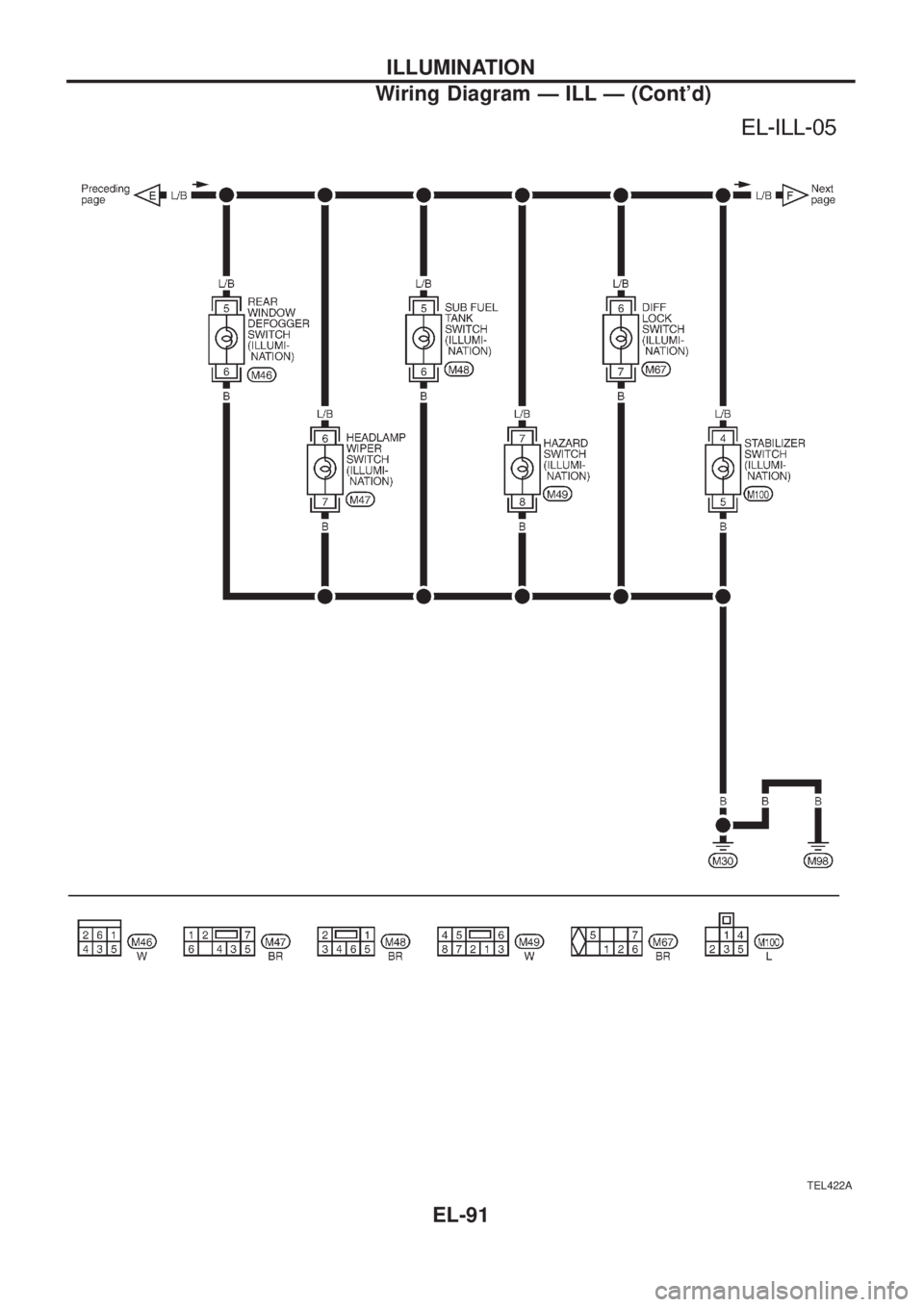

TEL421A
ILLUMINATION

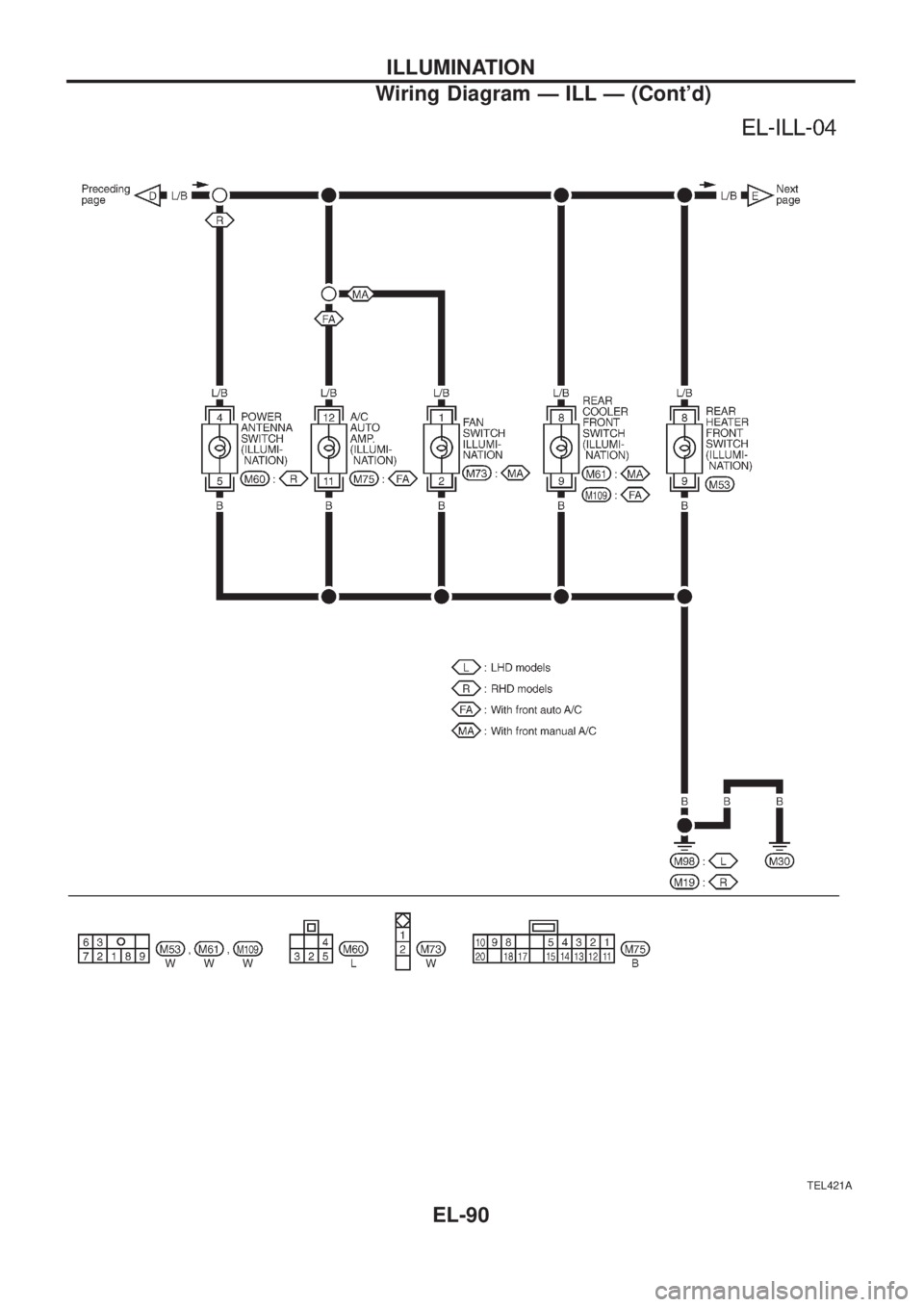

Wiring Diagram Ð ILL Ð (Cont'd)
EL-90

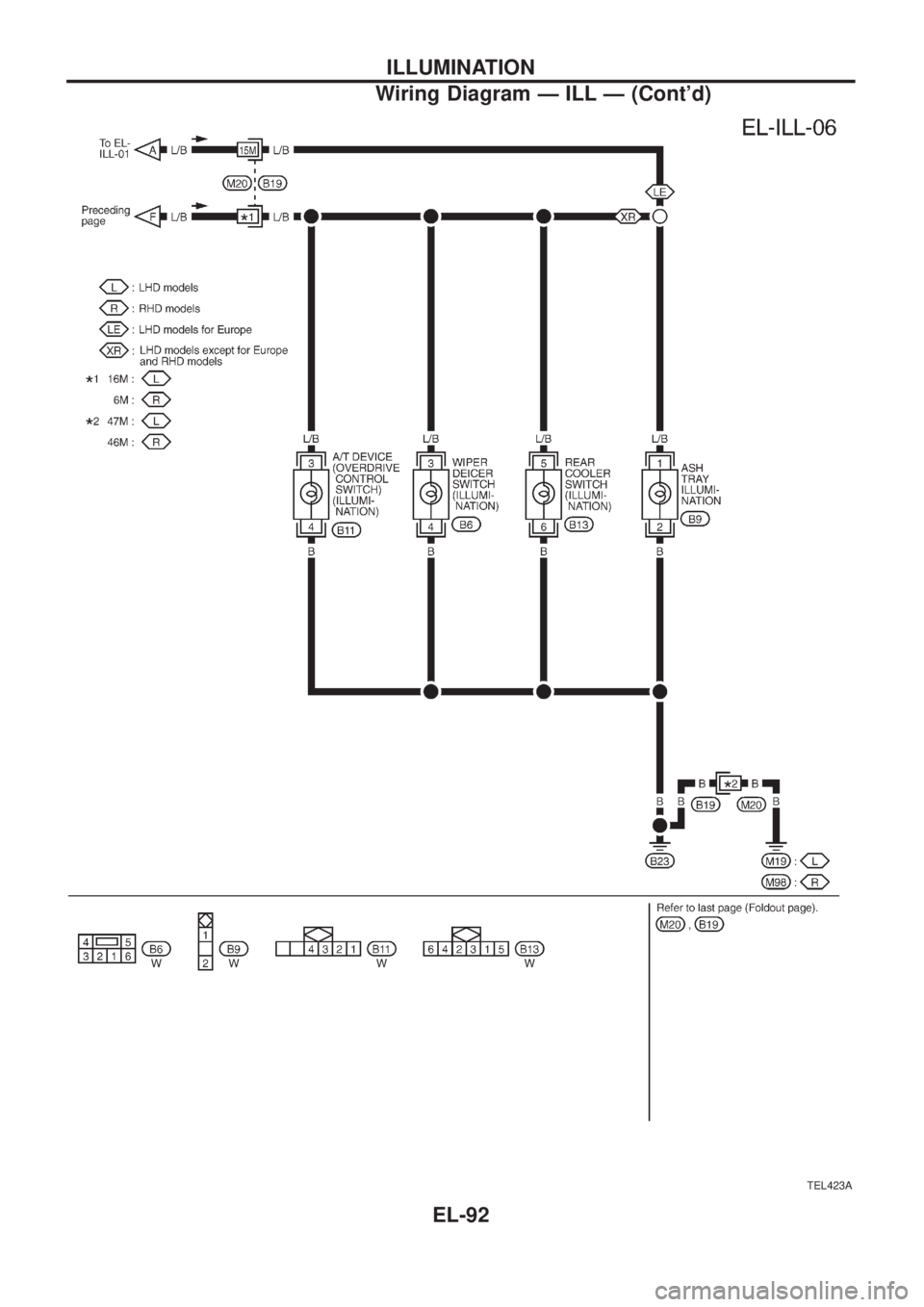

TEL422A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-91

TEL423A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-92

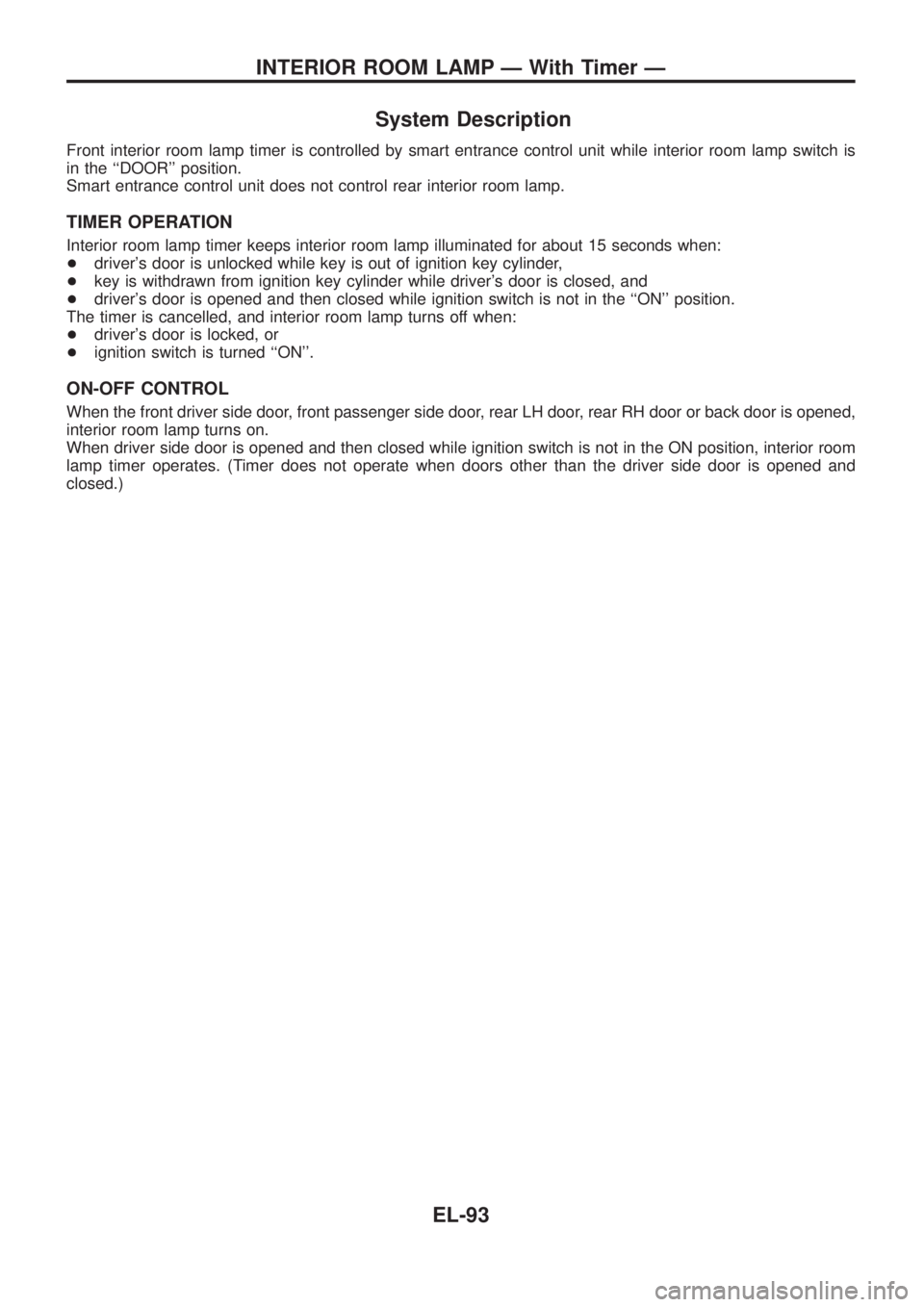

System Description
Front interior room lamp timer is controlled by smart entrance control unit while interior room lamp switch is
in the ``DOOR'' position.
Smart entrance control unit does not control rear interior room lamp.
TIMER OPERATION
Interior room lamp timer keeps interior room lamp illuminated for about 15 seconds when:
+driver's door is unlocked while key is out of ignition key cylinder,
+key is withdrawn from ignition key cylinder while driver's door is closed, and
+driver's door is opened and then closed while ignition switch is not in the ``ON'' position.
The timer is cancelled, and interior room lamp turns off when:
+driver's door is locked, or
+ignition switch is turned ``ON''.
ON-OFF CONTROL
When the front driver side door, front passenger side door, rear LH door, rear RH door or back door is opened,
interior room lamp turns on.
When driver side door is opened and then closed while ignition switch is not in the ON position, interior room
lamp timer operates. (Timer does not operate when doors other than the driver side door is opened and
closed.)
INTERIOR ROOM LAMP Ð With Timer Ð
EL-93

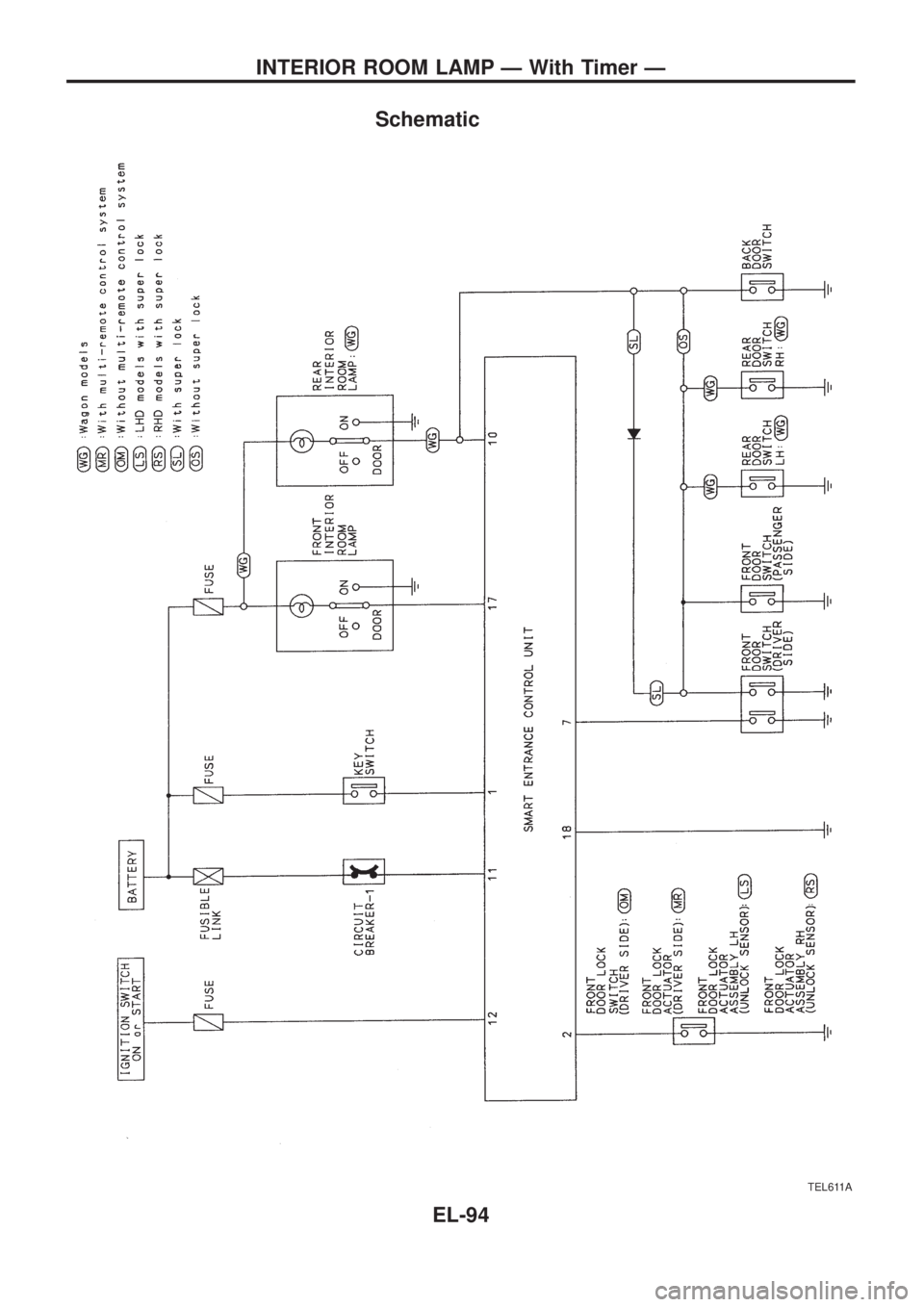

Schematic
TEL611A
INTERIOR ROOM LAMP Ð With Timer Ð
EL-94

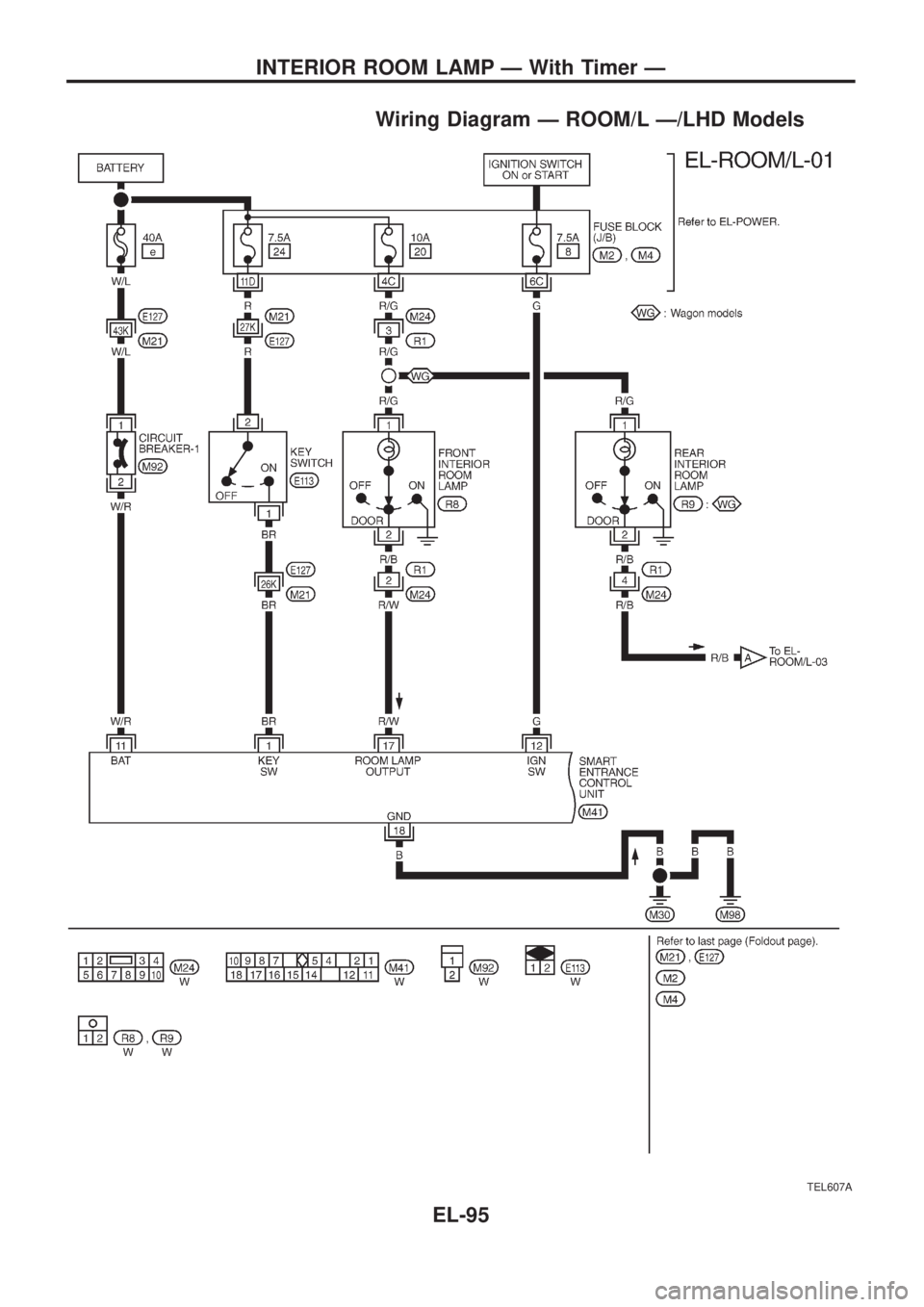

Wiring Diagram Ð ROOM/L Ð/LHD Models
TEL607A
INTERIOR ROOM LAMP Ð With Timer Ð
EL-95
