NISSAN PATROL 2006 Service Manual

TEL608A
INTERIOR ROOM LAMP Ð With Timer Ð

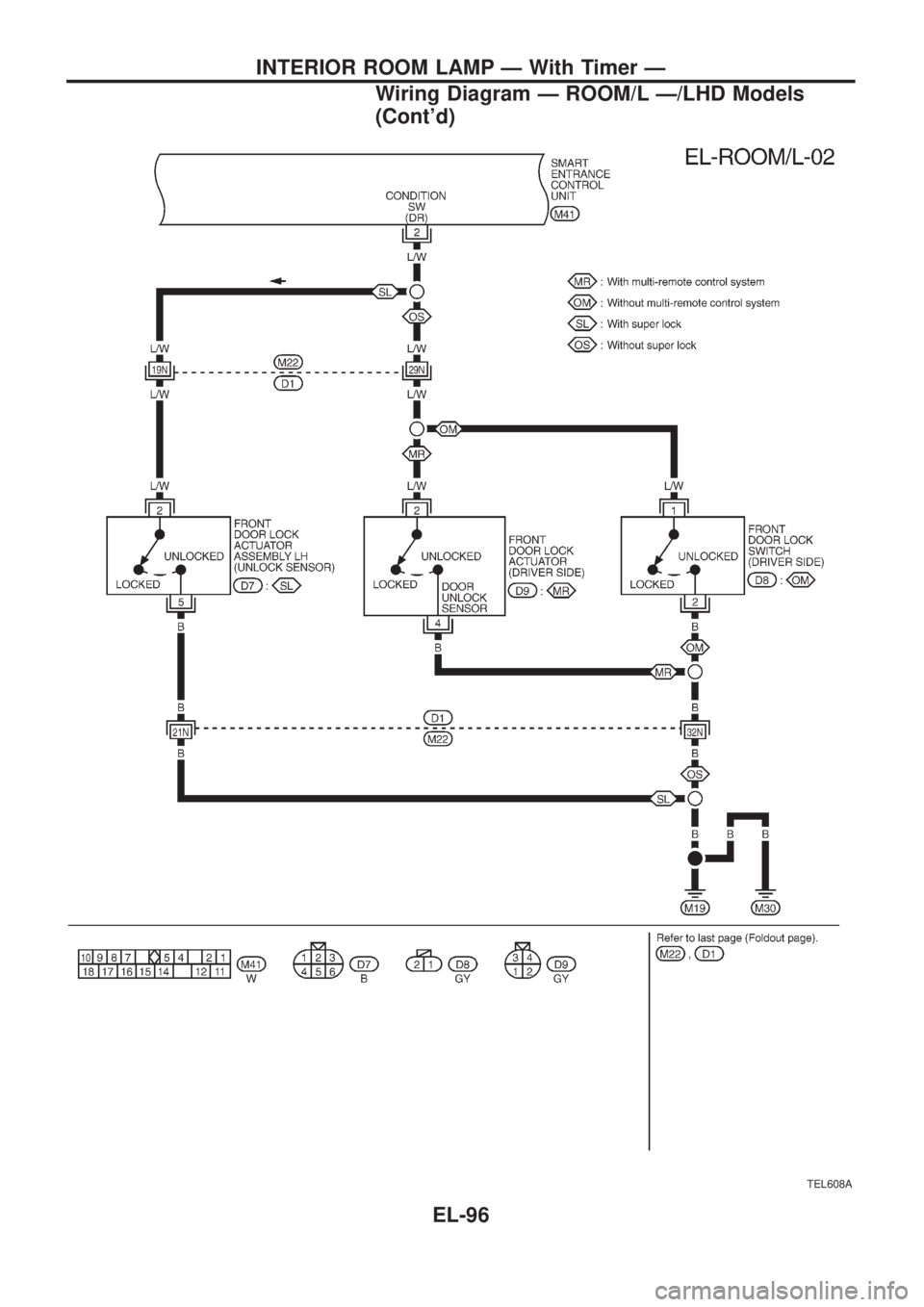

Wiring Diagram Ð ROOM/L Ð/LHD Models
(Cont'd)
EL-96

TEL609A
INTERIOR ROOM LAMP Ð With Timer Ð

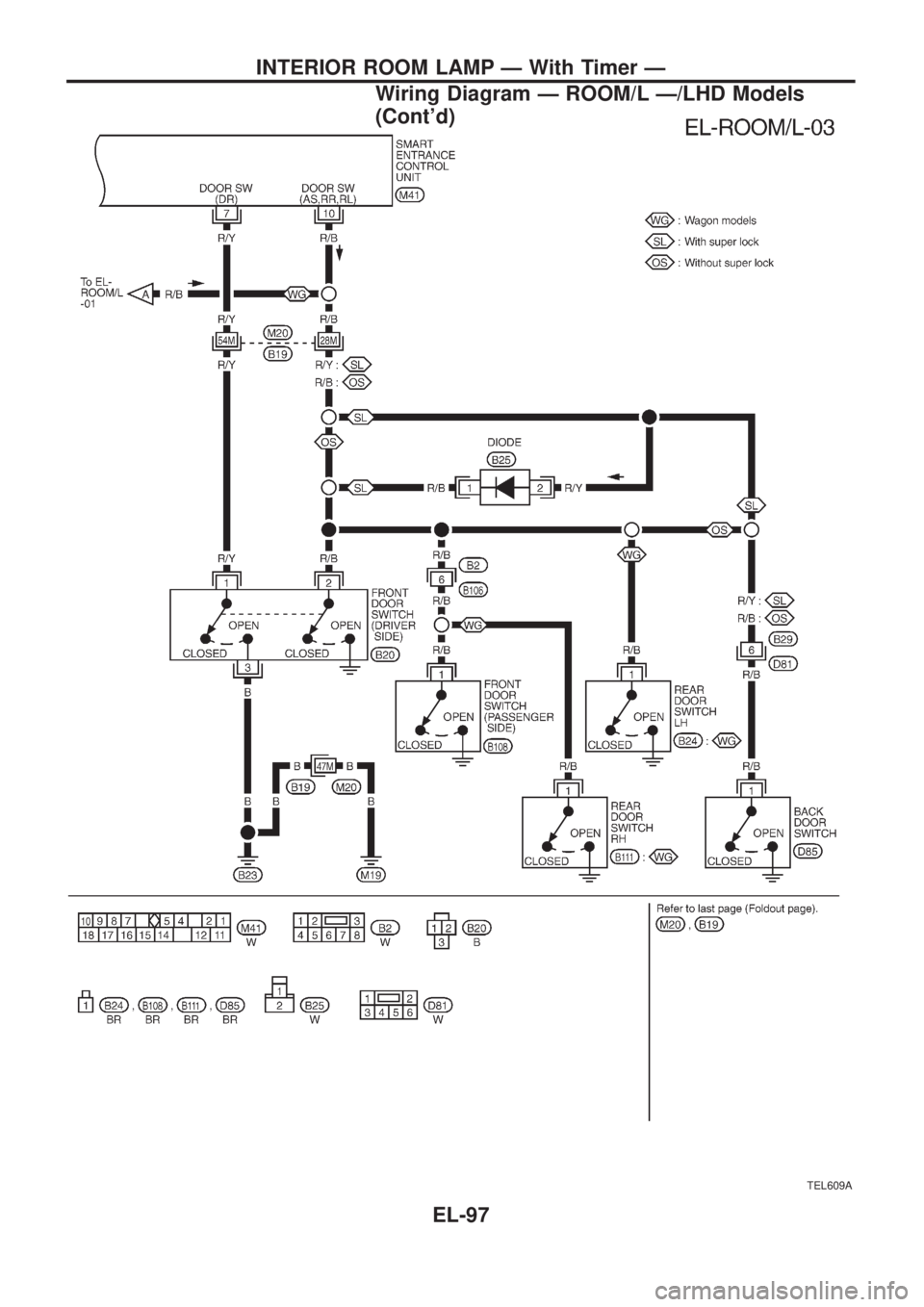

Wiring Diagram Ð ROOM/L Ð/LHD Models
(Cont'd)
EL-97

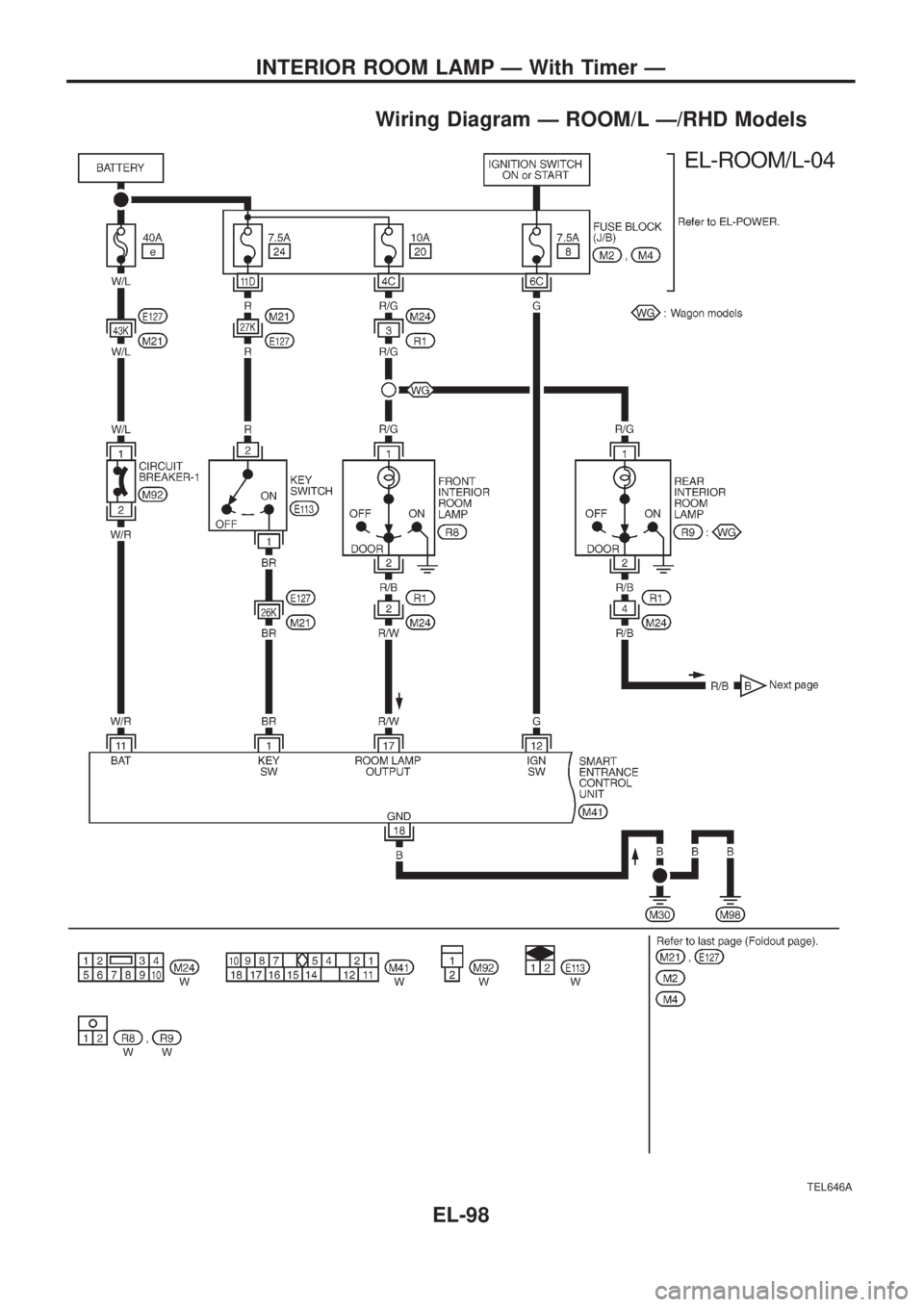

Wiring Diagram Ð ROOM/L Ð/RHD Models
TEL646A
INTERIOR ROOM LAMP Ð With Timer Ð
EL-98

TEL647A
INTERIOR ROOM LAMP Ð With Timer Ð

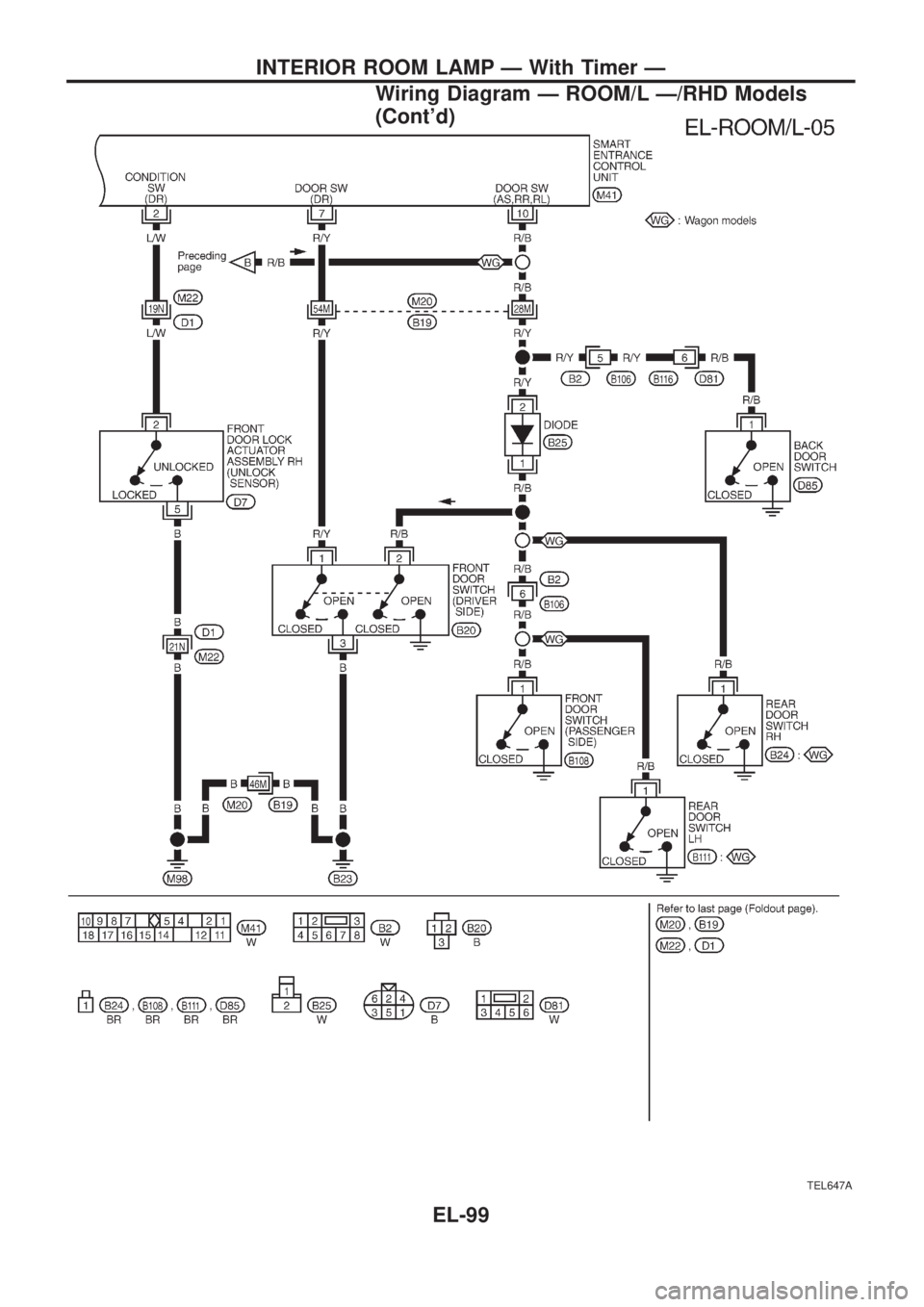

Wiring Diagram Ð ROOM/L Ð/RHD Models
(Cont'd)
EL-99

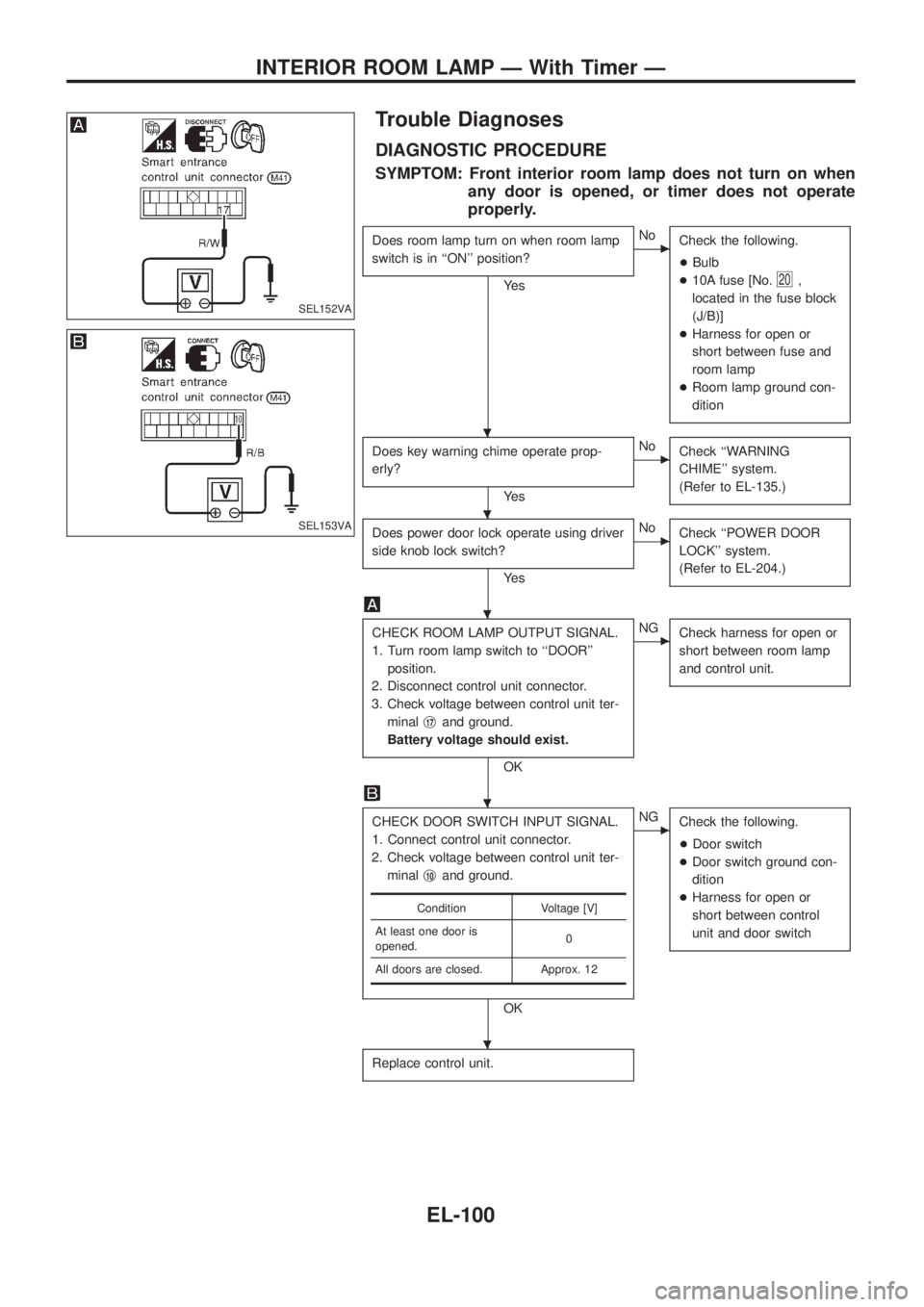

Trouble Diagnoses
DIAGNOSTIC PROCEDURE
SYMPTOM: Front interior room lamp does not turn on when
any door is opened, or timer does not operate
properly.
Does room lamp turn on when room lamp
switch is in ``ON'' position?
Ye s
cNo
Check the following.
+Bulb
+10A fuse [No.
20,
located in the fuse block
(J/B)]
+Harness for open or
short between fuse and
room lamp
+Room lamp ground con-
dition
Does key warning chime operate prop-
erly?
Ye s
cNo
Check ``WARNING
CHIME'' system.
(Refer to EL-135.)
Does power door lock operate using driver
side knob lock switch?
Ye s
cNo
Check ``POWER DOOR
LOCK'' system.
(Refer to EL-204.)
CHECK ROOM LAMP OUTPUT SIGNAL.
1. Turn room lamp switch to ``DOOR''
position.
2. Disconnect control unit connector.
3. Check voltage between control unit ter-
minalj
17and ground.
Battery voltage should exist.
OK
cNG
Check harness for open or
short between room lamp
and control unit.
CHECK DOOR SWITCH INPUT SIGNAL.
1. Connect control unit connector.
2. Check voltage between control unit ter-
minalj
10and ground.
OK
cNG
Check the following.
+Door switch
+Door switch ground con-
dition
+Harness for open or
short between control
unit and door switch
Replace control unit.
Condition Voltage [V]
At least one door is
opened.0
All doors are closed. Approx. 12
SEL152VA
SEL153VA
.
.
.
.
.
INTERIOR ROOM LAMP Ð With Timer Ð
EL-100

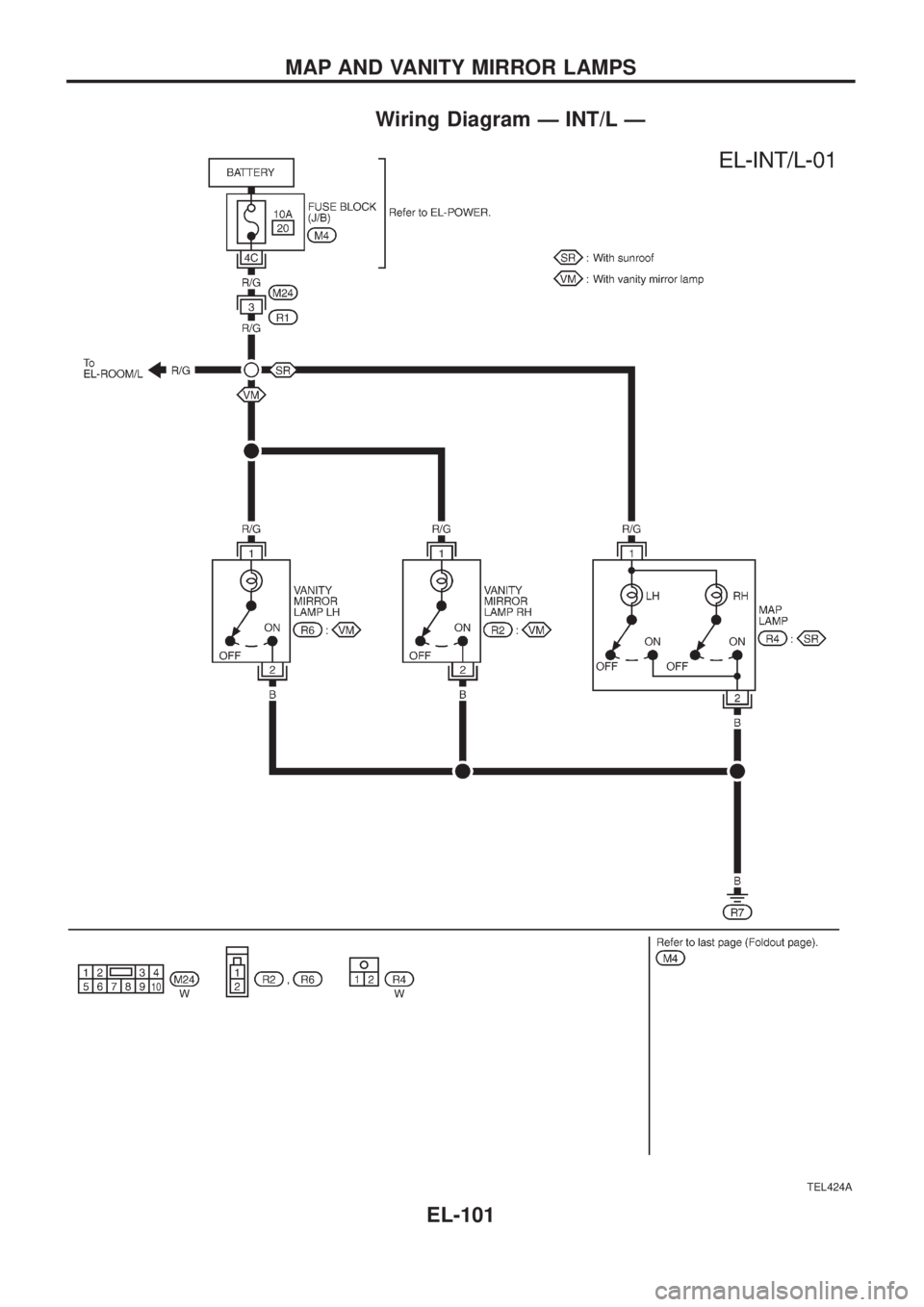

Wiring Diagram Ð INT/L Ð
TEL424A
MAP AND VANITY MIRROR LAMPS
EL-101

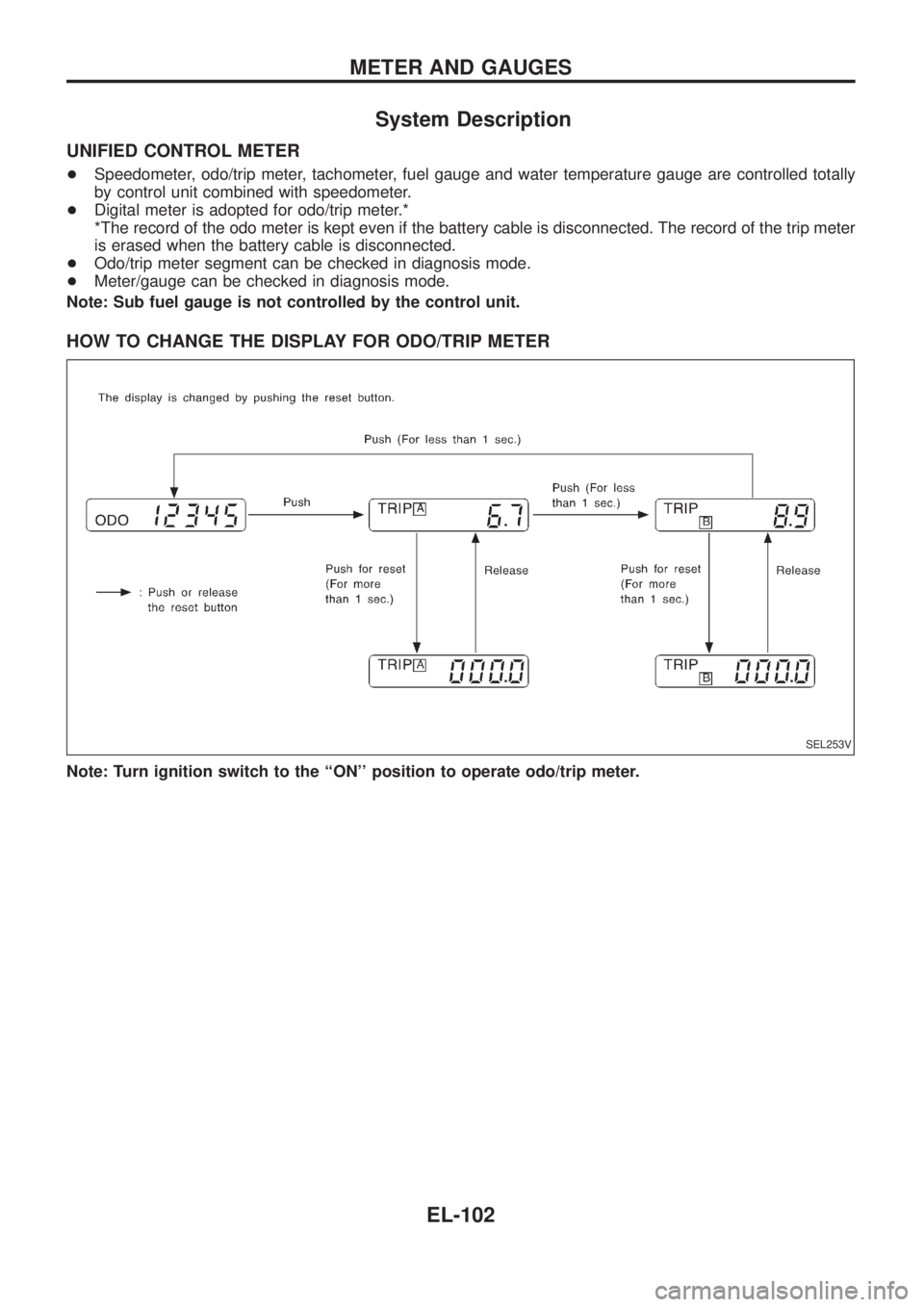

System Description
UNIFIED CONTROL METER
+Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled totally
by control unit combined with speedometer.
+Digital meter is adopted for odo/trip meter.*
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.
+Odo/trip meter segment can be checked in diagnosis mode.
+Meter/gauge can be checked in diagnosis mode.
Note: Sub fuel gauge is not controlled by the control unit.
HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER
Note: Turn ignition switch to the ``ON'' position to operate odo/trip meter.
SEL253V
METER AND GAUGES
EL-102

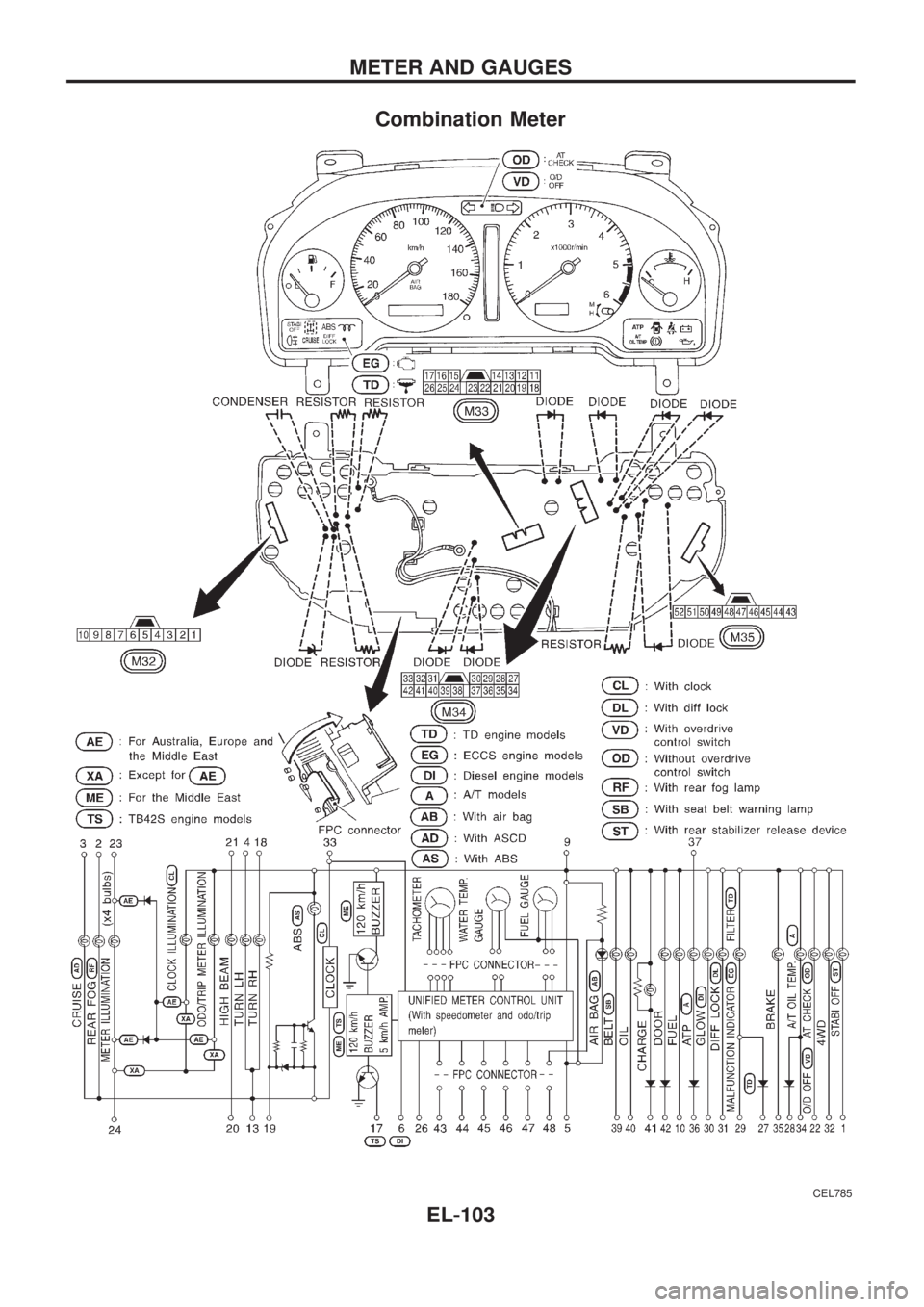

Combination Meter
CEL785
METER AND GAUGES
EL-103

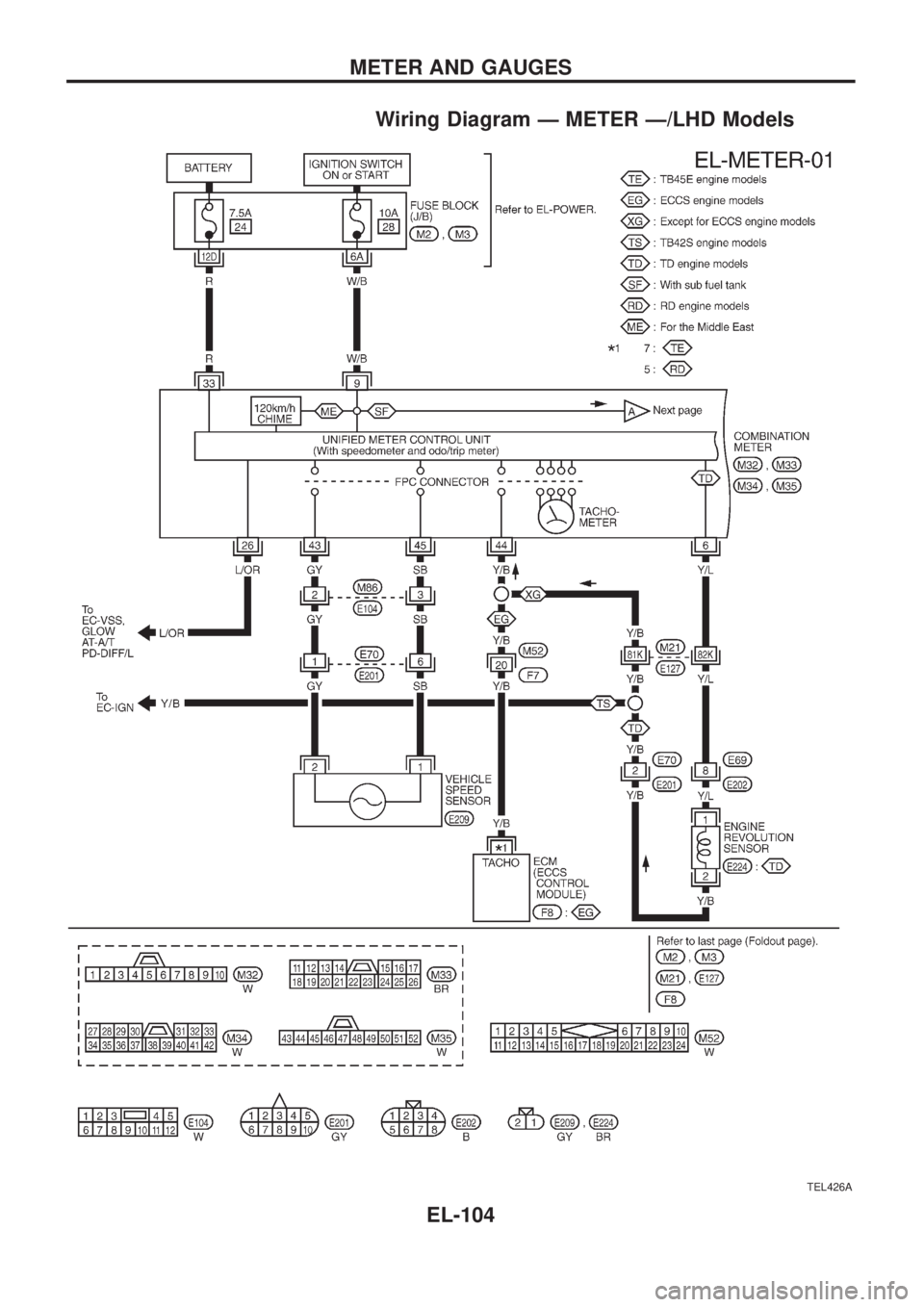

Wiring Diagram Ð METER Ð/LHD Models
TEL426A
METER AND GAUGES
EL-104

TEL427A
METER AND GAUGES

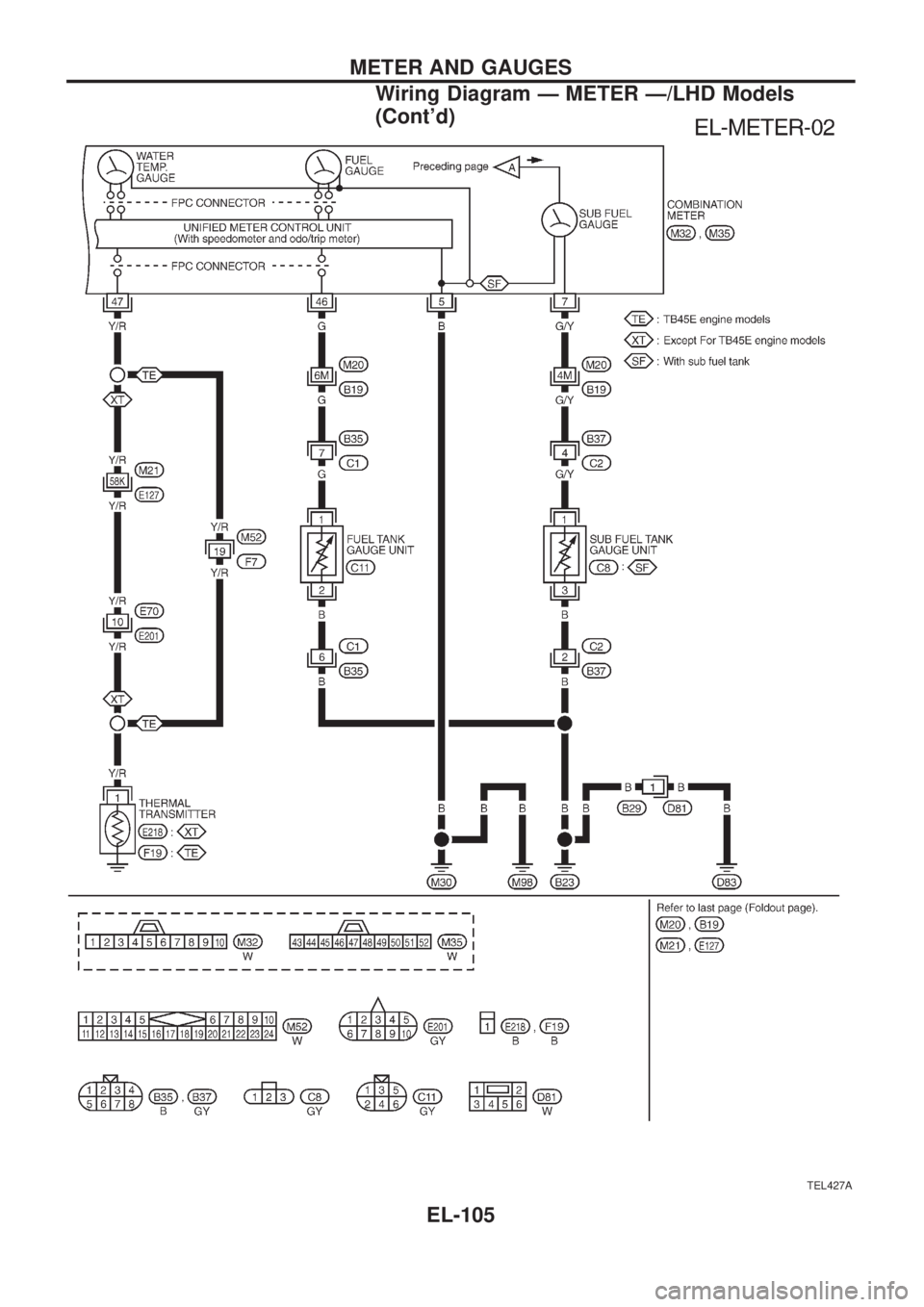

Wiring Diagram Ð METER Ð/LHD Models
(Cont'd)
EL-105
