Page 531 of 1226

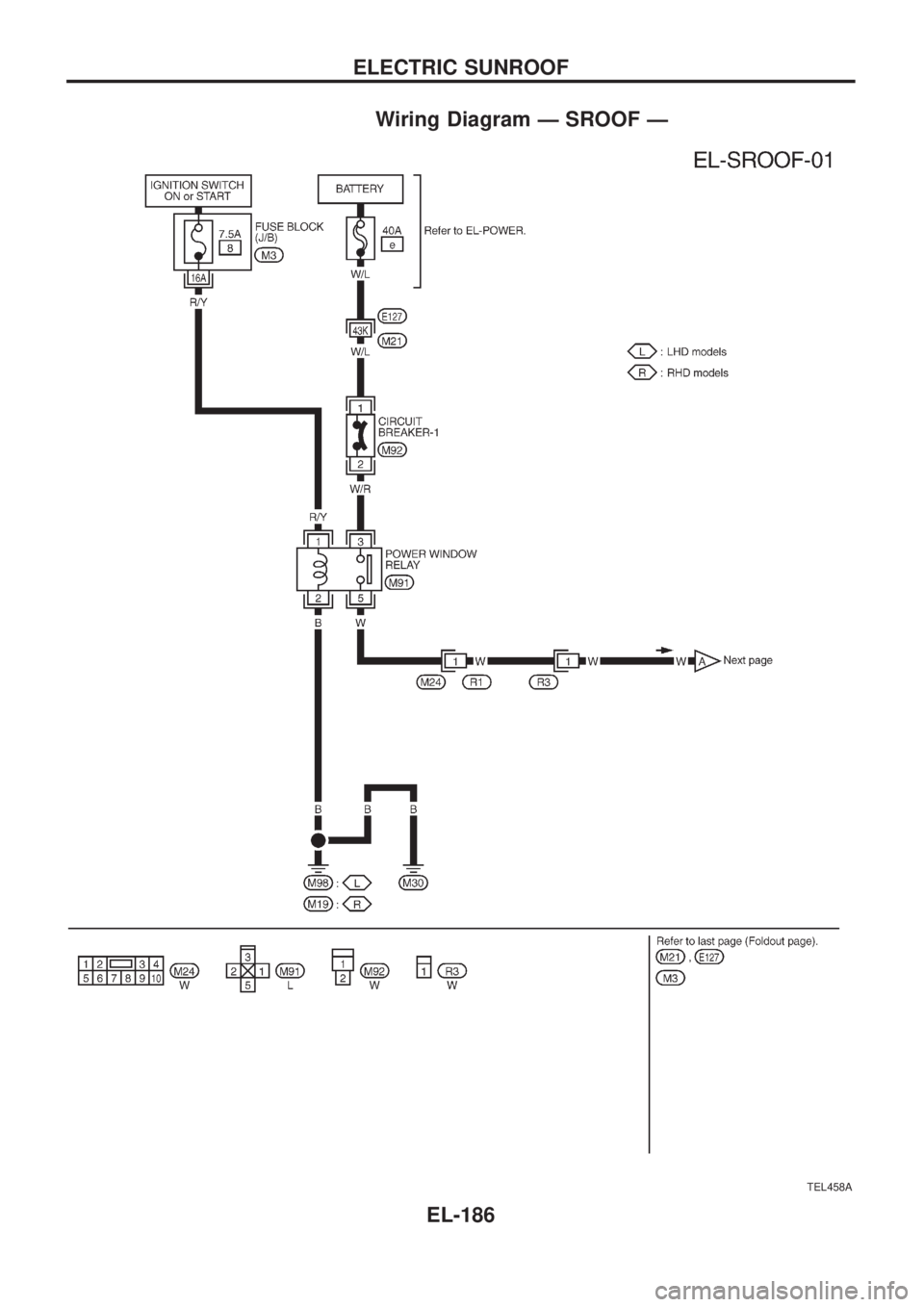

NISSAN PATROL 2006 Service Manual Wiring Diagram Ð SROOF Ð TEL458A ELECTRIC SUNROOF EL-186

Page 532 of 1226

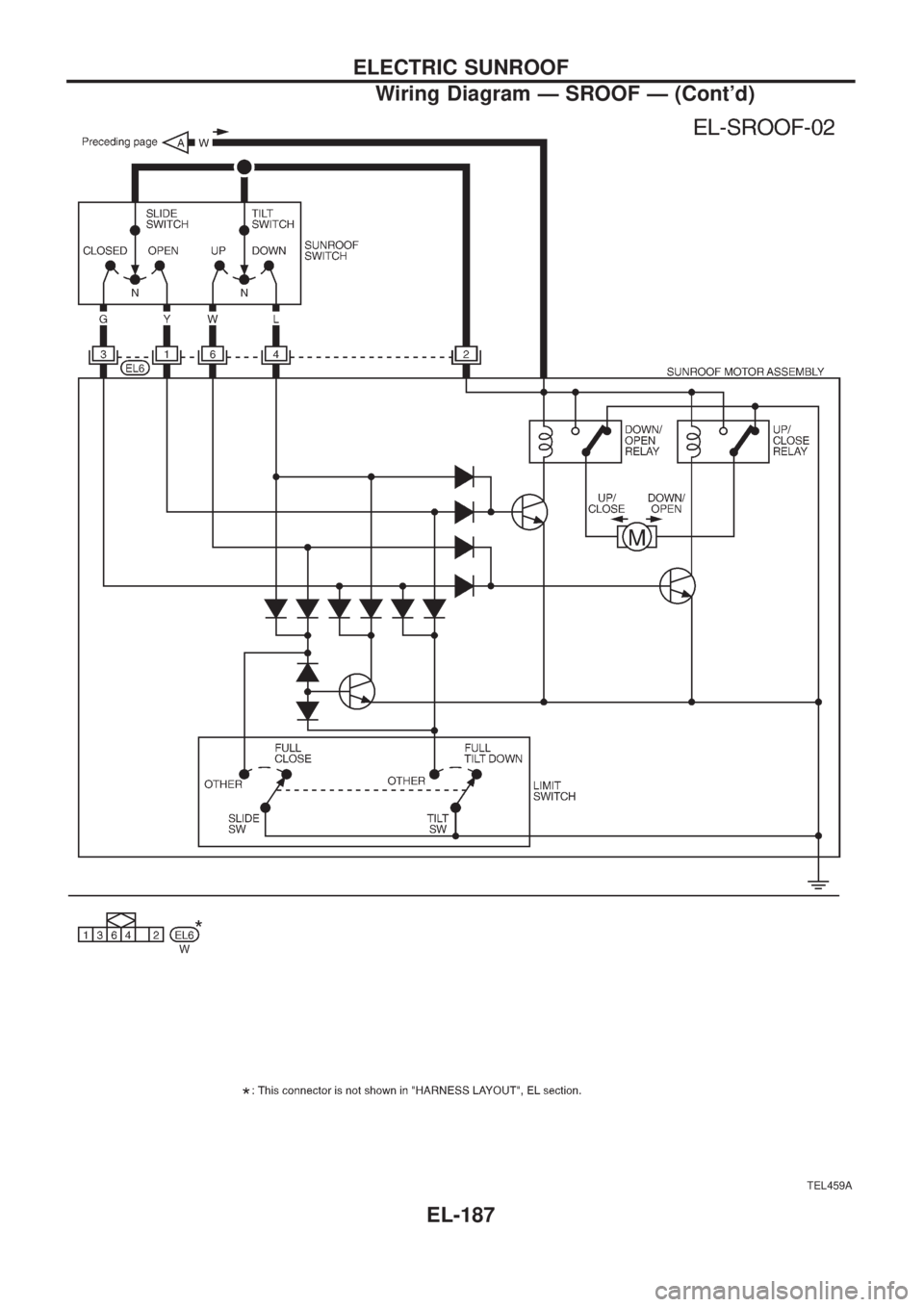

NISSAN PATROL 2006 Service Manual TEL459A ELECTRIC SUNROOF Wiring Diagram Ð SROOF Ð (Contd) EL-187

Page 533 of 1226

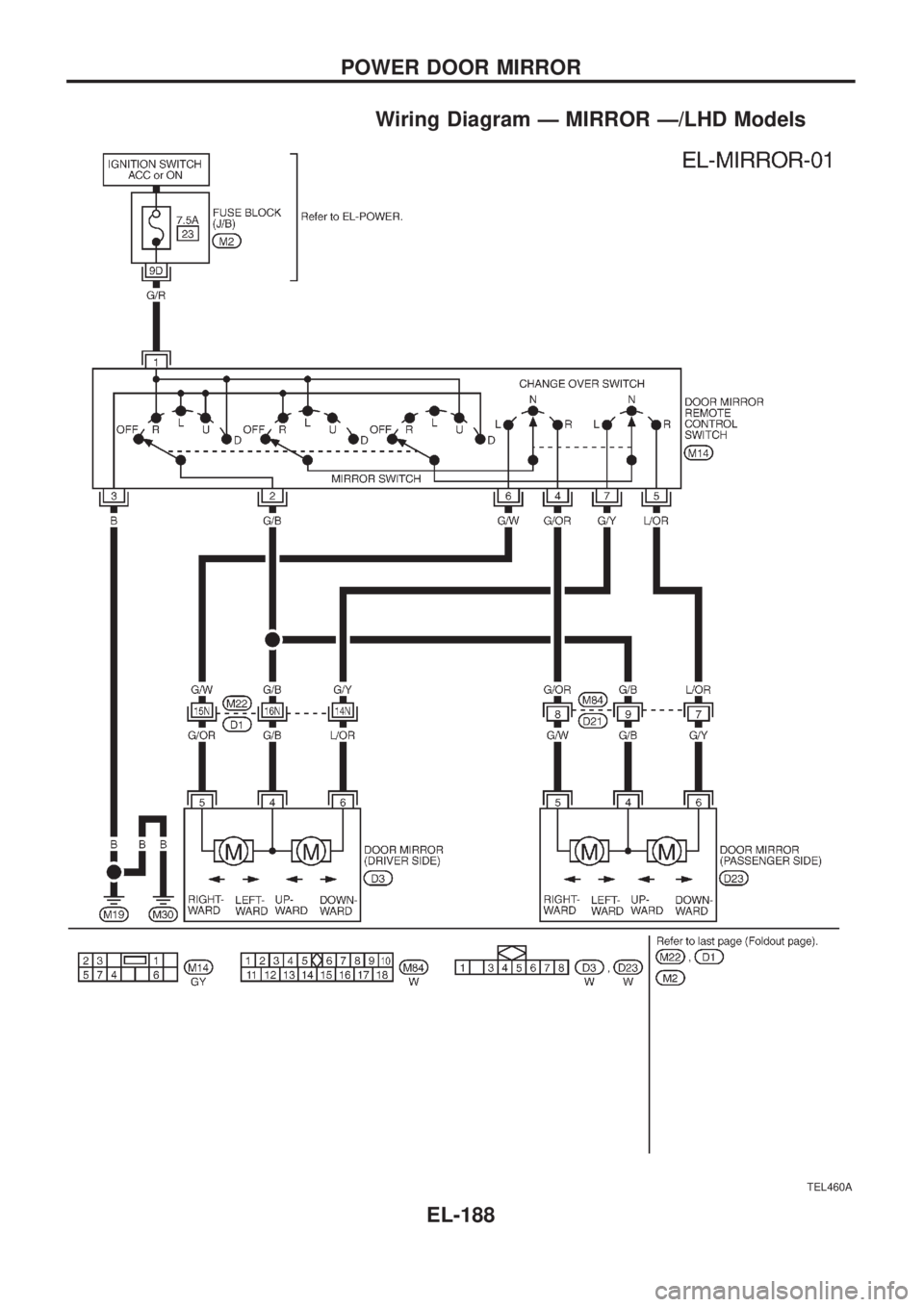

NISSAN PATROL 2006 Service Manual Wiring Diagram Ð MIRROR Ð/LHD Models TEL460A POWER DOOR MIRROR EL-188

Page 534 of 1226

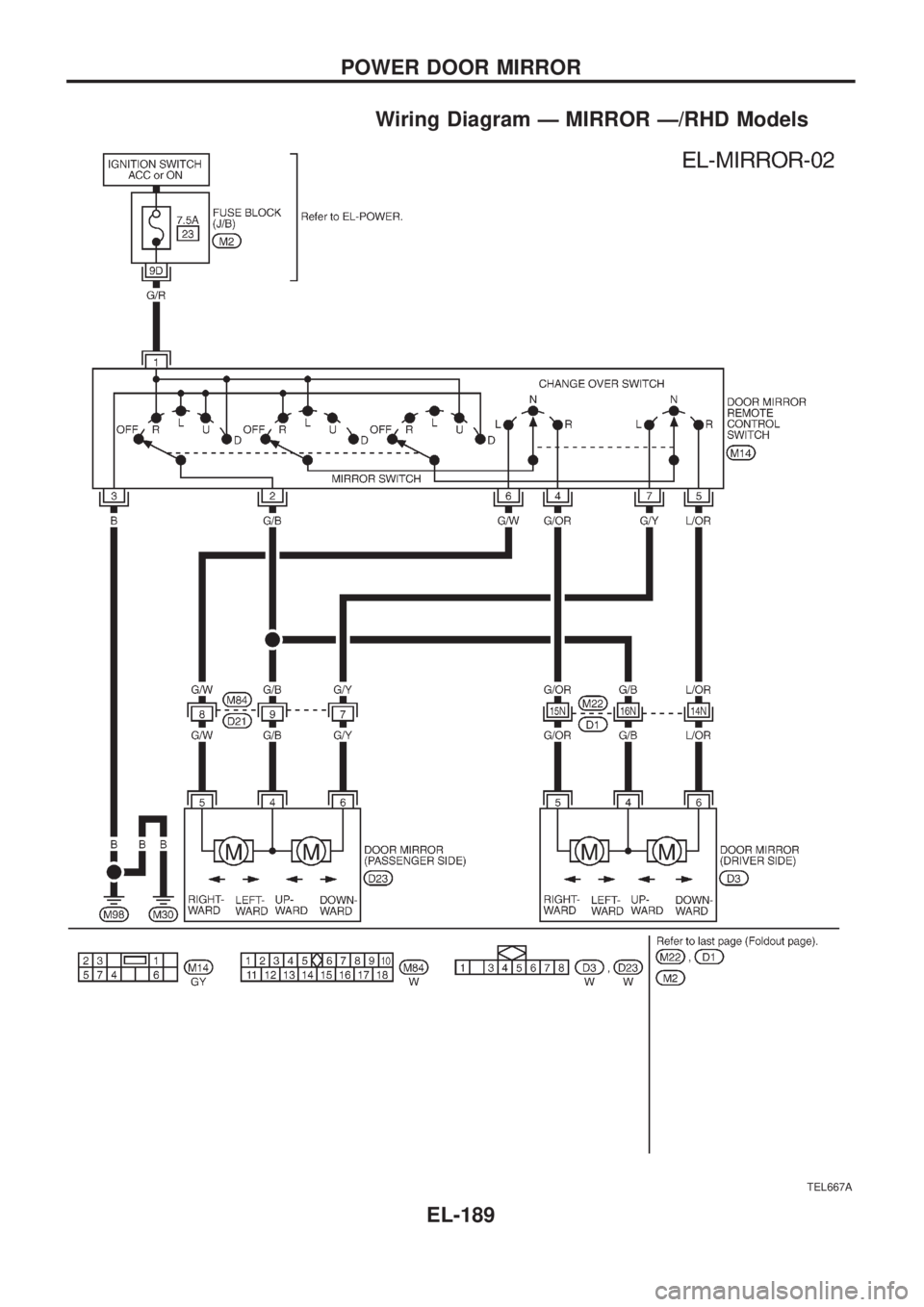

NISSAN PATROL 2006 Service Manual Wiring Diagram Ð MIRROR Ð/RHD Models TEL667A POWER DOOR MIRROR EL-189

Page 535 of 1226

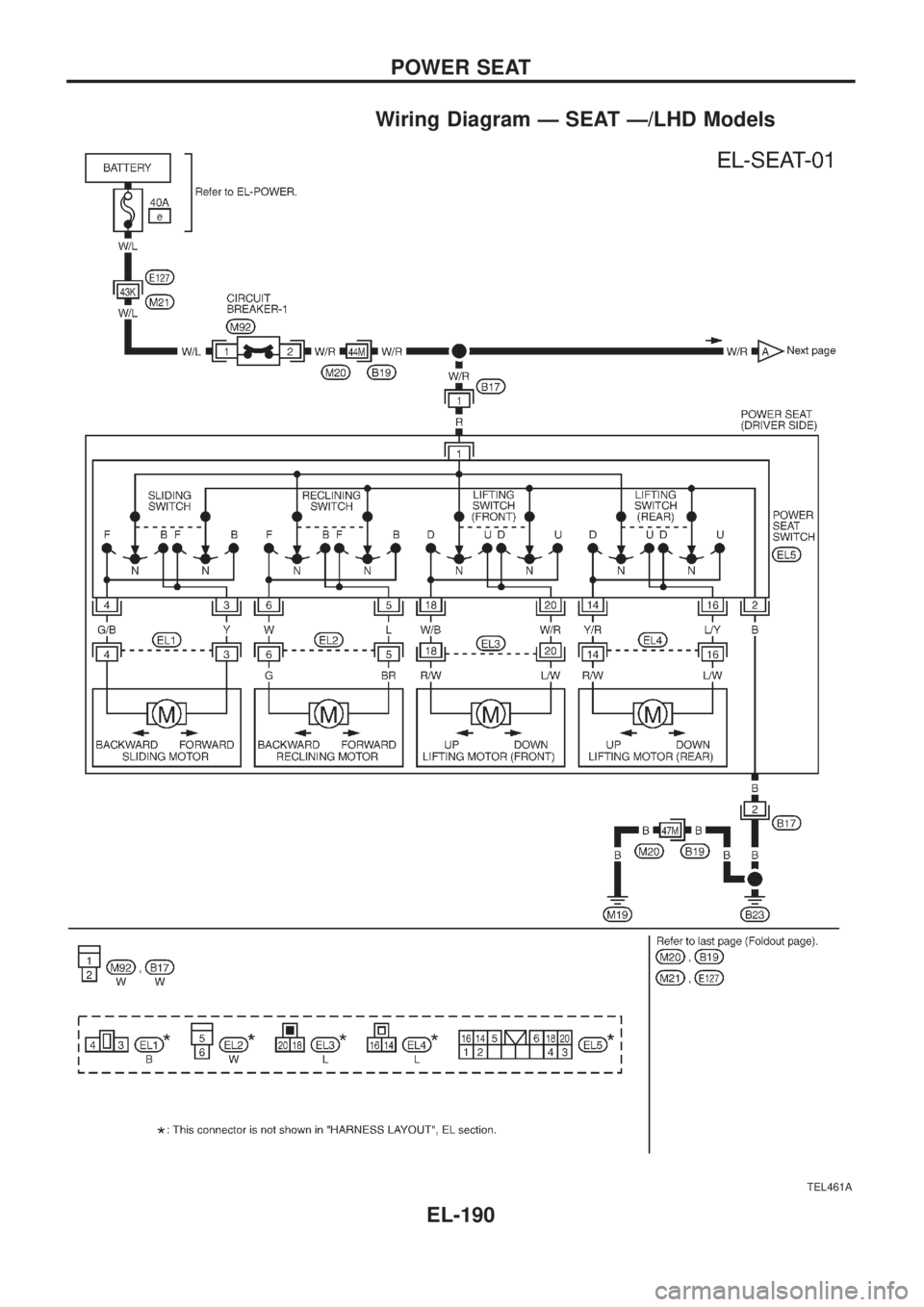

NISSAN PATROL 2006 Service Manual Wiring Diagram Ð SEAT Ð/LHD Models TEL461A POWER SEAT EL-190

Page 536 of 1226

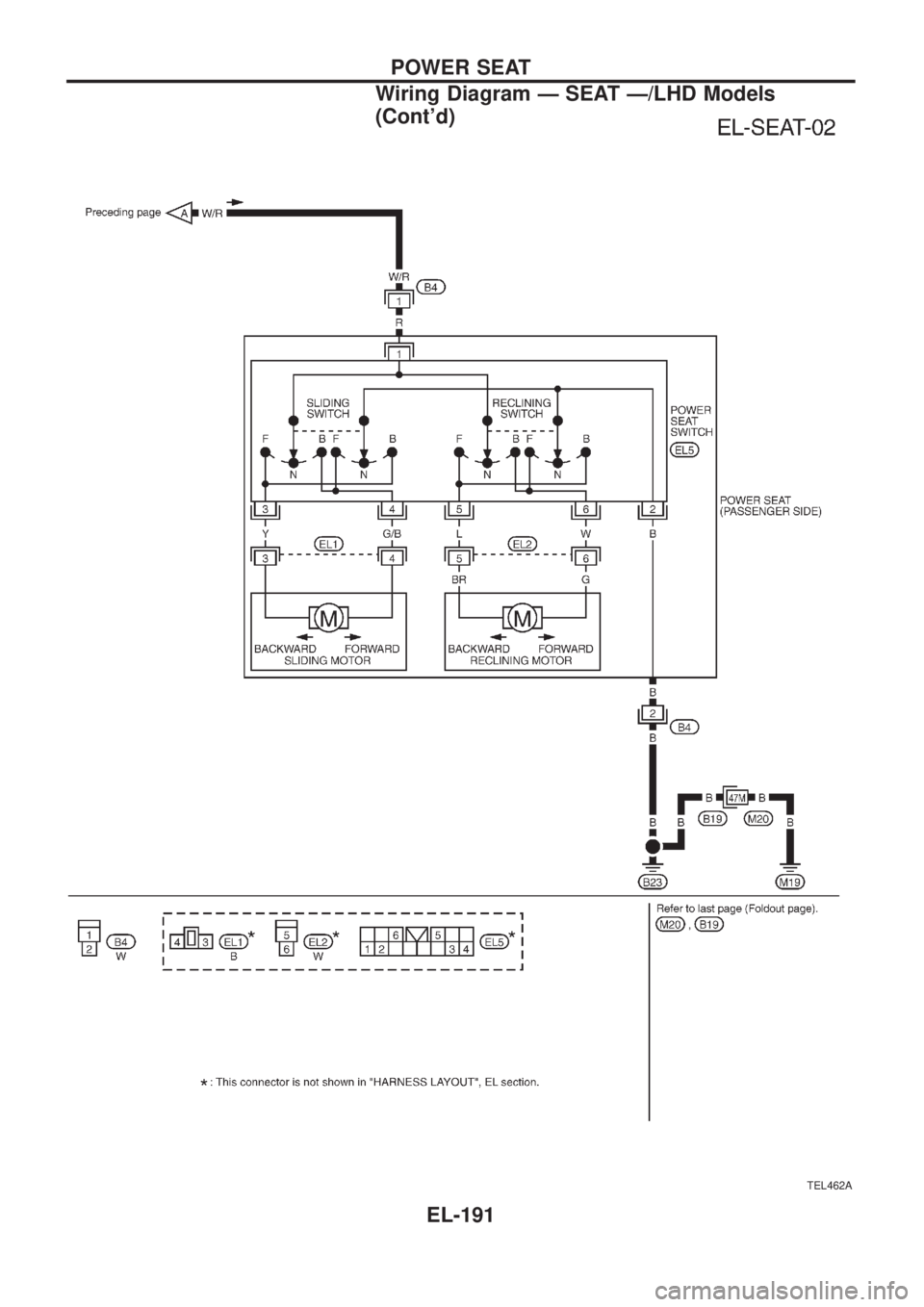

NISSAN PATROL 2006 Service Manual TEL462A POWER SEAT Wiring Diagram Ð SEAT Ð/LHD Models (Contd) EL-191

Page 537 of 1226

NISSAN PATROL 2006 Service Manual Wiring Diagram Ð SEAT Ð/RHD Models TEL668A POWER SEAT EL-192

Page 538 of 1226

NISSAN PATROL 2006 Service Manual TEL669A POWER SEAT Wiring Diagram Ð SEAT Ð/RHD Models (Contd) EL-193

Page 539 of 1226

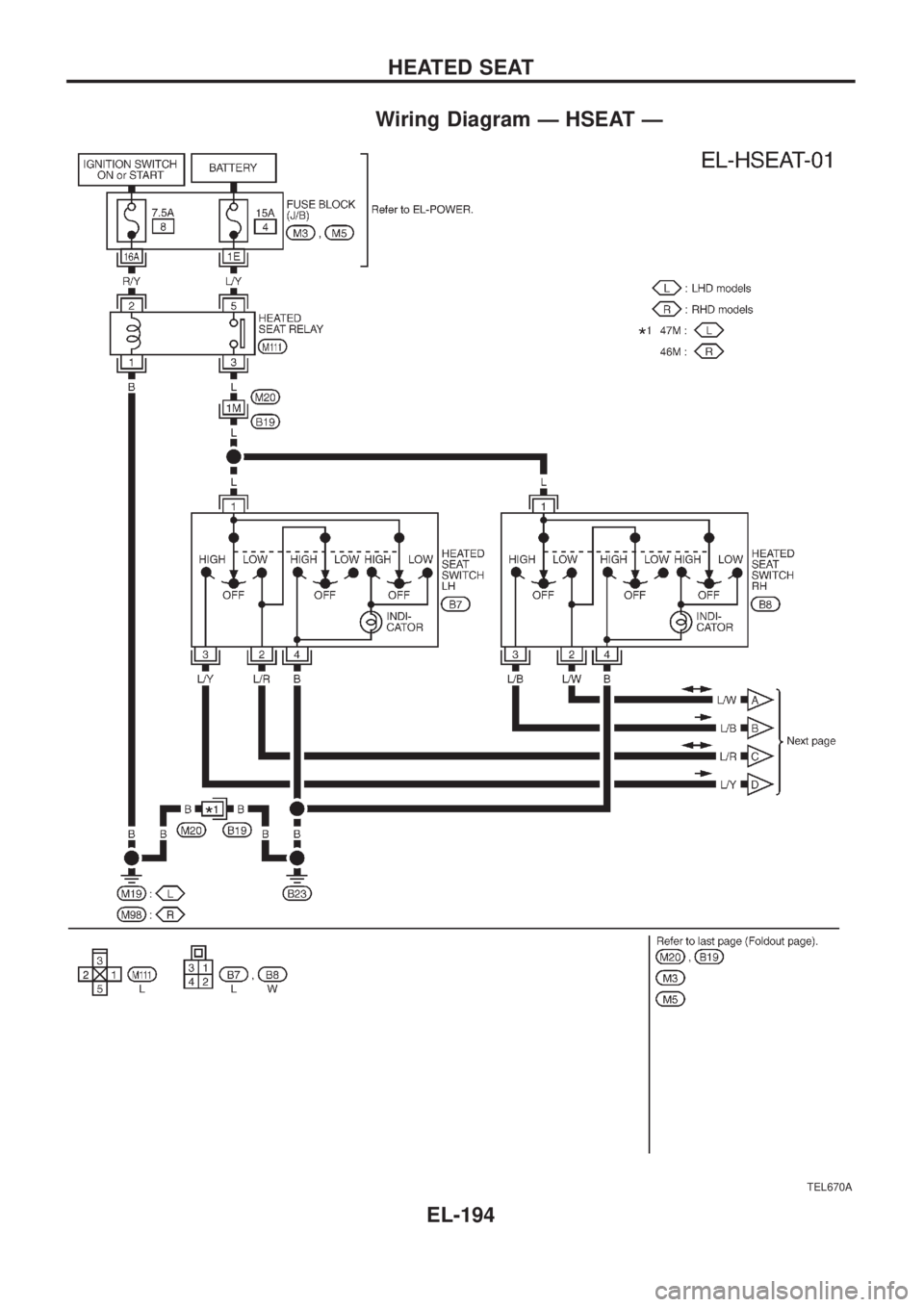

NISSAN PATROL 2006 Service Manual Wiring Diagram Ð HSEAT Ð TEL670A HEATED SEAT EL-194

Page 540 of 1226

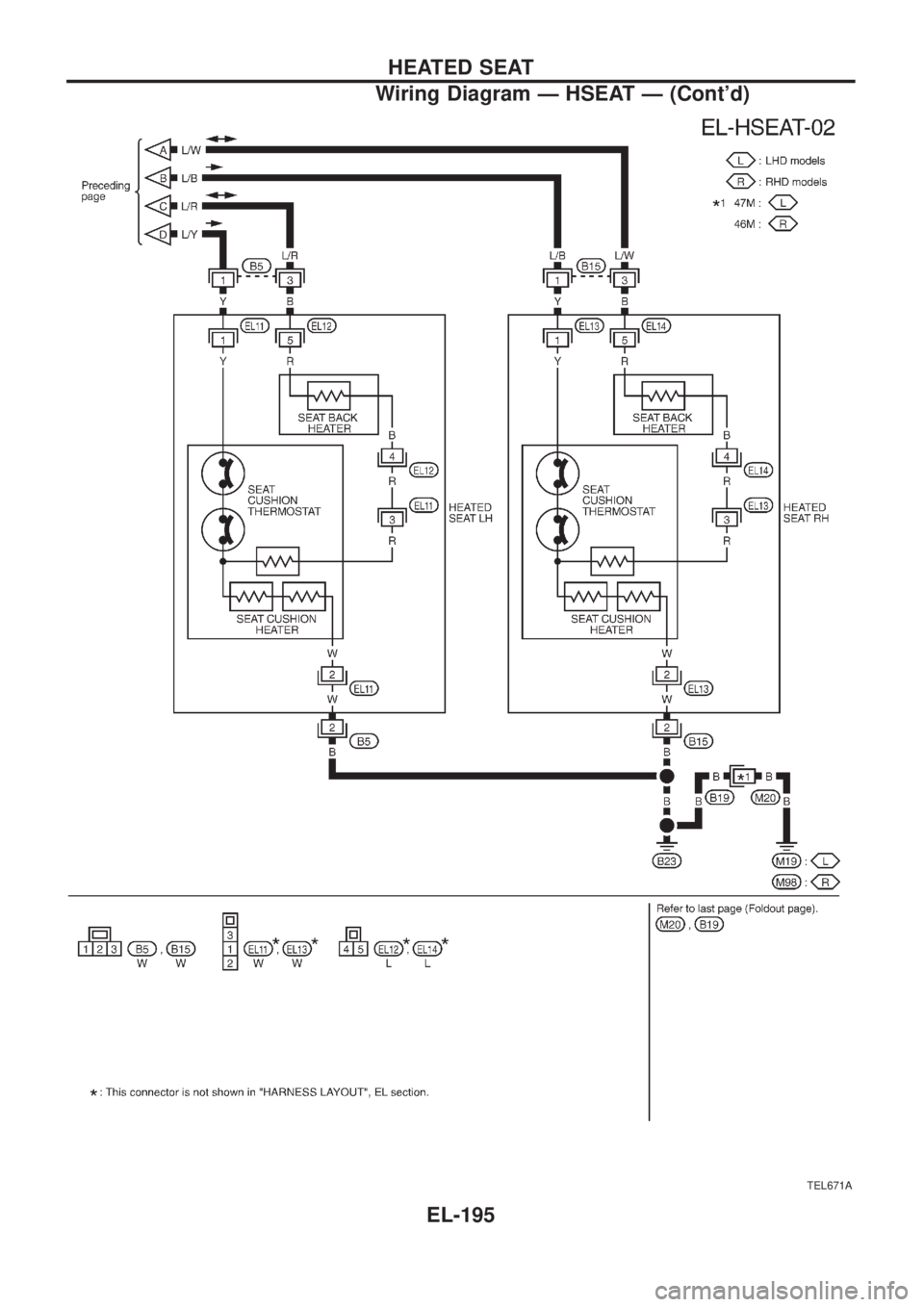

NISSAN PATROL 2006 Service Manual TEL671A HEATED SEAT Wiring Diagram Ð HSEAT Ð (Contd) EL-195
