Page 141 of 229

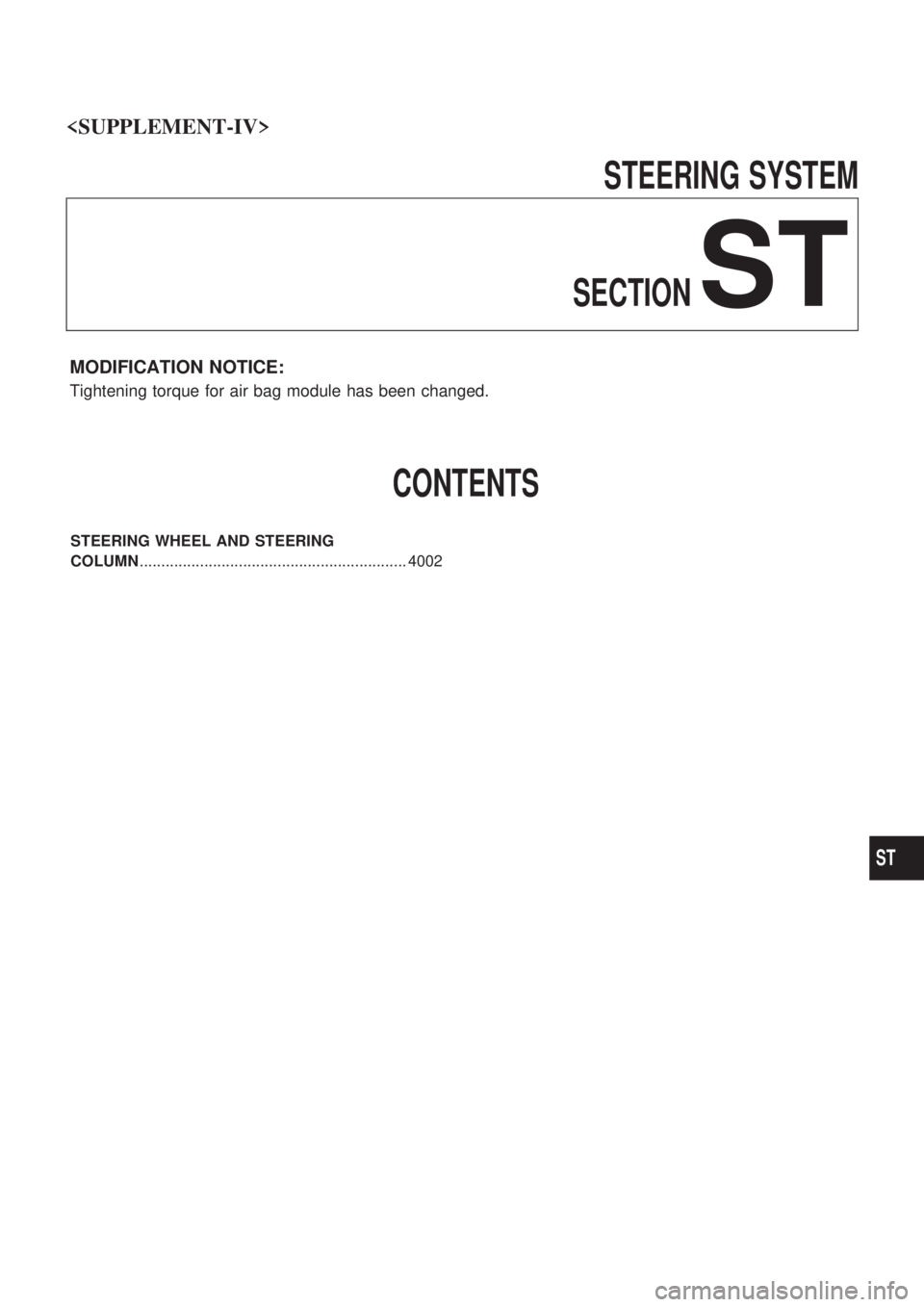

STEERING SYSTEM
SECTION
ST
MODIFICATION NOTICE:
Tightening torque for air bag module has been changed.
CONTENTS
STEERING WHEEL AND STEERING
COLUMN.............................................................. 4002
ST
Page 142 of 229
SST014D
STEERING WHEEL AND STEERING COLUMN
ST-4002
Page 143 of 229

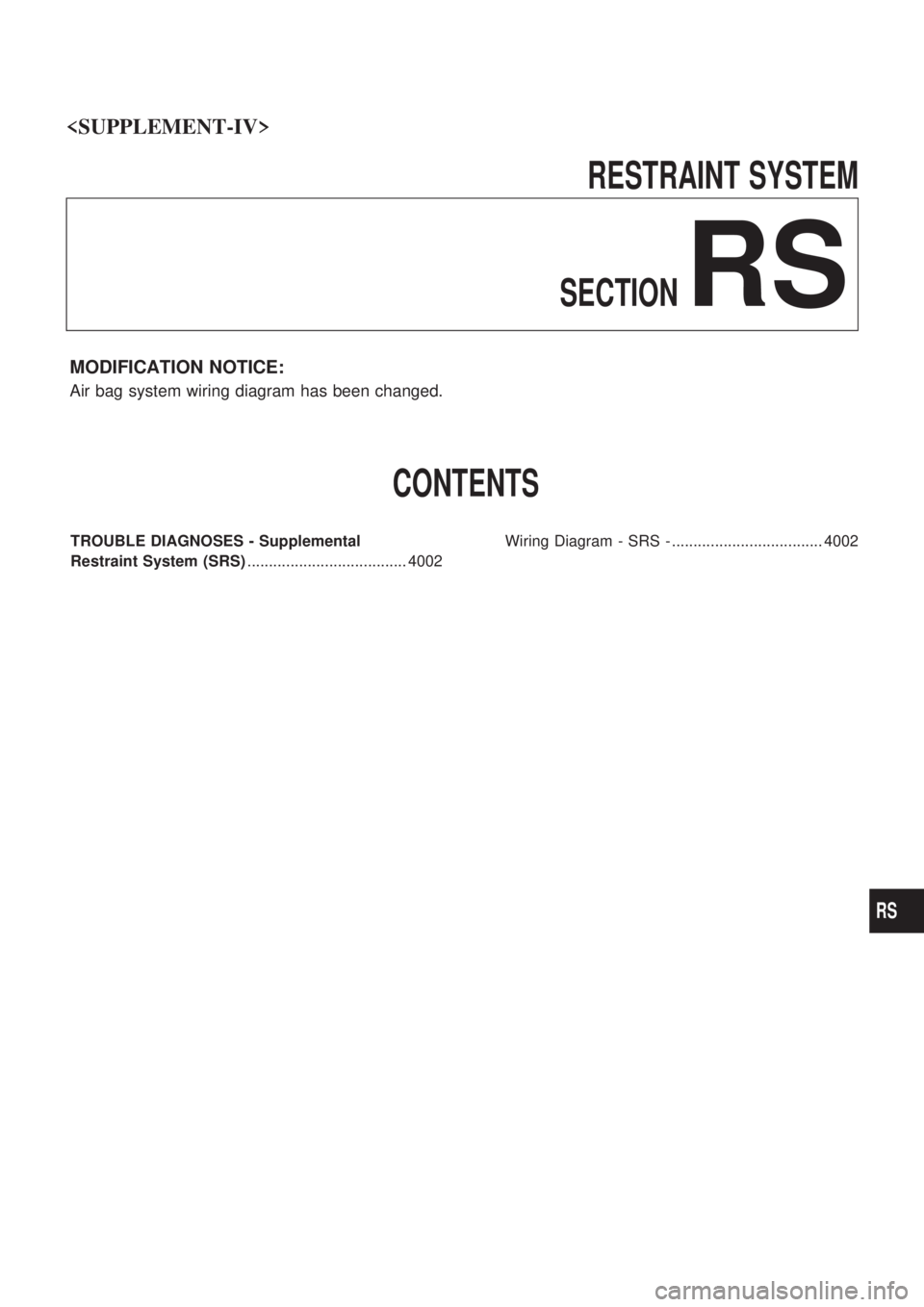

RESTRAINT SYSTEM
SECTION
RS
MODIFICATION NOTICE:
Air bag system wiring diagram has been changed.
CONTENTS
TROUBLE DIAGNOSES - Supplemental
Restraint System (SRS)..................................... 4002Wiring Diagram - SRS - ................................... 4002
RS
Page 144 of 229
Wiring Diagram Ð SRS Ð
GRS006A
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-4002
Page 145 of 229
GRS014A
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Wiring Diagram Ð SRS Ð (Cont'd)
RS-4003
Page 146 of 229

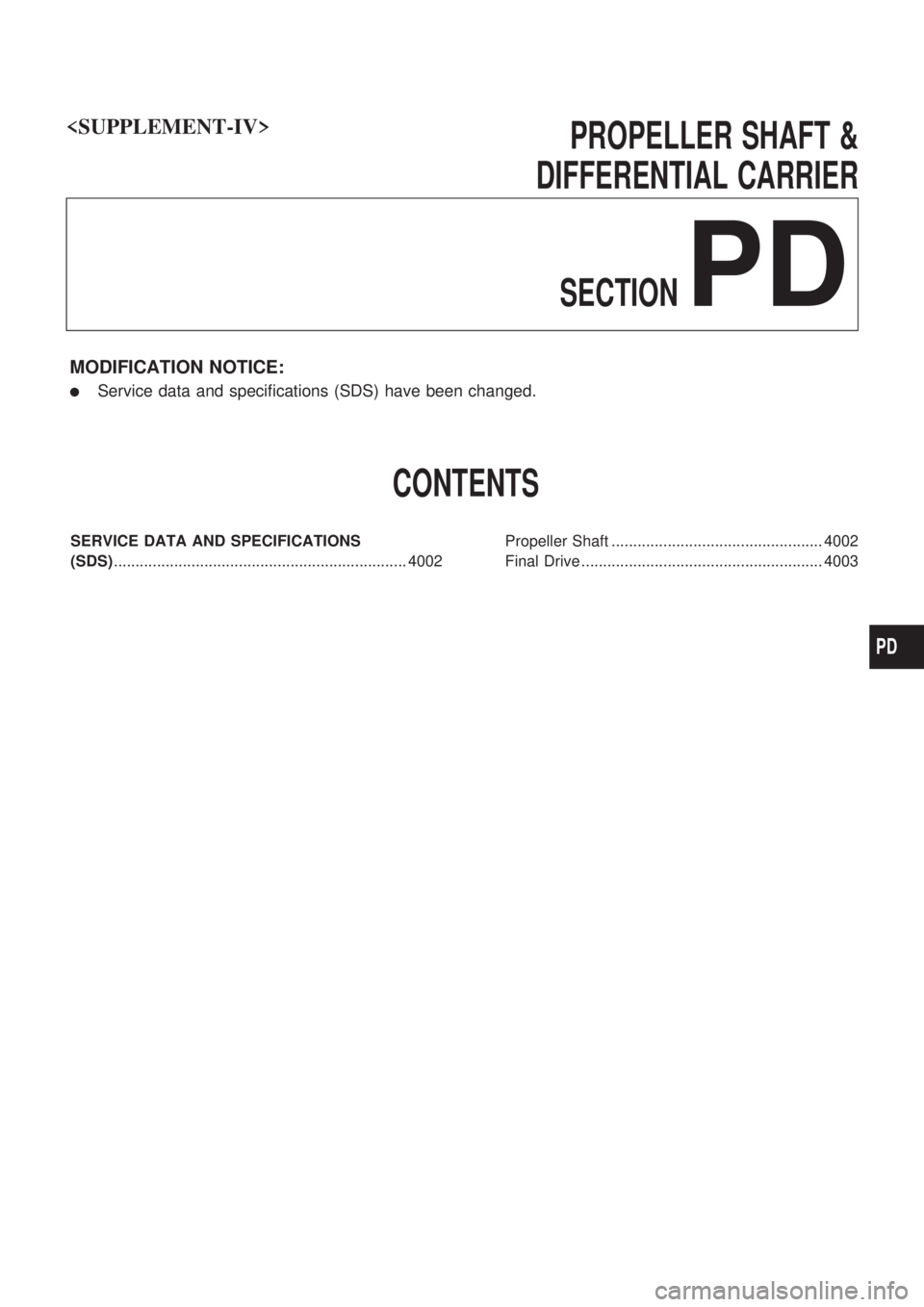

PROPELLER SHAFT &
DIFFERENTIAL CARRIER
SECTION
PD
MODIFICATION NOTICE:
lService data and specifications (SDS) have been changed.
CONTENTS
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 4002Propeller Shaft ................................................. 4002
Final Drive ........................................................ 4003
PD
Page 147 of 229

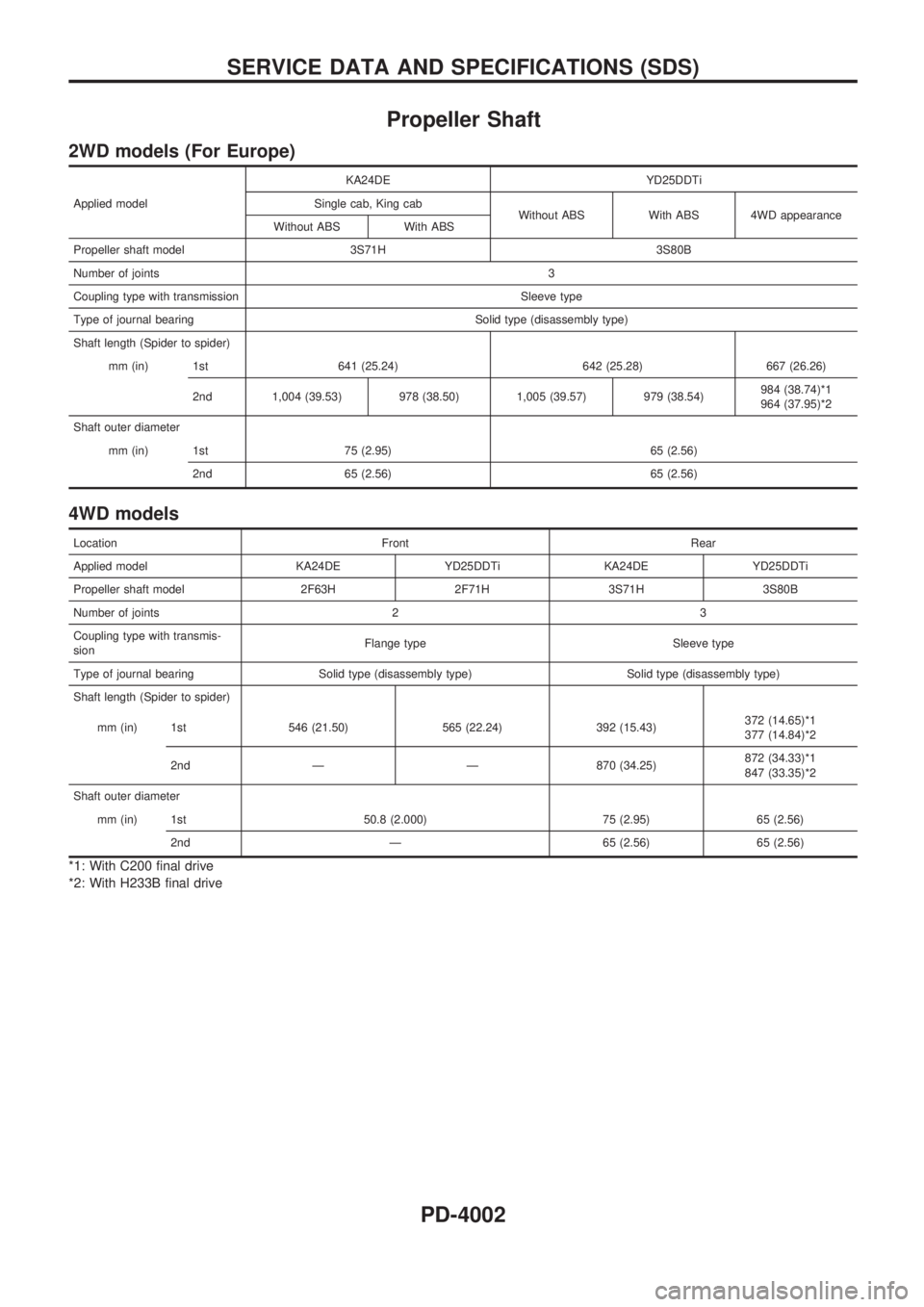

Propeller Shaft
2WD models (For Europe)
Applied modelKA24DE YD25DDTi
Single cab, King cab
Without ABS With ABS 4WD appearance
Without ABS With ABS
Propeller shaft model 3S71H 3S80B
Number of joints3
Coupling type with transmission Sleeve type
Type of journal bearing Solid type (disassembly type)
Shaft length (Spider to spider)
mm (in) 1st 641 (25.24) 642 (25.28) 667 (26.26)
2nd 1,004 (39.53) 978 (38.50) 1,005 (39.57) 979 (38.54)984 (38.74)*1
964 (37.95)*2
Shaft outer diameter
mm (in) 1st 75 (2.95) 65 (2.56)
2nd 65 (2.56) 65 (2.56)
4WD models
Location Front Rear
Applied model KA24DE YD25DDTi KA24DE YD25DDTi
Propeller shaft model 2F63H 2F71H 3S71H 3S80B
Number of joints 2 3
Coupling type with transmis-
sionFlange type Sleeve type
Type of journal bearing Solid type (disassembly type) Solid type (disassembly type)
Shaft length (Spider to spider)
mm (in) 1st 546 (21.50) 565 (22.24) 392 (15.43)372 (14.65)*1
377 (14.84)*2
2nd Ð Ð 870 (34.25)872 (34.33)*1
847 (33.35)*2
Shaft outer diameter
mm (in) 1st 50.8 (2.000) 75 (2.95) 65 (2.56)
2nd Ð 65 (2.56) 65 (2.56)
*1: With C200 final drive
*2: With H233B final drive
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-4002
Page 148 of 229

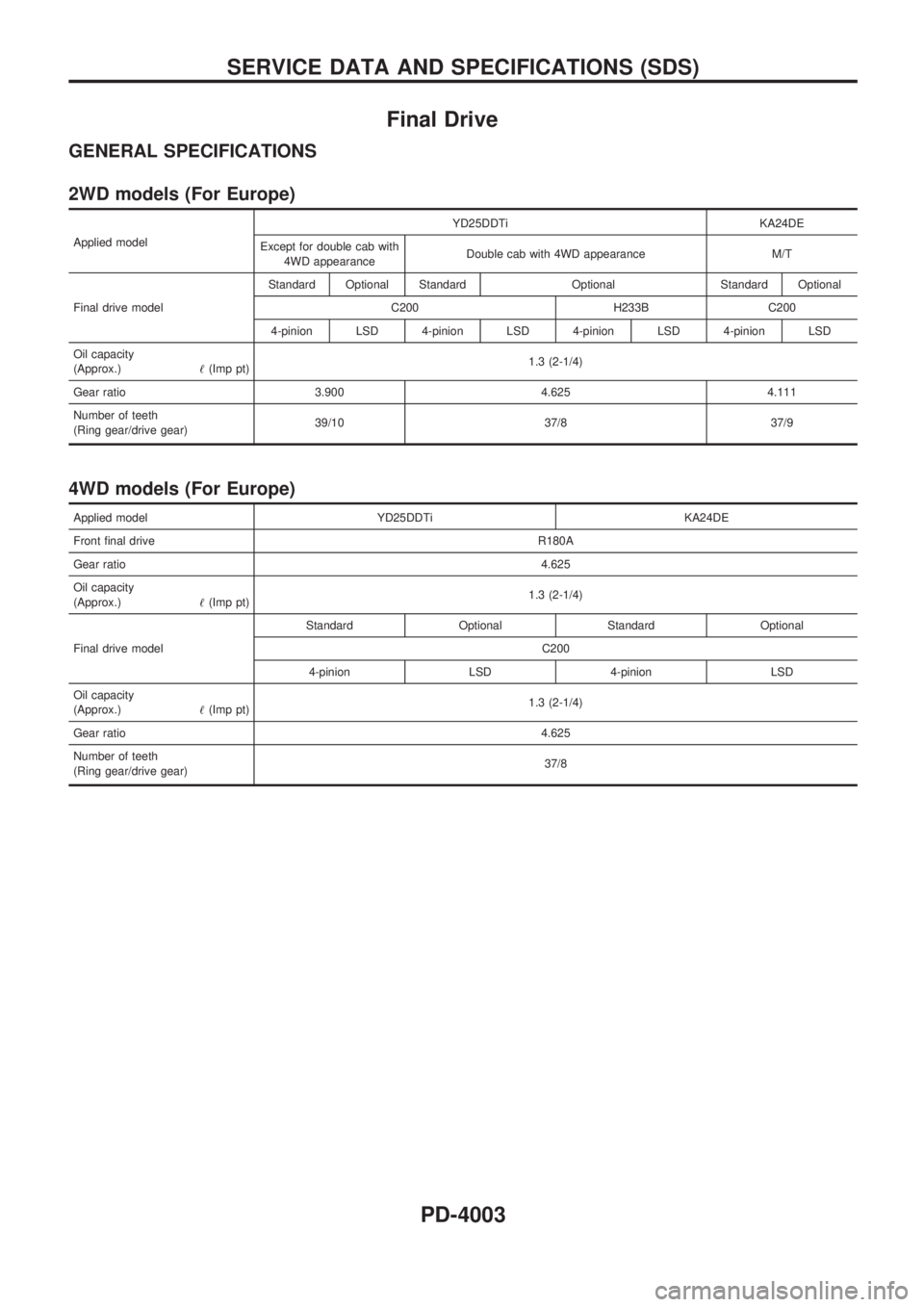

Final Drive
GENERAL SPECIFICATIONS
2WD models (For Europe)
Applied modelYD25DDTi KA24DE
Except for double cab with
4WD appearanceDouble cab with 4WD appearance M/T
Final drive modelStandard Optional Standard Optional Standard Optional
C200 H233B C200
4-pinion LSD 4-pinion LSD 4-pinion LSD 4-pinion LSD
Oil capacity
(Approx.)!(Imp pt)1.3 (2-1/4)
Gear ratio 3.900 4.625 4.111
Number of teeth
(Ring gear/drive gear)39/10 37/8 37/9
4WD models (For Europe)
Applied model YD25DDTi KA24DE
Front final driveR180A
Gear ratio4.625
Oil capacity
(Approx.)!(Imp pt)1.3 (2-1/4)
Final drive modelStandard Optional Standard Optional
C200
4-pinion LSD 4-pinion LSD
Oil capacity
(Approx.)!(Imp pt)1.3 (2-1/4)
Gear ratio4.625
Number of teeth
(Ring gear/drive gear)37/8
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-4003
Page 149 of 229
SERVICE DATA AND SPECIFICATIONS (SDS)
Page 150 of 229

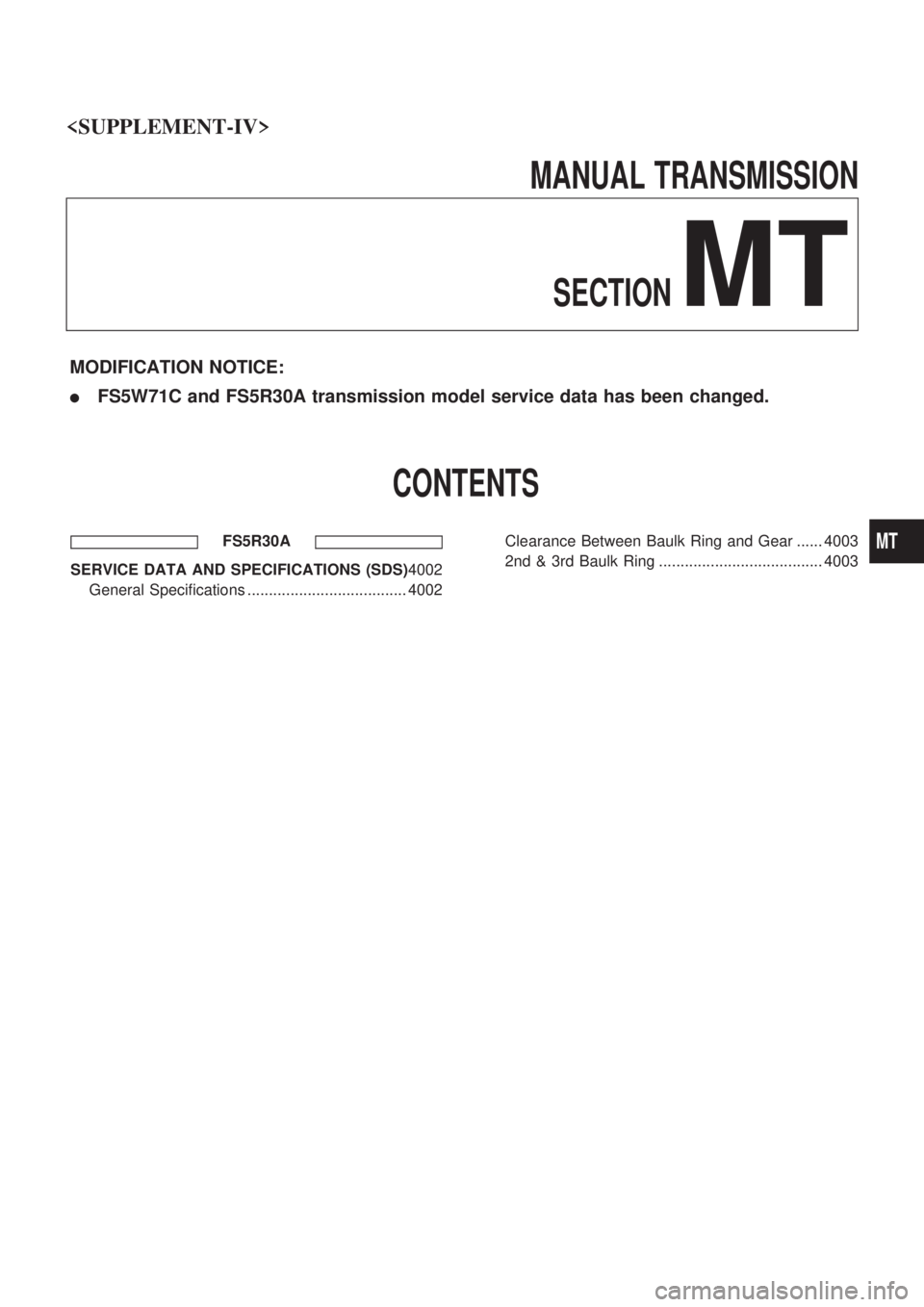

MANUAL TRANSMISSION
SECTION
MT
MODIFICATION NOTICE:
lFS5W71C and FS5R30A transmission model service data has been changed.
CONTENTS
FS5R30A
SERVICE DATA AND SPECIFICATIONS (SDS)4002
General Specifications ..................................... 4002Clearance Between Baulk Ring and Gear ...... 4003
2nd & 3rd Baulk Ring ...................................... 4003
MT
