NISSAN PICK-UP 2003 Repair Manual

RHD MODELS Ð DIESEL ENGINE
HEL968B
HARNESS LAYOUT
Engine Room Harness (Cont'd)
EL-4066

HEL969B
HARNESS LAYOUT
Engine Room Harness (Cont'd)
EL-4067

Engine Control Harness
VG ENGINE
HEL970B
HARNESS LAYOUT
EL-4068

HEL971B
HARNESS LAYOUT
Engine Control Harness (Cont'd)
EL-4069

ENGINE COMPARTMENT Ð YD ENGINE (RHD models)
HEL972B
HARNESS LAYOUT
Engine Control Harness (Cont'd)
EL-4070

Chassis Harness and Tail Harness
HEL974B
HARNESS LAYOUT
EL-4071

Room Lamp Harness/LHD Models
DOUBLE CAB
HEL975B
HARNESS LAYOUT
EL-4072

Room Lamp Harness/RHD Models
DOUBLE CAB
HEL976B
HARNESS LAYOUT
EL-4073

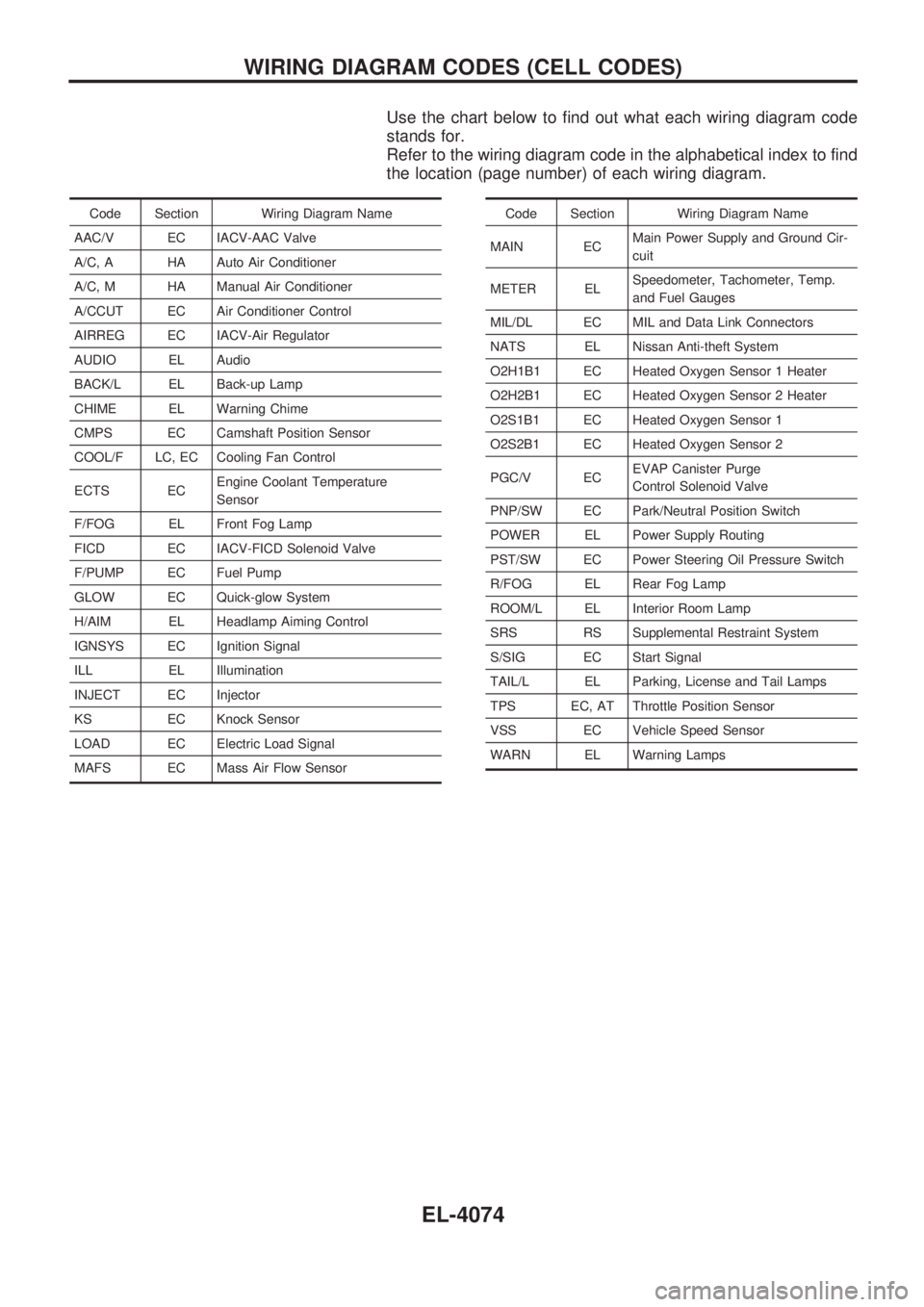

Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (page number) of each wiring diagram.
Code Section Wiring Diagram Name
AAC/V EC IACV-AAC Valve
A/C, A HA Auto Air Conditioner
A/C, M HA Manual Air Conditioner
A/CCUT EC Air Conditioner Control
AIRREG EC IACV-Air Regulator
AUDIO EL Audio
BACK/L EL Back-up Lamp
CHIME EL Warning Chime
CMPS EC Camshaft Position Sensor
COOL/F LC, EC Cooling Fan Control
ECTS ECEngine Coolant Temperature
Sensor
F/FOG EL Front Fog Lamp
FICD EC IACV-FICD Solenoid Valve
F/PUMP EC Fuel Pump
GLOW EC Quick-glow System
H/AIM EL Headlamp Aiming Control
IGNSYS EC Ignition Signal
ILL EL Illumination
INJECT EC Injector
KS EC Knock Sensor
LOAD EC Electric Load Signal
MAFS EC Mass Air Flow SensorCode Section Wiring Diagram Name
MAIN ECMain Power Supply and Ground Cir-
cuit
METER ELSpeedometer, Tachometer, Temp.
and Fuel Gauges
MIL/DL EC MIL and Data Link Connectors
NATS EL Nissan Anti-theft System
O2H1B1 EC Heated Oxygen Sensor 1 Heater
O2H2B1 EC Heated Oxygen Sensor 2 Heater
O2S1B1 EC Heated Oxygen Sensor 1
O2S2B1 EC Heated Oxygen Sensor 2
PGC/V ECEVAP Canister Purge
Control Solenoid Valve
PNP/SW EC Park/Neutral Position Switch
POWER EL Power Supply Routing
PST/SW EC Power Steering Oil Pressure Switch
R/FOG EL Rear Fog Lamp
ROOM/L EL Interior Room Lamp
SRS RS Supplemental Restraint System
S/SIG EC Start Signal
TAIL/L EL Parking, License and Tail Lamps
TPS EC, AT Throttle Position Sensor
VSS EC Vehicle Speed Sensor
WARN EL Warning Lamps
WIRING DIAGRAM CODES (CELL CODES)
EL-4074
