GUIDANCE SCREEN SETTINGSThe guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. The screen to be displayed
can be set.Split screen settingsThe display setting on the left-hand side screen
shown during route guidance can be changed.1. Push while the current location
map screen is displayed.
2. Highlight [Map View ] and push .
3. Highlight [View Settings] and push
.
4. Highlight the preferred screen and push . The indicator of the selected
screen illuminates.
Intersection:The map screen and the enlarged intersection
view can be displayed at the same time.
Push

Black plate (94,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-10
Route guidance
Fuel Economy:The current fuel consumption rate, average fuel
consumption rate, instantaneous fuel consump-
tion rate and distance to empty can be displayed
on the map screen. An enlarged intersection
view is automatically displayed when the vehicle
approaches the guide point.
Push

Black plate (95,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
4. Highlight [Show all Freeway Exits on Route] or [Auto. Show Turn List on Freeway] and
push . The indicator illuminates
when the item is set.
5. Push

Black plate (97,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

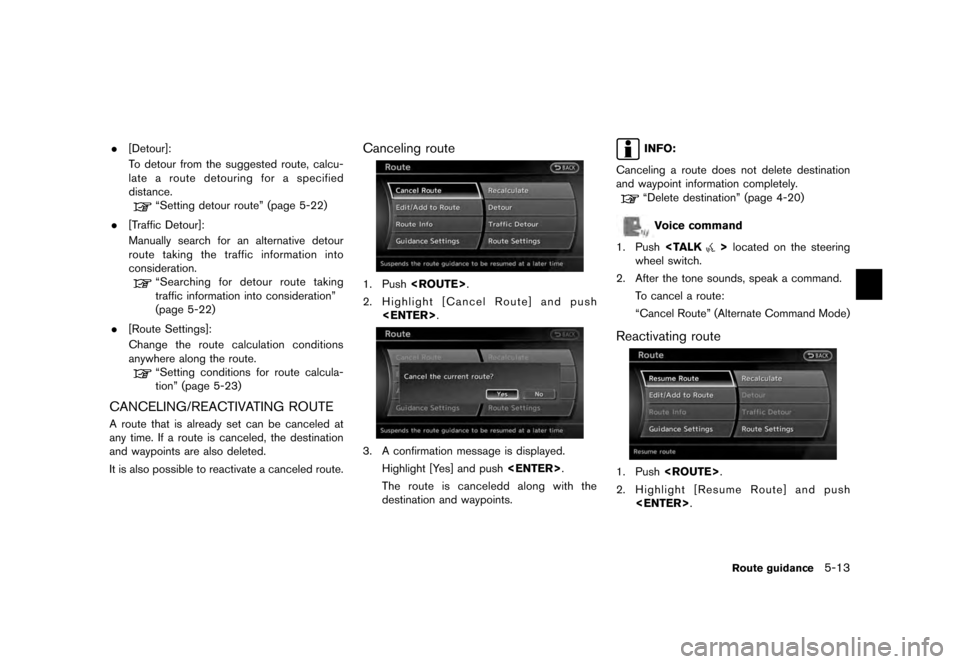

. [Detour]:
To detour from the suggested route, calcu-
late a route detouring for a specified
distance.
“Setting detour route” (page 5-22)
. [Traffic Detour]:
Manually search for an alternative detour
route taking the traffic information into
consideration.“Searching for detour route taking
traffic information into consideration”
(page 5-22)
. [Route Settings]:
Change the route calculation conditions
anywhere along the route.“Setting conditions for route calcula-
tion” (page 5-23)
CANCELING/REACTIVATING ROUTEA route that is already set can be canceled at
any time. If a route is canceled, the destination
and waypoints are also deleted.
It is also possible to reactivate a canceled route.
Canceling route1. Push .
2. Highlight [Cancel Route] and push .3. A confirmation message is displayed.
Highlight [Yes] and push .
The route is canceledd along with the
destination and waypoints.
INFO:
Canceling a route does not delete destination
and waypoint information completely.“Delete destination” (page 4-20)Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command. To cancel a route:
“Cancel Route” (Alternate Command Mode)
Reactivating route1. Push .
2. Highlight [Resume Route] and push .
Route guidance
5-13

Black plate (98,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-14
Route guidance
3. A confirmation message is displayed. High- light [Yes] and push . The can-
celed route is reactivated.
INFO:
If a new route is set, the canceled route cannot
be reactivated.
EDITING ROUTE1. Push .
2. Highlight [Edit/Add to Route] and push . 3. Highlight the preferred condition and push
.
4. Push to return to the previous
screen. Push

Black plate (99,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
1. Push .
2. Highlight [Edit/Add to Route] and push .
3. Highlight [Add Destination] or [Add Way- point] and push .
If [Add Destination] is selected, the current
destination changes to a waypoint.4. Set a destination or waypoint. The method of searching for a destination or waypoint is the
same as the one for a destination.
“4. Setting destination”
5. The selected location is displayed at thecenter of the map. Highlight [Add to Route]
after confirming the location and push
.
INFO:
Even after setting a destination/waypoint,
the destination/waypoint location can be
adjusted, the route can be stored, etc.
“Editing/deleting destination or way-
point” (page 5-15)
6. Return to the Edit Route screen. Set the route conditions as necessary.
7. Highlight [Calculate] and push .
The system will recalculate the routes. After
the route search is completed, the display
will automatically return to the present
location screen.
INFO:
. The prior route is automatically deleted.
. Added waypoints and search conditions will
not be taken into consideration for the route
calculation until [Calculate] is highlighted
and is pushed.
Editing/deleting destination or waypointThe destination or waypoint that is already set
can be modified or deleted.
If a location is modified or deleted when a
suggested route is already set, the prior
suggested route will be recalculated accord-
ingly.
Route guidance
5-15

Black plate (100,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-16
Route guidance
1. Push .
2. Highlight [Edit/Add to Route] and push .
3. Highlight a destination or waypoint that is already set and push .4. Highlight [Move Dest.] to modify the location
and push .
“Moving location of destination”
(page 5-4)
5. Highlight [Delete] and push to
delete the location.6. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The destination
or waypoint is deleted from the route. Return
to the [Edit Route] screen.
7. By highlighting [Calculate] and pushing , the system will recalculate the
routes. After the route search is completed,
the display will automatically return to the
present location screen.
INFO:
. If the destination is deleted, the final
waypoint of the route becomes the destina-
tion.
. When the map screen is touched, the same
map screen as when [Move Dest.] is
selected is displayed.
Changing order of destination and way-
pointsThe order of a destination and waypoints that
are already set can be changed.

Black plate (101,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
1. Push .
2. Highlight [Edit/Add to Route] and push .
3. Highlight a destination or waypoint that is already set and push .4. Highlight [Change Order] and push
. A list of the destination and
waypoints is displayed.
5. Highlight a preferred destination or waypoint to replace the previously selected destina-
tion or waypoint and push .6. A message is displayed and the order of the
destination or waypoint is changed.
7. By highlighting [Calculate] and pushing , the system will recalculate the
routes. After the route search is complete,
the display will automatically return to the
present location screen.Changing route calculation conditionsEach section of the route between waypoints
can have different route calculation conditions.
After setting these conditions, the entire route
can be recalculated.
Route guidance
5-17

Black plate (102,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-18
Route guidance
1. Push .
2. Highlight [Edit/Add to Route] and push .
3. Highlight the preferred section of the route to the destination or waypoint and push
.4. Highlight the preferred condition and push
.
Available conditions:
: [Fastest Route]: [Minimize Freeway]: [Shortest Route]
5. The condition has been changed and the display returns to the [Edit/Add to Route]
screen.6. By highlighting [Calculate] and pushing , the system will recalculate the
routes. After the route search is completed,
the display will automatically return to the
present location screen.
INFO:
. The recalculated route may not be the
shortest route because the system priori-
tizes easy-to-drive roads for safety reasons.
. If the route conditions are set from [Route
Settings], all sections in the route are
subject to the same route conditions. This
applies even if different route conditions are
set for different sections in [Edit/Add to
Route].
CONFIRMING ROUTEWhen the suggested route is displayed after
calculation, the route information can be con-
firmed or the suggested route simulated.

Black plate (103,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Basic operation1. Push .
2. Highlight [Route Info] and push .3. Highlight the preferred item and push
.
Available items: . [Turn List]:
Displays the details of the suggested route.
“Using turn list” (page 5-19)
. [Preview]:
The system will trace the planned route
going forward or in reverse.“Using route preview” (page 5-19)
. [Simulation]:
Simulate the suggested route. This function
provides a detailed image of the route with
voice guidance.“Confirming route by simulation” (page 5-20)
. [Store Route]:
A calculated route can be stored. A max-
imum of 5 routes can be stored. Stored
routes can be easily retrieved and set as the
suggested route.
“Storing route” (page 6-5)
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
The same screen as when [Map Scroll] is
touched can be displayed with the following
operations:
— Touching the map screen.
— Pushing the directional buttons except for the up/down buttons (multi-function
controller with directional buttons) .
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons) .
Using turn list1. Highlight [Turn List] and push .
2. The information (e.g., intersections) can be confirmed on the route to the destination by
scrolling the screen pushing the up and
down switches of the main directional
buttons, pushing the slide switch upward
or downward or rotating the center dial.
3. Push
