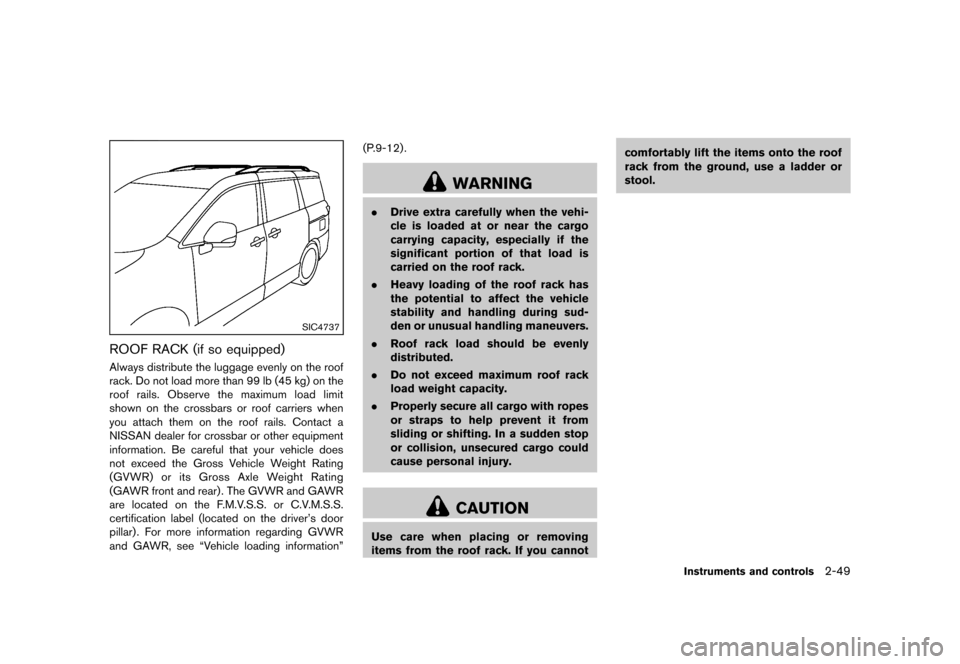

ROOF RACK (if so equipped)GUID-8868EAD9-A82E-4E35-B88D-4326BA738D60Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg) on the
roof rails. Observe the maximum load limit
shown on the crossbars or roof carriers when
you attach them on the roof rails. Contact a
NISSAN dealer for crossbar or other equipment
information. Be careful that your vehicle does
not exceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear) . The GVWR and GAWR
are located on the F.M.V.S.S. or C.V.M.S.S.
certification label (located on the driver’s door
pillar) . For more information regarding GVWR
and GAWR, see “Vehicle loading information”(P.9-12) .
WARNING
.
Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot comfortably lift the items onto the roof
rack from the ground, use a ladder or
stool.
Instruments and controls2-49
Condition:
Page 132 of 485
Black plate (128,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

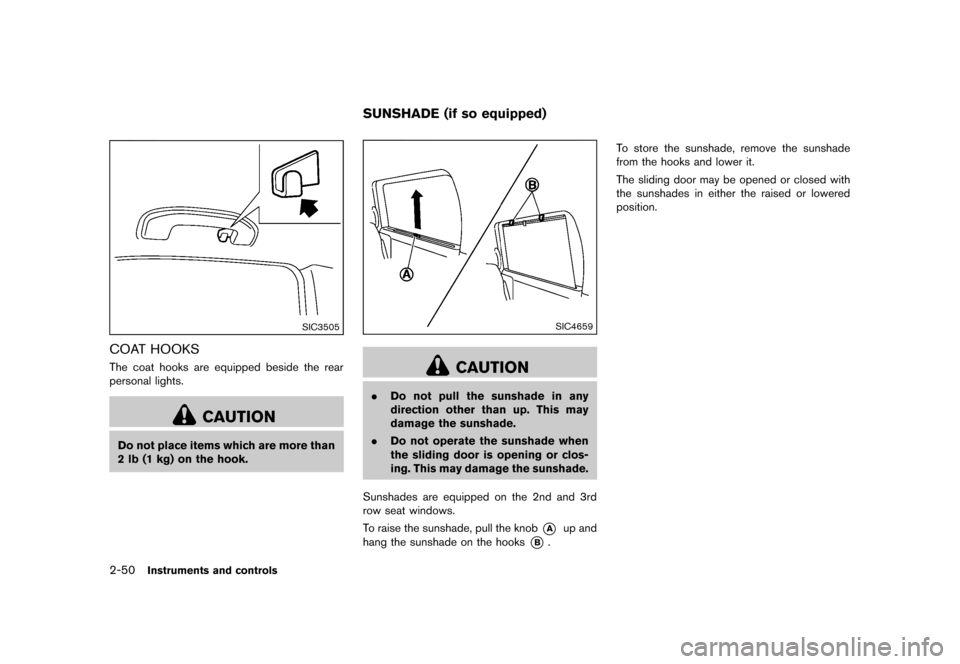

2-50Instruments and controls
SIC3505
COAT HOOKSGUID-9AE4801A-5C6C-4505-B98D-76E2E06FF140The coat hooks are equipped beside the rear
personal lights.
CAUTION
Do not place items which are more than
2 lb (1 kg) on the hook.
GUID-1CEE0B2F-BAC3-436D-A3EE-D6D30849CE4D
SIC4659
CAUTION
.Do not pull the sunshade in any
direction other than up. This may
damage the sunshade.
. Do not operate the sunshade when
the sliding door is opening or clos-
ing. This may damage the sunshade.
Sunshades are equipped on the 2nd and 3rd
row seat windows.
To raise the sunshade, pull the knob
*Aup and
hang the sunshade on the hooks
*B. To store the sunshade, remove the sunshade
from the hooks and lower it.
The sliding door may be opened or closed with
the sunshades in either the raised or lowered
position.
SUNSHADE (if so equipped)
Condition:
Page 133 of 485
Black plate (129,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

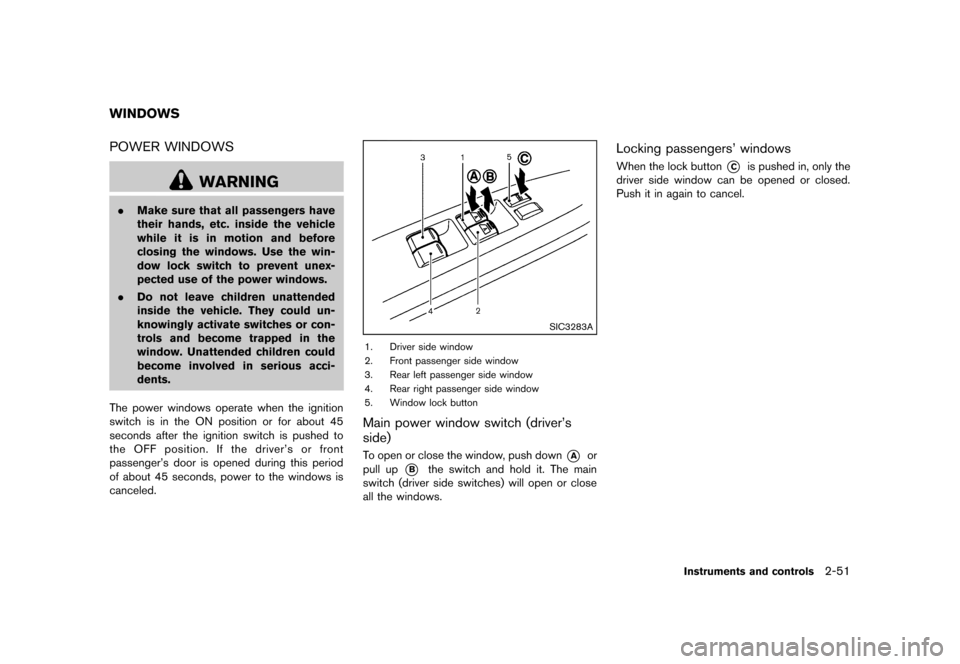

GUID-5B1CF570-77D7-45AC-AA62-7BB516F0676FPOWER WINDOWSGUID-F37D68C6-CC41-4AC8-9699-012350C333BE
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver’s or front
passenger’s door is opened during this period
of about 45 seconds, power to the windows is
canceled.
SIC3283A
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
Main power window switch (driver’s
side)
GUID-CBC8B420-9F44-49EE-8F25-61A5E56B79AATo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windowsGUID-8A125988-E14E-4C7B-B3FE-5E9EA08ECC5EWhen the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Instruments and controls2-51
WINDOWS
Condition:
Page 134 of 485
Black plate (130,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

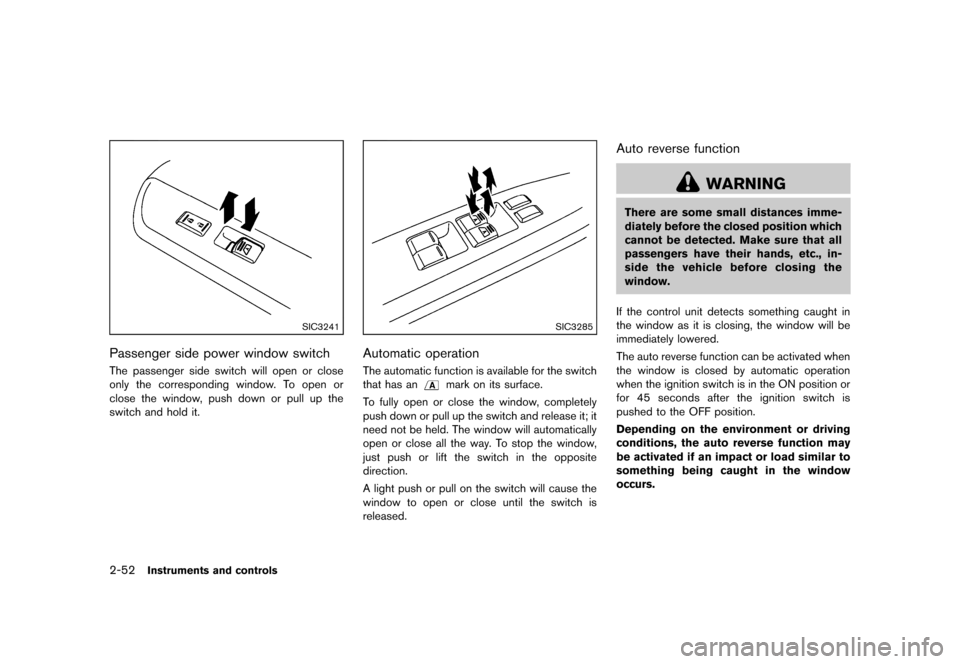

2-52Instruments and controls
SIC3241
Passenger side power window switchGUID-4D63CF9B-AD06-4F88-810D-AD74B22F51B4The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3285
Automatic operationGUID-8BA4761C-6CA5-42AC-8F3B-B4C5C25BAE5BThe automatic function is available for the switch
that has an
mark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it; it
need not be held. The window will automatically
open or close all the way. To stop the window,
just push or lift the switch in the opposite
direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto reverse functionGUID-2F2524F5-629D-4809-A276-D1D9E1D16E3D
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Condition:
Page 135 of 485
Black plate (131,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

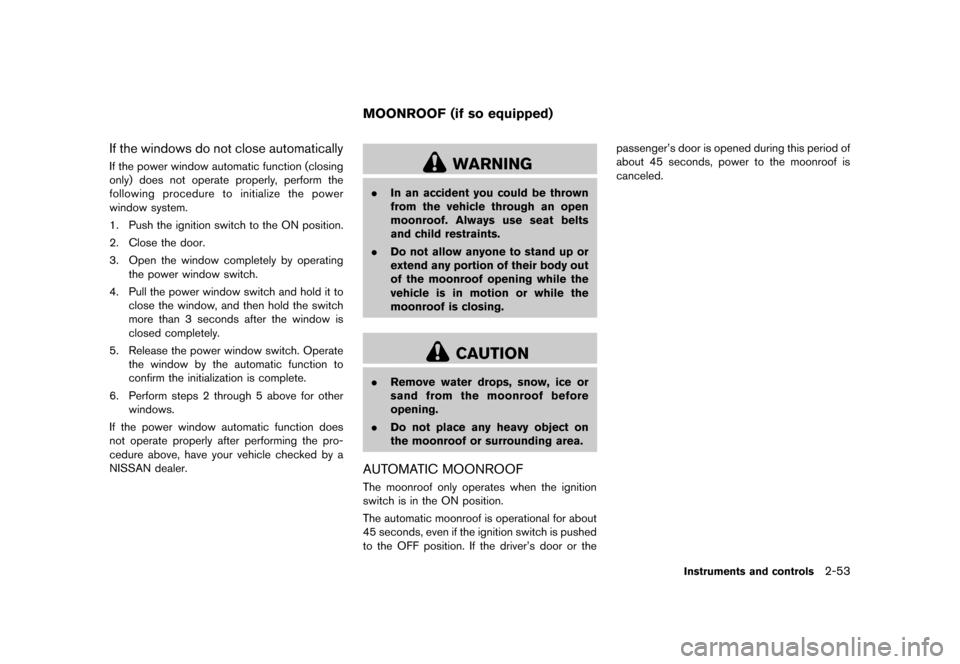

If the windows do not close automaticallyGUID-B57256CE-E38F-46BD-9BF2-339E88C5AEA0If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Push the ignition switch to the ON position.
2. Close the door.
3. Open the window completely by operatingthe power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
GUID-9D7DE658-FCF8-4333-8CEE-044062238F85
WARNING
. In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts
and child restraints.
. Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
.Remove water drops, snow, ice or
sand from the moonroof before
opening.
. Do not place any heavy object on
the moonroof or surrounding area.
AUTOMATIC MOONROOFGUID-EBF0890A-0A4B-4E51-A530-73E7CCA17AA3The moonroof only operates when the ignition
switch is in the ON position.
The automatic moonroof is operational for about
45 seconds, even if the ignition switch is pushed
to the OFF position. If the driver’s door or the passenger’s door is opened during this period of
about 45 seconds, power to the moonroof is
canceled.
Instruments and controls2-53
MOONROOF (if so equipped)
Condition:
Page 136 of 485
Black plate (132,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

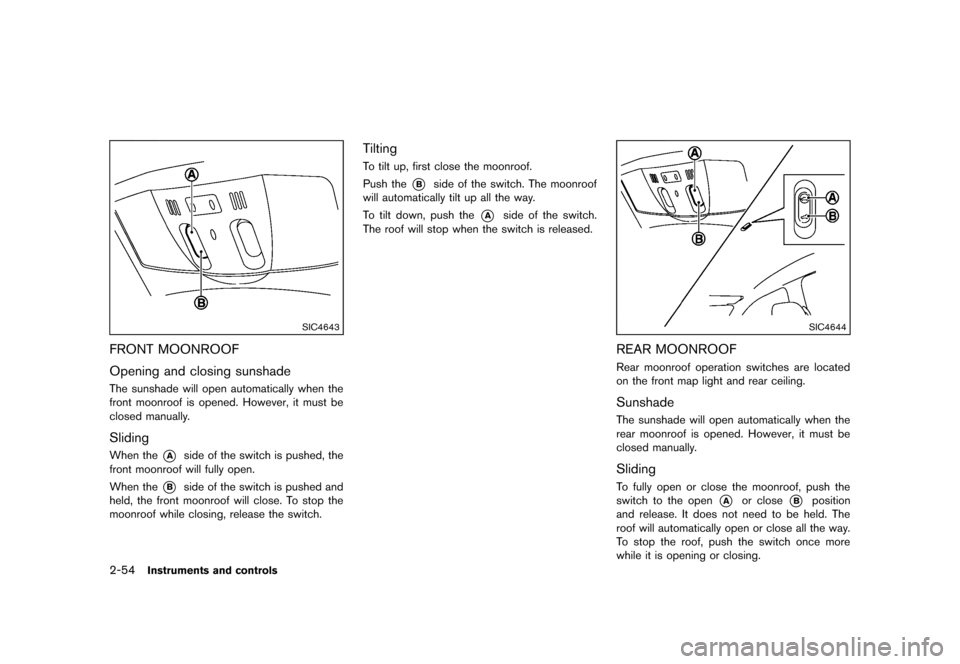

2-54Instruments and controls
SIC4643
FRONT MOONROOFGUID-7F86BC68-BD6D-4DC9-9A4C-7F4EAF3581A7
Opening and closing sunshadeGUID-80F1F048-C11E-4710-BCF9-EFAC1260135CThe sunshade will open automatically when the
front moonroof is opened. However, it must be
closed manually.
SlidingGUID-05648DC7-921E-4D31-B1AD-B750F10F7875When the*Aside of the switch is pushed, the
front moonroof will fully open.
When the
*Bside of the switch is pushed and
held, the front moonroof will close. To stop the
moonroof while closing, release the switch.
TiltingGUID-23F77C69-6CE0-42AF-819F-844C239C28D7To tilt up, first close the moonroof.
Push the
*Bside of the switch. The moonroof
will automatically tilt up all the way.
To tilt down, push the
*Aside of the switch.
The roof will stop when the switch is released.
SIC4644
REAR MOONROOFGUID-7A943627-5CF9-4290-9BB9-87576C272B12Rear moonroof operation switches are located
on the front map light and rear ceiling.
SunshadeGUID-00DBAC84-798B-4E18-B9F6-DB1FC10BE18BThe sunshade will open automatically when the
rear moonroof is opened. However, it must be
closed manually.
SlidingGUID-049BBD6F-890F-4061-BDF2-459EE68E6E08To fully open or close the moonroof, push the
switch to the open
*Aor close*Bposition
and release. It does not need to be held. The
roof will automatically open or close all the way.
To stop the roof, push the switch once more
while it is opening or closing.
Condition:
Page 137 of 485
Black plate (133,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

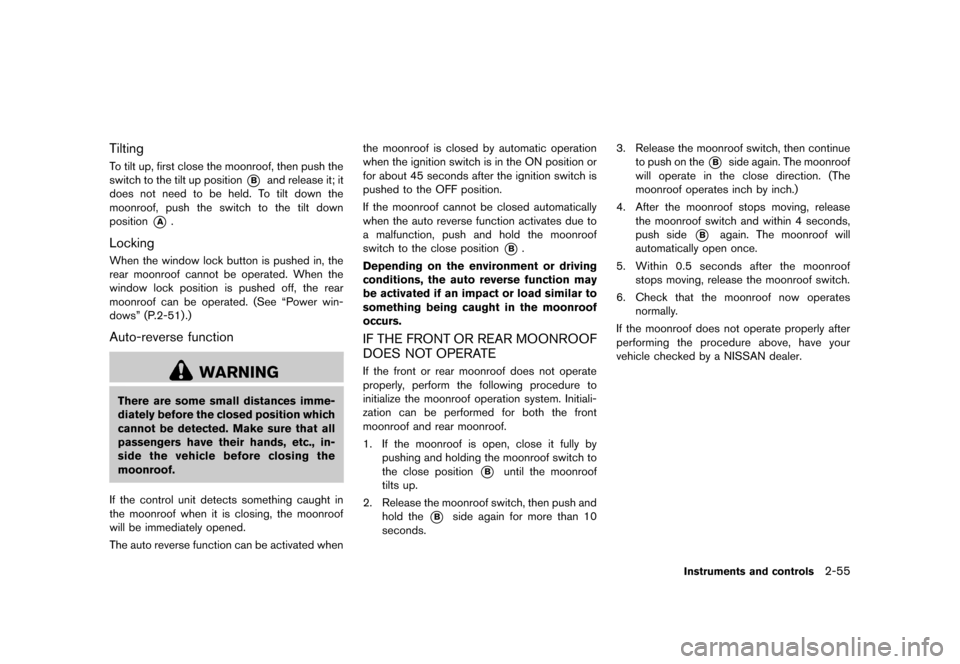

TiltingGUID-71C9D819-F26A-4EE7-848B-DF749AB96C52To tilt up, first close the moonroof, then push the
switch to the tilt up position
*Band release it; it
does not need to be held. To tilt down the
moonroof, push the switch to the tilt down
position
*A.
LockingGUID-2B4725F8-8023-4BBB-9A25-2063EA7D24B0When the window lock button is pushed in, the
rear moonroof cannot be operated. When the
window lock position is pushed off, the rear
moonroof can be operated. (See “Power win-
dows” (P.2-51) .)
Auto-reverse functionGUID-42AC8800-B709-488D-ADE1-B48120CFF197
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.
The auto reverse function can be activated when the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
pushed to the OFF position.
If the moonroof cannot be closed automatically
when the auto reverse function activates due to
a malfunction, push and hold the moonroof
switch to the close position
*B.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
IF THE FRONT OR REAR MOONROOF
DOES NOT OPERATE
GUID-837D8DA1-D393-41F7-9FCA-B31DD791AD27If the front or rear moonroof does not operate
properly, perform the following procedure to
initialize the moonroof operation system. Initiali-
zation can be performed for both the front
moonroof and rear moonroof.
1. If the moonroof is open, close it fully by pushing and holding the moonroof switch to
the close position
*Buntil the moonroof
tilts up.
2. Release the moonroof switch, then push and hold the
*Bside again for more than 10
seconds. 3. Release the moonroof switch, then continue
to push on the
*Bside again. The moonroof
will operate in the close direction. (The
moonroof operates inch by inch.)
4. After the moonroof stops moving, release the moonroof switch and within 4 seconds,
push side
*Bagain. The moonroof will
automatically open once.
5. Within 0.5 seconds after the moonroof
stops moving, release the moonroof switch.
6. Check that the moonroof now operates
normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by a NISSAN dealer.
Instruments and controls2-55
Condition:
Page 138 of 485
Black plate (134,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-56Instruments and controls
GUID-08475AB5-E7EE-444D-B54C-04FD913450AB
SIC4745

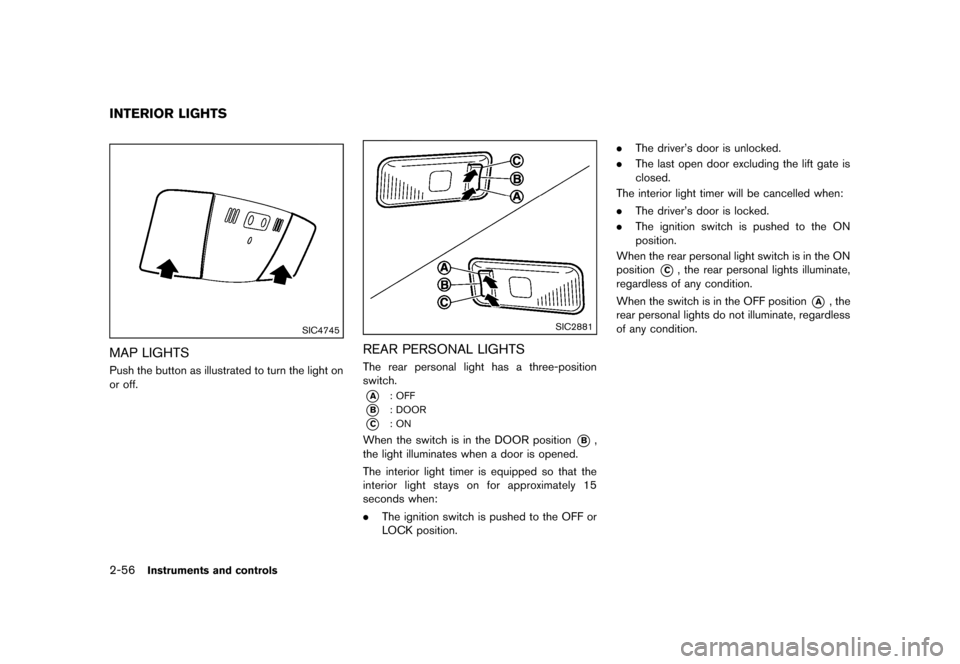

MAP LIGHTSGUID-E985AFC5-D8DB-4646-8101-A8DD86745424Push the button as illustrated to turn the light on
or off.
SIC2881
REAR PERSONAL LIGHTSGUID-91E3FE2A-E183-4DB8-88A5-A5FB31B3884DThe rear personal light has a three-position
switch.
*A: OFF
*B: DOOR
*C: ON
When the switch is in the DOOR position*B,
the light illuminates when a door is opened.
The interior light timer is equipped so that the
interior light stays on for approximately 15
seconds when:
. The ignition switch is pushed to the OFF or
LOCK position. .
The driver’s door is unlocked.
. The last open door excluding the lift gate is
closed.
The interior light timer will be cancelled when:
. The driver’s door is locked.
. The ignition switch is pushed to the ON
position.
When the rear personal light switch is in the ON
position
*C, the rear personal lights illuminate,
regardless of any condition.
When the switch is in the OFF position
*A, the
rear personal lights do not illuminate, regardless
of any condition.
INTERIOR LIGHTS
Condition:
Page 139 of 485
Black plate (135,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

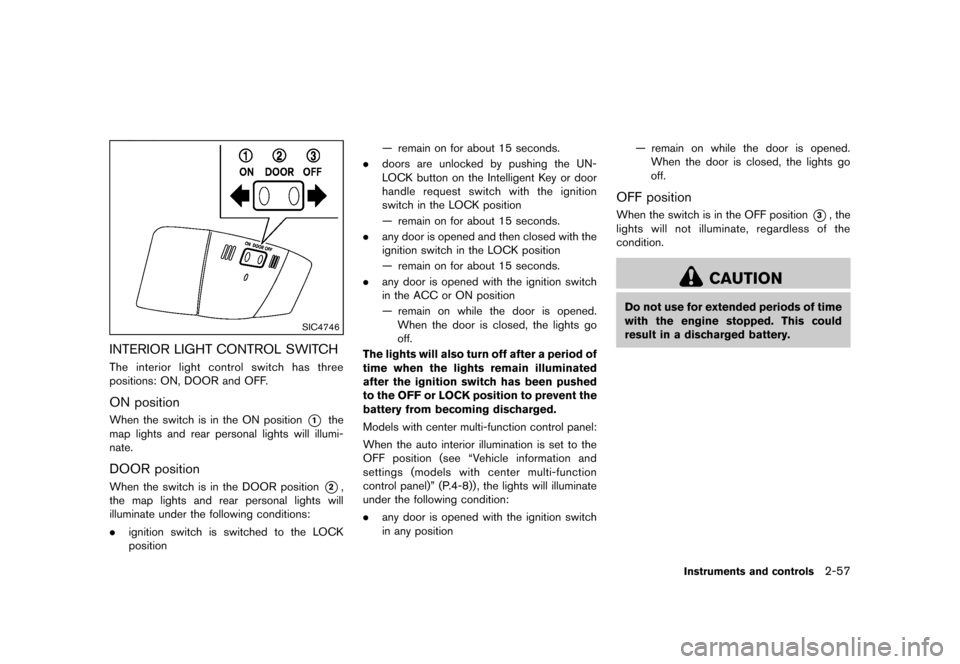

SIC4746
INTERIOR LIGHT CONTROL SWITCHGUID-D34CF121-E823-48BC-AE90-42AF090DE2D0The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-4BF6F47A-80E8-4E85-B391-088041B945A7When the switch is in the ON position*1the
map lights and rear personal lights will illumi-
nate.
DOOR positionGUID-6DC4E6E9-76A6-4D00-909F-12F819722D9BWhen the switch is in the DOOR position*2,
the map lights and rear personal lights will
illuminate under the following conditions:
. ignition switch is switched to the LOCK
position — remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with center multi-function control panel:
When the auto interior illumination is set to the
OFF position (see “Vehicle information and
settings (models with center multi-function
control panel)” (P.4-8)) , the lights will illuminate
under the following condition:
. any door is opened with the ignition switch
in any position — remain on while the door is opened.
When the door is closed, the lights go
off.
OFF positionGUID-197D664B-84F7-45E5-AC9E-DB5ABB3978F4When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
Instruments and controls2-57
Condition:
Page 140 of 485
Black plate (136,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-58Instruments and controls
GUID-3A69E32E-8217-4F99-803C-BB82226672A4
SIC4747
Map lights
The mood lights*Alocated in the following
positions will illuminate whenever the headlight
switch is in the
orposition.
. next to the map lights
. under the instrument panel
. under the driver’s power window switch
GUID-5E0E5511-7965-47D6-BAE7-6D7DF580137C
SIC4660
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-61C79262-3671-4A21-8917-20AEB1ADD9A7
SIC2925
When the switch is in the DOOR position*A,
the light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn off.
When the switch is in the OFF position
*B, the
light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
MOOD LIGHTS VANITY MIRROR LIGHTSCARGO LIGHTS
Condition:
