NISSAN QUEST 2013 RE52 / 4.G Owners Manual

Black plate (177,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-D7276E5F-FB84-463B-BDF9-A346295A447BThe automatic drive positioner system has two
features:
.Entry/exit function
. Memory storage
ENTRY/EXIT FUNCTIONGUID-5F29AE45-A8DA-42BF-A7C8-04256D167074This system is designed so that the driver’s seat
will automatically move when the selector lever
is in the P (Park) position. This allows the driver
to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward when the
driver’s door is opened with the ignition switch
in the LOCK position.
The driver’s seat will return to the previous
positions when the ignition switch is pushed to
the ACC position.
The driver’s seat will not return to the previous
positions if the seat adjusting switch is operated
when the seat is at the exit position.
Cancel or activate entry/exit functionGUID-97B13C13-98B1-43DA-BF4E-6CC11E5EE734The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1 and 2) will blink once when the function is
canceled, and the indicator lights will blink twice
when the function is activated. Note that the
indicator lights may illuminate after 5 seconds
while holding the SET switch. This indicates
readiness for linking the Intelligent Key to a
stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the “Slide Driver Seat Back on Exit”
key is turned to ON or OFF in the “Comfort”
settings. (See “Vehicle information and settings
(models with center multi-function control pa-
nel)” (P.4-8) .)
Initialize entry/exit functionGUID-E526DD89-2FEC-4DC6-8386-CED70B431AFFIf the battery cable is disconnected, or if the fuse
opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is placed in the LOCK position from the
ON position. The entry/exit function will be
activated.
SPA2855
MEMORY STORAGEGUID-BEDCA7A8-8409-4EC2-8EAE-7F30A20C2AA8Two positions for the driver’s seat and outside
mirrors can be stored in the automatic drive
positioner memory. Follow this procedure to use
the memory system.
1. Move the selector lever to the P (Park)
position.
2. Push the ignition switch to the ON position.
3. Adjust the driver’s seat and outside mirrors to the desired positions by manually operat-
ing each adjusting switch. For additional
information, see “Seats” (P.1-2) and “Out-
side mirrors” (P.3-35) .
Pre-driving checks and adjustments3-37
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Condition:

Black plate (178,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-38Pre-driving checks and adjustments
4. Push the SET switch and, within 5 seconds,push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will stay on for approximately 5
seconds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored mem-
ory position
GUID-04712762-5C07-46C9-89DF-7F2803A498EBThe Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow one of the steps for storing a memoryposition.
. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, push the
button on the Intelligent
Key.
. Push the ignition switch to the OFF position,
and then push the SET switch. Push the
button while pushing the memory button
while the indicator light stays on for approxi-
mately 5 seconds.
If the indicator light blinks, the Intelligent Key is
linked to that memory setting.
Push the ignition switch to the OFF position, and
then push the
button on the Intelligent Key.
The driver’s seat and outside mirrors will move to
the memorized position.
Confirming memory storageGUID-C7D22E67-E6D7-436F-A7E9-FBD8970F3E83. Push the ignition switch to the ON position
and push the SET switch. If the main
memory has not been stored, the indicator
light will come on for approximately 0.5
second. When the memory has stored in
position, the indicator light will stay on for
approximately 5 seconds.
. If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
. If optional keys are added to your vehicle,
the memory storage procedure to switch 1
or 2 and linking Intelligent Key procedure to
a stored memory position should be per-
formed again for each Intelligent Key. For
additional Intelligent Key information, see
“Keys” (P.3-3) .
Selecting the memorized positionGUID-66874194-881E-4A22-96FF-EE790B2F0E221. Move the selector lever to the P (Park)
position.
2. Use one of the following methods to move the driver’s seat and outside mirrors.
.Push the ignition switch to the ONposition and push the memory switch (1
or 2) .
.Within 45 seconds of opening thedriver’s door, push the memory switch
(1 or 2) .
The driver’s seat and outside mirrors will
move to the memorized position with the
indicator light flashing, and then the light will
stay on for approximately 5 seconds.
SYSTEM OPERATIONGUID-B0CC6635-8934-4D55-BA9A-D54FF3D35461The automatic drive positioner system will not
work or will stop operating under the following
conditions:
. When the vehicle speed is above 4 MPH (7
km/h) (entry/exit function) .
. When the vehicle is driven (memory sto-
rage).
. When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.
. When the driver’s seat and outside mirrors
have already been moved to the memorized
position.
. When no position is stored in the memory
switch.
. When the engine is started while moving the
automatic drive positioner.
. When the selector lever is moved from the P
(Park) position to any other position. (How-
ever, it will not be canceled while the driver’s
Condition:

Black plate (179,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
seat is returning to the previous positions
(entry/exit function).)
. When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
Pre-driving checks and adjustments3-39
Condition:

Black plate (180,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-40Pre-driving checks and adjustments

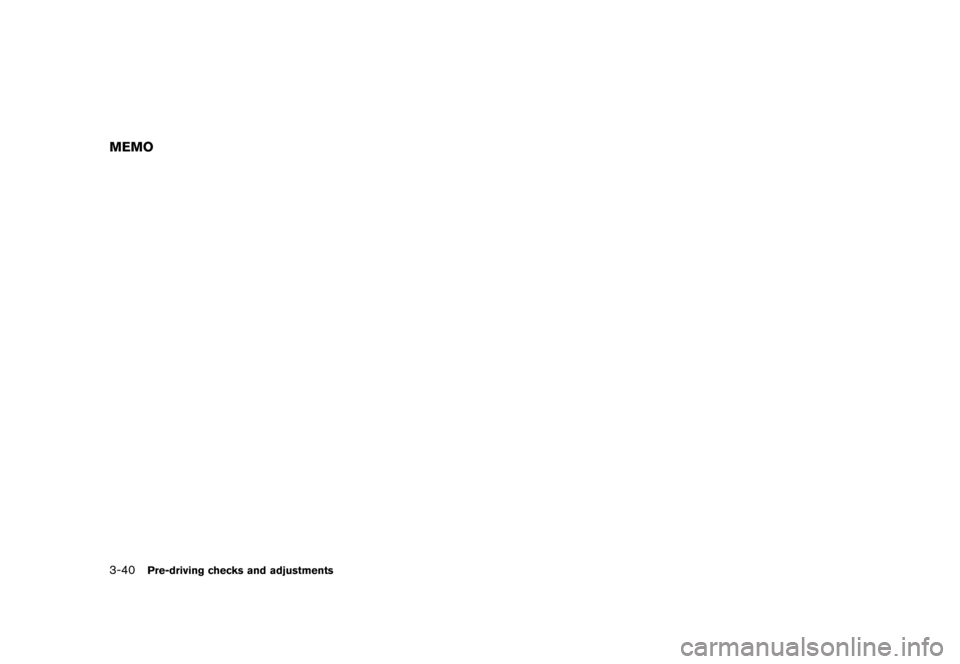

MEMO
Condition:

Black plate (181,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

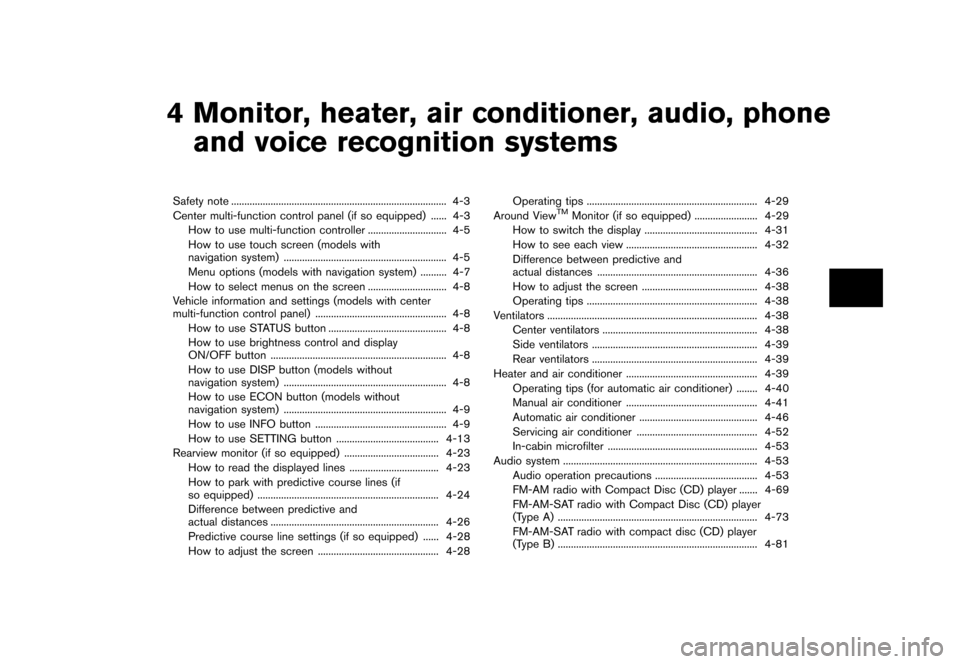

4 Monitor, heater, air conditioner, audio, phoneand voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (if so equipped) ...
...... 4-3

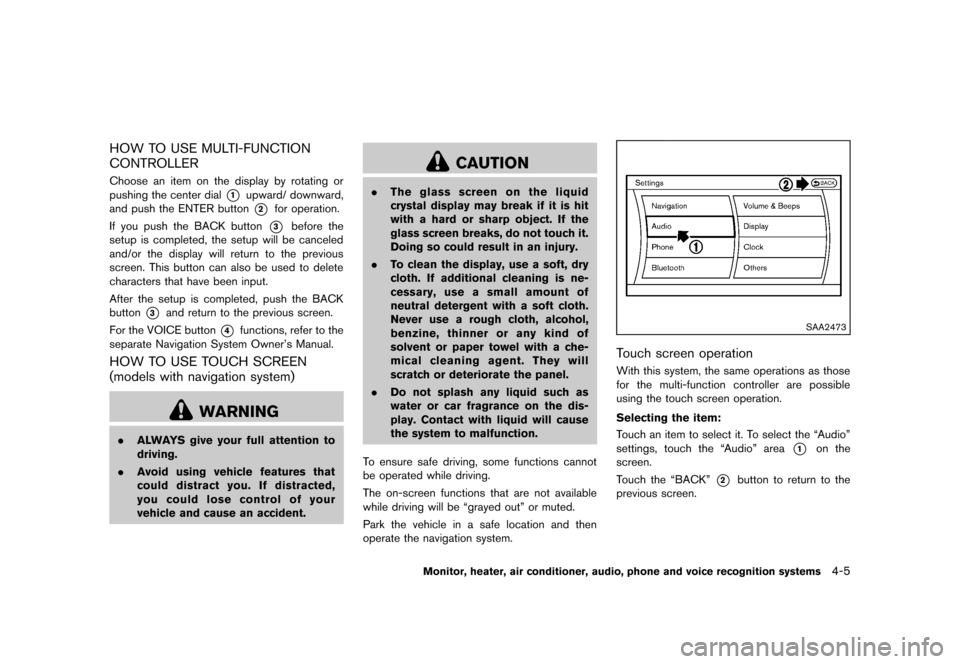

How to use multi-function controller ...
.............................. 4-5
How to use touch screen (models with
navigation system) ...
.............................................................. 4-5
Menu options (models with navigation system) ...
.......... 4-7
How to select menus on the screen ...
.............................. 4-8
Vehicle information and settings (models with center
multi-function control panel) ...
.................................................. 4-8
How to use STATUS button ...
............................................. 4-8
How to use brightness control and display
ON/OFF button ...
................................................................... 4-8
How to use DISP button (models without
navigation system) ...
.............................................................. 4-8
How to use ECON button (models without
navigation system) ...
.............................................................. 4-9
How to use INFO button ...
.................................................. 4-9
How to use SETTING button ...
....................................... 4-13
Rearview monitor (if so equipped) ...
.................................... 4-23
How to read the displayed lines ...
.................................. 4-23
How to park with predictive course lines (if
so equipped) ...
..................................................................... 4-24
Difference between predictive and
actual distances ...
................................................................ 4-26
Predictive course line settings (if so equipped) ...
...... 4-28
How to adjust the screen ...
.............................................. 4-28 Operating tips
...
................................................................. 4-29
Around ViewTMMonitor (if so equipped) ...
........................ 4-29
How to switch the display ...
........................................... 4-31
How to see each view ...
.................................................. 4-32
Difference between predictive and
actual distances ...
............................................................. 4-36
How to adjust the screen ...
............................................ 4-38
Operating tips ...
................................................................. 4-38
Ventilators ...
........................................................................\
........ 4-38
Center ventilators ...
........................................................... 4-38
Side ventilators ...
............................................................... 4-39
Rear ventilators ...
............................................................... 4-39
Heater and air conditioner ...
.................................................. 4-39
Operating tips (for automatic air conditioner) ...
........ 4-40
Manual air conditioner ...
.................................................. 4-41
Automatic air conditioner ...
............................................. 4-46
Servicing air conditioner ...
.............................................. 4-52
In-cabin microfilter ...
......................................................... 4-53
Audio system ...
........................................................................\
.. 4-53
Audio operation precautions ...
....................................... 4-53
FM-AM radio with Compact Disc (CD) player ...
....... 4-69
FM-AM-SAT radio with Compact Disc (CD) player
(Type A) ...
........................................................................\
.... 4-73
FM-AM-SAT radio with compact disc (CD) player
(Type B) ...
........................................................................\
.... 4-81
Condition:

Black plate (182,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
DVD (Digital Versatile Disc) player operation (if
so equipped)...
..................................................................... 4-85
USB memory operation (models with center
multi-function control panel) ...
......................................... 4-89
Bluetooth
®streaming audio (models with
navigation system) ...
........................................................... 4-93
iPod
®player operation (models with center
multi-function control panel) ...
......................................... 4-98
Auxiliary input jacks (if so equipped) ...
....................... 4-100
CD/DVD/USB memory care and cleaning ...
............. 4-101
Steering-wheel-mounted controls for audio (if
so equipped) ...
.................................................................. 4-102
Antenna ...
........................................................................\
.... 4-103
NISSAN mobile entertainment system (MES) (if
so equipped) ...
........................................................................\
4-104
Digital versatile disc (DVD)
system components ...
...................................................... 4-105
Before operating the dvd mobile
entertainment system ...
................................................... 4-109
Playing a DVD ...
................................................................ 4-110
Care and maintenance ...
................................................. 4-114
Car phone or CB radio ...
..................................................... 4-115
Bluetooth
®hands-free phone system (models with
navigation system) ...
.............................................................. 4-115
Regulatory information ...
................................................. 4-117
Voice commands ...
........................................................... 4-117
Control buttons ...
.............................................................. 4-117 Connecting procedure
...
............................................... 4-118
Phone selection ...
........................................................... 4-118
Vehicle phonebook ...
..................................................... 4-118
Making a call ...
................................................................ 4-121
Receiving a call ...
........................................................... 4-122
During a call ...
................................................................. 4-123
Phone setting ...
............................................................... 4-123
Troubleshooting guide ...
............................................... 4-125
Bluetooth
®hands-free phone system (models without
navigation system) (if so equipped) ...
.............................. 4-126
Regulatory information ...
............................................... 4-127
Using the system ...
........................................................ 4-128
Control buttons ...
............................................................ 4-130
Getting started ...
............................................................ 4-130
List of voice commands ...
............................................ 4-132
Speaker adaptation (SA) mode ...
............................... 4-135
Troubleshooting guide ...
............................................... 4-138
NISSAN voice recognition system (models with
navigation system) ...
............................................................. 4-139
NISSAN voice recognition standard mode ...
.......... 4-139
Using the system ...
........................................................ 4-142
NISSAN voice recognition alternate
command mode ...
........................................................... 4-150
Using the system ...
........................................................ 4-157
Troubleshooting guide ...
............................................... 4-162
Condition:

Black plate (183,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-9E91A2AF-7FD6-419C-9FB6-2BB1D192A590
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-FCD5479C-66CC-40C2-9130-A25FC2C7475B
SAA3020
Models with navigation system1. “CAMERA” Around View Monitor display button (P.4-29)
2, 6, 7. For navigation system control buttons (Refer to
the separate Navigation System Owner’s Man-
ual.)
3. Multi-function controller (P.4-5)
4. “INFO” button (P.4-9)
5. “SETTING” button (P.4-13)
8. “STATUS” status display button (P.4-8)
9. “
OFF” brightness control and display ON/
OFF button (P.4-8)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION
CONTROL PANEL (if so equipped)
Condition:

Black plate (184,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-4Monitor, heater, air conditioner, audio, phone and voice recognition systems

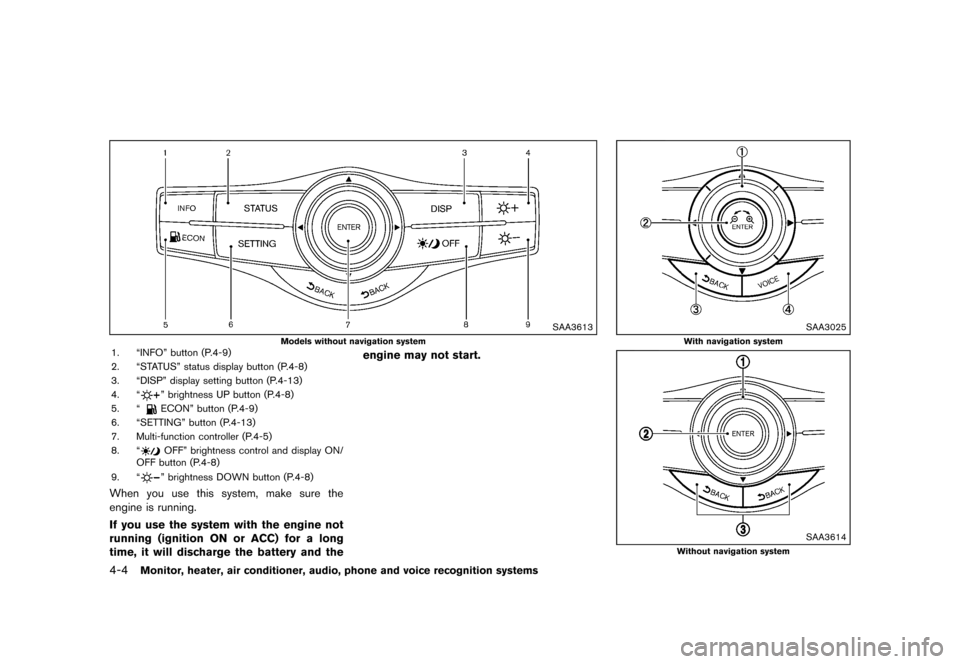

SAA3613
Models without navigation system1. “INFO” button (P.4-9)
2. “STATUS” status display button (P.4-8)
3. “DISP” display setting button (P.4-13)
4. “
” brightness UP button (P.4-8)
5. “
ECON” button (P.4-9)
6. “SETTING” button (P.4-13)
7. Multi-function controller (P.4-5)
8. “
OFF” brightness control and display ON/
OFF button (P.4-8)
9. “
” brightness DOWN button (P.4-8)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery and the engine may not start.
SAA3025
With navigation system
SAA3614
Without navigation system
Condition:

Black plate (185,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-7E48C6E3-13FB-400D-A81F-BF7E3F9AA50BChoose an item on the display by rotating or
pushing the center dial
*1upward/ downward,
and push the ENTER button
*2for operation.
If you push the BACK button
*3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
*3and return to the previous screen.
For the VOICE button
*4functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-341874AE-CB3F-4BF9-A452-77225AECC7B8
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
SAA2473
Touch screen operationGUID-6C7F3DCF-7A3A-4832-B1C2-2CEC2C25F75EWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
*1on the
screen.
Touch the “BACK”
*2button to return to the
previous screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-5
Condition:

Black plate (186,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-6Monitor, heater, air conditioner, audio, phone and voice recognition systems

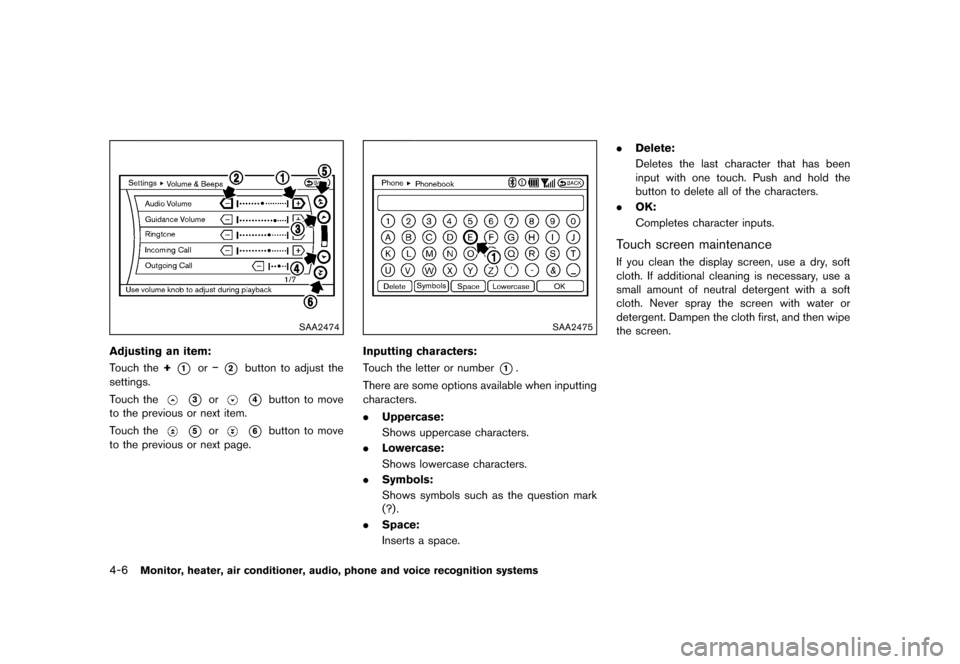

SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the+*1or−*2button to adjust the
settings.
Touch the
*3or*4button to move
to the previous or next item.
Touch the
*5or*6button to move
to the previous or next page.
SAA2475
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter or number*1.
There are some options available when inputting
characters.
. Uppercase:
Shows uppercase characters.
. Lowercase:
Shows lowercase characters.
. Symbols:
Shows symbols such as the question mark
(?) .
. Space:
Inserts a space. .
Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenanceGUID-AFAED2A8-6A07-41CC-809A-1C057428DB6FIf you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then wipe
the screen.
Condition:
