NISSAN QUEST 2013 RE52 / 4.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: QUEST, Model: NISSAN QUEST 2013 RE52 / 4.GPages: 485, PDF Size: 4.46 MB
Page 191 of 485
Black plate (187,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

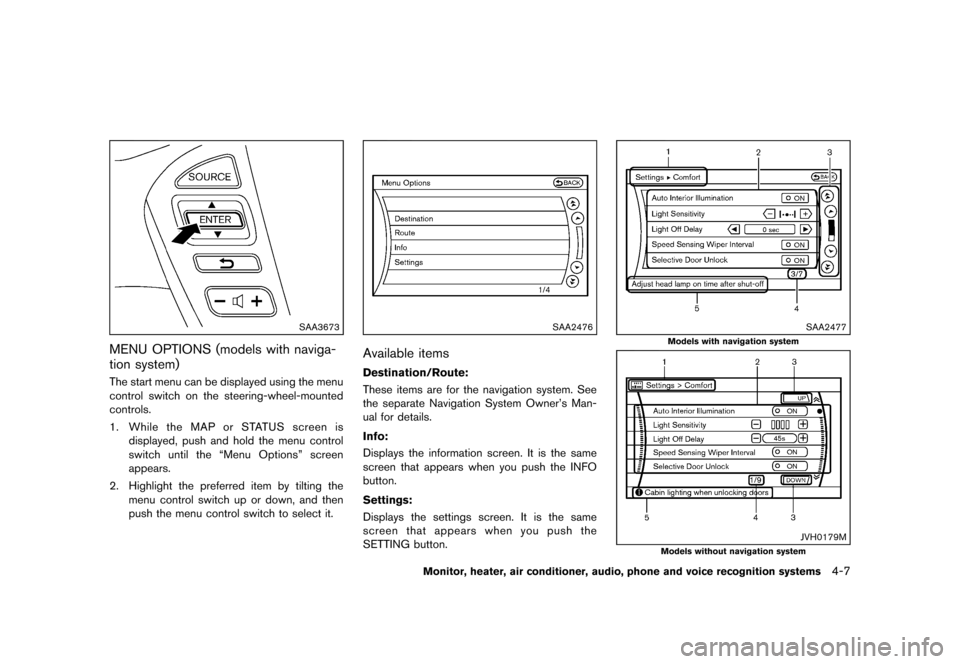

SAA3673
MENU OPTIONS (models with naviga-
tion system)
GUID-8F3B6C5E-FAE9-415A-9ACD-618B61F5B9C7The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-3FA860EC-9FDE-4C31-8D7B-830C470BA446
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system. See
the separate Navigation System Owner’s Man-
ual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
SAA2477
Models with navigation system
JVH0179M
Models without navigation system
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-7
Condition:
Page 192 of 485
Black plate (188,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-8Monitor, heater, air conditioner, audio, phone and voice recognition systems

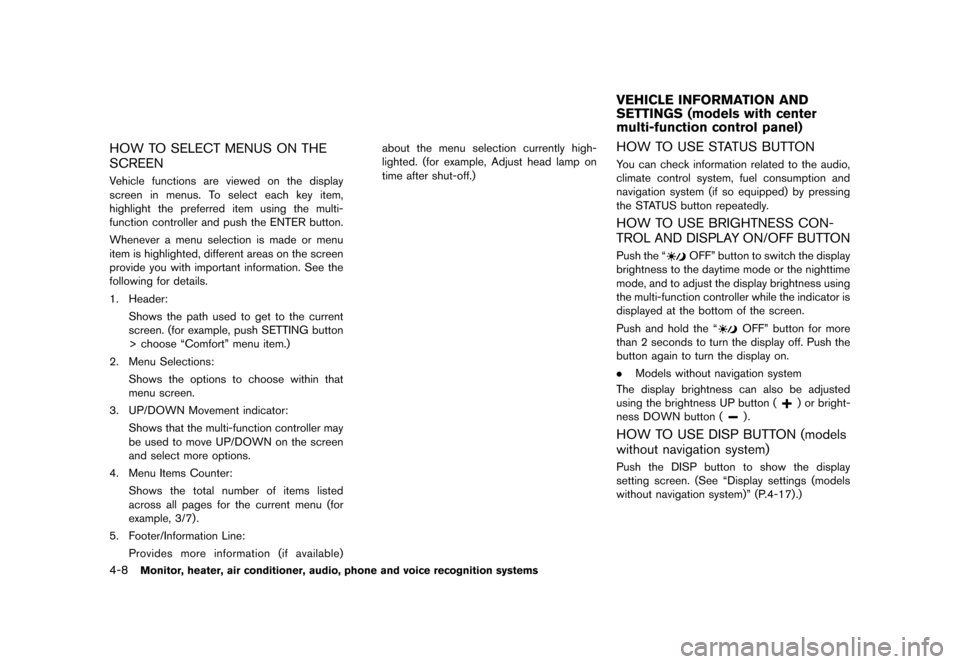

HOW TO SELECT MENUS ON THE
SCREEN
GUID-716D8DAB-A607-460F-8940-58011D08B09BVehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:Shows the path used to get to the current
screen. (for example, push SETTING button
> choose “Comfort” menu item.)
2. Menu Selections: Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (for
example, 3/7) .
5. Footer/Information Line: Provides more information (if available) about the menu selection currently high-
lighted. (for example, Adjust head lamp on
time after shut-off.)
GUID-7BBC7C19-BC3A-4F90-83F0-4A61141D4E5AHOW TO USE STATUS BUTTONGUID-2540E297-82D5-49AA-93C3-3697B4CB844FYou can check information related to the audio,
climate control system, fuel consumption and
navigation system (if so equipped) by pressing
the STATUS button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A4523688-0453-4924-B713-BBFFF57D6E1EPush the “OFF” button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
Push and hold the “
OFF” button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
. Models without navigation system
The display brightness can also be adjusted
using the brightness UP button (
) or bright-
ness DOWN button (
) .
HOW TO USE DISP BUTTON (models
without navigation system)
GUID-FEE84327-8387-4374-B2AA-46CF2799FB7FPush the DISP button to show the display
setting screen. (See “Display settings (models
without navigation system)” (P.4-17).)
VEHICLE INFORMATION AND
SETTINGS (models with center
multi-function control panel)
Condition:
Page 193 of 485
Black plate (189,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

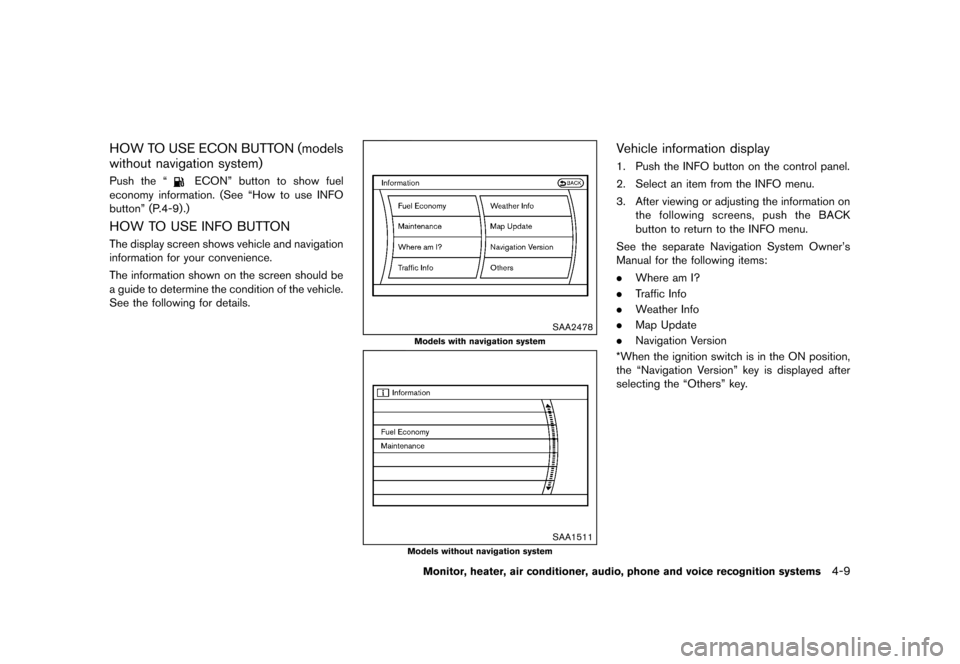

HOW TO USE ECON BUTTON (models
without navigation system)
GUID-00BE26B0-47BC-4792-B85C-524262B19770Push the “ECON” button to show fuel
economy information. (See “How to use INFO
button” (P.4-9).)
HOW TO USE INFO BUTTONGUID-9F37932C-DF63-48BE-9CF6-9207D61AAB92The display screen shows vehicle and navigation
information for your convenience.
The information shown on the screen should be
a guide to determine the condition of the vehicle.
See the following for details.
SAA2478
Models with navigation system
SAA1511
Models without navigation system
Vehicle information displayGUID-E0A76A22-9B41-4959-A95A-D7957B6E69C81. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the information on
the following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner’s
Manual for the following items:
. Where am I?
. Traffic Info
. Weather Info
. Map Update
. Navigation Version
*When the ignition switch is in the ON position,
the “Navigation Version” key is displayed after
selecting the “Others” key.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-9
Condition:
Page 194 of 485
Black plate (190,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

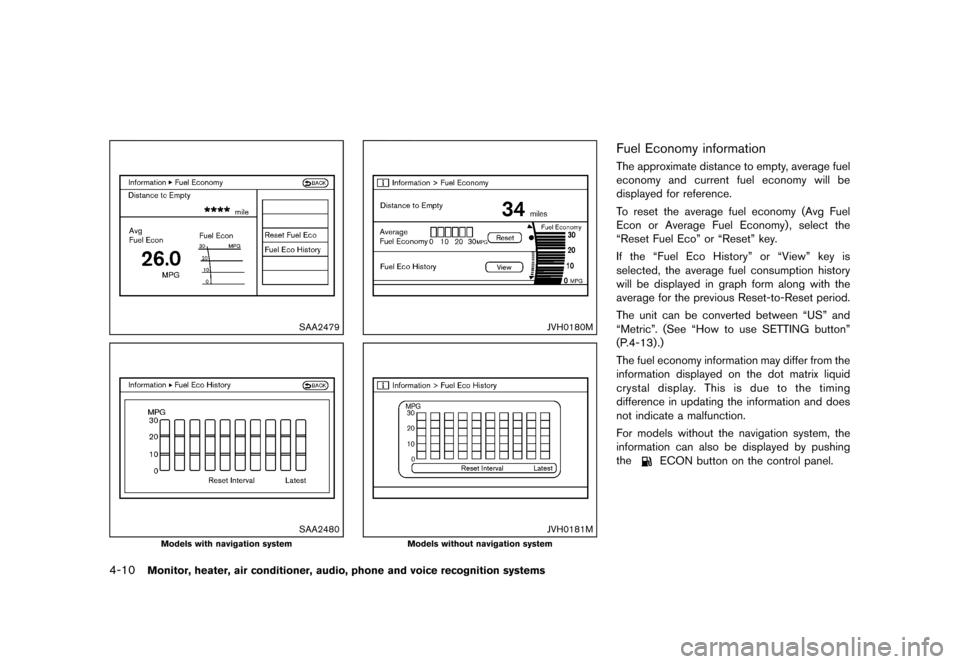

4-10Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2479
SAA2480
Models with navigation system
JVH0180M
JVH0181M
Models without navigation system
Fuel Economy informationGUID-5859B98A-6277-455C-B30C-B3A61F0573E7The approximate distance to empty, average fuel
economy and current fuel economy will be
displayed for reference.
To reset the average fuel economy (Avg Fuel
Econ or Average Fuel Economy) , select the
“Reset Fuel Eco” or “Reset” key.
If the “Fuel Eco History” or “View” key is
selected, the average fuel consumption history
will be displayed in graph form along with the
average for the previous Reset-to-Reset period.
The unit can be converted between “US” and
“Metric”. (See “How to use SETTING button”
(P.4-13) .)
The fuel economy information may differ from the
information displayed on the dot matrix liquid
crystal display. This is due to the timing
difference in updating the information and does
not indicate a malfunction.
For models without the navigation system, the
information can also be displayed by pushing
the
ECON button on the control panel.
Condition:
Page 195 of 485
Black plate (191,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

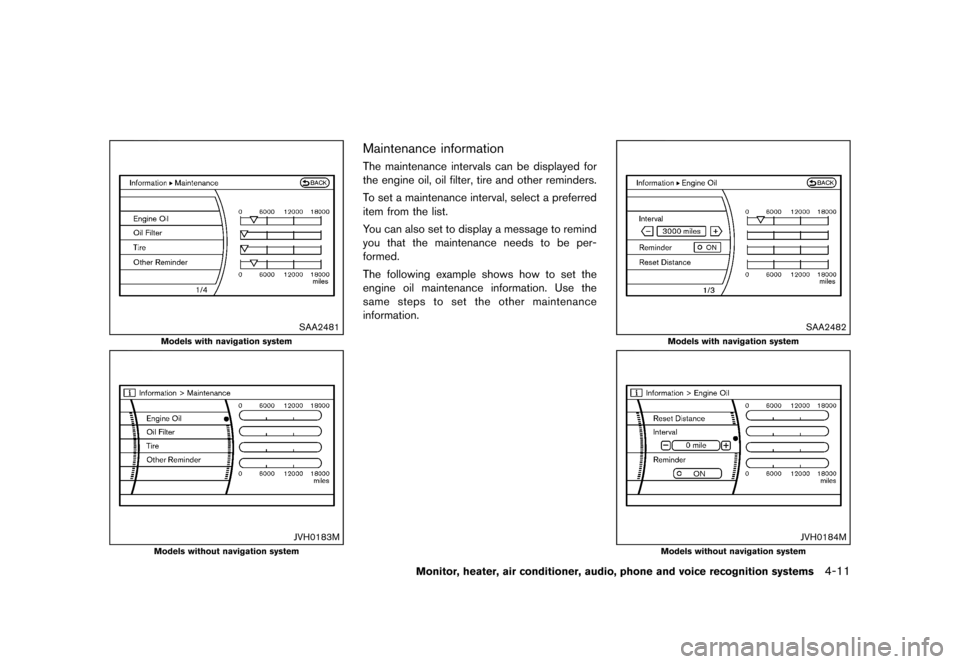

SAA2481
Models with navigation system
JVH0183M
Models without navigation system
Maintenance informationGUID-C15B4C1B-A112-4105-96D5-B5198616B004The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance
information.
SAA2482
Models with navigation system
JVH0184M
Models without navigation system
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-11
Condition:
Page 196 of 485
Black plate (192,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

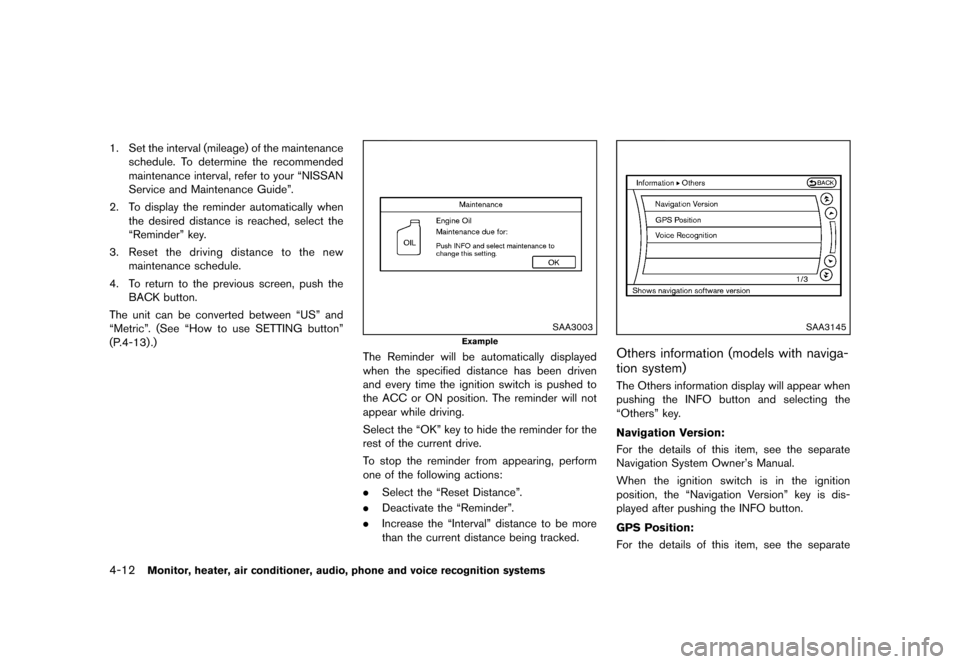

4-12Monitor, heater, air conditioner, audio, phone and voice recognition systems
1. Set the interval (mileage) of the maintenanceschedule. To determine the recommended
maintenance interval, refer to your “NISSAN
Service and Maintenance Guide”.
2. To display the reminder automatically when the desired distance is reached, select the
“Reminder” key.
3. Reset the driving distance to the new
maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US” and
“Metric”. (See “How to use SETTING button”
(P.4-13) .)
SAA3003
Example
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the “OK” key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
. Select the “Reset Distance”.
. Deactivate the “Reminder”.
. Increase the “Interval” distance to be more
than the current distance being tracked.
SAA3145
Others information (models with naviga-
tion system)
GUID-133D173C-FA21-4513-B33D-818F60204D05The Others information display will appear when
pushing the INFO button and selecting the
“Others” key.
Navigation Version:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Navigation System Owner’s Manual.
When the ignition switch is in the ignition
position, the “Navigation Version” key is dis-
played after pushing the INFO button.
GPS Position:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Condition:
Page 197 of 485
Black plate (193,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
Navigation System Owner’s Manual.
Voice Recognition:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see “NISSAN voice
recognition system (models with navigation
system)” (P.4-139) .

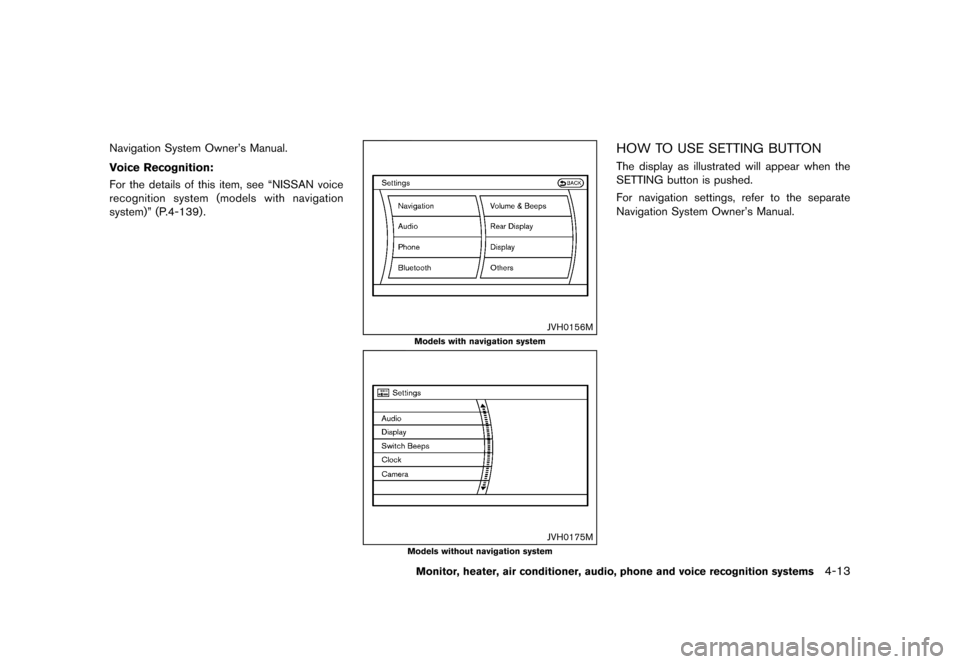

JVH0156M
Models with navigation system
JVH0175M
Models without navigation system
HOW TO USE SETTING BUTTONGUID-3FEA9B1A-0D14-4EAB-BC46-1D2E853AEC6EThe display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner’s Manual.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-13
Condition:
Page 198 of 485
Black plate (194,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-14Monitor, heater, air conditioner, audio, phone and voice recognition systems

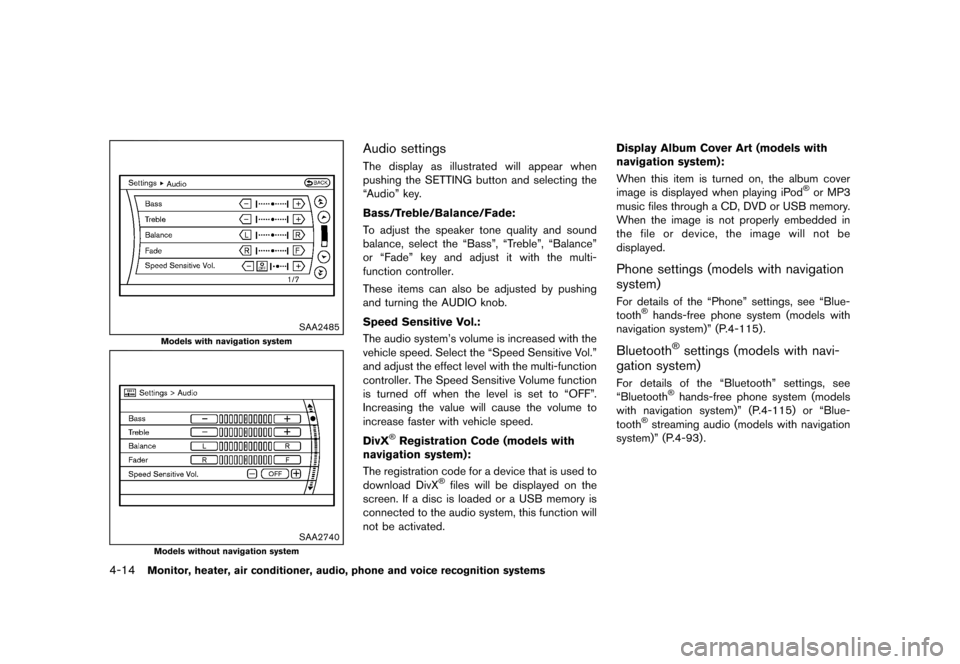

SAA2485
Models with navigation system
SAA2740
Models without navigation system
Audio settingsGUID-53F882F8-82F8-43EE-A19F-864C4A00E327The display as illustrated will appear when
pushing the SETTING button and selecting the
“Audio” key.
Bass/Treble/Balance/Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the speaker tone quality and sound
balance, select the “Bass”, “Treble”, “Balance”
or “Fade” key and adjust it with the multi-
function controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Speed Sensitive Vol.:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system’s volume is increased with the
vehicle speed. Select the “Speed Sensitive Vol.”
and adjust the effect level with the multi-function
controller. The Speed Sensitive Volume function
is turned off when the level is set to “OFF”.
Increasing the value will cause the volume to
increase faster with vehicle speed.
DivX
®Registration Code (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The registration code for a device that is used to
download DivX®files will be displayed on the
screen. If a disc is loaded or a USB memory is
connected to the audio system, this function will
not be activated. Display Album Cover Art (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, the album cover
image is displayed when playing iPod®or MP3
music files through a CD, DVD or USB memory.
When the image is not properly embedded in
the file or device, the image will not be
displayed.
Phone settings (models with navigation
system)
GUID-ACAA6A08-E217-417F-8722-975FC3F2222EFor details of the “Phone” settings, see “Blue-
tooth®hands-free phone system (models with
navigation system)” (P.4-115) .
Bluetooth®settings (models with navi-
gation system)
GUID-68DACA48-E6C6-4EF3-A41E-FC1D3111904CFor details of the “Bluetooth” settings, see
“Bluetooth®hands-free phone system (models
with navigation system)” (P.4-115) or “Blue-
tooth
®streaming audio (models with navigation
system)” (P.4-93) .
Condition:
Page 199 of 485
Black plate (195,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

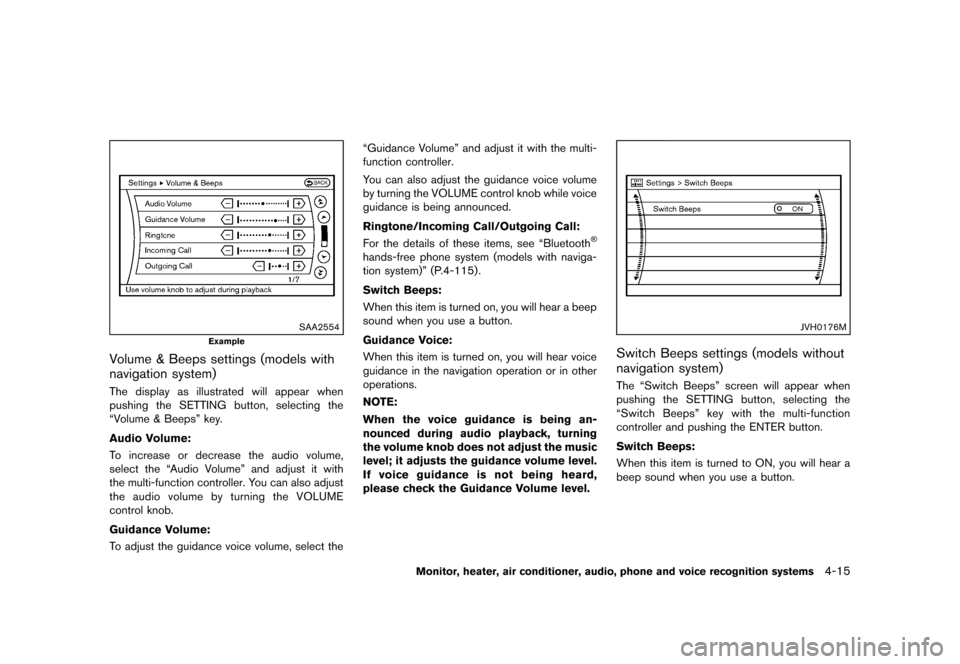

SAA2554
Example
Volume & Beeps settings (models with
navigation system)
GUID-FF8E399D-CE7B-4107-8D49-6253F81687DEThe display as illustrated will appear when
pushing the SETTING button, selecting the
“Volume & Beeps” key.
Audio Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To increase or decrease the audio volume,
select the “Audio Volume” and adjust it with
the multi-function controller. You can also adjust
the audio volume by turning the VOLUME
control knob.
Guidance Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance voice volume, select the“Guidance Volume” and adjust it with the multi-
function controller.
You can also adjust the guidance voice volume
by turning the VOLUME control knob while voice
guidance is being announced.
Ringtone/Incoming Call/Outgoing Call:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of these items, see “Bluetooth®
hands-free phone system (models with naviga-
tion system)” (P.4-115).
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, you will hear a beep
sound when you use a button.
Guidance Voice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, you will hear voice
guidance in the navigation operation or in other
operations.
NOTE:
When the voice guidance is being an-
nounced during audio playback, turning
the volume knob does not adjust the music
level; it adjusts the guidance volume level.
If voice guidance is not being heard,
please check the Guidance Volume level.
JVH0176M
Switch Beeps settings (models without
navigation system)
GUID-AAE88586-15F6-4981-9A7B-7FF6D101C77AThe “Switch Beeps” screen will appear when
pushing the SETTING button, selecting the
“Switch Beeps” key with the multi-function
controller and pushing the ENTER button.
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will hear a
beep sound when you use a button.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-15
Condition:
Page 200 of 485
Black plate (196,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

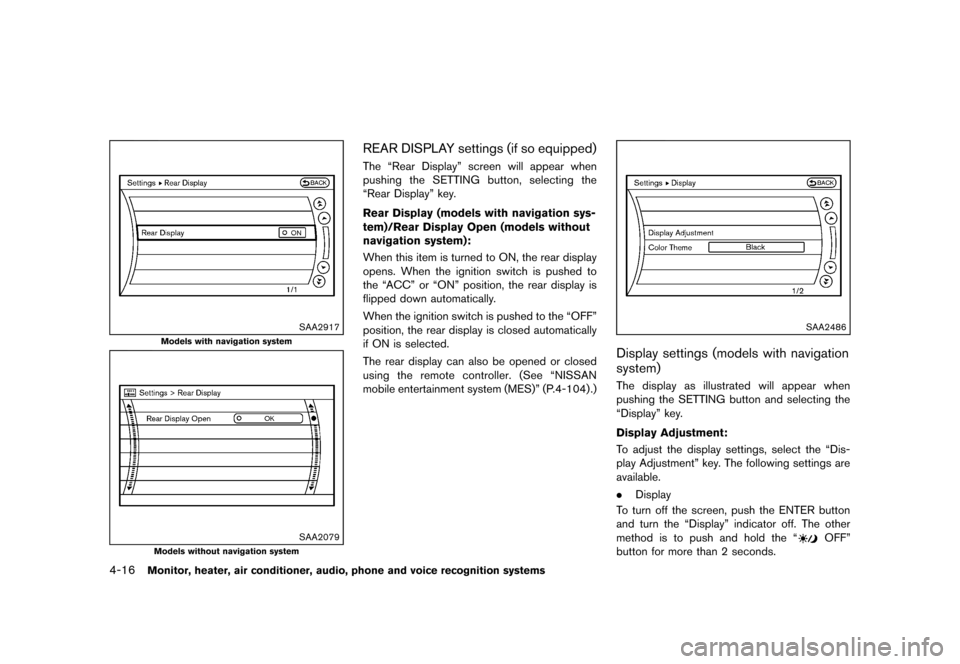

4-16Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2917
Models with navigation system
SAA2079
Models without navigation system
REAR DISPLAY settings (if so equipped)GUID-FB4482FC-D48E-48C7-BA91-1C8CCEB50D2CThe “Rear Display” screen will appear when
pushing the SETTING button, selecting the
“Rear Display” key.
Rear Display (models with navigation sys-
tem)/Rear Display Open (models without
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the rear display
opens. When the ignition switch is pushed to
the “ACC” or “ON” position, the rear display is
flipped down automatically.
When the ignition switch is pushed to the “OFF”
position, the rear display is closed automatically
if ON is selected.
The rear display can also be opened or closed
using the remote controller. (See “NISSAN
mobile entertainment system (MES)” (P.4-104) .)
SAA2486
Display settings (models with navigation
system)
GUID-DED0FB77-D2FB-44D1-926E-A6B2E9D6B2ABThe display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings are
available.
.Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds.
Condition:
