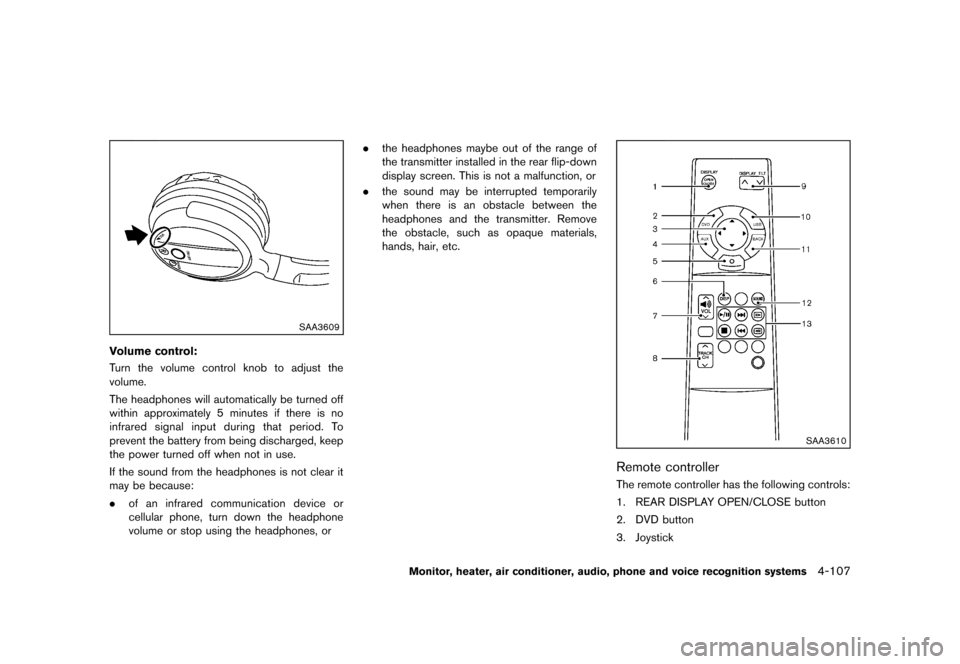

Volume control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the volume control knob to adjust the
volume.
The headphones will automatically be turned off
within approximately 5 minutes if there is no
infrared signal input during that period. To
prevent the battery from being discharged, keep
the power turned off when not in use.
If the sound from the headphones is not clear it
may be because:
.of an infrared communication device or
cellular phone, turn down the headphone
volume or stop using the headphones, or .
the headphones maybe out of the range of
the transmitter installed in the rear flip-down
display screen. This is not a malfunction, or
. the sound may be interrupted temporarily
when there is an obstacle between the
headphones and the transmitter. Remove
the obstacle, such as opaque materials,
hands, hair, etc.
SAA3610
Remote controllerGUID-2588A2CA-F93C-4D91-A8CA-5D040A0DDECAThe remote controller has the following controls:
1. REAR DISPLAY OPEN/CLOSE button
2. DVD button
3. Joystick
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-107
Condition:
Page 292 of 485
Black plate (288,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-108Monitor, heater, air conditioner, audio, phone and voice recognition systems

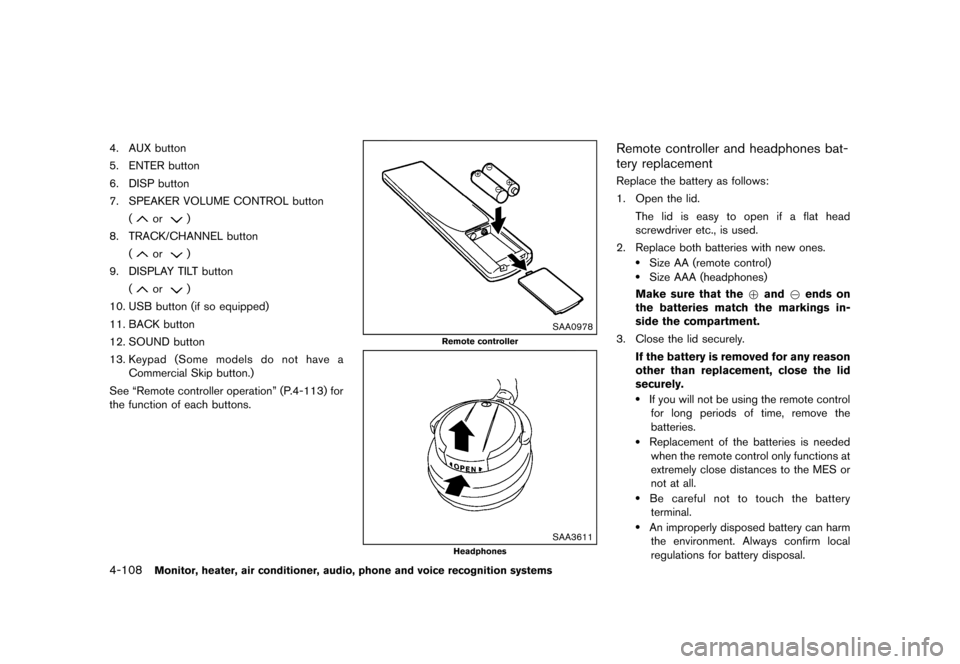

4. AUX button
5. ENTER button
6. DISP button
7. SPEAKER VOLUME CONTROL button(
or)
8. TRACK/CHANNEL button
(
or)
9. DISPLAY TILT button (
or)
10. USB button (if so equipped)
11. BACK button
12. SOUND button
13. Keypad (Some models do not have a
Commercial Skip button.)
See “Remote controller operation” (P.4-113) for
the function of each buttons.
SAA0978
Remote controller
SAA3611
Headphones
Remote controller and headphones bat-
tery replacement
GUID-8A1D3DE9-0E1F-4753-9D1D-E5F067E6239FReplace the battery as follows:
1. Open the lid. The lid is easy to open if a flat head
screwdriver etc., is used.
2. Replace both batteries with new ones.
.Size AA (remote control).Size AAA (headphones)
Make sure that the +and 7ends on
the batteries match the markings in-
side the compartment.
3. Close the lid securely.
If the battery is removed for any reason
other than replacement, close the lid
securely.
.If you will not be using the remote controlfor long periods of time, remove the
batteries.
.Replacement of the batteries is neededwhen the remote control only functions at
extremely close distances to the MES or
not at all.
.Be careful not to touch the batteryterminal.
.An improperly disposed battery can harm the environment. Always confirm local
regulations for battery disposal.
Condition:
Page 293 of 485
Black plate (289,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
.When changing batteries, do not let dustor oil get on the remote control and
headphones.
FCC Notice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
BEFORE OPERATING THE DVD MO-
BILE ENTERTAINMENT SYSTEM
GUID-388A77D2-69A0-4B20-A0E4-DDCE2B1067DC
PrecautionsGUID-5D3D657D-6968-44A5-A144-3182D0634837Start the engine when using the DVD entertain-
ment system.
WARNING
The driver must not attempt to operate
the DVD system or wear the head-
phones while the vehicle is in motion
so that full attention may be given to
vehicle operation.
CAUTION
. Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction. .
While playing VIDEO-CD media, this
DVD player does not guarantee
complete functionality of all VI-
DEO-CD formats.
Parental level (parental control)GUID-A58211E7-DD2A-4035-81DA-19A2C8A67243DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selectionGUID-1F9B68E6-F4DF-443B-BE00-D8AD25A6E450The following disc formats can be played with
the DVD drive.
.DVD-VIDEO
. VIDEO-CD
. DTS-CD (models with navigation system)
Use DVDs with the region code “ALL” or the
code applicable to your country. (The region
code is displayed as a small symbol printed on
the top of the DVD.) This vehicle-installed DVD
player can only play DVDs with an applicable
region code.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-109
Condition:
Page 294 of 485
Black plate (290,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-110Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2497

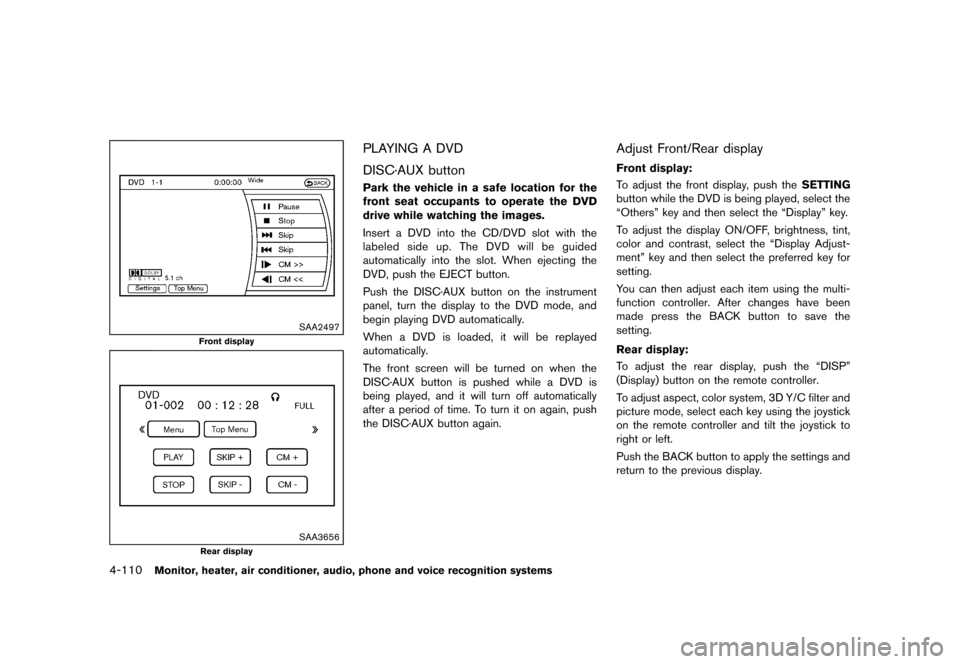

Front display
SAA3656
Rear display
PLAYING A DVDGUID-8F95C3F1-CBC0-4993-966D-B8CAD8A4BB3F
DISC·AUX buttonGUID-B86663CA-BC07-4E91-929F-99AD6ABA7280Park the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.
Insert a DVD into the CD/DVD slot with the
labeled side up. The DVD will be guided
automatically into the slot. When ejecting the
DVD, push the EJECT button.
Push the DISC·AUX button on the instrument
panel, turn the display to the DVD mode, and
begin playing DVD automatically.
When a DVD is loaded, it will be replayed
automatically.
The front screen will be turned on when the
DISC·AUX button is pushed while a DVD is
being played, and it will turn off automatically
after a period of time. To turn it on again, push
the DISC·AUX button again.
Adjust Front/Rear displayGUID-D354ED4E-B9CD-431D-845A-31A5483116CD
Front display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the front display, push theSETTING
button while the DVD is being played, select the
“Others” key and then select the “Display” key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select the preferred key for
setting.
You can then adjust each item using the multi-
function controller. After changes have been
made press the BACK button to save the
setting.
Rear display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display, push the “DISP”
(Display) button on the remote controller.
To adjust aspect, color system, 3D Y/C filter and
picture mode, select each key using the joystick
on the remote controller and tilt the joystick to
right or left.
Push the BACK button to apply the settings and
return to the previous display.
Condition:
Page 295 of 485
Black plate (291,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

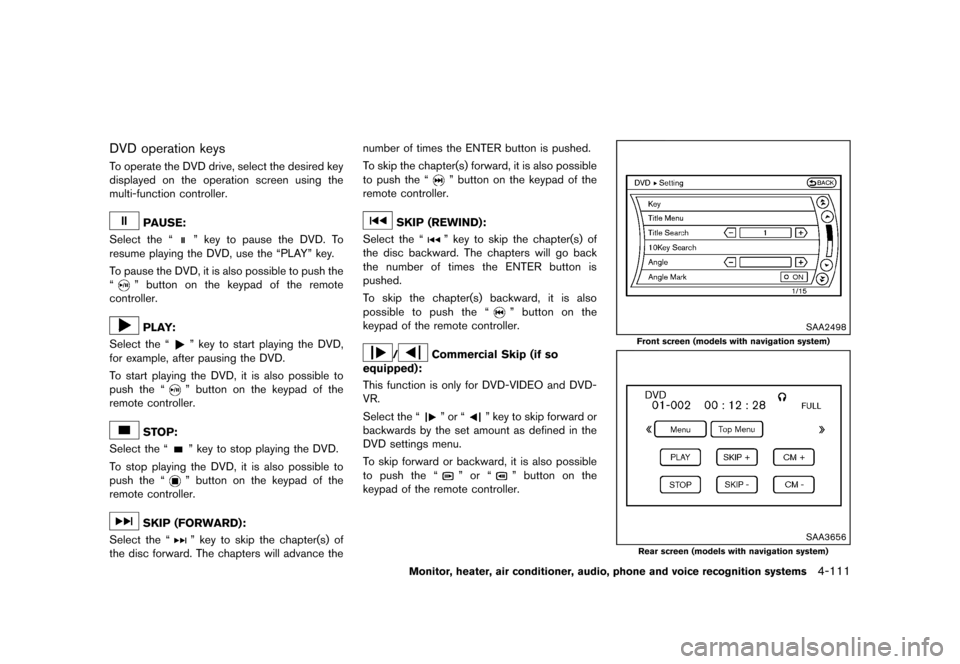

DVD operation keysGUID-B86DB395-DEC5-4D6C-A71D-E9C3F49F2777To operate the DVD drive, select the desired key
displayed on the operation screen using the
multi-function controller.
PAUSE:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
To pause the DVD, it is also possible to push the
“
” button on the keypad of the remote
controller.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to start playing the DVD,
for example, after pausing the DVD.
To start playing the DVD, it is also possible to
push the “
” button on the keypad of the
remote controller.
STOP:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to stop playing the DVD.
To stop playing the DVD, it is also possible to
push the “
” button on the keypad of the
remote controller.
SKIP (FORWARD):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to skip the chapter(s) of
the disc forward. The chapters will advance the number of times the ENTER button is pushed.
To skip the chapter(s) forward, it is also possible
to push the “
” button on the keypad of the
remote controller.
SKIP (REWIND):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ENTER button is
pushed.
To skip the chapter(s) backward, it is also
possible to push the “
” button on the
keypad of the remote controller.
/Commercial Skip (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This function is only for DVD-VIDEO and DVD-
VR.
Select the “
” or “” key to skip forward or
backwards by the set amount as defined in the
DVD settings menu.
To skip forward or backward, it is also possible
to push the “
” or “” button on the
keypad of the remote controller.
SAA2498
Front screen (models with navigation system)
SAA3656
Rear screen (models with navigation system)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-111
Condition:
Page 296 of 485
Black plate (292,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-112Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3087
Front screen (models without navigation system)
SAA3657
Rear screen (models without navigation system)

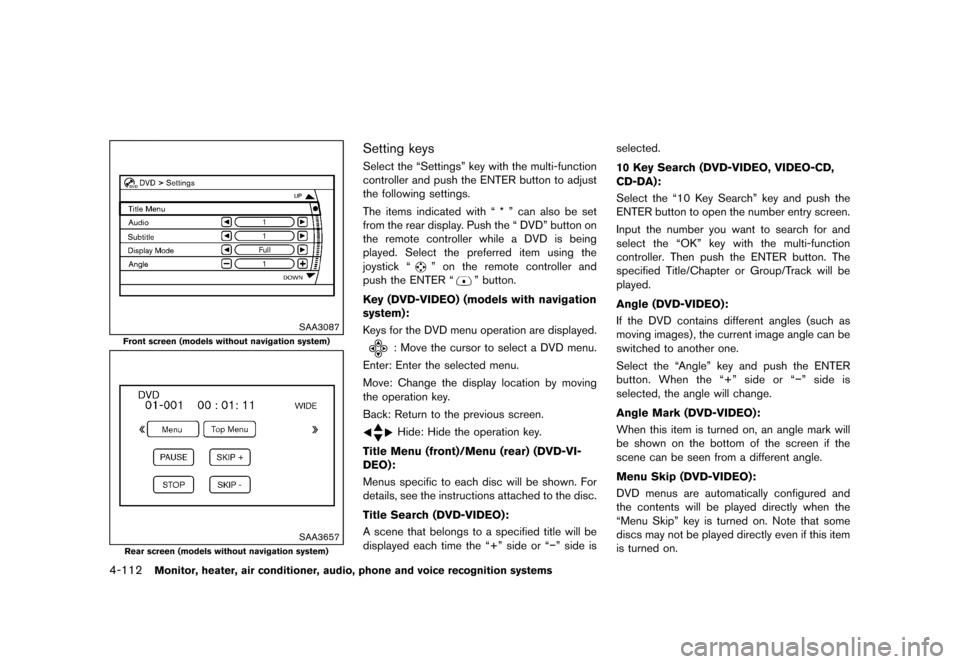

Setting keysGUID-D63AE974-8FAC-4DB4-92D2-3F23ED97403DSelect the “Settings” key with the multi-function
controller and push the ENTER button to adjust
the following settings.
The items indicated with “ * ” can also be set
from the rear display. Push the “ DVD” button on
the remote controller while a DVD is being
played. Select the preferred item using the
joystick “
” on the remote controller and
push the ENTER “
” button.
Key (DVD-VIDEO) (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (front)/Menu (rear) (DVD-VI-
DEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Menus specific to each disc will be shown. For
details, see the instructions attached to the disc.
Title Search (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407A scene that belongs to a specified title will be
displayed each time the “+” side or “−” side is selected.
10 Key Search (DVD-VIDEO, VIDEO-CD,
CD-DA):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “10 Key Search” key and push the
ENTER button to open the number entry screen.
Input the number you want to search for and
select the “OK” key with the multi-function
controller. Then push the ENTER button. The
specified Title/Chapter or Group/Track will be
played.
Angle (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one.
Select the “Angle” key and push the ENTER
button. When the “+” side or “−” side is
selected, the angle will change.
Angle Mark (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
Menu Skip (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this item
is turned on.
Condition:
Page 297 of 485
Black plate (293,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
CM Skip (DVD-VIDEO) (models with navi-
gation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The number of seconds for CM Skip can be set
to 15, 30 or 60 seconds.
DRC (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DRC (Dynamic Range Compression) allows
tuning of the dynamic range of sound recorded
in the Dolby Digital format.
DVD Language (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “DVD Language” key and push the
ENTER button to open the number entry screen.
Input the number corresponding to the preferred
language and select the “OK” key with the multi-
function controller. Then push the ENTER
button. The DVD top menu language will be
changed to the one selected.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items and push the ENTER
button.
Audio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.
Subtitle (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.To turn off the subtitles, push and hold the
ENTER button until a beep sounds.
Display Mode (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose from the “Full”, “Wide”, “Normal” or
“Cinema” mode using the multi-function con-
troller and push the ENTER button again.
Play Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred play mode using the multi-
function controller and push the ENTER button.
Remote controller operationGUID-816E5A31-1B94-4815-A03C-0AB03B00B3A9Use the remote controller to adjust the following
items.
Rear display open/close:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To open or close the flip-down rear display, push
the “
” button.
Joystick:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use the joystick “” to select the items
displayed on the rear screen.
ENTER button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ENTER “” button to make the
selected item complete on the rear screen.
BACK button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push to go back to the previous screen or
cancel the selection. Display tilt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the display angle by pushing the DIS-
PLAY TILT button “
”.
DVD mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the DVD mode, push the DVD button.
USB mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the USB mode, push the USB button.
AUX mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the AUX (auxiliary input jacks) , mode,
push the AUX button.
Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the speaker volume level, push the
VOL button “
”.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display screen (aspect, color
system, 3D Y/C filter and picture mode etc.) ,
push the DISP button.
Sound:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change the language, push the SOUND
button. Each time the button is pushed, the
language will change to each language stored in
the DVD.
Track/Channel:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip to the previous or next DVD scene
selection, push the TRACK CH button “
”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-113
Condition:
Page 298 of 485
Black plate (294,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-114Monitor, heater, air conditioner, audio, phone and voice recognition systems
Keypad:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407: PLAY/PAUSE button
: STOP button
: FORWARD button
: REWIND button
: FORWARD button for commercial skip (for
DVD-VIDEO and DVD-VR)
: REWIND button for commercial skip (for
DVD-VIDEO and DVD-VR)
Rear display settingsGUID-00567E6D-1555-4281-8A99-57190FBFC391To adjust rear display setting, select the
preferred key and push the ENTER
button.
The following settings are available:
Aspect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the display size from “CINEMA”, “WIDE”,
“FULL” or “NORMAL” using the joystick on the
remote controller.
Picture Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display brightness automatically,
select the “Brightness” key and then select from
“DARKER”, “NORMAL” or “BRIGHTER”. When
adjusting manually, select “OFF” and adjust
using the joystick on the remote controller and
tilt the joystick to the right or left.
To adjust tint, color, contrast or black level,
select a key using the joystick on the remote controller and tilt the joystick to the right or left.
Push the BACK button on the remote controller
to apply the settings and return to the previous
display.
To return the adjustment levels to the default
value, select “Execute” next to “Initialization”
using the joystick on the remote controller and
push the ENTER
button. The “Execute” key
is deactivated when the picture mode settings
are already in the default value.
Color System:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To choose the color system, select from
“NTSC”, “PAL”, “PAL-60”, “PAL-M”, “PAL-N” or
“AUTO” using the joystick on the remote
controller and tilt the joystick to the right or left.
3D Y/C filter:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Set to ON/OFF using the joystick on the remote
controller. When turned on, small characters
and an outline of the shapes will be displayed
more clearly than when turned off.
CARE AND MAINTENANCEGUID-A7F955DE-E9EA-46F4-9DFB-E580911AB596Use a lightly dampened, lint free cloth to clean
the surfaces of your Mobile Entertainment
System (DVD player face, screen, remote
controller, etc.) .
CAUTION
. Do not use any solvents or cleaning
solutions when cleaning the video
system.
. Do not use excessive force on the
monitor screen.
. Avoid touching or scratching the
monitor screen as it may become
dirty or damaged.
. Do not attempt to operate the
system in extreme temperature con-
ditions [below −48F (−208C) and
above 1588F (708C)].
. Do not attempt to operate the
system in extreme humidity condi-
tions (less than 10% or more than
75%) .
Condition:
Page 299 of 485
Black plate (295,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-105D6E67-2A52-412D-A202-BB6065AD5B2BWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-983C61FF-2D71-4F38-99B2-426D4B127A2D
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with Bluetooth
®
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth®enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth
®wireless tech-
nology, you can make or receive a telephone call
with your cellular phone in your pocket.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-115
CAR PHONE OR CB RADIO Bluetooth
®HANDS-FREE PHONE
SYSTEM (models with navigation
system)
Condition:
Page 300 of 485
Black plate (296,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems
Once a cellular phone is connected to the in-
vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
®
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.
The NISSAN Voice Recognition system sup-
ports the phone commands, so dialing a phone
number using your voice is possible. For more
details, see “NISSAN voice recognition system
(models with navigation system)” (P.4-139).
Before using the Bluetooth
®Hands-Free Phone
System, refer to the following notes.
. Wireless LAN (Wi-Fi) and the Bluetooth
®
functions share the same frequency band
(2.4 GHz) . Using the Bluetooth®and the
wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is
recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth
®
functions. .
Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
®
Hands-Free Phone System.
. Some Bluetooth®enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.nissanusa.com/bluetooth for a recom-
mended phone list.
. You will not be able to use a hands-free
phone under the following conditions:
— Your vehicle is outside of the telephone
service area.
— Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking
garage, behind a tall building or in a
mountainous area.
— Your cellular phone is locked in order not to be dialed.
. When the radio wave reception is not good
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
. Immediately after the ignition switch is
pushed to the ON position, it may be
impossible to receive a call for a short
period of time. .
Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth
®wireless connection, the
battery power of the cellular phone may
discharge quicker than usual.
. If the Bluetooth
®Hands-Free Phone System
seems to be malfunctioning, please visit
www.nissanusa.com/bluetooth for trouble-
shooting help.
. Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
Condition:
