NISSAN QUEST 2013 RE52 / 4.G Owners Manual

Black plate (467,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
.Have your vehicle serviced more often than
at intervals specified in the recommended
maintenance schedule in the NISSAN Ser-
vice and Maintenance Guide.
. When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
. Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect
vehicle handling. If swaying does occur,
firmly grip the steering wheel, steer straight
ahead, and immediately (but gradually)
reduce vehicle speed. This combination will
help stabilize the vehicle. Never increase
speed.
Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the
vehicle.
.Do not correct trailer sway by steering orapplying the brakes. 2. When the trailer sway stops, gently apply
the brakes and pull to the side of the road in
a safe area.
3. Try to rearrange the trailer load so it is balanced as described earlier in this section.
. Be careful when passing other vehicles.
Passing while towing a trailer requires
considerably more distance than normal
passing. Remember the length of the trailer
must also pass the other vehicle before you
can safely change lanes.
. Down shift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
. Avoid holding the brake pedal down too
long or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
. Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
. Do not use cruise control while towing a
trailer.
. Some states or provinces have specific
regulations and speed limits for vehicles
that are towing trailers. Obey the local
speed limits. .
Check your hitch, trailer wiring harness
connections, and trailer wheel lug nuts after
50 miles (80 km) of travel and at every
break.
. When stopped in traffic for long periods of
time in hot weather, put the vehicle in the P
(Park) position.
. When launching a boat, don’t allow the
water level to go over the exhaust tail pipe or
rear bumper.
. Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, the transmission
fluid should be changed more frequently.
For additional information, see the “8.
Maintenance and do-it-yourself” section
earlier in this manual.
Technical and consumer information9-23
Condition:

Black plate (468,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
9-24Technical and consumer information
FLAT TOWINGGUID-22D28CB3-8BAA-4261-BDC2-B6F0C34A13FDTowing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
.Failure to follow these guidelines
can result in severe transmission
damage.
. Whenever flat towing your vehicle,
always tow forward, never back-
ward.
. DO NOT tow any continuously vari-
able transmission vehicle with all
four wheels on the ground (flat
towing) . Doing so WILL DAMAGE
internal transmission parts due to
lack of transmission lubrication.
. For emergency towing procedures
refer to “Towing recommended by
NISSAN” (P.6-15) of this manual.
Continuously Variable Transmission
(CVT)
GUID-715B02B4-B737-40A6-ACB5-EB71D4B1EE9CTo tow a vehicle equipped with a Continuously
Variable Transmission (CVT) , an appropriate
vehicle dolly MUSTbe placed under the towed
vehicle’s driving wheels. Alwaysfollow the dolly
manufacturer’s recommendations when using
their product.
GUID-18823BF1-573C-4FB5-8E7F-CF9F7F1A990FDOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-02DB8D34-5B66-4FC9-A681-06FCE1ECD484The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half
(1 1/2) times as well on the government course
as a tire graded 100. The relative performance
of tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
TRACTION AA, A, B AND CGUID-3CD8DC1C-AD6A-4161-9448-70CD1375773AThe traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poor
UNIFORM TIRE QUALITY GRADING
Condition:

Black plate (469,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
traction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-96A6ADE2-9EA1-476C-98AE-94D917F41FAEThe temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
GUID-2AAFA825-2CCD-49D8-84F0-5A54C20203E2Your NISSAN is covered by the following
emission warranties.
For USA:
.Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN. If you did not receive a Warranty
Information Booklet, or it has become lost, you
may obtain a replacement by writing to:
. Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN. If you did not receive a Warranty
Information Booklet, or it has become lost, you
may obtain a replacement by writing to:
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5
Technical and consumer information9-25
EMISSION CONTROL SYSTEM
WARRANTY
Condition:

Black plate (470,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
9-26Technical and consumer information
GUID-FFB3786B-DF40-4E64-AE39-5E17E57D3807For USA
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 400 Seventh Street,
SW., Washington, D.C. 20590. You can
also obtain other information about motor
vehicle safety from http://www.safercar.
gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1 (1-800-647-7261).For Canada
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada in addition to
notifying NISSAN.
If Transport Canada receives complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that NISSAN
conduct a recall campaign. However,
Transport Canada cannot become involved
in individual problems between you, your
dealer, or NISSAN.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division toll
free at 1-800-333-0510. You may also
report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere(French speakers).
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.
REPORTING SAFETY DEFECTS
Condition:

Black plate (471,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

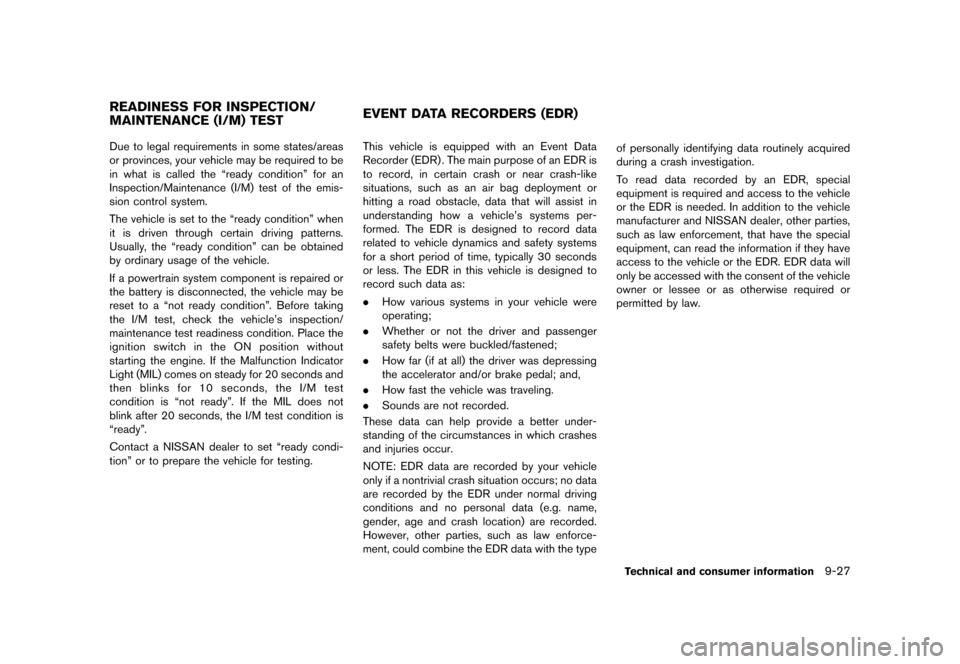

GUID-9B46412B-2B34-4BF5-B9C4-00B324CA4A49Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a NISSAN dealer to set “ready condi-
tion” or to prepare the vehicle for testing.GUID-7824A4D3-21BE-411F-9D51-571D8AF5B839This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.
Technical and consumer information9-27
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
Condition:

Black plate (472,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
9-28Technical and consumer information
GUID-3865EDB4-DDFE-4AA7-8DDA-5BB382713F6DGenuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory-trained technicians working at NISSAN
dealerships. Genuine NISSAN Owner’s Man-
uals can also be purchased.
For USA:
For current pricing and availability of genuine
NISSAN Service Manuals, contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual for this
model year and prior, contact a NISSAN dealer.
For the phone number and location of a NISSAN
dealer in your area, call the NISSAN Information
Center at 1-800-387-0122 and a bilingual
NISSAN representative will assist you.

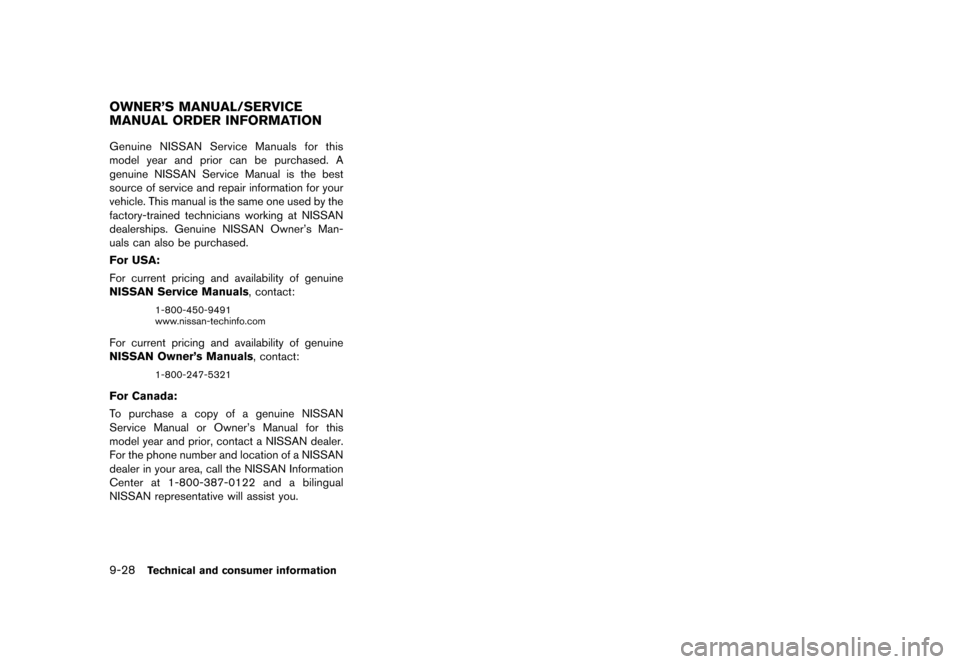

OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Condition:

Black plate (473,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
10 Index
A
A/C (Air Conditioner) operation...
.............................. 4-42
ABS (Anti-lock Braking System) ...
............................ 5-30
Advanced air bag system ...
......................................... 1-53
Aiming control, Headlights ...
........................................ 2-36
Air bag system Advanced air bag system ...
.................................. 1-53
Front passenger air bag and status light ...
....... 1-54
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-58
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-58
Air bag warning labels ...
............................................... 1-60
Air bag warning light ...
...................................... 1-61, 2-15
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
.................................... 4-39
Air conditioner service ...
........................................ 4-52
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-52, 9-6
In-cabin microfilter ...
............................................... 4-53
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-28
Alcohol, drugs and driving ...
.......................................... 5-8
Antenna ...
....................................................................... 4-103
Anti-lock Braking System (ABS) ...
............................ 5-30
Anti-lock braking system (ABS) warning light ...
..... 2-12
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Armrests ...
........................................................................ 1-13
Around view
TMmonitor ...
.............................................. 4-29
Audible reminders ...
....................................................... 2-18
Audio operation precautions ...
.................................... 4-53 Audio system
...
................................................................ 4-53
Steering wheel audio controls ...
........................ 4-102
Auto closure ...
................................................................. 3-29
Autolight system ...
.......................................................... 2-33
Automatic Air conditioner ...
....................................................... 4-46
Door locks ...
................................................................. 3-7
Drive positioner ...
..................................................... 3-37
Moonroof ...
................................................................ 2-53
Seat positioner ...
...................................................... 3-37
AUX (Auxiliary) input ...
................................................... 4-77
Avoiding collision and rollover ...
................................... 5-6
B
Back door (See lift gate) ...
.......................................... 3-26
Battery ...
............................................................................ 8-13
Battery saver system ...
........................................... 2-35
Intelligent Key ...
........................................................ 8-22
Variable voltage control system ...
........................ 8-15
Before starting the engine ...
........................................ 5-12
Blind Spot Warning (BSW) system ...
....................... 5-17
Blind Spot Warning (BSW) system
warning light ...
................................................................. 2-12
Bluetooth
®hands-free phone system
(models with navigation system) ...
.......................... 4-115
Bluetooth
®hands-free phone system
(models without navigation system) ...
.................... 4-126
Bluetooth
®streaming audio ...
..................................... 4-93
Booster seats ...
............................................................... 1-43
Brake Anti-lock Braking System (ABS) ...
..................... 5-30
Brake fluid ...
.............................................................. 8-12
Brake system ...
......................................................... 5-29
Parking brake operation ...
..................................... 5-17
Warning light ...
......................................................... 2-12 Break-in schedule
...
....................................................... 5-26
Brightness control Display ON/OFF button ...
........................................ 4-8
Instrument panel ...
................................................... 2-37
Bulb check/instrument panel ...
................................... 2-12
Bulb replacement ...
........................................................ 8-24
C
Cabin air filter ...
............................................................... 4-53
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
.......................................... 4-115
Cargo floor box ...
............................................................ 2-47
Cargo lights ...
.................................................................. 2-58
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
........... 4-101
Center multi-function control panel ...
.......................... 4-3
Child restraints ...
............................................................. 1-27
Booster seats ...
........................................................ 1-43
LATCH system ...
...................................................... 1-29
Precautions on child restraints ...
......................... 1-27
Top tether strap ...
.................................................... 1-31
Child safety ...
................................................................... 1-25
Chimes Audible reminders ...
................................................ 2-18
Seat belt warning light and chime ...
................... 2-15
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
.............................................................................. 4-74
Coat hooks ...
................................................................... 2-50
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-33
Communication mirror ...
................................................ 3-36
Compact Disc (CD) player (See
audio system) ...
................................................... 4-76, 4-84
Compass ...
......................................................................... 2-8
Condition:

Black plate (474,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
10-2
Console box...
................................................................. 2-46
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Control panel button ...
.................................. 4-3
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-24
Cup holders ...
.................................................................. 2-43
CVT, Driving with CVT (Continuously
Variable Transmission) ...
............................................... 5-13
D
Daytime running light system ...
................................... 2-36
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-32
Dimensions and weights ...
............................................. 9-8
DISP button ...
.................................................................... 4-8
Dot matrix liquid crystal display ...
............................... 2-18
Drive belt ...
....................................................................... 8-15
Drive positioner ...
............................................................ 3-37
Driving Cold weather driving ...
........................................... 5-33
Driving with CVT (Continuously
Variable Transmission) ...
........................................ 5-13
Precautions when starting and driving ...
.............. 5-2
DVD player, NISSAN mobile entertainment ...
...... 4-104
E
ECON button ...
................................................................. 4-9
Economy, Fuel ...
.............................................................. 5-27
Elapsed time ...
................................................................. 2-24 Emission control information label
...
.......................... 9-10
Emission control system warranty ...
........................... 9-25
Engine Before starting the engine ...
................................. 5-12
Break-in schedule ...
................................................ 5-26
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-11
Engine block heater ...
............................................. 5-34
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil replacement indicator ...
...................... 2-22
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
Engine start operation indicator ...
....................... 2-19
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-12
Entry/exit function, Automatic drive positioner ...
.... 3-37
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-21
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2 Flat tire
...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-24
Flexible seating ...
............................................................ 1-13
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-12
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Power steering fluid ...
............................................. 8-11
Window washer fluid ...
.......................................... 8-13
FM-AM radio with Compact Disc
(CD) player ...
....................................................... 4-69, 4-73
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-81
Fog light switch ...
........................................................... 2-37
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-54
Front power seat adjustment ...
..................................... 1-3
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraint ...
............................... 1-10
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-27
Fuel economy information (display) ...
................. 4-10
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-30
Fuel-filler door ...
....................................................... 3-30
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-32
Fuel efficient driving tips ...
........................................... 5-26
Fuses ...
.............................................................................. 8-20
Condition:

Black plate (475,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
Fusible links...
.................................................................. 8-20
G
Garage door opener, HomeLink®
Universal Transceiver ...
.................................................. 2-59
Gas cap ...
......................................................................... 3-30
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-8
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-7
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-45
H
Hands-free phone system, Bluetooth®
(models with navigation system) ...
.......................... 4-115
Hands-free phone system, Bluetooth®
(models without navigation system) ...
.................... 4-126
Hazard warning flasher switch ...
................................... 6-2
Head restraints ...
.............................................................. 1-7
Headlights Aiming control ...
....................................................... 2-36
Bulb replacement ...
................................................. 8-25
Headlight switch ...
................................................... 2-33
Xenon headlights ...
.................................................. 2-32
Heated seats ...
................................................................ 2-38
Heater Engine block heater ...
............................................. 5-34
Heater and air conditioner operation ...
.............. 4-39
HomeLink
®Universal Transceiver ...
........................... 2-59
Hood release ...
................................................................ 3-25
Hook, Coat hooks ...
....................................................... 2-50 Horn
...
................................................................................ 2-38
Hydraulic pump electric power
steering system ...
............................................................ 5-29
I
Ignition switch (Push-button) ...
..................................... 5-8
Immobilizer system ...
...................................................... 2-28
In-cabin microfilter ...
...................................................... 4-53
Indicator Dot matrix display ...
................................................. 2-18
Lights ...
....................................................................... 2-16
INFO button ...
.................................................................... 4-9
Inside mirror ...
.................................................................. 3-33
Inspection/maintenance (I/M) test ...
.......................... 9-27
Instrument brightness control ...
.................................. 2-37
Instrument panel ...
................................................. 2-4, 2-43
Intelligent Key system ...
....................................... 3-3, 3-13
Battery replacement ...
............................................ 8-22
Intelligent Key system warning light ...
................ 2-14
Key operating range ...
............................................ 3-15
Key operation ...
........................................................ 3-16
Warning signals ...
.................................................... 3-19
Interior light control switch ...
....................................... 2-57
Interior light replacement ...
........................................... 8-26
Interior lights ...
................................................................. 2-56
iPod
®player operation ...
................................... 4-79, 4-98
ISOFIX child restraint ...
................................................. 1-29
J
Jump starting ...
................................................................ 6-10
K
Keyless entry (See remote keyless
entry system) ...
................................................................ 3-21
Keys ...
.................................................................................. 3-3
For Intelligent Key system ...
......................... 3-3, 3-13
L
Labels
Air bag warning labels ...
........................................ 1-60
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
........... 9-9
Tire and Loading Information label ...
....... 8-30, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-29
License plate, Installing front license plate ...
.......... 9-11
Lift gate ...
.......................................................................... 3-26
Light Air bag warning light ...
........................................... 1-61
Bulb replacement ...
................................................. 8-24
Cargo lights ...
........................................................... 2-58
Fog light switch ...
.................................................... 2-37
Headlight switch ...
................................................... 2-33
Headlights bulb replacement ...
............................ 8-25
Indicator lights ...
....................................................... 2-16
Interior light control switch ...
................................ 2-57
Interior lights ...
.......................................................... 2-56
Map lights ...
.............................................................. 2-56
Mood lights ...
............................................................ 2-58
Replacement ...
.......................................................... 8-24
Vanity mirror lights ...
............................................... 2-58
Warning/indicator lights and
audible reminders ...
................................................. 2-12
Xenon headlights ...
.................................................. 2-32
10-3
Condition:

Black plate (476,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
10-4
Lights, Exterior and interior light replacement...
..... 8-26
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-7
Door locks ...
................................................................. 3-5
Lift gate lock ...
.......................................................... 3-26
Power door lock ...
...................................................... 3-5
Locking with mechanical key ...
...................................... 3-5
Loose fuel cap warning ...
................................. 2-21, 3-30
Low outside temperature warning ...
.......................... 2-21
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance indicators ...
....................................... 2-22
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-24
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-41
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-56
Master warning light ...
................................................... 2-15
Mechanical key (Intelligent Key system) ...
................. 3-4
Memory storage, Automatic drive positioner ...
....... 3-37
Meter Trip computer ...
........................................................ 2-22
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37 Mirror
Inside mirror ...
........................................................... 3-33
Outside mirrors ...
..................................................... 3-35
Vanity mirror ...
........................................................... 3-36
Monitor, Rearview monitor ...
........................................ 4-23
Mood lights ...
................................................................... 2-58
Moonroof ...
....................................................................... 2-53
Multi-function controller ...
............................................... 4-5
N
New vehicle break-in ...
.................................................. 5-26
NISSAN Mobile entertainment
system (MES) ...
........................................................... 4-104
NISSAN Vehicle Immobilizer System ...
..................... 2-28
NISSAN voice recognition system ...
...................... 4-139
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Oil filter replacement indicator ...
......................... 2-22
Operation, Operational indicators ...
........................... 2-19
Outside air temperature display ...
.............................. 2-25
Outside mirrors ...
............................................................ 3-35
Overdrive OFF switch ...
................................................ 5-15
Overheat, If your vehicle overheats ...
........................ 6-12
Owner’s Manual/Service Manual
order information ...
......................................................... 9-28
P
Panic alarm ...
................................................................... 3-23
Parking Brake break-in ...
....................................................... 5-30
Parking brake operation ...
..................................... 5-17
Parking on hills ...
..................................................... 5-28
Phone Bluetooth
®hands-free phone system
(models with navigation system) ...
.................... 4-115
Bluetooth
®hands-free phone system
(models without navigation system) ...
.............. 4-126
Car phone or CB radio ...
.................................... 4-115
Power Front seat adjustment ...
............................................ 1-3
Power door lock ...
...................................................... 3-5
Power outlet ...
.......................................................... 2-40
Power sliding door ...
.................................................. 3-9
Power steering fluid ...
............................................. 8-11
Power windows ...
.................................................... 2-51
Precautions Audio operation ...
.................................................... 4-53
Braking precautions ...
............................................. 5-29
Child restraints ...
...................................................... 1-27
Cruise control ...
........................................................ 5-24
Maintenance ...
............................................................. 8-5
Seat belt usage ...
.................................................... 1-16
Supplemental restraint system ...
.......................... 1-47
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-12
Push-button ignition switch ...
............................. 5-8, 5-10
R
Radio ...
.............................................................................. 4-53
Car phone or CB radio ...
.................................... 4-115
Condition:
