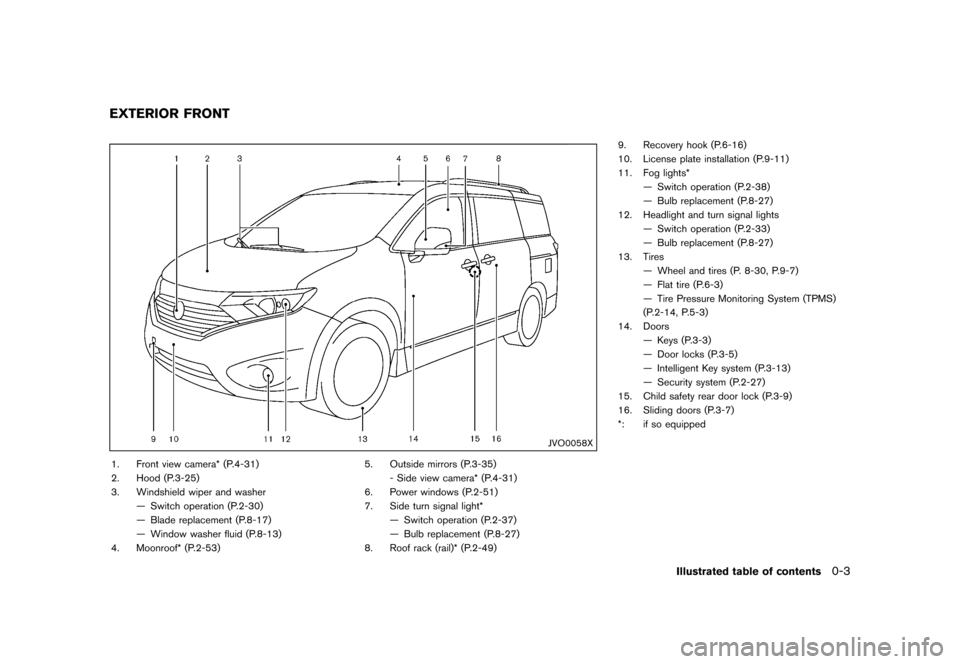

1. Front view camera* (P.4-31)
2. Hood (P.3-25)
3. Windshield wiper and washerÐ Switch operation (P.2-30)
Ð Blade replacement (P.8-17)
Ð Window washer fluid (P.8-13)
4. Moonroof* (P.2-53) 5. Outside mirrors (P.3-35)
- Side view camera* (P.4-31)
6. Power windows (P.2-51)
7. Side turn signal light*
Ð Switch operation (P.2-37)
Ð Bulb replacement (P.8-27)
8. Roof rack (rail)* (P.2-49) 9. Recovery hook (P.6-16)
10. License plate installation (P.9-11)
11. Fog lights*
Ð Switch operation (P.2-38)
Ð Bulb replacement (P.8-27)
12. Headlight and turn signal lights Ð Switch operation (P.2-33)
Ð Bulb replacement (P.8-27)
13. Tires Ð Wheel and tires (P. 8-30, P.9-7)
Ð Flat tire (P.6-3)
Ð Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-3)
14. Doors Ð Keys (P.3-3)
Ð Door locks (P.3-5)
Ð Intelligent Key system (P.3-13)
Ð Security system (P.2-27)
15. Child safety rear door lock (P.3-9)
16. Sliding doors (P.3-7)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT
& R Q G L W L R Q
Page 12 of 491
> ( G L W 0 R G H O ( ' @
0-4Illustrated table of contents
GUID-299D8FFF-E598-4546-98D3-42DC52234B1C
SSI0822

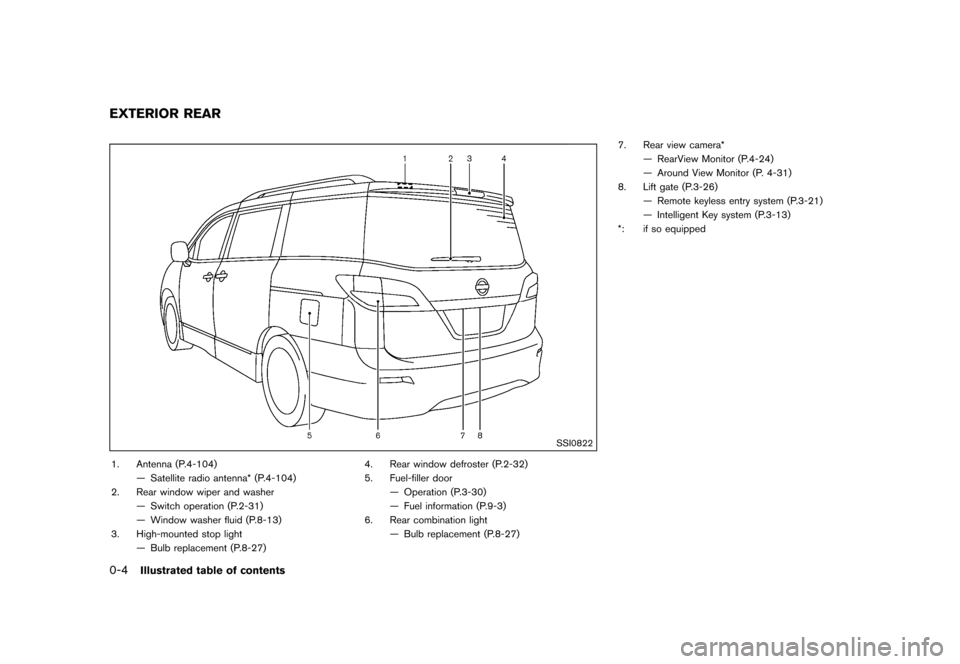

1. Antenna (P.4-104)Ð Satellite radio antenna* (P.4-104)
2. Rear window wiper and washer
Ð Switch operation (P.2-31)
Ð Window washer fluid (P.8-13)
3. High-mounted stop light Ð Bulb replacement (P.8-27) 4. Rear window defroster (P.2-32)
5. Fuel-filler door
Ð Operation (P.3-30)
Ð Fuel information (P.9-3)
6. Rear combination light Ð Bulb replacement (P.8-27) 7. Rear view camera*
Ð RearView Monitor (P.4-24)
Ð Around View Monitor (P. 4-31)
8. Lift gate (P.3-26) Ð Remote keyless entry system (P.3-21)
Ð Intelligent Key system (P.3-13)
*: if so equipped
EXTERIOR REAR
& R Q G L W L R Q
Page 17 of 491
> ( G L W 0 R G H O ( ' @
GUID-3A4CEA77-5BE4-4FE6-B1A8-2659A7636D0E
SDI2715

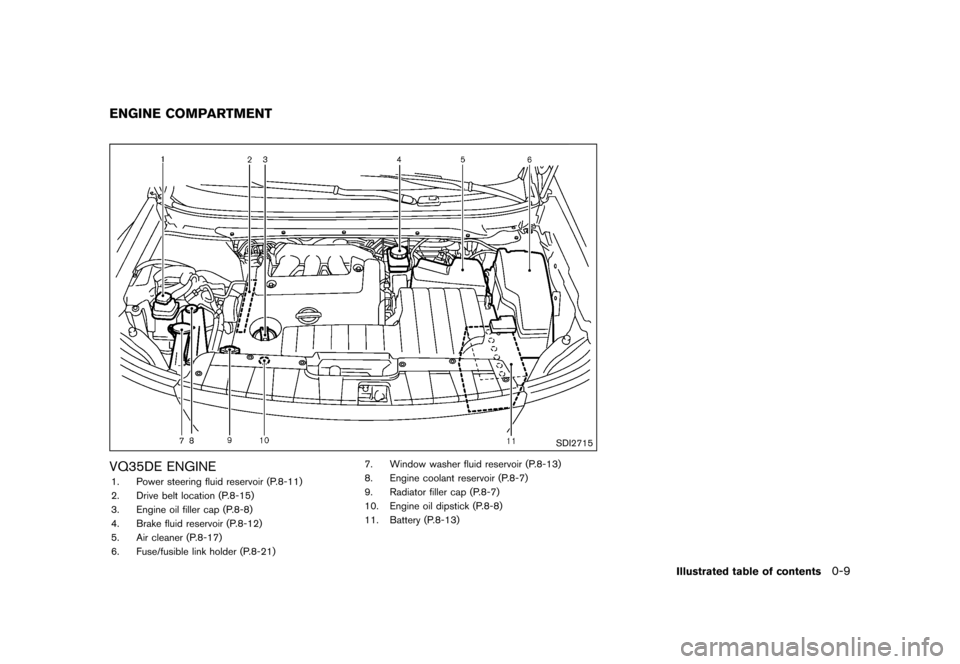

VQ35DE ENGINEGUID-EEC870E3-1878-4751-8AE6-5D5884DD625A1. Power steering fluid reservoir (P.8-11)
2. Drive belt location (P.8-15)
3. Engine oil filler cap (P.8-8)
4. Brake fluid reservoir (P.8-12)
5. Air cleaner (P.8-17)
6. Fuse/fusible link holder (P.8-21)7. Window washer fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-7)
9. Radiator filler cap (P.8-7)
10. Engine oil dipstick (P.8-8)
11. Battery (P.8-13)
Illustrated table of contents0-9
ENGINE COMPARTMENT
& R Q G L W L R Q
Page 95 of 491
> ( G L W 0 R G H O ( ' @
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat. If you have a flat
tire, replace it with a spare tire as
soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h) , the TPMS may not operate
correctly. .
Be sure to correctly install the
specified size of tires to the four
wheels.
Master warning lightGUID-AE6F59CE-42B9-444F-B156-919C688575F5When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the vehicle informa-
tion display:
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning
. Loose fuel cap warning
. Check tire pressure warning
. Extended storage fuse warning
See ªVehicle information displayº (P.2-18) .
Seat belt warning light and chimeGUID-A109F64D-D61F-4A96-AD87-98431E7D57E1The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver's seat belt is
fastened. At the same time, the chime will sound
for approximately 6 seconds unless the driver's
seat belt is securely fastened. The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger's seat is
occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.
See ªSeat beltsº (P.1-15) for precautions on
seat belt usage.
Supplemental air bag warning lightGUID-053868B0-D825-4DAD-80BD-8335FF04C712After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
supplemental front air bag and supplemental
side air bag, curtain side-impact air bag systems
and/or pretensioner seat belt are operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and
pretensioner systems needs servicing and your
vehicle must be taken to your nearest NISSAN
dealer.
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
Instruments and controls2-15
& R Q G L W L R Q
Page 101 of 491
> ( G L W 0 R G H O ( ' @
8. Low fuel warningGUID-3F6A4C14-3A53-4889-81A1-9712B64C7CFBThis warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
9. Low washer fluid warningGUID-56C625DC-ABE9-4A02-8BC9-E75B59CC1B40This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See ªWindow washer fluidº (P.8-13).)
10. Door/lift gate open warning (ignition
switch is in the ON position)
GUID-369BA1E4-345B-4EDC-949F-A60010E2FCAEThis warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
11. Loose fuel cap warningGUID-AE37C079-2D1D-4EC5-BC3E-A6F3746AC355This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See ªFuel-filler capº (P.3-30) .)
12. Check tire pressure warningGUID-DA5B077D-A7AE-4C80-ABBC-FC03EE16A559This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
ªLow tire pressure warning lightº (P.2-14) and
ªTire Pressure Monitoring System (TPMS)º (P.5-
3) .)
13. ªTIMERº indicatorGUID-1125717D-01A2-4EE0-BD94-FCEC2E95C1E9This indicator appears when the set ªtimerº
indicator activates. You can set the time for up to
6 hours. (See ªTrip computerº (P.2-23) .)
14. Low outside temperature warningGUID-05A3065E-96A4-4FAF-9E94-F0DF064F6767This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See ªTrip computerº (P.2-23) .)
15. Extended storage fuse warningGUID-6AB8FBE8-1539-40E0-88C7-FC678D1B5DB6This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see ªExtendedstorage fuse switchº (P.8-22) .
Instruments and controls2-21
& R Q G L W L R Q
Page 107 of 491
> ( G L W 0 R G H O ( ' @
SIC3993
Warning checkGUID-5790185F-3109-4184-B244-017BA03FF1E8To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning
. Loose fuel cap warning
. Check tire pressure warning
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato move to the warning
check mode. Push the
switch*Bto select other menus.
DETAIL:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-1DA67D67-9764-4420-8B43-5CA25C056F36
SIC4717
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
Instruments and controls2-27
SECURITY SYSTEMS
& R Q G L W L R Q
Page 110 of 491
> ( G L W 0 R G H O ( ' @
2-30Instruments and controls
service as soon as possible. Please bring
all Intelligent Keys that you have when
visiting a NISSAN dealer for service.
GUID-FDCAE580-2A84-4682-B1FD-320CE21EDECE
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
CAUTION
.Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer's
recommended levels before pouring
the fluid into the window washer reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
WINDSHIELD WIPER AND WASHER
SWITCH
& R Q G L W L R Q
Page 111 of 491
> ( G L W 0 R G H O ( ' @
SIC3664
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
*1INT Ð intermittent operation can be adjusted by
turning the knob toward*A(Slower) or*B(Faster) .
Models with center multi-function control panel:
When the speed sensing wiper interval function
is turned on, the intermittent operation speed
varies in accordance with the vehicle speed. (For
example, when the vehicle speed is high, the
intermittent operation speed will be faster.)
Note that the function is set to disabled as the
factory default setting. To turn this function on
and off, see ªHow to use SETTING buttonº (P.4-14) .
*2LO Ð continuous low speed operation
*3HI Ð continuous high speed operation
Push the lever up*4(MIST) to have one sweep
operation of the wiper.
Pull the lever toward you
*5to operate the
washer. Then the wiper will also operate several
times.
GUID-4EFE8824-F7D6-4B77-8C35-4B178AEF16FE
WARNING
In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.
CAUTION
. Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer's
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
Instruments and controls2-31
REAR WINDOW WIPER AND
WASHER SWITCH
& R Q G L W L R Q
Page 112 of 491
> ( G L W 0 R G H O ( ' @
2-32Instruments and controls
window washer reservoir tank to
mix the washer fluid concentrate
and water.
If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi-
mately 1 minute, turn the switch on again
to operate the wiper.
SIC3666
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
*1Intermittent (INT) Ð intermittent operation (not
adjustable)
*2Low (ON) Ð continuous low speed operation
Push the switch forward*3to operate the
washer. Then the wiper will also operate several
times.
GUID-68222C06-7E77-4CA2-9366-C9EF650F0773
SIC4718
To defog/defrost the rear window glass and
outside mirrors (if so equipped) , start the engine
and push the switch
*1on. The indicator light
*2will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
& R Q G L W L R Q
Page 363 of 491
> ( G L W 0 R G H O ( ' @
SSD0944
INTELLIGENT KEY BATTERY DIS-
CHARGE
GUID-32EAE25A-244A-4FE6-B7B9-0A44E3665695If the battery of the Intelligent Key is discharged,
or environmental conditions interfere with the
Intelligent Key operation, start the engine
according to the following procedure:
1. Move the shift lever to the P (Park) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the IntelligentKey as illustrated. (A chime will sound.)
4. Push the ignition switch while depressing the brake pedal within 10 seconds after the
chime sounds. The engine will start.
After step 3 is performed, when the ignition switch is pushed without depressing the brake
pedal, the ignition switch position will change to
ACC.
NOTE:
.
When the ignition switch is pushed to
the ACC or ON position or the engine is
started by the above procedures, the
Intelligent Key battery discharge indi-
cator appears on the vehicle informa-
tion display even if the Intelligent Key
is inside the vehicle. This is not a
malfunction. To turn off the Intelligent
Key battery discharge indicator, touch
the ignition switch with the Intelligent
Key again.
. If the Intelligent Key battery discharge
indicator appears, replace the battery
as soon as possible. (See ªIntelligent
Key battery replacementº (P.8-23) .)
GUID-D80103F1-BD55-4C4A-B18B-FCA59EEB6917.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seats and adjust head restraints/
headrests.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See ªWarning/indicator lights and
audible remindersº (P.2-11) .)
Starting and driving5-11
BEFORE STARTING THE ENGINE
& R Q G L W L R Q
