GUID-3AE7A6EF-F9A0-4170-8F25-D2AD88653F67A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, it is recommended you visit a
NISSAN dealer for duplicates by using the key
number. NISSAN does not record any key
numbers so it is very important to keep track of
your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, it can be duplicated
without knowing the key number.
SPA2406
Type A (if so equipped)
SPA2844
Type B (if so equipped)
SPA2845
Type C (if so equipped)
1. Master key (2)
2. Mechanical key (inside the key) (2)
3. Key number plate (1)
INTELLIGENT KEY SYSTEMGUID-E1D9BFF8-38D2-4E11-8A34-3242B810AF20Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
Pre-driving checks and adjustments3-3
KEYS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
3-4Pre-driving checks and adjustments
nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.

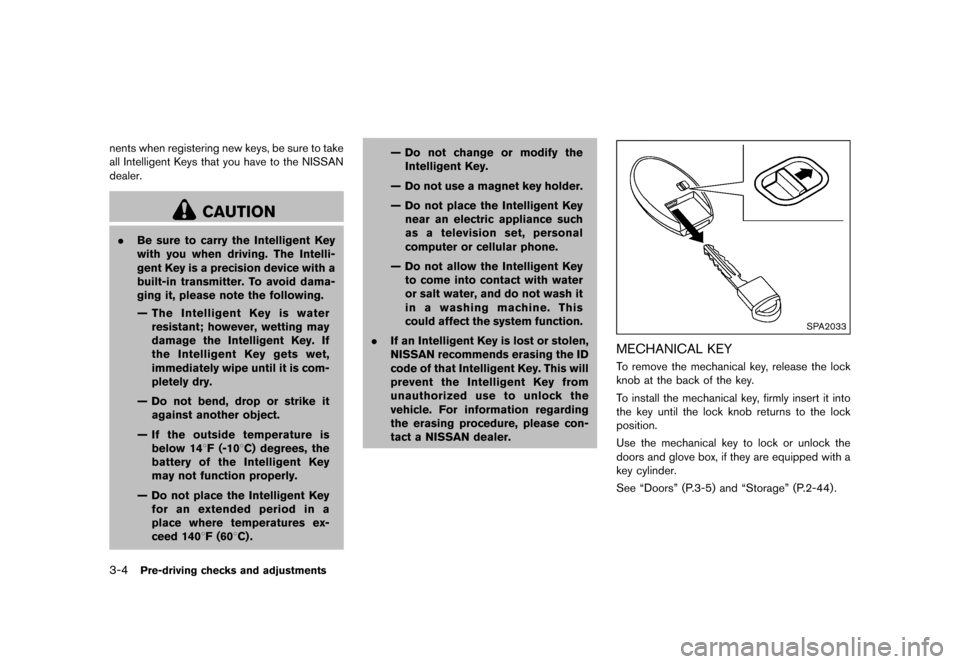

CAUTION
.Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð If the outside temperature is below 148F (-108C) degrees, the
battery of the Intelligent Key
may not function properly.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) . Ð Do not change or modify the
Intelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
SPA2033
MECHANICAL KEYGUID-65EB5236-29E3-4BF1-B902-8BE659CAAE13To remove the mechanical key, release the lock
knob at the back of the key.
To install the mechanical key, firmly insert it into
the key until the lock knob returns to the lock
position.
Use the mechanical key to lock or unlock the
doors and glove box, if they are equipped with a
key cylinder.
See ªDoorsº (P.3-5) and ªStorageº (P.2-44) .
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @

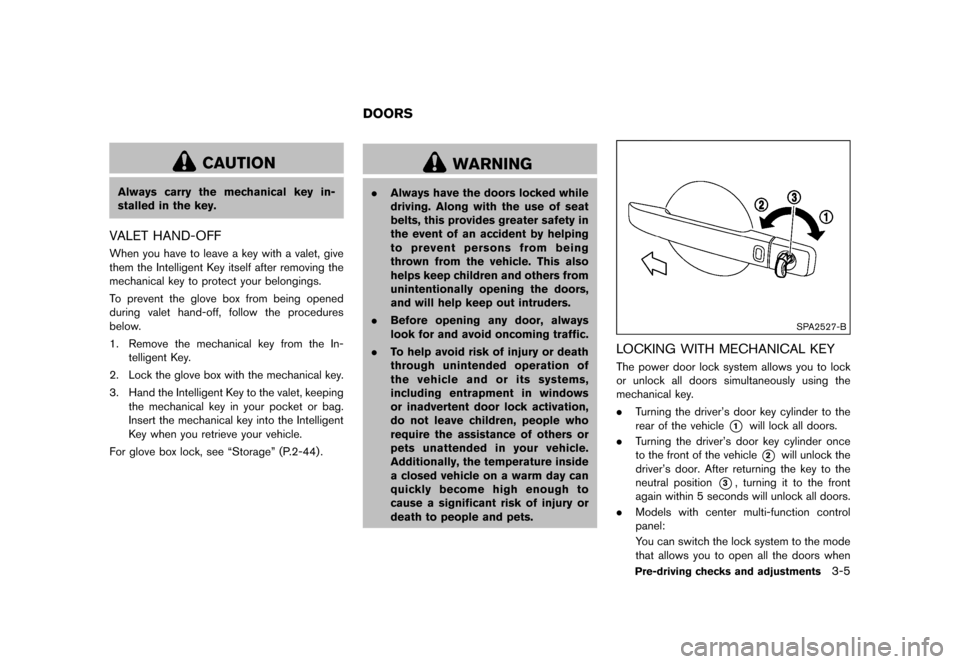

CAUTION
Always carry the mechanical key in-
stalled in the key.
VALET HAND-OFFGUID-44136B17-07DF-4D0F-92F0-BD778BE9A8E0When you have to leave a key with a valet, give
them the Intelligent Key itself after removing the
mechanical key to protect your belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.
1. Remove the mechanical key from the In-telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag.
Insert the mechanical key into the Intelligent
Key when you retrieve your vehicle.
For glove box lock, see ªStorageº (P.2-44) .
GUID-18907FBD-5AB8-42C1-B853-0AF0F135729D
WARNING
. Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. To help avoid risk of injury or death
through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
SPA2527-B
LOCKING WITH MECHANICAL KEYGUID-CFBC7CA1-1570-4282-A02B-C90C789270FDThe power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
.Turning the driver's door key cylinder to the
rear of the vehicle
*1will lock all doors.
. Turning the driver's door key cylinder once
to the front of the vehicle
*2will unlock the
driver's door. After returning the key to the
neutral position
*3, turning it to the front
again within 5 seconds will unlock all doors.
. Models with center multi-function control
panel:
You can switch the lock system to the mode
that allows you to open all the doors when
Pre-driving checks and adjustments3-5
DOORS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
3-6Pre-driving checks and adjustments
the key is turned once. (See ªHow to use
SETTING buttonº (P.4-15).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY (if so
equipped)
GUID-BDF61E57-CFE8-4FB0-BB40-5884748912B8The driver's door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
ªPower windowsº (P.2-52).)
To open the windows, turn the driver's door key
cylinder to the front of the vehicle forlonger
than 1 second. The door is unlocked and the
window keeps opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
key. (See ªRemote keyless entry systemº (P.3-
21) .)
To close the windows, turn the driver's door key
cylinder to the rear of the vehicle for longer
than 1 second. The door is locked and the
window keeps closing while turning the key.
SPA2847
LOCKING WITH INSIDE LOCK KNOBGUID-2CE9ED4D-6C61-4837-BFF1-A659D04ED279To lock the door individually, move the inside
lock knob to the lock position
*1then close the
door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without Intelligent
Key, be sure not to leave the Intelligent
Key inside the vehicle.
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH
GUID-A0360C5F-033D-42C1-A8C3-9E73E149826DOperating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver's and front passenger's door
armrests.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver's
or front passenger's door open, then close the
door.
When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
To unlock the doors, push the power door lock
switch to the unlock position
*2.
Lockout protectionGUID-72A37AF5-045B-4D14-97CD-9141FE4048F1When the power door lock switch (driver or front
passenger) is moved to the lock position with
any door open, all doors will lock and unlock
automatically. With the Intelligent Key left in the
vehicle and any door open, all doors will unlock
automatically and a chime will sound after the
door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKSGUID-798C06A8-78CC-44CF-9CA0-F7AFFDB5A4DD.All doors will be locked automatically when
the vehicle speed reaches 15 MPH (24
km/h) .
. All doors will be unlocked automatically
when the ignition switch is placed in the
OFF position.
The automatic unlock function can be
deactivated or activated. To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position. 3. Within 20 seconds of performing Step 2,
push and hold the power door lock switch to
the
position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver's or
front passenger's side) .
SLIDING DOORSGUID-228AE8B5-A7E0-49ED-947A-1B1C48ABE4B7

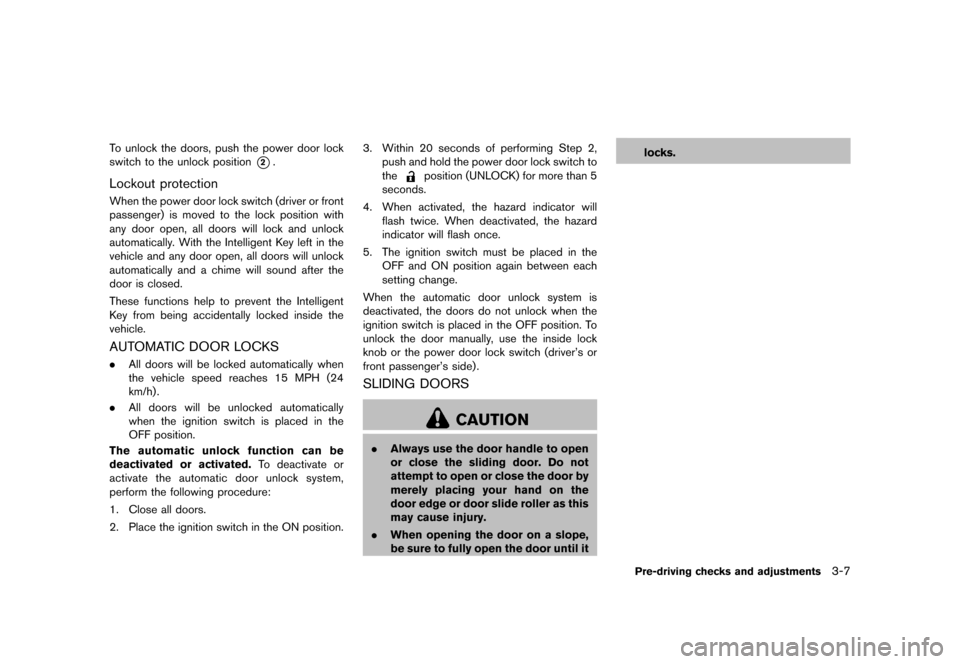

CAUTION
. Always use the door handle to open
or close the sliding door. Do not
attempt to open or close the door by
merely placing your hand on the
door edge or door slide roller as this
may cause injury.
. When opening the door on a slope,
be sure to fully open the door until it locks.
Pre-driving checks and adjustments3-7
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
3-8Pre-driving checks and adjustments
SPA2818
Locking with inside lock knobGUID-8ED01086-6DBB-4655-AD18-7E078324267ATo lock without an Intelligent Key, push the lock
knob to the lock position
*1, and then close the
door.
To unlock, pull the inside lock knob to the unlock
position
*2.
SPA2387
Opening/Closing the sliding doorGUID-FC494258-FABD-44EA-80AF-C733F5CFBFBAThe sliding door will be latched at the fully
opened/closed position.
To open/close the sliding door manually, pull the
door handle or the inside door handle.
SPA2104

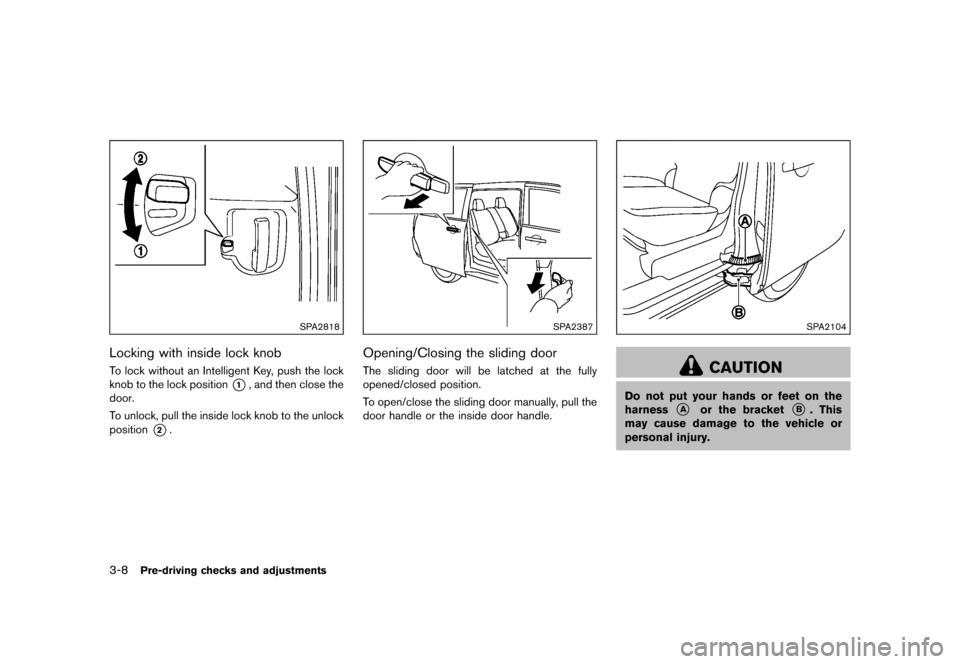

CAUTION
Do not put your hands or feet on the
harness
*Aor the bracket*B. This
may cause damage to the vehicle or
personal injury.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
SPA2701

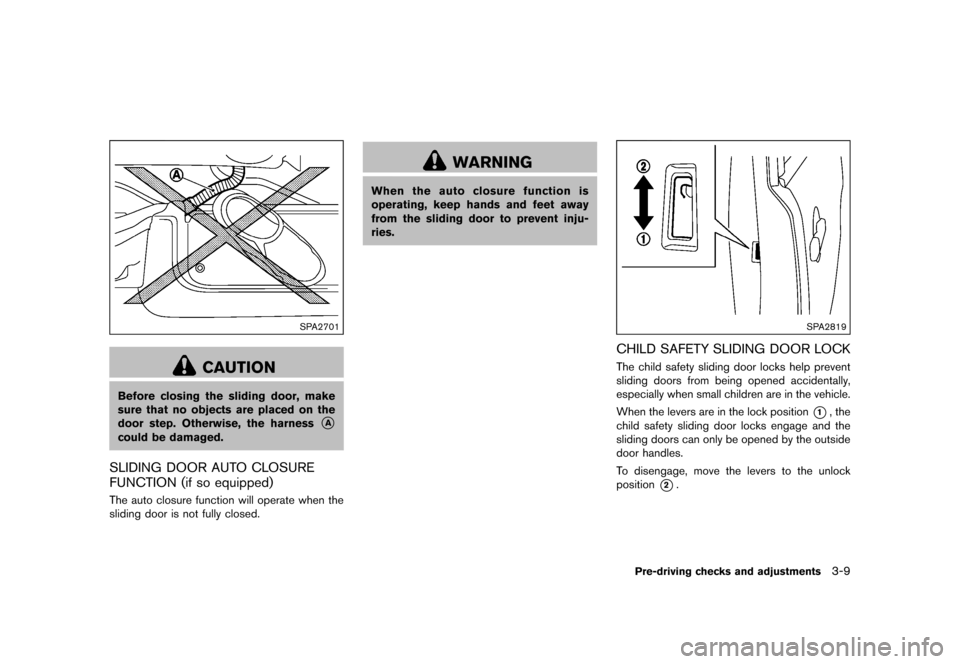

CAUTION
Before closing the sliding door, make
sure that no objects are placed on the
door step. Otherwise, the harness
*A
could be damaged.
SLIDING DOOR AUTO CLOSURE
FUNCTION (if so equipped)
GUID-6E027578-AA50-4728-8225-CA26C067E216The auto closure function will operate when the
sliding door is not fully closed.
WARNING
When the auto closure function is
operating, keep hands and feet away
from the sliding door to prevent inju-
ries.
SPA2819
CHILD SAFETY SLIDING DOOR LOCKGUID-C42DAE91-70F7-4B6A-BB9C-10166975A265The child safety sliding door locks help prevent
sliding doors from being opened accidentally,
especially when small children are in the vehicle.
When the levers are in the lock position
*1, the
child safety sliding door locks engage and the
sliding doors can only be opened by the outside
door handles.
To disengage, move the levers to the unlock
position
*2.
Pre-driving checks and adjustments3-9
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
3-10Pre-driving checks and adjustments

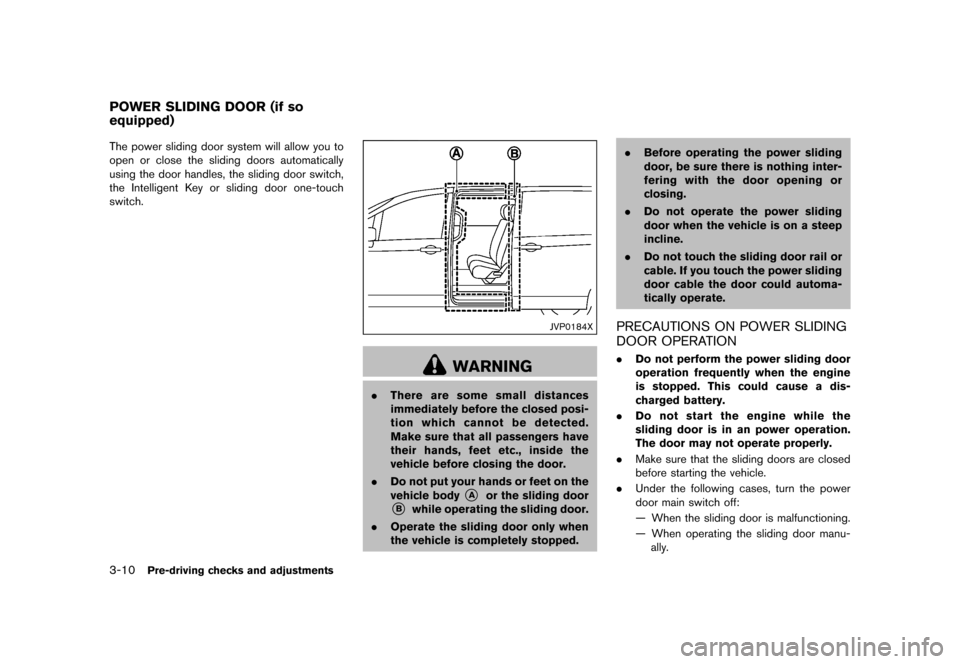

GUID-9E3F92C8-4A48-4535-BB96-D700D32D1DE2The power sliding door system will allow you to
open or close the sliding doors automatically
using the door handles, the sliding door switch,
the Intelligent Key or sliding door one-touch
switch.
JVP0184X
WARNING
.There are some small distances
immediately before the closed posi-
tion which cannot be detected.
Make sure that all passengers have
their hands, feet etc., inside the
vehicle before closing the door.
. Do not put your hands or feet on the
vehicle body
*Aor the sliding door
*Bwhile operating the sliding door.
. Operate the sliding door only when
the vehicle is completely stopped. .
Before operating the power sliding
door, be sure there is nothing inter-
fering with the door opening or
closing.
. Do not operate the power sliding
door when the vehicle is on a steep
incline.
. Do not touch the sliding door rail or
cable. If you touch the power sliding
door cable the door could automa-
tically operate.
PRECAUTIONS ON POWER SLIDING
DOOR OPERATION
GUID-1DBA582B-9B7E-4AD0-A68B-762BDAC084D5.Do not perform the power sliding door
operation frequently when the engine
is stopped. This could cause a dis-
charged battery.
. Do not start the engine while the
sliding door is in an power operation.
The door may not operate properly.
. Make sure that the sliding doors are closed
before starting the vehicle.
. Under the following cases, turn the power
door main switch off:
Ð When the sliding door is malfunctioning.
Ð When operating the sliding door manu-
ally.
POWER SLIDING DOOR (if so
equipped)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
Ð When you need to keep the sliding dooropen for a period of time.
Ð When washing the vehicle or performing any maintenance work.
SPA2071
. Be careful not to damage the sensor*1of
the sliding door.
When reconnecting the battery cable with the
sliding door open (in case of a discharged
battery, etc.) , be sure to fully close the sliding
door manually once before performing the
power operation. Otherwise, the power open
or close function may not operate properly.
SPA2547
Power door main switch
SWITCHING SLIDING DOOR OPERA-
TION
GUID-5E25AD8C-1056-4BE2-BD55-2EB289AF2E2FUsing the power door main switch located on
the instrument panel, you can switch the sliding
door between power and manual operation. To
turn on the power operating mode, push the
switch to the ON position. To turn off the power
operation, push the switch to the OFF position,
and then the sliding door can be manually
operated.
When the power door main switch is pushed to
the ªOFFº position, the power operation is not
available by the sliding door one-touch switch
and power assist.
Pre-driving checks and adjustments3-11
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
3-12Pre-driving checks and adjustments
The power sliding door system can be operated
when all of following conditions are satisfied.
.The vehicle is stopped.
. Battery voltage is normal.
. The sliding door is unlocked.
. The fuel-filler door is closed (for driver's side
only) .
When the ignition switch is in the "ON" position,
the system can be operated in the above and
following conditions.
. Shift lever is set in the ªPº (Park) position.
If the conditions are interrupted when the power
sliding door is being operated, the operation
could be stopped. In this case, meet the
conditions above and the power sliding door
operation will return to normal.
You can also switch the power lift gate between
power and manual operation using the power
door main switch. (See ªLift gateº (P.3-26) .)
SPA2846
Instrument panel
*ADriver's side sliding door switch
*BPassenger's side sliding door switch
OPERATING SLIDING DOOR SWITCHGUID-EE7E773F-5BC9-4FC4-BFE3-DDC092853705To operate the sliding doors with the sliding
door switches, turn on the power door main
switch.
. When the sliding door is fully closed, push
and hold the sliding door switch on the
instrument panel for about 1 second. The
sliding door will automatically open to the
fully opened position.
. When the sliding door is fully opened, push
and hold the sliding door switch on the
instrument panel for about 1 second. The sliding door will automatically close to the
fully closed position.
. If the sliding door switch is pushed while the
sliding door is being operated automatically,
the door will start moving in the reverse
direction and stop at the fully opened or
closed position.
. The sliding doors can be opened by the
instrument panel switch
*Aor*Beven if
the sliding door is locked or the power door
main switch is in the OFF position.
OPERATING THE POWER SLIDING
DOOR WITH THE INTELLIGENT KEY (if
so equipped)
GUID-89E54C18-A308-4127-853C-8487439FBBACThe sliding doors can also be opened and
closed by pushing the button on the Intelligent
Key. (See ªIntelligent Key systemº (P.3-13).)
Sliding door one-touch unlock/open
function (if so equipped)
GUID-0F5030A9-0AB2-4D70-A34F-9846AF95FC6FThe sliding doors can be unlocked and opened
with a one-touch unlock/open operation. When
closed, the sliding door will not lock automati-
cally. To lock the sliding doors, manually lock the
inside knob before closing the sliding door or
push the LOCK button on the Intelligent Key
after the door is closed. See ªRemote keyless
entry systemº (P.3-21) .
&RQGLWLRQ
