degrees or less from the straight ahead
position, both the right and left predictive
course lines
*6are displayed. When the
steering wheel turns about 90 degrees or
more, a line is displayed only on the
opposite side of the turn.
JVH0337X
Bird's-eye view:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The bird's-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predicted course to a parking
space.
The vehicle icon
*1shows the position of the
vehicle. Note that the distance between objects
viewed in the bird's-eye view differs from the
actual distance.
The areas that the cameras cannot cover
*2are
indicated in black.
After the ignition switch is placed in the ON
position, the non-viewable area
*2is high-
lighted in yellow for 3 seconds after the bird's- eye view is displayed.
In addition, the non-viewable corners are dis-
played in red (blink for the first 3 seconds)
*3
to remind the drivers to be cautious.

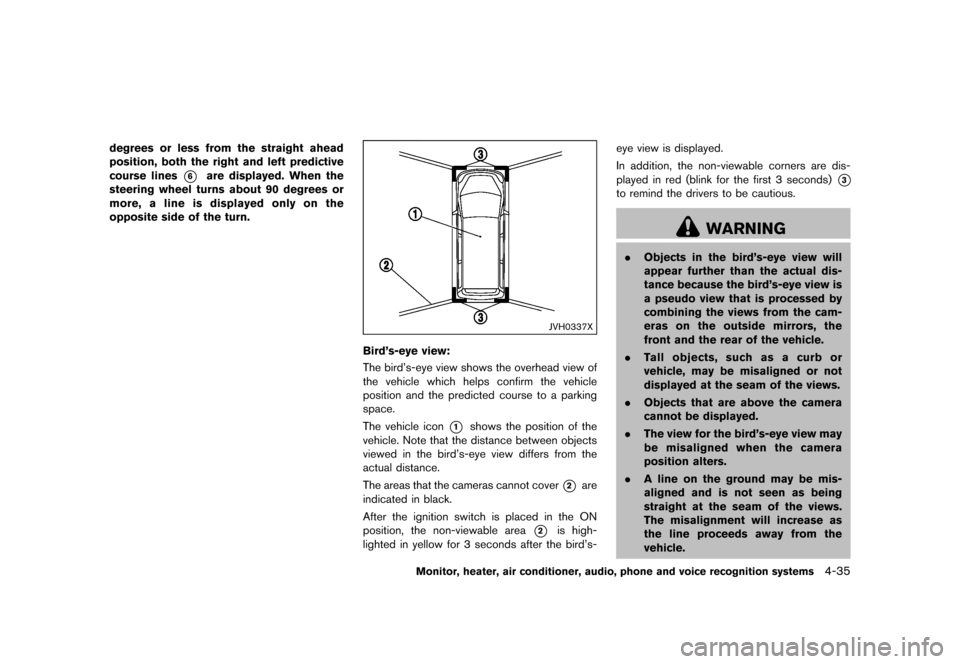

WARNING
.
Objects in the bird's-eye view will
appear further than the actual dis-
tance because the bird's-eye view is
a pseudo view that is processed by
combining the views from the cam-
eras on the outside mirrors, the
front and the rear of the vehicle.
. Tall objects, such as a curb or
vehicle, may be misaligned or not
displayed at the seam of the views.
. Objects that are above the camera
cannot be displayed.
. The view for the bird's-eye view may
be misaligned when the camera
position alters.
. A line on the ground may be mis-
aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the
vehicle.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-35
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
4-36Monitor, heater, air conditioner, audio, phone and voice recognition systems
.Tire angle display does not indicate
the actual tire angle.
JVH1141X
Front-side view:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Guiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
*1shows the front part
of the vehicle.
The side-of-vehicle line
*2shows the vehicle
width including the outside mirrors.
The extensions
*3of both the front*1and
side
*2lines are shown with a green dotted
line.

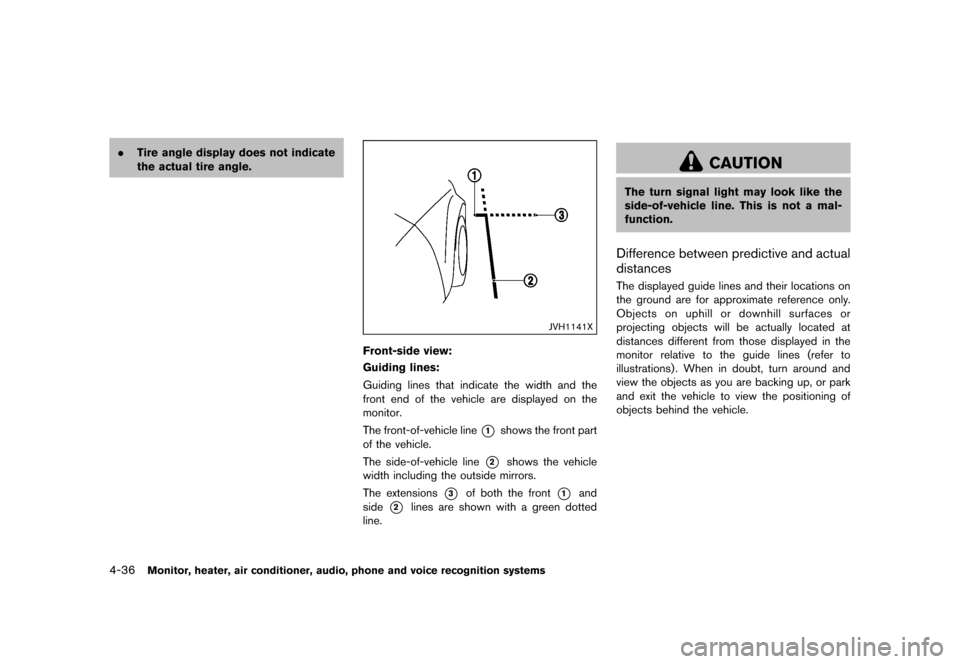

CAUTION
The turn signal light may look like the
side-of-vehicle line. This is not a mal-
function.
Difference between predictive and actual
distances
GUID-523096F1-0F36-43D7-BA0A-1C4191B4C267The displayed guide lines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guide lines (refer to
illustrations) . When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
JVH1275X
Backing up on a steep uphill:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
JVH1276X
Backing up on a steep downhill:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.
SAA1923
Backing up near a projecting object:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-37
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
4-38Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH1009X
Backing up behind a projecting object:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up course.
How to park with predictive course linesGUID-E1A619E4-6C6A-498B-8829-2EFD1AABEF7D

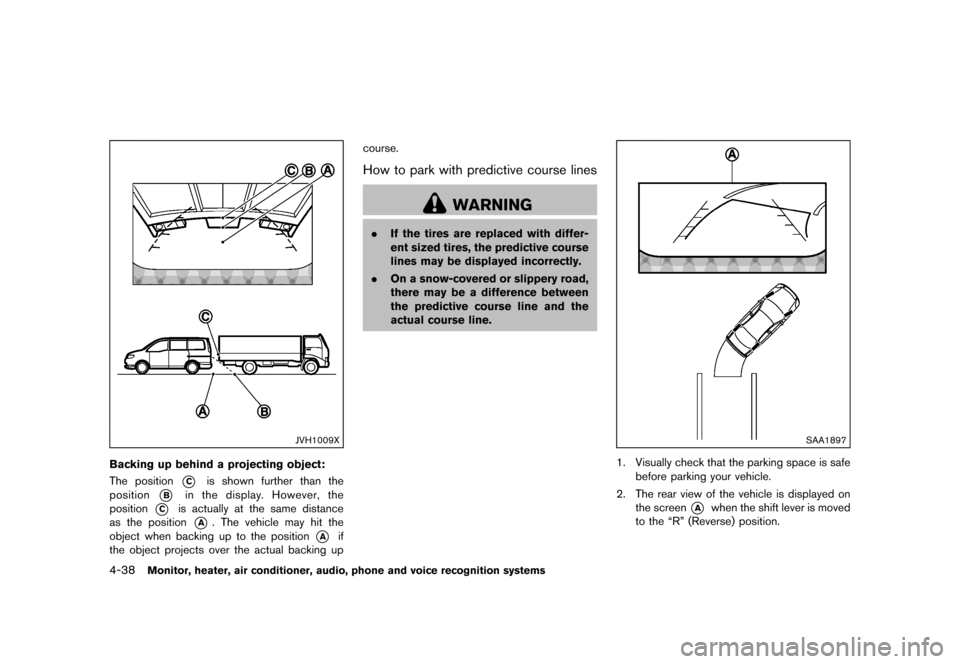

WARNING
.
If the tires are replaced with differ-
ent sized tires, the predictive course
lines may be displayed incorrectly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
SAA1897
1. Visually check that the parking space is safe
before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
*Awhen the shift lever is moved
to the ªRº (Reverse) position.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
SAA1898
3. Slowly back up the vehicle adjusting thesteering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines. 5. When the vehicle is parked in the space
completely, move the shift lever to the ªPº
(Park) position and apply the parking brake.
How to switch the displayGUID-666130BA-C2F3-463E-A7FE-5BBA4EC5786DThe Around View


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
4-40Monitor, heater, air conditioner, audio, phone and voice recognition systems

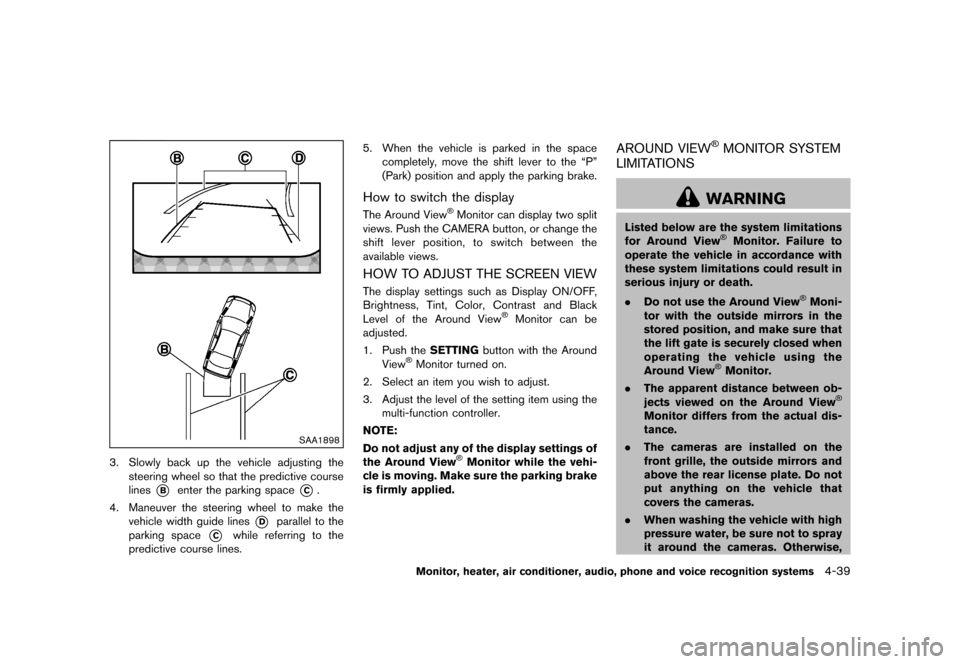

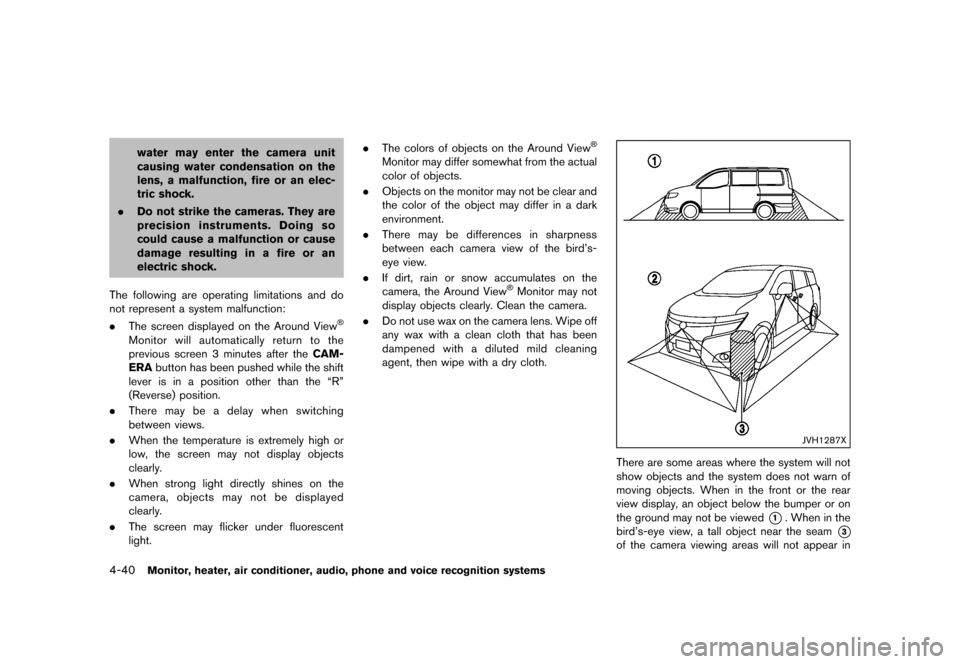

water may enter the camera unit
causing water condensation on the
lens, a malfunction, fire or an elec-
tric shock.
. Do not strike the cameras. They are
precision instruments. Doing so
could cause a malfunction or cause
damage resulting in a fire or an
electric shock.
The following are operating limitations and do
not represent a system malfunction:
. The screen displayed on the Around View


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
the monitor*2.
JVH1053X
System temporarily unavailableGUID-21AF3037-6507-4DC2-A68F-9BD88E870354When the ªº icon is displayed on the screen,
there are abnormal conditions in the Around
View


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
4-42Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH1279X
SYSTEM MAINTENANCEGUID-E53B80D8-F195-4E4C-96AB-FF30E6EF3CE3

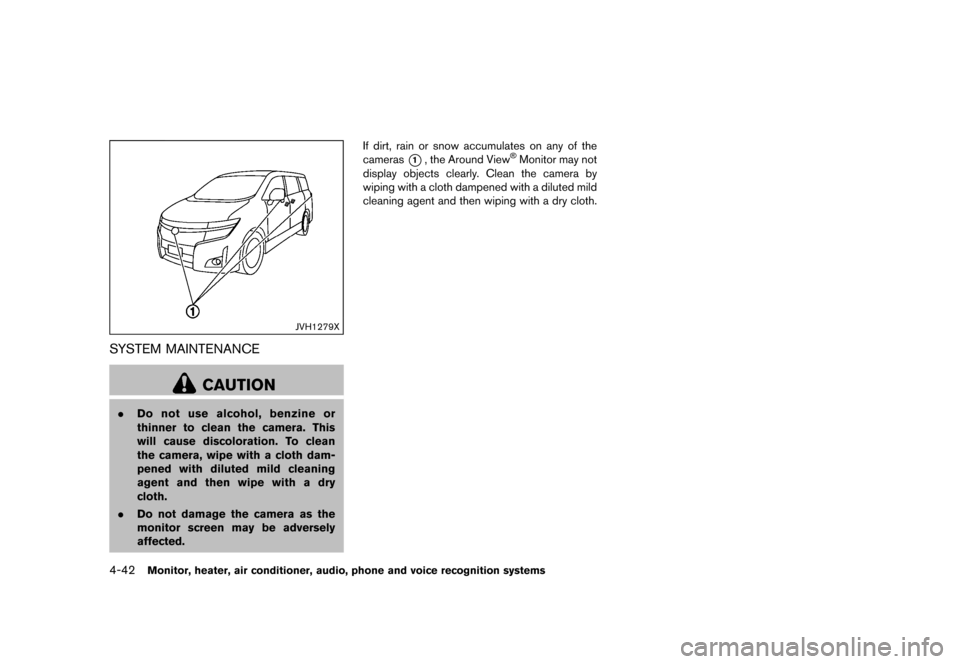

CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected. If dirt, rain or snow accumulates on any of the
cameras
*1, the Around View


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
GUID-633101DF-4B94-45D7-9F94-9275A3DA4D74
JVH1278X
1.CAMERA button

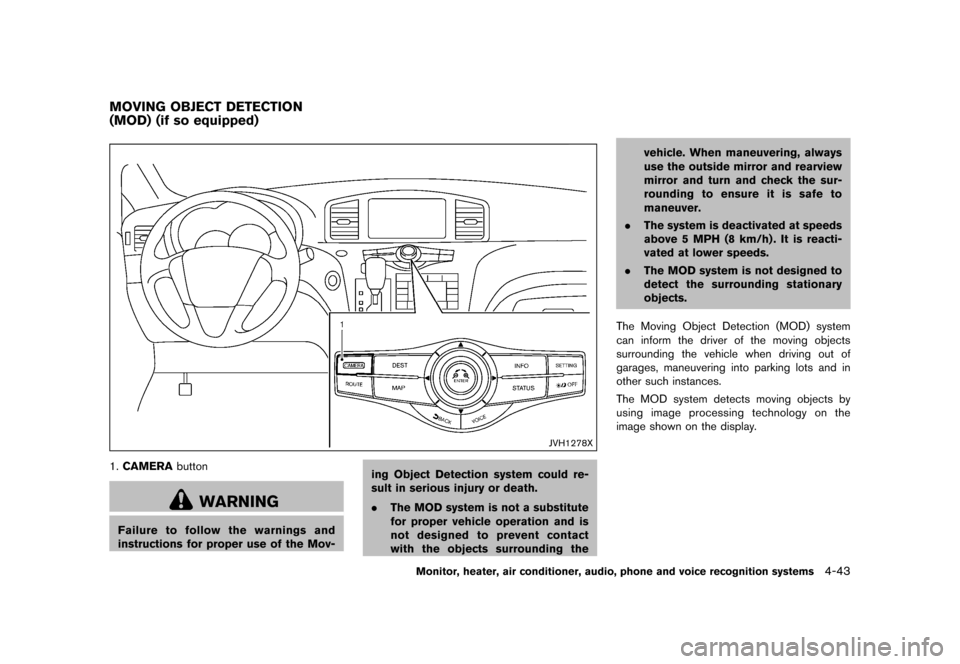

WARNING
Failure to follow the warnings and
instructions for proper use of the Mov- ing Object Detection system could re-
sult in serious injury or death.
.
The MOD system is not a substitute
for proper vehicle operation and is
not designed to prevent contact
with the objects surrounding the vehicle. When maneuvering, always
use the outside mirror and rearview
mirror and turn and check the sur-
rounding to ensure it is safe to
maneuver.
. The system is deactivated at speeds
above 5 MPH (8 km/h) . It is reacti-
vated at lower speeds.
. The MOD system is not designed to
detect the surrounding stationary
objects.
The Moving Object Detection (MOD) system
can inform the driver of the moving objects
surrounding the vehicle when driving out of
garages, maneuvering into parking lots and in
other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown on the display.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-43
MOVING OBJECT DETECTION
(MOD) (if so equipped)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67( 20((8 @
4-44Monitor, heater, air conditioner, audio, phone and voice recognition systems
MOD SYSTEM OPERATIONGUID-C7F265DC-829F-48FF-BF10-873778493602The MOD system will turn on automatically
under the following conditions:
.When the shift lever is in the R (Reverse)
position.
. When the CAMERA button is pushed, the
camera view is activated on the display.
. When vehicle speed decreases below
approximately 5 MPH (8 km/h) .
The MOD system operates in the following
conditions when the camera view is displayed:
. When the shift lever is in the P (Park) or N
(Neutral) position and the vehicle is
stopped, the MOD system detects the
moving objects in the bird's-eye view. The
MOD system will not operate if the outside
mirrors are moving in or out or if either door
is opened.
. When the shift lever is in the D (Drive)
position, and the vehicle speed is below
approximately 5 MPH (8 km/h) , the MOD
system detects moving objects in the front
view.
. When the shift lever is in the R (Reverse)
position and the vehicle speed is below
approximately 5 MPH (8 km/h) , the MOD
system detects moving objects in the rear
view. The MOD system will not operate if the
lift gate is open. .
When the ignition switch is placed in the
ªOFFº position and then back to the ªONº
position.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this view.
When the MOD system detects a moving object
near the vehicle, the yellow frame will be
displayed on the view where the objects are
detected and a chime will sound once. While the
MOD system continues to detect moving
objects, the yellow frame continues to be
displayed.
JVH1256X
Front and bird's-eye views
JVH1286X
Rear and bird's-eye views
