NISSAN QUEST 2016 RE52 / 4.G Owners Manual


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
JVH0620X
2. Select the ªBluetoothº key.
3. Select the ªAdd Phoneº key. This samescreen can be accessed to remove, replace
or select a different Bluetooth


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-86Monitor, heater, air conditioner, audio, phone and voice recognition systems
device to the audio system. Music may not play
properly when a monaural cable is used.
JVH0174X
1. ON´OFF button/VOL (volume) control knob
2. Radio station preset buttons
3.AUDIO control button/Radio tuning/FOLDER
selector knob
4. FM´AM band select button
5. Radio SCAN (tuning) button
6. Radio CAT (category)/REW (rewind) button for SEEK/TRACK 7. XM button
8. FF (fast forward) button for SEEK/TRACK
9. RPT (repeat)/RDM (random) play button
10. DISC´AUX button
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B)
GUID-D2C875DE-9BFA-4CE3-AE15-5ED2F4DF8392For all operation precautions, see ªAudio opera-
tion precautionsº (P.4-61) .
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operationGUID-D94FA559-AA63-4E9E-AFB4-0C05BB96C342
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON´OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ignition switch to the ACC or ON
position, and then push the ON´OFF button
while the system is off to turn on the last audio
source, which was playing immediately before
the system was turned off. While the system is
on, pushing the ON´OFF button turns the system
off.Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker bal-
ance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade) , rotate the Audio control
knob to set the desired setting. For the other
setting methods, see ªHow to use SETTING
buttonº (P.4-15).
This vehicle has some sound effect functions as
follows:
.
Speed Sensitive Vol.
For more details, see ªVehicle information and
settings (models with center multi-function
control panel)º (P.4-10) .
Switching the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the DISC´AUX button will switch the
displays as follows:
iPod


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-88Monitor, heater, air conditioner, audio, phone and voice recognition systems
TUNE (Tuning):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.For AM and FM radio
Turn the radio TUNE knob for manual tuning.
. For SiriusXM Satellite Radio
Turn the radio TUNE knob to seek channels
from all of the categories when any category
is not selected.
or/SEEK tuning/CATE-
GORY (CAT):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. For AM and FM radio
Push the SEEK button
orto tune
from low to high or high to low frequencies
and to stop at the next broadcasting station.
. For SiriusXM Satellite Radio
Push the SEEK button
orto tune
to the first channel of the next or previous
category.
During satellite radio reception, the following
notices will be displayed under certain condi-
tions.
. NO SIGNAL (No signal is received while the
SAT tuner is connected.)
. OFF AIR (Broadcasting signed off)
. CHECK ANTENNA (Antenna connection
error)
. LOADING (When the initial setting is
performed) .
UPDATING (When the satellite radio sub-
scription is not active)
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SCAN tuning button to tune from low
to high frequencies and stop at each broad-
casting station/channel for 5 seconds. Pushing
the button again during this 5 seconds period
will stop SCAN tuning and the radio will remain
tuned to that station/channel.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
station/channel.
*1to*6Station memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station/channel using the SEEK/TRACK, SCAN button or the
radio TUNE knob.
3. Push and hold the desired station preset button
*1to*6until the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete. 5.
Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
List (AM and FM radio) (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªListº key on the display is selected
while the FM or AM radio is being played, the
preset station list will be displayed.
If 1 of the 6 preset stations listed is touched and
held, the current station will be stored as the
new preset.
Menu (SiriusXM Satellite Radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªMenuº key on the display is selected
while the SiriusXM Satellite Radio is being
played, the menu list will be displayed.
The following items are available.
. Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.
. Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
.Favorite Artists & Songs
Stores the current artist or song that is being
played. Touch the ªAlertº key to be reminded
when the stored artist or song is playing on a
station while listening to SiriusXM Satellite
Radio.
. Categories
Selecting a category will go to the first
channel in that category as defined by
SiriusXM Satellite Radio.
. Direct Tune
Inputs the channel number by using a
keypad.
Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTextº key is selected with the multi-
function controller on the display and then the
ENTER button is pushed while the satellite radio
is being played, the text information listed below
will be displayed on the screen.
. CH Name
. Category
. Name
. Title
. Other
SAA3607
Compact Disc (CD) player operationGUID-7F5CB76A-3ADB-4877-B424-147BD79BC6BAThe CD slot is located on the instrument lower
panel.
Push the ignition switch to the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD was playing, pushing the ON´OFF button will
start the CD.
Do not use 3.1 in (8 cm) discs.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the CD loaded, the system will
turn on and the CD will start to play.
When the DISC´AUX button is pushed with the
CD loaded and the radio playing, the radio will
automatically be turned off and the CD will start
to play.
Menu (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªMenuº key on the display is selected
while the CD is being played, the menu screen
will be displayed. The following menu options
are available.
.
Folder List (CD with compressed audio files)
Displays the folder list.
. Track List
Displays the track list.
. Play Mode
Select a play mode from the following items.
Ð Normal
Ð 1 Folder Repeat (CD with compressed
audio files)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-89
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-90Monitor, heater, air conditioner, audio, phone and voice recognition systems
Ð 1 Track Repeat
Ð 1 Disc Random
Ð 1 Folder Random (CD with compressedaudio files)
Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTextº key is selected in the screen
using the multi-function controller and then the
ENTER button is pushed while the CD is being
played, the music information below will be
displayed on the screen.
CD:
. Disc title
. Track title
CD with compressed audio files:
. Folder title
. File title
. Song title
. Album title
. Artist
or/Next/Previous Track
and Fast Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed. When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current
track on the CD will be played.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
NOS2606
(CD with compressed audio files)
NOS2607
CD EJECT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (if so equipped)
GUID-FECD0FDE-503D-4285-91C2-4252B6A87B01
PrecautionsGUID-59205F1E-B567-4CA9-8276-9FE4605BF034Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the shift lever to the P (Park) position and
apply the parking brake.

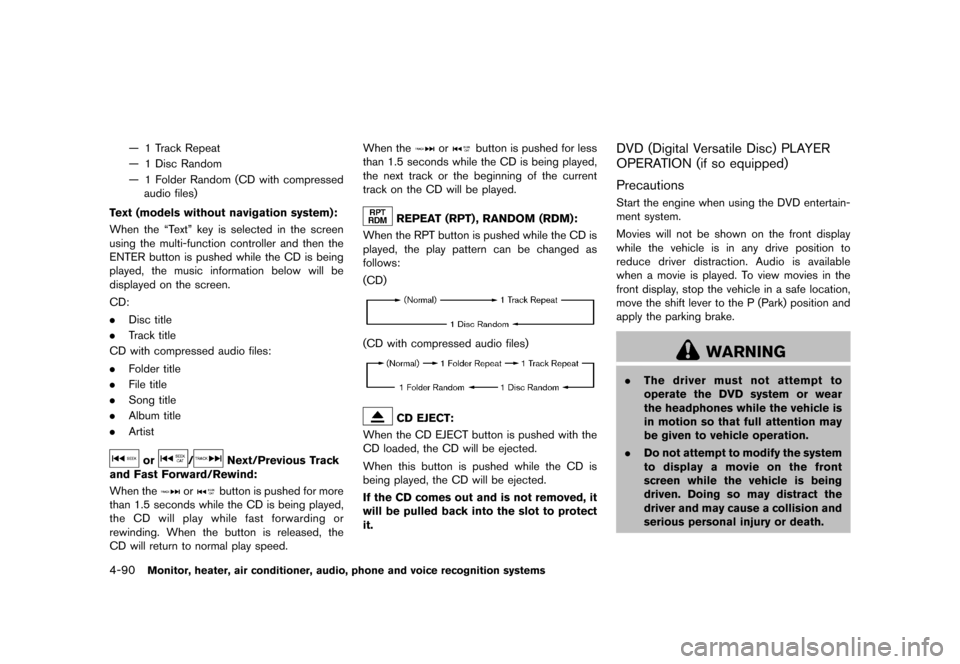

WARNING
. The driver must not attempt to
operate the DVD system or wear
the headphones while the vehicle is
in motion so that full attention may
be given to vehicle operation.
. Do not attempt to modify the system
to display a movie on the front
screen while the vehicle is being
driven. Doing so may distract the
driver and may cause a collision and
serious personal injury or death.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @

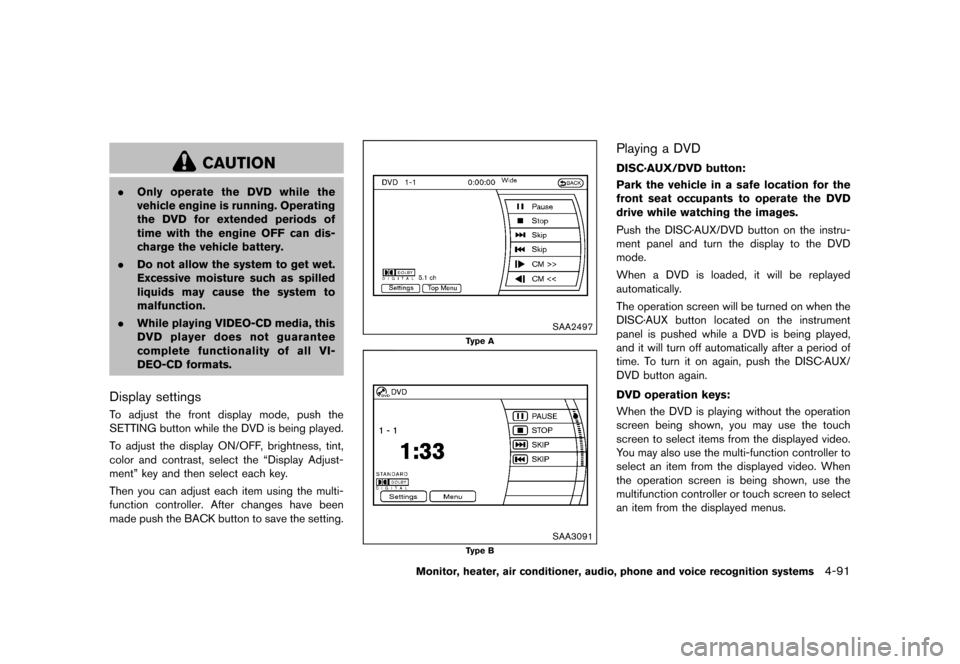

CAUTION
.Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction.
. While playing VIDEO-CD media, this
DVD player does not guarantee
complete functionality of all VI-
DEO-CD formats.
Display settingsGUID-CBC861C9-0101-4094-8656-8871DB9F26AATo adjust the front display mode, push the
SETTING button while the DVD is being played.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the ªDisplay Adjust-
mentº key and then select each key.
Then you can adjust each item using the multi-
function controller. After changes have been
made push the BACK button to save the setting.
SAA2497
Type A
SAA3091
Type B
Playing a DVDGUID-08EA1F7A-5937-42A5-A311-5E4E9EB6A70F
DISC´AUX/DVD button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Park the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.
Push the DISC´AUX/DVD button on the instru-
ment panel and turn the display to the DVD
mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC´AUX button located on the instrument
panel is pushed while a DVD is being played,
and it will turn off automatically after a period of
time. To turn it on again, push the DISC´AUX/
DVD button again.
DVD operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the multi-function controller to
select an item from the displayed video. When
the operation screen is being shown, use the
multifunction controller or touch screen to select
an item from the displayed menus.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-91
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-92Monitor, heater, air conditioner, audio, phone and voice recognition systems
PAUSE:
Select the ª
º key to pause the DVD. To
resume playing the DVD, use the ªPLAYº key.
PLAY:
Select the ª
º key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the ª
º key to stop playing the DVD.
/Next/Previous Chapter:
Select the ª
º or ªº key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip (Type A):
This function is only for DVD-VIDEO, DVD-VR.
Select the ª
º or ªº key to skip forward or
backwards by the set amount as defined in the
DVD Settings menu.
Top Menu (Type A)/Menu (Type B):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTop Menuº key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
SAA2498
Type A (example)
SAA3087
Type B (example)
DVD settingsGUID-9C0F8952-DBBE-47C8-931C-858632203DCDSelect the ªSettingsº key to adjust the following
settings.
Key (DVD-VIDEO) (Type A):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (DVD-VIDEO) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The scene with the specified title will be
displayed each time the ª+º side or ª


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
10 Key Search (DVD-VIDEO, VIDEO-CD,
CD-DA, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ª10 Key Searchº key to open the
number entry screen. Input the number to be
searched and select the ªOKº key. The specified
Title/Chapter or Group/Track will be played.
Select No. (VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSelect No.º key to open the number
entry screen. Input the number to be searched
and select the ªOKº key. The specified scene
will be played.
Angle (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the DVD contains different angles (such as
moving images) , the current image angle can be
switched to another one. Select the ªAngleº key.
The angle will change each time the ª+º side or
ª


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-94Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3599
USB (Universal Serial Bus) CONNEC-
TION PORT (models with center multi-
function control panel)
GUID-F93512CA-61A3-4728-9257-47C64BB70259
Audio main operationGUID-FF8D4D19-09EE-4E91-906B-DCD0791005EBThe USB connection port is located in the
center console.
Open the USB port cover and connect a USB
memory as illustrated. Then, push the DISC´AUX
button repeatedly to switch to the USB memory
mode.
If the system has been turned off while the USB
memory was playing, pushing the ON´OFF/VOL
control knob will start the USB memory.

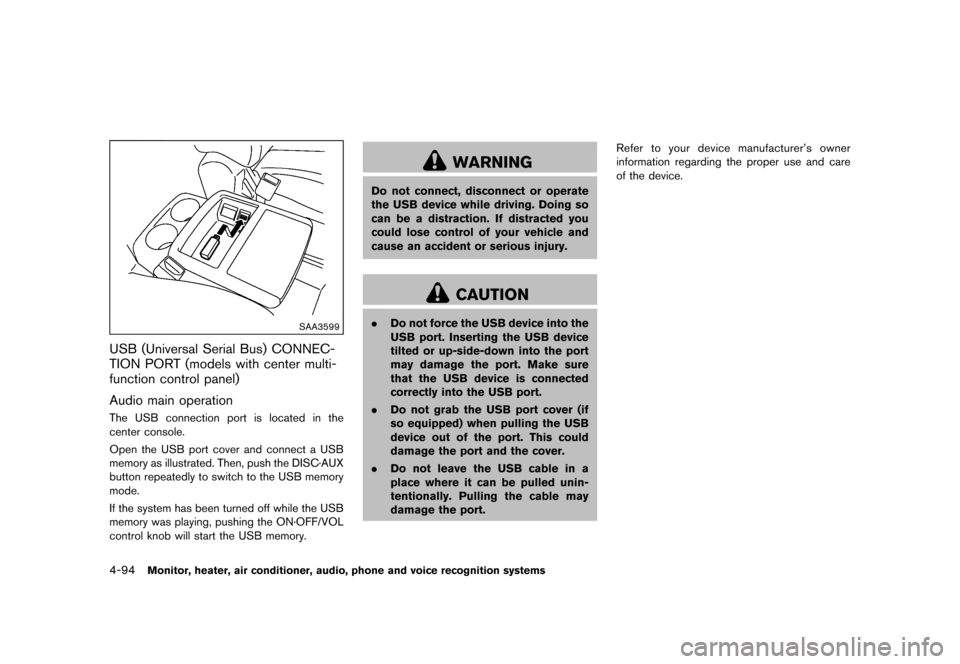

WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port. Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
&RQGLWLRQ
