4-2Center display, heater, air conditioner, audio, phone and voice recognition systems
S35-D-110201-085FF441-F2C8-4C6E-ABB3-F2123CE126F8
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-B91320C6-CA93-4DC0-9D1D-0B560BE93822
SAA3377
1.(brightness control) button (P.4-5)
2. Display screen (P.4-3)
3. MAP button*
4. NAV button*
5. TRAF button*
6. SETUP button (P.4-5)
7.
BACK button (P.4-5) 8. TUNE/SCROLL knob
9. Power button/Volume control knob
*For Navigation system control buttons, refer to
the separate Navigation System Owner’s Man-
ual.
When you use this system, make sure the
engine is running.
SAFETY NOTE
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)

Black plate (151,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.

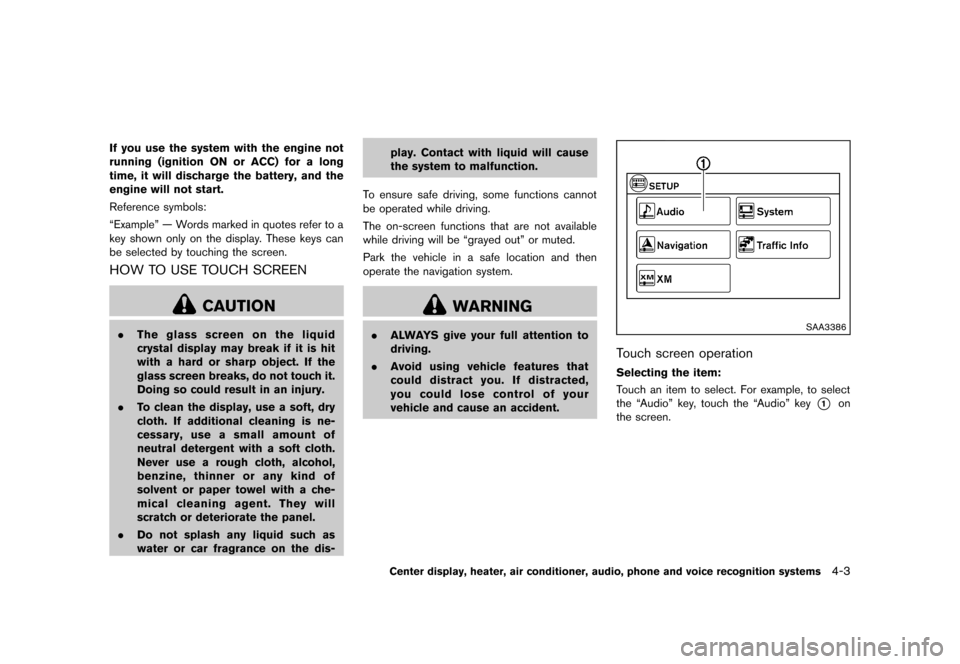

HOW TO USE TOUCH SCREENGUID-7C59B976-54A1-4D74-A77C-CF757A76A294
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis- play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.SAA3386
Touch screen operationGUID-67B20698-8B04-4122-9E42-414B14750F5F
Selecting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
*1on
the screen.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-3

Black plate (152,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-4Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA3387

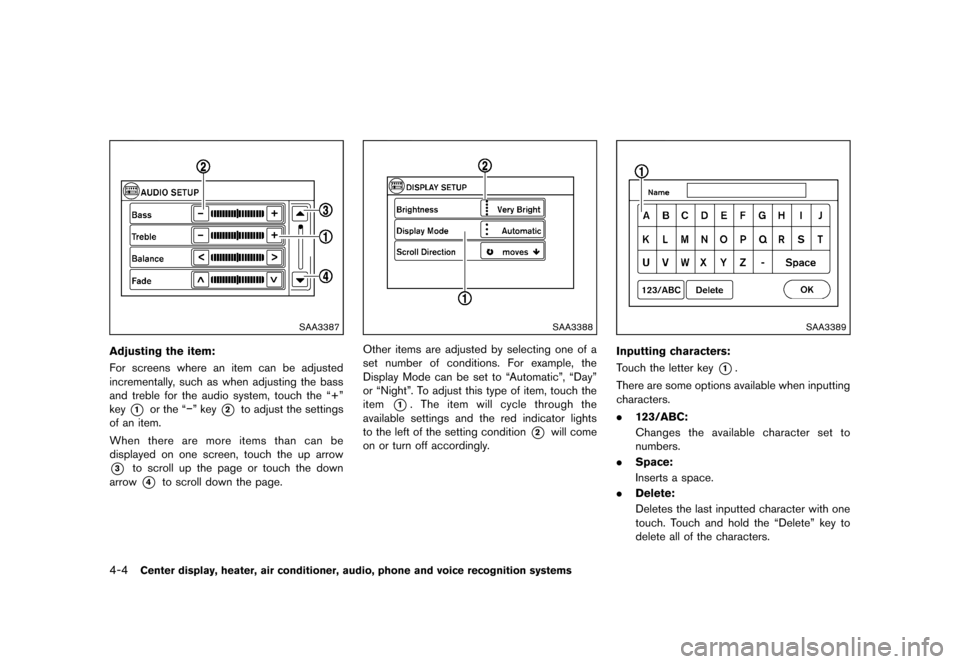

Adjusting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For screens where an item can be adjusted
incrementally, such as when adjusting the bass
and treble for the audio system, touch the “+”
key
*1or the “−” key*2to adjust the settings
of an item.
When there are more items than can be
displayed on one screen, touch the up arrow
*3to scroll up the page or touch the down
arrow
*4to scroll down the page.
SAA3388
Other items are adjusted by selecting one of a
set number of conditions. For example, the
Display Mode can be set to “Automatic”, “Day”
or “Night”. To adjust this type of item, touch the
item
*1. The item will cycle through the
available settings and the red indicator lights
to the left of the setting condition
*2will come
on or turn off accordingly.
SAA3389
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter key*1.
There are some options available when inputting
characters.
. 123/ABC:
Changes the available character set to
numbers.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.

Black plate (153,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
.OK:
Completes the character input.

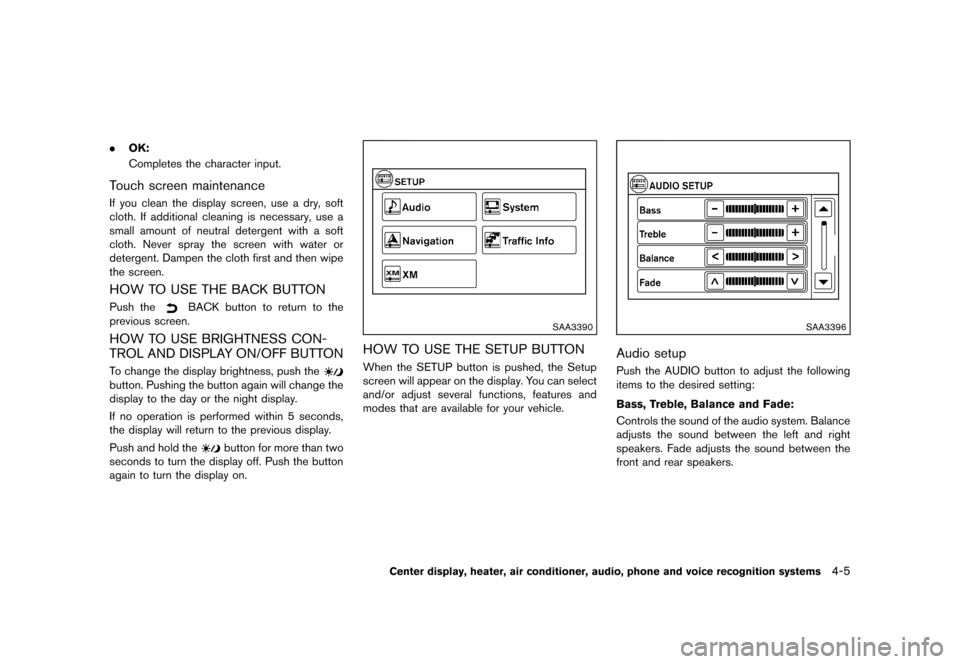

Touch screen maintenanceGUID-81BE922F-CC67-4C42-9828-DA9A2B268C8CIf you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-3731A0E9-D30B-4326-87CC-DE42F49C98C6Push theBACK button to return to the
previous screen.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-45C21C47-851E-4C30-8B09-DFE9F060C0A9To change the display brightness, push the
button. Pushing the button again will change the
display to the day or the night display.
If no operation is performed within 5 seconds,
the display will return to the previous display.
Push and hold the
button for more than two
seconds to turn the display off. Push the button
again to turn the display on.
SAA3390
HOW TO USE THE SETUP BUTTONGUID-12359B90-6257-4C35-8D6D-868D31AAACA0When the SETUP button is pushed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.
SAA3396
Audio setupGUID-3A0D33F6-B887-4B69-81BC-BE7B20D8CE08Push the AUDIO button to adjust the following
items to the desired setting:
Bass, Treble, Balance and Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-5

Black plate (154,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-6Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA3397
Speed Volume:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the level to which the volume is
adjusted as the vehicle’s driving speed changes.
Choose a setting between 1 and 5 or choose 0
to disable the feature entirely.
AUX Level:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-B9AA7DEB-75C8-439C-AB2C-CD5EB042E481Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-EABD1884-04E7-402A-A446-574F90206135For SiriusXM Satellite Radio setup, refer to “FM-
AM-SAT radio with Compact Disc (CD) player
(Type B) ” later in this section.
SAA3391
System setupGUID-28F2C574-E628-459B-BF48-5E85D07EDE74Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.

Black plate (155,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SAA3392

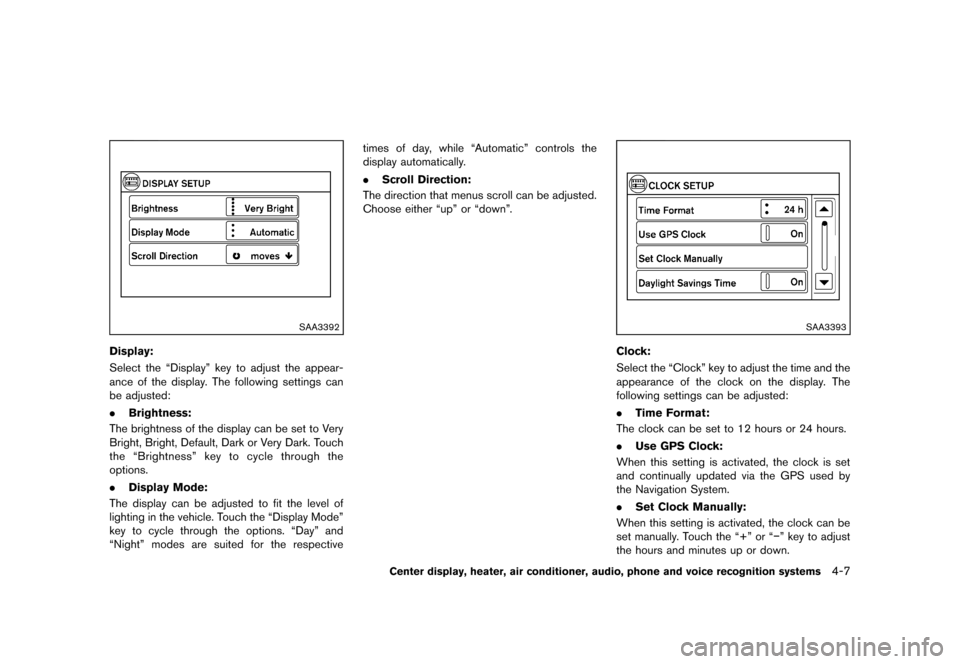

Display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Display” key to adjust the appear-
ance of the display. The following settings can
be adjusted:
.Brightness:
The brightness of the display can be set to Very
Bright, Bright, Default, Dark or Very Dark. Touch
the “Brightness” key to cycle through the
options.
. Display Mode:
The display can be adjusted to fit the level of
lighting in the vehicle. Touch the “Display Mode”
key to cycle through the options. “Day” and
“Night” modes are suited for the respective times of day, while “Automatic” controls the
display automatically.
.
Scroll Direction:
The direction that menus scroll can be adjusted.
Choose either “up” or “down”.
SAA3393
Clock:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The
following settings can be adjusted:
. Time Format:
The clock can be set to 12 hours or 24 hours.
. Use GPS Clock:
When this setting is activated, the clock is set
and continually updated via the GPS used by
the Navigation System.
. Set Clock Manually:
When this setting is activated, the clock can be
set manually. Touch the “+” or “−” key to adjust
the hours and minutes up or down.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-7

Black plate (156,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-8Center display, heater, air conditioner, audio, phone and voice recognition systems
.Daylight Savings Time:
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time”
key to toggle the setting on or off.
. Time Zone:
Choose the applicable time zone from the list.
SAA3395
Language:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Language” key to adjust the
language used by the system. The language
can be set to English, Franc¸ ais or Espan ˜
ol.
Touch click:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.
Beep tones:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Beep Tones” key to toggle the beep
tones feature on or off. When activated, a beep
sound will be heard when a pop-up message
appears on the screen or a button on the unit (such as the
button) is pressed and held for
two seconds.
Reset all settings/memory:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Reset All Settings/Memory” key to
return all settings to default and to clear the
memory.
Traffic setupGUID-227EBD73-F2E5-4100-A2D1-99989F787550Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.

Black plate (157,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-2F64DC1B-3CBB-41D0-8176-3FF7CF94DB67The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
When the selector lever is shifted into the R
(Reverse) position, the monitor display shows
the view to the rear of the vehicle.
WARNING
.The RearView camera is a conveni-
ence but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite than
when viewed in the rear view and
outside mirrors.
. Make sure that the lift gate is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the Rear-
View camera.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
SAA2776

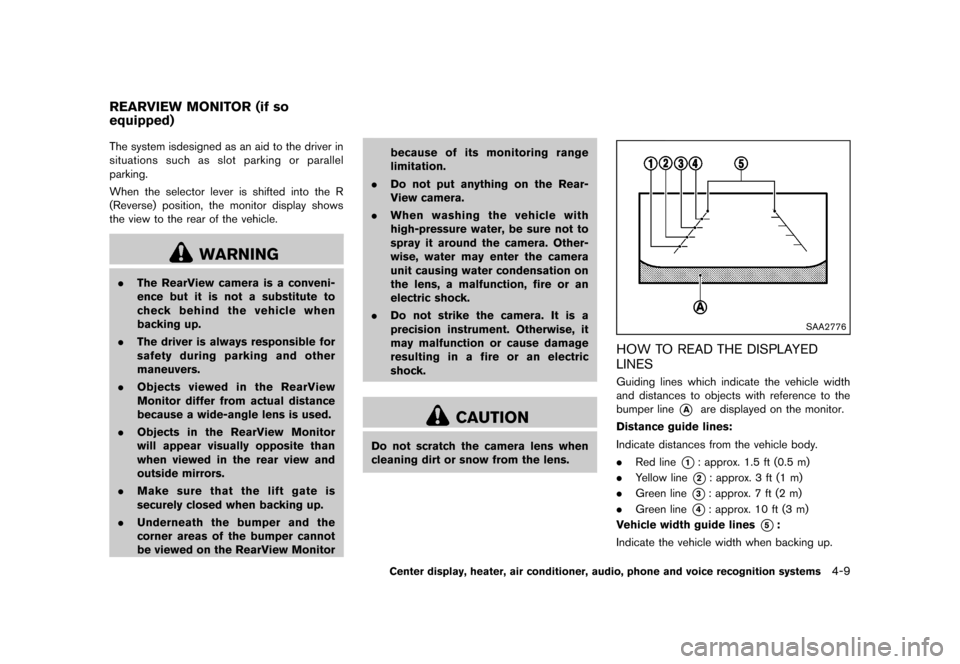

HOW TO READ THE DISPLAYED
LINES
S35-D-110201-90C6EB03-D1AD-43E9-8C29-AB01726784FAGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-9
REARVIEW MONITOR (if so
equipped)

Black plate (158,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-10Center display, heater, air conditioner, audio, phone and voice recognition systems

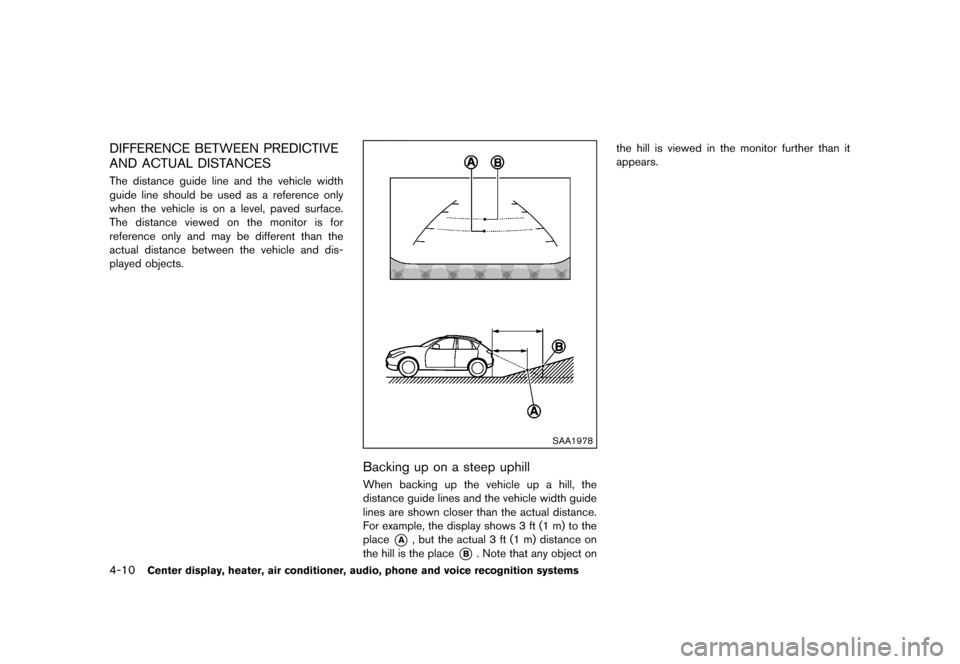

DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
S35-D-110201-65C6F016-3036-40CB-BCA9-7E6F60BB027EThe distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different than the
actual distance between the vehicle and dis-
played objects.
SAA1978
Backing up on a steep uphillS35-D-110201-723BFB5B-80F0-4A3F-AF31-9D21290A882EWhen backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on the hill is viewed in the monitor further than it
appears.
