NISSAN ROGUE 2013 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: ROGUE, Model: NISSAN ROGUE 2013 2.GPages: 371, PDF Size: 3.67 MB
Page 141 of 371
Black plate (139,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

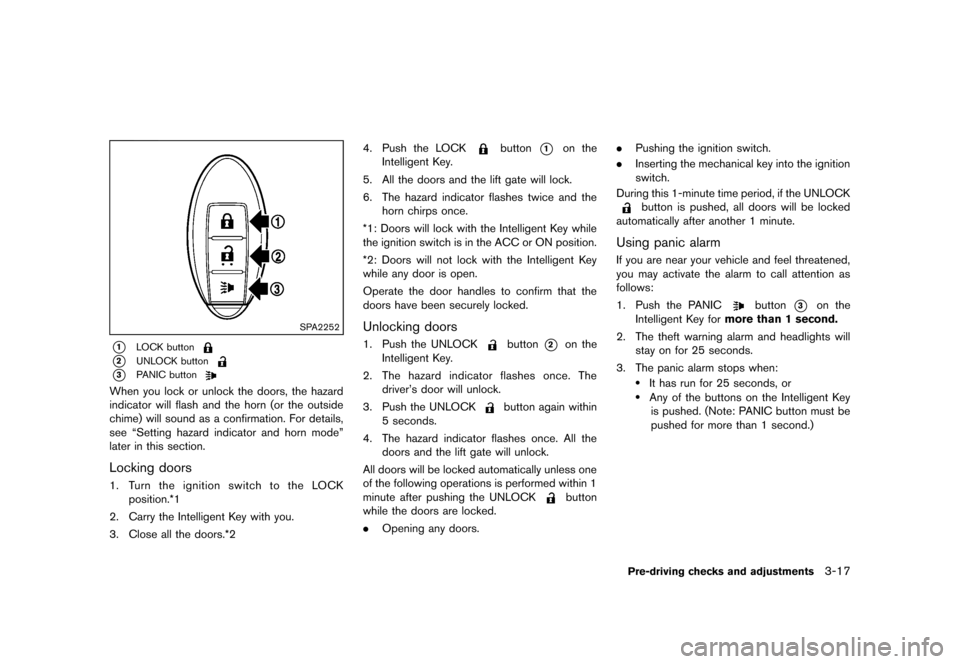

SPA2252
*1LOCK button
*2UNLOCK button
*3PANIC button
When you lock or unlock the doors, the hazard
indicator will flash and the horn (or the outside
chime) will sound as a confirmation. For details,
see “Setting hazard indicator and horn mode”
later in this section.
Locking doorsS35-D-110201-A8D08BE2-F673-412D-BEB0-690D24D790A01.Turn the ignition switch to the LOCK
position.*1
2. Carry the Intelligent Key with you.
3. Close all the doors.*2 4. Push the LOCK
button*1on the
Intelligent Key.
5. All the doors and the lift gate will lock.
6. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while
the ignition switch is in the ACC or ON position.
*2: Doors will not lock with the Intelligent Key
while any door is open.
Operate the door handles to confirm that the
doors have been securely locked.
Unlocking doorsS35-D-110201-5BF96B05-51EE-4842-8795-C1E9301364751. Push the UNLOCKbutton*2on the
Intelligent Key.
2. The hazard indicator flashes once. The
driver’s door will unlock.
3. Push the UNLOCK
button again within
5 seconds.
4. The hazard indicator flashes once. All the doors and the lift gate will unlock.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the UNLOCK
button
while the doors are locked.
. Opening any doors. .
Pushing the ignition switch.
. Inserting the mechanical key into the ignition
switch.
During this 1-minute time period, if the UNLOCK
button is pushed, all doors will be locked
automatically after another 1 minute.
Using panic alarmS35-D-110201-F0A15784-7138-4284-8670-24D4950A9145If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button*3on the
Intelligent Key for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or.Any of the buttons on the Intelligent Key is pushed. (Note: PANIC button must be
pushed for more than 1 second.)
Pre-driving checks and adjustments3-17
Page 142 of 371
Black plate (140,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3-18Pre-driving checks and adjustments

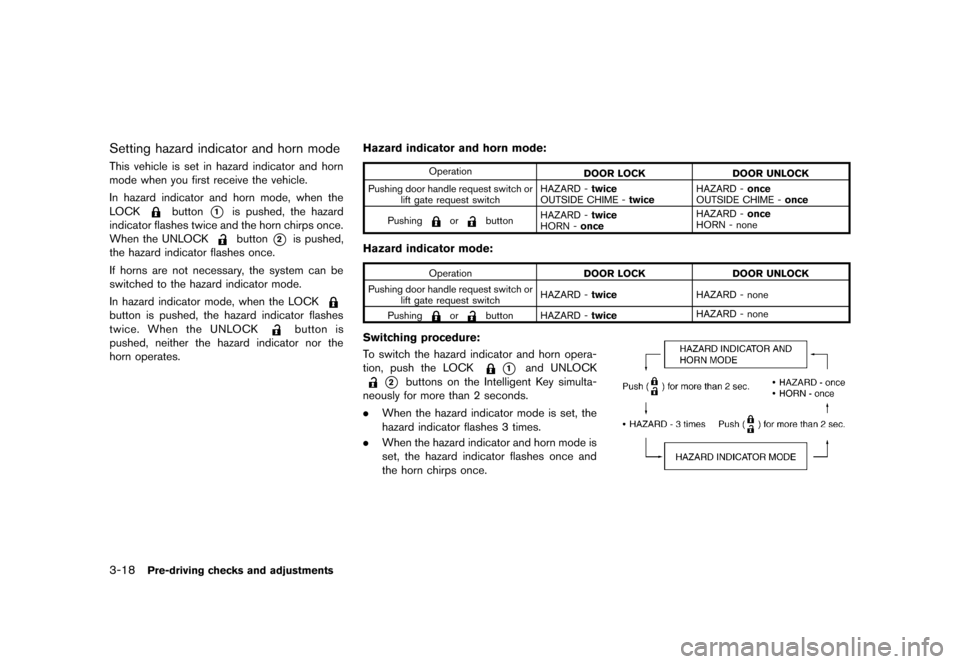

Setting hazard indicator and horn modeGUID-1392CA15-47C1-4364-9564-F188E178C817This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button*1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button*2is pushed,
the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK
button is
pushed, neither the hazard indicator nor the
horn operates. Hazard indicator and horn mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Operation
DOOR LOCK DOOR UNLOCK
Pushing door handle request switch or lift gate request switch HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Pushing
orbutton HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Operation DOOR LOCKDOOR UNLOCK
Pushing door handle request switch or lift gate request switch HAZARD -
twice HAZARD - none
Pushing
orbutton HAZARD - twiceHAZARD - none
Switching procedure:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To switch the hazard indicator and horn opera-
tion, push the LOCK
*1and UNLOCK
*2buttons on the Intelligent Key simulta-
neously for more than 2 seconds.
. When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
. When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
NOS1695
Page 143 of 371
Black plate (141,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

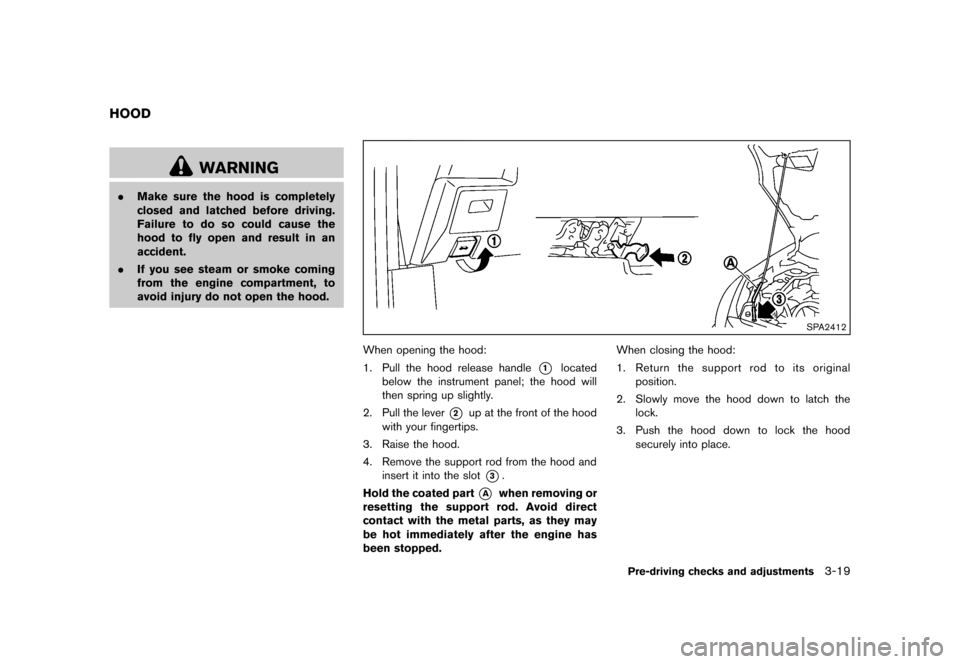

S35-D-110201-3E438177-7161-4F63-AE18-E528B9958B72
WARNING
.Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the
hood to fly open and result in an
accident.
. If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
SPA2412
When opening the hood:
1. Pull the hood release handle
*1located
below the instrument panel; the hood will
then spring up slightly.
2. Pull the lever
*2up at the front of the hood
with your fingertips.
3. Raise the hood.
4. Remove the support rod from the hood and insert it into the slot
*3.
Hold the coated part
*Awhen removing or
resetting the support rod. Avoid direct
contact with the metal parts, as they may
be hot immediately after the engine has
been stopped. When closing the hood:
1.
Return the support rod to its original
position.
2. Slowly move the hood down to latch the lock.
3. Push the hood down to lock the hood
securely into place.
Pre-driving checks and adjustments3-19
HOOD
Page 144 of 371
Black plate (142,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3-20Pre-driving checks and adjustments

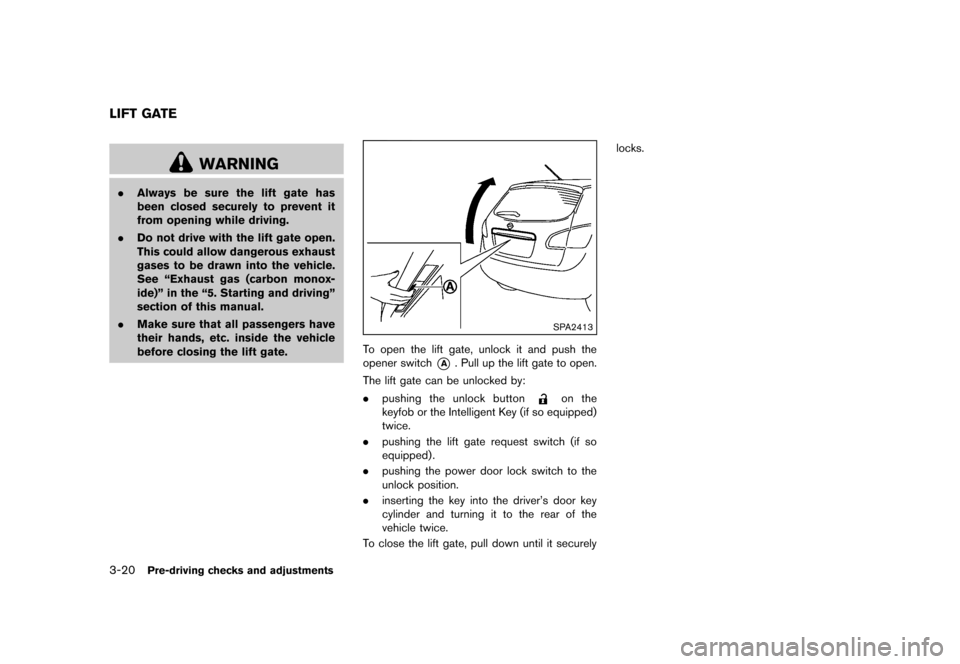

S35-D-110201-3B6AEB5E-E690-4213-A96C-BD4949D8360D
WARNING
.Always be sure the lift gate has
been closed securely to prevent it
from opening while driving.
. Do not drive with the lift gate open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monox-
ide)” in the “5. Starting and driving”
section of this manual.
. Make sure that all passengers have
their hands, etc. inside the vehicle
before closing the lift gate.
SPA2413
To open the lift gate, unlock it and push the
opener switch
*A. Pull up the lift gate to open.
The lift gate can be unlocked by:
. pushing the unlock button
on the
keyfob or the Intelligent Key (if so equipped)
twice.
. pushing the lift gate request switch (if so
equipped) .
. pushing the power door lock switch to the
unlock position.
. inserting the key into the driver’s door key
cylinder and turning it to the rear of the
vehicle twice.
To close the lift gate, pull down until it securely locks.
LIFT GATE
Page 145 of 371
Black plate (143,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

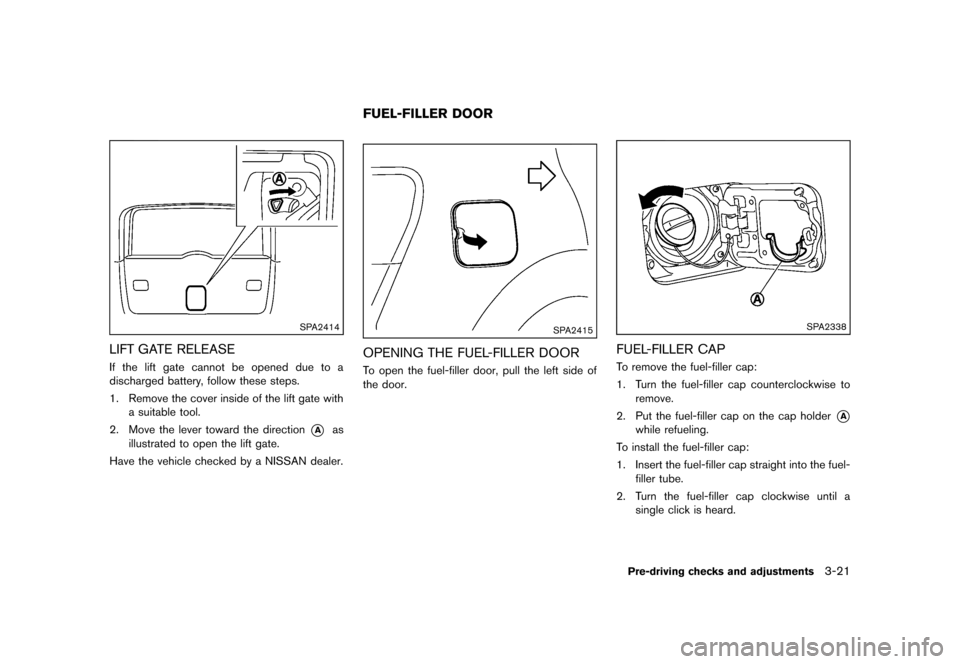

SPA2414
LIFT GATE RELEASES35-D-110201-B8DEF828-77B2-4BDA-90BB-EAF054BB537FIf the lift gate cannot be opened due to a
discharged battery, follow these steps.
1. Remove the cover inside of the lift gate witha suitable tool.
2. Move the lever toward the direction
*Aas
illustrated to open the lift gate.
Have the vehicle checked by a NISSAN dealer.
S35-D-110201-2B147586-63E0-4DF3-B881-8610B6736448
SPA2415
OPENING THE FUEL-FILLER DOORS35-D-110201-7CC1E09E-D8D3-41CA-9B6A-49166F375329To open the fuel-filler door, pull the left side of
the door.
SPA2338
FUEL-FILLER CAPS35-D-110201-2406F22D-9BA5-40C7-BA12-ABC92FD1B580To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
*A
while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Pre-driving checks and adjustments3-21
FUEL-FILLER DOOR
Page 146 of 371
Black plate (144,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

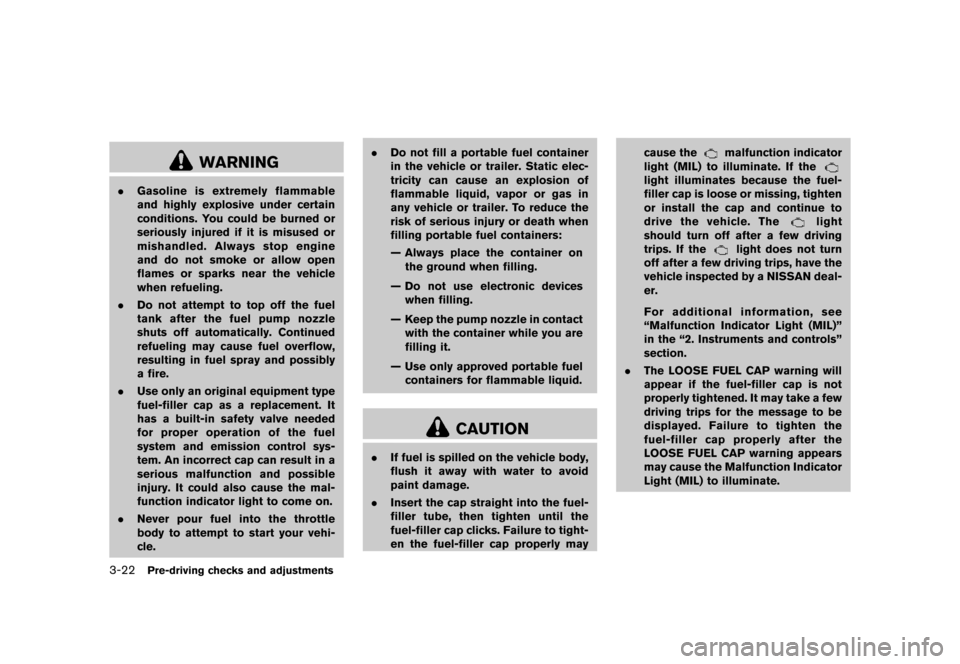

3-22Pre-driving checks and adjustments
WARNING
.Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on.
. Never pour fuel into the throttle
body to attempt to start your vehi-
cle. .
Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:
— Always place the container on
the ground when filling.
— Do not use electronic devices when filling.
— Keep the pump nozzle in contact with the container while you are
filling it.
— Use only approved portable fuel containers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.
. Insert the cap straight into the fuel-
filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may cause the
malfunction indicator
light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, have the
vehicle inspected by a NISSAN deal-
er.
For additional information, see
“Malfunction Indicator Light (MIL)”
in the “2. Instruments and controls”
section.
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the Malfunction Indicator
Light (MIL) to illuminate.
Page 147 of 371
Black plate (145,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

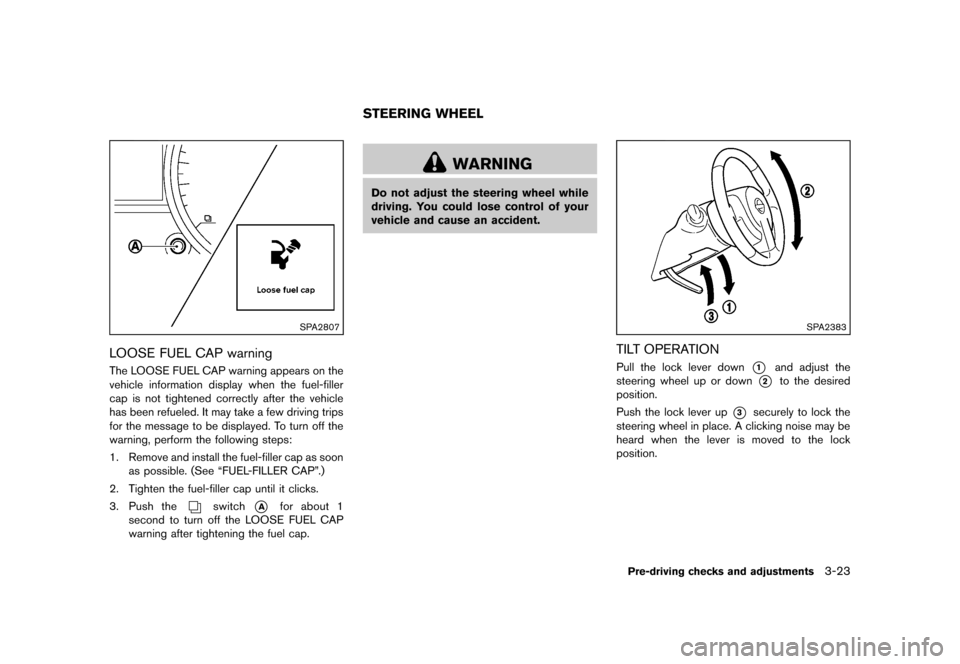

SPA2807
LOOSE FUEL CAP warningS35-D-110201-7BDBA3A1-1B36-47D7-8D3F-6BCA39874459The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. It may take a few driving trips
for the message to be displayed. To turn off the
warning, perform the following steps:
1. Remove and install the fuel-filler cap as soonas possible. (See “FUEL-FILLER CAP”.)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switch*Afor about 1
second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.
S35-D-110201-080D2004-4570-4B0C-B875-A5DE896B6841
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
SPA2383
TILT OPERATIONS35-D-110201-28BA420D-969D-46F3-B289-6F251133B52BPull the lock lever down*1and adjust the
steering wheel up or down
*2to the desired
position.
Push the lock lever up
*3securely to lock the
steering wheel in place. A clicking noise may be
heard when the lever is moved to the lock
position.
Pre-driving checks and adjustments3-23
STEERING WHEEL
Page 148 of 371
Black plate (146,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3-24Pre-driving checks and adjustments

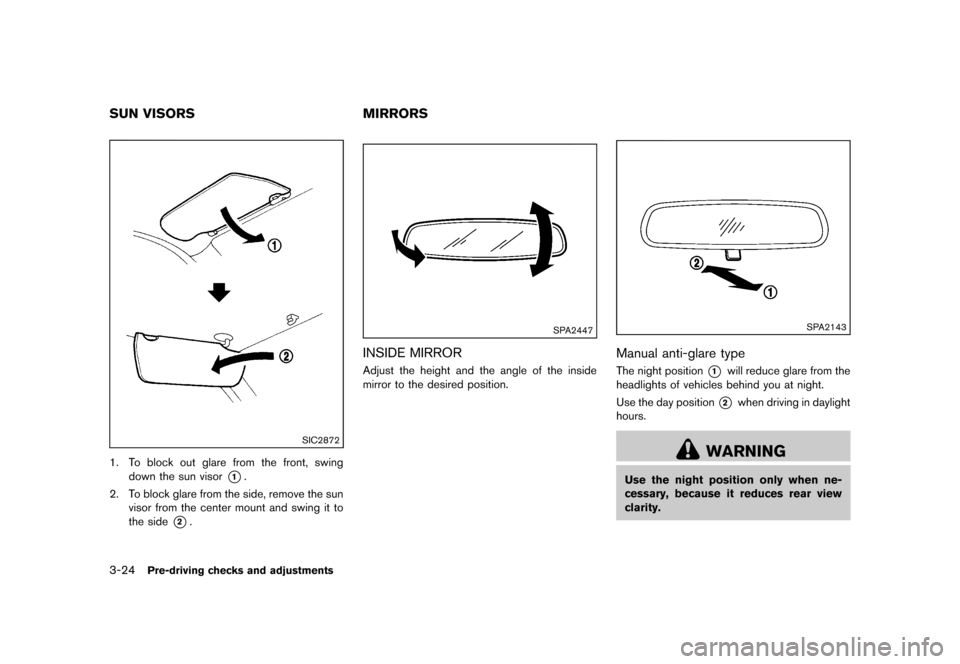

S35-D-110201-B266053D-0E25-4B84-A94E-88E6B81337A0
SIC2872
1. To block out glare from the front, swingdown the sun visor
*1.
2. To block glare from the side, remove the sun visor from the center mount and swing it to
the side
*2.
S35-D-110201-2C2A1443-F866-4FB7-8FF5-8337E541196D
SPA2447
INSIDE MIRRORS35-D-110201-67D1410D-36D6-4377-944E-434F7B628FFCAdjust the height and the angle of the inside
mirror to the desired position.
SPA2143
Manual anti-glare typeS35-D-110201-7FA2E3AD-51E8-43DF-93EA-2C31AEAE2711The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SUN VISORS MIRRORS
Page 149 of 371
Black plate (147,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

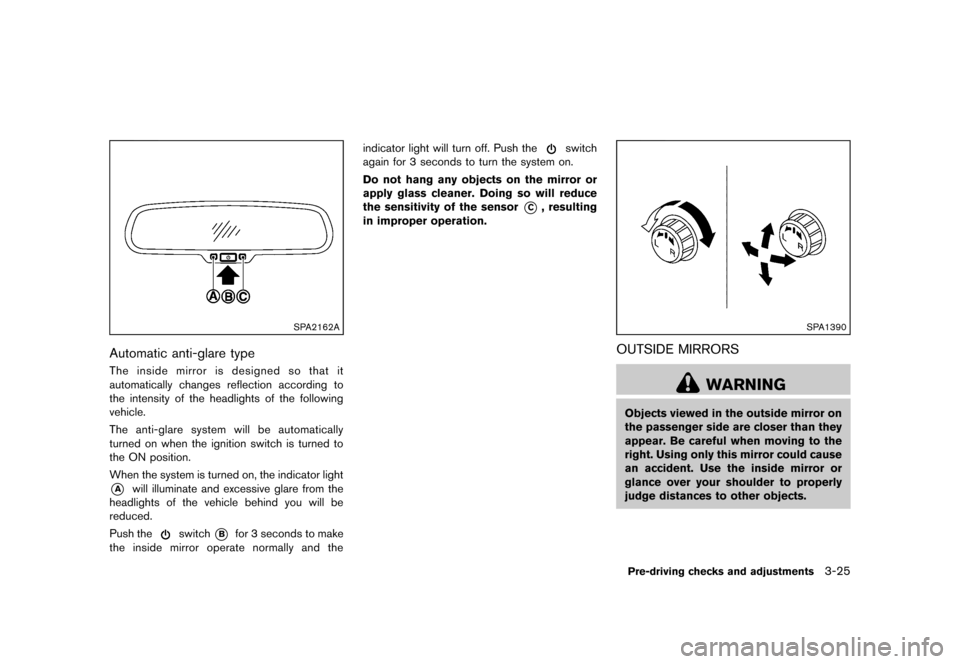

SPA2162A
Automatic anti-glare typeS35-D-110201-BCCF0D4C-958E-4AB1-8A98-EE47B549C9ACThe inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is turned to
the ON position.
When the system is turned on, the indicator light
*Awill illuminate and excessive glare from the
headlights of the vehicle behind you will be
reduced.
Push the
switch*Bfor 3 seconds to make
the inside mirror operate normally and the indicator light will turn off. Push the
switch
again for 3 seconds to turn the system on.
Do not hang any objects on the mirror or
apply glass cleaner. Doing so will reduce
the sensitivity of the sensor
*C, resulting
in improper operation.
SPA1390
OUTSIDE MIRRORSS35-D-110201-85E8C1B6-9131-460C-BDC1-2187D806CC2F
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
Pre-driving checks and adjustments3-25
Page 150 of 371
Black plate (148,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

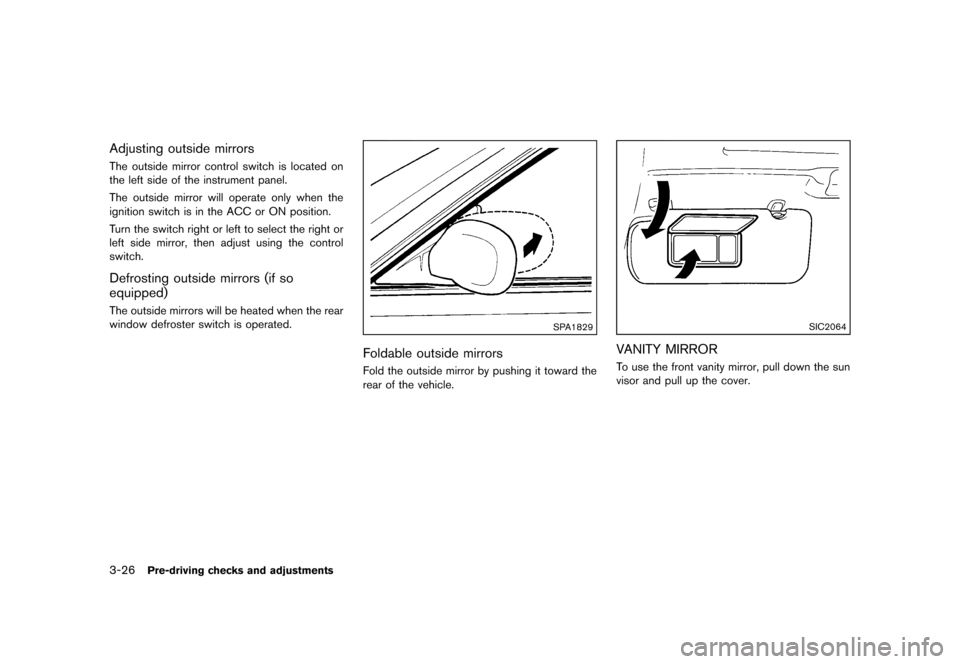

3-26Pre-driving checks and adjustments
Adjusting outside mirrorsS35-D-110201-3F0FC23C-63BA-4C15-907F-D683589765C8The outside mirror control switch is located on
the left side of the instrument panel.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror, then adjust using the control
switch.
Defrosting outside mirrors (if so
equipped)
S35-D-110201-FE0BE402-86EE-473F-932D-0CDFE7858E17The outside mirrors will be heated when the rear
window defroster switch is operated.
SPA1829
Foldable outside mirrorsS35-D-110201-35753C78-8667-43C1-A202-7708082BAF4EFold the outside mirror by pushing it toward the
rear of the vehicle.
SIC2064
VANITY MIRRORGUID-077032A8-BE9E-45A3-9146-957D47A5EB9ATo use the front vanity mirror, pull down the sun
visor and pull up the cover.
