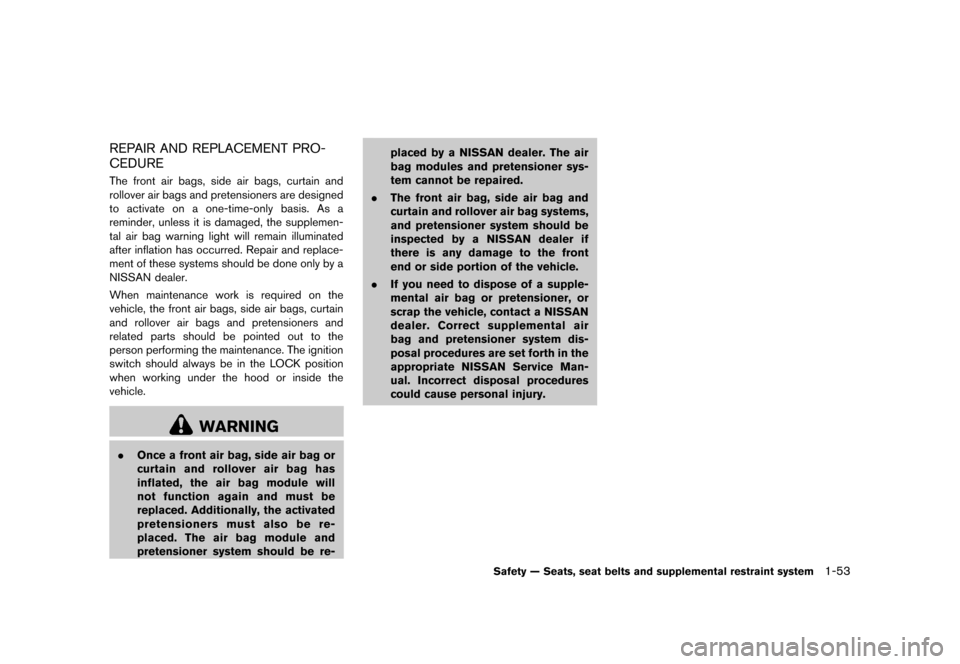

Black plate (69,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
REPAIR AND REPLACEMENT PRO-
CEDURE
S35-D-110201-893056AA-962B-4966-BF1A-CC8E22C7E775The front air bags, side air bags, curtain and
rollover air bags and pretensioners are designed
to activate on a one-time-only basis. As a
reminder, unless it is damaged, the supplemen-
tal air bag warning light will remain illuminated
after inflation has occurred. Repair and replace-
ment of these systems should be done only by a
NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
and rollover air bags and pretensioners and
related parts should be pointed out to the
person performing the maintenance. The ignition
switch should always be in the LOCK position
when working under the hood or inside the
vehicle.
WARNING
.Once a front air bag, side air bag or
curtain and rollover air bag has
inflated, the air bag module will
not function again and must be
replaced. Additionally, the activated
pretensioners must also be re-
placed. The air bag module and
pretensioner system should be re- placed by a NISSAN dealer. The air
bag modules and pretensioner sys-
tem cannot be repaired.
. The front air bag, side air bag and
curtain and rollover air bag systems,
and pretensioner system should be
inspected by a NISSAN dealer if
there is any damage to the front
end or side portion of the vehicle.
. If you need to dispose of a supple-
mental air bag or pretensioner, or
scrap the vehicle, contact a NISSAN
dealer. Correct supplemental air
bag and pretensioner system dis-
posal procedures are set forth in the
appropriate NISSAN Service Man-
ual. Incorrect disposal procedures
could cause personal injury.
Safety — Seats, seat belts and supplemental restraint system1-53
Page 72 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (70,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-54Safety — Seats, seat belts and supplemental restraint system
MEMO NISSAN ROGUE 2013 2.G Manual PDF Black plate (70,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-54Safety — Seats, seat belts and supplemental restraint system
MEMO](/img/5/338/w960_338-71.png)

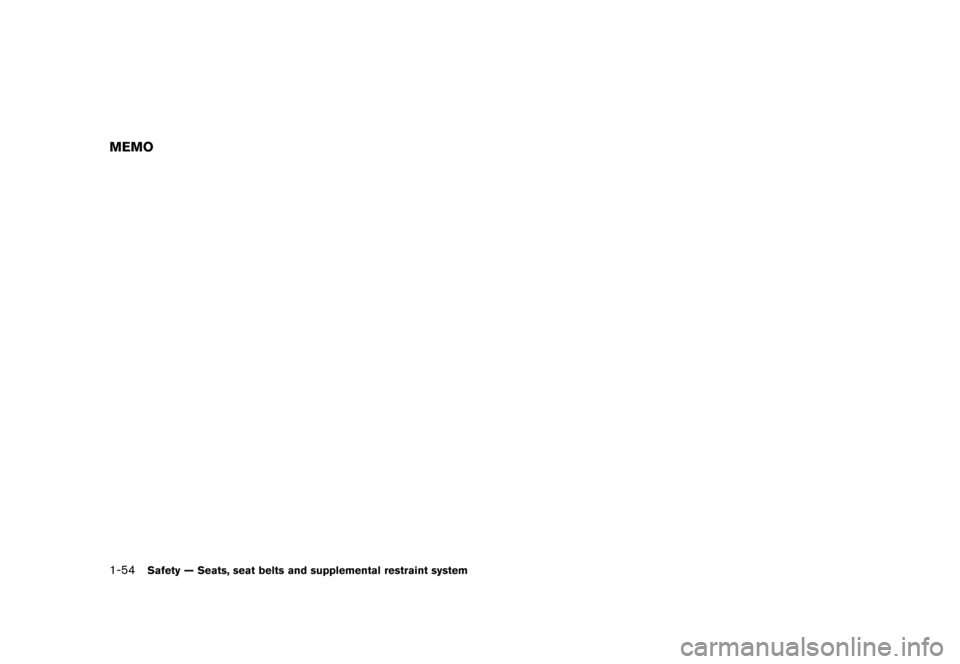

Black plate (70,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-54Safety — Seats, seat belts and supplemental restraint system
MEMO
Page 73 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (71,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges .. NISSAN ROGUE 2013 2.G Manual PDF Black plate (71,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ..](/img/5/338/w960_338-72.png)
Black plate (71,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-4
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-5
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-6
Instrument brightness control ...
.......................................... 2-7
Warning/indicator lights and audible reminders ...
............... 2-8
Checking bulbs ...
.................................................................... 2-9
Warning lights ...
...................................................................... 2-9
Indicator lights ...
................................................................... 2-13
Audible reminders ...
............................................................ 2-15
Vehicle information display ...
.................................................. 2-16
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-18
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-21
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-24
Security systems ...
.................................................................... 2-25
Vehicle Security System ...
................................................. 2-25
NISSAN Vehicle Immobilizer System ...
.......................... 2-26
Windshield wiper and washer switch ...
............................... 2-28 Rear window wiper and washer switch
...
.......................... 2-29
Rear window and outside mirror defroster switch ...
....... 2-30
Headlight and turn signal switch ...
....................................... 2-30
Xenon headlights (if so equipped) ...
............................ 2-30
Headlight switch ...
............................................................ 2-32
Turn signal switch ...
.......................................................... 2-34
Fog light switch (if so equipped) ...
.............................. 2-34
Horn ...
........................................................................\
.................. 2-35
Heated seats (if so equipped) ...
........................................... 2-35
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-36
Power outlet ...
........................................................................\
.... 2-37
Storage ...
........................................................................\
............ 2-38
Cup holders ...
..................................................................... 2-38
Sunglasses holder ...
......................................................... 2-39
Glove box ...
........................................................................\
. 2-40
Console box ...
.................................................................... 2-40
Luggage floor box (if so equipped) ...
.......................... 2-41
Luggage side box ...
.......................................................... 2-41
Cargo cover (if so equipped) ...
..................................... 2-41
Luggage hooks (if so equipped) ...
............................... 2-42
Coat hooks (if so equipped) ...
....................................... 2-43
Utility hook ...
....................................................................... 2-43
Roof rack (if so equipped) ...
.......................................... 2-44>
Page 74 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (72,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Windows...
........................................................................\
.......... 2-45
Power windows ...
........................... NISSAN ROGUE 2013 2.G Manual PDF Black plate (72,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Windows...
........................................................................\
.......... 2-45
Power windows ...
...........................](/img/5/338/w960_338-73.png)

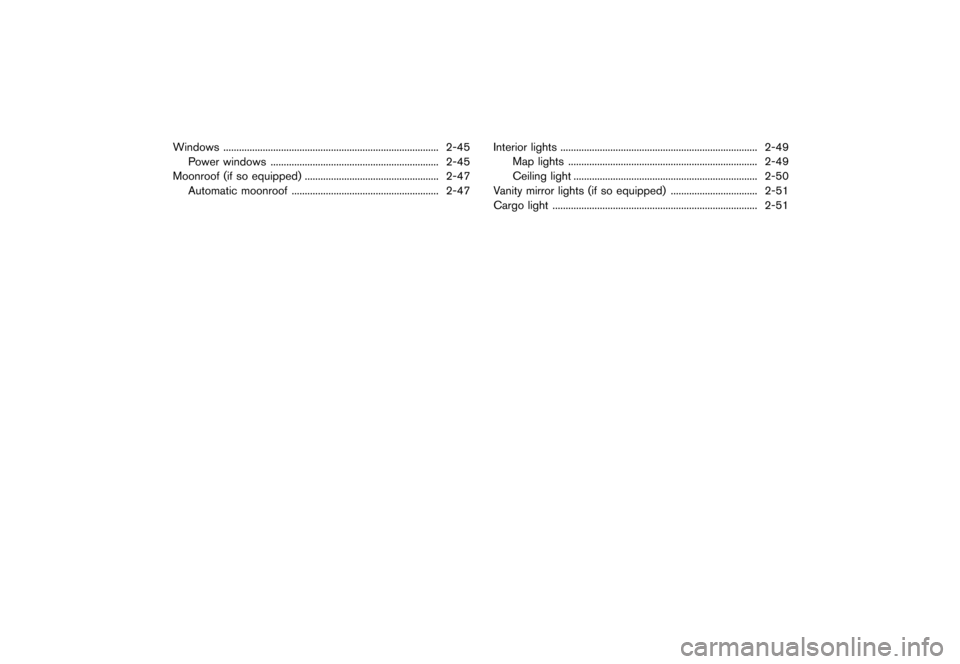

Black plate (72,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Windows...
........................................................................\
.......... 2-45
Power windows ...
................................................................ 2-45
Moonroof (if so equipped) ...
................................................... 2-47
Automatic moonroof ...
........................................................ 2-47 Interior lights
...
........................................................................\
... 2-49
Map lights ...
........................................................................\
2-49
Ceiling light ...
...................................................................... 2-50
Vanity mirror lights (if so equipped) ...
................................. 2-51
Cargo light ...
........................................................................\
...... 2-51
Page 75 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (73,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0173X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. St NISSAN ROGUE 2013 2.G Manual PDF Black plate (73,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0173X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. St](/img/5/338/w960_338-74.png)
Black plate (73,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0173X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. Steering-wheel-mounted controls (left side) (if so equipped)
— Audio control
— Bluetooth
®Hands-Free Phone system con- trol
4. Steering wheel — Horn
— Driver supplemental air bag
5. Meters and gauges
6. Steering-wheel-mounted controls (right side) — Cruise control switches 7. Wiper and washer switch
8. Center ventilator
9. Hazard warning flasher switch
10.
Audio system/Navigation system (if so
equipped)
— Clock
— Rear view monitor (if so equipped)
— Around view
TMmonitor (if so equipped)
11. Front passenger supplemental air bag
12. Outside remote mirror control switch
13. Headlight aiming control (if so equipped)
14. All-Wheel Drive (AWD) LOCK switch (if so equipped)
15. Fuse box cover
16. Vehicle Dynamic Control (VDC) OFF switch
17. Hood release handle
18. Tilting steering wheel lever
19. Parking brake
20. Ignition switch
21. Heated seat switch (if so equipped)
22. “Camera” Around view
TMmonitor display switch
(if so equipped)
23. Sport mode switch
24. Power outlet
25. Heater/air conditioner control
26. Selector lever
27. Front passenger air bag status light
28. Rear window and outside mirror (if so equipped) defroster switch
29. Glove box
Instruments and controls2-3
INSTRUMENT PANEL
Page 76 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (74,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-4Instruments and controls
S35-D-110201-F221FA22-5C18-4A37-B124-E6F61E733E4B
JVC0301X
1. Tachometer
2. Warning/indicator lights
3. Vehicle inform NISSAN ROGUE 2013 2.G Manual PDF Black plate (74,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-4Instruments and controls
S35-D-110201-F221FA22-5C18-4A37-B124-E6F61E733E4B
JVC0301X
1. Tachometer
2. Warning/indicator lights
3. Vehicle inform](/img/5/338/w960_338-75.png)

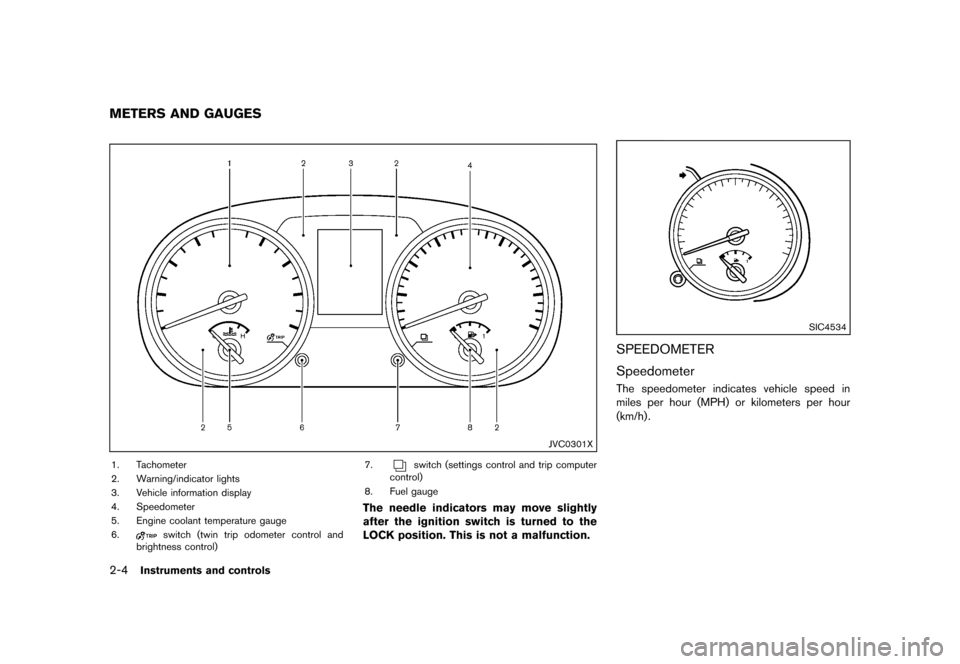

Black plate (74,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-4Instruments and controls
S35-D-110201-F221FA22-5C18-4A37-B124-E6F61E733E4B
JVC0301X
1. Tachometer
2. Warning/indicator lights
3. Vehicle information display
4. Speedometer
5. Engine coolant temperature gauge
6.
switch (twin trip odometer control and
brightness control) 7.
switch (settings control and trip computer
control)
8. Fuel gauge
The needle indicators may move slightly
after the ignition switch is turned to the
LOCK position. This is not a malfunction.
SIC4534
SPEEDOMETERS35-D-110201-C9945ABD-2549-458F-908F-CB27BD1CA5A3
SpeedometerS35-D-110201-60576567-9CF2-4129-A4A9-9B5C4699383DThe speedometer indicates vehicle speed in
miles per hour (MPH) or kilometers per hour
(km/h) .
METERS AND GAUGES
Page 77 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (75,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

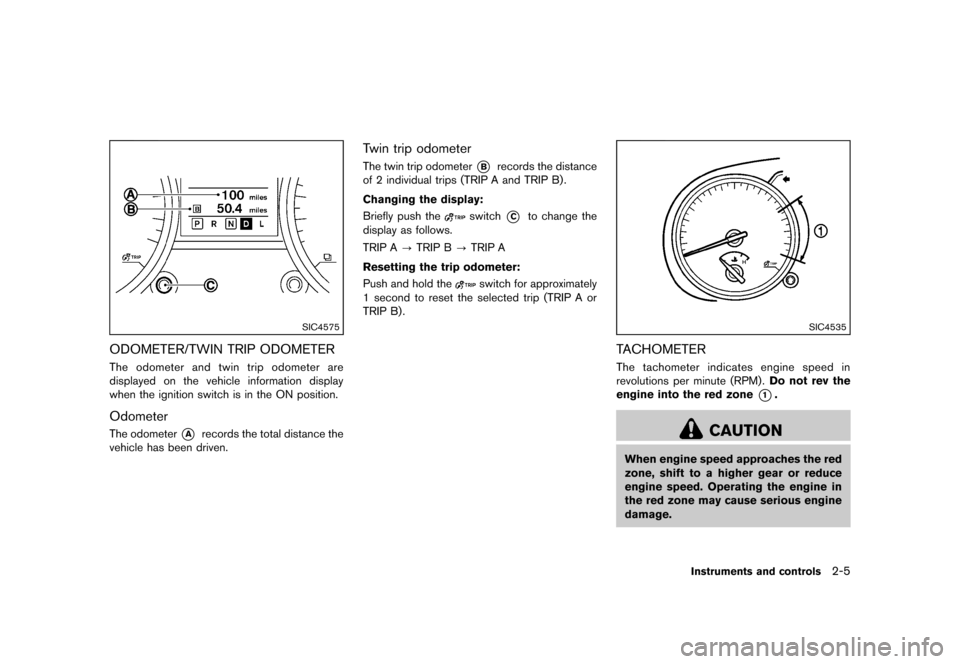

SIC4575
ODOMETER/TWIN TRIP ODOMETERS35-D-110201-2BE450E5-2630-467B-84F7-2D3A478E020EThe odometer and twin trip odometer are
displayed on the vehic NISSAN ROGUE 2013 2.G Manual PDF Black plate (75,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SIC4575
ODOMETER/TWIN TRIP ODOMETERS35-D-110201-2BE450E5-2630-467B-84F7-2D3A478E020EThe odometer and twin trip odometer are
displayed on the vehic](/img/5/338/w960_338-76.png)
Black plate (75,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SIC4575
ODOMETER/TWIN TRIP ODOMETERS35-D-110201-2BE450E5-2630-467B-84F7-2D3A478E020EThe odometer and twin trip odometer are
displayed on the vehicle information display
when the ignition switch is in the ON position.
OdometerS35-D-110201-8DFDDE94-809B-4D2D-AA93-E378AFA980E9The odometer*Arecords the total distance the
vehicle has been driven.
Twin trip odometerS35-D-110201-D6A1AD54-C687-4B93-91DA-22BF83CE3F84The twin trip odometer*Brecords the distance
of 2 individual trips (TRIP A and TRIP B) .
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Briefly push theswitch*Cto change the
display as follows.
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push and hold theswitch for approximately
1 second to reset the selected trip (TRIP A or
TRIP B) .
SIC4535
TACHOMETERS35-D-110201-BB0955F7-0971-43A9-994F-8F7EC807ED65The tachometer indicates engine speed in
revolutions per minute (RPM) . Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
Instruments and controls2-5
Page 78 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (76,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-6Instruments and controls
SIC4513
ENGINE COOLANT TEMPERATURE
GAUGE
S35-D-110201-93431A36-1936-48DD-9179-7AC08AF28991The gauge*Aindicates the eng NISSAN ROGUE 2013 2.G Manual PDF Black plate (76,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-6Instruments and controls
SIC4513
ENGINE COOLANT TEMPERATURE
GAUGE
S35-D-110201-93431A36-1936-48DD-9179-7AC08AF28991The gauge*Aindicates the eng](/img/5/338/w960_338-77.png)

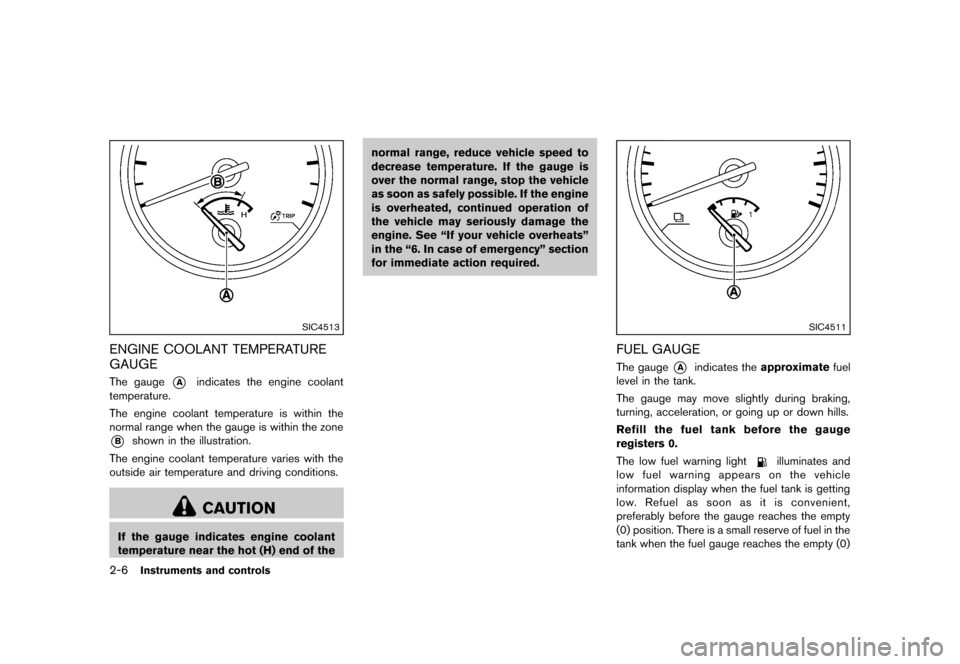

Black plate (76,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-6Instruments and controls
SIC4513
ENGINE COOLANT TEMPERATURE
GAUGE
S35-D-110201-93431A36-1936-48DD-9179-7AC08AF28991The gauge*Aindicates the engine coolant
temperature.
The engine coolant temperature is within the
normal range when the gauge is within the zone
*Bshown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the normal range, reduce vehicle speed to
decrease temperature. If the gauge is
over the normal range, stop the vehicle
as soon as safely possible. If the engine
is overheated, continued operation of
the vehicle may seriously damage the
engine. See “If your vehicle overheats”
in the “6. In case of emergency” section
for immediate action required.
SIC4511
FUEL GAUGES35-D-110201-1F9776FA-11AF-431D-8547-74A51ADB5779The gauge*Aindicates the
approximate fuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers 0.
The low fuel warning light
illuminates and
low fuel warning appears on the vehicle
information display when the fuel tank is getting
low. Refuel as soon as it is convenient,
preferably before the gauge reaches the empty
(0) position. There is a small reserve of fuel in the
tank when the fuel gauge reaches the empty (0)
Page 79 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (77,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
position.
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
. If the vehicle runs out of fuel, NISSAN ROGUE 2013 2.G Manual PDF Black plate (77,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
position.
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
. If the vehicle runs out of fuel,](/img/5/338/w960_338-78.png)

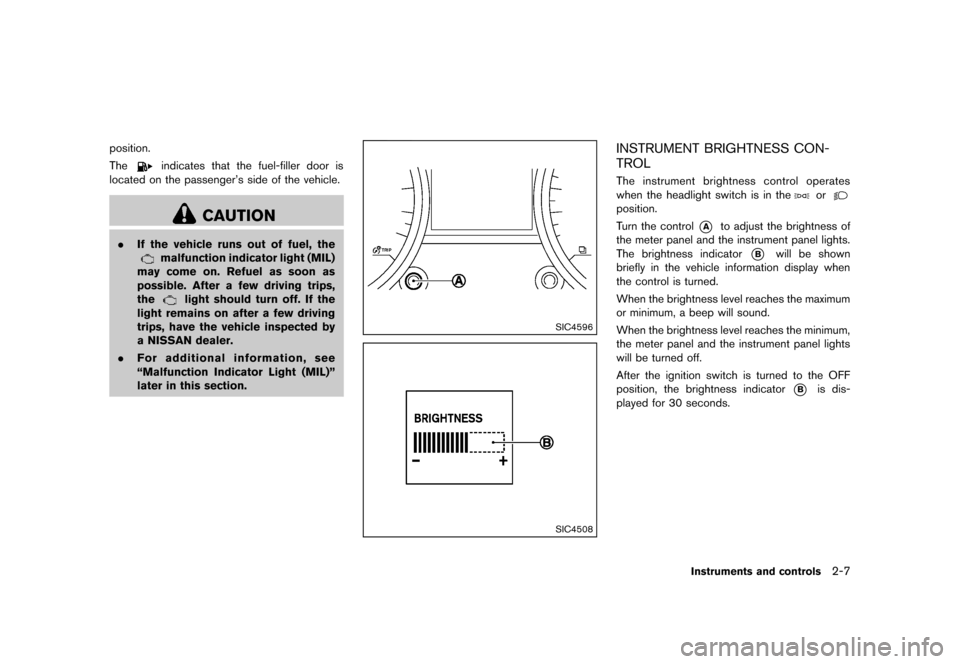

Black plate (77,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
position.
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
. For additional information, see
“Malfunction Indicator Light (MIL)”
later in this section.
SIC4596
SIC4508
INSTRUMENT BRIGHTNESS CON-
TROL
S35-D-110201-942D1E32-EA3F-452B-B723-C16268B42967The instrument brightness control operates
when the headlight switch is in the
or
position.
Turn the control
*Ato adjust the brightness of
the meter panel and the instrument panel lights.
The brightness indicator
*Bwill be shown
briefly in the vehicle information display when
the control is turned.
When the brightness level reaches the maximum
or minimum, a beep will sound.
When the brightness level reaches the minimum,
the meter panel and the instrument panel lights
will be turned off.
After the ignition switch is turned to the OFF
position, the brightness indicator
*Bis dis-
played for 30 seconds.
Instruments and controls2-7
Page 80 of 371
![NISSAN ROGUE 2013 2.G Manual PDF Black plate (78,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-8Instruments and controls
S35-D-110201-B00B3ECC-8D3D-461F-9906-7A31121D4043
All-Wheel Drive (AWD) warning light (AWD
models)*Low fuel warning li NISSAN ROGUE 2013 2.G Manual PDF Black plate (78,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-8Instruments and controls
S35-D-110201-B00B3ECC-8D3D-461F-9906-7A31121D4043
All-Wheel Drive (AWD) warning light (AWD
models)*Low fuel warning li](/img/5/338/w960_338-79.png)

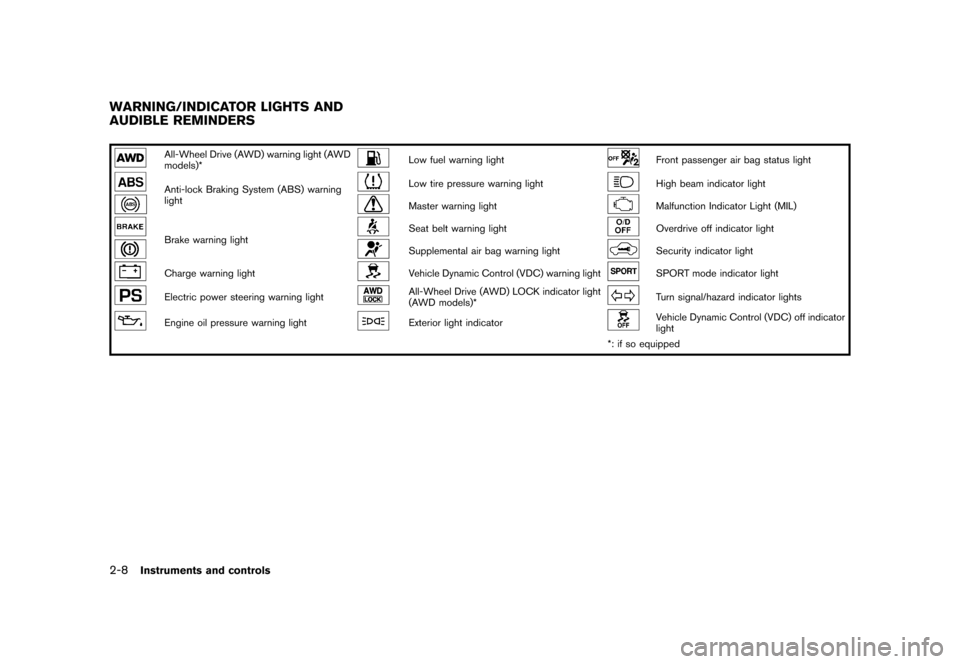

Black plate (78,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-8Instruments and controls
S35-D-110201-B00B3ECC-8D3D-461F-9906-7A31121D4043
All-Wheel Drive (AWD) warning light (AWD
models)*Low fuel warning lightFront passenger air bag status light
Anti-lock Braking System (ABS) warning
lightLow tire pressure warning lightHigh beam indicator light
Master warning lightMalfunction Indicator Light (MIL)
Brake warning lightSeat belt warning lightOverdrive off indicator light
Supplemental air bag warning lightSecurity indicator light
Charge warning lightVehicle Dynamic Control (VDC) warning lightSPORT mode indicator light
Electric power steering warning lightAll-Wheel Drive (AWD) LOCK indicator light
(AWD models)*Turn signal/hazard indicator lights
Engine oil pressure warning lightExterior light indicatorVehicle Dynamic Control (VDC) off indicator
light
*: if so equipped
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
