check tire pressure warning turns off after a
period of time. (See “Low tire pressure warning
light” earlier in this section and “Tire Pressure
Monitoring System (TPMS)” in the “5. Starting
and driving” section.)
5. Low washer fluid warning (if so
equipped)
GUID-90E15ADB-F0B0-4D80-8356-99653A9D81D1This light illuminates when the washer fluid is at
a low level. Add washer fluid as necessary. (See
“Window washer fluid” in the “8. Maintenance
and do-it-yourself” section.)
When the
switch is pushed, the low washer
fluid warning turns off (if so equipped) .
6. SHIFT “P” warning (if so equipped)GUID-58C85533-5532-497D-A5F9-10BA63C390BBThis warning appears when the ignition switch is
turned to stop the engine with the selector lever
in any position except the P (Park) position.
If this warning appears, move the selector lever
to the P (Park) position or turn the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“Intelligent Key system” in the “3. Pre-driving
checks and adjustments” section.)
7. Parking brake release warningGUID-FD53AB45-3AC7-4816-8C9B-02CE195475FCThis warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
8. Intelligent Key detection warning (if so
equipped)
GUID-90F98116-CBBF-42F7-9888-C0FC896EBDE2This warning appears in either of the following
conditions.
No key inside the vehicle:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the ignition switch is
turned from the LOCK position and the Intelli-
gent Key cannot be recognized by the system.
You cannot start the engine with an unregistered
key. Use the registered Intelligent Key.
See “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section for
more details.
9. Intelligent key battery discharge in-
dicator (if so equipped)
GUID-CAFFE8FC-6DF5-4295-88C7-5F990638E820This indicator appears when the Intelligent key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (See “Battery replacement” in the “8.
Maintenance and do-it-yourself” section.)
10. Intelligent Key system fault warning
(if so equipped)
GUID-A07A76FA-0B98-4D91-A83E-2BA58990F079
CAUTION
If the Intelligent Key system fault warn-
ing comes on, it may indicate a system
malfunction. Contact a NISSAN dealer
for repair.
For more information, see “Intelligent Key
system” in the “3. Pre-driving checks and
adjustments” section.
11. Setting menu operation warningGUID-A8A654A3-3FED-4E7E-8D4D-5F2ADBF361F9The warning appears when you try to operate
the setting menu while driving. The setting menu
can only be entered when the vehicle is
stationary.
Instruments and controls2-19
Page 92 of 371
Black plate (90,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-20Instruments and controls
12. Low outside temperature warningGUID-FAB680DE-B0C2-402C-8E2B-4AFE508F4736This warning appears if the outside temperature
drops below 378F (38C) with the ignition switch
in the ON position. The outside temperature
display flashes at the same time. These warning
features can be turned off. (See “Trip computer”
later in this section.)
13. Low fuel warningGUID-865D9FDA-A98A-4836-829E-6E8F45765521This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
14. Driver alertGUID-DBAABE18-07F0-45C6-8584-E84930538F2CThis warning appears when the previously set
time for a break is reached. You can set the time
for up to 6 hours in the setting menu. (See “Trip
computer” later in this section.)
15. Cruise control indicatorGUID-FCFF80D9-8140-4384-9DF4-A8C02BDBC40DThe cruise main switch indicator (CRUISE) is
displayed when the cruise control main switch is
pushed. When the main switch is pushed again,
the CRUISE indicator disappears. When the
CRUISE indicator is displayed, the cruise
control system is operational.The cruise control set indicator (SET) is
displayed while the vehicle speed is controlled
by the cruise control system. If the SET indicator
blinks while the engine is running, it may indicate
that the cruise control system is not functioning
properly. Have the system checked by a
NISSAN dealer.
For more details, see “Cruise control” in the “5.
Starting and driving” section.
SIC4538
Page 93 of 371
Black plate (91,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
INDICATORS FOR MAINTENANCES35-D-110201-800F6ACB-DB84-4028-98D1-DAACB7798F91
1. Service due indicatorS35-D-110201-CFD2A761-A4C9-4CF4-8BE3-496BCDE236ACThis indicator appears when the customer set
distance comes for service due, for example, for
engine oil and oil filter. You can set or reset the
distance for service due. (See “Trip computer”
later in this section.) For scheduled maintenance
items and intervals, see your NISSAN Service
and Maintenance Guide.
2. Tire replacement indicatorS35-D-110201-CE0B87AB-634A-4111-8740-7919E54C2B20This indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
“Trip computer” later in this section.)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” in the “8.
Maintenance and do-it-yourself” sec-
tion. Many factors including tire infla-
tion, alignment, driving habits and road
conditions affect tire wear and when
tires should be replaced. Setting the
tire replacement indicator for a certain
driving distance does not mean yourtires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
3. “OTHER” indicatorS35-D-110201-ED731025-DFE8-493E-8EAF-5AFA33B448D9This indicator appears when the customer set
distance comes for checking or replacing
maintenance items other than the engine oil, oil
filter and tires. Other maintenance items can
include such things as air filter or tire rotation.
You can set or reset the distance for checking or
replacing the items. (See “Trip computer” later in
this section.) For scheduled maintenance items
and intervals, see your NISSAN Service and
Maintenance Guide.SIC4551
TRIP COMPUTERS35-D-110201-032DC1AF-C190-4089-A120-1FC1894A1A57To operate the trip computer, use the*A
switch.
When the ignition switch is in the ON position,
modes of the trip computer can be selected by
pushing the
switch*Abriefly.
Each time the
switch*Ais pushed, the
display will change as follows:
Fuel Economy ?Average speed ?Driving
distance ?Elapsed time ?Range (distance to
empty) (dte) ?Settings
. When the
switch*Ais pushed and
held for less than 3 seconds, the selected
item can be reset except for “Range”,
Instruments and controls2-21
Page 94 of 371
Black plate (92,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-22Instruments and controls
“Current fuel consumption” and “Settings”.
. When the
switch*Ais pushed and
held for more than 3 seconds, all the items
on the display can be reset except for
“Current fuel consumption”, “Settings”,
“Range” and “TRIP A”.
SIC4541

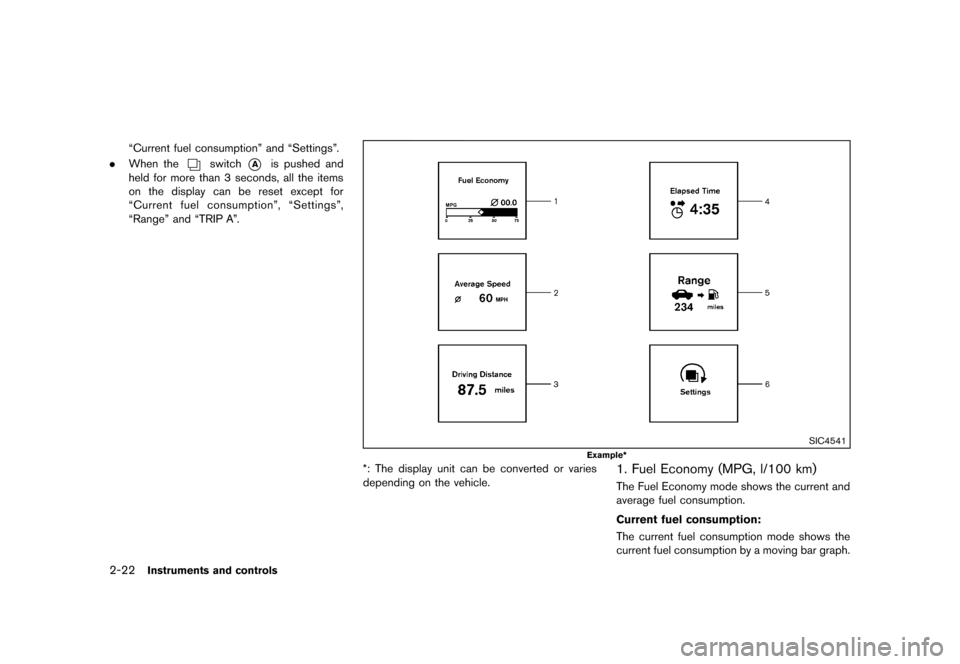

Example*
*: The display unit can be converted or varies
depending on the vehicle.1. Fuel Economy (MPG, l/100 km)GUID-04DE4B00-08C2-4E32-8EE7-064FAA0F9373The Fuel Economy mode shows the current and
average fuel consumption.
Current fuel consumption:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The current fuel consumption mode shows the
current fuel consumption by a moving bar graph.
Page 95 of 371
Black plate (93,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Average fuel consumption:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average fuel consumption mode shows the
average fuel consumption by the value above the
bar graph, the position of the diamond icon and
the value of˘since the last reset. Resetting the
average fuel consumption is done by pushing
and holding the
switch*Afor less than 3
seconds.
The display is updated every 30 seconds. At
about the first 0.3 mile (500 m) after a reset, the
display shows “----”.

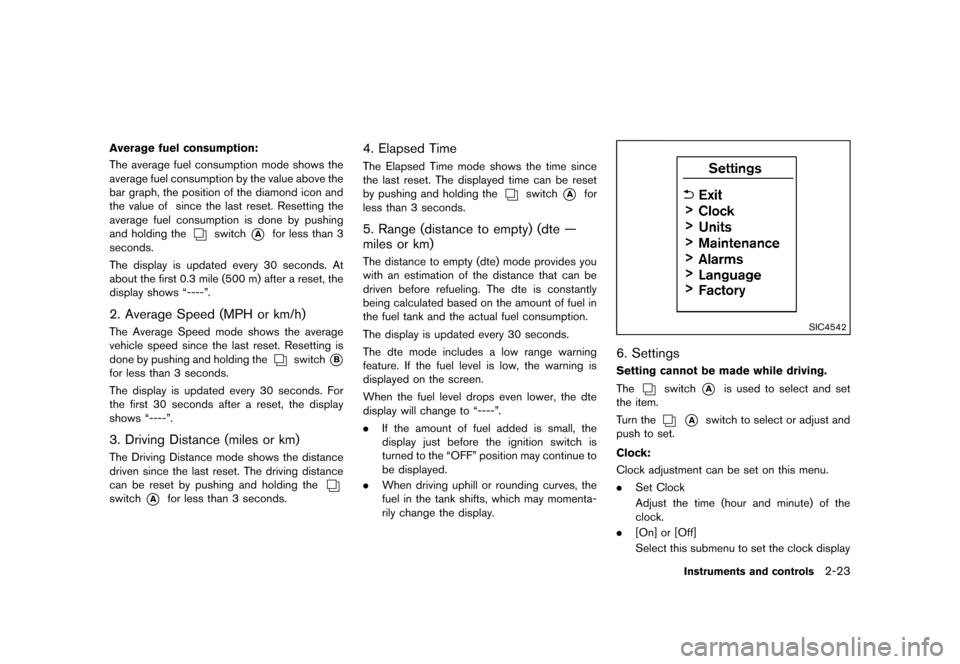

2. Average Speed (MPH or km/h)GUID-7DE3377E-B539-46C3-AD74-DFAA59FD557EThe Average Speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing and holding the
switch*B
for less than 3 seconds.
The display is updated every 30 seconds. For
the first 30 seconds after a reset, the display
shows “----”.
3. Driving Distance (miles or km)GUID-F6FC5CCF-6C6F-4693-B932-ADF674431AA4The Driving Distance mode shows the distance
driven since the last reset. The driving distance
can be reset by pushing and holding the
switch*Afor less than 3 seconds.
4. Elapsed TimeS35-D-110201-39A88963-3DC3-4B35-9DF4-19A7D86695A0The Elapsed Time mode shows the time since
the last reset. The displayed time can be reset
by pushing and holding the
switch*Afor
less than 3 seconds.
5. Range (distance to empty) (dte —
miles or km)
GUID-BF637651-F7B6-4978-AC45-413FCB319447The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “----”.
. If the amount of fuel added is small, the
display just before the ignition switch is
turned to the “OFF” position may continue to
be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
SIC4542
6. SettingsS35-D-110201-46255287-1DE0-4853-A809-29D55EC182BESetting cannot be made while driving.
The
switch*Ais used to select and set
the item.
Turn the
*Aswitch to select or adjust and
push to set.
Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Clock adjustment can be set on this menu.
. Set Clock
Adjust the time (hour and minute) of the
clock.
. [On] or [Off]
Select this submenu to set the clock display
Instruments and controls2-23
Page 96 of 371
Black plate (94,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-24Instruments and controls
On or Off.
. [24/12 Hr]
Select this submenu to set the 12h/24h time
display mode.
To return to the top page of the setting mode,
select “BACK”.
The time display may be different from the one
on the audio display.
Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The units can be set for the following items on
this menu.
. Temperature
. Distance/Fuel
To return to the top page of the setting mode,
select “BACK”.
Maintenance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The maintenance intervals of the following items
can be set or reset for the reminders.
. SERVICE
Select this submenu to set or reset the
distance for service due.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset the
distance for items other than service or tires. To return to the top page of the setting mode,
select “BACK”.
Alarms:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Alarms menu can be set to notify the following
items.
.
Driver alert
Select this submenu to set the driver alert
period.
. Outside temp
Select this submenu to turn ON or OFF the
low outside temperature warning features.
For a description of the low outside tem-
perature warning features when Outside
Temp is set to ON, see “Outside air
temperature” earlier in this section.
With Outside Temp set to OFF,
— The outside temperature display remains
on steady at all outside temperatures and
does not flash.
— The low outside temperature warning indicator does not appear.
To return to the top page of the setting mode,
select “BACK”.
Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the submenu to set the desired language
of the display. Factory:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the submenu to reset the factory settings
of the display.
NOTE:
When resetting Factory, all previous set-
tings made are changed to default.
To return to the top page of the setting mode,
select “BACK”.
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
S35-D-110201-9B42C689-272C-4B6A-B7AF-C4F2DC0E17F6The Continuously Variable Transmission (CVT)
position indicator indicates the selector lever
position when the ignition switch is in the ON
position.
Page 97 of 371
Black plate (95,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-36B2AB1C-293A-4BB8-A8C4-91B4FF80CB04
SIC2133
Your vehicle has two types of security systems,
as follows:
.Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-8079DDC3-AA50-4E4A-B8C9-47DC84E10A79The vehicle security system provides visual and
audio alarm signals if someone opens the doors,
or lift gate when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when unattended. Be aware
of your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC2045
How to arm the vehicle security systemGUID-7CAA9A5F-E69A-457E-AC80-696BDC017C661. Close all windows.
The system can be armed even if the
windows are open.
2. Turn the ignition switch to the LOCK
position and remove the key if it is inserted.
3. Close all doors. Lock all doors. The doors can be locked with:
.the lock buttonon the keyfob or
Intelligent Key (if so equipped)
.any request switch (Intelligent Key equipped model)
Instruments and controls2-25
SECURITY SYSTEMS
Page 98 of 371
Black plate (96,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-26Instruments and controls
.the power door lock switch.the key — master or mechanical (Intelli-gent Key equipped model)
4. Confirm that the security indicator light
illuminates. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
turned to the ACC or ON position, the
system will not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked with the ignition
switch in the LOCK position. When turning
the ignition switch to the ACC or ON
position, the system will be released.
Vehicle security system activationGUID-E0994200-F9B0-476C-AF5D-4AFA2F5FF981The vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 50 seconds. However, the
alarm reactivates if the vehicle is tampered with again.
The alarm is activated by:
. Unlocking the door without using the keyfob,
the Intelligent Key (if so equipped) the
request switch (if so equipped) or the key.
(Even if the door is opened by releasing the
door inside lock knob, the alarm will
activate.)
How to stop an activated alarmGUID-22EF1D00-401F-445E-9D49-7B8AEBA716D0The alarm will stop by unlocking a door by
pushing the unlock button
on the keyfob or
Intelligent Key, pushing the request switch or
using the key. The alarm will not stop if the
ignition switch is turned to the ACC or ON
position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
GUID-52296442-4547-4FA1-9662-0A05BE6E48F5The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll road
device or automated payment device on the key
ring. Restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device (which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the regis-
tered key on a separate key ring to avoid
interference from other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY-BCM. ANT ASSY-
IMMOBILISER)
Page 99 of 371
Black plate (97,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

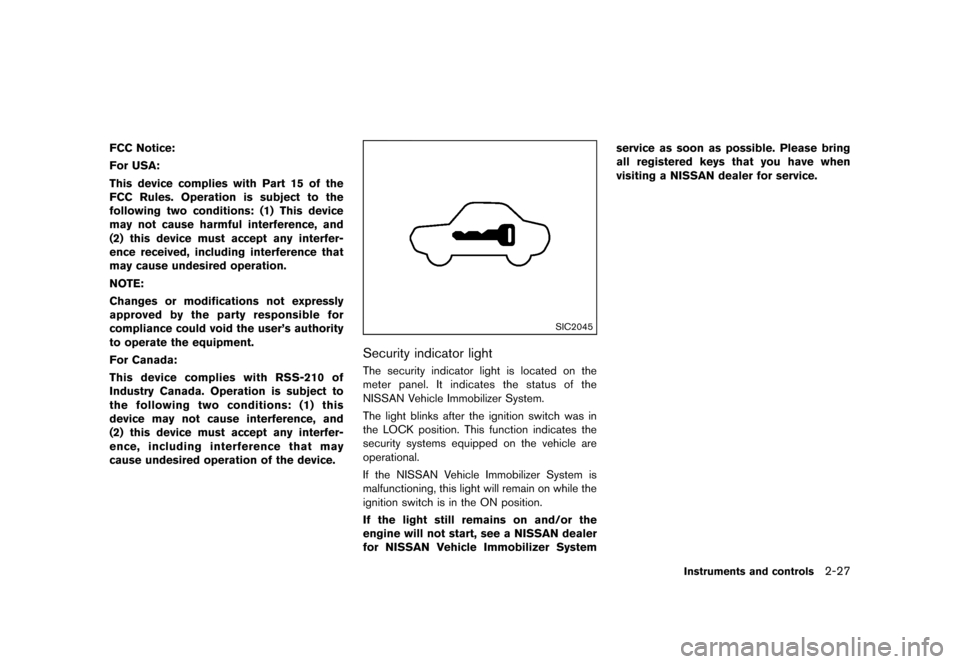

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
SIC2045
Security indicator lightGUID-B6969E9E-2AE7-4B89-9C71-367597E1FAA0The security indicator light is located on the
meter panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer Systemservice as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.
Instruments and controls2-27
Page 100 of 371
Black plate (98,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-28Instruments and controls

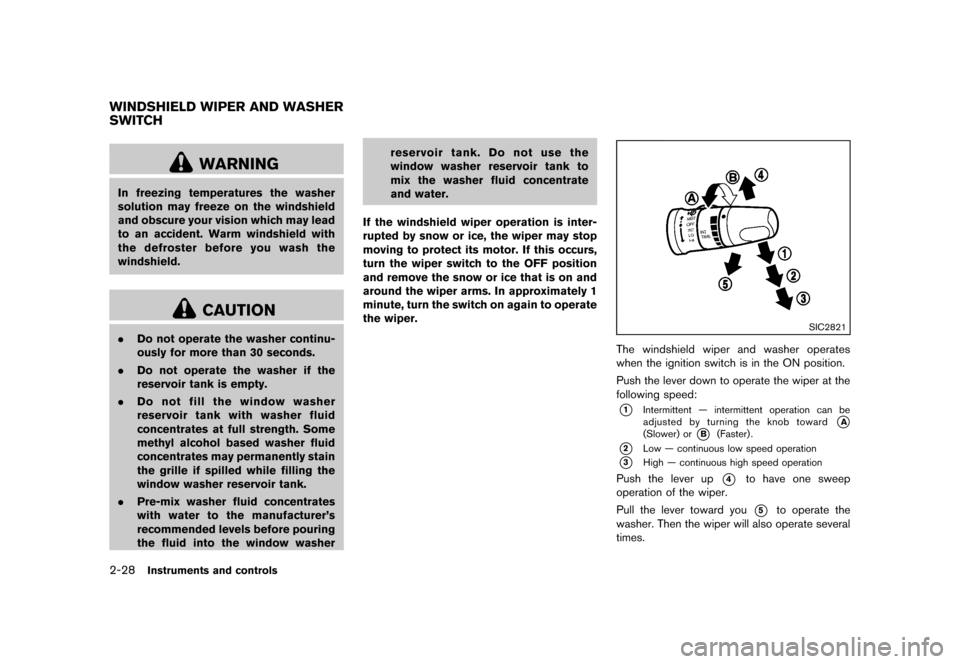

S35-D-110201-26603314-0067-49C3-8DC3-F795C77DB10D
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
CAUTION
.Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately 1
minute, turn the switch on again to operate
the wiper.SIC2821
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
*1Intermittent — intermittent operation can be
adjusted by turning the knob toward*A(Slower) or*B(Faster) .
*2Low — continuous low speed operation
*3High — continuous high speed operation
Push the lever up*4to have one sweep
operation of the wiper.
Pull the lever toward you
*5to operate the
washer. Then the wiper will also operate several
times.
WINDSHIELD WIPER AND WASHER
SWITCH
