Page 421 of 442

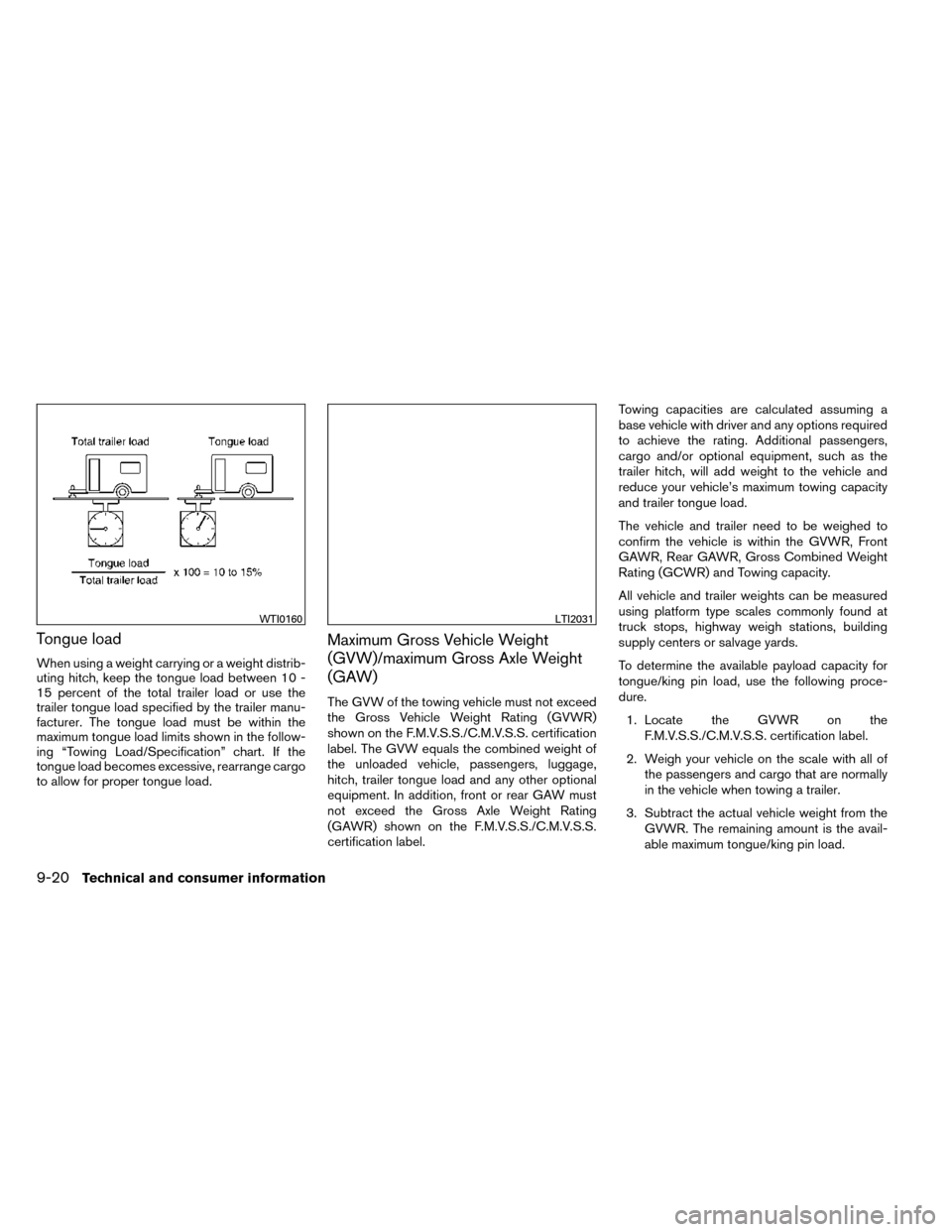

NISSAN ROGUE 2014 2.G Owners Manual Tongue load
When using a weight carrying or a weight distrib-
uting hitch, keep the tongue load between 10 -
15 percent of the total trailer load or use the
trailer tongue load specified by the traile

Page 422 of 442

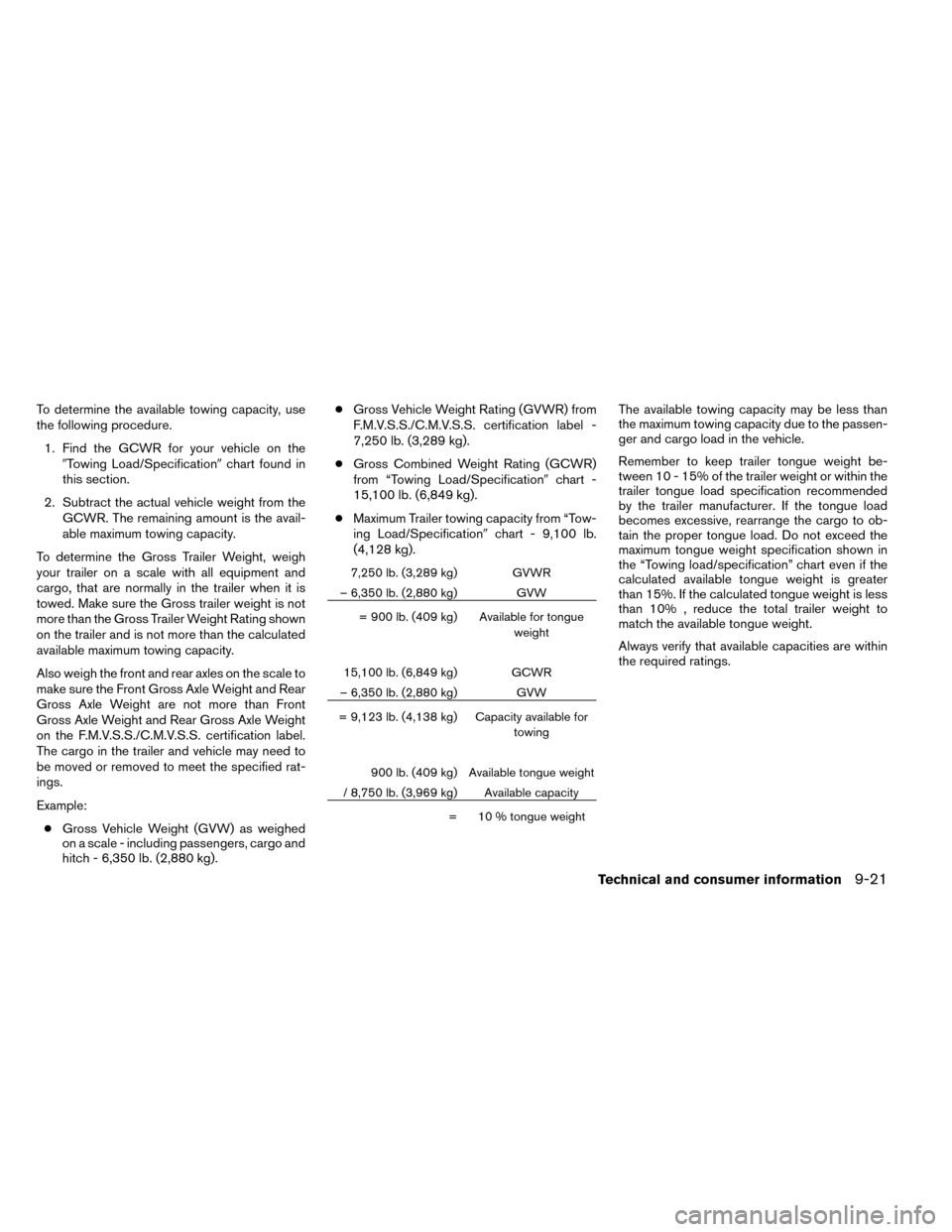

NISSAN ROGUE 2014 2.G Owners Manual To determine the available towing capacity, use
the following procedure.1. Find the GCWR for your vehicle on the Towing Load/Specification chart found in
this section.
2. Subtract the actual vehicle

Page 423 of 442

NISSAN ROGUE 2014 2.G Owners Manual TOWING LOAD/SPECIFICATION
TOWING LOAD/SPECIFICATION CHARTU.S. and Canada
Maximum Towing Capacity*1 1,100lb.
(500 kg)
Maximum Tongue Load 110 lb.
(50 kg)
Maximum Gross Combined Weight Rating 5,291 lb.

Page 424 of 442

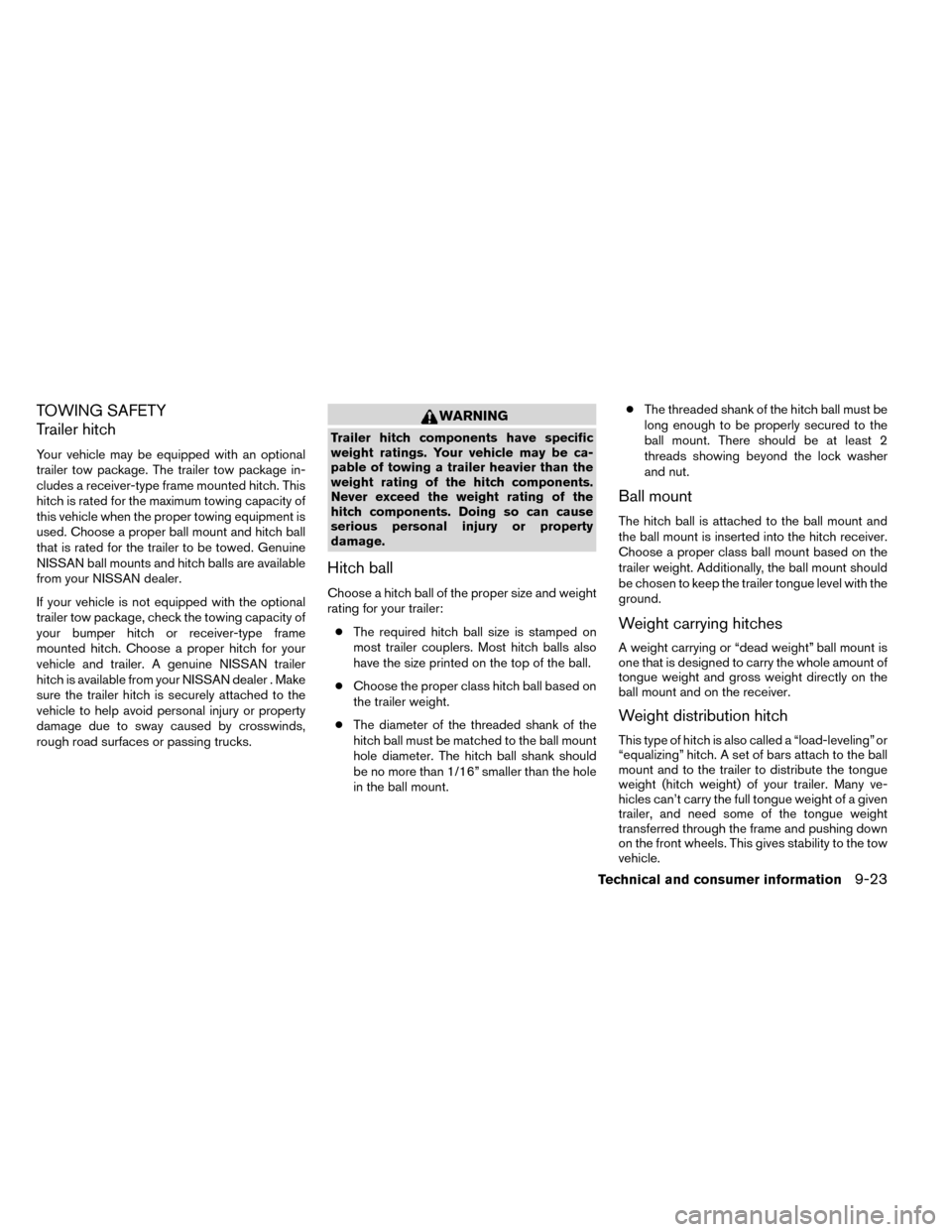

NISSAN ROGUE 2014 2.G Owners Manual TOWING SAFETY
Trailer hitch
Your vehicle may be equipped with an optional
trailer tow package. The trailer tow package in-
cludes a receiver-type frame mounted hitch. This
hitch is rated for the maxim

Page 425 of 442

NISSAN ROGUE 2014 2.G Owners Manual A weight-distributing hitch system (Class IV) is
recommended if you plan to tow trailers with a
maximum weight over 5,000 lbs (2,268 kg) .
Check with the trailer and towing equipment
manufacturers to

Page 426 of 442

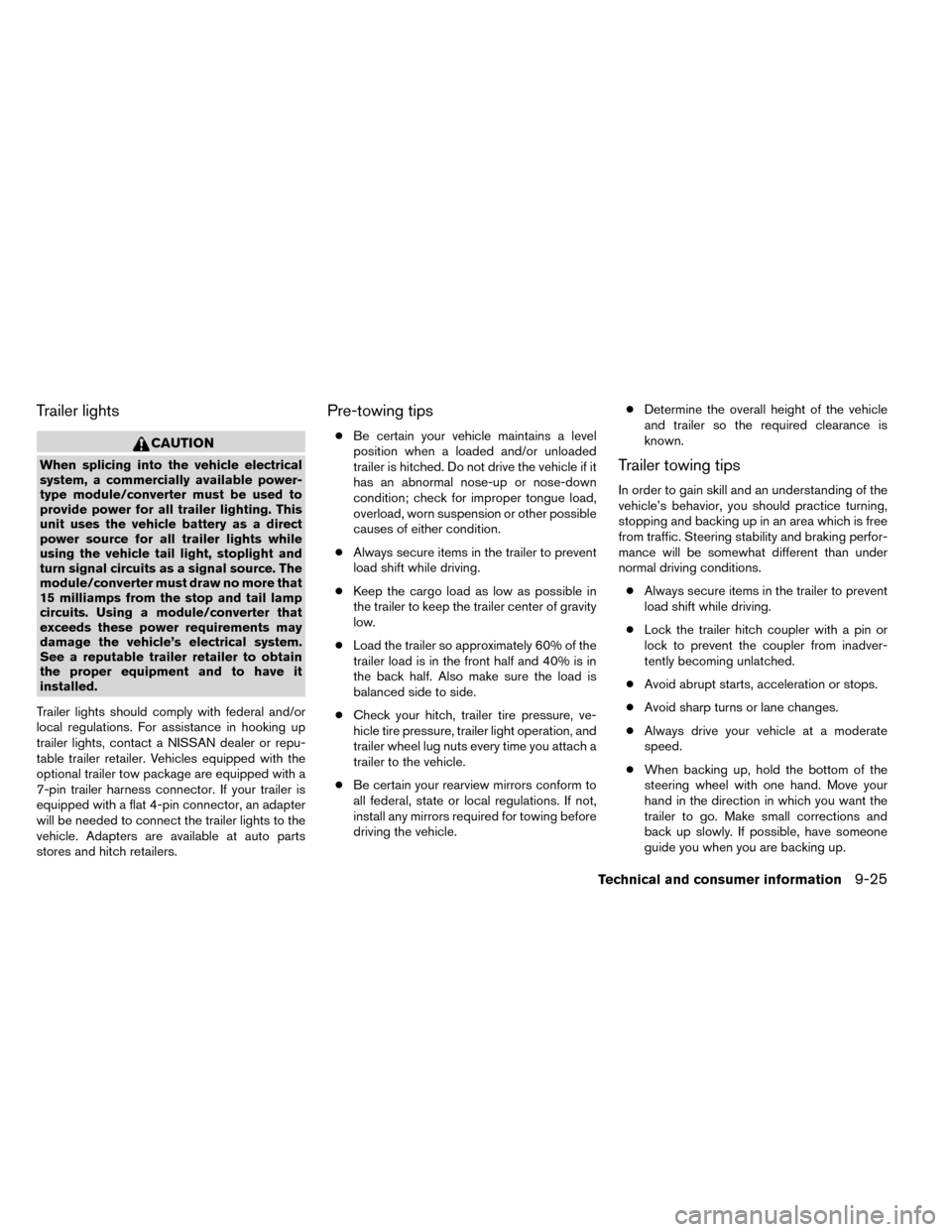

NISSAN ROGUE 2014 2.G Owners Manual Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses th

Page 427 of 442

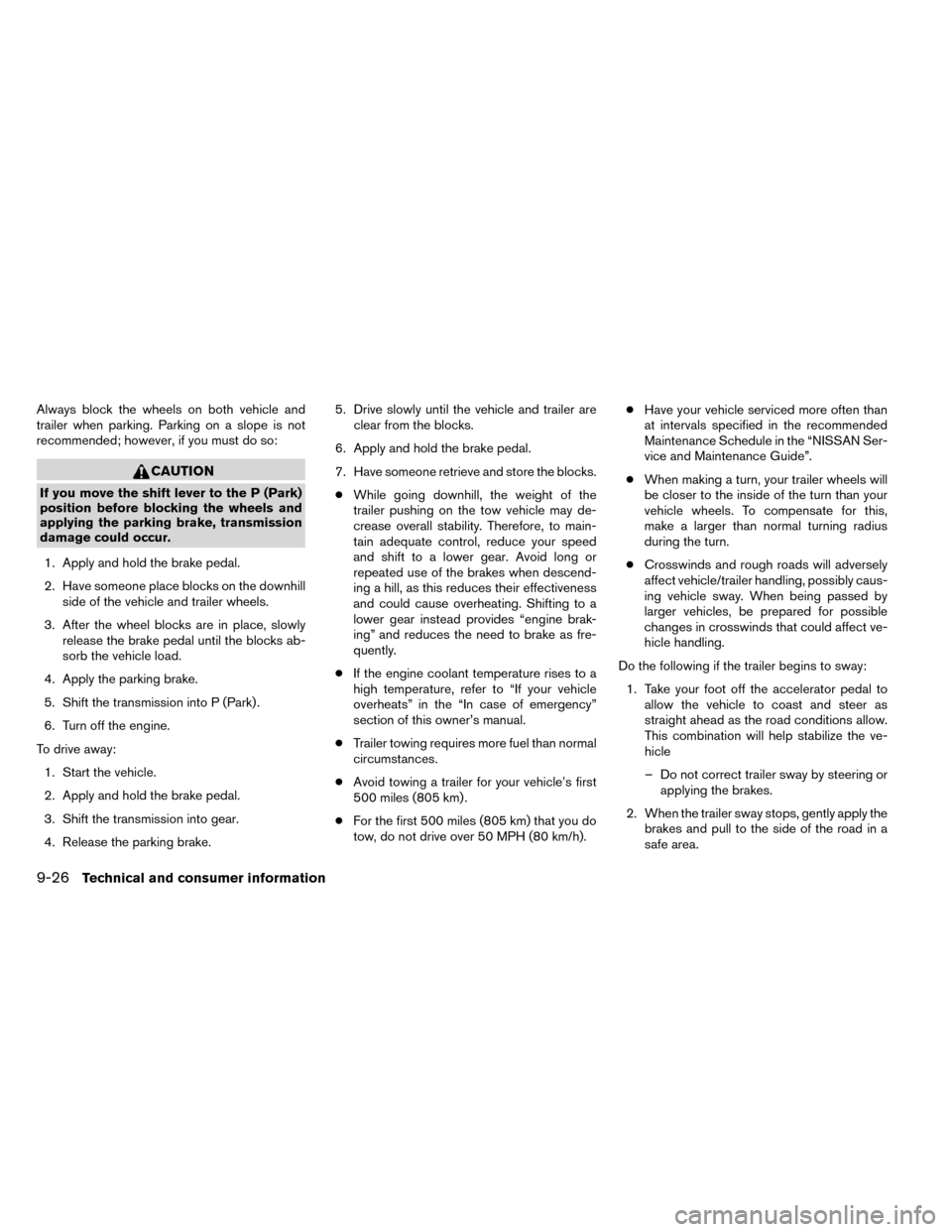

NISSAN ROGUE 2014 2.G Owners Manual Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift lever to the P (Park)
position before

Page 428 of 442

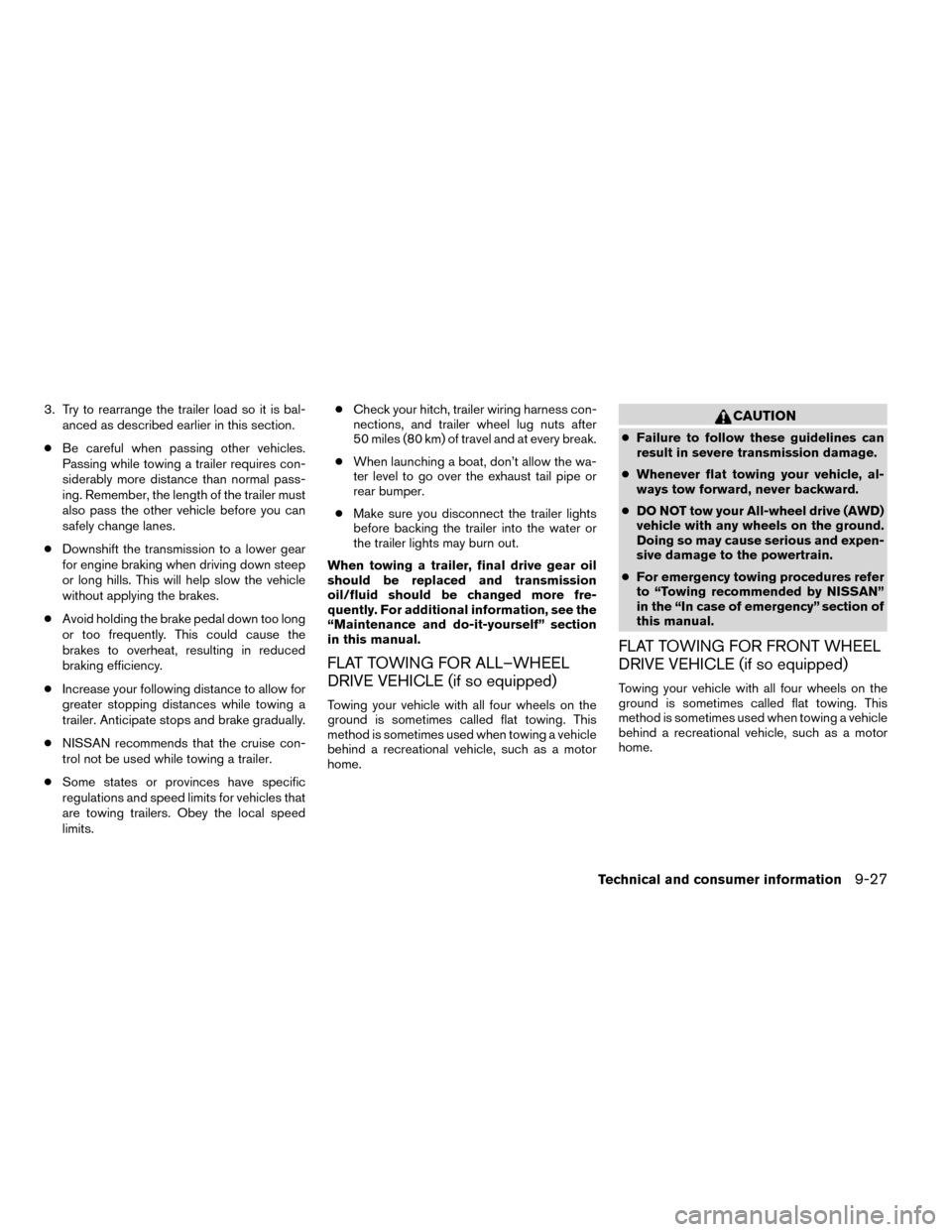

NISSAN ROGUE 2014 2.G Owners Manual 3. Try to rearrange the trailer load so it is bal-anced as described earlier in this section.
● Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more di

Page 429 of 442

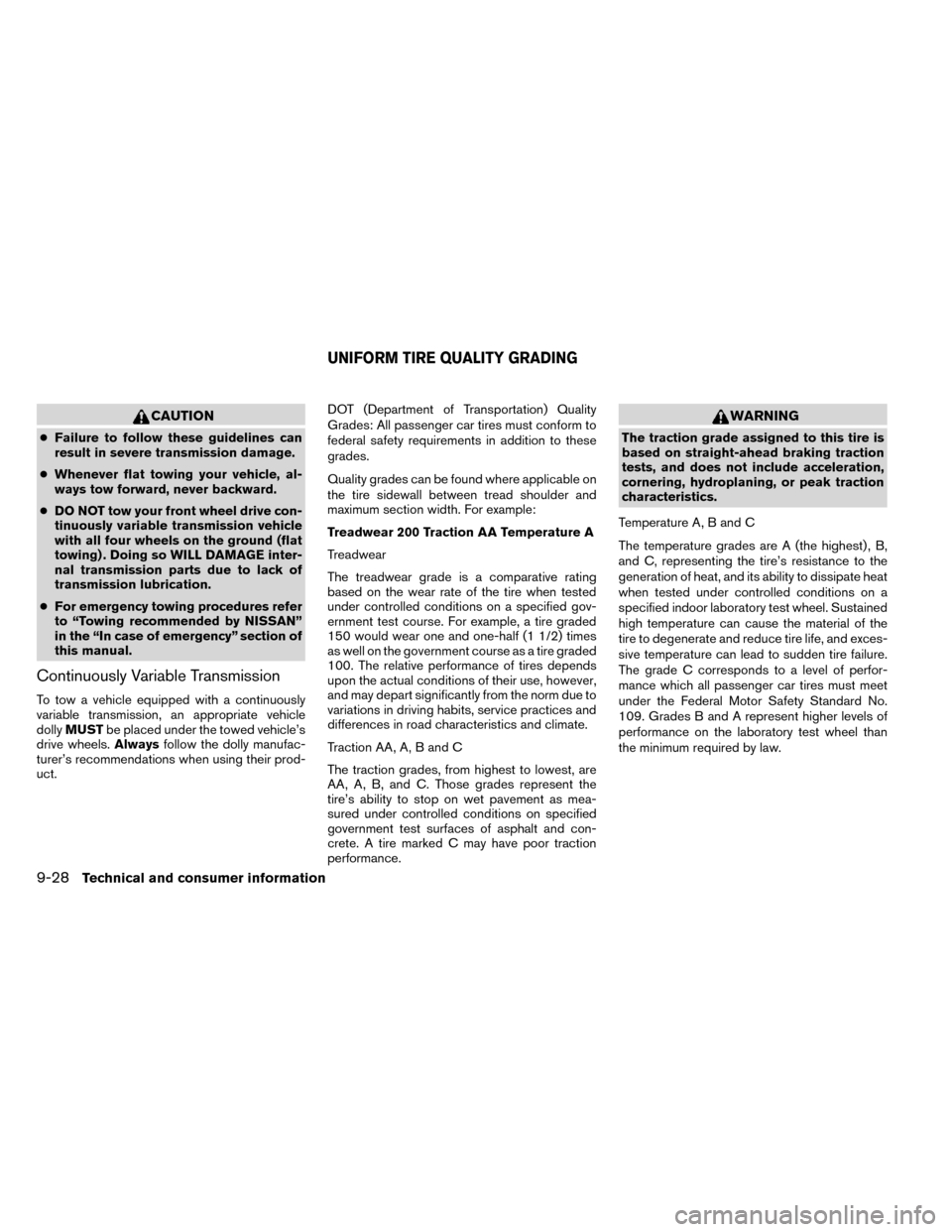

NISSAN ROGUE 2014 2.G Owners Manual CAUTION
●Failure to follow these guidelines can
result in severe transmission damage.
● Whenever flat towing your vehicle, al-
ways tow forward, never backward.
● DO NOT tow your front wheel dri

Page 430 of 442

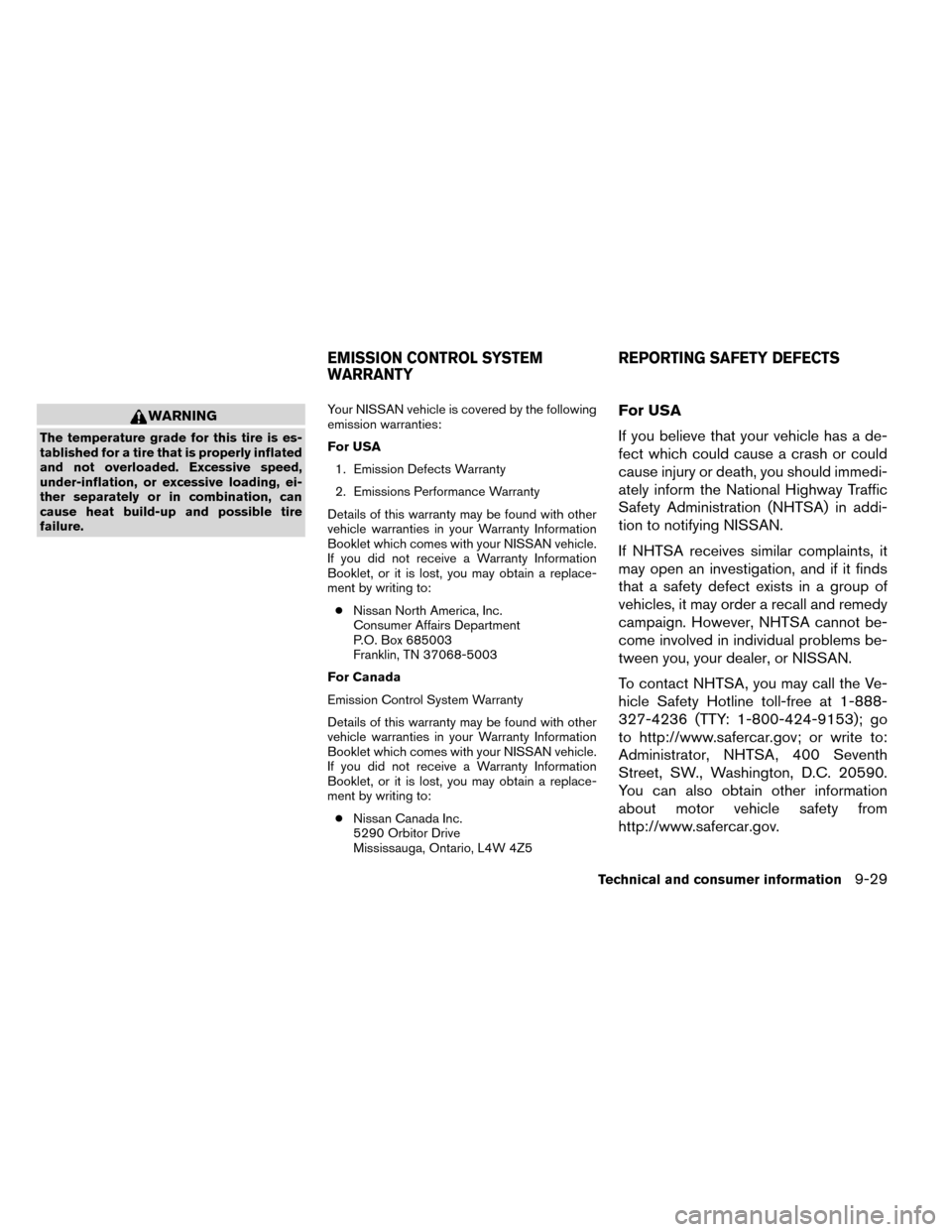

NISSAN ROGUE 2014 2.G Owners Manual WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in
