NISSAN ROGUE 2016 Owner´s Manual

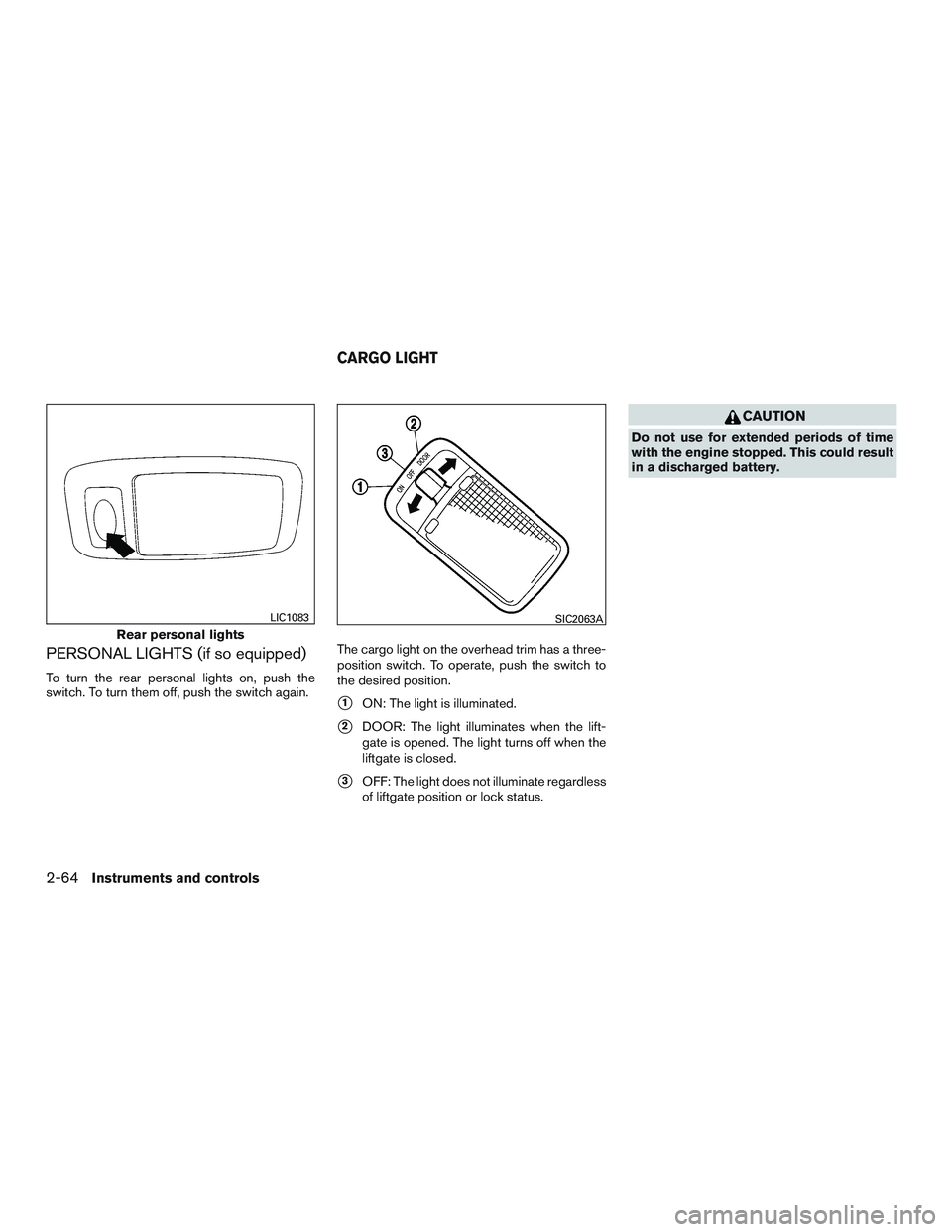

PERSONAL LIGHTS (if so equipped)
To turn the rear personal lights on, push the
switch. To turn them off, push the switch again.The cargo light on the overhead trim has a three-
position switch. To operate, push the switch to
the desired position.
1ON: The light is illuminated.
2DOOR: The light illuminates when the lift-
gate is opened. The light turns off when the
liftgate is closed.
3OFF: The light does not illuminate regardless
of liftgate position or lock status.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
Rear personal lights
LIC1083SIC2063A
CARGO LIGHT
2-64Instruments and controls

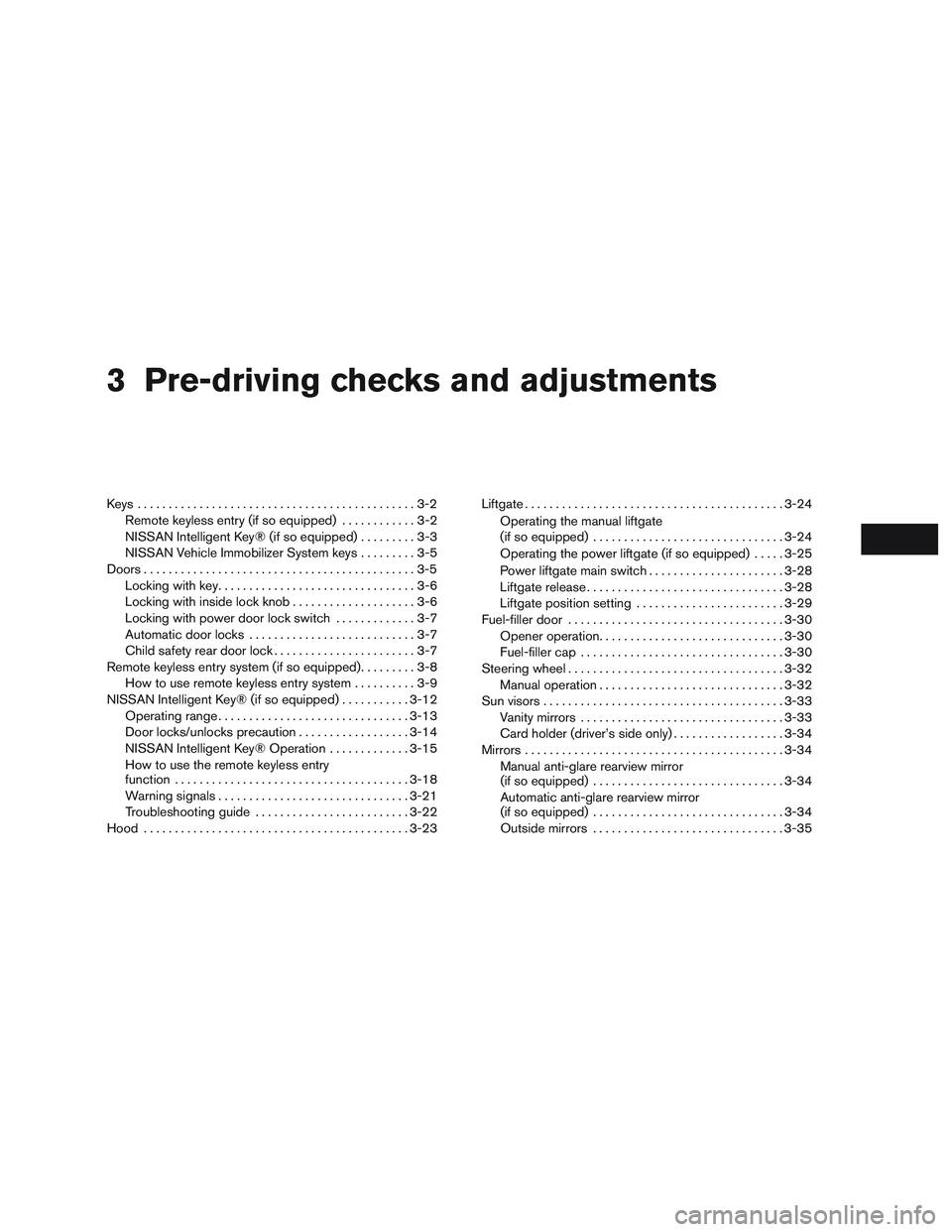

3 Pre-driving checks and adjustments
Keys .............................................3-2Remote keyless entry (if so equipped) ............3-2
NISSAN Intelligent Key® (if so equipped) .........3-3
NISSAN Vehicle Immobilizer System keys .........3-5
Doors ............................................3-5
Locking with key ................................3-6
Locking with inside lock knob ....................3-6
Locking with power door lock switch . . . ..........3-7
Automatic door locks ...........................3-7
Child safety rear door lock .......................3-7
Remote keyless entry system (if so equipped) .........3-8
How to use remote keyless entry system ..........3-9
NISSAN Intelligent Key® (if so equipped) ...........3-12
Operating range ............................... 3-13
Door locks/unlocks precaution ..................3-14
NISSAN Intelligent Key® Operation .............3-15
How to use the remote keyless entry
function ...................................... 3-18
Warning signals ............................... 3-21
Troubleshooting guide ......................... 3-22
Hood ........................................... 3-23Liftgate
.......................................... 3-24
Operating the manual liftgate
(if so equipped) ............................... 3-24
Operating the power liftgate (if so equipped) .....3-25
Power liftgate main switch ......................3-28
Liftgate release ................................ 3-28
Liftgate position setting ........................ 3-29
Fuel-filler door ................................... 3-30
Opener operation .............................. 3-30
Fuel-filler cap ................................. 3-30
Steering wheel ................................... 3-32
Manual operation .............................. 3-32
Sun visors ....................................... 3-33
Vanity mirrors ................................. 3-33
Card holder (driver’s side only) ..................3-34
Mirrors .......................................... 3-34
Manual anti-glare rearview mirror
(if so equipped) ............................... 3-34
Automatic anti-glare rearview mirror
(if so equipped) ............................... 3-34
Outside

mirrors ............................... 3-35

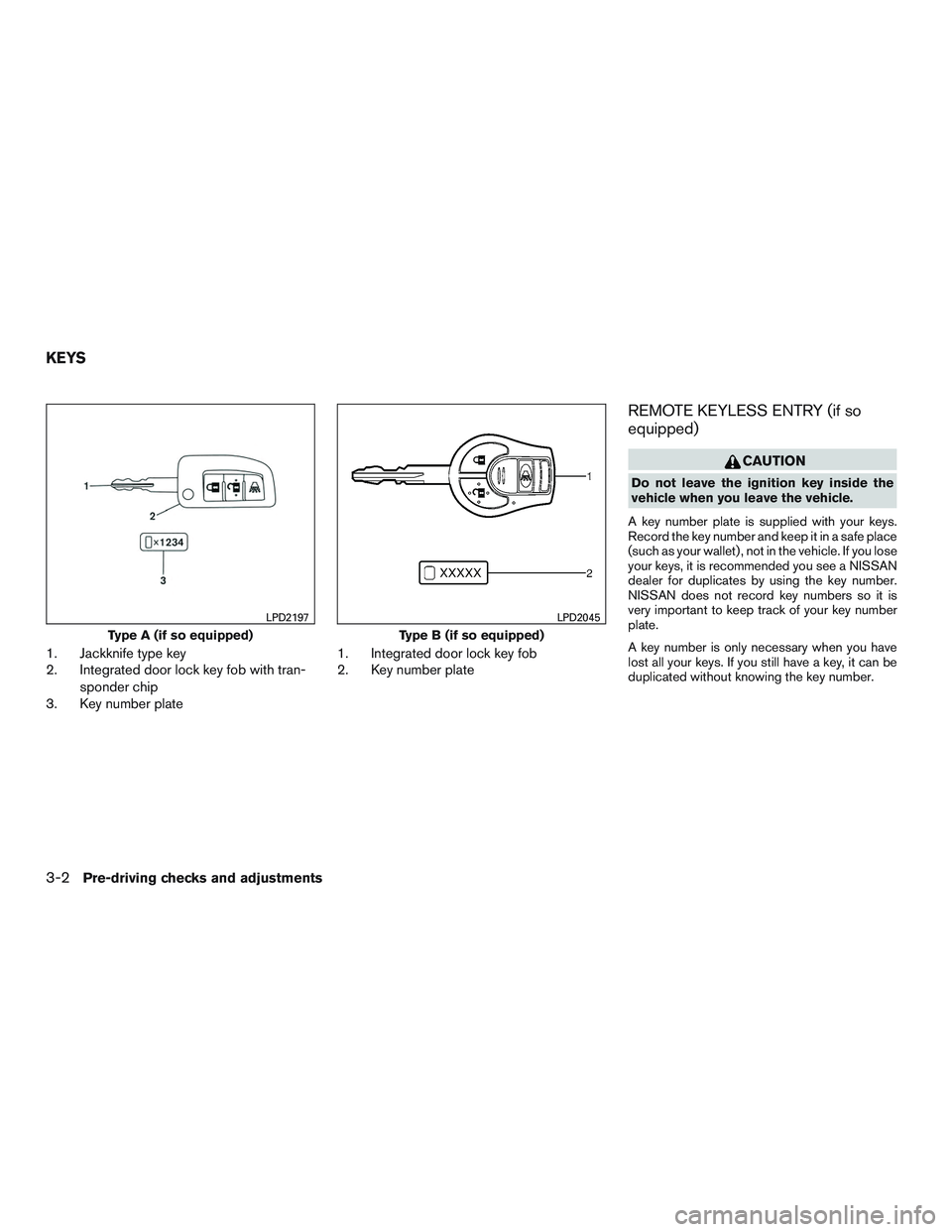

1. Jackknife type key
2. Integrated door lock key fob with tran-sponder chip
3. Key number plate 1. Integrated door lock key fob
2. Key number plate
REMOTE KEYLESS ENTRY (if so
equipped)
CAUTION
Do not leave the ignition key inside the
vehicle when you leave the vehicle.
A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet) , not in the vehicle. If you lose
your keys, it is recommended you see a NISSAN
dealer for duplicates by using the key number.
NISSAN does not record key numbers so it is
very important to keep track of your key number
plate.
A key number is only necessary when you have
lost all your keys. If you still have a key, it can be
duplicated without knowing the key number.
Type A (if so equipped)
LPD2197
Type B (if so equipped)
LPD2045
KEYS
3-2Pre-driving checks and adjustments

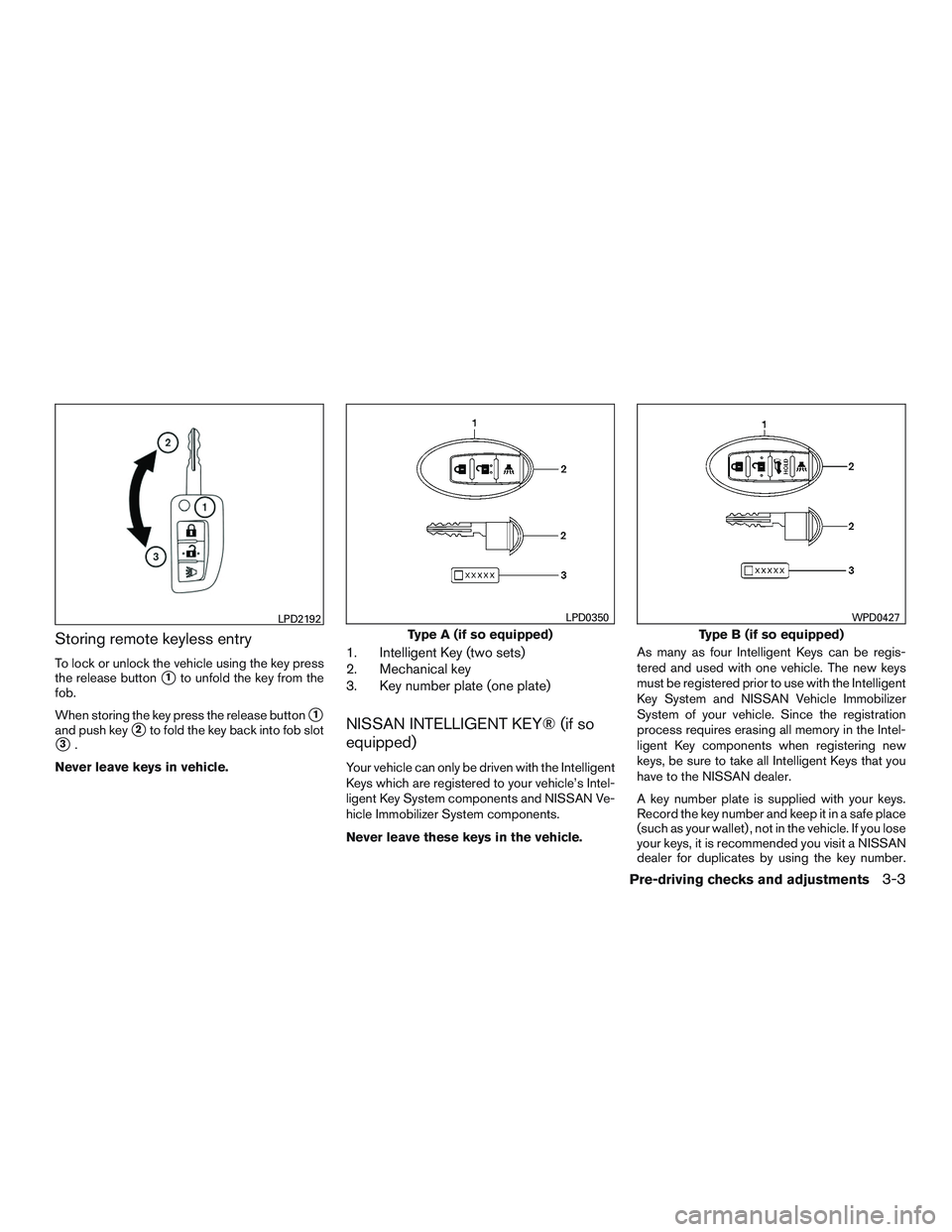

Storing remote keyless entry
To lock or unlock the vehicle using the key press
the release button
1to unfold the key from the
fob.
When storing the key press the release button
1
and push key2to fold the key back into fob slot
3.
Never leave keys in vehicle.
1. Intelligent Key (two sets)
2. Mechanical key
3. Key number plate (one plate)
NISSAN INTELLIGENT KEY® (if so
equipped)
Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intel-
ligent Key System components and NISSAN Ve-
hicle Immobilizer System components.
Never leave these keys in the vehicle. As many as four Intelligent Keys can be regis-
tered and used with one vehicle. The new keys
must be registered prior to use with the Intelligent
Key System and NISSAN Vehicle Immobilizer
System of your vehicle. Since the registration
process requires erasing all memory in the Intel-
ligent Key components when registering new
keys, be sure to take all Intelligent Keys that you
have to the NISSAN dealer.
A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet) , not in the vehicle. If you lose
your keys, it is recommended you visit a NISSAN
dealer for duplicates by using the key number.
LPD2192
Type A (if so equipped)
LPD0350
Type B (if so equipped)
WPD0427
Pre-driving checks and adjustments3-3

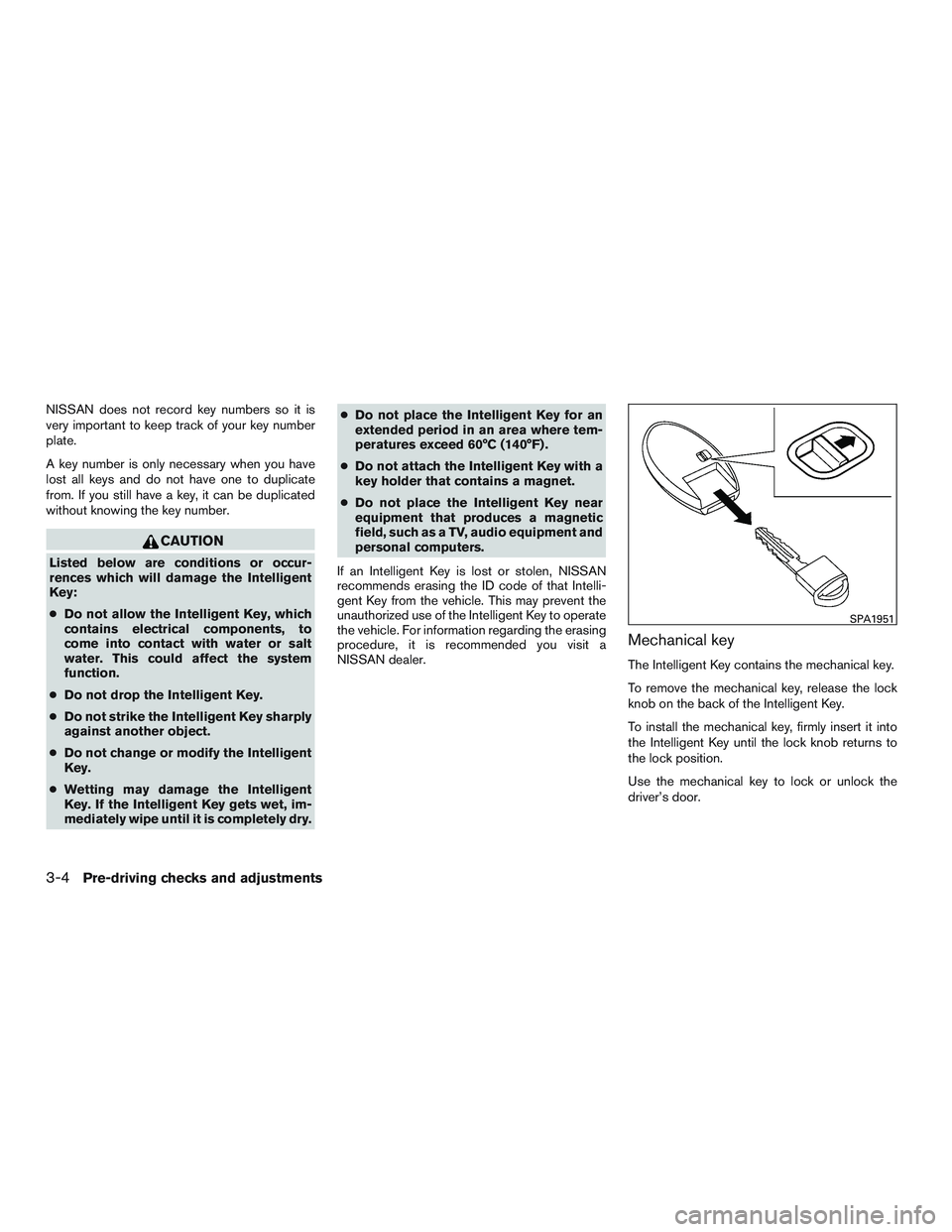

NISSAN does not record key numbers so it is
very important to keep track of your key number
plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, it can be duplicated
without knowing the key number.
CAUTION
Listed below are conditions or occur-
rences which will damage the Intelligent
Key:
●Do not allow the Intelligent Key, which
contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent
Key.
● Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry. ●
Do not place the Intelligent Key for an
extended period in an area where tem-
peratures exceed 60°C (140°F) .
● Do not attach the Intelligent Key with a
key holder that contains a magnet.
● Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to operate
the vehicle. For information regarding the erasing
procedure, it is recommended you visit a
NISSAN dealer.
Mechanical key
The Intelligent Key contains the mechanical key.
To remove the mechanical key, release the lock
knob on the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
driver’s door.
SPA1951
3-4Pre-driving checks and adjustments

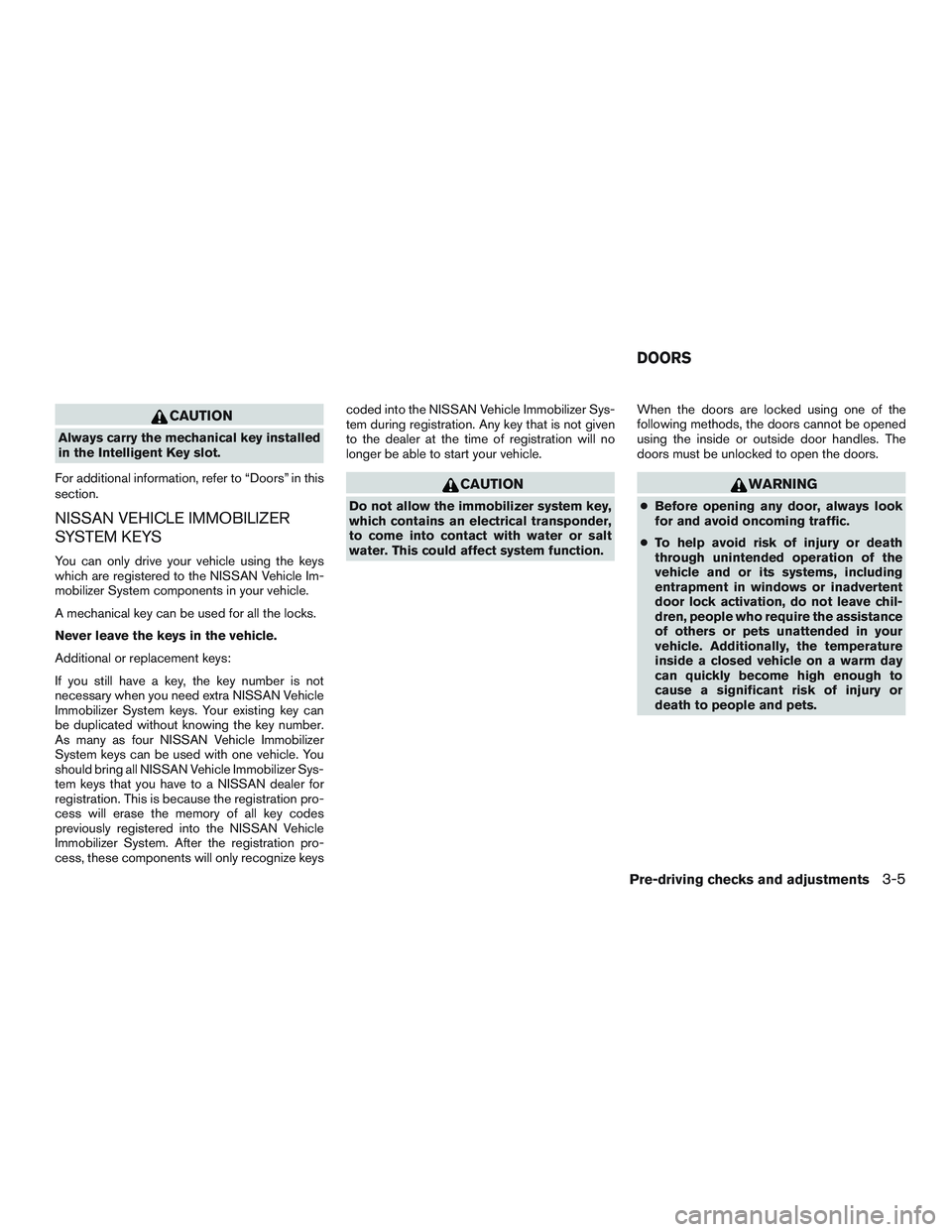

CAUTION
Always carry the mechanical key installed
in the Intelligent Key slot.
For additional information, refer to “Doors” in this
section.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the keys
which are registered to the NISSAN Vehicle Im-
mobilizer System components in your vehicle.
A mechanical key can be used for all the locks.
Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your existing key can
be duplicated without knowing the key number.
As many as four NISSAN Vehicle Immobilizer
System keys can be used with one vehicle. You
should bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to a NISSAN dealer for
registration. This is because the registration pro-
cess will erase the memory of all key codes
previously registered into the NISSAN Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys coded into the NISSAN Vehicle Immobilizer Sys-
tem during registration. Any key that is not given
to the dealer at the time of registration will no
longer be able to start your vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.
When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.
WARNING
●
Before opening any door, always look
for and avoid oncoming traffic.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
DOORS
Pre-driving checks and adjustments3-5

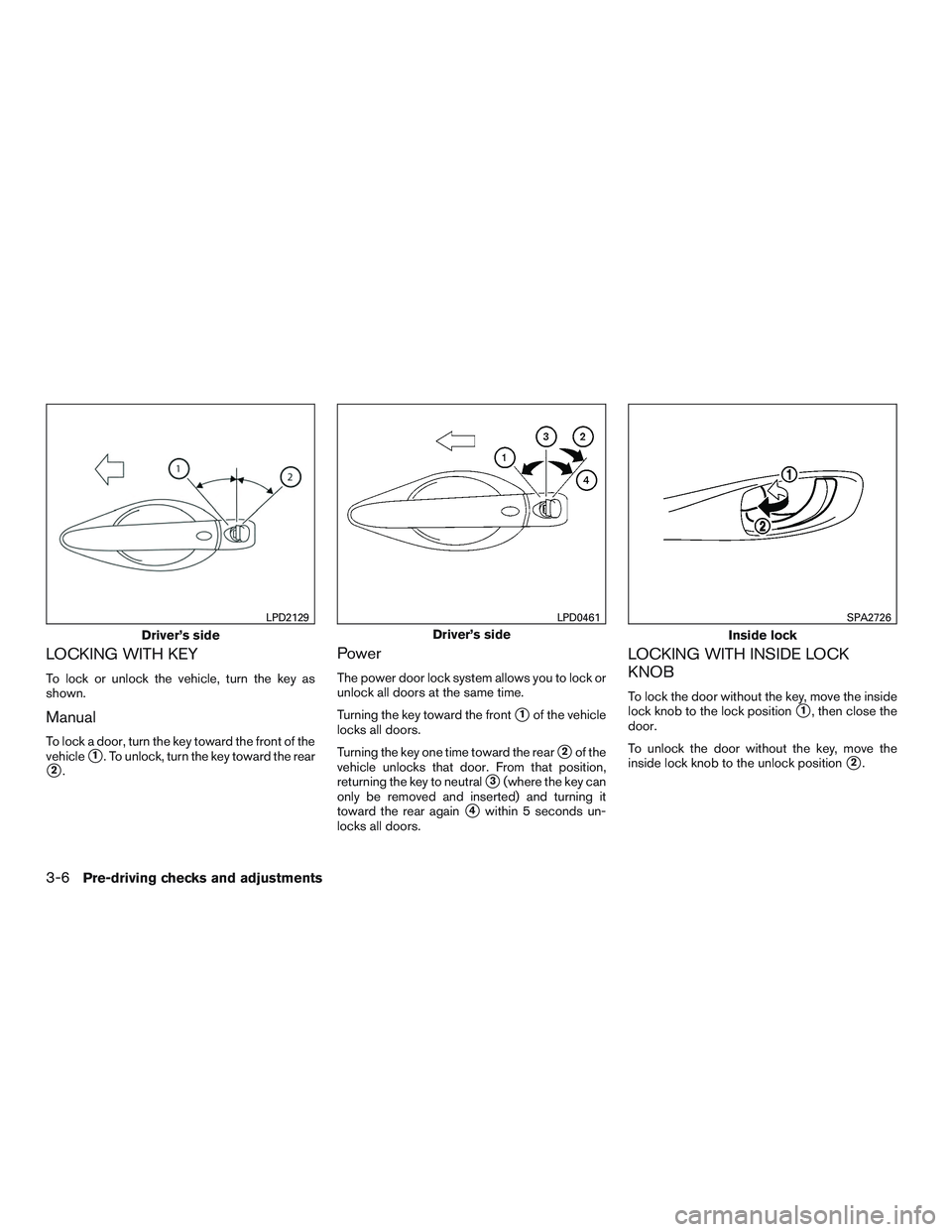

LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock a door, turn the key toward the front of the
vehicle
1. To unlock, turn the key toward the rear
2.
Power
The power door lock system allows you to lock or
unlock all doors at the same time.
Turning the key toward the front
1of the vehicle
locks all doors.
Turning the key one time toward the rear
2of the
vehicle unlocks that door. From that position,
returning the key to neutral
3(where the key can
only be removed and inserted) and turning it
toward the rear again
4within 5 seconds un-
locks all doors.
LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the inside
lock knob to the lock position
1, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
Driver’s side
LPD2129
Driver’s side
LPD0461
Inside lock
SPA2726
3-6Pre-driving checks and adjustments

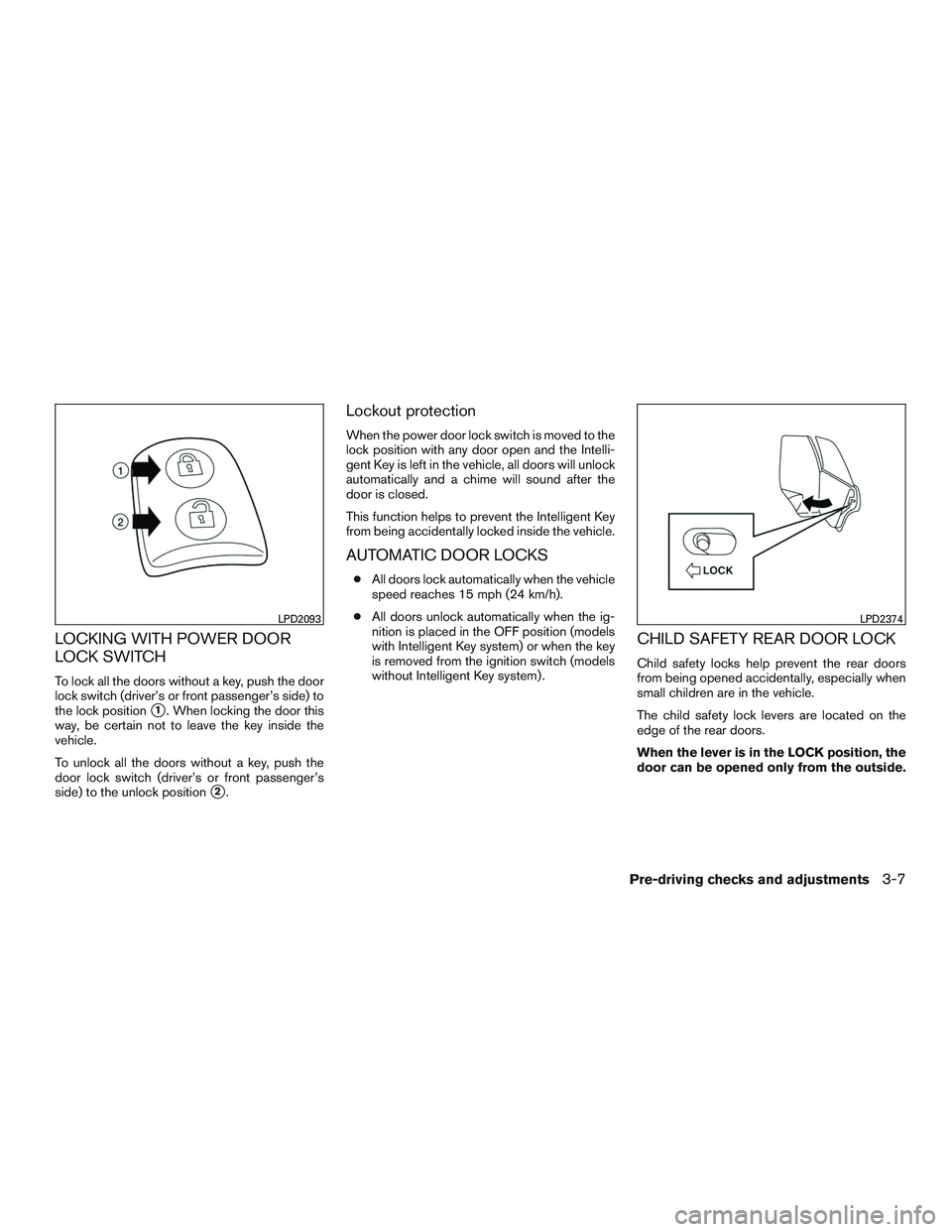

LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors without a key, push the door
lock switch (driver’s or front passenger’s side) to
the lock position
1. When locking the door this
way, be certain not to leave the key inside the
vehicle.
To unlock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the unlock position
2.
Lockout protection
When the power door lock switch is moved to the
lock position with any door open and the Intelli-
gent Key is left in the vehicle, all doors will unlock
automatically and a chime will sound after the
door is closed.
This function helps to prevent the Intelligent Key
from being accidentally locked inside the vehicle.
AUTOMATIC DOOR LOCKS
● All doors lock automatically when the vehicle
speed reaches 15 mph (24 km/h).
● All doors unlock automatically when the ig-
nition is placed in the OFF position (models
with Intelligent Key system) or when the key
is removed from the ignition switch (models
without Intelligent Key system) .
CHILD SAFETY REAR DOOR LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially when
small children are in the vehicle.
The child safety lock levers are located on the
edge of the rear doors.
When the lever is in the LOCK position, the
door can be opened only from the outside.
LPD2093LPD2374
Pre-driving checks and adjustments3-7

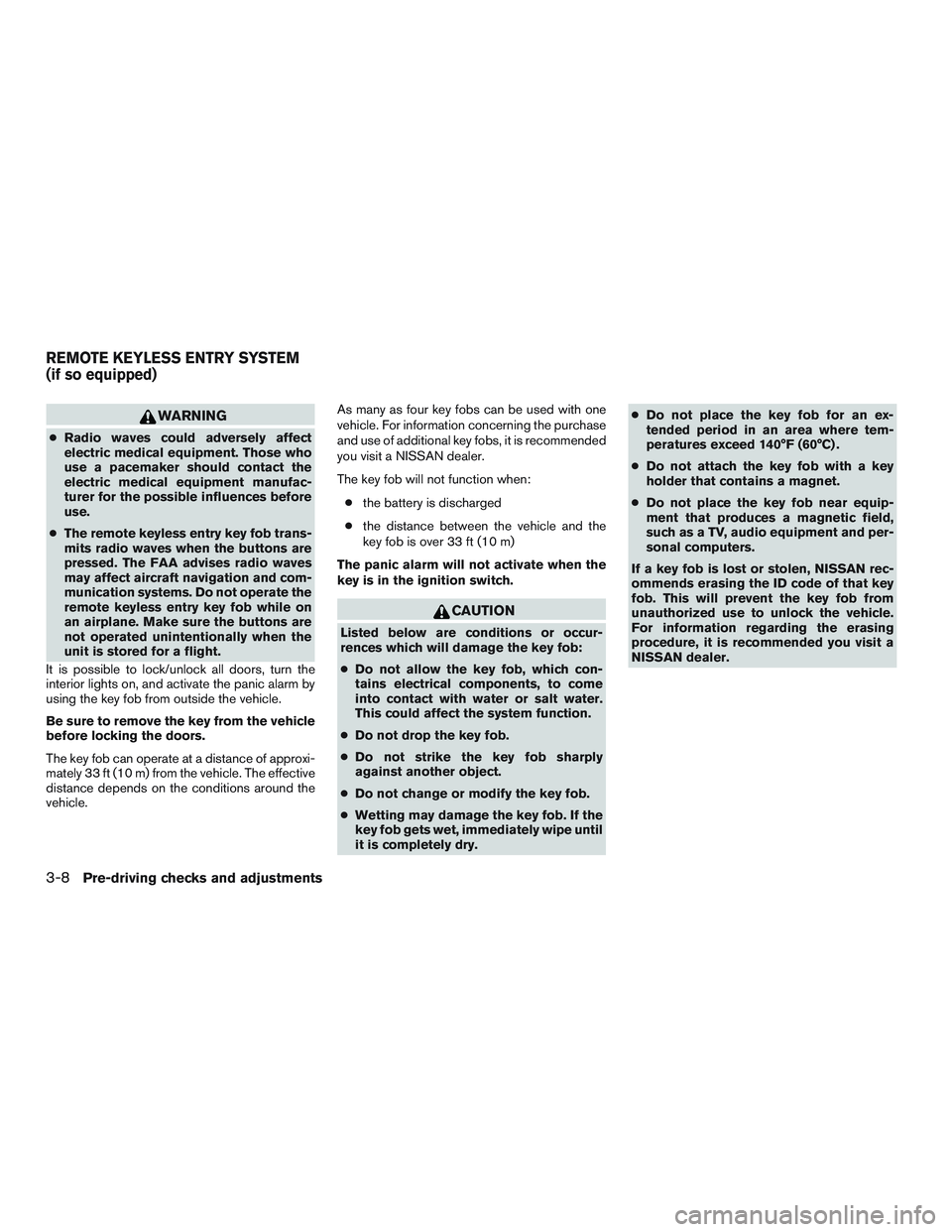

WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● The remote keyless entry key fob trans-
mits radio waves when the buttons are
pressed. The FAA advises radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
remote keyless entry key fob while on
an airplane. Make sure the buttons are
not operated unintentionally when the
unit is stored for a flight.
It is possible to lock/unlock all doors, turn the
interior lights on, and activate the panic alarm by
using the key fob from outside the vehicle.
Be sure to remove the key from the vehicle
before locking the doors.
The key fob can operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. The effective
distance depends on the conditions around the
vehicle. As many as four key fobs can be used with one
vehicle. For information concerning the purchase
and use of additional key fobs, it is recommended
you visit a NISSAN dealer.
The key fob will not function when:
● the battery is discharged
● the distance between the vehicle and the
key fob is over 33 ft (10 m)
The panic alarm will not activate when the
key is in the ignition switch.
CAUTION
Listed below are conditions or occur-
rences which will damage the key fob:
● Do not allow the key fob, which con-
tains electrical components, to come
into contact with water or salt water.
This could affect the system function.
● Do not drop the key fob.
● Do not strike the key fob sharply
against another object.
● Do not change or modify the key fob.
● Wetting may damage the key fob. If the
key fob gets wet, immediately wipe until
it is completely dry. ●
Do not place the key fob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C) .
● Do not attach the key fob with a key
holder that contains a magnet.
● Do not place the key fob near equip-
ment that produces a magnetic field,
such as a TV, audio equipment and per-
sonal computers.
If a key fob is lost or stolen, NISSAN rec-
ommends erasing the ID code of that key
fob. This will prevent the key fob from
unauthorized use to unlock the vehicle.
For information regarding the erasing
procedure, it is recommended you visit a
NISSAN dealer.
REMOTE KEYLESS ENTRY SYSTEM
(if so equipped)
3-8Pre-driving checks and adjustments

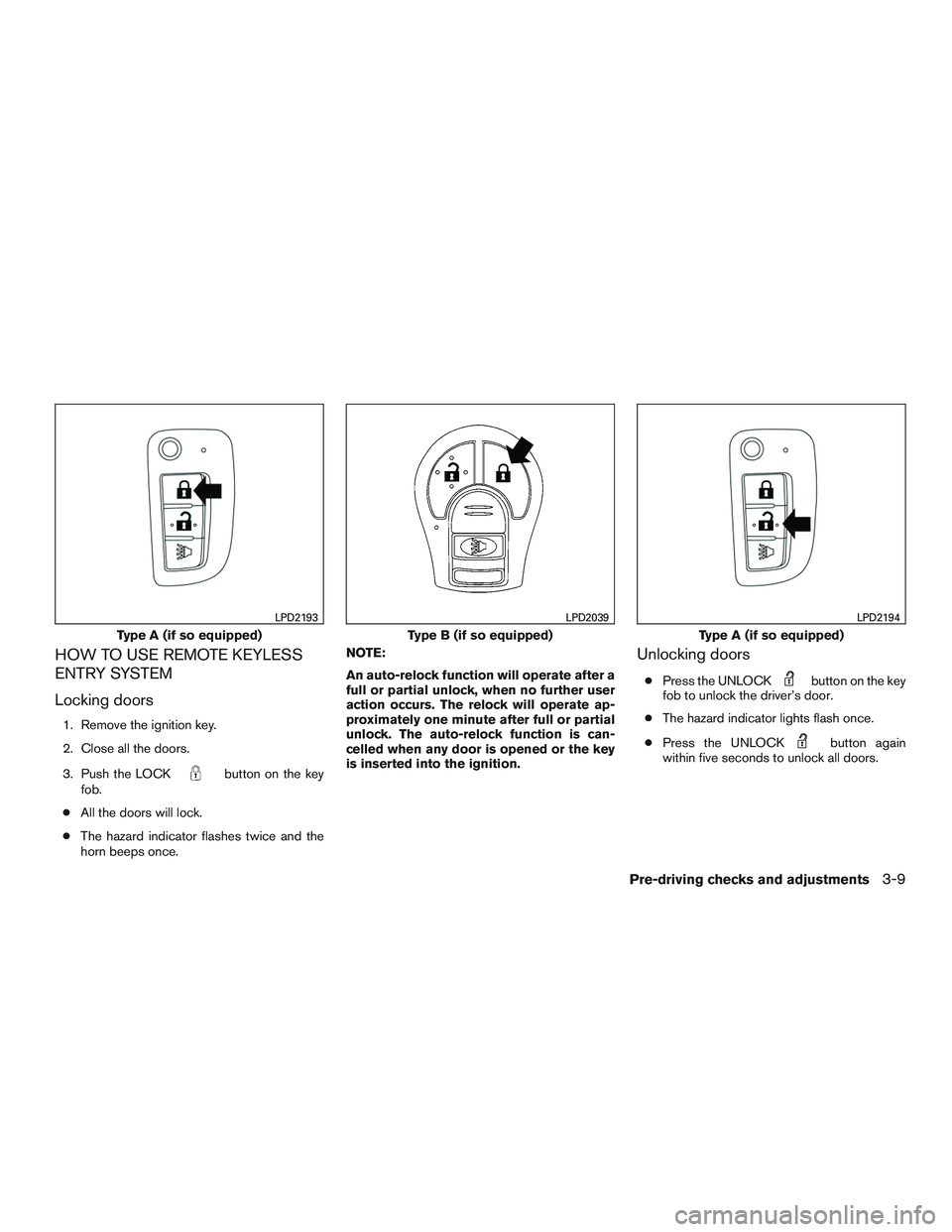

HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking doors
1. Remove the ignition key.
2. Close all the doors.
3. Push the LOCK
button on the key
fob.
● All the doors will lock.
● The hazard indicator flashes twice and the
horn beeps once. NOTE:
An auto-relock function will operate after a
full or partial unlock, when no further user
action occurs. The relock will operate ap-
proximately one minute after full or partial
unlock. The auto-relock function is can-
celled when any door is opened or the key
is inserted into the ignition.
Unlocking doors
●
Press the UNLOCKbutton on the key
fob to unlock the driver’s door.
● The hazard indicator lights flash once.
● Press the UNLOCK
button again
within five seconds to unlock all doors.
Type A (if so equipped)
LPD2193
Type B (if so equipped)
LPD2039
Type A (if so equipped)
LPD2194
Pre-driving checks and adjustments3-9
