NISSAN ROGUE 2018 Owner´s Manual

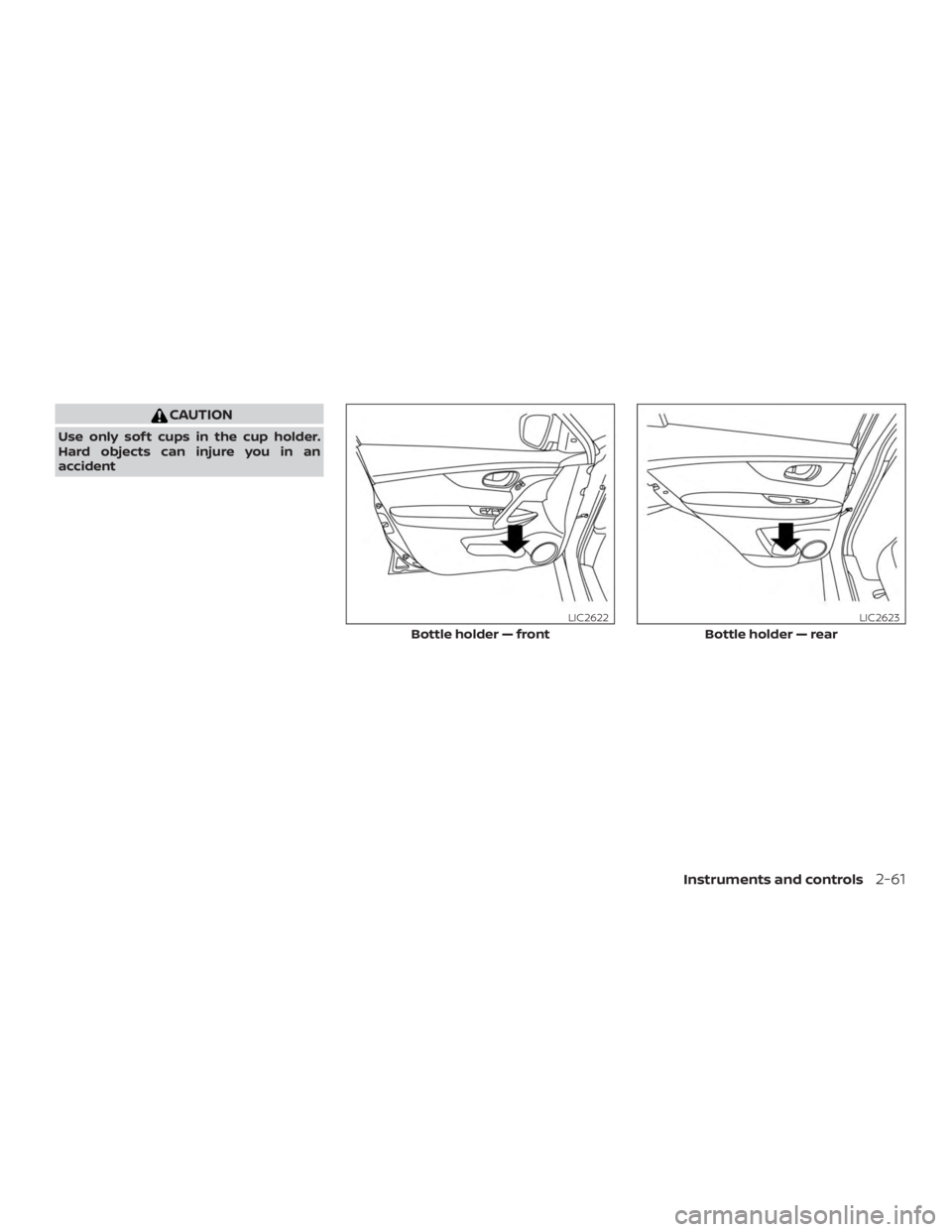

CAUTION
Use only sof t cups in the cup holder.
Hard objects can injure you in an
accident
Bottle holder — front
LIC2622
Bottle holder — rear
LIC2623
Instruments and controls2-61

CAUTION
∙ Do not use bottle holder for any otherobjects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
∙ Do not use bottle holder for open liq- uid containers.
CARGO AREA STORAGE BIN (if so
equipped)
WARNING
If your vehicle is equipped with 3rd row
seating, do not attempt to store/place a
spare tire in the cargo area storage
area. In a collision a spare tire could be-
come loose and strike a person result-
ing in severe injury or death.
To access the floor storage area, pull up on
the handle to lif t the luggage board.
DIVIDE-N-HIDE® ADJUSTABLE
FLOOR (if so equipped)
WARNING
Do not put objects heavier than 165 lbs.
(75 kg) on the Divide-N-Hide® while in
the mid position. In the upper position,
objects should not weigh more than
30 lbs. (14 kg).
There are multiple positions for the ad-
justable floor. The upper position allows
for additional storage below the adjust-
able floor.
Bottle holder — 3rd row (if so equipped)
LIC2837LIC2625LIC2646
2-62Instruments and controls

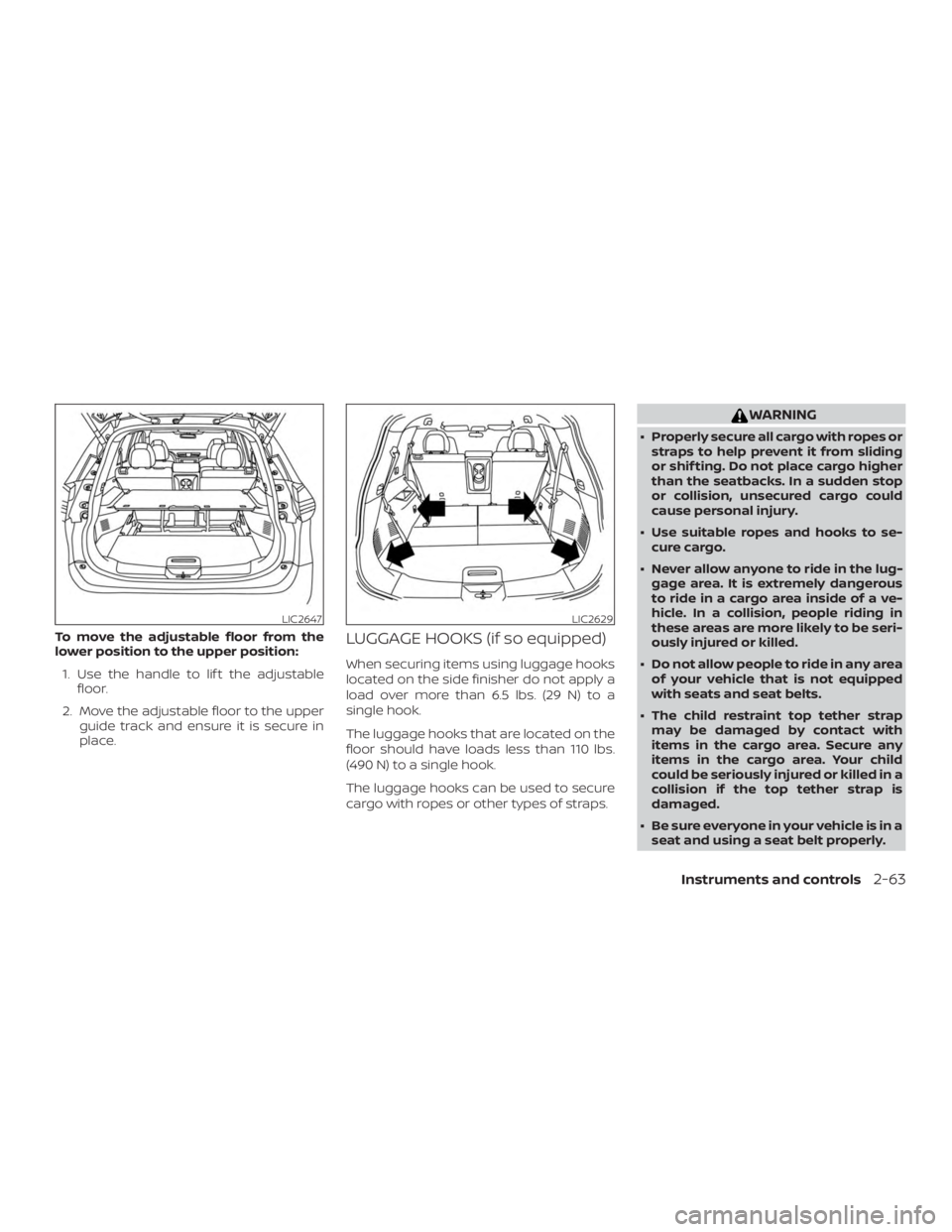

To move the adjustable floor from the
lower position to the upper position:1. Use the handle to lif t the adjustable floor.
2. Move the adjustable floor to the upper guide track and ensure it is secure in
place.LUGGAGE HOOKS (if so equipped)
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a
single hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ Use suitable ropes and hooks to se- cure cargo.
∙ Never allow anyone to ride in the lug- gage area. It is extremely dangerous
to ride in a cargo area inside of a ve-
hicle. In a collision, people riding in
these areas are more likely to be seri-
ously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
∙ The child restraint top tether strap may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed in a
collision if the top tether strap is
damaged.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
LIC2647LIC2629
Instruments and controls2-63

CARGO COVER (if so equipped)
WARNING
∙ Do not place objects on the cargocover while the vehicle is parked or in
motion, no matter how small. The ob-
ject on the cargo cover could cause an
injury in an accident or sudden stop,
and/or the cargo cover can become
damaged.
∙ Do not leave the cargo cover in the vehicle with it disengaged from the
holder.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury. ∙ Properly secure cargo and do not al-
low it to contact the top tether strap
when it is attached to the top tether
anchor. Cargo that is not properly se-
cured or cargo that contacts the top
tether strap may damage the top
tether strap during a collision. If the
cargo cover contacts the top tether
strap when it is attached to the top
tether anchor, remove the cargo cover
from the vehicle or secure it on the
cargo floor below its attachment lo-
cation. If the cargo cover is not re-
moved, it may damage the top tether
strap during a collision. Your child
could be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
The cargo cover keeps the luggage com-
partment contents hidden from the out-
side.
WIC1003
2-64Instruments and controls

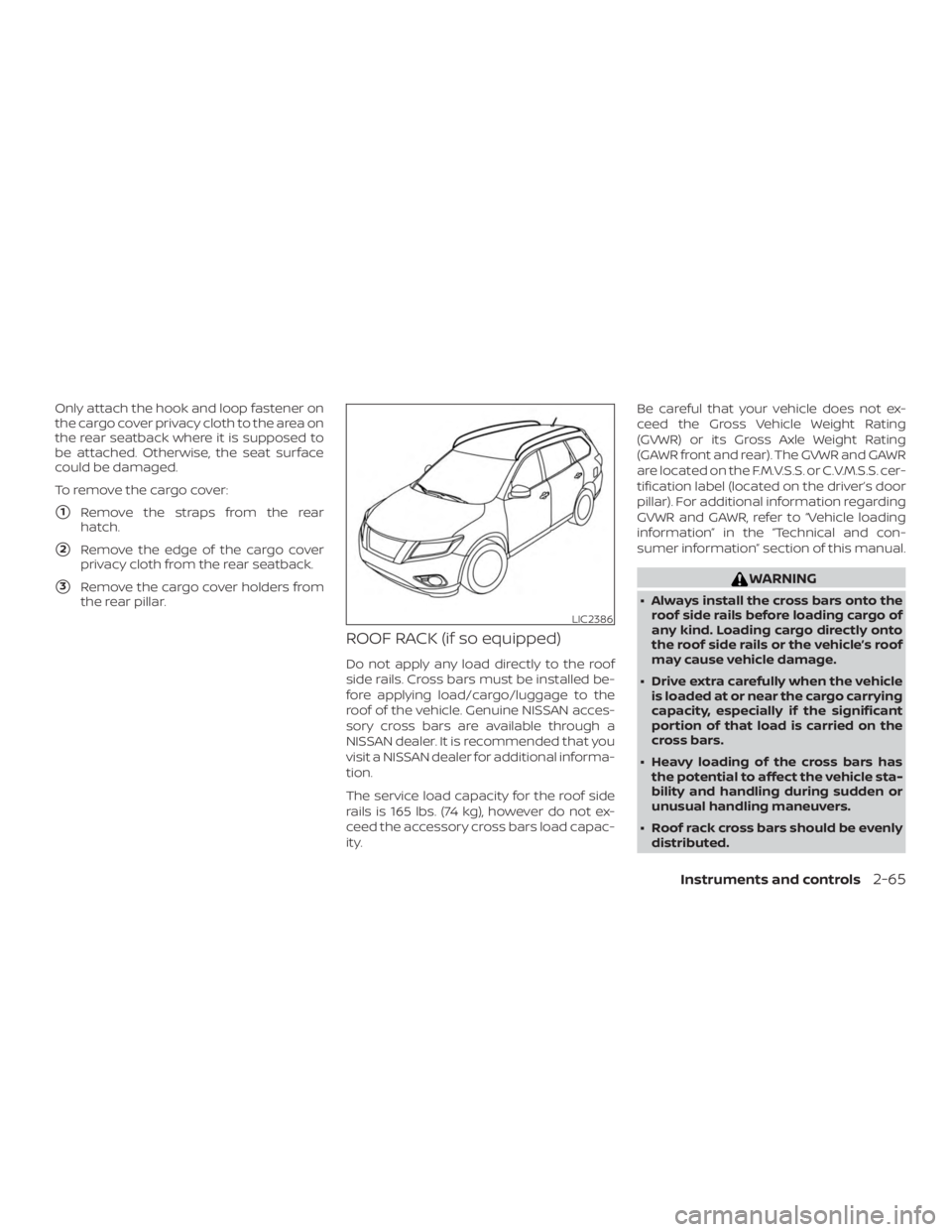

Only attach the hook and loop fastener on
the cargo cover privacy cloth to the area on
the rear seatback where it is supposed to
be attached. Otherwise, the seat surface
could be damaged.
To remove the cargo cover:
1Remove the straps from the rear
hatch.
2Remove the edge of the cargo cover
privacy cloth from the rear seatback.
3Remove the cargo cover holders from
the rear pillar.
ROOF RACK (if so equipped)
Do not apply any load directly to the roof
side rails. Cross bars must be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle. Genuine NISSAN acces-
sory cross bars are available through a
NISSAN dealer. It is recommended that you
visit a NISSAN dealer for additional informa-
tion.
The service load capacity for the roof side
rails is 165 lbs. (74 kg), however do not ex-
ceed the accessory cross bars load capac-
ity. Be careful that your vehicle does not ex-
ceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear). The GVWR and GAWR
are located on the F.M.V.S.S. or C.V.M.S.S. cer-
tification label (located on the driver’s door
pillar). For additional information regarding
GVWR and GAWR, refer to “Vehicle loading
information” in the “Technical and con-
sumer information” section of this manual.
WARNING
∙ Always install the cross bars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto
the roof side rails or the vehicle’s roof
may cause vehicle damage.
∙ Drive extra carefully when the vehicle is loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars.
∙ Heavy loading of the cross bars has the potential to affect the vehicle sta-
bility and handling during sudden or
unusual handling maneuvers.
∙ Roof rack cross bars should be evenly distributed.
LIC2386
Instruments and controls2-65

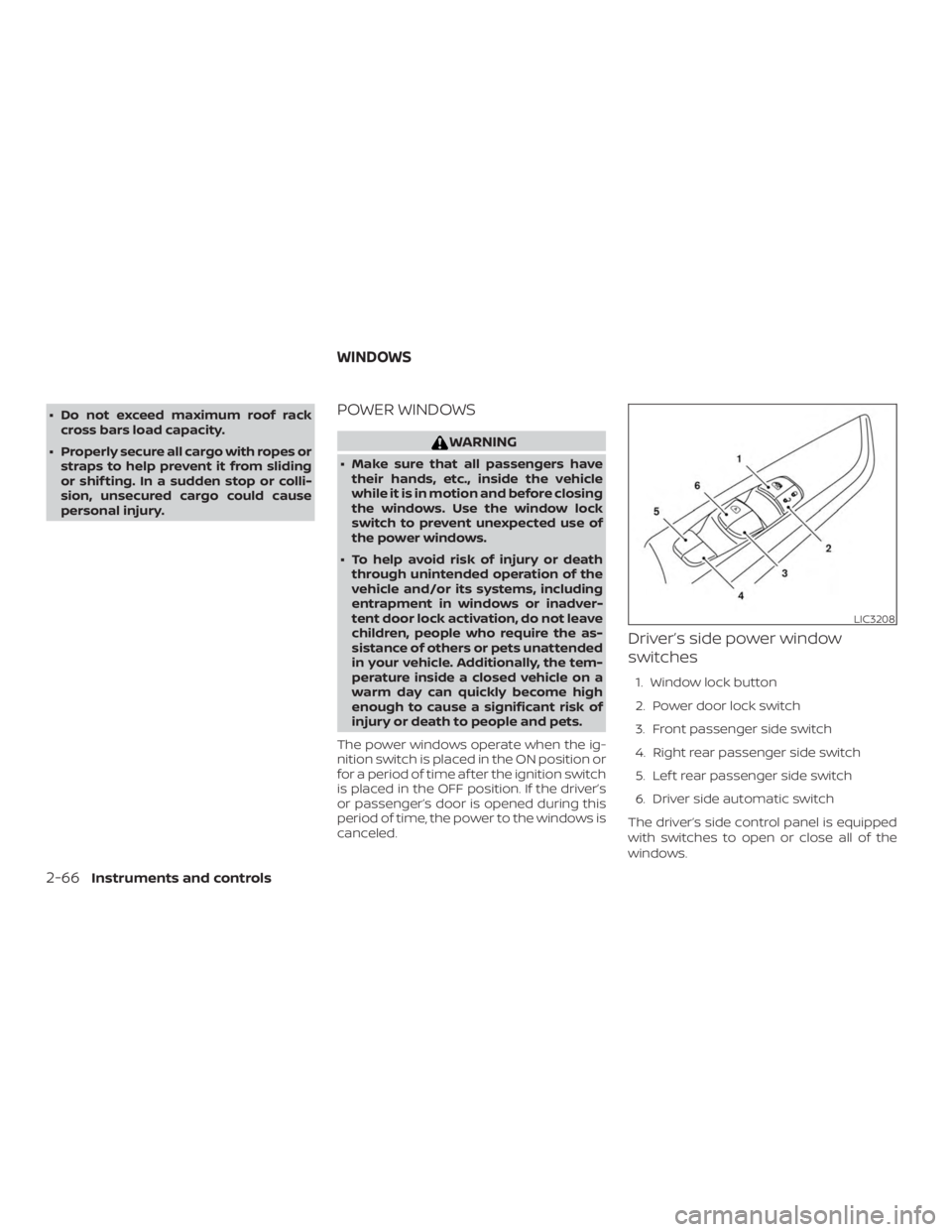

∙ Do not exceed maximum roof rackcross bars load capacity.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.POWER WINDOWS
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time af ter the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.
Driver’s side power window
switches
1. Window lock button
2. Power door lock switch
3. Front passenger side switch
4. Right rear passenger side switch
5. Lef t rear passenger side switch
6. Driver side automatic switch
The driver’s side control panel is equipped
with switches to open or close all of the
windows.
LIC3208
WINDOWS
2-66Instruments and controls

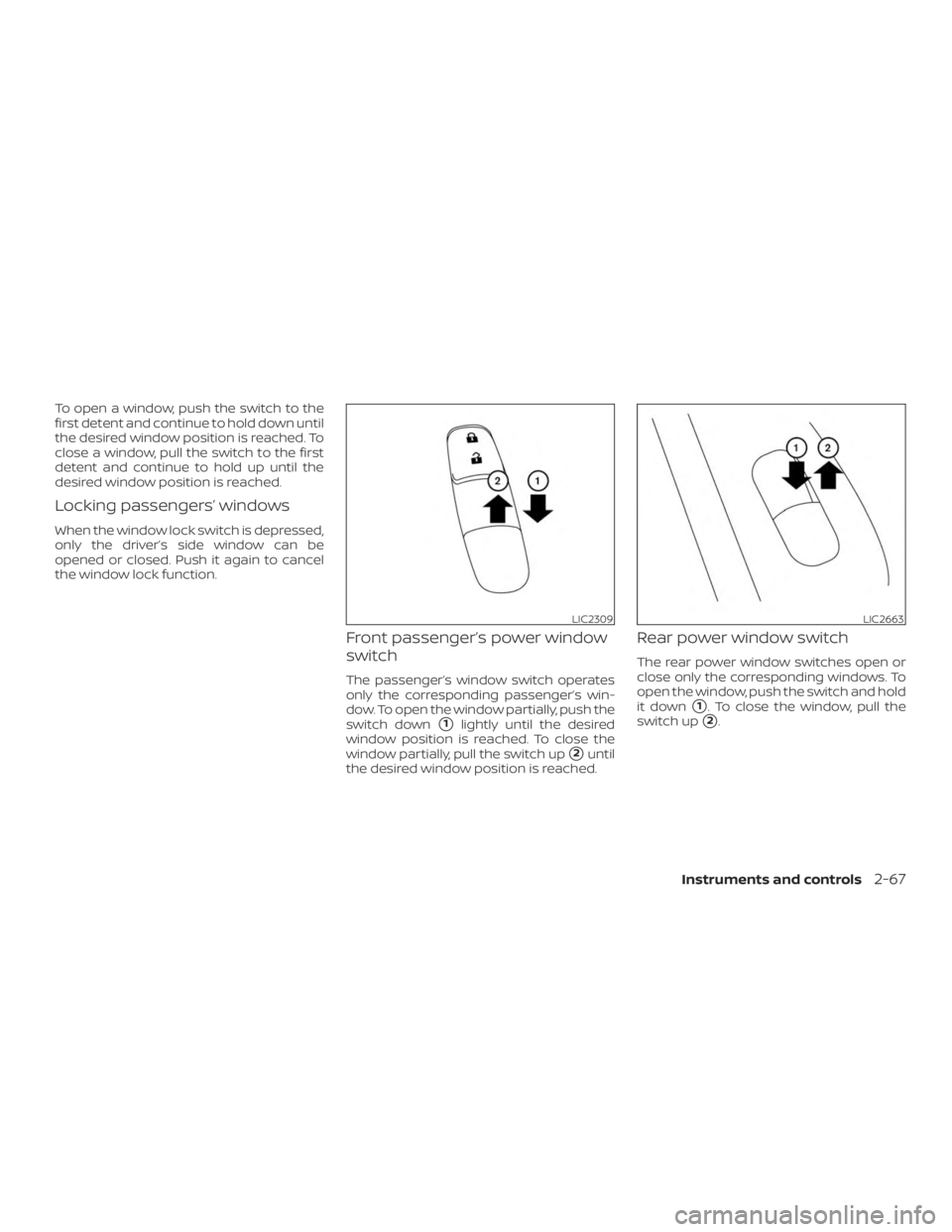

To open a window, push the switch to the
first detent and continue to hold down until
the desired window position is reached. To
close a window, pull the switch to the first
detent and continue to hold up until the
desired window position is reached.
Locking passengers’ windows
When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.
Front passenger’s power window
switch
The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window partially, push the
switch down
1lightly until the desired
window position is reached. To close the
window partially, pull the switch up
2until
the desired window position is reached.
Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down
1. To close the window, pull the
switch up
2.
LIC2309LIC2663
Instruments and controls2-67

Automatic operation
To fully open a window equipped with au-
tomatic operation, press the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lif t the switch up while the win-
dow is opening.
To fully close a window equipped with au-
tomatic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.
Auto-reverse function (if so
equipped)
The auto-reverse function can be acti-
vated when a window is closed by auto-
matic operation.
Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate
properly. Have the power window auto-
reverse system re-initialized. It is recom-
mended that you visit a NISSAN dealer for
this service. If the control unit detects something
caught in a window equipped with auto-
matic operation as it is closing, the window
will be immediately lowered.LIC0410
2-68Instruments and controls

The moonroof will only operate when the
ignition switch is placed in the ON position.
The moonroof is operational for a period of
time, even if the ignition switch is placed in
the OFF position. If the driver’s door or the
front passenger’s door is opened during
this period of time, the power to the moon-
roof is canceled.
When operating the power moonroof or
panoramic sunshade, the switch need not
be held continuously. To stop the moon-
roof or sunshade at any point while it is
opening or closing, slide the switch mo-
mentarily.
Sliding the moonroof
To fully open the moonroof, slide the switch
toward the OPEN
1position to the second
detent and release it. If the switch is slid to
the first detent and released while the sun-
shade is closed only the sunshade will
open.
To fully close the moonroof, slide the switch
toward the CLOSE
2position to the sec-
ond detent and release it. If the switch is
slid to the first detent and released, the
moonroof will close but the sunshade will
remain open.
Tilting the moonroof
To tilt the moonroof up, push and release
the tilt switch
3. If the moonroof is open, it
will automatically close and then tilt up.
To tilt the moonroof down but keep the
sunshade open, push and release the tilt
switch
3or slide the switch toward the
CLOSE position
2to the first detent.
To tilt the moonroof down and close the
sunshade at the same time, slide the
switch toward the CLOSE position
2to the
second detent.
Auto-reverse function (when
closing or tilting down the
moonroof )
The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time af ter the igni-
tion switch is placed in the OFF position.
Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
When closing
If the control unit detects something
caught in the moonroof as it moves to the
front, the moonroof will immediately open
backward.
LIC3477
POWER MOONROOF (if so equipped)
Instruments and controls2-69

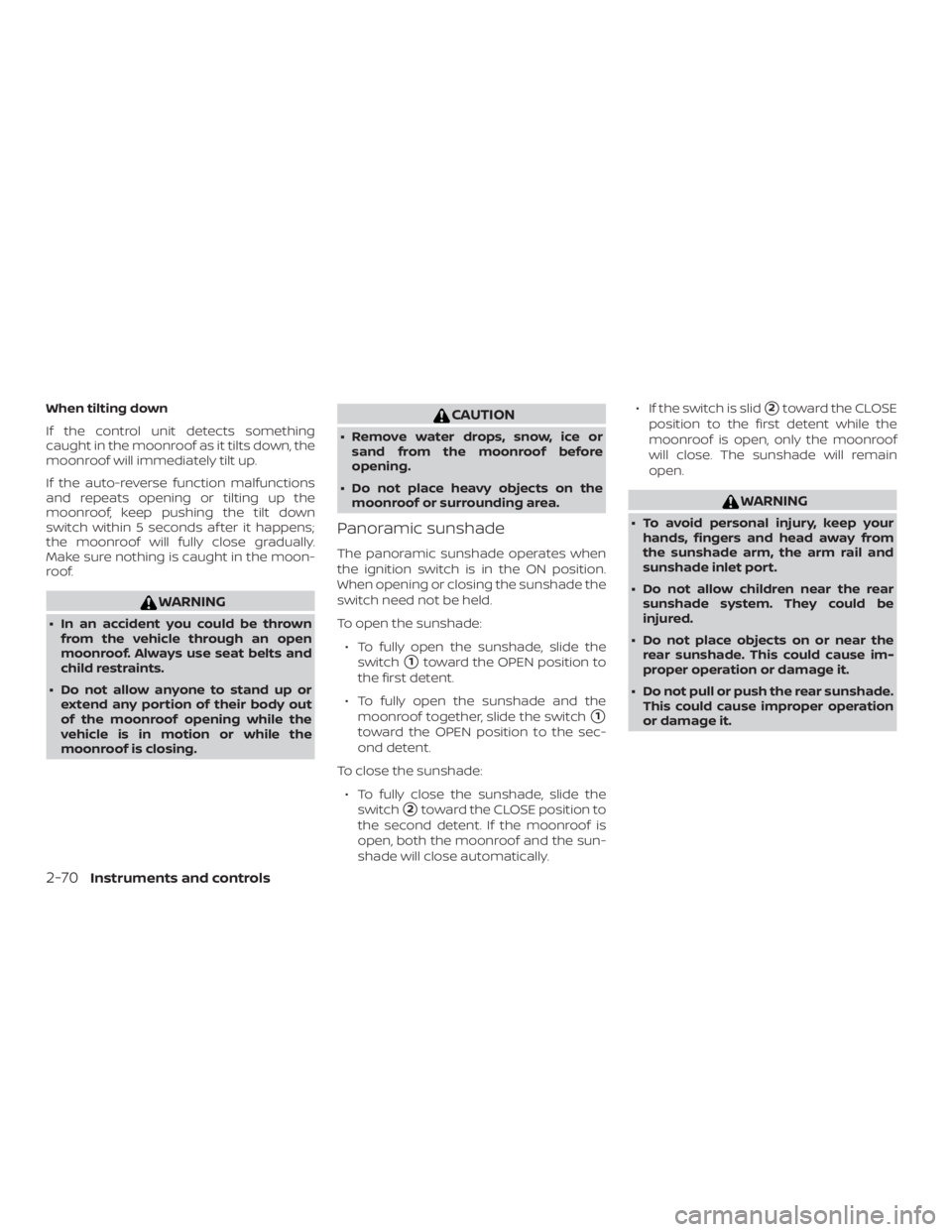

When tilting down
If the control unit detects something
caught in the moonroof as it tilts down, the
moonroof will immediately tilt up.
If the auto-reverse function malfunctions
and repeats opening or tilting up the
moonroof, keep pushing the tilt down
switch within 5 seconds af ter it happens;
the moonroof will fully close gradually.
Make sure nothing is caught in the moon-
roof.
WARNING
∙ In an accident you could be thrownfrom the vehicle through an open
moonroof. Always use seat belts and
child restraints.
∙ Do not allow anyone to stand up or extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
∙ Remove water drops, snow, ice orsand from the moonroof before
opening.
∙ Do not place heavy objects on the moonroof or surrounding area.
Panoramic sunshade
The panoramic sunshade operates when
the ignition switch is in the ON position.
When opening or closing the sunshade the
switch need not be held.
To open the sunshade:
∙ To fully open the sunshade, slide the switch
1toward the OPEN position to
the first detent.
∙ To fully open the sunshade and the moonroof together, slide the switch
1
toward the OPEN position to the sec-
ond detent.
To close the sunshade: ∙ To fully close the sunshade, slide the switch
2toward the CLOSE position to
the second detent. If the moonroof is
open, both the moonroof and the sun-
shade will close automatically. ∙ If the switch is slid
2toward the CLOSE
position to the first detent while the
moonroof is open, only the moonroof
will close. The sunshade will remain
open.
WARNING
∙ To avoid personal injury, keep your hands, fingers and head away from
the sunshade arm, the arm rail and
sunshade inlet port.
∙ Do not allow children near the rear sunshade system. They could be
injured.
∙ Do not place objects on or near the rear sunshade. This could cause im-
proper operation or damage it.
∙ Do not pull or push the rear sunshade. This could cause improper operation
or damage it.
2-70Instruments and controls
