NISSAN ROGUE 2018 Owner´s Manual

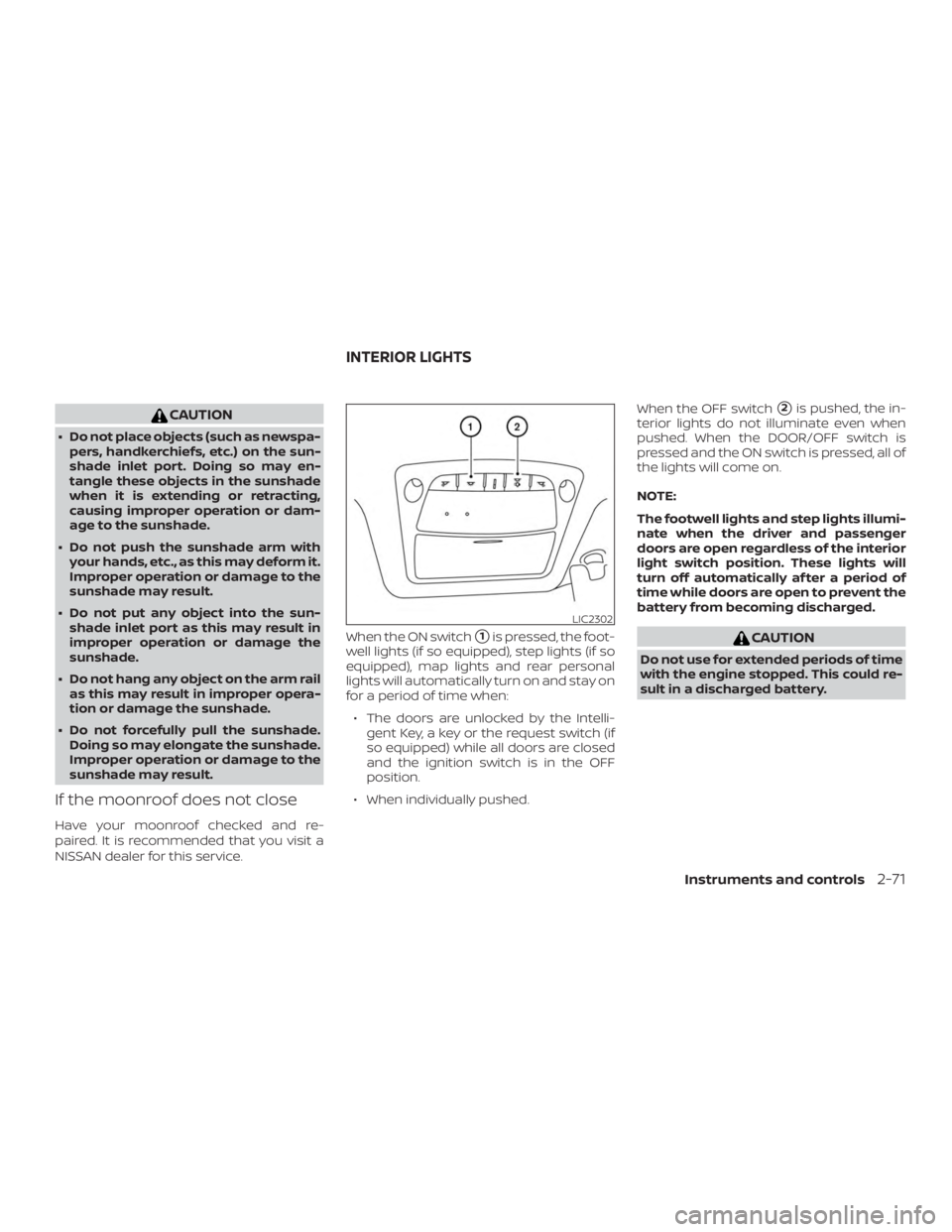

CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may en-
tangle these objects in the sunshade
when it is extending or retracting,
causing improper operation or dam-
age to the sunshade.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.
∙ Do not put any object into the sun- shade inlet port as this may result in
improper operation or damage the
sunshade.
∙ Do not hang any object on the arm rail as this may result in improper opera-
tion or damage the sunshade.
∙ Do not forcefully pull the sunshade. Doing so may elongate the sunshade.
Improper operation or damage to the
sunshade may result.
If the moonroof does not close
Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service. When the ON switch
1is pressed, the foot-
well lights (if so equipped), step lights (if so
equipped), map lights and rear personal
lights will automatically turn on and stay on
for a period of time when:
∙ The doors are unlocked by the Intelli- gent Key, a key or the request switch (if
so equipped) while all doors are closed
and the ignition switch is in the OFF
position.
∙ When individually pushed. When the OFF switch
2is pushed, the in-
terior lights do not illuminate even when
pushed. When the DOOR/OFF switch is
pressed and the ON switch is pressed, all of
the lights will come on.
NOTE:
The footwell lights and step lights illumi-
nate when the driver and passenger
doors are open regardless of the interior
light switch position. These lights will
turn off automatically af ter a period of
time while doors are open to prevent the
battery from becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
LIC2302
INTERIOR LIGHTS
Instruments and controls2-71

CONSOLE LIGHT
The console light will turn on whenever the
parking lights or headlights are illuminated.
The console light brightness can be ad-
justed with the illumination brightness
control.
MAP LIGHTS
Press the button to turn the map lights on.
To turn them off, press the button again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
PERSONAL LIGHTS (if so equipped)
To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.
LIC2303LIC2304Rear personal lights
LIC1083
2-72Instruments and controls

ROOM LIGHT (if so equipped)
The room light on the overhead trim has a
three-position switch. To operate, push the
switch to the desired position.
1ON: The light is illuminated, regardless
of door position.
2DOOR: The light illuminates when a
door or the lif tgate is opened. The light
turns off when the door or lif tgate is
closed.
3OFF: The light does not illuminate. The lights will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
The luggage compartment light on the
overhead trim has a two-position switch.
To operate, push the switch to the desired
position.
1OFF: The light does not illuminate re-
gardless of door position or lock sta-
tus.
2ON: The light is illuminated.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
SIC2063ALIC3925
LUGGAGE COMPARTMENT LIGHT (if
so equipped)
Instruments and controls2-73

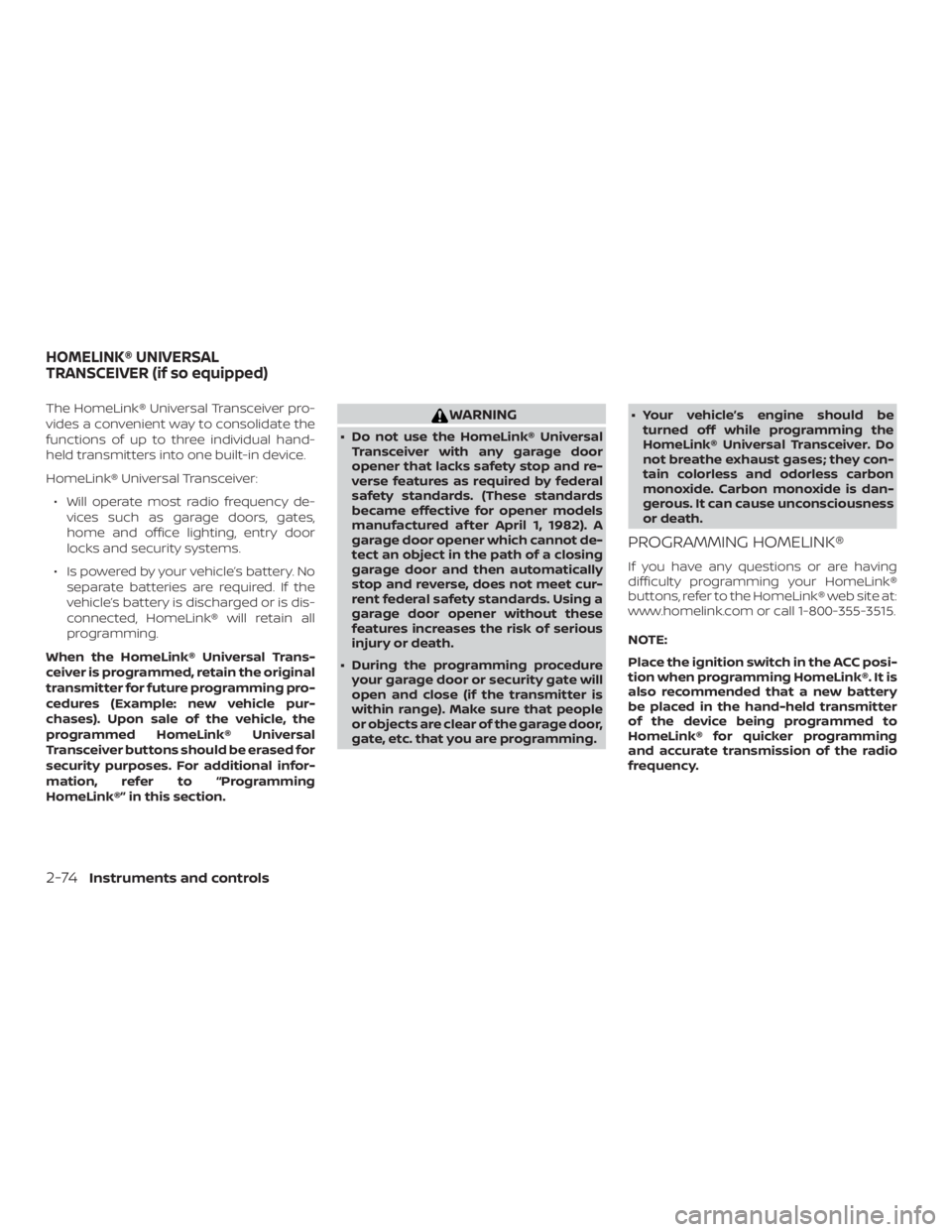

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.
HomeLink® Universal Transceiver:∙ Will operate most radio frequency de- vices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.
∙ Is powered by your vehicle’s battery. No separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink® will retain all
programming.
When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming pro-
cedures (Example: new vehicle pur-
chases). Upon sale of the vehicle, the
programmed HomeLink® Universal
Transceiver buttons should be erased for
security purposes. For additional infor-
mation, refer to “Programming
HomeLink®” in this section.WARNING
∙ Do not use the HomeLink® Universal Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards
became effective for opener models
manufactured af ter April 1, 1982). A
garage door opener which cannot de-
tect an object in the path of a closing
garage door and then automatically
stop and reverse, does not meet cur-
rent federal safety standards. Using a
garage door opener without these
features increases the risk of serious
injury or death.
∙ During the programming procedure your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming. ∙ Your vehicle’s engine should be
turned off while programming the
HomeLink® Universal Transceiver. Do
not breathe exhaust gases; they con-
tain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.
PROGRAMMING HOMELINK®
If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.
NOTE:
Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery
be placed in the hand-held transmitter
of the device being programmed to
HomeLink® for quicker programming
and accurate transmission of the radio
frequency.
HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)
2-74Instruments and controls

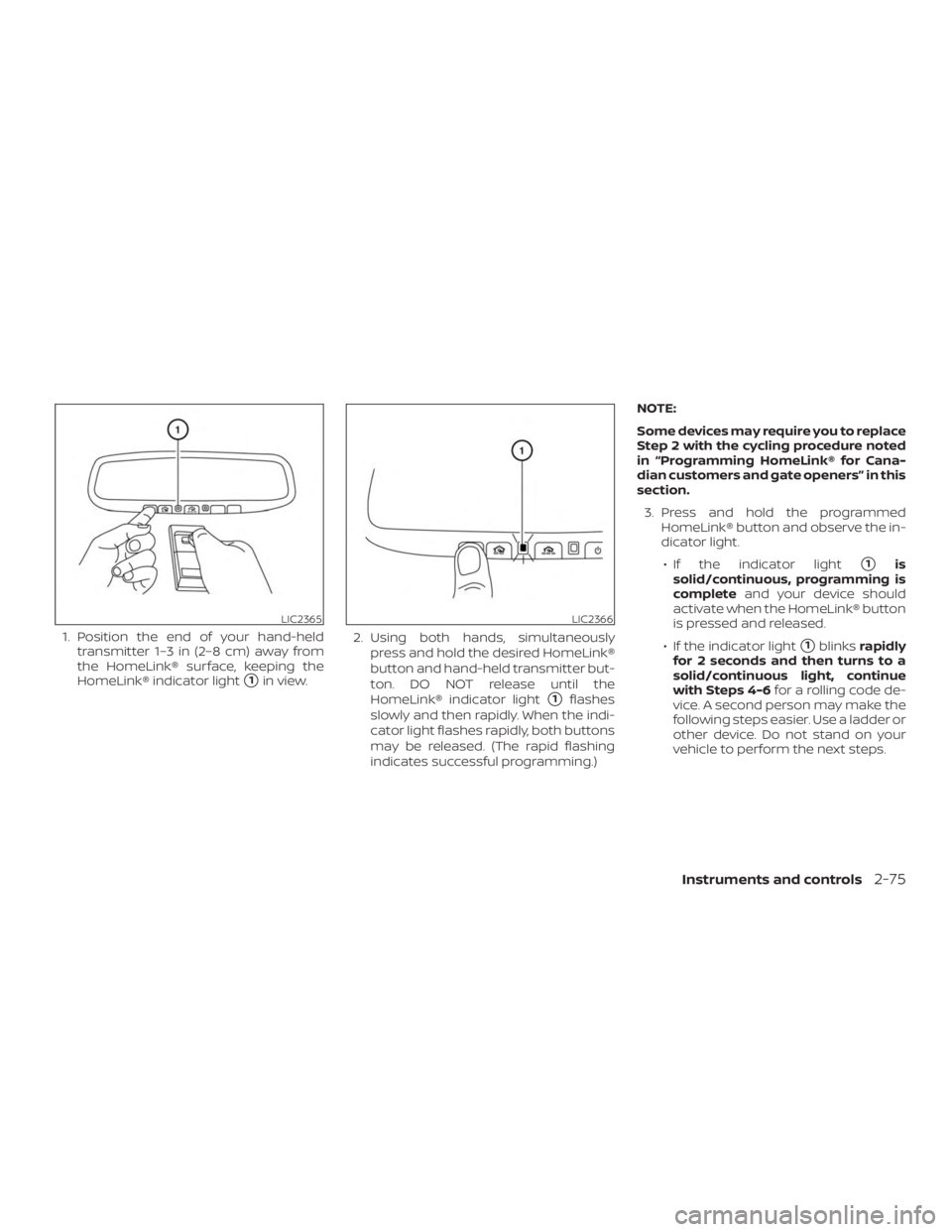

1. Position the end of your hand-heldtransmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light
1in view. 2. Using both hands, simultaneously
press and hold the desired HomeLink®
button and hand-held transmitter but-
ton. DO NOT release until the
HomeLink® indicator light
1flashes
slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. (The rapid flashing
indicates successful programming.) NOTE:
Some devices may require you to replace
Step 2 with the cycling procedure noted
in “Programming HomeLink® for Cana-
dian customers and gate openers” in this
section.
3. Press and hold the programmed HomeLink® button and observe the in-
dicator light.
∙ If the indicator light
1is
solid/continuous, programming is
complete and your device should
activate when the HomeLink® button
is pressed and released.
∙ If the indicator light
1blinks rapidly
for 2 seconds and then turns to a
solid/continuous light, continue
with Steps 4-6 for a rolling code de-
vice. A second person may make the
following steps easier. Use a ladder or
other device. Do not stand on your
vehicle to perform the next steps.
LIC2365LIC2366
Instruments and controls2-75

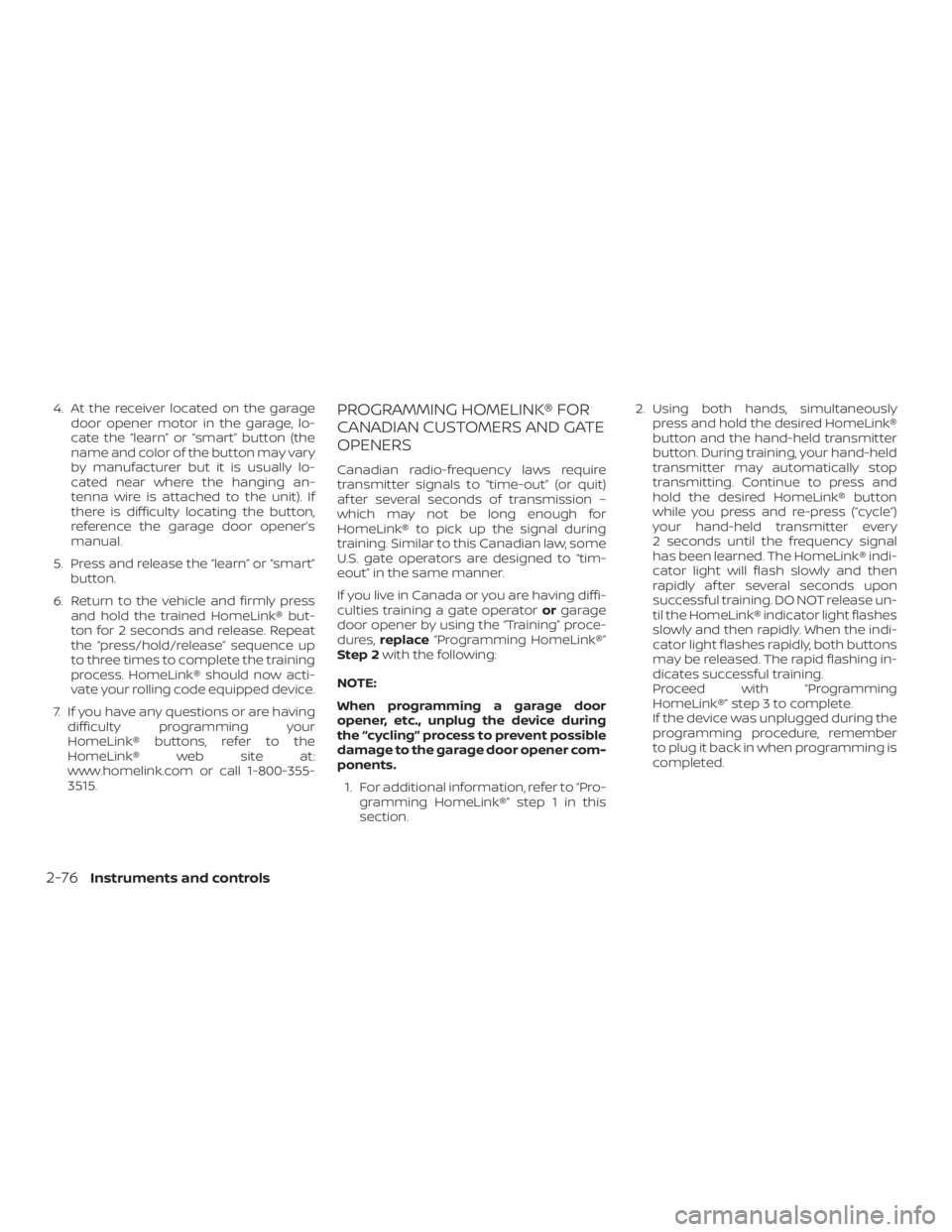

4. At the receiver located on the garagedoor opener motor in the garage, lo-
cate the “learn” or “smart” button (the
name and color of the button may vary
by manufacturer but it is usually lo-
cated near where the hanging an-
tenna wire is attached to the unit). If
there is difficulty locating the button,
reference the garage door opener’s
manual.
5. Press and release the “learn” or “smart” button.
6. Return to the vehicle and firmly press and hold the trained HomeLink® but-
ton for 2 seconds and release. Repeat
the “press/hold/release” sequence up
to three times to complete the training
process. HomeLink® should now acti-
vate your rolling code equipped device.
7. If you have any questions or are having difficulty programming your
HomeLink® buttons, refer to the
HomeLink® web site at:
www.homelink.com or call 1-800-355-
3515.PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND GATE
OPENERS
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
af ter several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
training. Similar to this Canadian law, some
U.S. gate operators are designed to “tim-
eout” in the same manner.
If you live in Canada or you are having diffi-
culties training a gate operator orgarage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
Step 2 with the following:
NOTE:
When programming a garage door
opener, etc., unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener com-
ponents. 1. For additional information, refer to “Pro- gramming HomeLink®” step 1 in this
section. 2. Using both hands, simultaneously
press and hold the desired HomeLink®
button and the hand-held transmitter
button. During training, your hand-held
transmitter may automatically stop
transmitting. Continue to press and
hold the desired HomeLink® button
while you press and re-press (“cycle”)
your hand-held transmitter every
2 seconds until the frequency signal
has been learned. The HomeLink® indi-
cator light will flash slowly and then
rapidly af ter several seconds upon
successful training. DO NOT release un-
til the HomeLink® indicator light flashes
slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. The rapid flashing in-
dicates successful training.
Proceed with “Programming
HomeLink®” step 3 to complete.
If the device was unplugged during the
programming procedure, remember
to plug it back in when programming is
completed.
2-76Instruments and controls

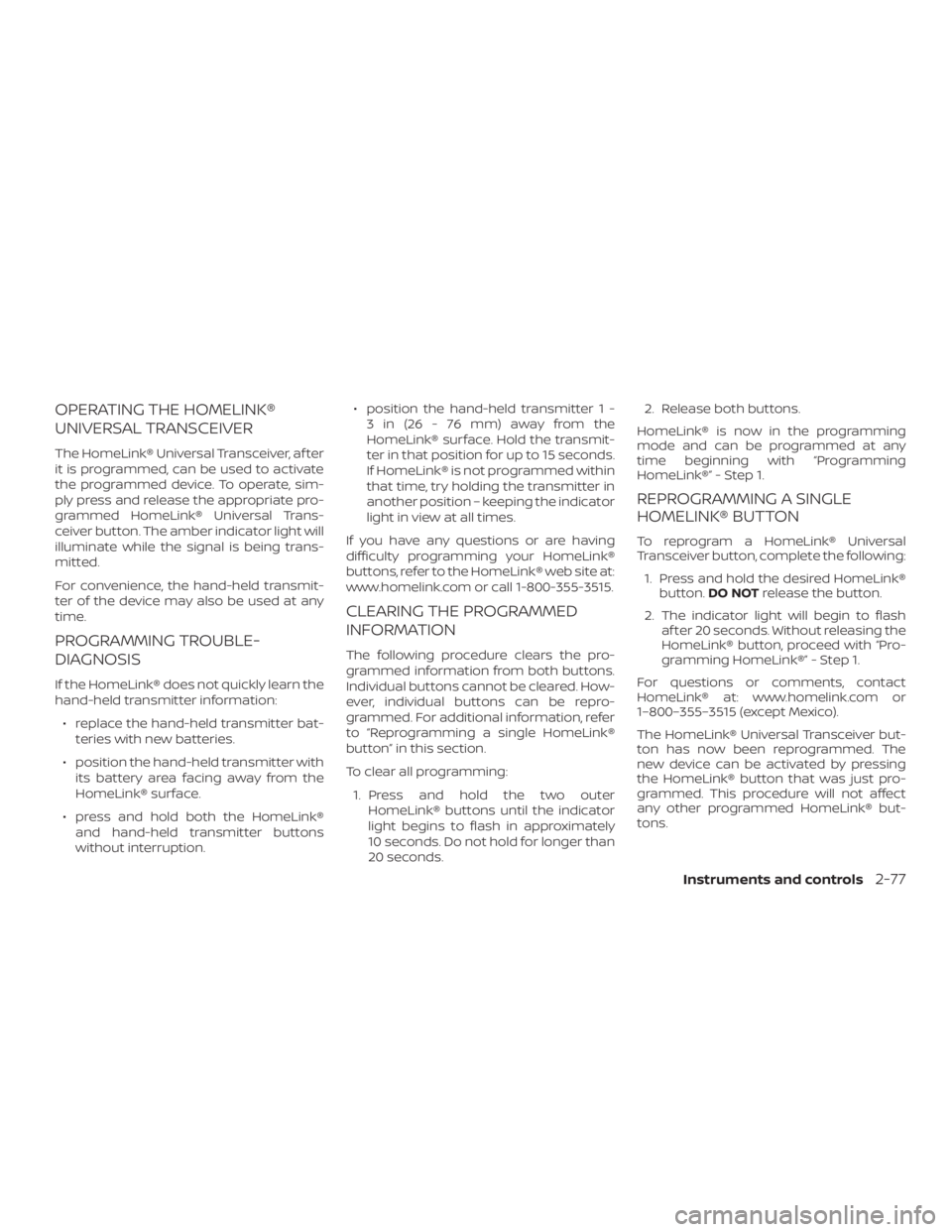

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, af ter
it is programmed, can be used to activate
the programmed device. To operate, sim-
ply press and release the appropriate pro-
grammed HomeLink® Universal Trans-
ceiver button. The amber indicator light will
illuminate while the signal is being trans-
mitted.
For convenience, the hand-held transmit-
ter of the device may also be used at any
time.
PROGRAMMING TROUBLE-
DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:∙ replace the hand-held transmitter bat- teries with new batteries.
∙ position the hand-held transmitter with its battery area facing away from the
HomeLink® surface.
∙ press and hold both the HomeLink® and hand-held transmitter buttons
without interruption. ∙ position the hand-held transmitter 1 -
3 in (26 - 76 mm) away from the
HomeLink® surface. Hold the transmit-
ter in that position for up to 15 seconds.
If HomeLink® is not programmed within
that time, try holding the transmitter in
another position – keeping the indicator
light in view at all times.
If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.
CLEARING THE PROGRAMMED
INFORMATION
The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared. How-
ever, individual buttons can be repro-
grammed. For additional information, refer
to “Reprogramming a single HomeLink®
button” in this section.
To clear all programming: 1. Press and hold the two outer HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds. 2. Release both buttons.
HomeLink® is now in the programming
mode and can be programmed at any
time beginning with “Programming
HomeLink®” - Step 1.
REPROGRAMMING A SINGLE
HOMELINK® BUTTON
To reprogram a HomeLink® Universal
Transceiver button, complete the following: 1. Press and hold the desired HomeLink® button. DO NOT release the button.
2. The indicator light will begin to flash af ter 20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.
For questions or comments, contact
HomeLink® at: www.homelink.com or
1–800–355–3515 (except Mexico).
The HomeLink® Universal Transceiver but-
ton has now been reprogrammed. The
new device can be activated by pressing
the HomeLink® button that was just pro-
grammed. This procedure will not affect
any other programmed HomeLink® but-
tons.
Instruments and controls2-77

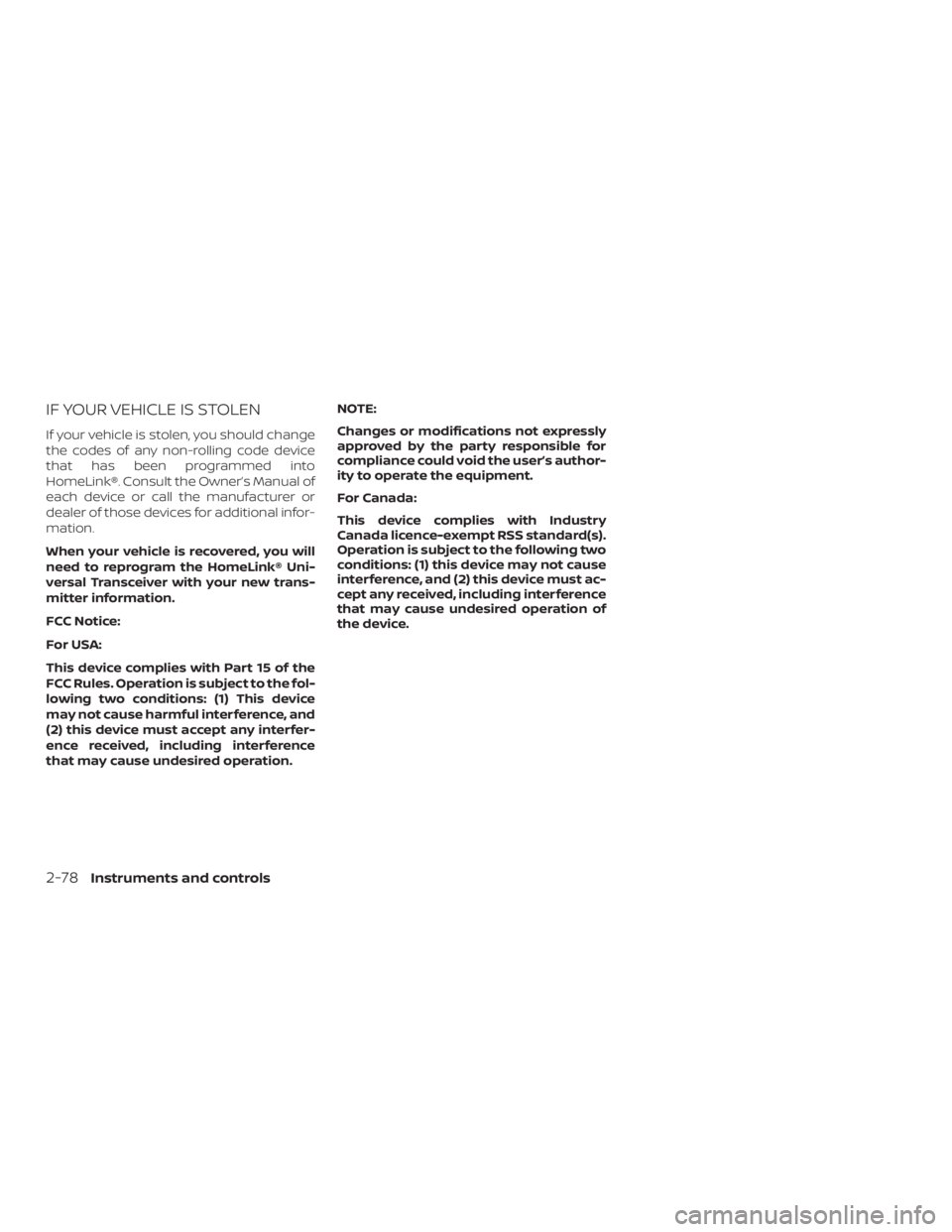

IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change
the codes of any non-rolling code device
that has been programmed into
HomeLink®. Consult the Owner’s Manual of
each device or call the manufacturer or
dealer of those devices for additional infor-
mation.
When your vehicle is recovered, you will
need to reprogram the HomeLink® Uni-
versal Transceiver with your new trans-
mitter information.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.
For Canada:
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any received, including interference
that may cause undesired operation of
the device.
2-78Instruments and controls

MEMO
Instruments and controls2-79

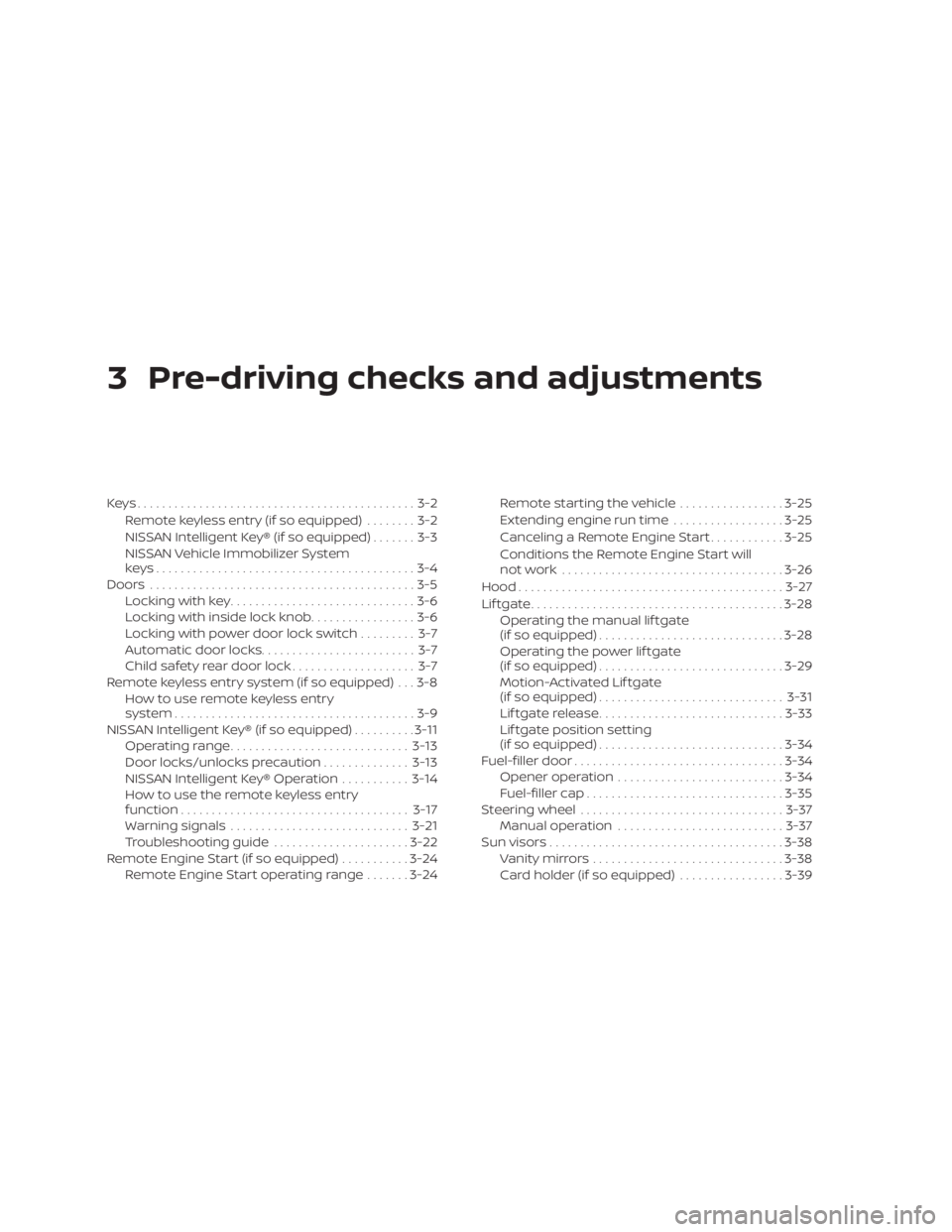

3 Pre-driving checks and adjustments
Keys.............................................3-2Remote keyless entry (if so equipped) ........3-2
NISSAN Intelligent Key® (if so equipped) .......3-3
NISSAN Vehicle Immobilizer System
keys..........................................3-4
Doors ...........................................3-5
Locking with key ..............................3-6
Locking with inside lock knob .................3-6
Locking with power door lock switch ......... 3-7
Automatic door locks......................... 3-7
Child safety rear door lock .................... 3-7
Remote keyless entry system (if so equipped) . . . 3-8 How to use remote keyless entry
system .......................................3-9
NISSAN Intelligent Key® (if so equipped) ..........3-11
Operating range ............................. 3-13
Door locks/unlocks precaution ..............3-13
NISSAN Intelligent Key® Operation ...........3-14
How to use the remote keyless entry
function ..................................... 3-17
Warning signals ............................. 3-21
Troubleshooting guide ......................3-22
Remote Engine Start (if so equipped) ...........3-24
Remote Engine Start operating range .......3-24 Remote starting the vehicle
.................3-25
Extending engine run time ..................3-25
Canceling a Remote Engine Start ............3-25
Conditions the Remote Engine Start will
notwork .................................... 3-26
Hood ........................................... 3-27
Lif tgate ......................................... 3-28
Operating the manual lif tgate
(if so equipped) .............................. 3-28
Operating the power lif tgate
(if so equipped) .............................. 3-29
Motion-Activated Lif tgate
(if so equipped) .............................. 3-31
Lif tgate release .............................. 3-33
Lif tgate position setting
(if so equipped) .............................. 3-34
Fuel-filler door .................................. 3-34
Opener operation ........................... 3-34
Fuel-filler cap ................................ 3-35
Steering wheel ................................. 3-37
Manual operation ........................... 3-37
Sun

visors ...................................... 3-38
Vanity mirrors ............................... 3-38
Card holder (if so equipped) .................3-39
