∙ The ProPILOT Assist system does notreact to stationary and slow moving
vehicles.
∙ Always drive carefully and attentively when using the ProPILOT Assist sys-
tem. Read and understand the Own-
er’s Manual thoroughly before using
the ProPILOT Assist system. To avoid
serious injury or death, do not rely on
the system to prevent accidents or to
control the vehicle’s speed in emer-
gency situations. Do not use the Pro-
PILOT Assist system except in appro-
priate road and traffic conditions.

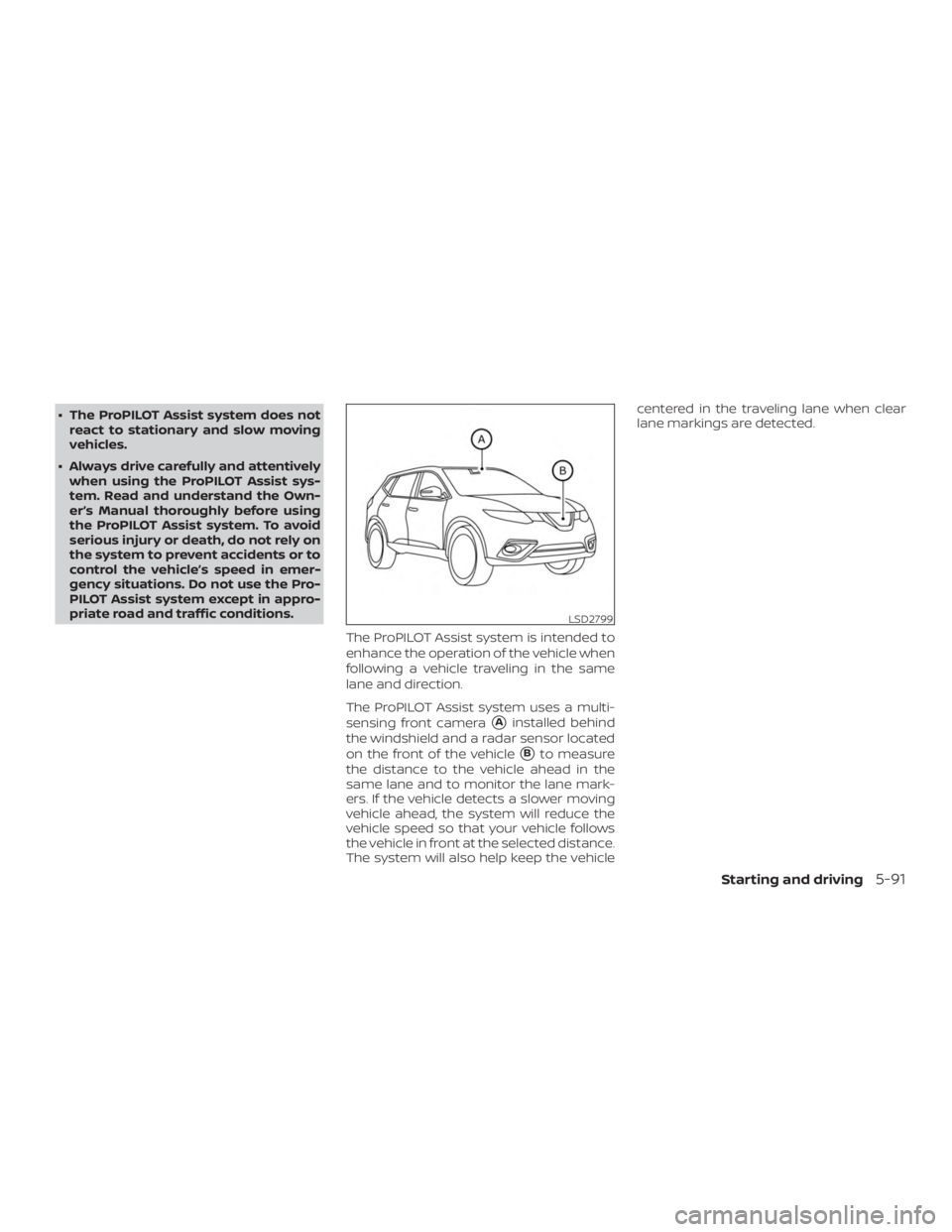

The ProPILOT Assist system is intended to
enhance the operation of the vehicle when
following a vehicle traveling in the same
lane and direction.
The ProPILOT Assist system uses a multi-
sensing front camera
Ainstalled behind
the windshield and a radar sensor located
on the front of the vehicle
Bto measure
the distance to the vehicle ahead in the
same lane and to monitor the lane mark-
ers. If the vehicle detects a slower moving
vehicle ahead, the system will reduce the
vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The system will also help keep the vehicle centered in the traveling lane when clear
lane markings are detected.
LSD2799
Starting and driving5-91

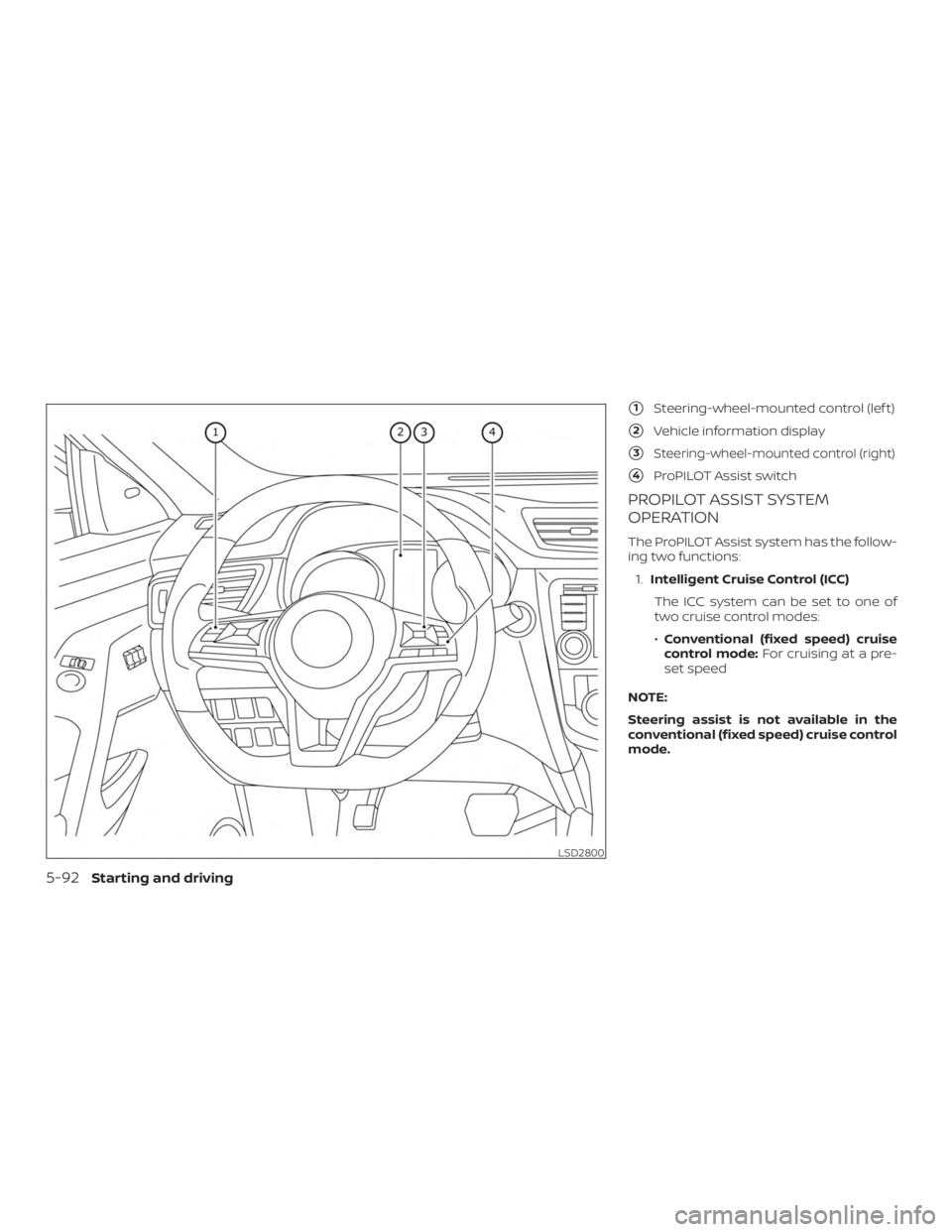

1Steering-wheel-mounted control (lef t)
2Vehicle information display
3Steering-wheel-mounted control (right)
4ProPILOT Assist switch
PROPILOT ASSIST SYSTEM
OPERATION
The ProPILOT Assist system has the follow-
ing two functions:1. Intelligent Cruise Control (ICC)
The ICC system can be set to one of
two cruise control modes:
∙ Conventional (fixed speed) cruise
control mode: For cruising at a pre-
set speed
NOTE:
Steering assist is not available in the
conventional (fixed speed) cruise control
mode.
LSD2800
5-92Starting and driving

∙Vehicle-to-vehicle distance control
mode: The ICC system maintains a
selected distance from the vehicle in
front of you within the speed range of
0 to 90 mph (0 to 144 km/h) up to the
set speed. The set speed can be se-
lected by the driver between 20 to
90 mph (32 to 144 km/h). When the
vehicle ahead slows to a stop, your
vehicle gradually decelerates to a
standstill. When the vehicle is
stopped, the ICC system maintains
braking force to keep your vehicle
stopped.
NOTE:
When your vehicle is stopped for less
than 3 seconds and the vehicle ahead
begins to move, your vehicle will start
moving again automatically. – When your vehicle is at a standstillfor more than 3 seconds and the
vehicle ahead begins to accelerate,
push the RES+ switch or lightly de-
press the accelerator pedal. The ICC
system starts to follow the vehicle
ahead. – When no vehicle is detected ahead
within the driver selected distance,
the vehicle travels at the speed set
by the driver. The speed must be
above 20 mph (32 km/h) to use this
function.
NOTE:
Even if the Automatic Emergency Brak-
ing (AEB) setting is turned off by the
driver using the “Settings” menu in the
vehicle information display, AEB will be
automatically turned on when ICC is
used. 2. Steering Assist
The Steering Assist function controls
the steering system to help keep your
vehicle within the traveling lane.
When there is no vehicle ahead, Steer-
ing Assist is not available at speeds
under 37 mph (60 km/h).
ProPILOT Assist switches
1DISTANCE switch:
– Long
– Middle
– Short
2RES+ switch:Resumes set speed or increases
speed incrementally
3CANCEL switch:Deactivates the ProPILOT Assist sys-
tem
LSD3109
Starting and driving5-93

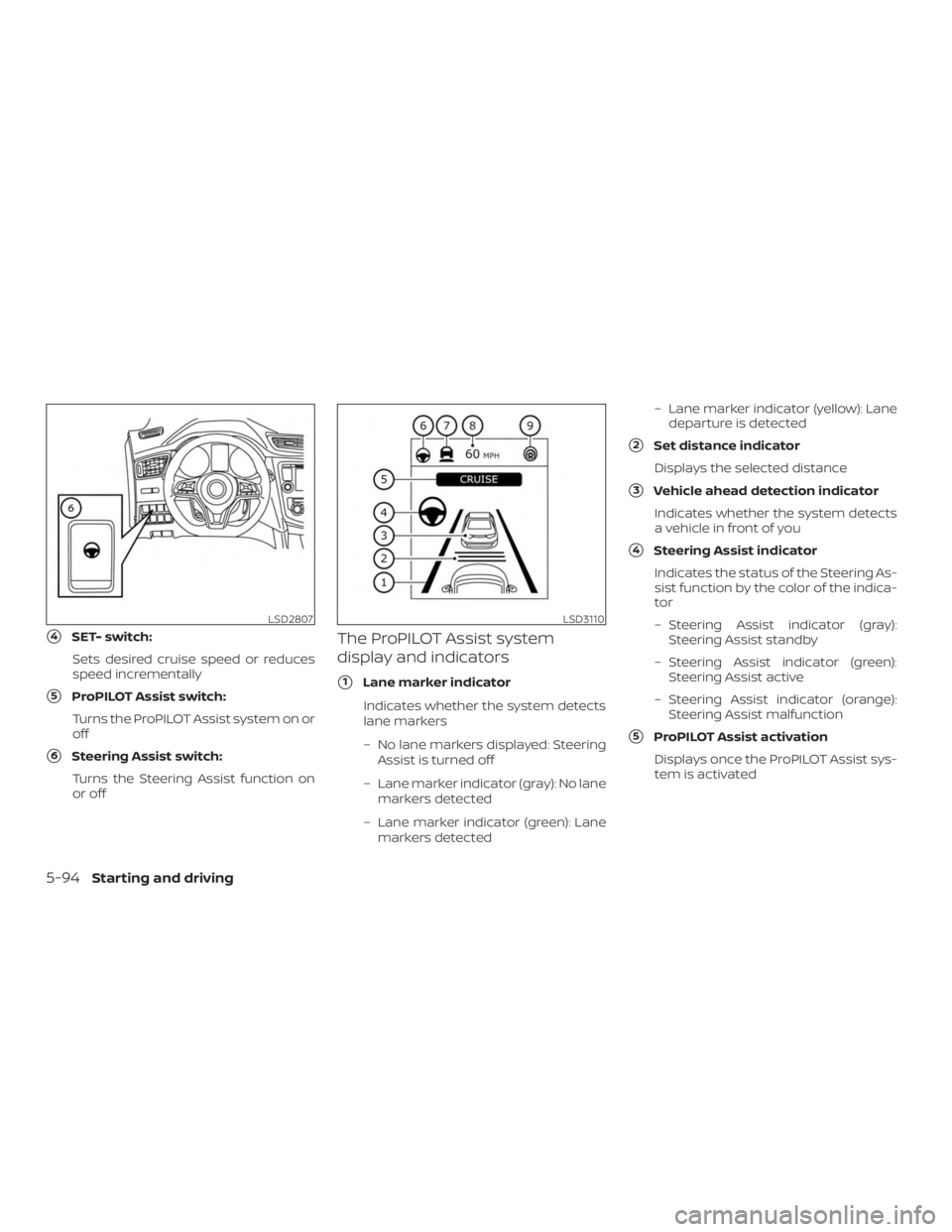

4SET- switch:Sets desired cruise speed or reduces
speed incrementally
5ProPILOT Assist switch:Turns the ProPILOT Assist system on or
off
6Steering Assist switch:Turns the Steering Assist function on
or off
The ProPILOT Assist system
display and indicators
1Lane marker indicator
Indicates whether the system detects
lane markers
– No lane markers displayed: Steering Assist is turned off
– Lane marker indicator (gray): No lane markers detected
– Lane marker indicator (green): Lane markers detected – Lane marker indicator (yellow): Lane
departure is detected
2Set distance indicator
Displays the selected distance
3Vehicle ahead detection indicatorIndicates whether the system detects
a vehicle in front of you
4Steering Assist indicator Indicates the status of the Steering As-
sist function by the color of the indica-
tor
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (orange): Steering Assist malfunction
5ProPILOT Assist activation
Displays once the ProPILOT Assist sys-
tem is activated
LSD2807LSD3110
5-94Starting and driving

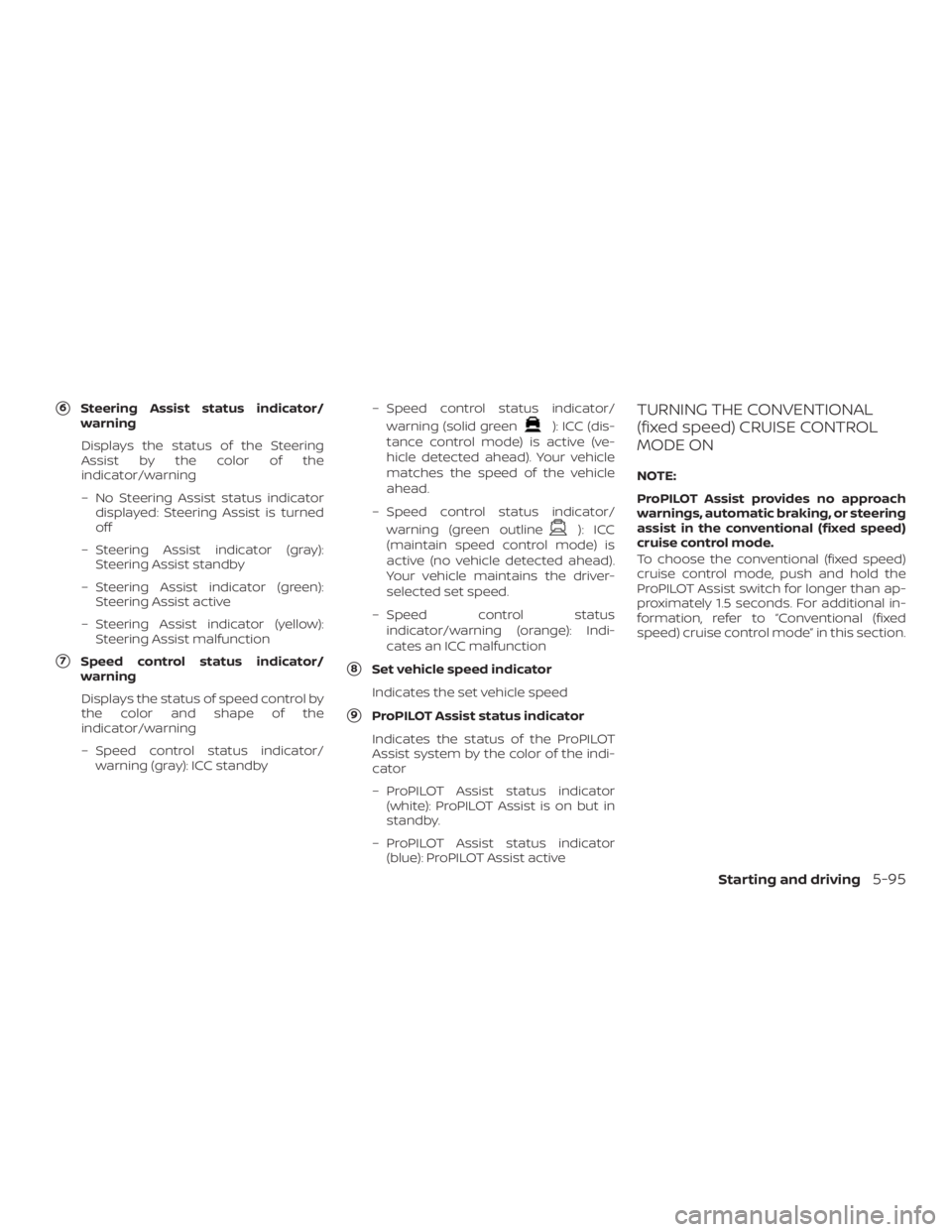

6Steering Assist status indicator/
warning
Displays the status of the Steering
Assist by the color of the
indicator/warning
– No Steering Assist status indicator displayed: Steering Assist is turned
off
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (yellow): Steering Assist malfunction
7Speed control status indicator/
warning
Displays the status of speed control by
the color and shape of the
indicator/warning
– Speed control status indicator/ warning (gray): ICC standby – Speed control status indicator/
warning (solid green
): ICC (dis-
tance control mode) is active (ve-
hicle detected ahead). Your vehicle
matches the speed of the vehicle
ahead.
– Speed control status indicator/ warning (green outline
): ICC
(maintain speed control mode) is
active (no vehicle detected ahead).
Your vehicle maintains the driver-
selected set speed.
– Speed control status indicator/warning (orange): Indi-
cates an ICC malfunction
8Set vehicle speed indicator
Indicates the set vehicle speed
9ProPILOT Assist status indicatorIndicates the status of the ProPILOT
Assist system by the color of the indi-
cator
– ProPILOT Assist status indicator (white): ProPILOT Assist is on but in
standby.
– ProPILOT Assist status indicator (blue): ProPILOT Assist active
TURNING THE CONVENTIONAL
(fixed speed) CRUISE CONTROL
MODE ON
NOTE:
ProPILOT Assist provides no approach
warnings, automatic braking, or steering
assist in the conventional (fixed speed)
cruise control mode.
To choose the conventional (fixed speed)
cruise control mode, push and hold the
ProPILOT Assist switch for longer than ap-
proximately 1.5 seconds. For additional in-
formation, refer to “Conventional (fixed
speed) cruise control mode” in this section.
Starting and driving5-95

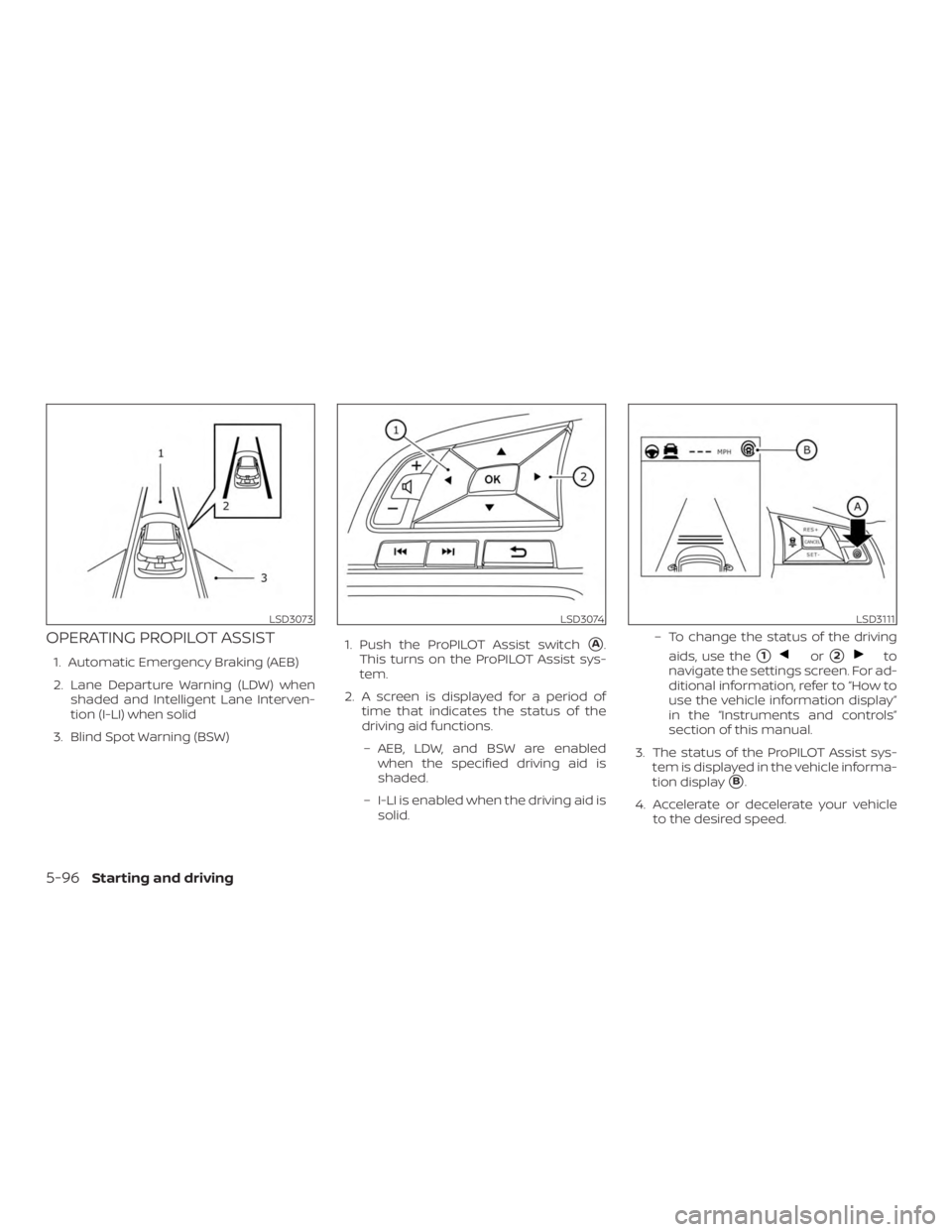

OPERATING PROPILOT ASSIST
1. Automatic Emergency Braking (AEB)
2. Lane Departure Warning (LDW) whenshaded and Intelligent Lane Interven-
tion (I-LI) when solid
3. Blind Spot Warning (BSW) 1. Push the ProPILOT Assist switchA.
This turns on the ProPILOT Assist sys-
tem.
2. A screen is displayed for a period of time that indicates the status of the
driving aid functions.
– AEB, LDW, and BSW are enabled when the specified driving aid is
shaded.
– I-LI is enabled when the driving aid is solid. – To change the status of the driving
aids, use the1or2to
navigate the settings screen. For ad-
ditional information, refer to “How to
use the vehicle information display”
in the “Instruments and controls”
section of this manual.
3. The status of the ProPILOT Assist sys- tem is displayed in the vehicle informa-
tion display
B.
4. Accelerate or decelerate your vehicle to the desired speed.
LSD3073LSD3074LSD3111
5-96Starting and driving

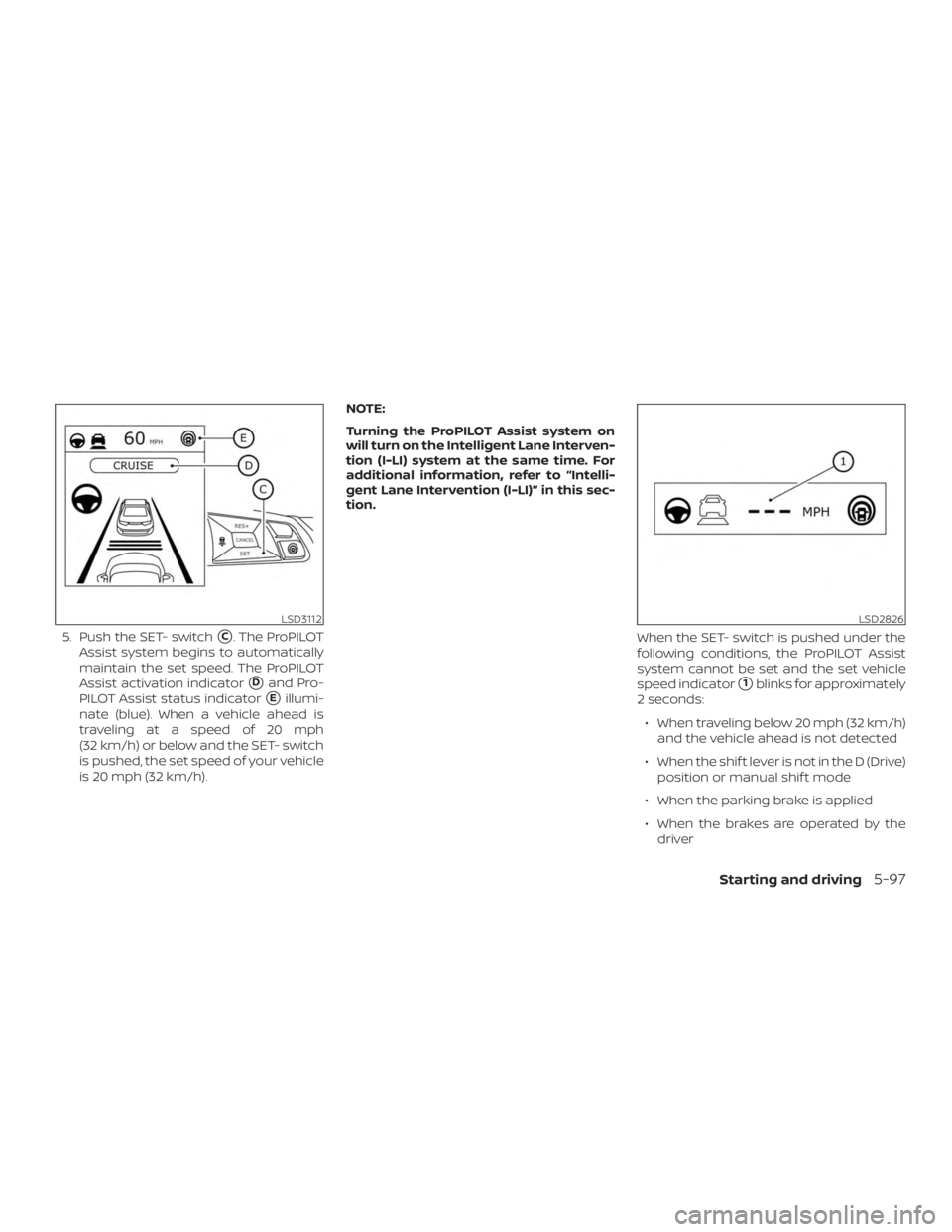

5. Push the SET- switchC. The ProPILOT
Assist system begins to automatically
maintain the set speed. The ProPILOT
Assist activation indicator
Dand Pro-
PILOT Assist status indicator
Eillumi-
nate (blue). When a vehicle ahead is
traveling at a speed of 20 mph
(32 km/h) or below and the SET- switch
is pushed, the set speed of your vehicle
is 20 mph (32 km/h). NOTE:
Turning the ProPILOT Assist system on
will turn on the Intelligent Lane Interven-
tion (I-LI) system at the same time. For
additional information, refer to “Intelli-
gent Lane Intervention (I-LI)” in this sec-
tion.
When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator1blinks for approximately
2 seconds:
∙ When traveling below 20 mph (32 km/h) and the vehicle ahead is not detected
∙ When the shif t lever is not in the D (Drive) position or manual shif t mode
∙ When the parking brake is applied
∙ When the brakes are operated by the driver
LSD3112LSD2826
Starting and driving5-97

∙ When the VDC system is off. For addi-tional information, refer to “Vehicle Dy-
namic Control (VDC) system” in this sec-
tion.
∙ When the VDC system (including the traction control system) is operating
∙ When a wheel is slipping
∙ When any door is open
∙ When the driver’s seat belt is not fas- tened

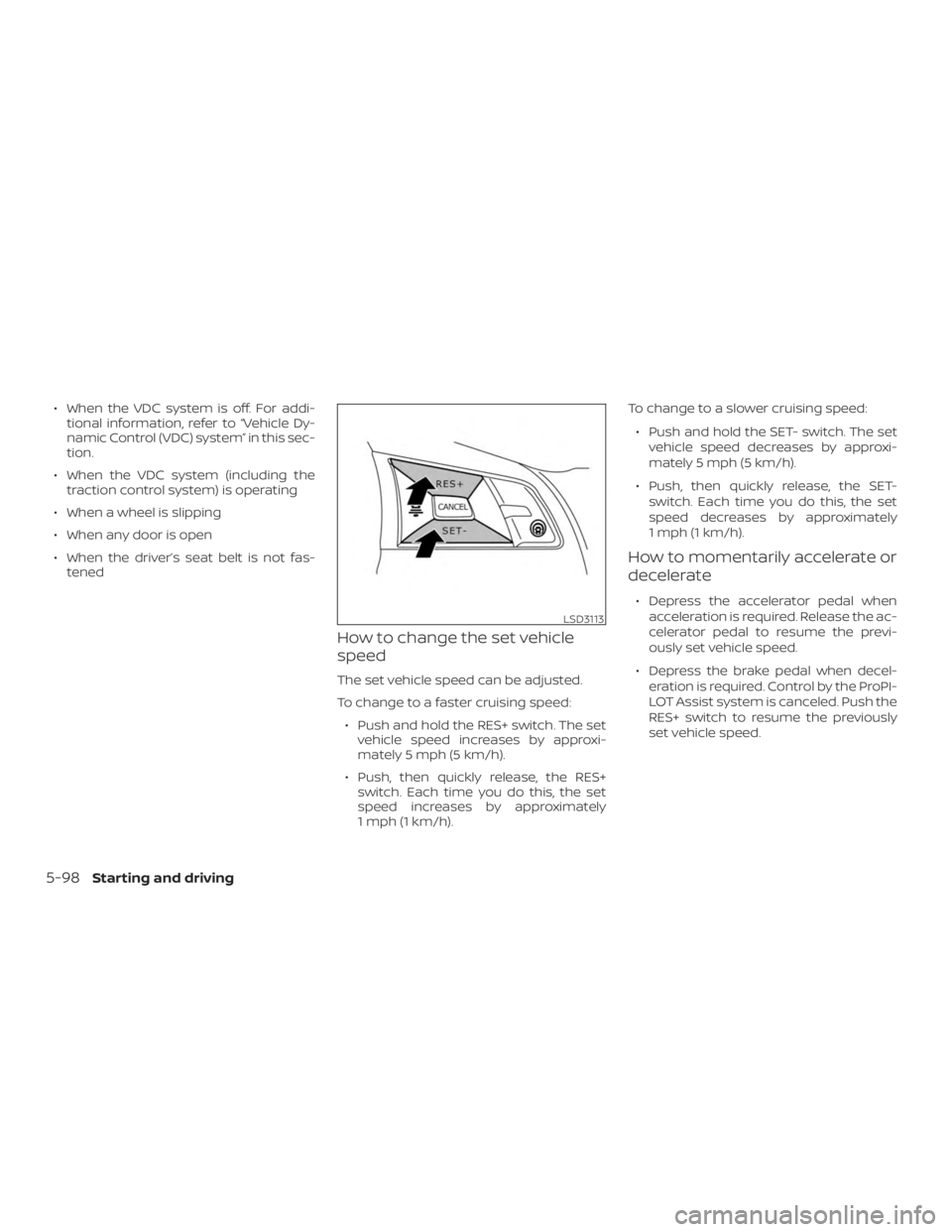

How to change the set vehicle
speed
The set vehicle speed can be adjusted.
To change to a faster cruising speed:
∙ Push and hold the RES+ switch. The set vehicle speed increases by approxi-
mately 5 mph (5 km/h).
∙ Push, then quickly release, the RES+ switch. Each time you do this, the set
speed increases by approximately
1 mph (1 km/h). To change to a slower cruising speed:
∙ Push and hold the SET- switch. The set vehicle speed decreases by approxi-
mately 5 mph (5 km/h).
∙ Push, then quickly release, the SET- switch. Each time you do this, the set
speed decreases by approximately
1 mph (1 km/h).
How to momentarily accelerate or
decelerate
∙ Depress the accelerator pedal whenacceleration is required. Release the ac-
celerator pedal to resume the previ-
ously set vehicle speed.
∙ Depress the brake pedal when decel- eration is required. Control by the ProPI-
LOT Assist system is canceled. Push the
RES+ switch to resume the previously
set vehicle speed.
LSD3113
5-98Starting and driving

WARNING
When the accelerator pedal is de-
pressed and you are approaching the
vehicle ahead, the ICC system will nei-
ther control the brake nor warn the
driver with the chime and display. The
driver must manually control the ve-
hicle speed to maintain a safe distance
to the vehicle ahead. Failure to do so
could result in severe personal injury or
death.
NOTE:
When you accelerate by depressing the
accelerator pedal or decelerate by push-
ing the SET- switch and the vehicle trav-
els faster than the speed set by the
driver, the set speed vehicle indicator will
blink.
How to change the set distance
to the vehicle ahead
The distance to the vehicle ahead can be
selected at any time.
Each time the DISTANCE switch
Ais
pushed, the set distance will change to
long, middle, short and back to long again
in that sequence.
LSD3114
Starting and driving5-99

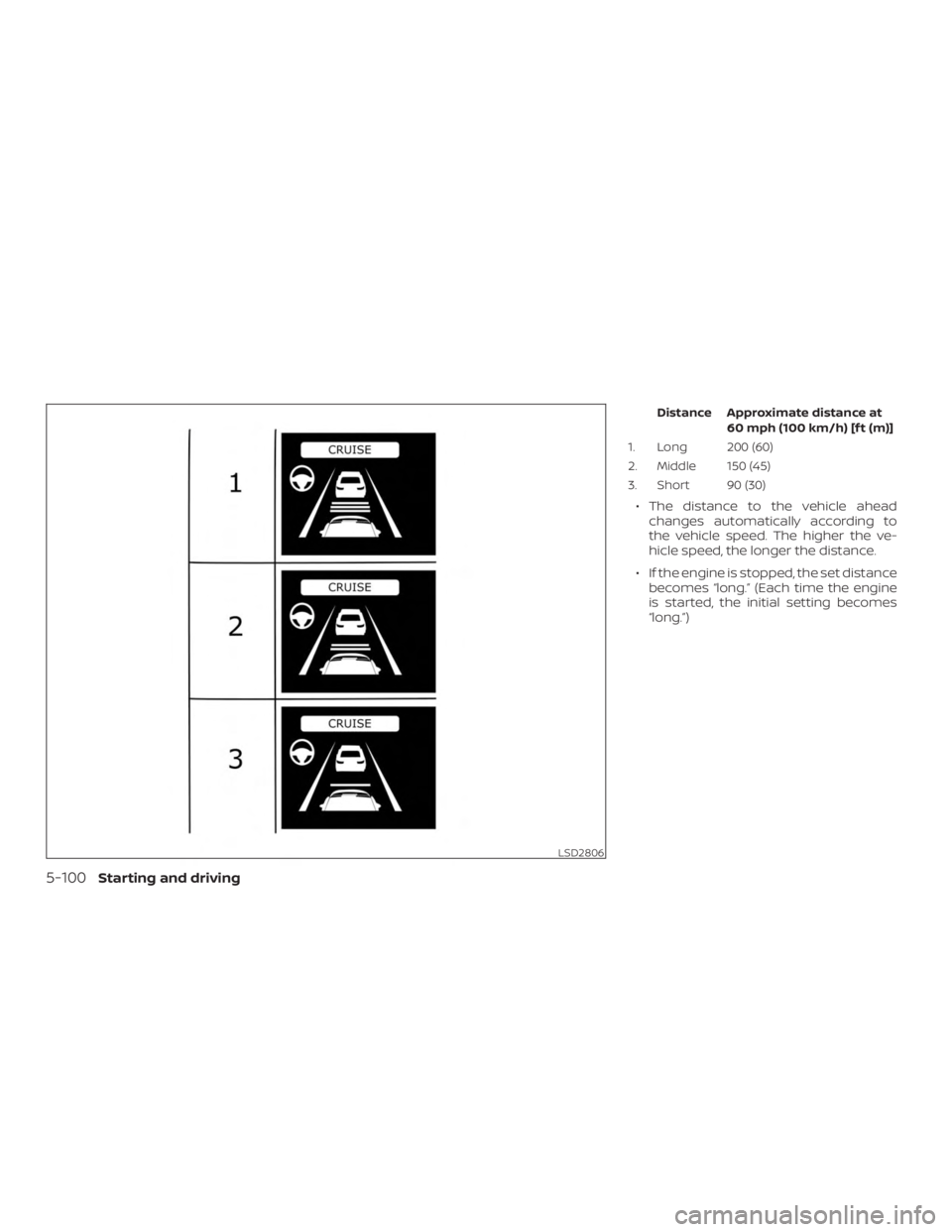

Distance Approximate distance at60 mph (100 km/h) [f t (m)]
1. Long 200 (60)
2. Middle 150 (45)
3. Short 90 (30)
∙ The distance to the vehicle ahead changes automatically according to
the vehicle speed. The higher the ve-
hicle speed, the longer the distance.
∙ If the engine is stopped, the set distance becomes “long.” (Each time the engine
is started, the initial setting becomes
“long.”)
LSD2806
