NISSAN ROGUE 2019 Owner´s Manual

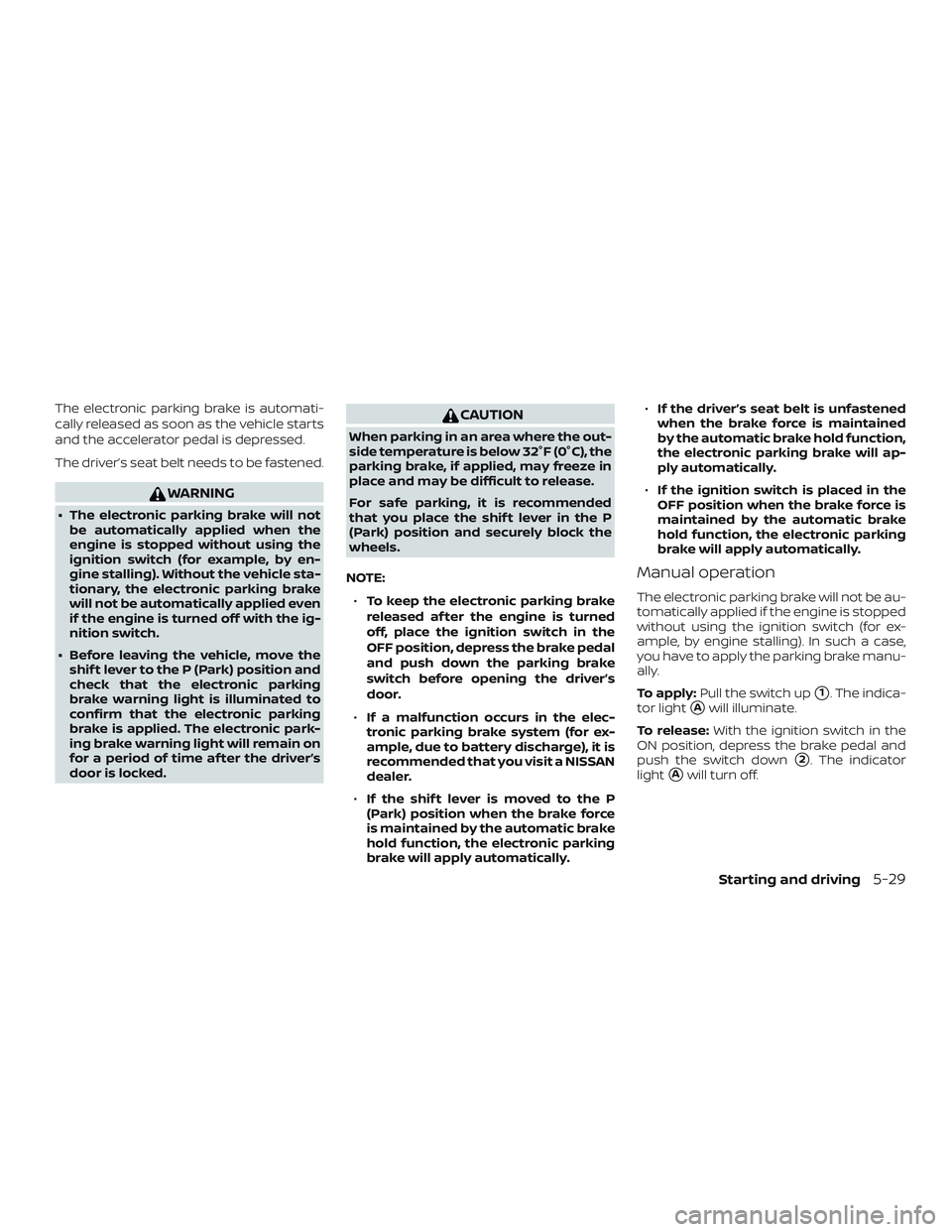

The electronic parking brake is automati-
cally released as soon as the vehicle starts
and the accelerator pedal is depressed.
The driver’s seat belt needs to be fastened.
WARNING
∙ The electronic parking brake will notbe automatically applied when the
engine is stopped without using the
ignition switch (for example, by en-
gine stalling). Without the vehicle sta-
tionary, the electronic parking brake
will not be automatically applied even
if the engine is turned off with the ig-
nition switch.
∙ Before leaving the vehicle, move the shif t lever to the P (Park) position and
check that the electronic parking
brake warning light is illuminated to
confirm that the electronic parking
brake is applied. The electronic park-
ing brake warning light will remain on
for a period of time af ter the driver’s
door is locked.
CAUTION
When parking in an area where the out-
side temperature is below 32°F (0°C), the
parking brake, if applied, may freeze in
place and may be difficult to release.
For safe parking, it is recommended
that you place the shif t lever in the P
(Park) position and securely block the
wheels.
NOTE: ∙ To keep the electronic parking brake
released af ter the engine is turned
off, place the ignition switch in the
OFF position, depress the brake pedal
and push down the parking brake
switch before opening the driver’s
door.
∙ If a malfunction occurs in the elec-
tronic parking brake system (for ex-
ample, due to battery discharge), it is
recommended that you visit a NISSAN
dealer.
∙ If the shif t lever is moved to the P
(Park) position when the brake force
is maintained by the automatic brake
hold function, the electronic parking
brake will apply automatically. ∙
If the driver’s seat belt is unfastened
when the brake force is maintained
by the automatic brake hold function,
the electronic parking brake will ap-
ply automatically.
∙ If the ignition switch is placed in the
OFF position when the brake force is
maintained by the automatic brake
hold function, the electronic parking
brake will apply automatically.
Manual operation
The electronic parking brake will not be au-
tomatically applied if the engine is stopped
without using the ignition switch (for ex-
ample, by engine stalling). In such a case,
you have to apply the parking brake manu-
ally.
To apply: Pull the switch up
1. The indica-
tor light
Awill illuminate.
To release: With the ignition switch in the
ON position, depress the brake pedal and
push the switch down
2. The indicator
light
Awill turn off.
Starting and driving5-29

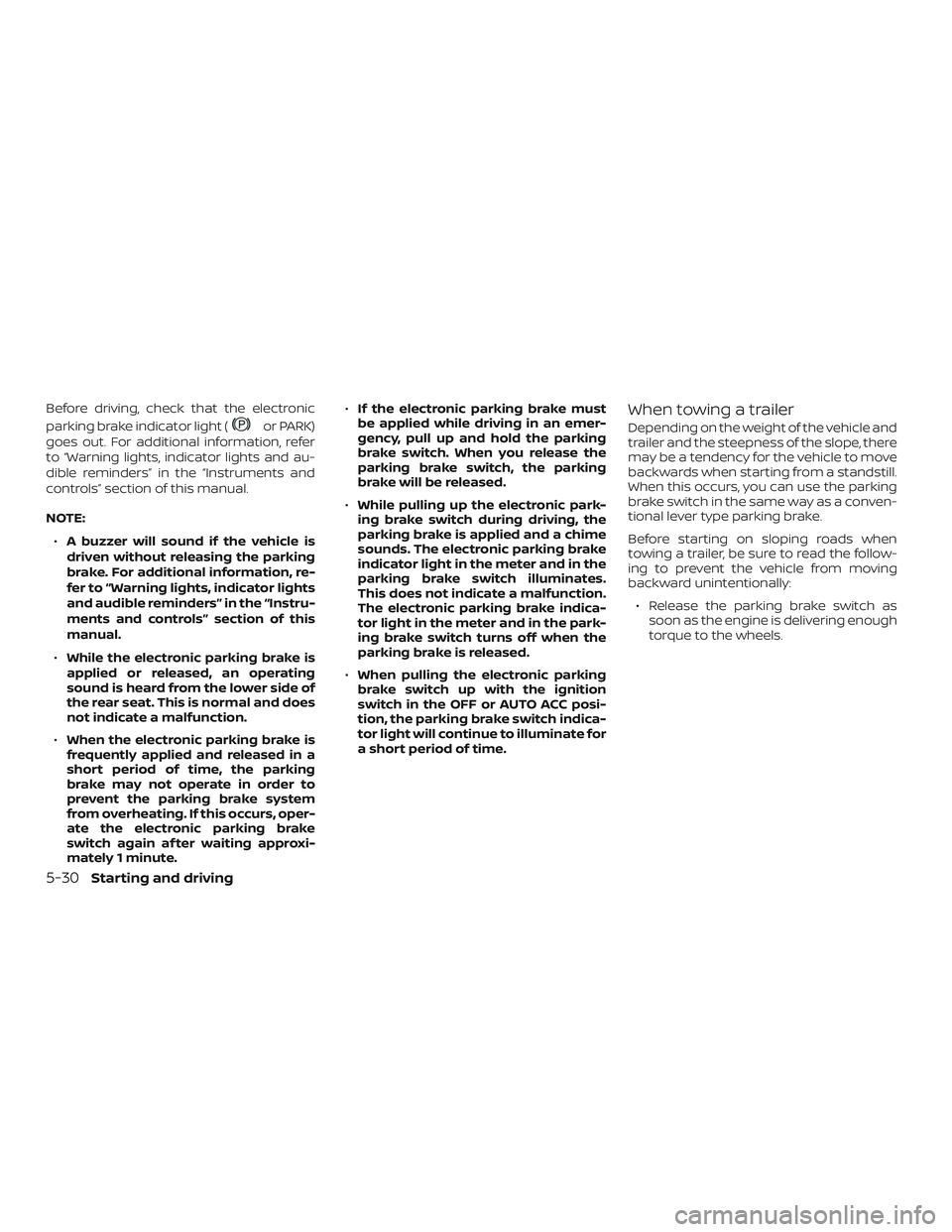

Before driving, check that the electronic
parking brake indicator light (
or PARK)
goes out. For additional information, refer
to “Warning lights, indicator lights and au-
dible reminders” in the “Instruments and
controls” section of this manual.
NOTE:
∙ A buzzer will sound if the vehicle is
driven without releasing the parking
brake. For additional information, re-
fer to “Warning lights, indicator lights
and audible reminders” in the “Instru-
ments and controls” section of this
manual.
∙ While the electronic parking brake is
applied or released, an operating
sound is heard from the lower side of
the rear seat. This is normal and does
not indicate a malfunction.
∙ When the electronic parking brake is
frequently applied and released in a
short period of time, the parking
brake may not operate in order to
prevent the parking brake system
from overheating. If this occurs, oper-
ate the electronic parking brake
switch again af ter waiting approxi-
mately 1 minute. ∙
If the electronic parking brake must
be applied while driving in an emer-
gency, pull up and hold the parking
brake switch. When you release the
parking brake switch, the parking
brake will be released.
∙ While pulling up the electronic park-
ing brake switch during driving, the
parking brake is applied and a chime
sounds. The electronic parking brake
indicator light in the meter and in the
parking brake switch illuminates.
This does not indicate a malfunction.
The electronic parking brake indica-
tor light in the meter and in the park-
ing brake switch turns off when the
parking brake is released.
∙ When pulling the electronic parking
brake switch up with the ignition
switch in the OFF or AUTO ACC posi-
tion, the parking brake switch indica-
tor light will continue to illuminate for
a short period of time.
When towing a trailer
Depending on the weight of the vehicle and
trailer and the steepness of the slope, there
may be a tendency for the vehicle to move
backwards when starting from a standstill.
When this occurs, you can use the parking
brake switch in the same way as a conven-
tional lever type parking brake.
Before starting on sloping roads when
towing a trailer, be sure to read the follow-
ing to prevent the vehicle from moving
backward unintentionally:
∙ Release the parking brake switch as soon as the engine is delivering enough
torque to the wheels.
5-30Starting and driving

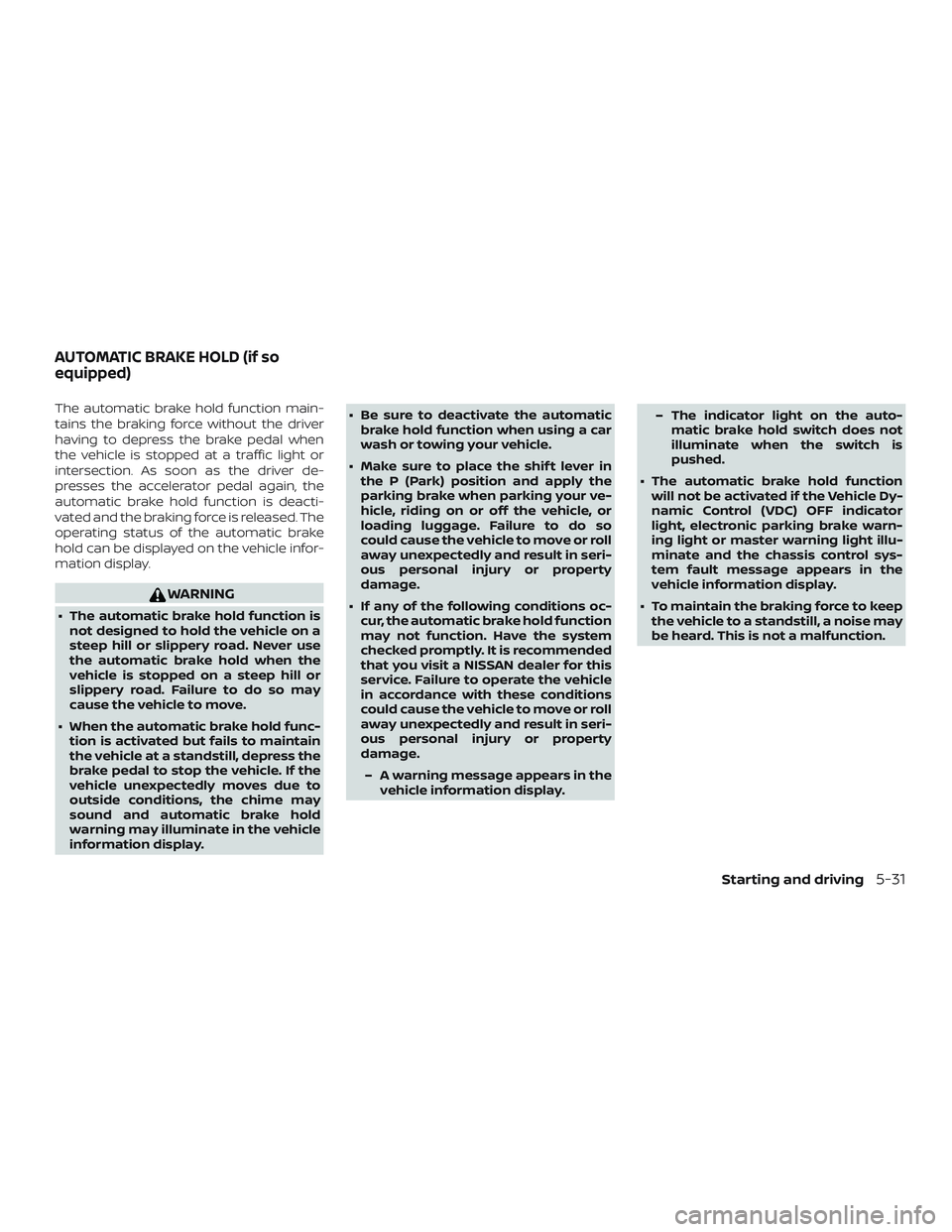

The automatic brake hold function main-
tains the braking force without the driver
having to depress the brake pedal when
the vehicle is stopped at a traffic light or
intersection. As soon as the driver de-
presses the accelerator pedal again, the
automatic brake hold function is deacti-
vated and the braking force is released. The
operating status of the automatic brake
hold can be displayed on the vehicle infor-
mation display.
WARNING
∙ The automatic brake hold function isnot designed to hold the vehicle on a
steep hill or slippery road. Never use
the automatic brake hold when the
vehicle is stopped on a steep hill or
slippery road. Failure to do so may
cause the vehicle to move.
∙ When the automatic brake hold func- tion is activated but fails to maintain
the vehicle at a standstill, depress the
brake pedal to stop the vehicle. If the
vehicle unexpectedly moves due to
outside conditions, the chime may
sound and automatic brake hold
warning may illuminate in the vehicle
information display. ∙ Be sure to deactivate the automatic
brake hold function when using a car
wash or towing your vehicle.
∙ Make sure to place the shif t lever in the P (Park) position and apply the
parking brake when parking your ve-
hicle, riding on or off the vehicle, or
loading luggage. Failure to do so
could cause the vehicle to move or roll
away unexpectedly and result in seri-
ous personal injury or property
damage.
∙ If any of the following conditions oc- cur, the automatic brake hold function
may not function. Have the system
checked promptly. It is recommended
that you visit a NISSAN dealer for this
service. Failure to operate the vehicle
in accordance with these conditions
could cause the vehicle to move or roll
away unexpectedly and result in seri-
ous personal injury or property
damage.
– A warning message appears in the vehicle information display. – The indicator light on the auto-
matic brake hold switch does not
illuminate when the switch is
pushed.
∙ The automatic brake hold function will not be activated if the Vehicle Dy-
namic Control (VDC) OFF indicator
light, electronic parking brake warn-
ing light or master warning light illu-
minate and the chassis control sys-
tem fault message appears in the
vehicle information display.
∙ To maintain the braking force to keep the vehicle to a standstill, a noise may
be heard. This is not a malfunction.
AUTOMATIC BRAKE HOLD (if so
equipped)
Starting and driving5-31

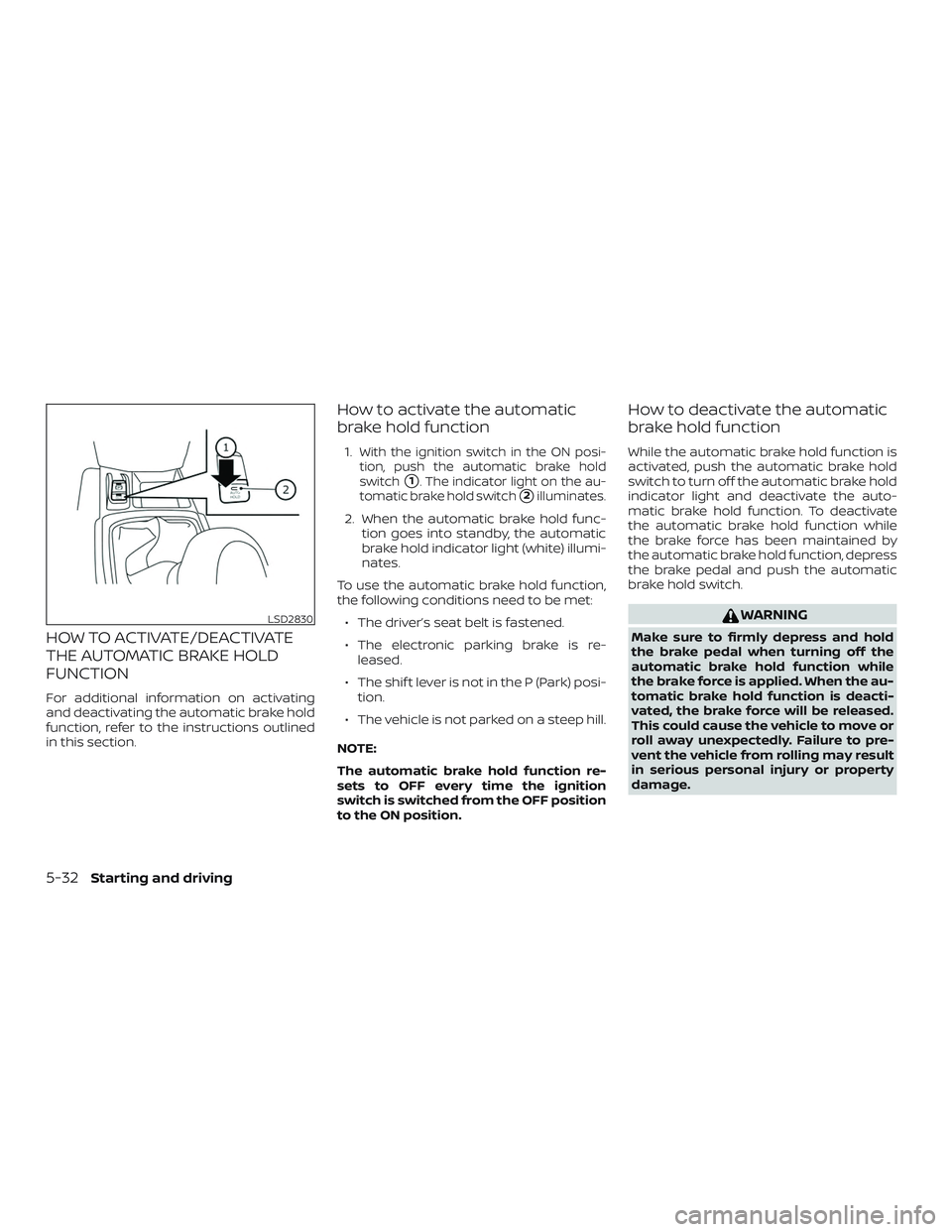

HOW TO ACTIVATE/DEACTIVATE
THE AUTOMATIC BRAKE HOLD
FUNCTION
For additional information on activating
and deactivating the automatic brake hold
function, refer to the instructions outlined
in this section.
How to activate the automatic
brake hold function
1.With the ignition switch in the ON posi-
tion, push the automatic brake hold
switch
1. The indicator light on the au-
tomatic brake hold switch
2illuminates.
2. When the automatic brake hold func- tion goes into standby, the automatic
brake hold indicator light (white) illumi-
nates.
To use the automatic brake hold function,
the following conditions need to be met: ∙ The driver’s seat belt is fastened.
∙ The electronic parking brake is re- leased.
∙ The shif t lever is not in the P (Park) posi- tion.
∙ The vehicle is not parked on a steep hill.
NOTE:
The automatic brake hold function re-
sets to OFF every time the ignition
switch is switched from the OFF position
to the ON position.
How to deactivate the automatic
brake hold function
While the automatic brake hold function is
activated, push the automatic brake hold
switch to turn off the automatic brake hold
indicator light and deactivate the auto-
matic brake hold function. To deactivate
the automatic brake hold function while
the brake force has been maintained by
the automatic brake hold function, depress
the brake pedal and push the automatic
brake hold switch.
WARNING
Make sure to firmly depress and hold
the brake pedal when turning off the
automatic brake hold function while
the brake force is applied. When the au-
tomatic brake hold function is deacti-
vated, the brake force will be released.
This could cause the vehicle to move or
roll away unexpectedly. Failure to pre-
vent the vehicle from rolling may result
in serious personal injury or property
damage.
LSD2830
5-32Starting and driving

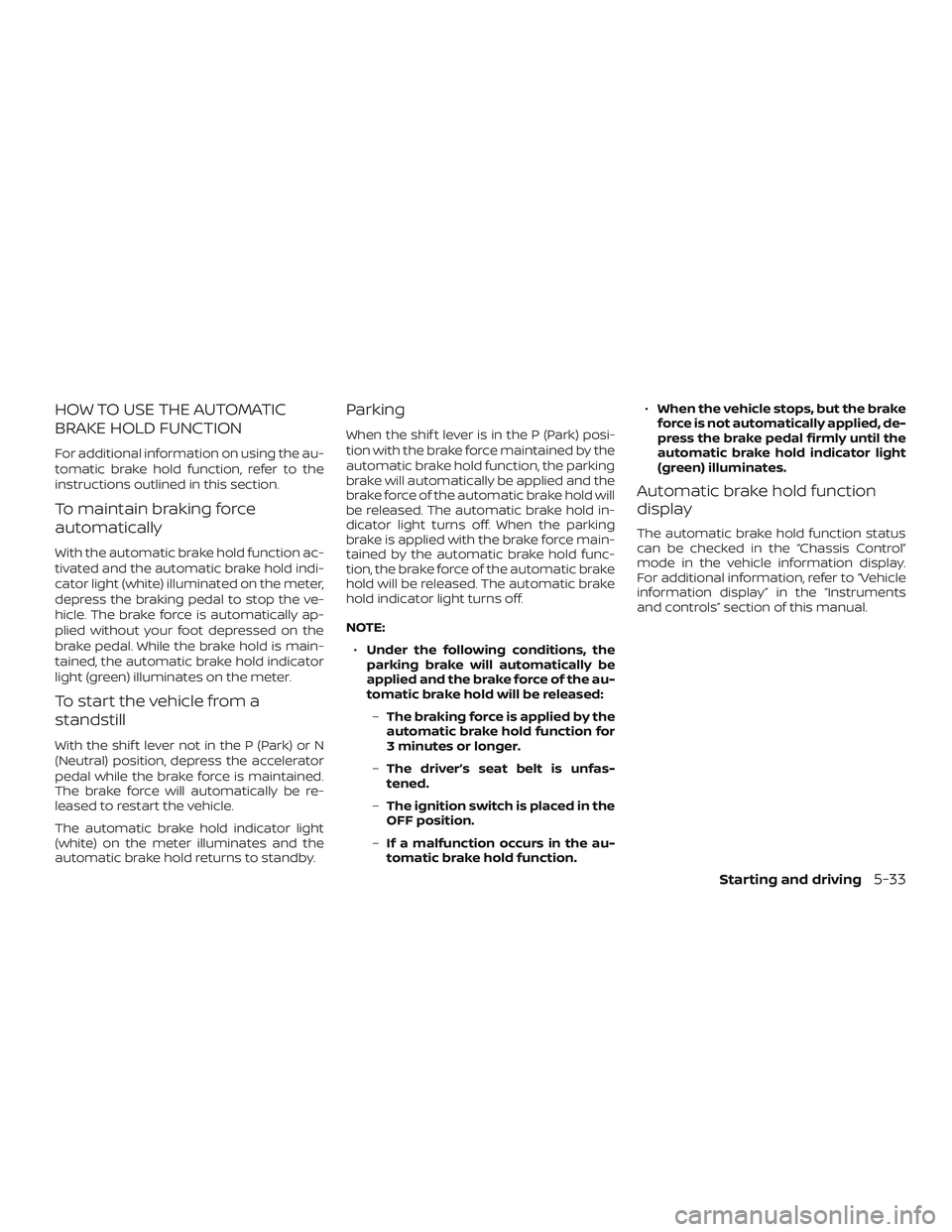

HOW TO USE THE AUTOMATIC
BRAKE HOLD FUNCTION
For additional information on using the au-
tomatic brake hold function, refer to the
instructions outlined in this section.
To maintain braking force
automatically
With the automatic brake hold function ac-
tivated and the automatic brake hold indi-
cator light (white) illuminated on the meter,
depress the braking pedal to stop the ve-
hicle. The brake force is automatically ap-
plied without your foot depressed on the
brake pedal. While the brake hold is main-
tained, the automatic brake hold indicator
light (green) illuminates on the meter.
To start the vehicle from a
standstill
With the shif t lever not in the P (Park) or N
(Neutral) position, depress the accelerator
pedal while the brake force is maintained.
The brake force will automatically be re-
leased to restart the vehicle.
The automatic brake hold indicator light
(white) on the meter illuminates and the
automatic brake hold returns to standby.
Parking
When the shif t lever is in the P (Park) posi-
tion with the brake force maintained by the
automatic brake hold function, the parking
brake will automatically be applied and the
brake force of the automatic brake hold will
be released. The automatic brake hold in-
dicator light turns off. When the parking
brake is applied with the brake force main-
tained by the automatic brake hold func-
tion, the brake force of the automatic brake
hold will be released. The automatic brake
hold indicator light turns off.
NOTE:∙ Under the following conditions, the
parking brake will automatically be
applied and the brake force of the au-
tomatic brake hold will be released:
– The braking force is applied by the
automatic brake hold function for
3 minutes or longer.
– The driver’s seat belt is unfas-
tened.
– The ignition switch is placed in the
OFF position.
– If a malfunction occurs in the au-
tomatic brake hold function. ∙
When the vehicle stops, but the brake
force is not automatically applied, de-
press the brake pedal firmly until the
automatic brake hold indicator light
(green) illuminates.
Automatic brake hold function
display
The automatic brake hold function status
can be checked in the “Chassis Control”
mode in the vehicle information display.
For additional information, refer to “Vehicle
information display” in the “Instruments
and controls” section of this manual.
Starting and driving5-33

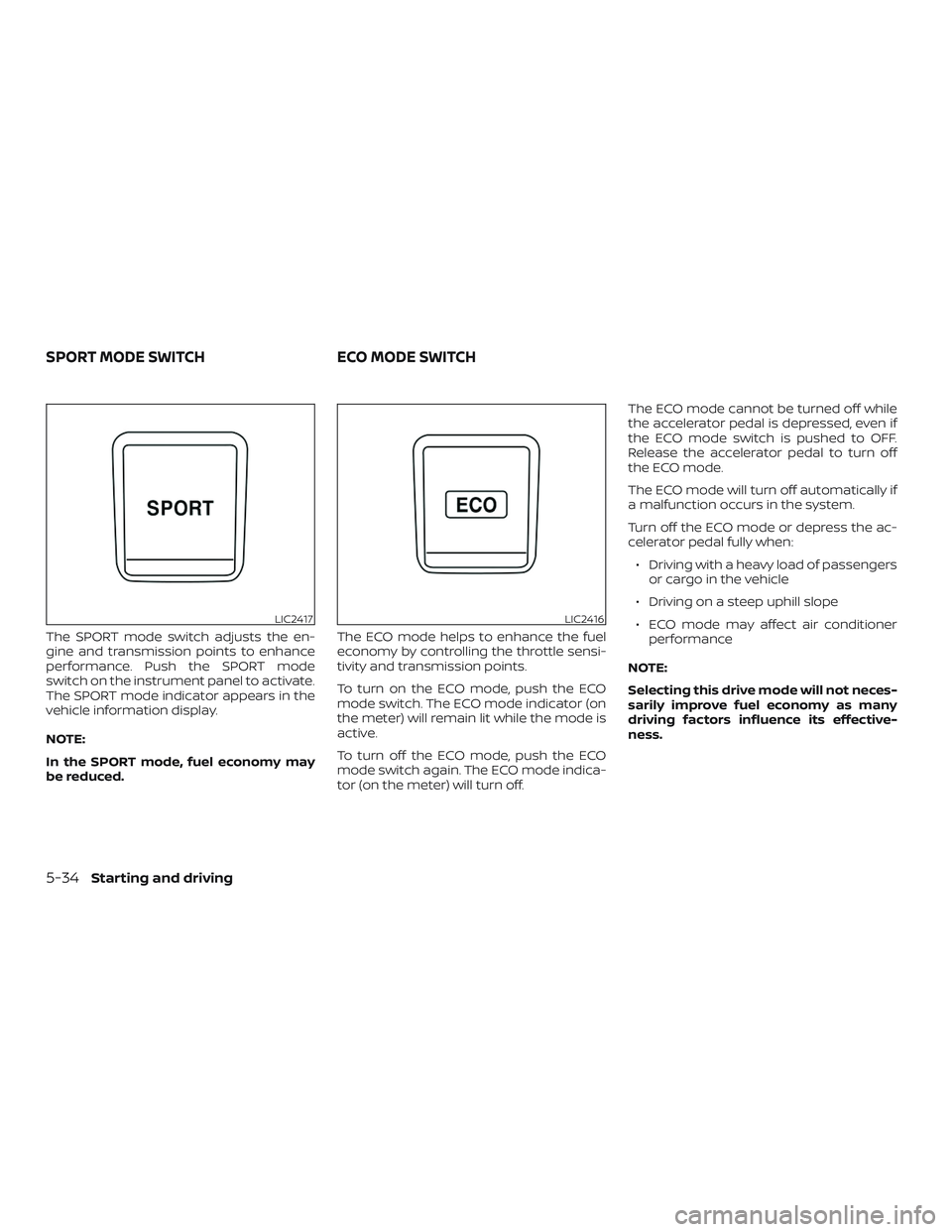

The SPORT mode switch adjusts the en-
gine and transmission points to enhance
performance. Push the SPORT mode
switch on the instrument panel to activate.
The SPORT mode indicator appears in the
vehicle information display.
NOTE:
In the SPORT mode, fuel economy may
be reduced.The ECO mode helps to enhance the fuel
economy by controlling the throttle sensi-
tivity and transmission points.
To turn on the ECO mode, push the ECO
mode switch. The ECO mode indicator (on
the meter) will remain lit while the mode is
active.
To turn off the ECO mode, push the ECO
mode switch again. The ECO mode indica-
tor (on the meter) will turn off.The ECO mode cannot be turned off while
the accelerator pedal is depressed, even if
the ECO mode switch is pushed to OFF.
Release the accelerator pedal to turn off
the ECO mode.
The ECO mode will turn off automatically if
a malfunction occurs in the system.
Turn off the ECO mode or depress the ac-
celerator pedal fully when:
∙ Driving with a heavy load of passengers or cargo in the vehicle
∙ Driving on a steep uphill slope
∙ ECO mode may affect air conditioner performance
NOTE:
Selecting this drive mode will not neces-
sarily improve fuel economy as many
driving factors influence its effective-
ness.
LIC2417LIC2416
SPORT MODE SWITCH ECO MODE SWITCH
5-34Starting and driving

WARNING
Failure to follow the warnings and in-
structions for proper use of the LDW
system could result in serious injury or
death.
∙ This system is only a warning deviceto inform the driver of a potential un-
intended lane departure. It will not
steer the vehicle or prevent loss of
control. It is the driver’s responsibility
to stay alert, drive safely, keep the ve-
hicle in the traveling lane, and be in
control of the vehicle at all times. The LDW system will operate when the ve-
hicle is driven at speeds of approximately
37 mph (60 km/h) and above, and only
when the lane markings are clearly visible
on the road.
The LDW system monitors the lane mark-
ers on the traveling lane using the camera
unit
Alocated above the inside mirror.
The LDW system warns the driver with an
indicator and chime that the vehicle is be-
ginning to leave the driving lane. For addi-
tional information, refer to “LDW system op-
eration” in this section.
LSD2795

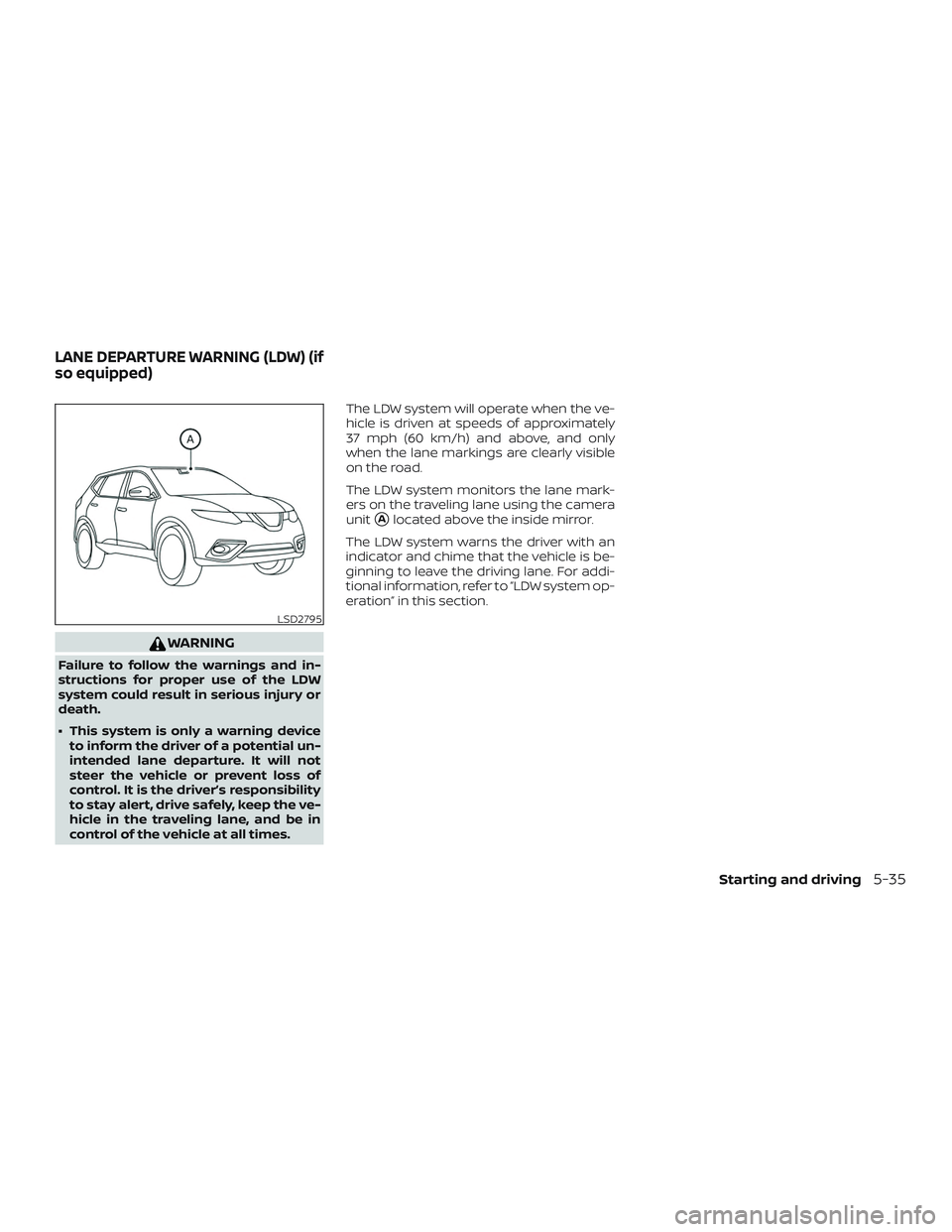

LANE DEPARTURE WARNING (LDW) (if
so equipped)
Starting and driving5-35

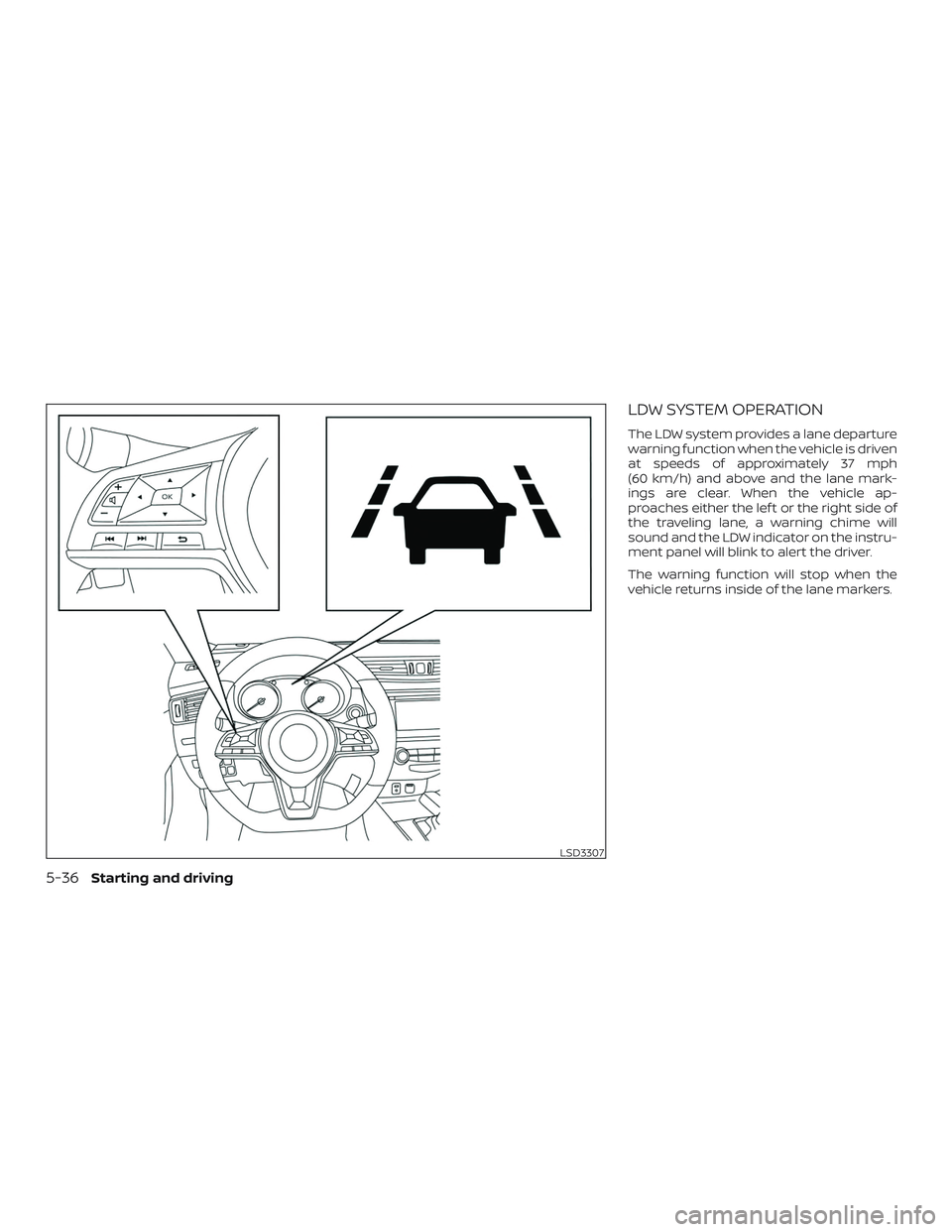

LDW SYSTEM OPERATION
The LDW system provides a lane departure
warning function when the vehicle is driven
at speeds of approximately 37 mph
(60 km/h) and above and the lane mark-
ings are clear. When the vehicle ap-
proaches either the lef t or the right side of
the traveling lane, a warning chime will
sound and the LDW indicator on the instru-
ment panel will blink to alert the driver.
The warning function will stop when the
vehicle returns inside of the lane markers.
LSD3307
5-36Starting and driving

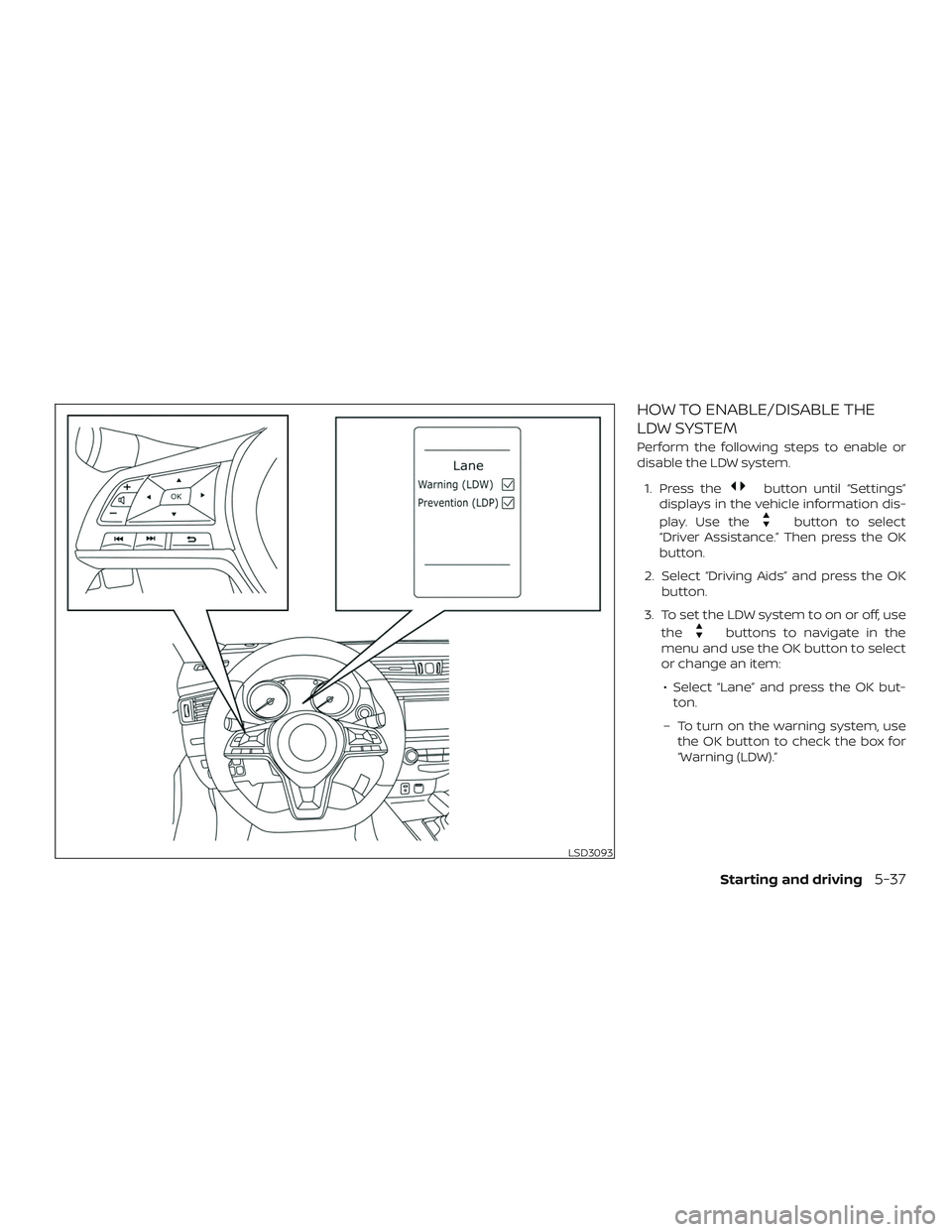

HOW TO ENABLE/DISABLE THE
LDW SYSTEM
Perform the following steps to enable or
disable the LDW system.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the OK
button.
2. Select “Driving Aids” and press the OK button.
3. To set the LDW system to on or off, use the
buttons to navigate in the
menu and use the OK button to select
or change an item:
∙ Select “Lane” and press the OK but- ton.
– To turn on the warning system, use the OK button to check the box for
“Warning (LDW).”
LSD3093
Starting and driving5-37

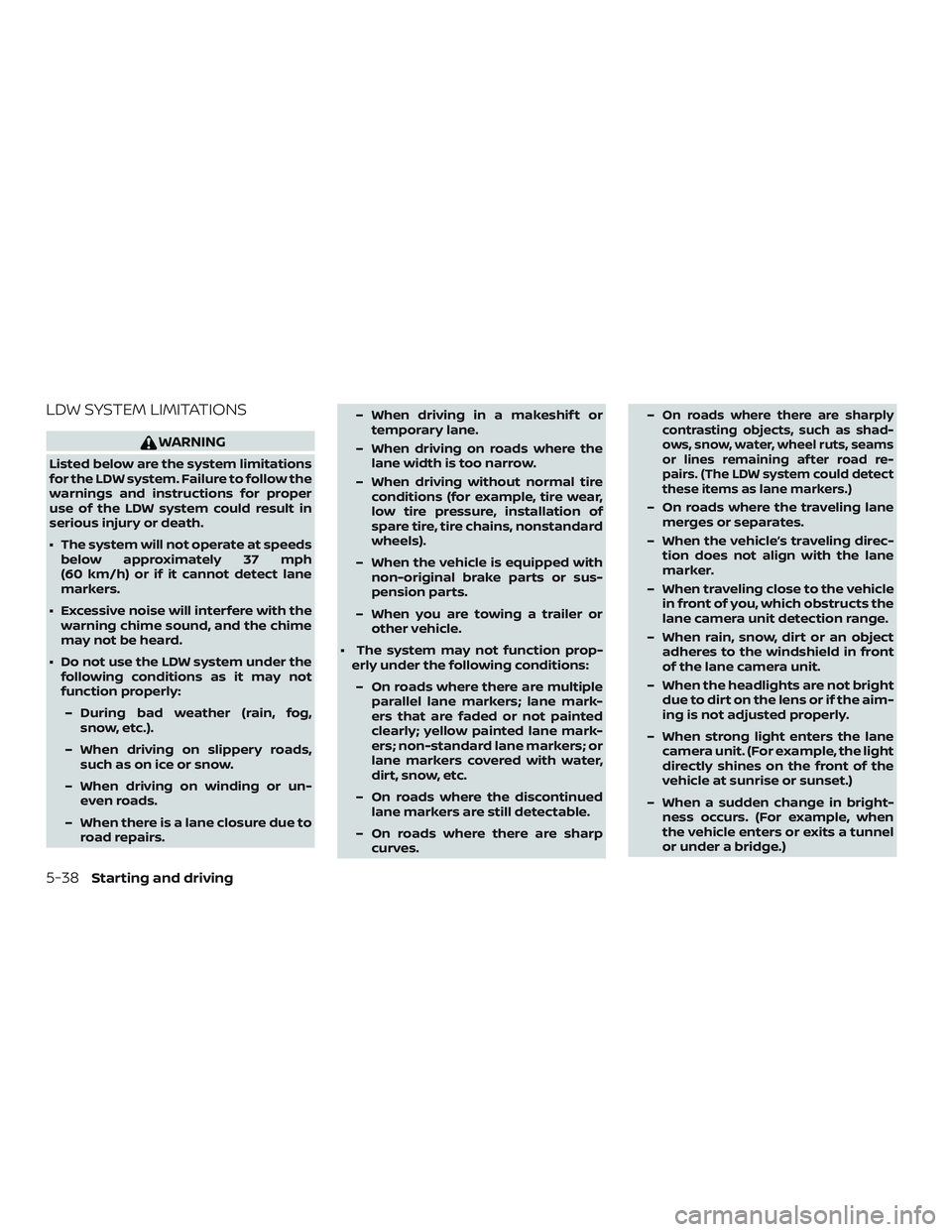

LDW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations
for the LDW system. Failure to follow the
warnings and instructions for proper
use of the LDW system could result in
serious injury or death.
∙ The system will not operate at speedsbelow approximately 37 mph
(60 km/h) or if it cannot detect lane
markers.
∙ Excessive noise will interfere with the warning chime sound, and the chime
may not be heard.
∙ Do not use the LDW system under the following conditions as it may not
function properly:
– During bad weather (rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow.
– When driving on winding or un- even roads.
– When there is a lane closure due to road repairs. – When driving in a makeshif t or
temporary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, nonstandard
wheels).
– When the vehicle is equipped with non-original brake parts or sus-
pension parts.
– When you are towing a trailer or other vehicle.
∙ The system may not function prop- erly under the following conditions:
– On roads where there are multiple parallel lane markers; lane mark-
ers that are faded or not painted
clearly; yellow painted lane mark-
ers; non-standard lane markers; or
lane markers covered with water,
dirt, snow, etc.
– On roads where the discontinued lane markers are still detectable.
– On roads where there are sharp curves. –
On roads where there are sharply
contrasting objects, such as shad-
ows, snow, water, wheel ruts, seams
or lines remaining af ter road re-
pairs. (The LDW system could detect
these items as lane markers.)
– On roads where the traveling lane merges or separates.
– When the vehicle’s traveling direc- tion does not align with the lane
marker.
– When traveling close to the vehicle in front of you, which obstructs the
lane camera unit detection range.
– When rain, snow, dirt or an object adheres to the windshield in front
of the lane camera unit.
– When the headlights are not bright due to dirt on the lens or if the aim-
ing is not adjusted properly.
– When strong light enters the lane camera unit. (For example, the light
directly shines on the front of the
vehicle at sunrise or sunset.)
– When a sudden change in bright- ness occurs. (For example, when
the vehicle enters or exits a tunnel
or under a bridge.)
5-38Starting and driving
