2. Tighten the fuel-filler cap until a singleclick is heard.
3. Press the OK button on the steering wheel for about one second to turn off
the Loose Fuel Cap warning message
af ter tightening the fuel-filler cap.WARNING
∙ Do not adjust the steering wheel whiledriving. You could lose control of your
vehicle and cause an accident.
∙ Do not adjust the steering wheel any closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.
MANUAL OPERATION
Tilt and telescopic operation
Pull the lock lever1down:
∙ Adjust the steering wheel up or down in direction
2to the desired position.
∙ Adjust the steering wheel forward or backward in direction
3to the desired
position.
Push the lock lever
1up firmly to lock the
steering wheel in place.
LPD2648
STEERING WHEEL
3-36Pre-driving checks and adjustments

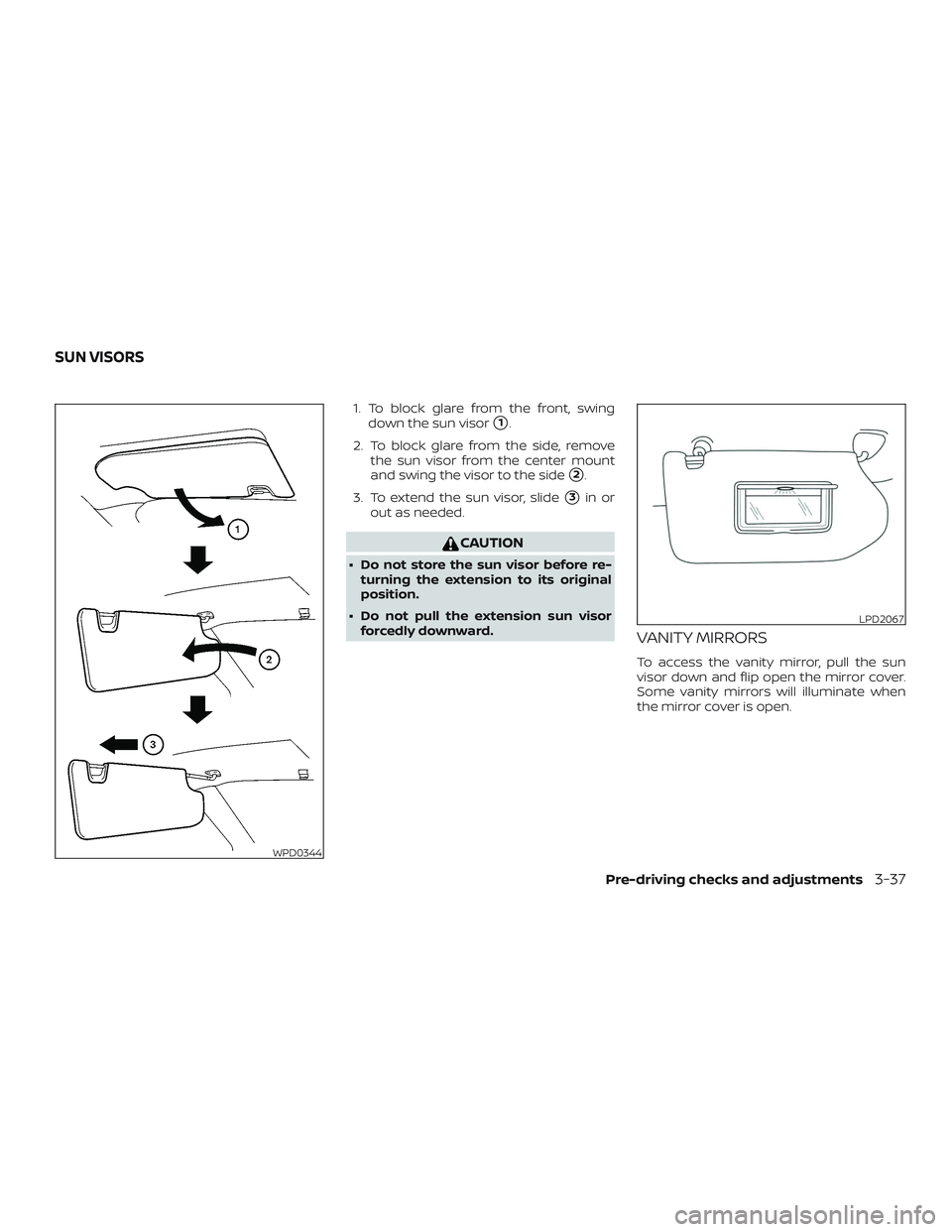

1. To block glare from the front, swingdown the sun visor
1.
2. To block glare from the side, remove the sun visor from the center mount
and swing the visor to the side
2.
3. To extend the sun visor, slide
3in or
out as needed.
CAUTION
∙ Do not store the sun visor before re- turning the extension to its original
position.
∙ Do not pull the extension sun visor forcedly downward.
VANITY MIRRORS
To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors will illuminate when
the mirror cover is open.
WPD0344
LPD2067
SUN VISORS
Pre-driving checks and adjustments3-37

CARD HOLDER
To access the card holder, slide card in the
card holder. Do not view information while
operating the vehicle.
MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)
Use the night position1to reduce glare
from the headlights of vehicles behind you
at night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.
NOTE:
Do not hang any objects over the sen-
sors
1or apply glass cleaner to the sen-
sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.
Driver’s side
LPD2598WPD0126
MIRRORS
3-38Pre-driving checks and adjustments

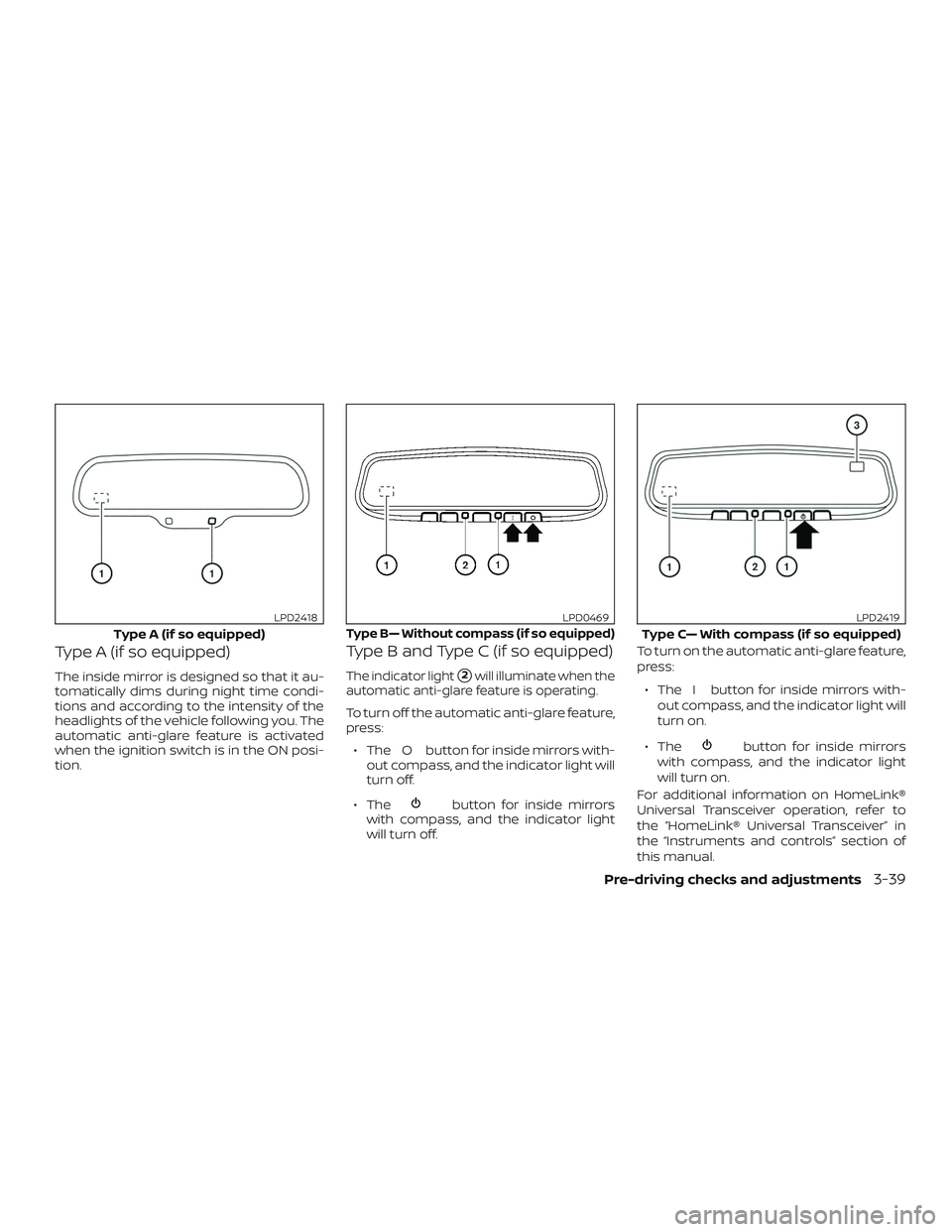

Type A (if so equipped)
The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.
Type B and Type C (if so equipped)
The indicator light2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature,
press:
∙ The O button for inside mirrors with- out compass, and the indicator light will
turn off.
∙ The
button for inside mirrors
with compass, and the indicator light
will turn off. To turn on the automatic anti-glare feature,
press:
∙ The I button for inside mirrors with- out compass, and the indicator light will
turn on.
∙ The
button for inside mirrors
with compass, and the indicator light
will turn on.
For additional information on HomeLink®
Universal Transceiver operation, refer to
the “HomeLink® Universal Transceiver” in
the “Instruments and controls” section of
this manual.
Type A (if so equipped)
LPD2418
Type B— Without compass (if so equipped)
LPD0469
Type C— With compass (if so equipped)
LPD2419
Pre-driving checks and adjustments3-39

For information on the compass display3
(if so equipped), refer to “Compass display”
in the “Instruments and controls” section of
this manual.

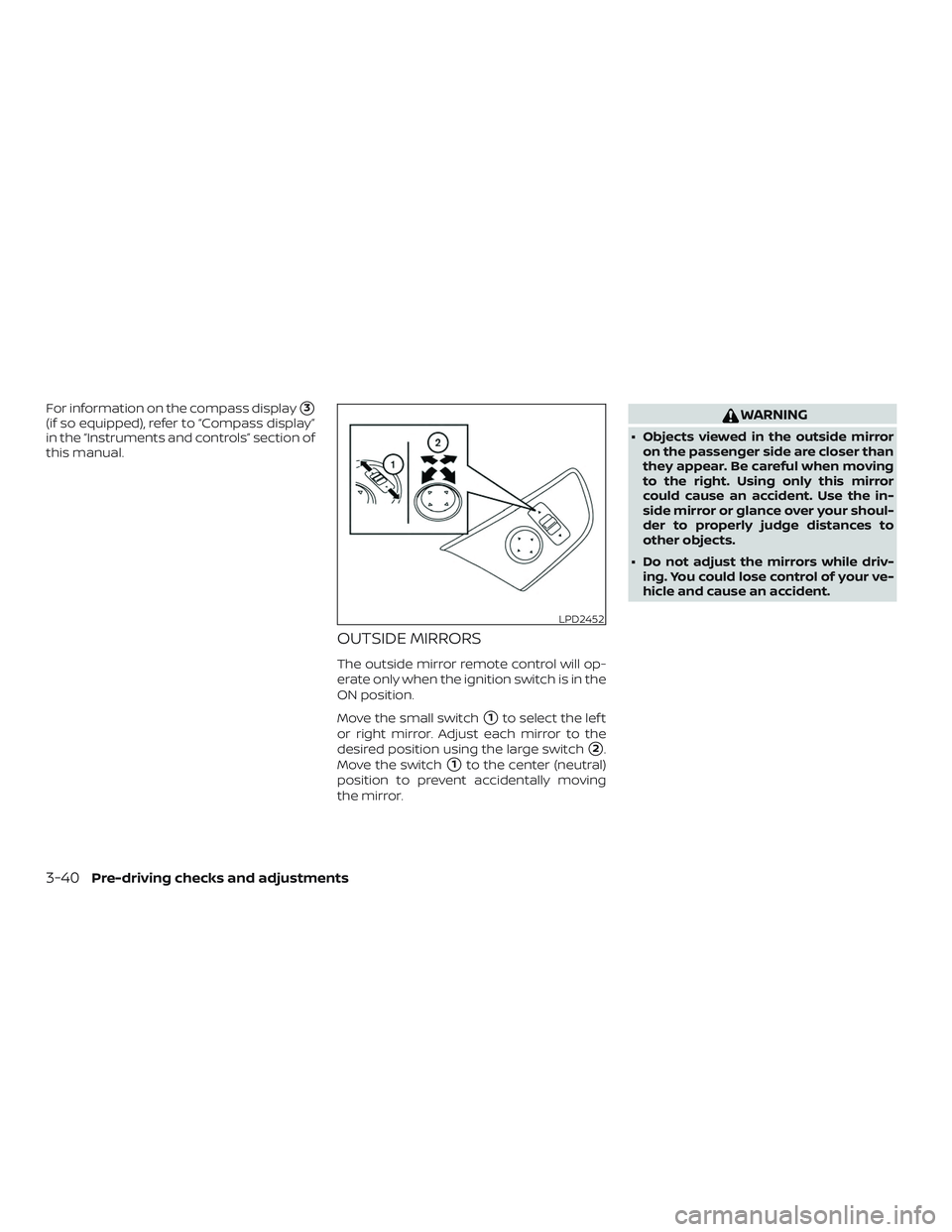

OUTSIDE MIRRORS
The outside mirror remote control will op-
erate only when the ignition switch is in the
ON position.
Move the small switch
1to select the lef t
or right mirror. Adjust each mirror to the
desired position using the large switch
2.
Move the switch
1to the center (neutral)
position to prevent accidentally moving
the mirror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
LPD2452
3-40Pre-driving checks and adjustments

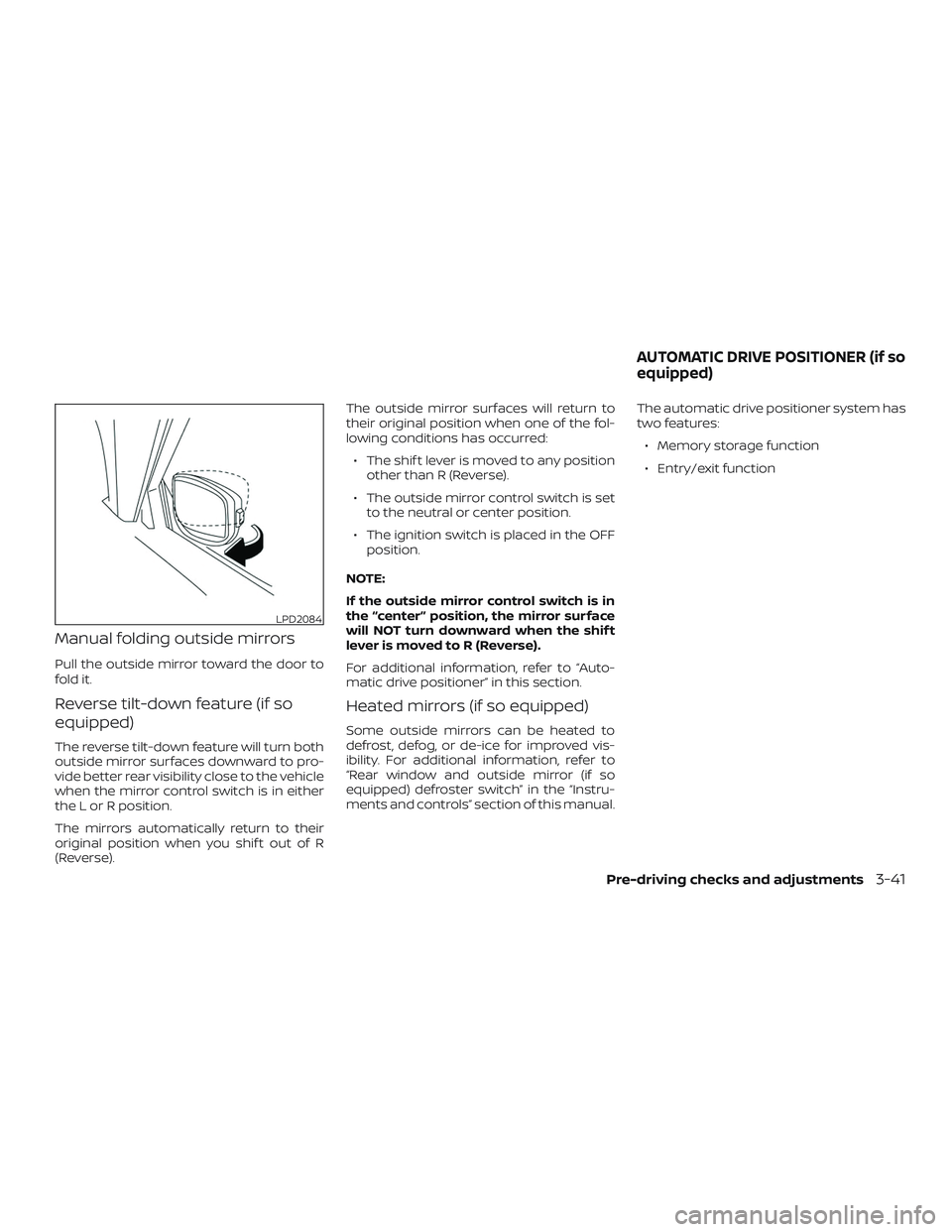

Manual folding outside mirrors
Pull the outside mirror toward the door to
fold it.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both
outside mirror surfaces downward to pro-
vide better rear visibility close to the vehicle
when the mirror control switch is in either
the L or R position.
The mirrors automatically return to their
original position when you shif t out of R
(Reverse).The outside mirror surfaces will return to
their original position when one of the fol-
lowing conditions has occurred:
∙ The shif t lever is moved to any position other than R (Reverse).
∙ The outside mirror control switch is set to the neutral or center position.
∙ The ignition switch is placed in the OFF position.
NOTE:
If the outside mirror control switch is in
the “center” position, the mirror surface
will NOT turn downward when the shif t
lever is moved to R (Reverse).
For additional information, refer to “Auto-
matic drive positioner” in this section.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window and outside mirror (if so
equipped) defroster switch” in the “Instru-
ments and controls” section of this manual. The automatic drive positioner system has
two features:
∙ Memory storage function
∙ Entry/exit function
LPD2084
AUTOMATIC DRIVE POSITIONER (if so
equipped)
Pre-driving checks and adjustments3-41

MEMORY STORAGE FUNCTION
Two positions for the driver’s seat and out-
side mirrors can be stored in the automatic
drive positioner memory. Follow these pro-
cedures to use the memory system.
NOTE:
The vehicle should be stopped while set-
ting the memory.1. Adjust the driver’s seat and outside mir- rors to the desired positions by manu-
ally operating each adjusting switch.
For additional information, refer to
“Seats” in the “Safety—Seats, seat belts and supplemental restraint system”
section of this manual and “Outside
mirrors” in this section.
2. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
The indicator light for the pushed
memory switch will come on and stay
on for approximately 5 seconds.
The chime will sound when the memory is
stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous
memory position will be overwritten by
the new stored position.
Confirming memory storage
∙ Push the SET switch.
∙ If a memory position has not been stored in the switch (1 or 2) the indicator
light for the respective switch will come
ON for approximately 0.5 seconds.
∙ If a memory position has been stored in the switch (1 or 2) then the indicator light
for the respective switch will stay ON for
approximately 5 seconds.
Linking a key fob to a stored
memory position
Each key fob can be linked to a stored
memory position (memory switch 1 or 2)
with the following procedure.
1. Follow steps 1 and 2 in the “Memory storage function” section for storing
the memory position.
2. While the indicator light is on, press the
button on the key fob. The
indicator light of the linked memory
switch will blink. Af ter the indicator light
goes off, the key fob is linked to that
memory setting.
Once it is linked, when ignition switch is
placed in the OFF position, pressing
the
button on the key fob will move
the driver’s seat and outside mirrors to the
linked memory switch position.
NOTE:
If a new memory position is stored in the
linked memory switch, then the key fob
will link the new position and overwrites
the previous position.
LPD2531
3-42Pre-driving checks and adjustments

ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat will automatically move when the shif t
lever is in the P (Park) position. This allows
the driver to easily get in and out of the
seat.
The driver’s seat will slide backward when
the ignition is switched to OFF and the driv-
er’s door is opened.
The driver’s seat will return to the previous
position when the ignition is switched to
ON.
The entry/exit function can be enabled or
disabled through “Vehicle Settings” in the
vehicle information display by performing
the following:∙ Switch the “Exit Seat Slide” from ON to OFF. For additional information, refer to
“Vehicle information display” in the “In-
struments and controls” section of this
manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions:
∙ When the vehicle speed is above 4 mph (7 km/h).
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while
the automatic drive positioner is oper-
ating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shif t lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-43

4 Monitor, climate, audio, phone and
voice recognition systems
NissanConnect® Owner’s Manual................4-2
RearView Monitor (if so equipped) ...............4-3
RearView Monitor system operation ..........4-4
How to read the displayed lines ...............4-5
Difference between predicted and
actual distances ..............................4-5
How to park with predicted course
lines ..........................................4-7
Adjusting the screen .........................4-8
How to turn on and off predicted
course lines ..................................4-9
RearView Monitor system limitations .........4-9
System maintenance ........................ 4-10
Intelligent Around View Monitor
(if so equipped) .................................. 4-11
Intelligent Around View Monitor system
operation .................................... 4-12
Difference between predicted and
actual distances ............................. 4-16
How to park with predicted course
lines ......................................... 4-18
How to switch the display ...................4-19
Adjusting the screen ........................ 4-20Intelligent Around View Monitor system
limitations
................................... 4-20
System maintenance ........................ 4-22
Moving Object Detection (MOD)
(if so equipped) ................................. 4-23
MOD system operation ......................4-24
Turning MOD on and off (if so equipped) .....4-26
MOD system limitations .....................4-26
System maintenance ........................ 4-27
Vents ........................................... 4-28
Heater and air conditioner (manual)
(if so equipped) ................................. 4-29
Controls ..................................... 4-30
Heater operation ............................ 4-30
Air conditioner operation ....................4-32
Air flow charts ............................... 4-33
Heater and air conditioner (automatic)
(if so equipped) ................................. 4-37
Automatic operation ........................ 4-38
Manual operation ........................... 4-39
Operating tips ............................... 4-40
Servicing air conditioner ........................4-41
USB/iP od®

charging port ....................... 4-42

Antenna........................................ 4-42
Car phone or CB radio .......................... 4-42iPod®/iPhone®
.................................. 4-43
