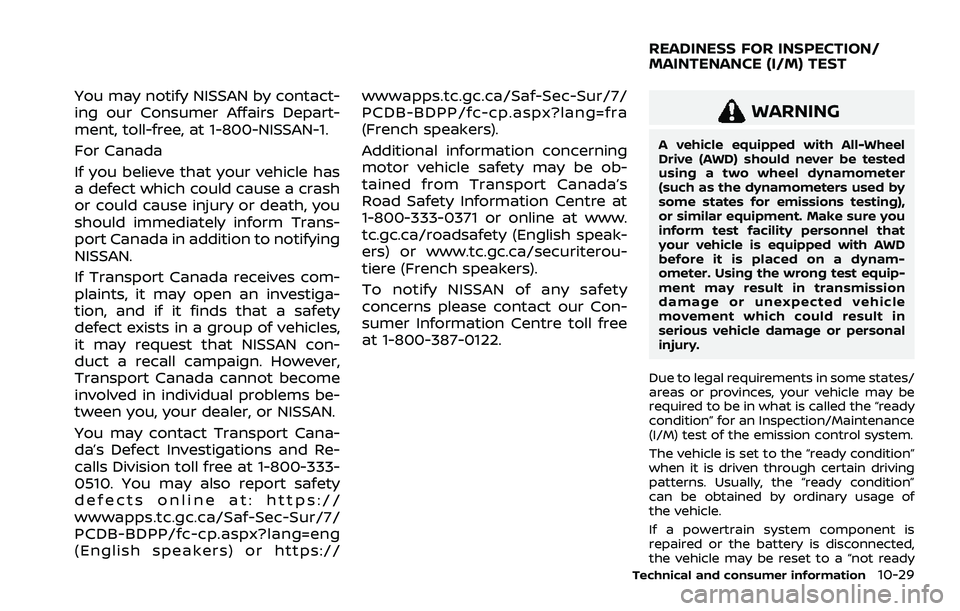

NISSAN ROGUE 2021 Owner´s Manual

You may notify NISSAN by contact-
ing our Consumer Affairs Depart-
ment, toll-free, at 1-800-NISSAN-1.
For Canada
If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death, you
should immediately inform Trans-
port Canada in addition to notifying
NISSAN.
If Transport Canada receives com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of vehicles,
it may request that NISSAN con-
duct a recall campaign. However,
Transport Canada cannot become
involved in individual problems be-
tween you, your dealer, or NISSAN.
You may contact Transport Cana-
da’s Defect Investigations and Re-
calls Division toll free at 1-800-333-
0510. You may also report safety
defects online at: https://
wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/fc-cp.aspx?lang=eng
(English speakers) or https://wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/fc-cp.aspx?lang=fra
(French speakers).
Additional information concerning
motor vehicle safety may be ob-
tained from Transport Canada’s
Road Safety Information Centre at
1-800-333-0371 or online at www.
tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiterou-
tiere (French speakers).
To notify NISSAN of any safety
concerns please contact our Con-
sumer Information Centre toll free
at 1-800-387-0122.
WARNING
A vehicle equipped with All-Wheel
Drive (AWD) should never be tested
using a two wheel dynamometer
(such as the dynamometers used by
some states for emissions testing),
or similar equipment. Make sure you
inform test facility personnel that
your vehicle is equipped with AWD
before it is placed on a dynam-
ometer. Using the wrong test equip-
ment may result in transmission
damage or unexpected vehicle
movement which could result in
serious vehicle damage or personal
injury.
Due to legal requirements in some states/
areas or provinces, your vehicle may be
required to be in what is called the “ready
condition” for an Inspection/Maintenance
(I/M) test of the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition”
can be obtained by ordinary usage of
the vehicle.
If a powertrain system component is
repaired or the battery is disconnected,
the vehicle may be reset to a “not ready
Technical and consumer information10-29
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST

10-30Technical and consumer information
condition”. Before taking the I/M test,
check the vehicle’s inspection/mainte-
nance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for
20 seconds and then blinks for 10 sec-
onds, the I/M test condition is “not ready”.
If the MIL does not blink after 20 seconds,
the I/M test condition is “ready”.
It is recommended you visit a NISSAN
dealer to set “ready condition” or to
prepare the vehicle for testing.This vehicle is equipped with an Event
Data Recorder (EDR). The main purpose of
an EDR is to record, in certain crash or
near crash-like situations, such as an air
bag deployment or hitting a road obsta-
cle, data that will assist in understanding
how a vehicle’s systems performed. The
EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed
to record such data as:
.How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fas-
tened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR
under normal driving conditions and no
personal data (e.g. name, gender, age and
crash location) are recorded. However,
other parties, such as law enforcement, could combine the EDR data with the type
of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition
to the vehicle manufacturer and NISSAN
dealer, other parties, such as law enforce-
ment, that have the special equipment,
can read the information if they have
access to the vehicle or the EDR. EDR data
will only be accessed with the consent of
the vehicle owner or lessee or as other-
wise required or permitted by law.
ADDITIONAL DATA RECORDING (on
vehicles equipped with optional
ProPILOT Assist)
If your vehicle is equipped with the
optional ProPILOT Assist, it will also be
equipped with supplemental data record-
ing function intended to assist in under-
standing how ProPILOT Assist performs in
certain nontrivial crash or near-crash
scenarios. Specifically, supplemental re-
cording is designed to capture the follow-
ing:
.
Driver operational status of the accel-
erator, brakes, steering, etc.
. Detection status of a vehicle ahead
and lane markers
EVENT DATA RECORDERS (EDR)

.Vehicle information including distance
to vehicle ahead and lateral position
. Information on the operation of the
ProPILOT Assist and other crash
avoidance features
. ProPILOT Assist malfunction diagnosis
information
. External images from the multi-sen-
sing front camera (Available only
when the SRS air bag or AEB with
pedestrian detection system is acti-
vated)
The ProPILOT Assist does not record
conversations, sounds or images of the
inside of the vehicle.
To read this supplemental data, special
equipment is required and access to the
vehicle or the recording unit is needed.
This supplemental data will only be ac-
cessed with the consent of the vehicle
owner or lessee or as otherwise required
or permitted by law. If downloaded,
NISSAN and third parties entrusted by
NISSAN may use the data recorded for the
purpose of improving NISSAN’s vehicle
safety performance.
NISSAN and third parties entrusted by
NISSAN will not disclose/provide the re-
corded data to a third party except:
. With the consent of the vehicle owner
or with the consent of the lessee .
In response to an official request from
law enforcement, court order, govern-
mental agency, or other legally en-
forceable request
. For research purposes after the data
is modified such that it is no longer
tied to a specific vehicle or vehicle
owner (anonymized)Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the
best source of service and repair informa-
tion for your vehicle. This manual is the
same one used by the factory trained
technicians working at a NISSAN dealer.
Genuine NISSAN Owner’s Manuals can
also be purchased.
In the USA:
For current pricing and availability of
genuine NISSAN Service Manuals con-
tact:
www.nissan-techinfo.com
For current pricing and availability of
genuine NISSAN Owner’s Manuals con-
tact:
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual for this
model year and prior please contact a
NISSAN dealer. For the phone number
and location of a NISSAN dealer in your
area call the NISSAN Information Center
at 1-800-387-0122 and a bilingual NISSAN
representative will assist you.
Technical and consumer information10-31
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION

10-32Technical and consumer information
MEMO

MEMO
Technical and consumer information10-33

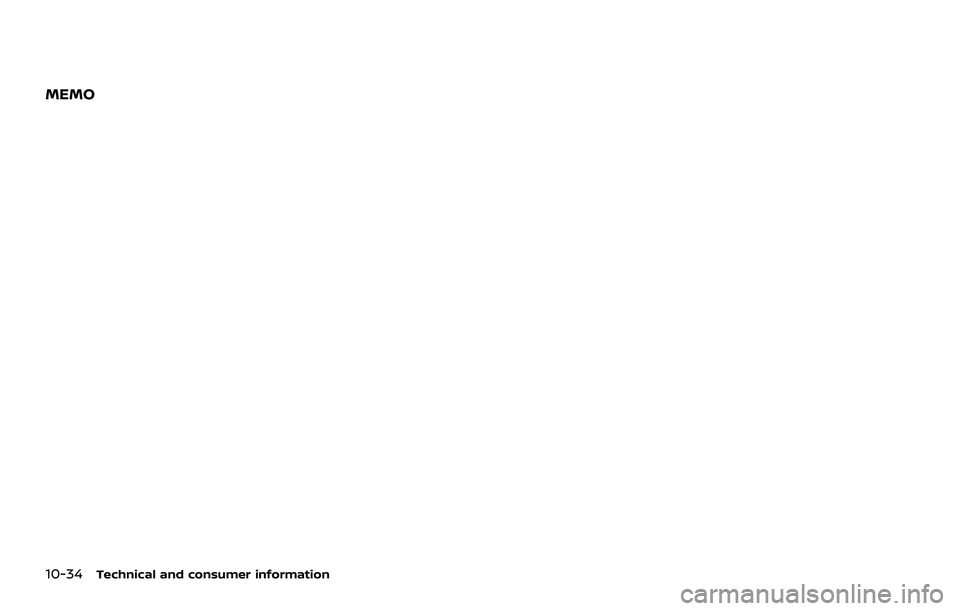

10-34Technical and consumer information
MEMO

11 Index
A
ABS (Anti-lock Braking System) .................... 5-156
Active Ride Control ................................................. 5-160
Adjustable luggage floor ....................................... 2-72
Advanced Air Bag System .................................... 1-52
Air bag systemAdvanced Air Bag System ............................. 1-52
Driver and front passengersupplemental knee air bag system...... 1-61
Front and rear seat-mounted
side-impact supplemental air
bag system................................................................ 1-63
Front central seat-mounted
side-impact supplemental air
bag system................................................................ 1-63
Front passenger air bag and
status light................................................................. 1-54
Roof-mounted curtain side-impact
supplemental air bag system..................... 1-63
Air bag warning labels ............................................ 1-66
Air bag warning light................................. 1-66, 2-16
Air cleaner housing filter ....................................... 8-15
Air conditioner Air conditioner operation............................... 4-27
Air conditioner service...................................... 4-38
Air conditioner specification label....... 10-11
Air conditioning system refrigerant
and lubricant recommendations............. 4-38
Air conditioning system refrigerant
and oil recommendations ............................. 10-7
Alarm, How to stop alarm (see vehicle
security system)............................................................ 2-51
Alcohol, drugs and driving ................................... 5-11
Alert Rear Door Alert....................................................... 2-65 All-Wheel Drive (AWD) (See
Intelligent 4x4)............................................................ 5-151
Antenna........................................................................\
....... 4-39
Anti-lock Braking System (ABS) .................... 5-156
Anti-lock Braking System (ABS)
warning light ................................................................... 2-17
Appearance care
Exterior appearance care ................................. 7-2
Interior appearance care................................... 7-4
Armrest ........................................................................\
............ 1-9
Audible reminders....................................................... 2-22
AUTO mode...................................................................... 5-32
Automatic Door locks...................................................................... 3-7
Automatic air conditioner
and heater ......................................................... 4-32, 4-35
Automatic brake hold .............................................. 5-28
Automatic Emergency Braking (AEB)
system OFF warning light .................................... 2-17
Automatic Emergency Braking (AEB)
with pedestrian detection system.............. 5-122
Automatic moonroof and sunshade ........... 2-83
Average fuel consumption................................... 2-44
Average speed ............................................................... 2-44
Avoiding collision and rollover.......................... 5-10
AWD (See Intelligent 4x4)................................... 5-151
B
Battery........................................................................\
.......... 8-11 Battery replacement, Intelligent Key ..... 8-20
Battery saver system......................................... 2-61
Variable voltage control system .............. 8-13
Before starting the engine................................... 5-17
Blind Spot Warning (BSW) ..................................... 5-57
Booster seats.................................................................. 1-42 Brake
Anti-lock Braking System (ABS) ............ 5-156
Brake fluid ..................................................................... 8-9
Brake system ....................................................... 5-155
Electronic parking brake system
warning light ............................................................ 2-18
Parking brake .......................................................... 5-25
Warning light............................................................ 2-14
Break-in schedule .................................................... 5-149
Brightness control Instrument panel .................................................. 2-11
Bulb check/instrument panel............................ 2-14
Bulb replacement ........................................................ 8-22
C
Capacities and
recommended fluids/lubricants...................... 10-3
Car phone or CB radio ............................................ 4-39
Card holder....................................................................... 2-77
Cargo cover ..................................................................... 2-77
Cargo light ........................................................................\
2-87
Catalytic converter, Three way catalyst ....... 5-6
Charger USB (Universal Serial Bus)
charging connector............................................ 2-67
Wireless charger .................................................... 2-68
Chassis control........................................................... 5-160
Child restraints .............................................................. 1-23 Booster seats........................................................... 1-42
LATCH system ......................................................... 1-25
Precautions on child restraints................. 1-23
Child safety....................................................................... 1-20
Child safety rear door lock ...................................... 3-7

11-2
ChimesSeat belt warning light
and chime.................................................... 1-15, 2-16
Chimes, Audible reminders.................................. 2-22
Circuit breaker, Fusible link ................................. 8-18
Cleaning exterior and interior ................... 7-2, 7-4
Clock ........................................................................\
.............. 2-46
Coat hook........................................................................\
.. 2-77
Cockpit ........................................................................\
............. 2-3
Cold weather driving ............................................. 5-172
Connection to Roadside Assistance ................ 6-2
Console box ..................................................................... 2-75
Continuously Variable Transmission
(CVT) fluid........................................................................\
....... 8-8
Continuously Variable Transmission (CVT)
position indicator ........................................................ 2-11
Conventional (fixed speed) cruise control
mode (with ProPILOT Assist)........................... 5-118
Coolant Capacities and
recommended fluids/lubricants............... 10-3
Changing engine coolant ................................. 8-5
Checking engine coolant level...................... 8-5
Corrosion protection .................................................... 7-7
Cover, Cargo cover..................................................... 2-77
Cruise control Conventional (fixed speed) cruise
control mode ....................................................... 5-118
Cruise control (with ProPILOT Assist)
(See Conventional (fixed speed) cruise
control mode)...................................................... 5-118
Cruise control (without
ProPILOT Assist)..................................................... 5-82
Intelligent Cruise Control (ICC) .................. 5-97
Cup holders...................................................................... 2-71 CVT, Driving with CVT (Continuously
Variable Transmission)............................................ 5-19
D
Daytime Running Lights (DRL) system....... 2-61
Defroster switch, Rear window and
outside mirror defroster switch....................... 2-55
Dimensions and weights....................................... 10-9
Display
Head Up Display (HUD) ..................................... 2-47
Vehicle information display.......................... 2-22
Drive belt ........................................................................\
.... 8-13
Drive Computer............................................................. 2-44
Drive Mode Selector .................................................. 5-30
Driver and front passenger supplemental
knee air bag..................................................................... 1-61
Driver Assistance systems.................................... 5-34 Common troubleshooting guide ............. 5-39
Driving Cold weather driving ..................................... 5-172
Drive Mode Selector ........................................... 5-30
Driving with CVT (Continuously
Variable Transmission)..................................... 5-19
Intelligent 4x4 ..................................................... 5-151
On-pavement and off-road driving ....... 5-10
Precautions when starting
and driving.................................................................... 5-5
Safety precautions .............................................. 5-12
E
Easy-Fill Tire Alert system......................................... 5-9
ECO mode ........................................................................\
. 5-32
ECO mode system
ECO Drive Report.................................................. 2-11
Economy, Fuel............................................................. 5-150 Elapsed time.................................................................... 2-44
Electric power steering........................................ 5-154
Electric power steering warning light ........ 2-17
Electric shift control system
warning light ................................................................... 2-15
Emergency Call (SOS) button ............................ 2-70
Emission control information label............ 10-11
Emission control system warranty ............ 10-28
Engine
Before starting the engine............................ 5-17
Break-in schedule ............................................ 5-149
Capacities and
recommended fluids/lubricants............... 10-3
Changing engine coolant ................................. 8-5
Changing engine oil and filter ...................... 8-6
Checking engine coolant level...................... 8-5
Checking engine oil level................................... 8-5
Coolant temperature gauge .......................... 2-9
Emergency engine shut off.............. 5-16, 6-3
Engine compartment
check locations ......................................................... 8-3
Engine cooling system ........................................ 8-4
Engine oil.....................................................................\
... 8-5
Engine oil and oil
filter recommendation ..................................... 10-6
Engine oil viscosity .............................................. 10-7
Engine serial number .................................... 10-10
Engine specifications......................................... 10-8
Engine start operation indicator.............. 2-34
If your vehicle overheats ................................ 6-13
Remote engine start.......................................... 3-19
Starting the engine............................................. 5-17
Event Data Recorders (EDR)............................. 10-30
Exhaust gas (carbon monoxide) ......................... 5-5
Explanation of scheduled
maintenance items ........................................................ 9-5

F
F.M.V.S.S./C.M.V.S.S. certification label ...... 10-10
FilterAir cleaner housing filter ................................ 8-15
Changing engine oil and filter ...................... 8-6
Flashers (See hazard warning
flasher switch).................................................................... 6-2
Flat tire........................................................................\
............. 6-3
Flat towing..................................................................... 10-26
Floor mat cleaning ......................................................... 7-5
Fluid Brake fluid ..................................................................... 8-9
Capacities and
recommended fluids/lubricants............... 10-3
Continuously Variable Transmission
(CVT) fluid....................................................................... 8-8
Engine coolant........................................................... 8-4
Engine oil.....................................................................\
... 8-5
Window washer fluid ............................................ 8-9
Fog light switch ............................................................ 2-62
Forward Driving Aids ................................................ 5-34
Front manual seat adjustment ............................ 1-4
Front passenger air bag and status
light........................................................................\
................. 1-54
Front seat, Front seat adjustment .................... 1-4
Fuel Capacities and
recommended fluids/lubricants............... 10-3
Fuel economy...................................................... 5-150
Fuel information.................................................... 10-4
Fuel octane rating ............................................... 10-4
Fuel-filler door......................................................... 3-29
Gauge........................................................................\
..... 2-10
Fuel Efficient Driving Tips................................... 5-149
Fuses........................................................................\
.............. 8-18 Fusible links...................................................................... 8-18G
Garage mode system............................................... 3-27
Gauge........................................................................\
................ 2-5
Engine coolant temperature gauge......... 2-9
Fuel gauge ................................................................. 2-10
Odometer....................................................................... 2-8
Speedometer .............................................................. 2-8
Tachometer.................................................................. 2-9
General maintenance................................................... 9-2
Glove box ........................................................................\
... 2-75
H
Hazard warning flasher switch ............................ 6-2
Head restraints/headrests....................................... 1-9
Head Up Display (HUD) ............................................ 2-47
Headlights Bulb replacement ................................................. 8-23
Headlight switch ................................................... 2-55
Heated seats ................................................................... 2-63
Heated steering wheel ............................................ 2-63
Heater Heater and air conditioner
operation..................................................................... 4-27
High beam assist ......................................................... 2-59
Hill start assist system ......................................... 5-161
Hood release ................................................................... 3-22
Hook Coat hook................................................................... 2-77
Luggage hook ......................................................... 2-78
Horn........................................................................\
................ 2-63
I
Ignition switch ............................................................... 5-14
Ignition switch positions ....................................... 5-15
Immobilizer system.................................................... 2-51
Indicator Lights..................................................................\
............ 2-17
Vehicle information display.......................... 2-22
indicator light Electronic parking brake warning
light........................................................................\
.......... 2-15
Inside mirror .................................................................... 3-33
Inspection/maintenance (I/M) test ............ 10-29
Instrument brightness control ......................... 2-11
Instrument panel ............................................................. 2-4
Intelligent 4x4 ............................................................. 5-151
Intelligent Around View® Monitor....................... 4-9
Intelligent Auto Headlight system ................. 2-56
Intelligent Blind Spot
Intervention (I-BSI) ...................................................... 5-65
Intelligent Cruise Control (ICC) ......................... 5-97
Intelligent Driver Alertness (I-DA) ................. 5-141
Intelligent Forward Collision Warning
(I-FCW)........................................................................\
........ 5-132
Intelligent Key button operation light ........ 3-17
Intelligent Key system ................................................. 3-7 Key operating range ............................................. 3-9
Key operation .......................................................... 3-11
Remote keyless operation ............................ 3-15
Intelligent Lane Intervention (I-LI) .................. 5-51
Intelligent Trace Control..................................... 5-160
Interior light replacement..................................... 8-23
Interior light switch.................................................... 2-85
Interior lights................................................................... 2-85
ISOFIX child restraint ................................................ 1-25
11-3

11-4
J
Jump starting ................................................................. 6-11
K
KeyIgnition switch positions ................................ 5-15
Keyless entry With Intelligent Key system (See
Intelligent Key system) ..................................... 3-15
Keys ........................................................................\
.................... 3-3 For Intelligent Key system................................ 3-7
L
LabelsAir bag warning labels ..................................... 1-66
Air conditioner specification label....... 10-11
Emission control information label .... 10-11
Engine serial number .................................... 10-10
F.M.V.S.S./C.M.V.S.S.
certification label .............................................. 10-10
Tire and Loading
information label................................ 8-27, 10-11
Vehicle identification number (VIN)........ 10-9
Lane Departure Warning (LDW) ........................ 5-46
LATCH system ................................................................ 1-25
License plate, Installing front
license plate.................................................................. 10-12
Liftgate........................................................................\
......... 3-23 Auto closure ............................................................. 3-28
Liftgate release lever ......................................... 3-28
Operating manual liftgate............................. 3-23
Operating power liftgate................................ 3-24
Light Air bag warning light......................................... 1-66 Bulb replacement ................................................. 8-22
Cargo light ................................................................. 2-87
Fog light switch ..................................................... 2-62
Headlight switch ................................................... 2-55
Headlights bulb replacement ..................... 8-23
Indicator lights........................................................ 2-17
Interior lights............................................................ 2-85
Map lights ................................................................... 2-86
Rear personal lights ........................................... 2-86
Room lights ............................................................... 2-86
Vanity mirror lights ............................................. 2-87
Warning lights, indicator lights and
audible reminders ................................................ 2-14
Lights, Exterior and interior
light replacement ........................................................ 8-23
Loading information (See vehicle
loading information) .............................................. 10-13
Lock Automatic door locks........................................... 3-7
Door locks...................................................................... 3-5
Power door lock ....................................................... 3-5
Low tire pressure warning (Tire
Pressure Low)................................................................. 2-35
Low tire pressure warning light ...................... 2-18
Low tire pressure warning system (See
Tire Pressure Monitoring System (TPMS)) ..... 5-6
Lower console tray .................................................... 2-76
Luggage hooks ............................................................. 2-78
M
Maintenance Battery........................................................................\
... 8-11
General maintenance........................................... 9-2
Maintenance precautions................................. 8-2
Maintenance requirements ............................. 9-2
Maintenance schedules...................................... 9-7 Seat belt maintenance..................................... 1-20
Standard maintenance ....................................... 9-8
Maintenance schedules.............................................. 9-7
Malfunction indicator light (MIL)...................... 2-19
Manual air conditioner and heater ............... 4-28
Manual front seat adjustment .............................. 1-4
Map lights ........................................................................\
.. 2-86
Master warning light.................................. 2-16, 2-20
Mechanical key (Intelligent Key system) ....... 3-4
Memory seat ................................................................... 3-36
Meters and gauges ........................................................ 2-5 Instrument brightness control .................. 2-11
Mirror Inside mirror ............................................................. 3-33
Outside mirrors ...................................................... 3-34
Vanity mirror ............................................................ 3-36
Moonroof........................................................................\
.... 2-83
Moving Object Detection (MOD) ...................... 4-22
N
Neutral hold mode ..................................................... 5-22
New vehicle break-in ............................................. 5-149
NISSAN Vehicle Immobilizer System ............ 2-51
O
Odometer........................................................................\
....... 2-8
OFF-ROAD mode.......................................................... 5-31
Off-road recovery ........................................................ 5-10
Oil
Capacities and
recommended fluids/lubricants............... 10-3
Changing engine oil and filter ...................... 8-6
Checking engine oil level................................... 8-5
Engine oil.....................................................................\
... 8-5
Engine oil viscosity .............................................. 10-7
