immobilizer NISSAN ROGUE 2021 Owner´s Manual

2 Instruments and controls
Cockpit ........................................................................\
.......................... 2-3
Instrument panel ........................................................................\
.. 2-4
Meters and gauges ..................................................................... 2-5Models with analog meter and
color display ........................................................................\
....... 2-5
Models with full-screen display .................................. 2-6
Speedometer and odometer ........................................ 2-8
Tachometer ........................................................................\
........ 2-9
Engine coolant temperature gauge ....................... 2-9
Fuel gauge ........................................................................\
........ 2-10
Instrument brightness control ................................. 2-11
Continuously Variable Transmission (CVT)
position indicator ................................................................ 2-11
ECO Drive Report ................................................................ 2-11
Warning lights, indicator lights and
audible reminders ..................................................................... 2-13
Checking lights ..................................................................... 2-14
Warning/indicator lights (red) ................................... 2-14
Warning/indicator lights (yellow) ........................... 2-17
Warning/indicator lights (other) ............................. 2-21
Audible reminders .............................................................. 2-22
Vehicle information display ............................................... 2-22 Changing the meter screen view
(models with full-screen display) ............................ 2-23
How to use the vehicle
information display ........................................................... 2-23 Startup display ................................................................... 2-23
Settings ........................................................................\
............ 2-24
Vehicle information display warnings
and indicators ..................................................................... 2-34
Trip computer ..................................................................... 2-44
Clock and outside air temperature ................... 2-46
Head Up Display (HUD) (if so equipped) .................. 2-47 How to use the HUD ...................................................... 2-49
Driver Assistance/Navigation/Traffic
Sign/Audio/TEL/SMS linking ................................... 2-50
Security systems ....................................................................... 2-50 Vehicle Security System (if so equipped) ...... 2-50
NISSAN Vehicle Immobilizer System ................. 2-51
Wiper and washer switch ................................................... 2-52 Windshield wiper and washer operation ...... 2-53
Rear window wiper and
washer operation ............................................................. 2-53
Rear window and outside mirror
(if so equipped) defroster switch ................................. 2-55
Headlight and turn signal switch ................................ 2-55
Headlight switch ............................................................... 2-55
Turn signal switch ........................................................... 2-62
Fog light switch (if so equipped) ......................... 2-62
Horn ........................................................................\
............................. 2-63
Heated steering wheel (if so equipped) .................. 2-63

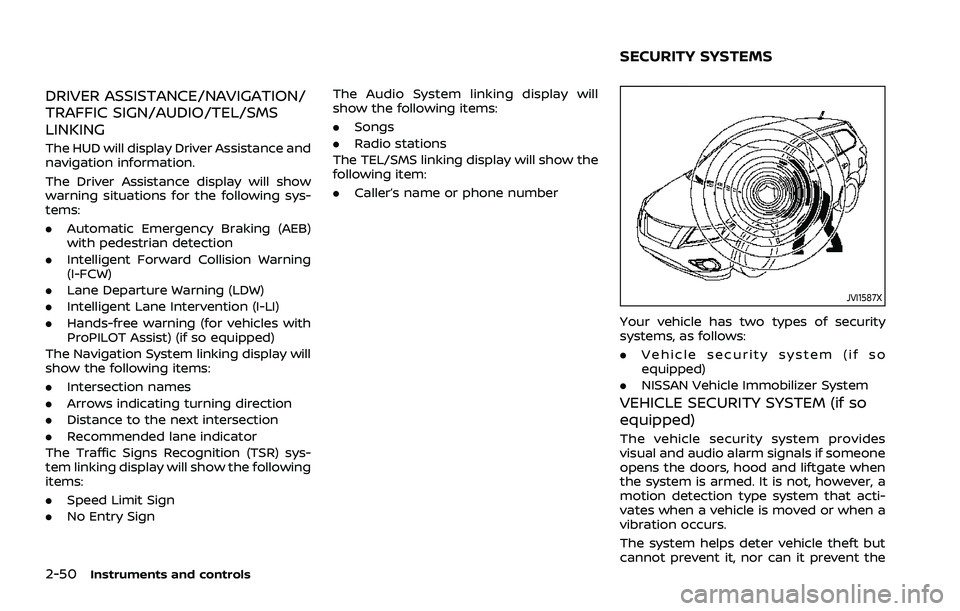

2-50Instruments and controls
DRIVER ASSISTANCE/NAVIGATION/
TRAFFIC SIGN/AUDIO/TEL/SMS
LINKING
The HUD will display Driver Assistance and
navigation information.
The Driver Assistance display will show
warning situations for the following sys-
tems:
.Automatic Emergency Braking (AEB)
with pedestrian detection
. Intelligent Forward Collision Warning
(I-FCW)
. Lane Departure Warning (LDW)
. Intelligent Lane Intervention (I-LI)
. Hands-free warning (for vehicles with
ProPILOT Assist) (if so equipped)
The Navigation System linking display will
show the following items:
. Intersection names
. Arrows indicating turning direction
. Distance to the next intersection
. Recommended lane indicator
The Traffic Signs Recognition (TSR) sys-
tem linking display will show the following
items:
. Speed Limit Sign
. No Entry Sign The Audio System linking display will
show the following items:
.
Songs
. Radio stations
The TEL/SMS linking display will show the
following item:
. Caller’s name or phone number
JVI1587X
Your vehicle has two types of security
systems, as follows:
.Vehicle security system (if so
equipped)
. NISSAN Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM (if so
equipped)
The vehicle security system provides
visual and audio alarm signals if someone
opens the doors, hood and liftgate when
the system is armed. It is not, however, a
motion detection type system that acti-
vates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
SECURITY SYSTEMS

theft of interior or exterior vehicle com-
ponents in all situations. Always secure
your vehicle even if parking for a brief
period. Never leave your keys in the
vehicle, and always lock it when unat-
tended. Be aware of your surroundings,
and park in secure, well-lit areas when-
ever possible.
Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and speci-
alty shops. Your NISSAN dealer may also
offer such equipment. Check with your
insurance company to see if you may be
eligible for discounts for various theft
protection features.
How to arm the vehicle security
system
1. Close all windows.The system can be
armed even if the windows are open.
2. Remove the keys from the vehicle.
3. Close all doors, hood and liftgate. Lock all doors. The doors can be locked
with Intelligent Key, door handle re-
quest switch (if so equipped).
Even when the driver and/or passen-
gers are in the vehicle, the system will
activate with all the doors, hood and
liftgate locked with the ignition switch
placed in the OFF position. When pla- cing the ignition switch in the ON
position, the system will be released.
Vehicle security system activation
The vehicle security system will give the
following alarm:
.
The headlights or the hazard indicator
lights blink and the horn sounds
intermittently.
. The alarm automatically turns off
after approximately 30 seconds. How-
ever, the alarm reactivates if the
vehicle is tampered with again.
The alarm is activated by:
. opening any doors, the hood or lift-
gate without using Intelligent Key
(even if the door is unlocked by
releasing the door inside lock knob).
How to stop an activated alarm
The alarm stops by pushing the UNLOCKbutton on the Intelligent Key, pushing
the request switch (if so equipped) in
range of the door handle or placing the
ignition switch in the ON position.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered key.
If the engine does not start using the
registered Intelligent Key, it may be due to
interference caused by:
. Another Intelligent Key.
. Automated toll road device.
. Automated payment device.
. Other devices that transmit similar
signals.
Start the engine using the following
procedure:
1. Remove any items that may be caus- ing the interference away from the
Intelligent Key.
2. Start the engine again.
If this procedure allows the engine to
start, NISSAN recommends placing the
registered Intelligent Key separate from
other devices to avoid interference.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY-SMART KEYLESS)
FCC Notice:
For USA:
FCC ID : KR5HFM401
Instruments and controls2-51

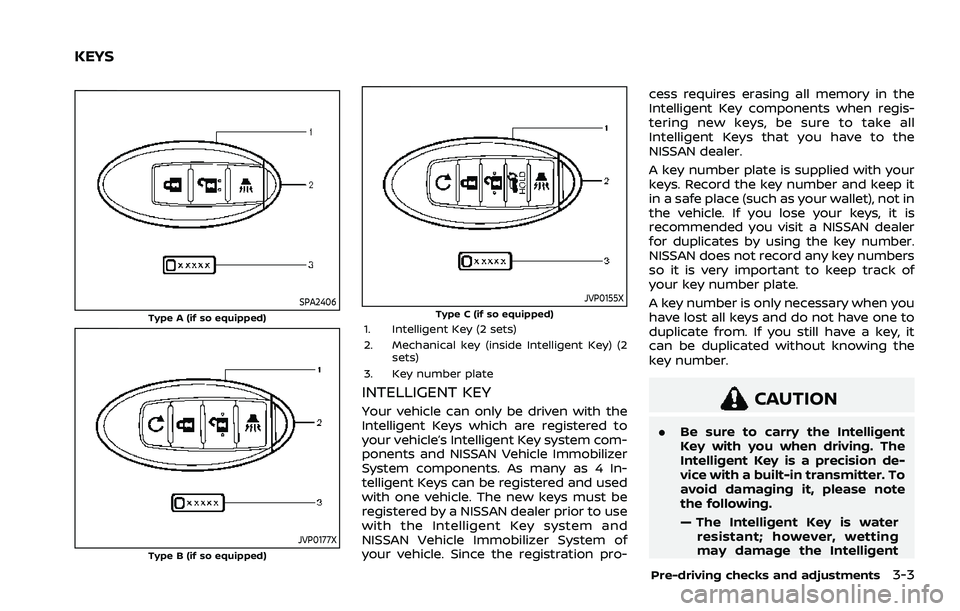

SPA2406Type A (if so equipped)
JVP0177XType B (if so equipped)
JVP0155XType C (if so equipped)1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Key) (2sets)
3. Key number plate
INTELLIGENT KEY
Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and NISSAN Vehicle Immobilizer
System components. As many as 4 In-
telligent Keys can be registered and used
with one vehicle. The new keys must be
registered by a NISSAN dealer prior to use
with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of
your vehicle. Since the registration pro- cess requires erasing all memory in the
Intelligent Key components when regis-
tering new keys, be sure to take all
Intelligent Keys that you have to the
NISSAN dealer.
A key number plate is supplied with your
keys. Record the key number and keep it
in a safe place (such as your wallet), not in
the vehicle. If you lose your keys, it is
recommended you visit a NISSAN dealer
for duplicates by using the key number.
NISSAN does not record any key numbers
so it is very important to keep track of
your key number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it
can be duplicated without knowing the
key number.CAUTION
.
Be sure to carry the Intelligent
Key with you when driving. The
Intelligent Key is a precision de-
vice with a built-in transmitter. To
avoid damaging it, please note
the following.
— The Intelligent Key is water
resistant; however, wetting
may damage the Intelligent
Pre-driving checks and adjustments3-3
KEYS

F
F.M.V.S.S./C.M.V.S.S. certification label ...... 10-10
FilterAir cleaner housing filter ................................ 8-15
Changing engine oil and filter ...................... 8-6
Flashers (See hazard warning
flasher switch).................................................................... 6-2
Flat tire........................................................................\
............. 6-3
Flat towing..................................................................... 10-26
Floor mat cleaning ......................................................... 7-5
Fluid Brake fluid ..................................................................... 8-9
Capacities and
recommended fluids/lubricants............... 10-3
Continuously Variable Transmission
(CVT) fluid....................................................................... 8-8
Engine coolant........................................................... 8-4
Engine oil.....................................................................\
... 8-5
Window washer fluid ............................................ 8-9
Fog light switch ............................................................ 2-62
Forward Driving Aids ................................................ 5-34
Front manual seat adjustment ............................ 1-4
Front passenger air bag and status
light........................................................................\
................. 1-54
Front seat, Front seat adjustment .................... 1-4
Fuel Capacities and
recommended fluids/lubricants............... 10-3
Fuel economy...................................................... 5-150
Fuel information.................................................... 10-4
Fuel octane rating ............................................... 10-4
Fuel-filler door......................................................... 3-29
Gauge........................................................................\
..... 2-10
Fuel Efficient Driving Tips................................... 5-149
Fuses........................................................................\
.............. 8-18 Fusible links...................................................................... 8-18G
Garage mode system............................................... 3-27
Gauge........................................................................\
................ 2-5
Engine coolant temperature gauge......... 2-9
Fuel gauge ................................................................. 2-10
Odometer....................................................................... 2-8
Speedometer .............................................................. 2-8
Tachometer.................................................................. 2-9
General maintenance................................................... 9-2
Glove box ........................................................................\
... 2-75
H
Hazard warning flasher switch ............................ 6-2
Head restraints/headrests....................................... 1-9
Head Up Display (HUD) ............................................ 2-47
Headlights Bulb replacement ................................................. 8-23
Headlight switch ................................................... 2-55
Heated seats ................................................................... 2-63
Heated steering wheel ............................................ 2-63
Heater Heater and air conditioner
operation..................................................................... 4-27
High beam assist ......................................................... 2-59
Hill start assist system ......................................... 5-161
Hood release ................................................................... 3-22
Hook Coat hook................................................................... 2-77
Luggage hook ......................................................... 2-78
Horn........................................................................\
................ 2-63
I
Ignition switch ............................................................... 5-14
Ignition switch positions ....................................... 5-15
Immobilizer system.................................................... 2-51
Indicator Lights..................................................................\
............ 2-17
Vehicle information display.......................... 2-22
indicator light Electronic parking brake warning
light........................................................................\
.......... 2-15
Inside mirror .................................................................... 3-33
Inspection/maintenance (I/M) test ............ 10-29
Instrument brightness control ......................... 2-11
Instrument panel ............................................................. 2-4
Intelligent 4x4 ............................................................. 5-151
Intelligent Around View® Monitor....................... 4-9
Intelligent Auto Headlight system ................. 2-56
Intelligent Blind Spot
Intervention (I-BSI) ...................................................... 5-65
Intelligent Cruise Control (ICC) ......................... 5-97
Intelligent Driver Alertness (I-DA) ................. 5-141
Intelligent Forward Collision Warning
(I-FCW)........................................................................\
........ 5-132
Intelligent Key button operation light ........ 3-17
Intelligent Key system ................................................. 3-7 Key operating range ............................................. 3-9
Key operation .......................................................... 3-11
Remote keyless operation ............................ 3-15
Intelligent Lane Intervention (I-LI) .................. 5-51
Intelligent Trace Control..................................... 5-160
Interior light replacement..................................... 8-23
Interior light switch.................................................... 2-85
Interior lights................................................................... 2-85
ISOFIX child restraint ................................................ 1-25
11-3

11-4

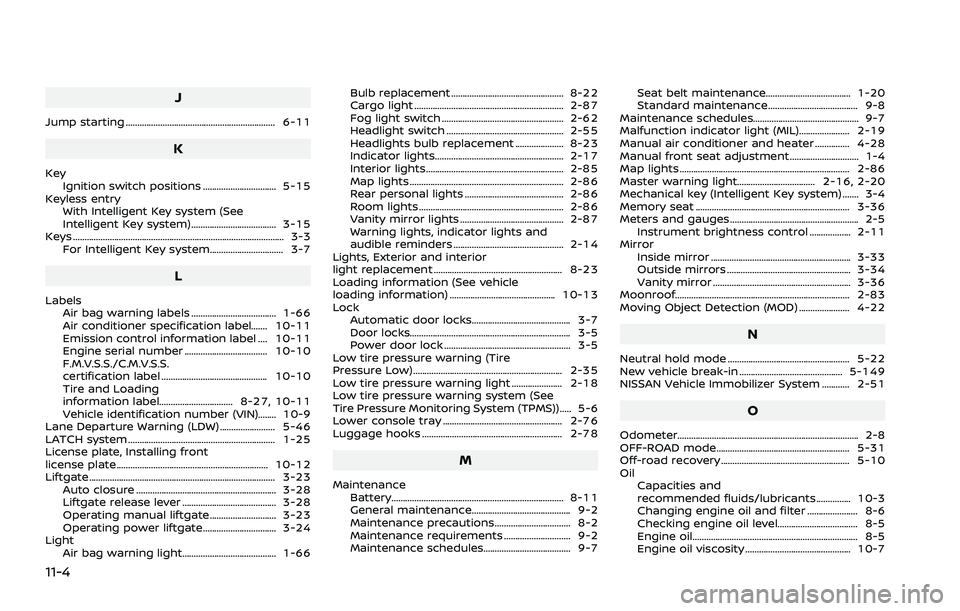

J
Jump starting ................................................................. 6-11
K
KeyIgnition switch positions ................................ 5-15
Keyless entry With Intelligent Key system (See
Intelligent Key system) ..................................... 3-15
Keys ........................................................................\
.................... 3-3 For Intelligent Key system................................ 3-7
L
LabelsAir bag warning labels ..................................... 1-66
Air conditioner specification label....... 10-11
Emission control information label .... 10-11
Engine serial number .................................... 10-10
F.M.V.S.S./C.M.V.S.S.
certification label .............................................. 10-10
Tire and Loading
information label................................ 8-27, 10-11
Vehicle identification number (VIN)........ 10-9
Lane Departure Warning (LDW) ........................ 5-46
LATCH system ................................................................ 1-25
License plate, Installing front
license plate.................................................................. 10-12
Liftgate........................................................................\
......... 3-23 Auto closure ............................................................. 3-28
Liftgate release lever ......................................... 3-28
Operating manual liftgate............................. 3-23
Operating power liftgate................................ 3-24
Light Air bag warning light......................................... 1-66 Bulb replacement ................................................. 8-22
Cargo light ................................................................. 2-87
Fog light switch ..................................................... 2-62
Headlight switch ................................................... 2-55
Headlights bulb replacement ..................... 8-23
Indicator lights........................................................ 2-17
Interior lights............................................................ 2-85
Map lights ................................................................... 2-86
Rear personal lights ........................................... 2-86
Room lights ............................................................... 2-86
Vanity mirror lights ............................................. 2-87
Warning lights, indicator lights and
audible reminders ................................................ 2-14
Lights, Exterior and interior
light replacement ........................................................ 8-23
Loading information (See vehicle
loading information) .............................................. 10-13
Lock Automatic door locks........................................... 3-7
Door locks...................................................................... 3-5
Power door lock ....................................................... 3-5
Low tire pressure warning (Tire
Pressure Low)................................................................. 2-35
Low tire pressure warning light ...................... 2-18
Low tire pressure warning system (See
Tire Pressure Monitoring System (TPMS)) ..... 5-6
Lower console tray .................................................... 2-76
Luggage hooks ............................................................. 2-78
M
Maintenance Battery........................................................................\
... 8-11
General maintenance........................................... 9-2
Maintenance precautions................................. 8-2
Maintenance requirements ............................. 9-2
Maintenance schedules...................................... 9-7 Seat belt maintenance..................................... 1-20
Standard maintenance ....................................... 9-8
Maintenance schedules.............................................. 9-7
Malfunction indicator light (MIL)...................... 2-19
Manual air conditioner and heater ............... 4-28
Manual front seat adjustment .............................. 1-4
Map lights ........................................................................\
.. 2-86
Master warning light.................................. 2-16, 2-20
Mechanical key (Intelligent Key system) ....... 3-4
Memory seat ................................................................... 3-36
Meters and gauges ........................................................ 2-5 Instrument brightness control .................. 2-11
Mirror Inside mirror ............................................................. 3-33
Outside mirrors ...................................................... 3-34
Vanity mirror ............................................................ 3-36
Moonroof........................................................................\
.... 2-83
Moving Object Detection (MOD) ...................... 4-22
N
Neutral hold mode ..................................................... 5-22
New vehicle break-in ............................................. 5-149
NISSAN Vehicle Immobilizer System ............ 2-51
O
Odometer........................................................................\
....... 2-8
OFF-ROAD mode.......................................................... 5-31
Off-road recovery ........................................................ 5-10
Oil
Capacities and
recommended fluids/lubricants............... 10-3
Changing engine oil and filter ...................... 8-6
Checking engine oil level................................... 8-5
Engine oil.....................................................................\
... 8-5
Engine oil viscosity .............................................. 10-7

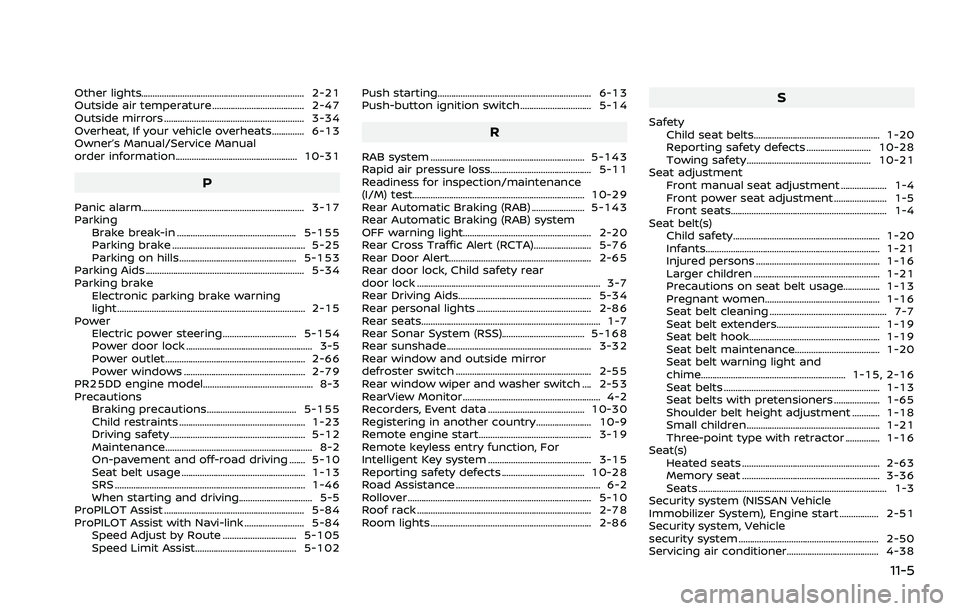

Other lights....................................................................... 2-21
Outside air temperature ........................................ 2-47
Outside mirrors ............................................................. 3-34
Overheat, If your vehicle overheats.............. 6-13
Owner’s Manual/Service Manual
order information..................................................... 10-31
P
Panic alarm....................................................................... 3-17
ParkingBrake break-in .................................................... 5-155
Parking brake .......................................................... 5-25
Parking on hills................................................... 5-153
Parking Aids ..................................................................... 5-34
Parking brake Electronic parking brake warning
light........................................................................\
.......... 2-15
Power Electric power steering................................ 5-154
Power door lock ....................................................... 3-5
Power outlet............................................................. 2-66
Power windows ..................................................... 2-79
PR25DD engine model................................................ 8-3
Precautions Braking precautions....................................... 5-155
Child restraints ....................................................... 1-23
Driving safety ........................................................... 5-12
Maintenance................................................................ 8-2
On-pavement and off-road driving ....... 5-10
Seat belt usage ...................................................... 1-13
SRS ........................................................................\
........... 1-46
When starting and driving................................ 5-5
ProPILOT Assist ............................................................. 5-84
ProPILOT Assist with Navi-link .......................... 5-84 Speed Adjust by Route ................................ 5-105
Speed Limit Assist............................................ 5-102 Push starting................................................................\
... 6-13
Push-button ignition switch............................... 5-14
R
RAB system ................................................................... 5-143
Rapid air pressure loss............................................ 5-11
Readiness for inspection/maintenance
(I/M) test........................................................................\
... 10-29
Rear Automatic Braking (RAB) ....................... 5-143
Rear Automatic Braking (RAB) system
OFF warning light........................................................ 2-20
Rear Cross Traffic Alert (RCTA)......................... 5-76
Rear Door Alert.............................................................. 2-65
Rear door lock, Child safety rear
door lock ........................................................................\
........ 3-7
Rear Driving Aids.......................................................... 5-34
Rear personal lights .................................................. 2-86
Rear seats........................................................................\
...... 1-7
Rear Sonar System (RSS).................................... 5-168
Rear sunshade............................................................... 3-32
Rear window and outside mirror
defroster switch ........................................................... 2-55
Rear window wiper and washer switch .... 2-53
RearView Monitor............................................................ 4-2
Recorders, Event data .......................................... 10-30
Registering in another country........................ 10-9
Remote engine start................................................. 3-19
Remote keyless entry function, For
Intelligent Key system ............................................. 3-15
Reporting safety defects .................................... 10-28
Road Assistance ............................................................... 6-2
Rollover ........................................................................\
........ 5-10
Roof rack ........................................................................\
.... 2-78
Room lights ...................................................................... 2-86
S
Safety
Child seat belts....................................................... 1-20
Reporting safety defects ............................ 10-28
Towing safety...................................................... 10-21
Seat adjustment Front manual seat adjustment .................... 1-4
Front power seat adjustment ....................... 1-5
Front seats.................................................................... 1-4
Seat belt(s) Child safety................................................................ 1-20
Infants.................................................................\
........... 1-21
Injured persons ...................................................... 1-16
Larger children ....................................................... 1-21
Precautions on seat belt usage................ 1-13
Pregnant women.................................................. 1-16
Seat belt cleaning ................................................... 7-7
Seat belt extenders............................................. 1-19
Seat belt hook......................................................... 1-19
Seat belt maintenance..................................... 1-20
Seat belt warning light and
chime............................................................... 1-15, 2-16
Seat belts .................................................................... 1-13
Seat belts with pretensioners .................... 1-65
Shoulder belt height adjustment ............ 1-18
Small children .......................................................... 1-21
Three-point type with retractor ............... 1-16
Seat(s) Heated seats ............................................................ 2-63
Memory seat ............................................................ 3-36
Seats ........................................................................\
.......... 1-3
Security system (NISSAN Vehicle
Immobilizer System), Engine start ................. 2-51
Security system, Vehicle
security system ............................................................. 2-50
Servicing air conditioner........................................ 4-38
11-5

11-6
ShiftingCVT (Continuously
Variable Transmission)..................................... 5-19
Shoulder belt height adjustment, For
front seats........................................................................\
. 1-18
Side Driving Aids........................................................... 5-34
SNOW mode..................................................................... 5-32
Soft bottle holders...................................................... 2-72
Sonar Rear Automatic Braking (RAB) ............... 5-143
Rear Sonar System (RSS)............................ 5-168
Sonar system....................................................... 5-162
SOS button (See Emergency Call
(SOS) button)................................................................... 2-70
Spare tire............................................................. 8-36, 10-8
Spark plugs....................................................................... 8-14
Speed Adjust by Route (ProPILOT Assist
with Navi-link).............................................................. 5-105
Speed and Average speed ................................... 2-44
Speed Limit Assist (ProPILOT Assist
with Navi-link).............................................................. 5-102
Speedometer ...................................................................... 2-8
SPORT mode ................................................................... 5-33
SRS Precautions on SRS ............................................ 1-46
Standard maintenance ............................................... 9-8
STANDARD mode......................................................... 5-32
Starting Before starting the engine............................ 5-17
Jump starting .......................................................... 6-11
Precautions when starting
and driving.................................................................... 5-5
Push starting............................................................ 6-13
Starting the engine............................................. 5-17
Status light, Front passenger air bag ......... 1-54
Steering Electric power steering................................ 5-154 Heated steering wheel ..................................... 2-63
Tilt/telescopic steering .................................... 3-31
Steering Assist ............................................................ 5-113
Steering Assist switch.............................................. 2-65
Storage ........................................................................\
........ 2-71
Sun visors ........................................................................\
.. 3-32
Sunglasses holder....................................................... 2-76
Sunshade (rear)............................................................. 3-32
Supplemental air bag warning labels ......... 1-66
Supplemental air bag
warning light .................................................... 1-66, 2-16
Supplemental Restraint System (SRS) ........ 1-46
switch Drive Mode Selector ........................................... 5-30
Emergency Call (SOS) button ..................... 2-70
Fog light switch ..................................................... 2-62
Hazard warning flasher switch .................... 6-2
Headlight switch ................................................... 2-55
Intelligent Auto Headlight switch ............ 2-56
Memory seat switch........................................... 3-36
Power door lock switch ..................................... 3-6
Rear window and outside mirror
defroster switch .................................................... 2-55
Steering Assist switch....................................... 2-65
Turn signal switch ............................................... 2-62
Wiper and washer switch .............................. 2-52
T
Tachometer........................................................................\
.. 2-9
Temperature gauge, Engine coolant
temperature gauge ....................................................... 2-9
Theft (NISSAN Vehicle Immobilizer
System), Engine start ............................................... 2-51
Three-way catalyst......................................................... 5-6
Tilt/telescopic steering ........................................... 3-31 Tire pressure, Low tire pressure
warning light ................................................................... 2-18
Tires
Easy-Fill Tire Alert system................................. 5-9
Flat tire........................................................................\
..... 6-3
Low tire pressure warning system ........... 5-6
Tire and Loading
information label................................ 8-27, 10-11
Tire chains.................................................................. 8-32
Tire dressing................................................................ 7-4
Tire pressure ............................................................ 8-25
Tire pressure monitoring
system (TPMS)................................................. 5-6, 6-3
Tire rotation.............................................................. 8-33
Types of tires ........................................................... 8-31
Uniform tire quality grading .................... 10-27
Wheel/tire size ........................................................ 10-8
Wheels and tires .................................................... 8-25
Towing Tow truck towing................................................. 6-15
Towing a trailer.................................................. 10-16
Towing safety...................................................... 10-21
TPMS, Tire pressure monitoring system....... 5-6 TPMS with Easy Fill Tire Alert......................... 5-9
TPMS, Tire pressure warning system .............. 6-3
Traffic Sign Recognition (TSR)........................... 5-43
Trailer towing .............................................................. 10-16
Transmission Continuously Variable Transmission
(CVT) fluid....................................................................... 8-8
Driving with CVT (Continuously
Variable Transmission)..................................... 5-19
Transmitter, With Intelligent Key system
(See Intelligent Key system) ................................ 3-15
Traveling or registering in
another country ........................................................... 10-9
Trip computer ................................................................ 2-44
