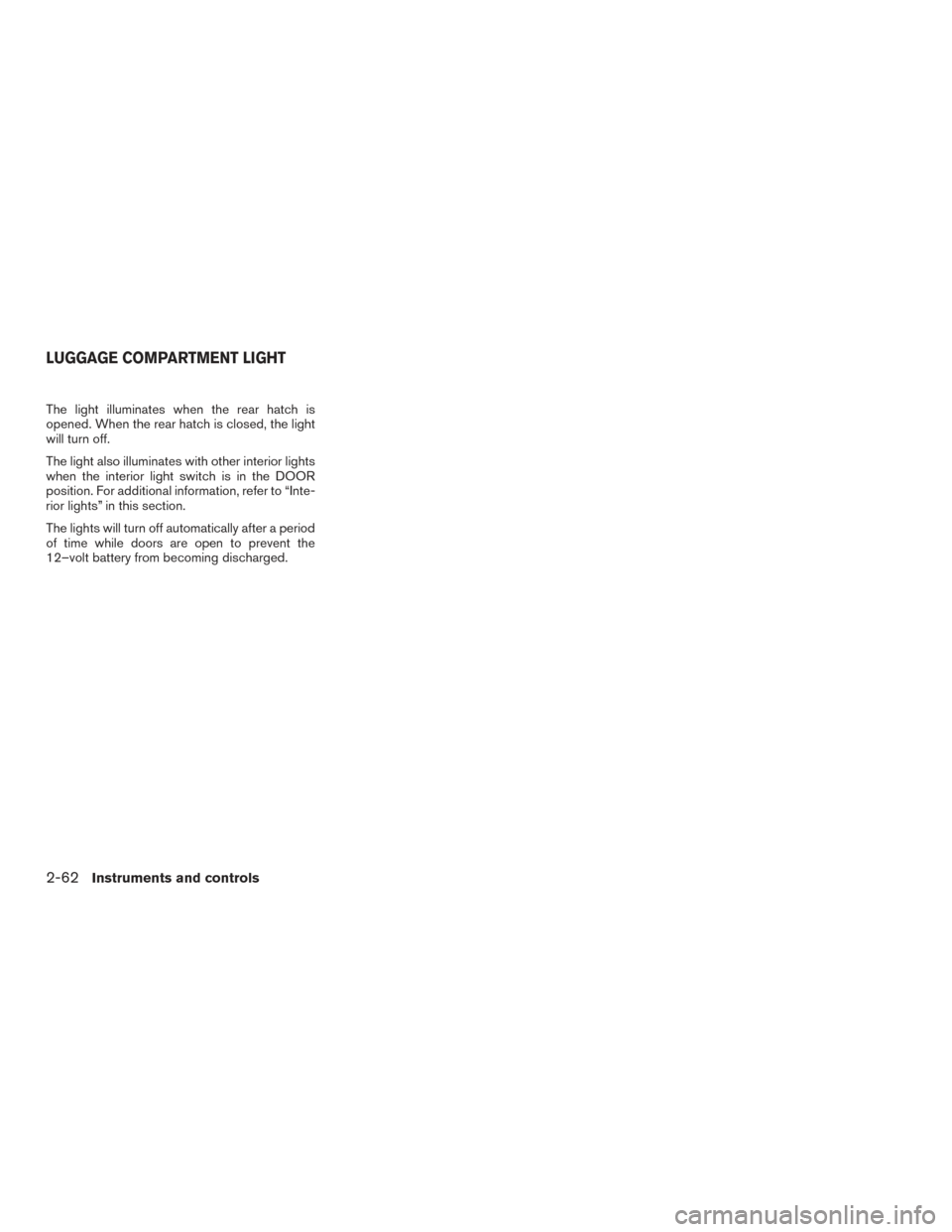

The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.
The light also illuminates with other interior lights
when the interior light switch is in the DOOR
position. For additional information, refer to “Inte-
rior lights” in this section.
The lights will turn off automatically after a period
of time while doors are open to prevent the
12–volt battery from becoming discharged.
LUGGAGE COMPARTMENT LIGHT
2-62Instruments and controls

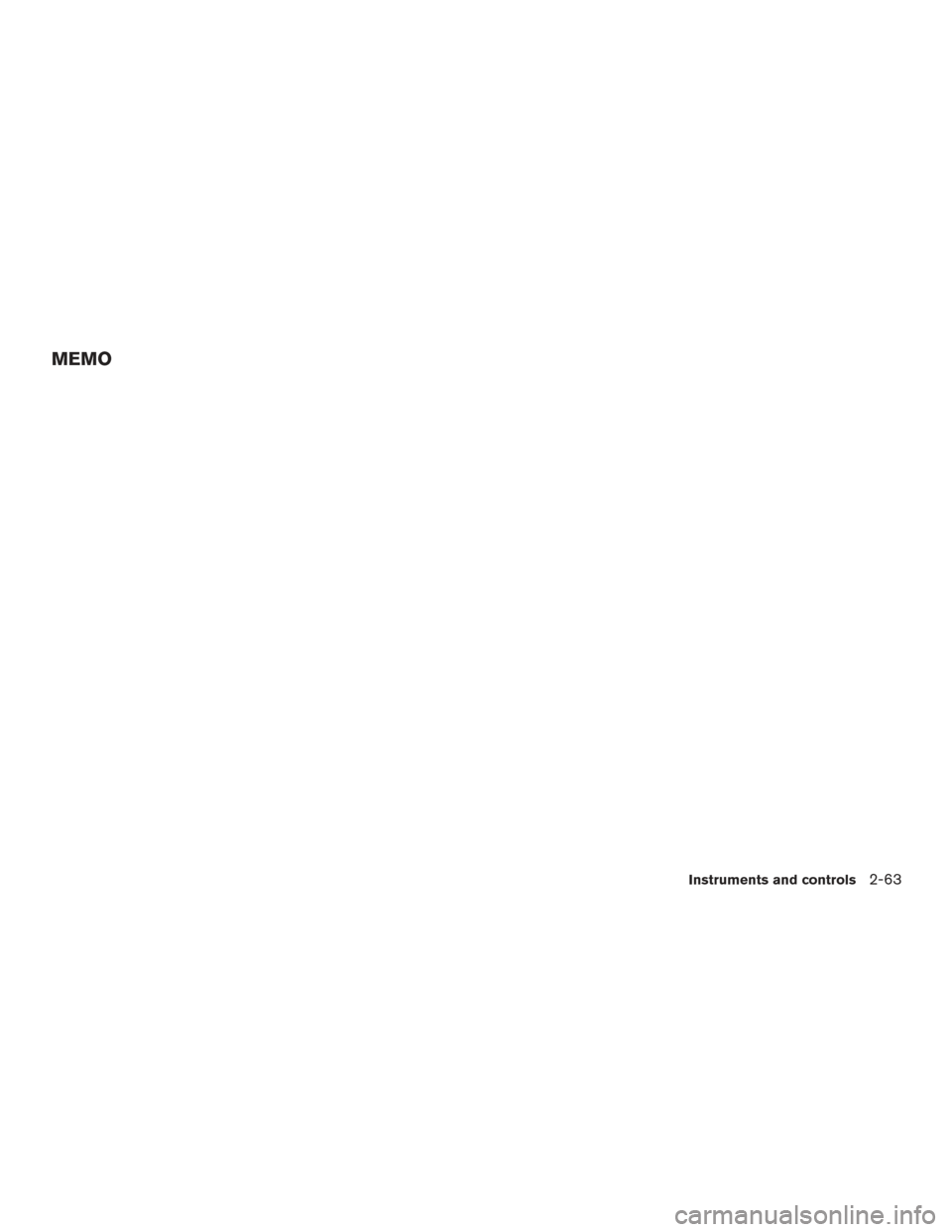

MEMO
Instruments and controls2-63

3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Intelligent Key® . .......................3-2
NISSAN Vehicle Immobilizer System keys .........3-4
Doors ............................................3-4
Locking with key ................................3-5
Locking with inside lock knob ....................3-6
Locking with power door lock switch . . . ..........3-6
Automatic door locks ...........................3-6
Child safety rear door lock .......................3-7
NISSAN Intelligent Key® ...........................3-7
Operating range ................................3-9
Door locks/unlocks precaution ...................3-9
NISSAN Intelligent Key® Operation .............3-10
How to use the remote keyless entry
function ...................................... 3-13
Warning signals ............................... 3-17
Troubleshooting guide ......................... 3-18
Remote Hybrid Start .............................. 3-20
Remote hybrid start operating range .............3-20
Remote starting the vehicle .....................3-21
Extending hybrid system run time ................3-21
Canceling a remote start .......................3-21
Conditions the remote start will not work .........3-22 Hood
........................................... 3-23
Liftgate .......................................... 3-24
Operating the manual liftgate
(if so equipped) ............................... 3-24
Operating the power liftgate (if so equipped) .....3-25
Motion-Activated Liftgate (if so equipped) ........3-28
Power liftgate main switch (if so equipped) .......3-30
Liftgate release ................................ 3-30
Liftgate position setting ........................ 3-31
Fuel-filler door ................................... 3-31
Opener operation .............................. 3-31
Fuel-filler cap ................................. 3-32
Steering wheel ................................... 3-34
Manual operation .............................. 3-34
Sun visors ....................................... 3-35
Vanity mirrors ................................. 3-35
Card holder (driver’s side only) ..................3-36
Mirrors .......................................... 3-36
Manual anti-glare

rearview mirror
(if so equipped) ............................... 3-36
Automatic Anti-glare rearview mirror
(if so equipped) ............................... 3-36
Outside mirrors ............................... 3-37
Automatic drive positioner (if so equipped) ..........3-38

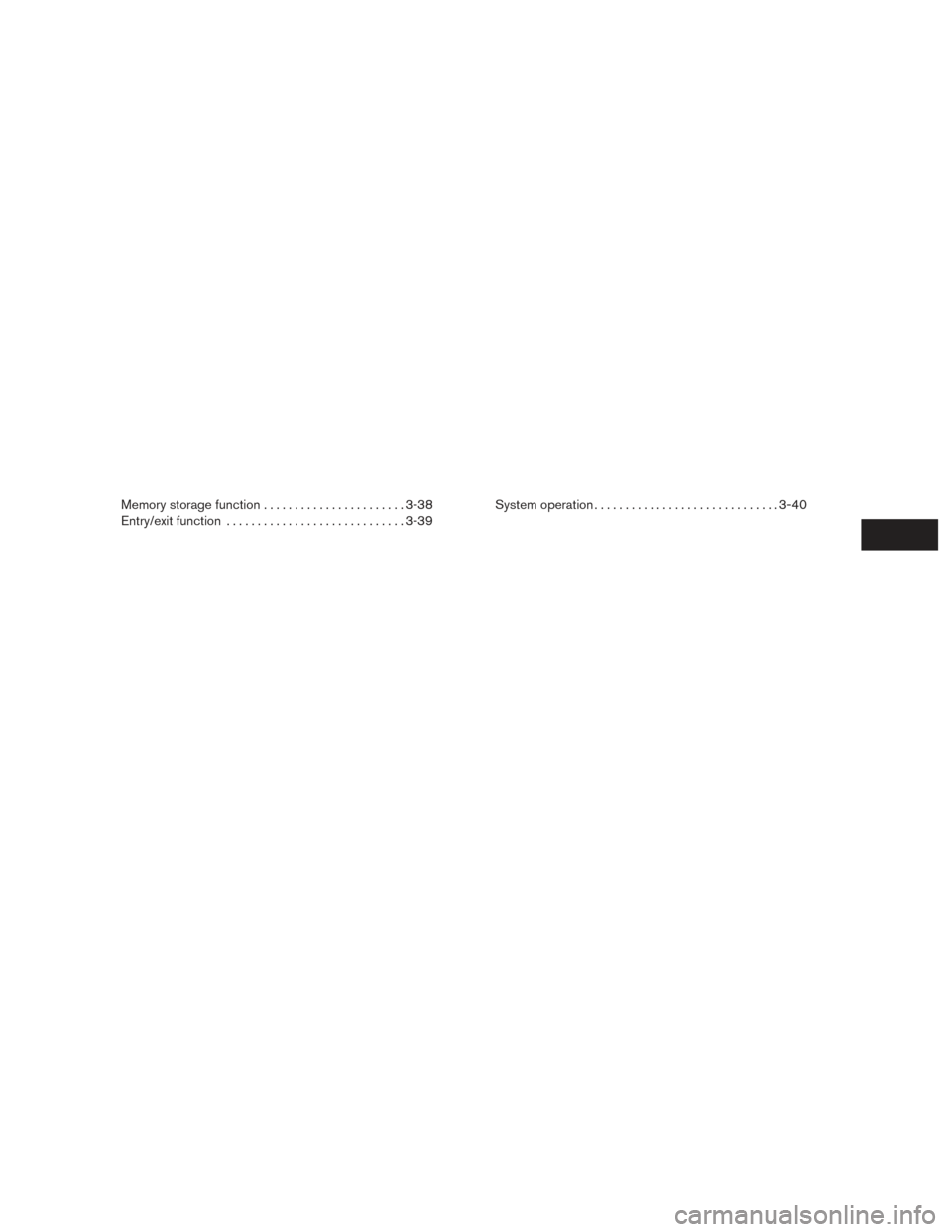

Memory storage function.......................3-38
Entry/exit function ............................. 3-39System operation
.............................. 3-40

1. Intelligent Keys (two sets)
2. Mechanical key
3. Key number plate (one plate)
NISSAN INTELLIGENT KEY®
Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intel-
ligent Key System components and NISSAN Ve-
hicle Immobilizer System components.
Never leave the keys in the vehicle.
As many as four Intelligent Keys can be regis-
tered and used with one vehicle. The new keysmust be registered prior to use with the Intelligent
Key System and NISSAN Vehicle Immobilizer
System of your vehicle. It is recommended that
you visit a NISSAN dealer for this service. Since
the registration process requires erasing all
memory in the Intelligent Key components when
registering new keys, be sure to take all Intelligent
Keys that you have to the NISSAN dealer.
A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet) , not in the vehicle. If you lose
your keys, it is recommended that you visit a
NISSAN dealer for duplicates by using the keynumber. NISSAN does not record key numbers
so it is very important to keep track of your key
number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, it can be duplicated
without knowing the key number.
CAUTION
Listed below are conditions or occur-
rences which will damage the Intelligent
Key:
●
Do not allow the Intelligent Key, which
contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent
Key.
● Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.
Type A (if so equipped)
LPD2279
Type B (if so equipped)
LPD2052
KEYS
3-2Pre-driving checks and adjustments

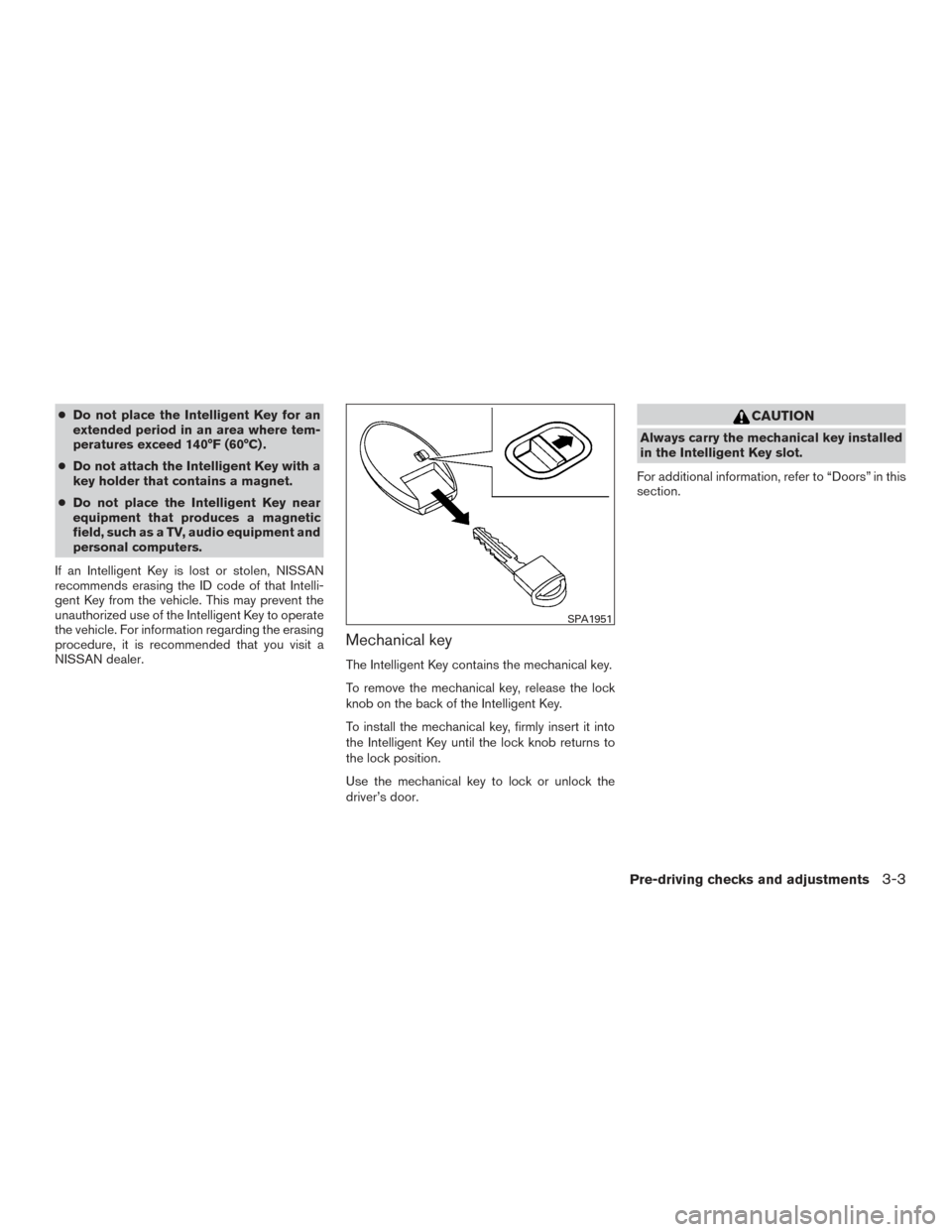

●Do not place the Intelligent Key for an
extended period in an area where tem-
peratures exceed 140°F (60°C) .
● Do not attach the Intelligent Key with a
key holder that contains a magnet.
● Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to operate
the vehicle. For information regarding the erasing
procedure, it is recommended that you visit a
NISSAN dealer.
Mechanical key
The Intelligent Key contains the mechanical key.
To remove the mechanical key, release the lock
knob on the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
driver’s door.
CAUTION
Always carry the mechanical key installed
in the Intelligent Key slot.
For additional information, refer to “Doors” in this
section.
SPA1951
Pre-driving checks and adjustments3-3

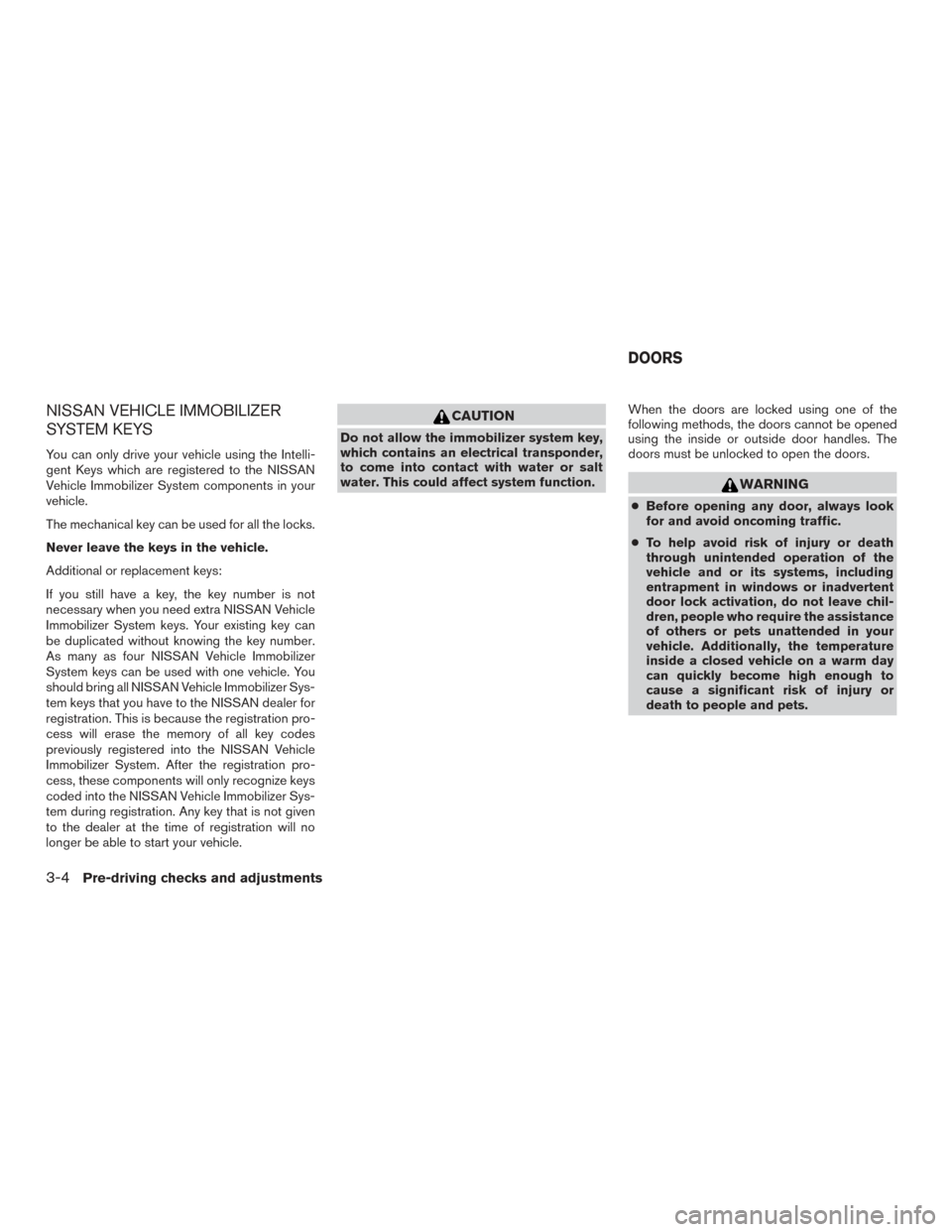

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the Intelli-
gent Keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle.
The mechanical key can be used for all the locks.
Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your existing key can
be duplicated without knowing the key number.
As many as four NISSAN Vehicle Immobilizer
System keys can be used with one vehicle. You
should bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to the NISSAN dealer for
registration. This is because the registration pro-
cess will erase the memory of all key codes
previously registered into the NISSAN Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys
coded into the NISSAN Vehicle Immobilizer Sys-
tem during registration. Any key that is not given
to the dealer at the time of registration will no
longer be able to start your vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.
WARNING
●
Before opening any door, always look
for and avoid oncoming traffic.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
DOORS
3-4Pre-driving checks and adjustments

LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock a door, turn the key toward the front of the
vehicle
1. To unlock, turn the key toward the rear
2.
Power
The power door lock system allows you to lock or
unlock all doors at the same time.
Turning the key toward the front
1of the vehicle
locks all doors.
Turning the key one time toward the rear
2of the
vehicle unlocks that door. From that position,
returning the key to neutral
3(where the key can
only be removed and inserted) and turning it
toward the rear again
4within 5 seconds un-
locks all doors.
Opening and closing windows
The driver’s door key operation allows you to
open and close windows equipped with auto-
matic operation at the same time.
● To open the windows, turn the driver’s door
key toward the rear of the vehicle for longer
than 1 second after the door is unlocked.
● To close the windows, turn the driver’s door
key toward the front of the vehicle for longer
than 1 second after the door is locked.
Windows stop when the key cylinder is released.
NOTE:
When the window lock button is pressed
the key will not operate the window open or
close function.
Driver’s side
LPD2129
Driver’s side
LPD0461
Pre-driving checks and adjustments3-5

LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the inside
lock knob to the lock position
1, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors without a key, push the door
lock switch (driver’s or front passenger’s side) to
the lock position
1. When locking the door this
way, be certain not to leave the key inside the
vehicle.
To unlock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the unlock position
2.
Lockout protection
When the power door lock switch is moved to the
lock position with any door open and the Intelli-
gent Key is left in the vehicle, all doors will unlock
automatically and a chime will sound after the
door is closed.
This function helps to prevent the Intelligent Key
from being accidentally locked inside the vehicle.
AUTOMATIC DOOR LOCKS
● All doors lock automatically when the vehicle
speed reaches 15 mph (24 km/h).
● All doors unlock automatically when the ig-
nition is placed in the OFF position.
Inside lock
SPA2726LPD2093
3-6Pre-driving checks and adjustments

CHILD SAFETY REAR DOOR LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially when
small children are in the vehicle.
The child safety lock levers are located on the
edge of the rear doors.
When the lever is in the LOCK position, the
door can be opened only from the outside.
WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● The Intelligent Key transmits radio
waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraft navigation and communi-
cation systems. Do not operate the In-
telligent Key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.
The Intelligent Key system can operate all the
door locks using the remote control function or
pushing the request switch on the vehicle without
taking the key out from a pocket or purse. The
operating environment and/or conditions may af-
fect the Intelligent Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
● Be sure to carry the Intelligent Key with
you when operating the vehicle.
● Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The Intel-
ligent Key system transmits weak radio waves.
Environmental conditions may interfere with the
operation of the Intelligent Key system under the
following operating conditions: ● When operating near a location where
strong radio waves are transmitted, such as
a TV tower, power station and broadcasting
station.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver, or a
CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter.
LPD2374
NISSAN INTELLIGENT KEY®
Pre-driving checks and adjustments3-7
