Page 231 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual 1. CAMERA button
LHA4362
MOVING OBJECT DETECTION (MOD)
(if so equipped)
4-28Monitor, climate, audio, phone and voice recognition systems

Page 232 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual WARNING
Failure to follow the warnings and instruc-
tions for proper use of the Moving Object
Detection (MOD) system could result in
serious injury or death
●The MOD system is not a substitute for
p

Page 233 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual ●When the shift lever is in the R (Reverse)
position and the vehicle speed is below ap-
proximately 6mph (10 km/h), the MOD sys-
tem detects moving objects in the rear view.
The MOD system will not

Page 234 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
●D

Page 235 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual Adjust air flow direction by moving the vent
slides.
Open or close the vents by using the dial. Move
the dial toward the
to open the vents or
toward the
to close them.
Side
LHA4301
Center
LHA4302
Rear

Page 236 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual 1.Front defroster button
2. Temperature control dial (driver’s side) /
ON-OFF button
3. MODE (manual air flow control) button
4. Display screen
5. A/C (air conditioner) button 6. Temperature control

Page 237 of 520

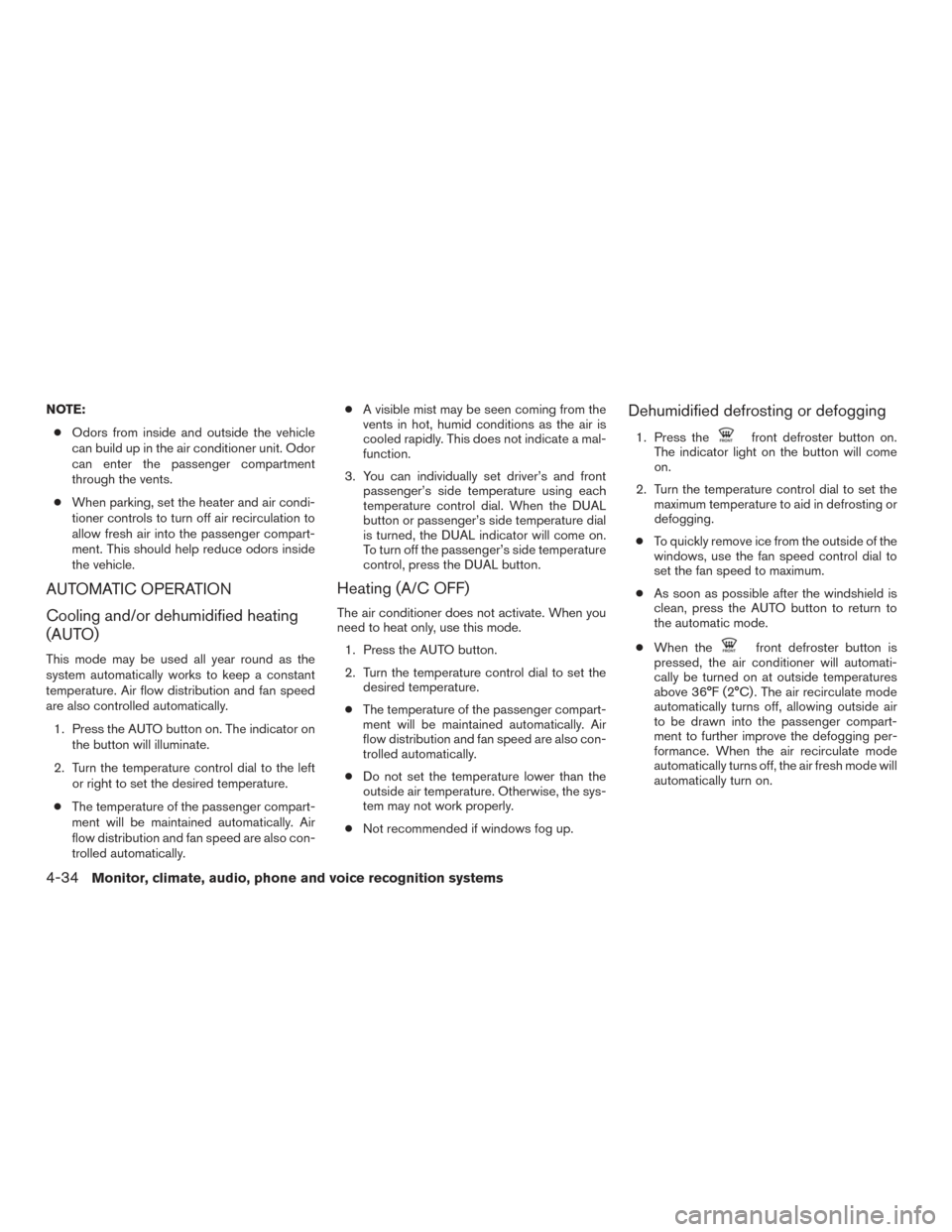

NISSAN ROGUE HYBRID 2017 2.G Owners Manual NOTE:● Odors from inside and outside the vehicle
can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.
● When parking, set the heater and air condi-

Page 238 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual Remote hybrid start logic (if so
equipped)
Vehicles equipped with automatic climate con-
trols and remote start function may go into auto-
matic heating or cooling mode when remote start
is activated

Page 239 of 520

NISSAN ROGUE HYBRID 2017 2.G Owners Manual The sunload sensor, located on the top and cen-
ter of the instrument panel, helps the system
maintain a constant temperature. Do not put any-
thing on or around this sensor.The air conditioner system

Page 240 of 520

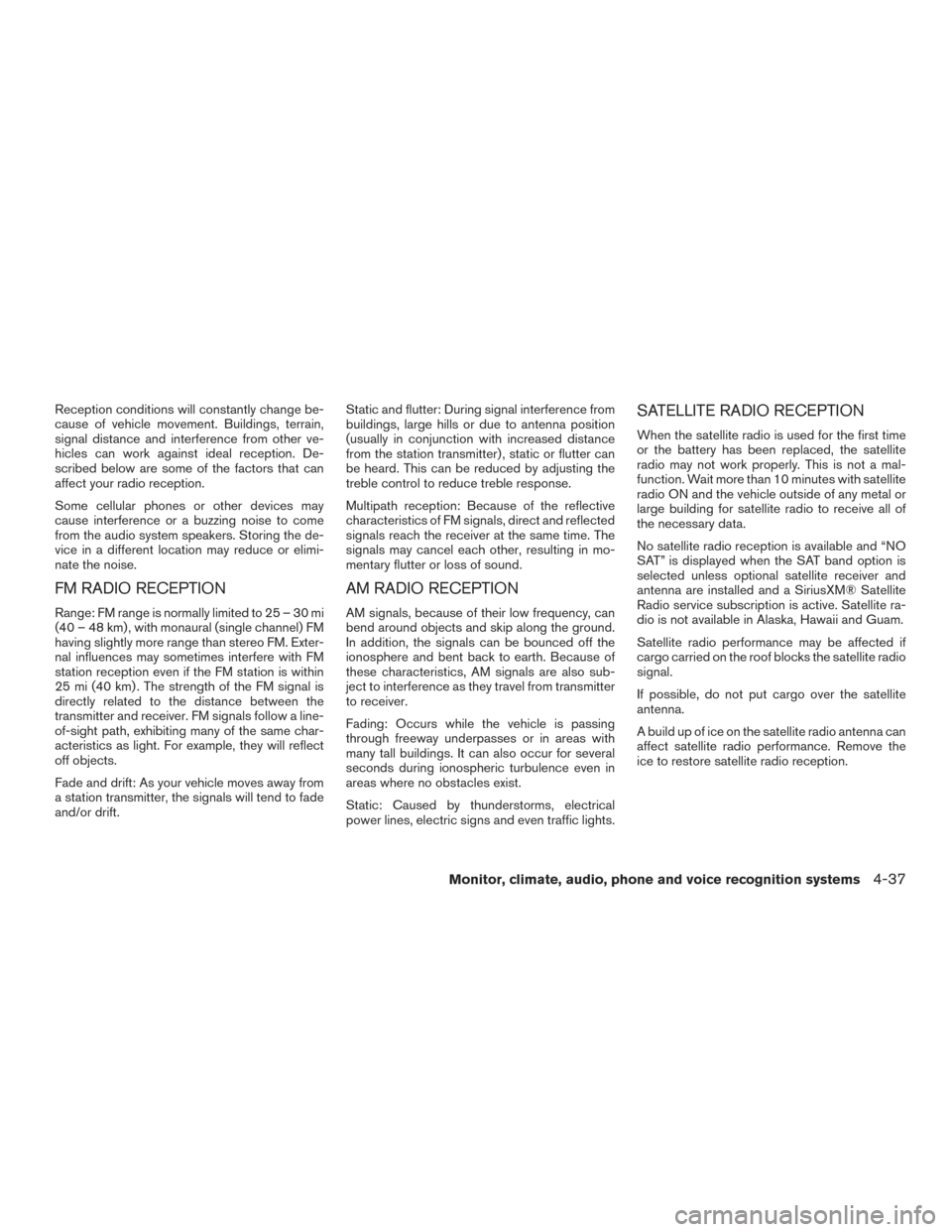

NISSAN ROGUE HYBRID 2017 2.G Owners Manual Reception conditions will constantly change be-
cause of vehicle movement. Buildings, terrain,
signal distance and interference from other ve-
hicles can work against ideal reception. De-
scribed belo
