dimensions NISSAN ROGUE HYBRID 2017 2.G Owners Manual
[x] Cancel search | Manufacturer: NISSAN, Model Year: 2017, Model line: ROGUE HYBRID, Model: NISSAN ROGUE HYBRID 2017 2.GPages: 520
Page 470 of 520
●For 2WD models, if your vehicle was
originally equipped with four tires that
were the same size and you are only
replacing two of the four tires, install
the new tires on the rear axle. Placing
new tires on the front axle may cause
loss of vehicle control in some driving
conditions and cause an accident and
personal injury
● If the wheels are changed for any rea-
son, always replace with wheels which
have the same off-set dimension.
Wheels of a different off-set could
cause premature tire wear, degrade ve-
hicle handling characteristics, affect the
VDC system and/or interference with
the brake discs/drums. Such interfer-
ence can lead to decreased braking ef-
ficiency and/or early brake pad/shoe
wear. For additional information on
wheel off-set dimensions, refer to
“Wheels and tires” in the “Technical and
consumer information” section of this
manual. ●
Since the spare tire is not equipped with
the TPMS, when a spare tire is mounted
or a wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you
visit a NISSAN dealer for this service.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
● The TPMS sensor may be damaged if it
is not handled correctly. Be careful
when handling the TPMS sensor.
● When replacing the TPMS sensor, the
ID registration may be required. It is
recommended that you visit a NISSAN
dealer for ID registration.
● Do not use a valve stem cap that is not
specified by NISSAN. The valve stem
cap may become stuck.
● Be sure that the valve stem caps are
correctly fitted. Otherwise the valve may
be clogged up with dirt and cause a
malfunction or loss of pressure. ●
Do not install a damaged or deformed
wheel or tire even if it has been re-
paired. Such wheels or tires could have
structural damage and could fail with-
out warning.
● The use of retread tires is not
recommended.
● For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
CAUTION
Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial) , and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires on
the front and rear axles which will cause
excessive tire wear and may damage the
transmission, transfer case and differen-
tial gears (AWD models) .
Do-it-yourself8-39
Page 490 of 520
10 Technical and consumer information
Recommended fluids/lubricants and capacities......10-2
Fuel recommendation .......................... 10-3
Engine oil and oil filter recommendations .........10-6
Air conditioner system refrigerant and oil
recommendations ............................. 10-7
Specifications .................................... 10-8
Engine ....................................... 10-8
Wheels and tires .............................. 10-9
Dimensions and weights .......................10-9
When traveling or registering in another country .....10-10
Vehicle identification ............................. 10-10
Vehicle identification number (VIN) plate ........10-10
Vehicle identification number
(chassis number) ............................. 10-10
Engine serial number .......................... 10-11
F.M.V.S.S./C.M.V.S.S. certification label .........10-11
Emission control information label ..............10-11
Tire and Loading Information label ..............10-12
Air conditioner specification label ...............10-12Installing front license plate
.......................10-12
Vehicle loading information .......................10-13
Terms ....................................... 10-13
Vehicle load capacity ......................... 10-14
Securing the load ............................. 10-15
Loading tips ................................. 10-16
Measurement of weights ......................10-16
Towing a trailer .................................. 10-17
Flat towing for All–Wheel drive vehicle
(if so equipped) .............................. 10-17
Flat towing for front wheel drive vehicle
(if so equipped) .............................. 10-17
Uniform tire quality grading .......................10-18
Emission control system warranty .................10-18
Reporting safety defects ......................... 10-19
Readiness for inspection/maintenance (I/M) test ....10-20
Event Data Recorders (EDR) ......................10-20
Owner’s Manual/Service Manual order information . .10-21
Page 498 of 520
WHEELS AND TIRES
Wheel typeSize
Aluminum 17 x 7J
18x7J
Tires Size
Non Run Flat 225/65R17
225/60R18
Spare tires Size
Spare Wheel - Steel T155/90D17

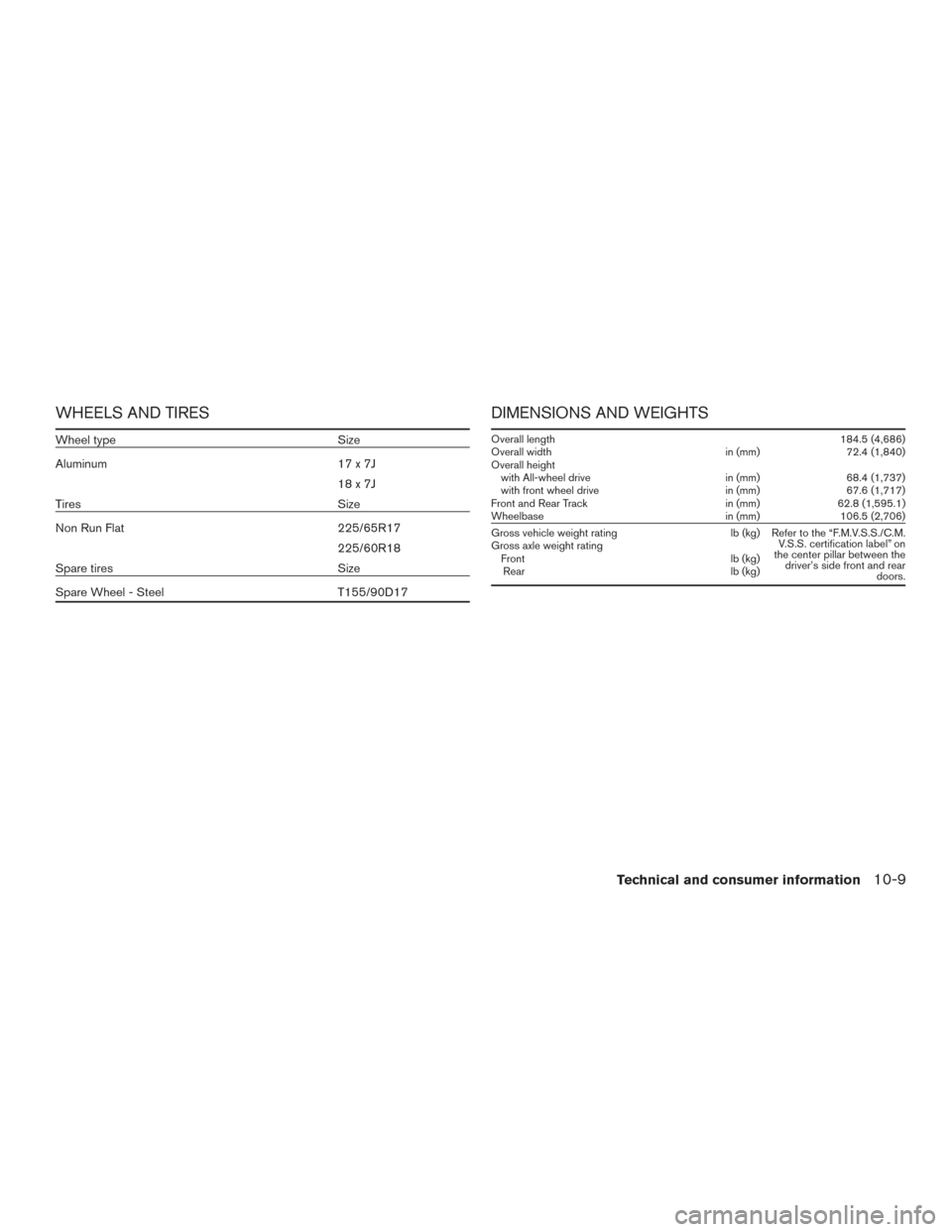

DIMENSIONS AND WEIGHTS
Overall length 184.5 (4,686)
Overall width in (mm)72.4 (1,840)
Overall height with All-wheel drive in (mm)68.4 (1,737)
with front wheel drive in (mm)67.6 (1,717)
Front and Rear Track in (mm)62.8 (1,595.1)
Wheelbase in (mm)106.5 (2,706)
Gross vehicle weight rating lb (kg) Refer to the “F.M.V.S.S./C.M.
V.S.S. certification label” on
the center pillar between the driver’s side front and rear doors.
Gross axle weight rating
Front lb (kg)
Rear lb (kg)
Technical and consumer information10-9
Page 513 of 520
Car phone or CB radio.............4-75
CD care and cleaning ..............4-68
CD player (See audio system) ......4-48,4-55
Checkingbulbs .................2-11
Check tire pressure ...............2-31
Child restraints .......1-19,1-20,1-21,1-23
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-23
Precautions on child
restraints.........1-21,1-28,1-34,1-39
Top tether strap anchor point locations . .1-26
Child restraint with top tether strap .......1-26
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-19
Cleaningexteriorandinterior........7-2,7-4
Clock setting
(models with Navigation System) ........4-7
Clock setting
(models without Navigation System) ......4-46
C.M.V.S.S. certification label .........10-11
Cold weather driving ...............5-97
Compact disc (CD) player ........4-48,4-55
Connect phone .................4-71
Consolebox...................2-50
Consolelight...................2-60
Continuously Variable Transmission (CVT) . . .5-17 Continuously Variable Transmission (CVT)
fluid ......................8-10
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons ...............4-4
Brightness/contrast button .........4-10
Enterbutton..................4-4
Setting button .................4-7
Controls Heater and air conditioner controls .....4-34Coolant
Capacities and recommended
fuel/lubricants ................10-2
Changingenginecoolant...........8-5
Checking engine coolant level ........8-5
Checking inverter coolant level ........8-6
Corrosion protection ...............7-7
Cruisecontrol..................5-41
Cupholders...................2-51
D
Daytime running light system (Canada only) . .2-41
Defroster switch Rear window and outside mirror defroster
switch.....................2-39
Dimensionsandweights ............10-9
Dimmer switch for instrument panel ......2-42
Display......................2-20
Display controls (see control panel buttons) . .4-4
Door locks .....................3-5
Doors ........................3-4
Drive positioner, Automatic ........3-38,3-40
Driving Cold weather driving .............5-97
Driving with Continuously Variable
Transmission (CVT) .............5-17
Precautions when starting and
driving ..................5-4,5-11
Driving the vehicle ................5-17
E
ECO mode switch ................5-23 Economy-fuel..................5-84
Emergency hybrid system shut off
.......5-15
Emission control information label ......10-11
Emission control system warranty .......10-18
Engine Before starting the engine ..........5-16
Capacities and recommended
fuel/lubricants ................10-2
Changing engine coolant ...........8-5
Changingengineoil..............8-8
Changing engine oil filter ...........8-9
Checking engine coolant level ........8-5
Checking engine oil level ...........8-7
Engine compartment check locations ....8-3
Engine cooling system ............
8
-4
Engineoil ...................8-7
Engine oil and oil filter recommendation . .10-6
Engine oil viscosity ..............10-6
Engine serial number ............10-11
Engine specifications ............10-8
Starting the engine .............5-16
Enter button ....................4-4
Event Data recorders .............10-20
Exhaust gas (Carbon monoxide) .........5-4
Explanation of maintenance items ........9-2
Explanation of scheduled maintenance items . .9-5
Extended storage switch .........2-48,8-22
Eyeglass case ..................2-50
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
11-2
Page 518 of 520
Towing a trailer.................10-17
Transmission Continuously Variable Transmission (CVT)
fluid......................8-10
Driving with Continuously Variable
Transmission (CVT) .............5-17
Travel (See registering a vehicle in another
country) .....................10-10
Trip odometer ...................2-5
Troubleshooting guide
(NISSAN voice recognition system) .....4-101
Turn signal switch ................2-42
U
Uniform tire quality grading ..........10-18
USB interface ...............4-57,4-59
Audio file operation ..........4-58,4-60
V
Vanity mirror ...................3-35
Vehicledimensionsandweights........10-9
Vehicle does not start ..............6-10
Vehicle dynamic control (VDC) off switch . . .2-45
Vehicle Dynamic Control (VDC) system ....5-91
Vehicle identification ..............10-10
Vehicle identification number (VIN) ......10-10
Vehicle identification number (VIN)
(Chassis number) ...............10-10
Vehicle identification number (VIN) plate . . .10-10
Vehicle immobilizer system ........2-35,5-16
Vehicle Information Display ...........2-20
Vehicleloadinginformation ..........10-13 Vehicle recovery
..............6-16,6-17
Vehicle security system .............2-34
Vehicle security system (NISSAN Vehicle
Immobilizer System) , engine start ....2-35,5-16
Ventilators ....................4-32
Visors.......................3-35
Voice Prompt Interrupt ..........4-78,4-90
Voice recognition system ............4-97
W
Warning Airbagwarninglight.........1-60,2-16
Anti-lock brake warning light ........2-11
Battery charge warning light ........2-11
Blind Spot Warning (BSW) warning
light......................5-24
Brake warning light ..........2-11,2-12
Hazard warning flasher switch ........6-2
Loose fuel cap warning ........2-31,3-33
Lowfuelwarninglight.....2-14,2-15,2-31
Low tire pressure warning light .......2-13
Low windshield-washer fluid warning
light......................2-31
Passenger air bag and status light .....1-51
Seatbeltwarninglight........1-14,2-15
Supplemental air bag warning
light ..................1-60,2-16
TPMS ......................2-4
Vehicle security system ...........2-34
Warning/indicator lights and audible
reminders............2-10,2-11,2-16
Warning labels (for SRS) ..........1-59
Warning/indicator lights and audible
reminders..............2-10,2-11,2-16 Audiblereminders.......2-10,2-11,2-16
Checkingbulbs ...............2-11
Indicatorlights.........2-10,2-11,2-16
Warning lights
.........2-10,2-11,2-16
Warning lights ...........2-10,2-11,2-16
Warning lights, indicator lights and audible
reminders.....................2-10
Washer switch Rear window wiper and washer
switches...................2-38
Weights (See dimensions and weights) ....10-9
Wheels and tires .................8-28
Wheel/tire size ..................10-9
When traveling or registering in another
country .....................10-10
Windows .....................2-55
Locking passengers’ windows .......2-55
Power rear windows .............2-56
Power windows ...............2-55
Rear power windows ............2-56
Windshield-washerfluid.............8-11
Windshieldwiperblades............8-16
Wiper Rear window wiper and washer
switches...................2-38
Wiperblades.................8-16
Wiper and washer switch ............2-36
11-7
