NISSAN ROGUE HYBRID 2019 Owners Manual

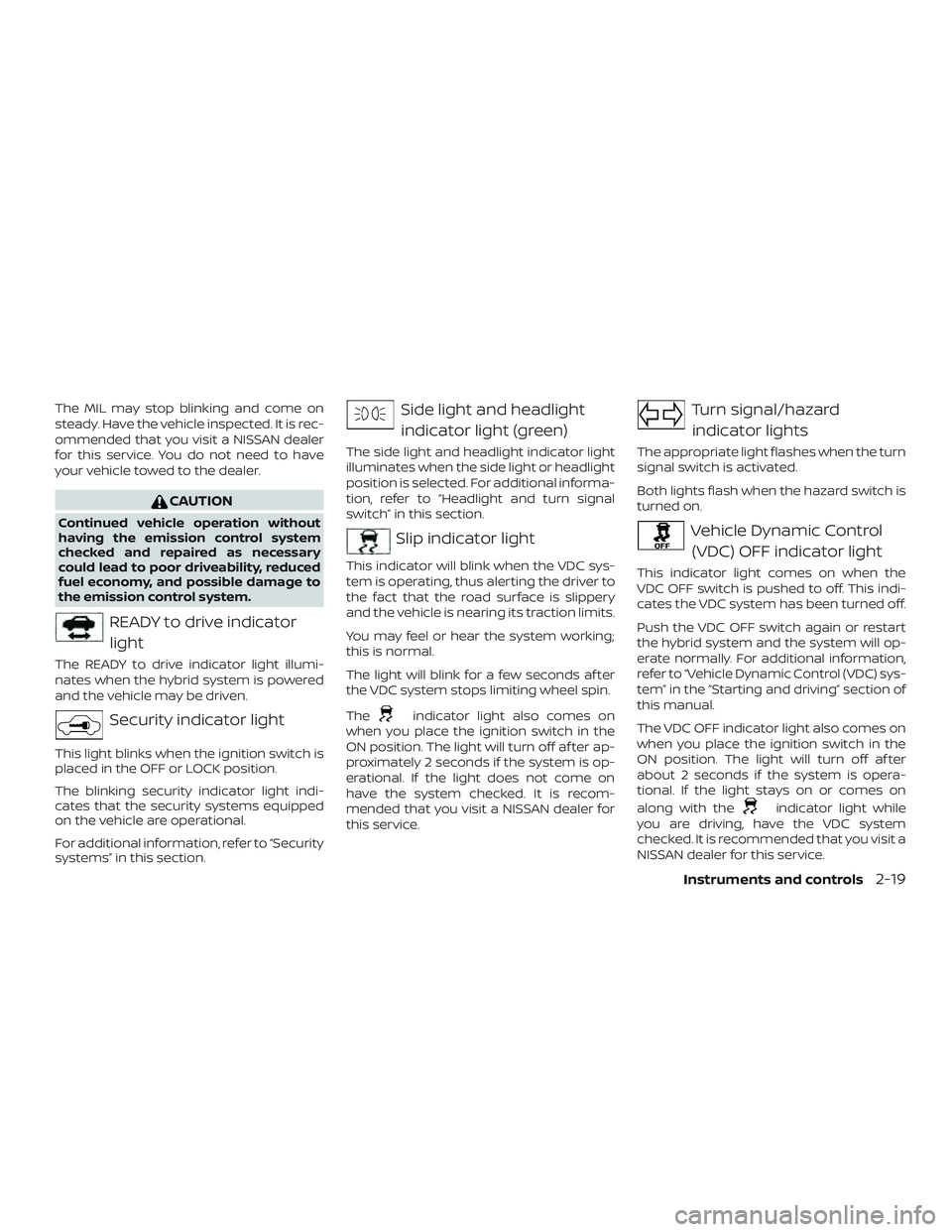

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
READY to drive indicatorlight
The READY to drive indicator light illumi-
nates when the hybrid system is powered
and the vehicle may be driven.
Security indicator light
This light blinks when the ignition switch is
placed in the OFF or LOCK position.
The blinking security indicator light indi-
cates that the security systems equipped
on the vehicle are operational.
For additional information, refer to “Security
systems” in this section.
Side light and headlightindicator light (green)
The side light and headlight indicator light
illuminates when the side light or headlight
position is selected. For additional informa-
tion, refer to “Headlight and turn signal
switch” in this section.
Slip indicator light
This indicator will blink when the VDC sys-
tem is operating, thus alerting the driver to
the fact that the road surface is slippery
and the vehicle is nearing its traction limits.
You may feel or hear the system working;
this is normal.
The light will blink for a few seconds af ter
the VDC system stops limiting wheel spin.
The
indicator light also comes on
when you place the ignition switch in the
ON position. The light will turn off af ter ap-
proximately 2 seconds if the system is op-
erational. If the light does not come on
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.
Turn signal/hazard
indicator lights
The appropriate light flashes when the turn
signal switch is activated.
Both lights flash when the hazard switch is
turned on.
Vehicle Dynamic Control (VDC) OFF indicator light
This indicator light comes on when the
VDC OFF switch is pushed to off. This indi-
cates the VDC system has been turned off.
Push the VDC OFF switch again or restart
the hybrid system and the system will op-
erate normally. For additional information,
refer to “Vehicle Dynamic Control (VDC) sys-
tem” in the “Starting and driving” section of
this manual.
The VDC OFF indicator light also comes on
when you place the ignition switch in the
ON position. The light will turn off af ter
about 2 seconds if the system is opera-
tional. If the light stays on or comes on
along with the
indicator light while
you are driving, have the VDC system
checked. It is recommended that you visit a
NISSAN dealer for this service.
Instruments and controls2-19

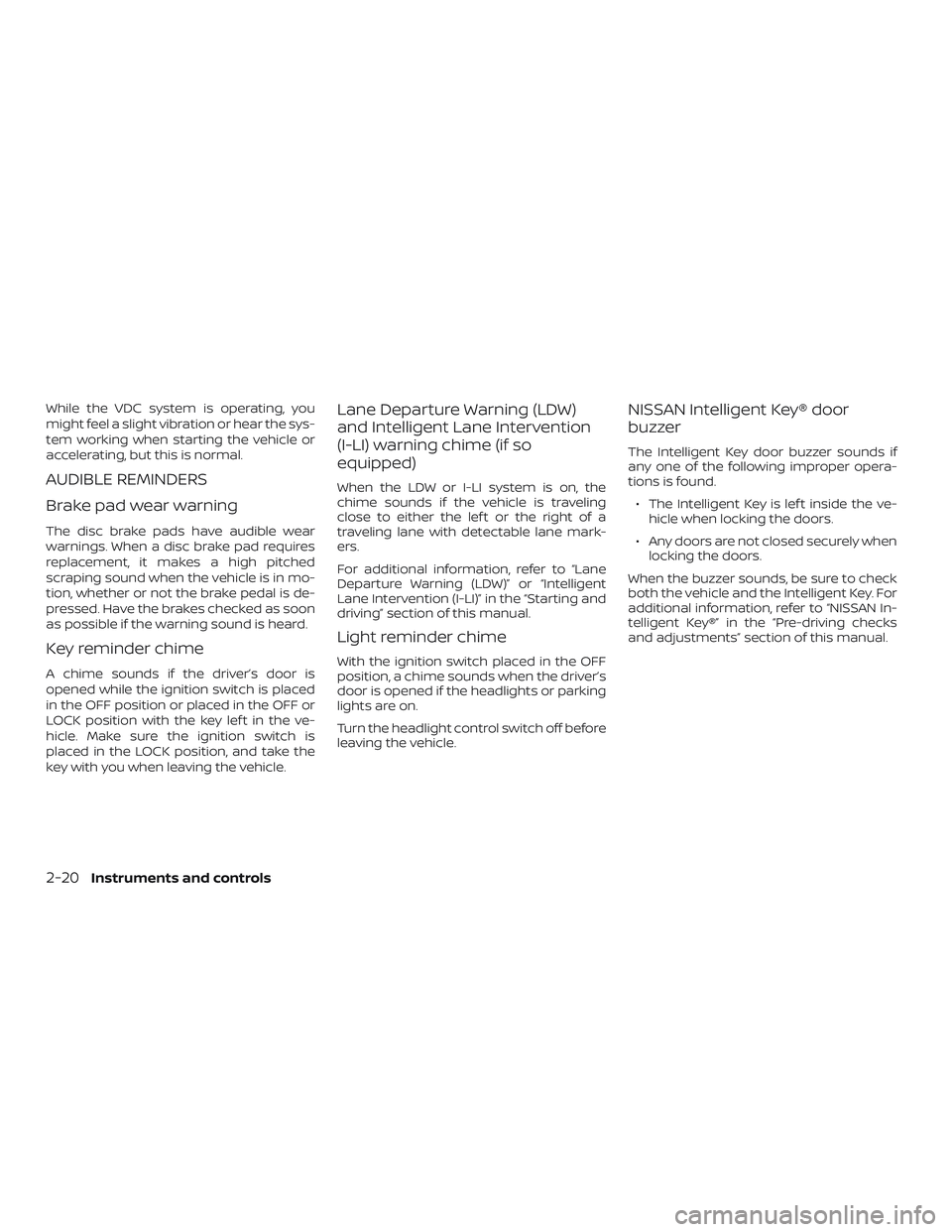

While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or
accelerating, but this is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard.
Key reminder chime
A chime sounds if the driver’s door is
opened while the ignition switch is placed
in the OFF position or placed in the OFF or
LOCK position with the key lef t in the ve-
hicle. Make sure the ignition switch is
placed in the LOCK position, and take the
key with you when leaving the vehicle.
Lane Departure Warning (LDW)
and Intelligent Lane Intervention
(I-LI) warning chime (if so
equipped)
When the LDW or I-LI system is on, the
chime sounds if the vehicle is traveling
close to either the lef t or the right of a
traveling lane with detectable lane mark-
ers.
For additional information, refer to “Lane
Departure Warning (LDW)” or “Intelligent
Lane Intervention (I-LI)” in the “Starting and
driving” section of this manual.
Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.
Turn the headlight control switch off before
leaving the vehicle.
NISSAN Intelligent Key® door
buzzer
The Intelligent Key door buzzer sounds if
any one of the following improper opera-
tions is found.∙ The Intelligent Key is lef t inside the ve- hicle when locking the doors.
∙ Any doors are not closed securely when locking the doors.
When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key. For
additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.
2-20Instruments and controls

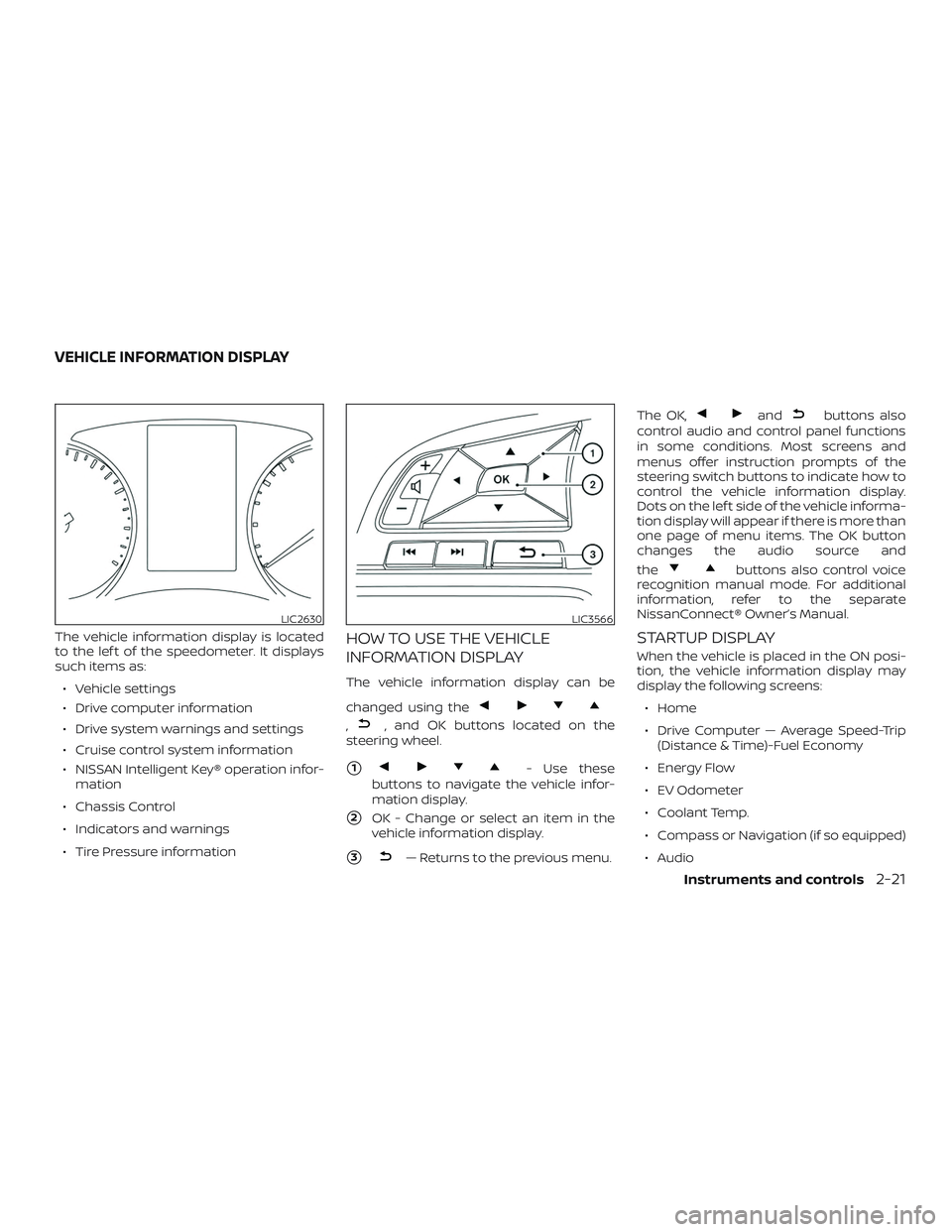

The vehicle information display is located
to the lef t of the speedometer. It displays
such items as:∙ Vehicle settings
∙ Drive computer information
∙ Drive system warnings and settings
∙ Cruise control system information
∙ NISSAN Intelligent Key® operation infor- mation
∙ Chassis Control
∙ Indicators and warnings
∙ Tire Pressure informationHOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be
changed using the
,, and OK buttons located on the
steering wheel.
1- Use these
buttons to navigate the vehicle infor-
mation display.
2OK - Change or select an item in the
vehicle information display.
3— Returns to the previous menu. The OK,
andbuttons also
control audio and control panel functions
in some conditions. Most screens and
menus offer instruction prompts of the
steering switch buttons to indicate how to
control the vehicle information display.
Dots on the lef t side of the vehicle informa-
tion display will appear if there is more than
one page of menu items. The OK button
changes the audio source and
the
buttons also control voice
recognition manual mode. For additional
information, refer to the separate
NissanConnect® Owner’s Manual.
STARTUP DISPLAY
When the vehicle is placed in the ON posi-
tion, the vehicle information display may
display the following screens:
∙ Home
∙ Drive Computer — Average Speed-Trip (Distance & Time)-Fuel Economy
∙ Energy Flow
∙ EV Odometer
∙ Coolant Temp.
∙ Compass or Navigation (if so equipped)
∙ Audio
LIC2630LIC3566
VEHICLE INFORMATION DISPLAY
Instruments and controls2-21

∙ Intelligent Cruise (if so equipped)
∙ Driving Aids
∙ Tire Pressures
∙ 4x4–i
∙ Chassis Control
∙ Warnings
∙ Settings
Warnings will only display if there are any
present. For additional information, refer to
“Vehicle information display warnings and
indicators” in this section.
To control which items display in the ve-
hicle information display, refer to “Meter
settings” in this section.
RESETTING THE DRIVE COMPUTER
1. Press theorbuttons until
you reach the desired drive computer
mode.
NOTE:
Once you have a drive computer dis-
played, you can use the
andbuttons to switch between Drive Com-
puter
1or2. 2. Press the OK button.
3. Select one of the following items:
∙ “Cancel” — returns to the previous screen without resetting the trip com-
puter.
∙ Drive computer value – “Average Speed” - resets the averagespeed of the selected drive com-
puter.
– “Distance” - resets the distance and time of the selected drive computer.
– “Fuel Economy” - resets the fuel economy of the selected drive com-
puter.
∙ “All” — resets all linked values for the se- lected drive computer. This includes
distance and time, average fuel
economy and average speed informa-
tion for the selected drive computer.
NOTE:
Drive computer 2 will automatically reset
each time the ignition is placed in the
OFF position.
SETTINGS
The setting mode allows you to change the
information displayed in the vehicle infor-
mation display: ∙ Driver Assistance
∙ Clock
∙ Meter Settings
∙ Vehicle Settings
∙ Maintenance
∙ Alarm
∙ Tire Pressures
∙ Unit
∙ Language
∙ Factory Reset
2-22Instruments and controls

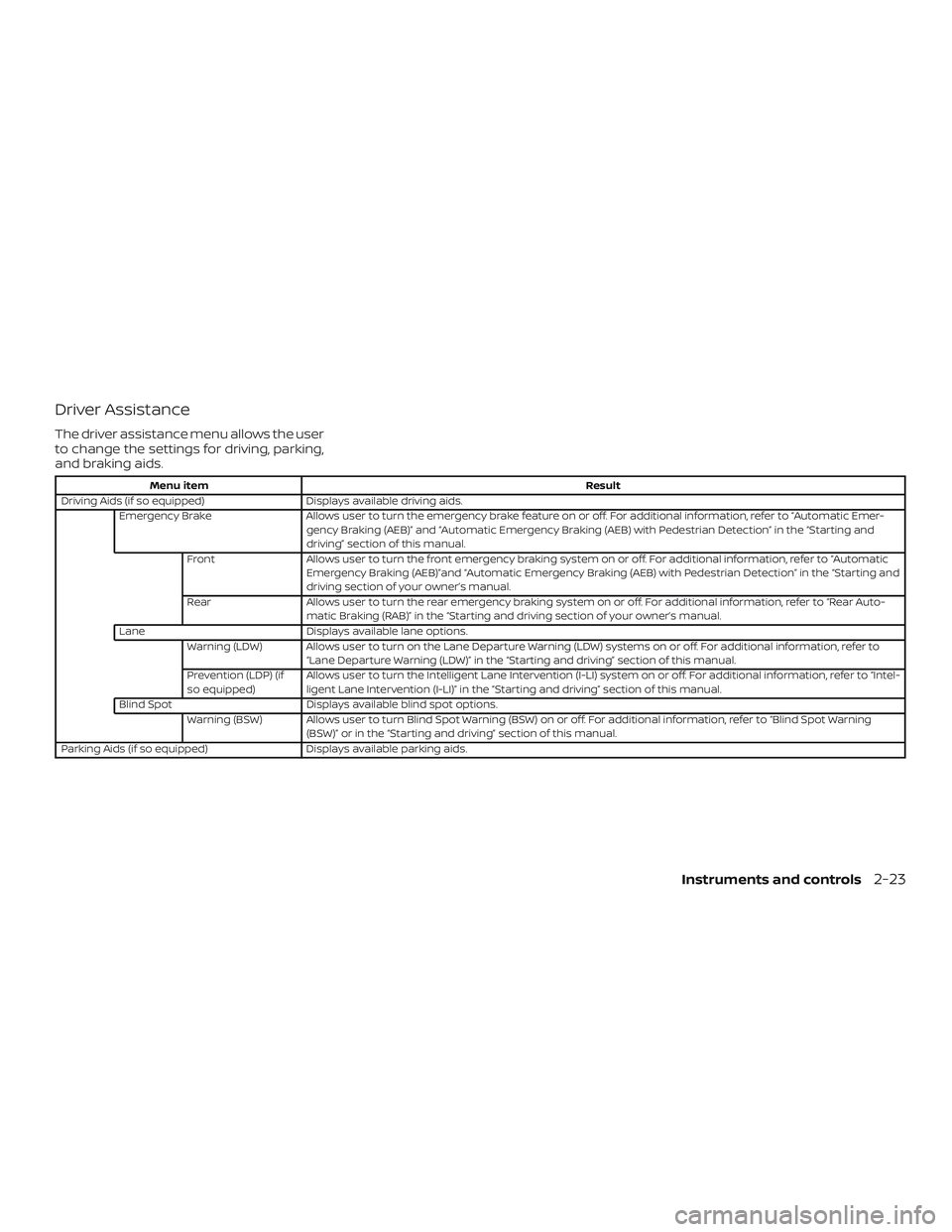

Driver Assistance
The driver assistance menu allows the user
to change the settings for driving, parking,
and braking aids.
Menu itemResult
Driving Aids (if so equipped) Displays available driving aids.
Emergency Brake Allows user to turn the emergency brake feature on or off. For additional information, refer to “Automatic Emer-
gency Braking (AEB)” and “Automatic Emergency Braking (AEB) with Pedestrian Detection” in the “Starting and
driving” section of this manual.
Front Allows user to turn the front emergency braking system on or off. For additional information, refer to “Automatic
Emergency Braking (AEB)”and “Automatic Emergency Braking (AEB) with Pedestrian Detection” in the “Starting and
driving section of your owner’s manual.
Rear Allows user to turn the rear emergency braking system on or off. For additional information, refer to “Rear Auto-
matic Braking (RAB)” in the “Starting and driving section of your owner’s manual.
Lane Displays available lane options.
Warning (LDW) Allows user to turn on the Lane Departure Warning (LDW) systems on or off. For additional information, refer to “Lane Departure Warning (LDW)” in the “Starting and driving” section of this manual.
Prevention (LDP) (if
so equipped) Allows user to turn the Intelligent Lane Intervention (I-LI) system on or off. For additional information, refer to “Intel-
ligent Lane Intervention (I-LI)” in the “Starting and driving” section of this manual.
Blind Spot Displays available blind spot options.
Warning (BSW) Allows user to turn Blind Spot Warning (BSW) on or off. For additional information, refer to “Blind Spot Warning (BSW)” or in the “Starting and driving” section of this manual.
Parking Aids (if so equipped) Displays available parking aids.
Instruments and controls2-23

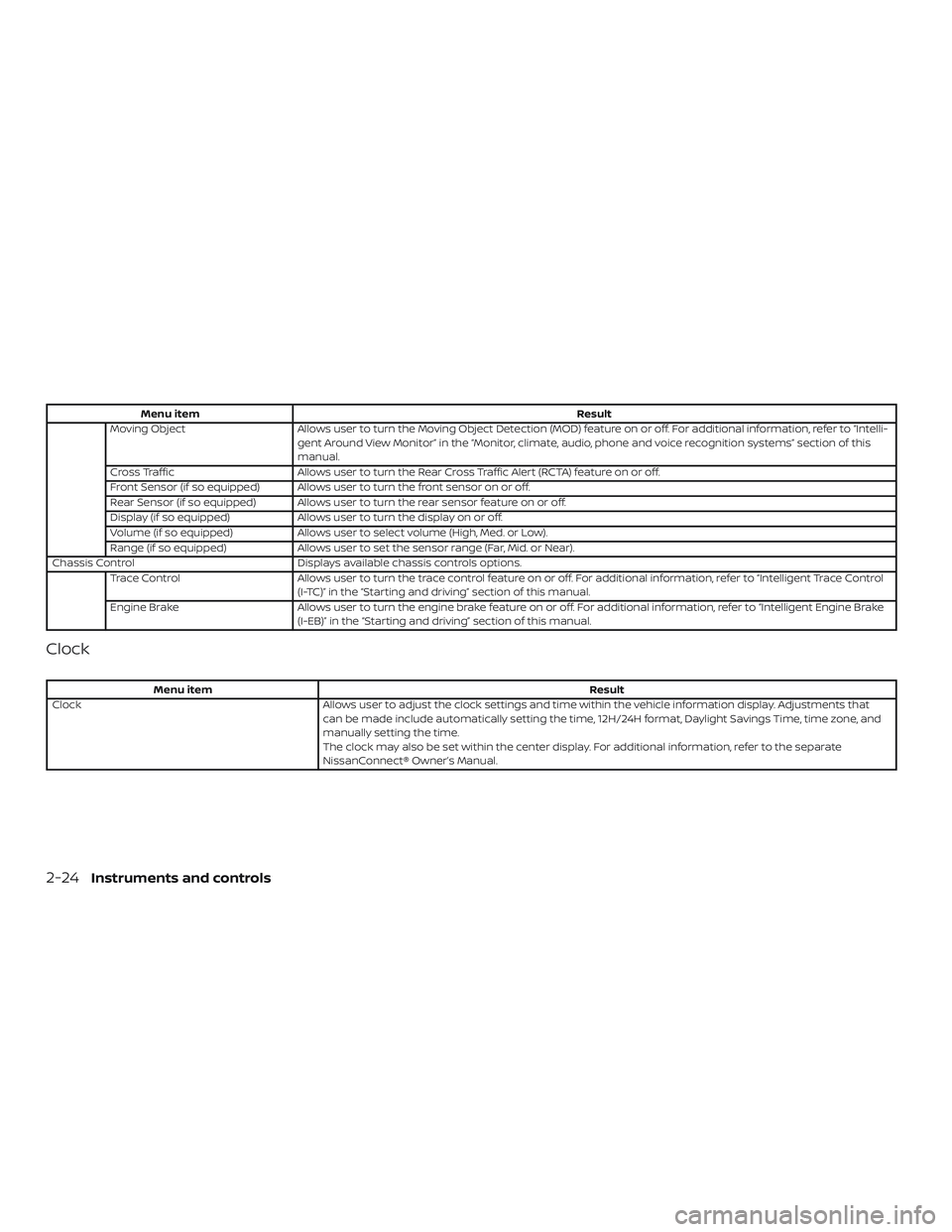

Menu itemResult
Moving Object Allows user to turn the Moving Object Detection (MOD) feature on or off. For additional information, refer to “Intelli-
gent Around View Monitor” in the “Monitor, climate, audio, phone and voice recognition systems” section of this
manual.
Cross Traffic Allows user to turn the Rear Cross Traffic Alert (RCTA) feature on or off.
Front Sensor (if so equipped) Allows user to turn the front sensor on or off.
Rear Sensor (if so equipped) Allows user to turn the rear sensor feature on or off.
Display (if so equipped) Allows user to turn the display on or off.
Volume (if so equipped) Allows user to select volume (High, Med. or Low).
Range (if so equipped) Allows user to set the sensor range (Far, Mid. or Near).
Chassis Control Displays available chassis controls options.
Trace Control Allows user to turn the trace control feature on or off. For additional information, refer to “Intelligent Trace Control
(I-TC)” in the “Starting and driving” section of this manual.
Engine Brake Allows user to turn the engine brake feature on or off. For additional information, refer to “Intelligent Engine Brake
(I-EB)” in the “Starting and driving” section of this manual.
Clock
Menu item Result
Clock Allows user to adjust the clock settings and time within the vehicle information display. Adjustments that
can be made include automatically setting the time, 12H/24H format, Daylight Savings Time, time zone, and
manually setting the time.
The clock may also be set within the center display. For additional information, refer to the separate
NissanConnect® Owner’s Manual.
2-24Instruments and controls

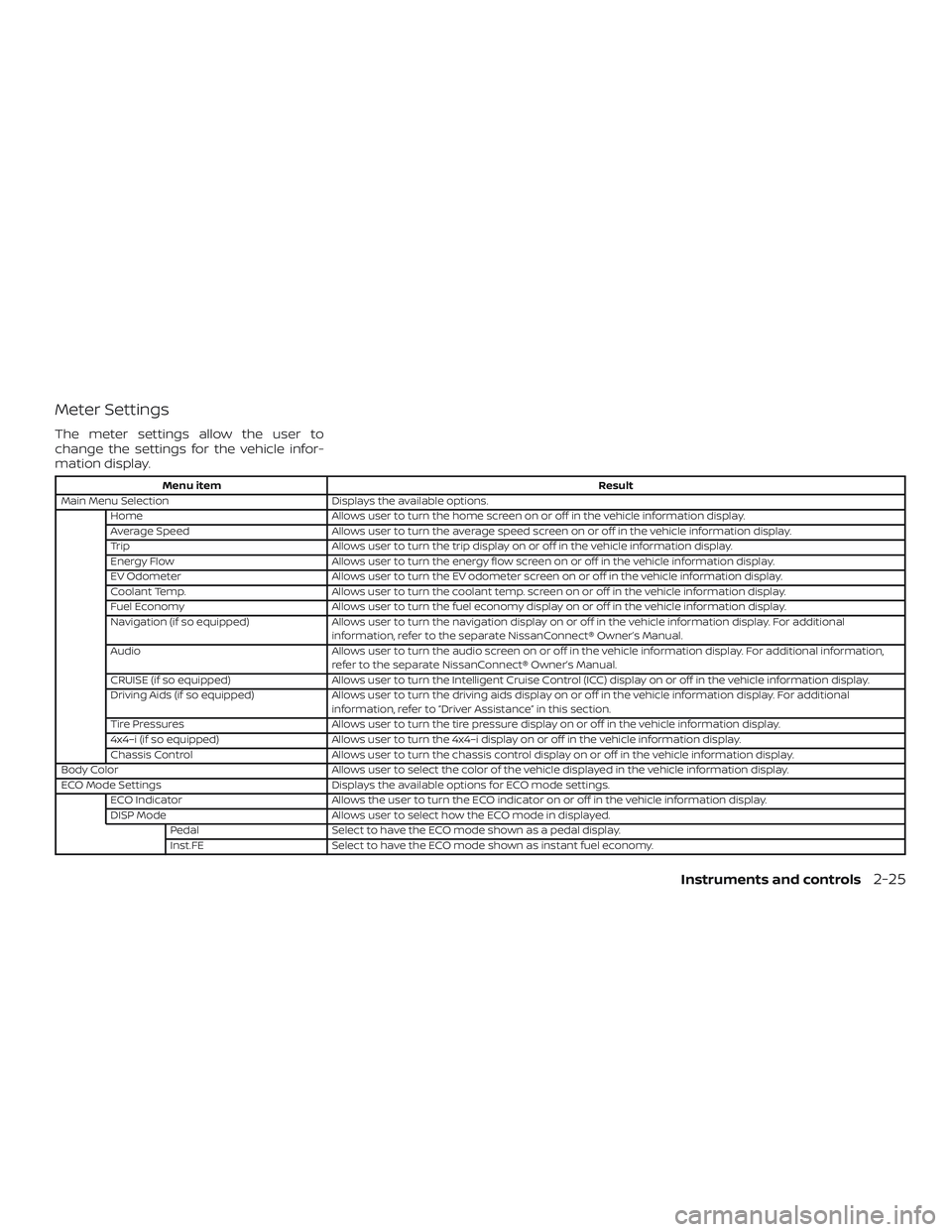

Meter Settings
The meter settings allow the user to
change the settings for the vehicle infor-
mation display.
Menu itemResult
Main Menu Selection Displays the available options.
Home Allows user to turn the home screen on or off in the vehicle information display.
Average Speed Allows user to turn the average speed screen on or off in the vehicle information display.
Trip Allows user to turn the trip display on or off in the vehicle information display.
Energy Flow Allows user to turn the energy flow screen on or off in the vehicle information display.
EV Odometer Allows user to turn the EV odometer screen on or off in the vehicle information display.
Coolant Temp. Allows user to turn the coolant temp. screen on or off in the vehicle information display.
Fuel Economy Allows user to turn the fuel economy display on or off in the vehicle information display.
Navigation (if so equipped) Allows user to turn the navigation display on or off in the vehicle information display. For additional
information, refer to the separate NissanConnect® Owner’s Manual.
Audio Allows user to turn the audio screen on or off in the vehicle information display. For additional information,
refer to the separate NissanConnect® Owner’s Manual.
CRUISE (if so equipped) Allows user to turn the Intelligent Cruise Control (ICC) display on or off in the vehicle information display.
Driving Aids (if so equipped) Allows user to turn the driving aids display on or off in the vehicle information display. For additional
information, refer to “Driver Assistance” in this section.
Tire Pressures Allows user to turn the tire pressure display on or off in the vehicle information display.
4x4–i (if so equipped) Allows user to turn the 4x4–i display on or off in the vehicle information display.
Chassis Control Allows user to turn the chassis control display on or off in the vehicle information display.
Body Color Allows user to select the color of the vehicle displayed in the vehicle information display.
ECO Mode Settings Displays the available options for ECO mode settings.
ECO Indicator Allows the user to turn the ECO indicator on or off in the vehicle information display.
DISP Mode Allows user to select how the ECO mode in displayed.
Pedal Select to have the ECO mode shown as a pedal display.
Inst.FE Select to have the ECO mode shown as instant fuel economy.
Instruments and controls2-25

Menu itemResult
ECO Drive Report Displays the available options for the ECO drive report.
Display Allows user to turn the ECO drive report on or off.
View History Allows user to view and reset ECO drive report history.
Welcome Effect Displays the available options for the welcome effect.
Dial Effect Allows user to turn the dial effect on or off.
Display Effect Allows user to turn the display effect on or off.
Vehicle Settings
The vehicle settings allow the user to
change the settings for lights, wipers, lock-
ing, keys, and other vehicle settings.
Menu item Result
Lighting Displays the available lighting options.
Welcome Light Allows user to turn the welcome light on or off.
Auto Room Lamp Allows user to turn the auto room lamp on or off.
Light Sensitivity Allows user to change when the lights illuminate based on the brightness outside the vehicle.
Light Off Delay Allows user to change the duration of time that the automatic headlights stay on af ter the vehicle is shut off.
Turn indicator Displays the available turn indicator options.
3 Flash Pass Allows user to turn the 3 flash pass feature on or off.
Locking Displays the available locking options.
I-Key Door Lock Allows user to turn I-Key door lock on or off. When turned on, the request switch on the door is activated.
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked af ter the
door unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is
pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the
door unlock operation is performed again within 1 minute. When this item is turned off, all the doors will be
unlocked af ter the door unlock operation is performed once.
Auto Door Unlock Allows user to customize the auto door unlock options.
Ignition OFF Doors will unlock when the vehicle ignition is placed in the OFF position.
2-26Instruments and controls

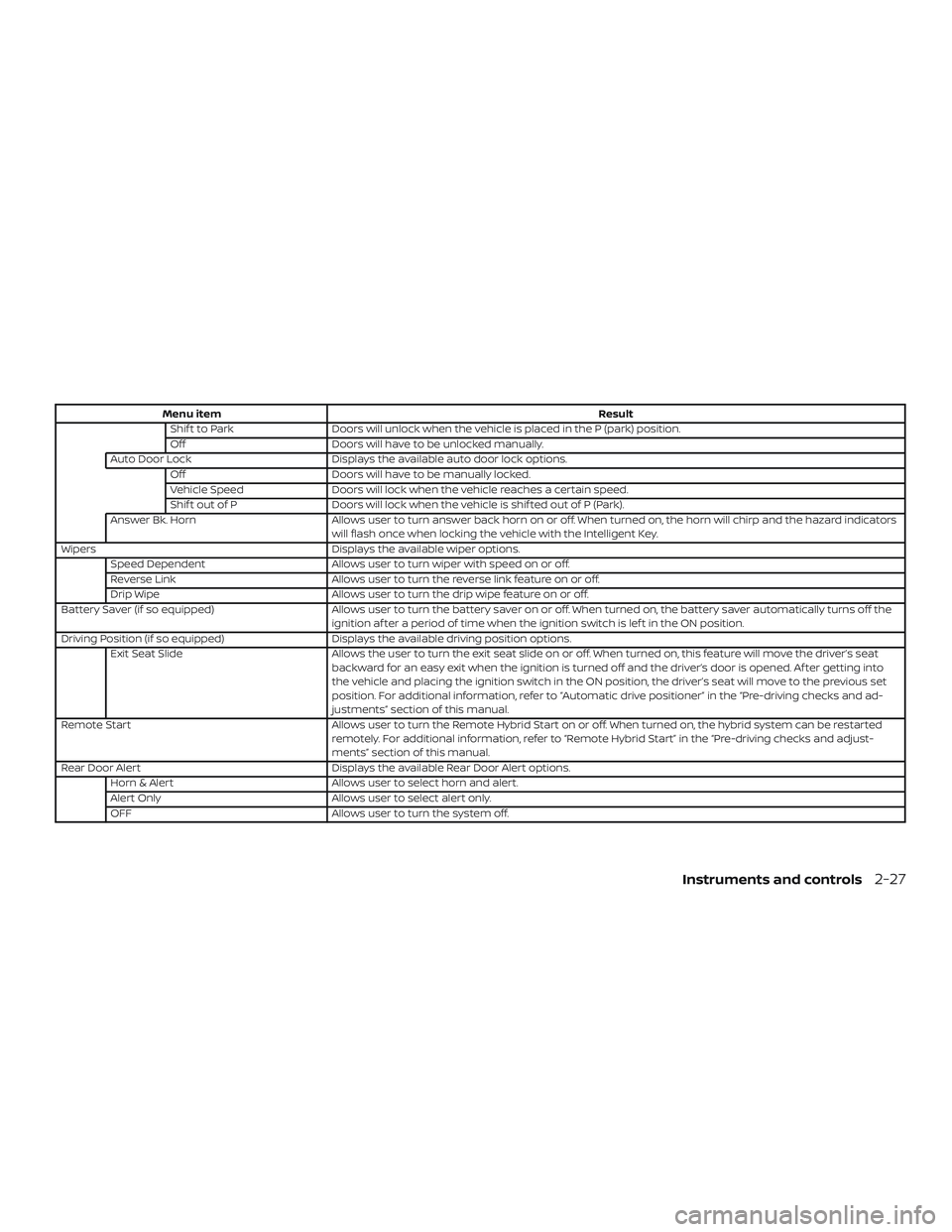

Menu itemResult
Shif t to Park Doors will unlock when the vehicle is placed in the P (park) position.
Off Doors will have to be unlocked manually.
Auto Door Lock Displays the available auto door lock options.
Off Doors will have to be manually locked.
Vehicle Speed Doors will lock when the vehicle reaches a certain speed.
Shif t out of P Doors will lock when the vehicle is shif ted out of P (Park).
Answer Bk. Horn Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators
will flash once when locking the vehicle with the Intelligent Key.
Wipers Displays the available wiper options.
Speed Dependent Allows user to turn wiper with speed on or off.
Reverse Link Allows user to turn the reverse link feature on or off.
Drip Wipe Allows user to turn the drip wipe feature on or off.
Battery Saver (if so equipped) Allows user to turn the battery saver on or off. When turned on, the battery saver automatically turns off the
ignition af ter a period of time when the ignition switch is lef t in the ON position.
Driving Position (if so equipped) Displays the available driving position options.
Exit Seat Slide Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat
backward for an easy exit when the ignition is turned off and the driver’s door is opened. Af ter getting into
the vehicle and placing the ignition switch in the ON position, the driver’s seat will move to the previous set
position. For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and ad-
justments” section of this manual.
Remote Start Allows user to turn the Remote Hybrid Start on or off. When turned on, the hybrid system can be restarted
remotely. For additional information, refer to “Remote Hybrid Start” in the “Pre-driving checks and adjust-
ments” section of this manual.
Rear Door Alert Displays the available Rear Door Alert options.
Horn & Alert Allows user to select horn and alert.
Alert Only Allows user to select alert only.
OFF Allows user to turn the system off.
Instruments and controls2-27

Maintenance
The maintenance menu allows the user to
set reminders for various vehicle mainte-
nance items.
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. For addi-
tional information, refer to “Changing
wheels and tires” in the “Do-it-yourself ”
section of this manual. Many factors in-
cluding tire inflation, alignment, driving
habits and road conditions affect tire
wear and when tires should be re-
placed. Setting the tire replacement in-
dicator for a certain driving distance
does not mean your tires will last that
long. Use the tire replacement indicator
as a guide only and always perform
regular tire checks. Failure to perform
regular tire checks, including tire pres-
sure checks could result in tire failure.
Serious vehicle damage could occur
and may lead to a collision, which could
result in serious personal injury or
death.
Menu itemResult
Maintenance Displays various maintenance reminder options.
Oil and Filter Allows user to set a reminder at a specific interval or reset the current one.
Oil Filter Allows user to set a reminder at a specific interval or reset the current one.
Tire Allows user to set a reminder at a specific interval or reset the current one.
Other Allows user to set a reminder at a specific interval or reset the current one.
2-28Instruments and controls
