NISSAN ROGUE HYBRID 2019 Owners Manual

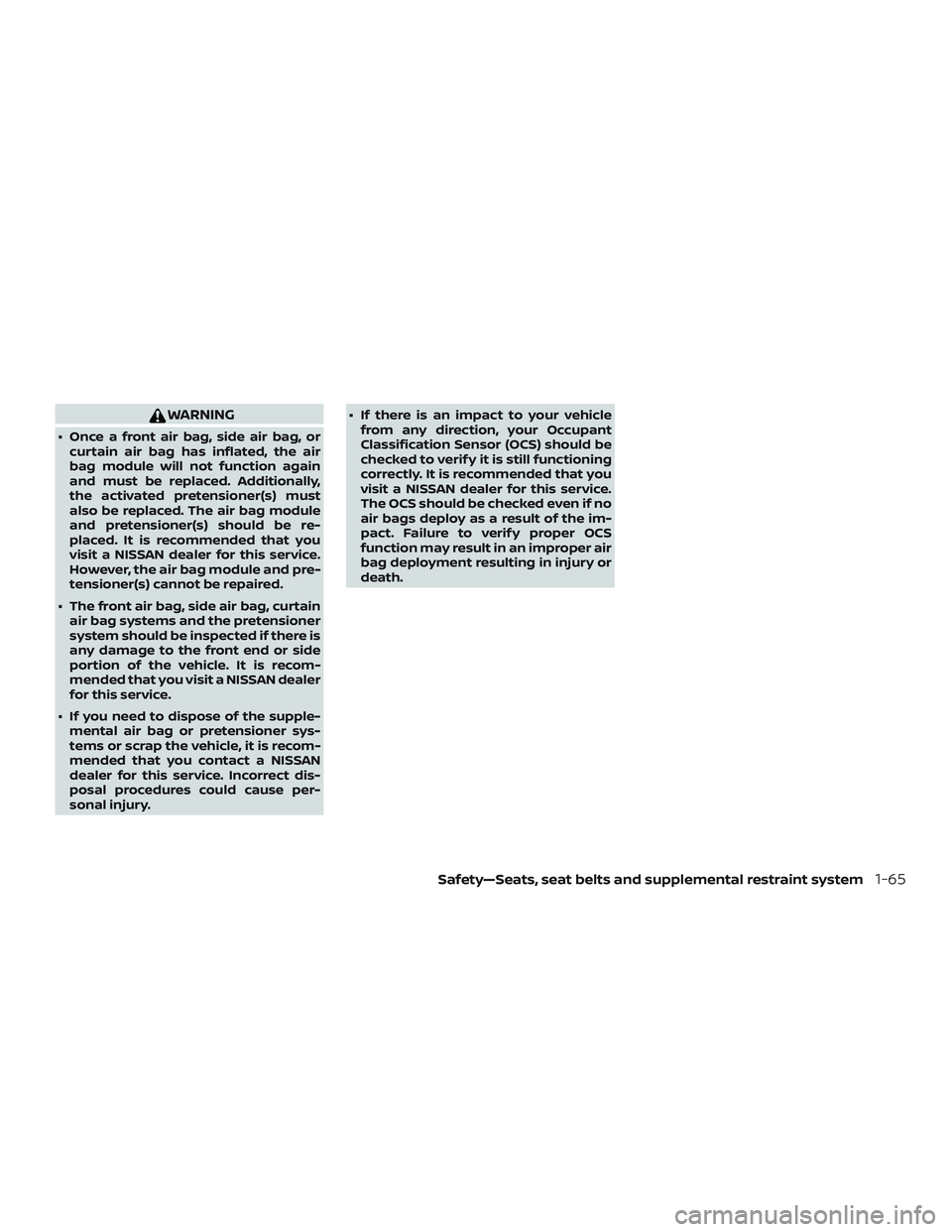

WARNING
∙ Once a front air bag, side air bag, orcurtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.
∙ The front air bag, side air bag, curtain air bag systems and the pretensioner
system should be inspected if there is
any damage to the front end or side
portion of the vehicle. It is recom-
mended that you visit a NISSAN dealer
for this service.
∙ If you need to dispose of the supple- mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you contact a NISSAN
dealer for this service. Incorrect dis-
posal procedures could cause per-
sonal injury. ∙ If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked to verif y it is still functioning
correctly. It is recommended that you
visit a NISSAN dealer for this service.
The OCS should be checked even if no
air bags deploy as a result of the im-
pact. Failure to verif y proper OCS
function may result in an improper air
bag deployment resulting in injury or
death.
Safety—Seats, seat belts and supplemental restraint system1-65

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer .................2-4
Tachometer ..................................2-6
Fuel gauge ...................................2-6
Assist charge gauge .......................... 2-7
Compass (if so equipped) ....................... 2-7
Compass display ............................. 2-7
Warning lights, indicator lights and audible
reminders ...................................... 2-10
Checking lights ............................... 2-11
Warning lights ................................ 2-11
Indicator lights .............................. 2-17
Audible reminders ........................... 2-20
Vehicle information display .....................2-21
How to use the vehicle information
display ...................................... 2-21
Startup display .............................. 2-21
Resetting the drive computer ................2-22
Settings ..................................... 2-22
Vehicle information display warnings
and indicators ............................... 2-33
Security systems ............................... 2-40
Vehicle security system .....................2-40NISSAN Vehicle Immobilizer System
.........2-42
Wiper and washer switch .......................2-43
Switch operation ............................ 2-43
Rear switch operation .......................2-44
Rear window and outside mirror defroster
switch .......................................... 2-45
Headlight and turn signal switch ...............2-46
Headlight control switch .....................2-46
LED Daytime Running Lights (DRL)
system ...................................... 2-50
Instrument brightness control ...............2-51
Turn signal switch ........................... 2-51
Fog light switch (if so equipped) .............2-52
Horn ........................................... 2-52
Heated seat switches .......................... 2-53
Heated steering wheel switch (if so equipped) . . 2-54
Dynamic driver assistance switch
(if so equipped) ................................. 2-54
V ehicle

Dynamic Control (VDC) OFF switch ......2-55
All-Wheel Drive (AWD) LOCK switch
(if so equipped) ................................. 2-56
Rear Door Alert ................................. 2-56
E-call (SOS) button (if so equipped) .............2-57
Power outlets .................................. 2-57

12v outlets................................... 2-57
Extended storage switch .......................2-59
Storage ........................................ 2-60
Front-door pockets .......................... 2-60
Seatback pockets ........................... 2-60
Glovebox.................................... 2-61
Console box ................................. 2-61
Overhead sunglasses storage ...............2-62
Cup holders ................................. 2-62
Cargo area storage bin ......................2-64
Luggage hooks .............................. 2-64
Cargo cover (if so equipped) .................2-65
Roof rack (if so equipped) ....................2-66
Windows ....................................... 2-67
Power windows ............................. 2-67
Power moonroof (if so equipped) ...............2-70
Interior lights ................................... 2-72Console light
................................ 2-73
Map lights ................................... 2-73
Personal lights (if so equipped) ..............2-73
Room light (if so equipped) ..................2-74
Luggage compartment light ...................2-74
HomeLink® Universal Transceiver
(if so equipped) ................................. 2-75
Programming HomeLink® ...................2-76
Programming HomeLink® for Canadian
customers and gate openers ................2-77
Operating the HomeLink® Universal
Transceiver .................................. 2-78
Programming trouble-diagnosis ............2-78
Clearing the programmed information ......2-78
Reprogramming a single HomeLink®
button....................................... 2-78
If your vehicle is stolen .......................2-79

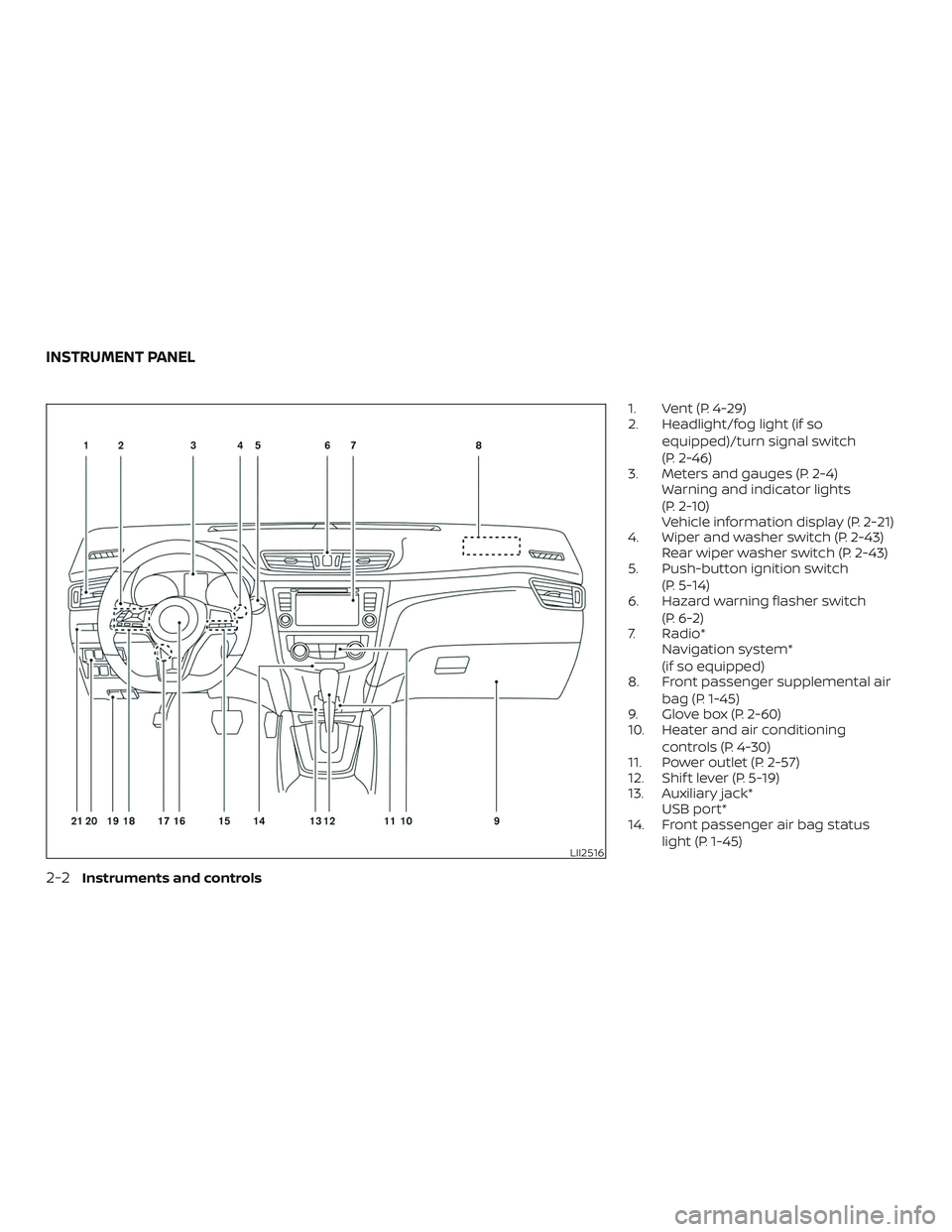

1. Vent (P. 4-29)
2. Headlight/fog light (if soequipped)/turn signal switch
(P. 2-46)
3. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-10)
Vehicle information display (P. 2-21)
4. Wiper and washer switch (P. 2-43) Rear wiper washer switch (P. 2-43)
5. Push-button ignition switch
(P. 5-14)
6. Hazard warning flasher switch
(P. 6-2)
7. Radio* Navigation system*
(if so equipped)
8. Front passenger supplemental air
bag (P. 1-45)
9. Glove box (P. 2-60)
10. Heater and air conditioning
controls (P. 4-30)
11. Power outlet (P. 2-57)
12. Shif t lever (P. 5-19)
13. Auxiliary jack* USB port*
14. Front passenger air bag status
light (P. 1-45)
LII2516
INSTRUMENT PANEL
2-2Instruments and controls

15. Cruise control switches(if so equipped) (P. 5-55)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-57)
Bluetooth® Hands-Free Phone
System*
16. Driver supplemental air bag
(P. 1-45)
Horn (P. 2-52)
17. Tilt and telescopic steering (P. 3-34)
18. Control panel and vehicle informa-
tion display switches (P. 2-21)
19. Hood release (P. 3-23)
20. SPORT mode switch (P. 5-25) Fuel door release (P. 3-31)
ECO mode switch (P. 5-25)
Lif tgate instrument panel switch
(if so equipped) (P. 3-24)
All-Wheel Drive (AWD) LOCK switch
(if so equipped) (P. 2-56)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-55)
Heated steering wheel switch
(if so equipped) (P. 2-54)
Dynamic driver assistance switch
(if so equipped) (P. 2-54) 21. Instrument brightness control
(P. 2-51)
Twin trip odometer reset switch
(P. 2-5)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Instruments and controls2-3

1. Tachometer
2. Warning and indicator lights
3. Vehicle information display
4. Speedometer
5. Fuel gauge

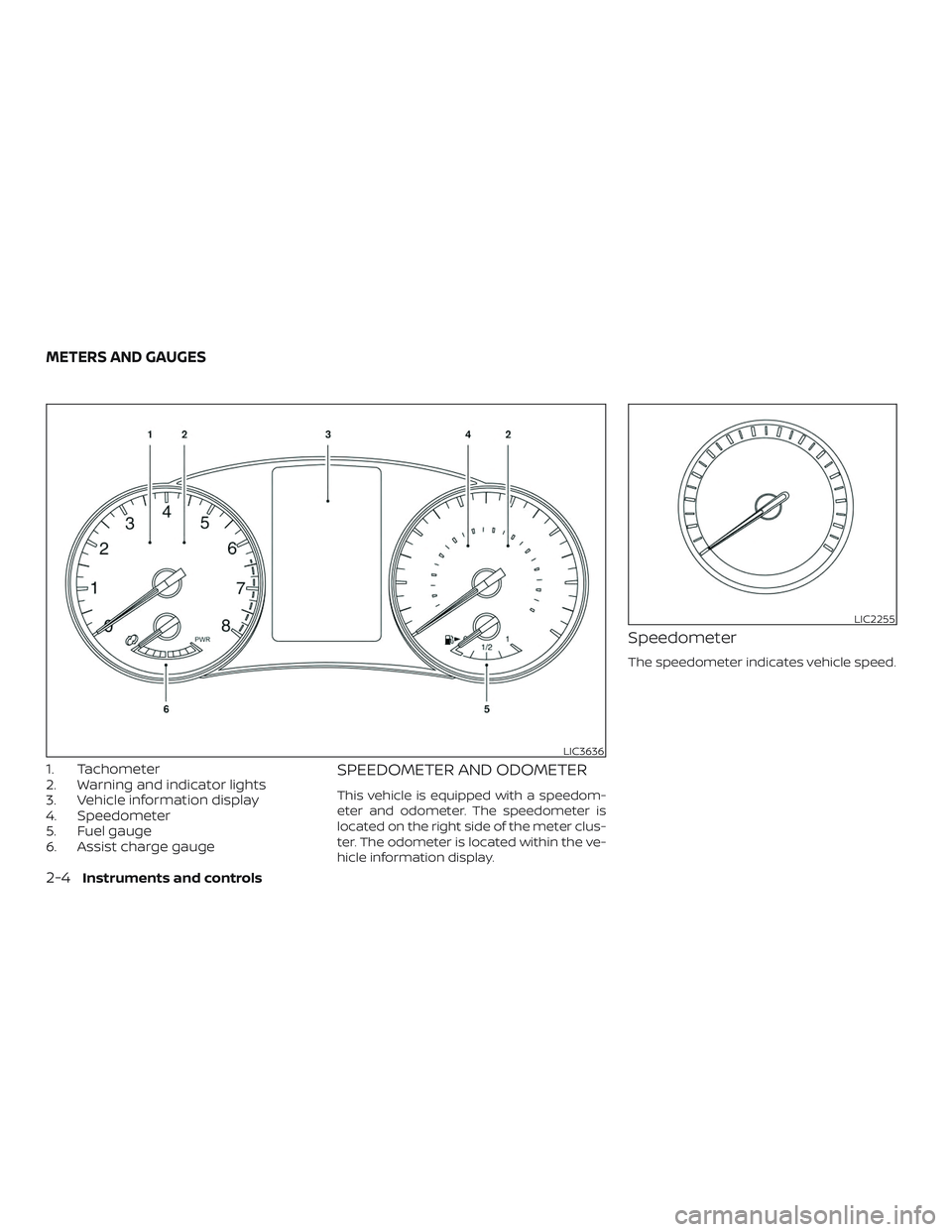

6. Assist charge gaugeSPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter. The odometer is located within the ve-
hicle information display.
Speedometer
The speedometer indicates vehicle speed.
LIC3636
LIC2255
METERS AND GAUGES
2-4Instruments and controls

Odometer/Twin trip odometer
The odometer and the twin trip odometer
1are displayed in the vehicle information
display when the ignition switch is placed
in the ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips. Changing the display
Push the TRIP RESET switch
2on the lef t
side of the instrument panel to change the
display as follows:
ODO →Trip
→Trip→ ODO
Resetting the trip odometer
Push the TRIP RESET switch
2until the
desired trip odometer (Trip
or
Trip
) is displayed.
Push and hold the TRIP RESET switch
2for
more than 1 second to reset the currently
displayed trip odometer to zero.
Clock and outside temperature
display
Clock
The clock is displayed at the top of the
vehicle information display.
Outside temperature display
The outside temperature is displayed at
the top of the vehicle information display.
The snowflake icon appears if the outside
temperature is below 37°F (3°C). The tem-
perature can be changed to display in Cel-
sius or Fahrenheit. For additional informa-
tion, refer to “Unit” in this section.
LIC3693LIC3694
Instruments and controls2-5

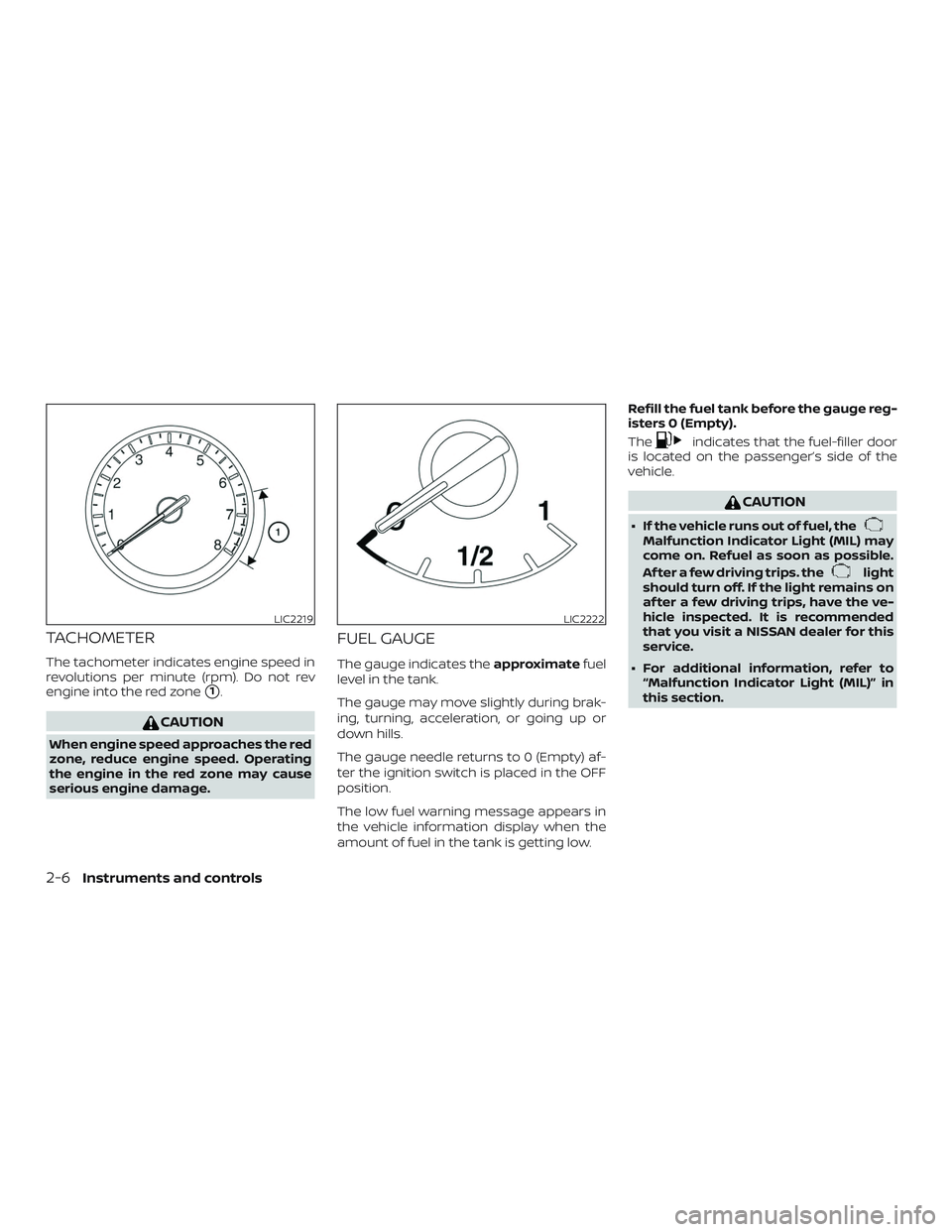

TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating
the engine in the red zone may cause
serious engine damage.
FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.
The gauge needle returns to 0 (Empty) af-
ter the ignition switch is placed in the OFF
position.
The low fuel warning message appears in
the vehicle information display when the
amount of fuel in the tank is getting low. Refill the fuel tank before the gauge reg-
isters 0 (Empty).
The
indicates that the fuel-filler door
is located on the passenger’s side of the
vehicle.
CAUTION
∙ If the vehicle runs out of fuel, theMalfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
Af ter a few driving trips. the
light
should turn off. If the light remains on
af ter a few driving trips, have the ve-
hicle inspected. It is recommended
that you visit a NISSAN dealer for this
service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
this section.
LIC2219LIC2222
2-6Instruments and controls

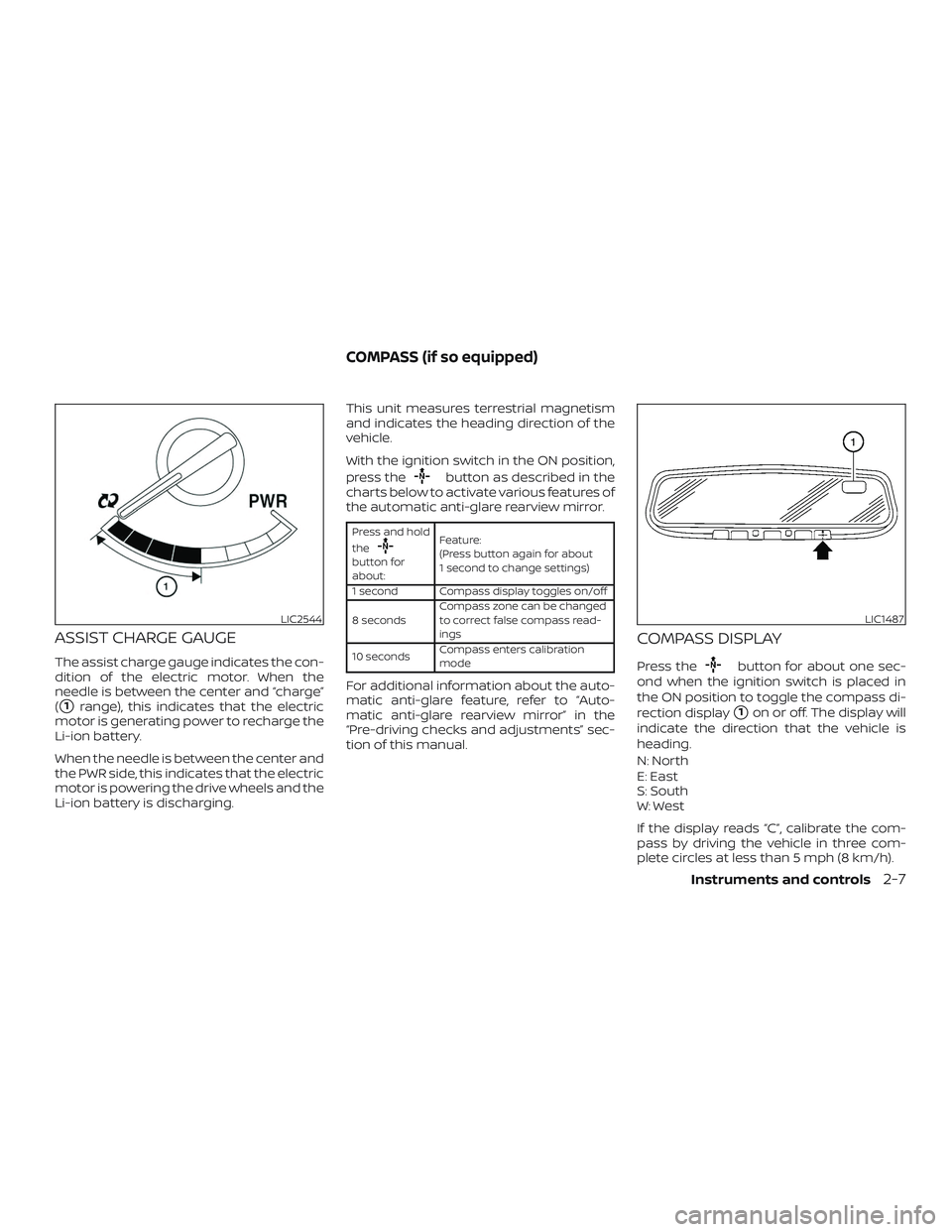

ASSIST CHARGE GAUGE
The assist charge gauge indicates the con-
dition of the electric motor. When the
needle is between the center and “charge”
(
1range), this indicates that the electric
motor is generating power to recharge the
Li-ion battery.
When the needle is between the center and
the PWR side, this indicates that the electric
motor is powering the drive wheels and the
Li-ion battery is discharging. This unit measures terrestrial magnetism
and indicates the heading direction of the
vehicle.
With the ignition switch in the ON position,
press the
button as described in the
charts below to activate various features of
the automatic anti-glare rearview mirror.
Press and hold
the
button for
about: Feature:
(Press button again for about
1 second to change settings)
1 second Compass display toggles on/off
8 seconds Compass zone can be changed
to correct false compass read-
ings
10 seconds Compass enters calibration
mode
For additional information about the auto-
matic anti-glare feature, refer to “Auto-
matic anti-glare rearview mirror” in the
“Pre-driving checks and adjustments” sec-
tion of this manual.
COMPASS DISPLAY
Press thebutton for about one sec-
ond when the ignition switch is placed in
the ON position to toggle the compass di-
rection display
1on or off. The display will
indicate the direction that the vehicle is
heading.
N: North
E: East
S: South
W: West
If the display reads “C”, calibrate the com-
pass by driving the vehicle in three com-
plete circles at less than 5 mph (8 km/h).
LIC2544LIC1487
COMPASS (if so equipped)
Instruments and controls2-7

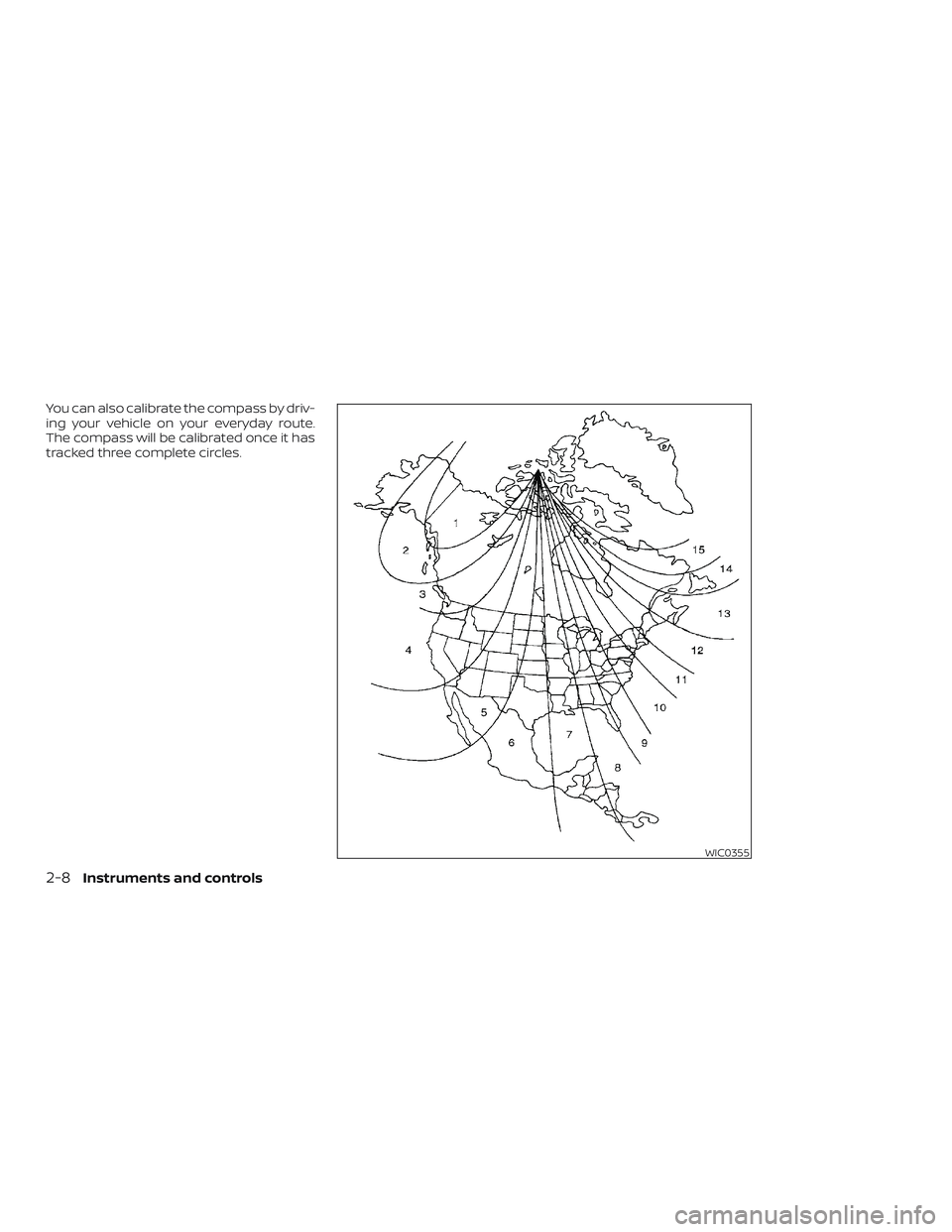

You can also calibrate the compass by driv-
ing your vehicle on your everyday route.
The compass will be calibrated once it has
tracked three complete circles.
WIC0355
2-8Instruments and controls
