NISSAN ROGUE HYBRID 2019 Owners Manual

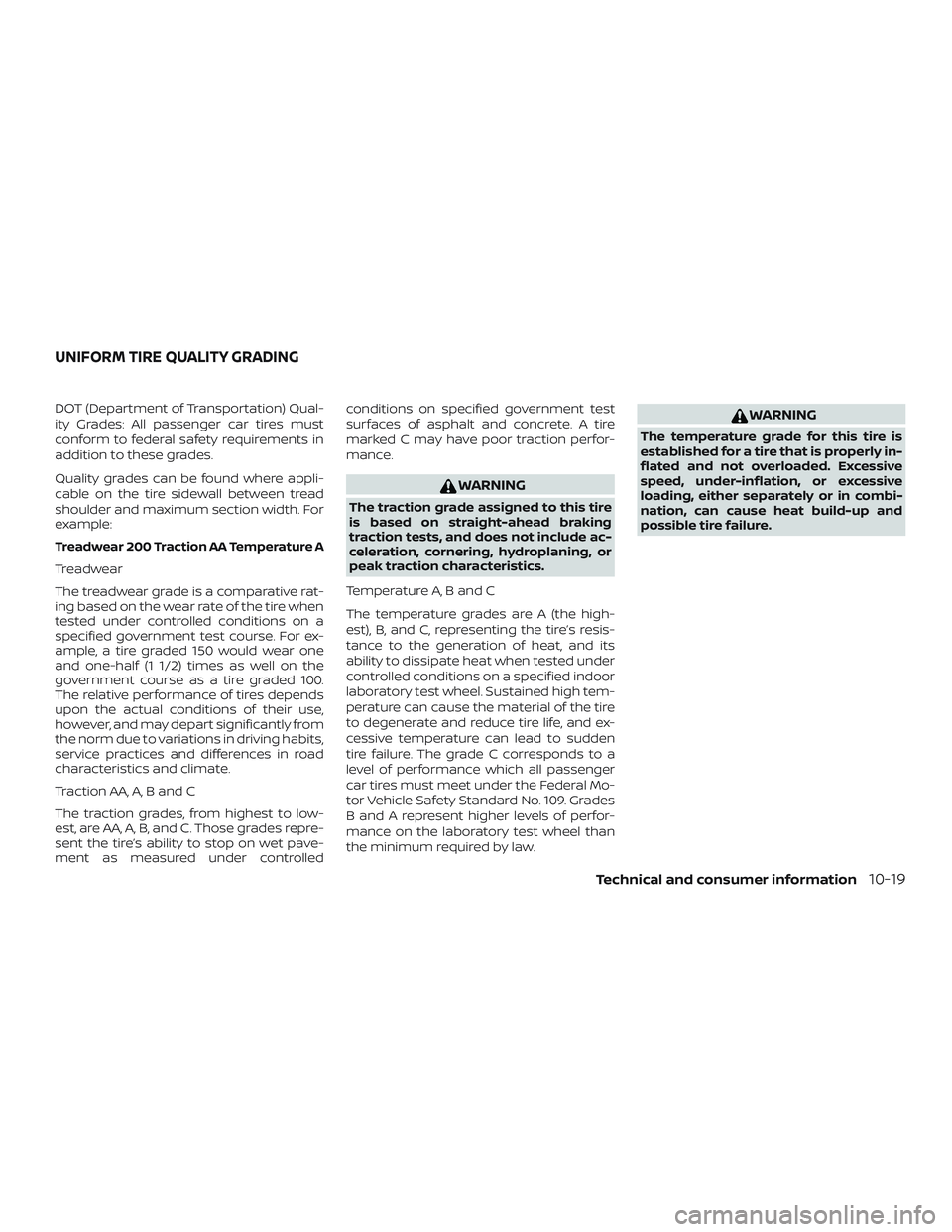

DOT (Department of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to low-
est, are AA, A, B, and C. Those grades repre-
sent the tire’s ability to stop on wet pave-
ment as measured under controlledconditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include ac-
celeration, cornering, hydroplaning, or
peak traction characteristics.
Temperature A, B and C
The temperature grades are A (the high-
est), B, and C, representing the tire’s resis-
tance to the generation of heat, and its
ability to dissipate heat when tested under
controlled conditions on a specified indoor
laboratory test wheel. Sustained high tem-
perature can cause the material of the tire
to degenerate and reduce tire life, and ex-
cessive temperature can lead to sudden
tire failure. The grade C corresponds to a
level of performance which all passenger
car tires must meet under the Federal Mo-
tor Vehicle Safety Standard No. 109. Grades
B and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly in-
flated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information10-19

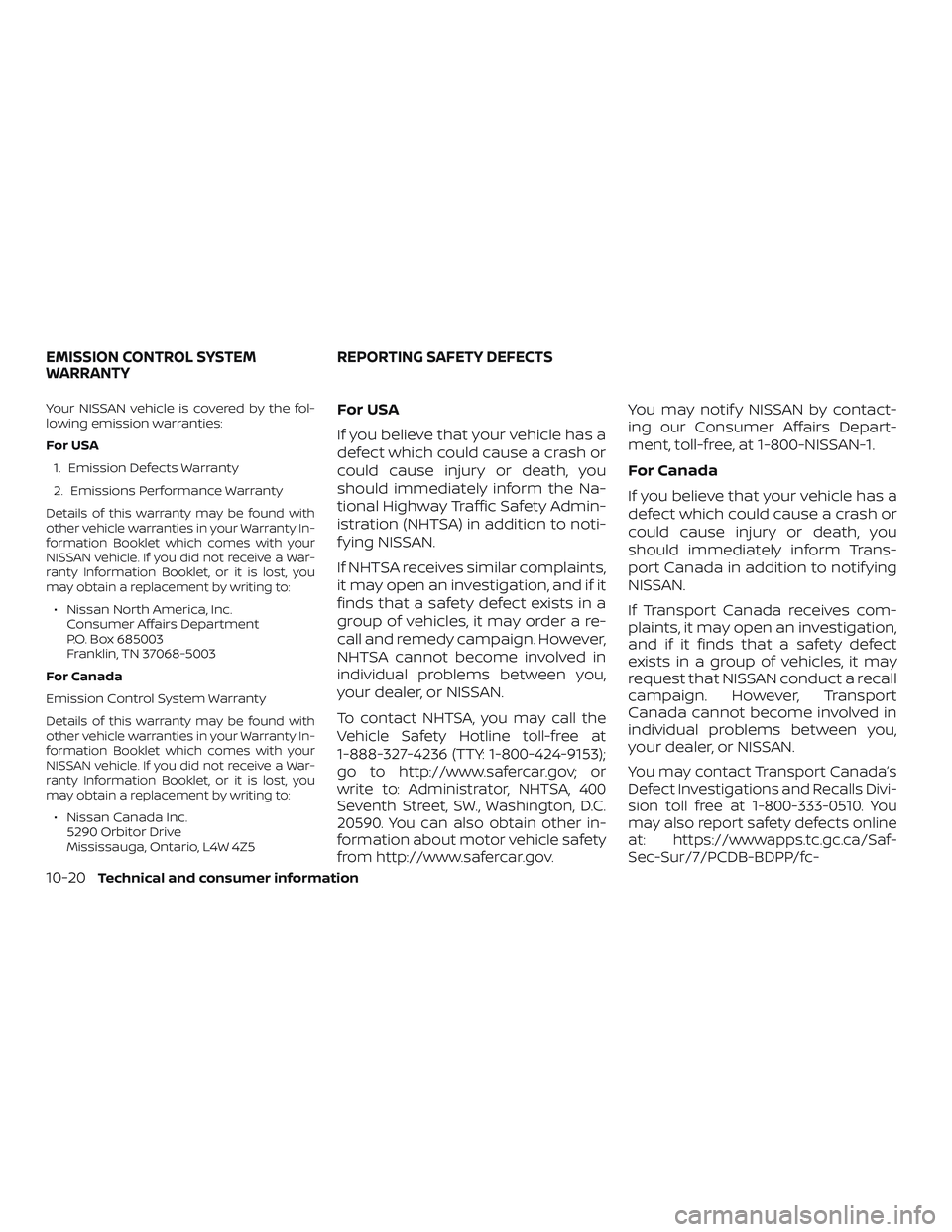

Your NISSAN vehicle is covered by the fol-
lowing emission warranties:
For USA1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of this warranty may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN vehicle. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:
∙ Nissan North America, Inc. Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of this warranty may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN vehicle. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:
∙ Nissan Canada Inc. 5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to noti-
f ying NISSAN.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a re-
call and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or
write to: Administrator, NHTSA, 400
Seventh Street, SW., Washington, D.C.
20590. You can also obtain other in-
formation about motor vehicle safety
from http://www.safercar.gov.
You may notif y NISSAN by contact-
ing our Consumer Affairs Depart-
ment, toll-free, at 1-800-NISSAN-1.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Trans-
port Canada in addition to notif ying
NISSAN.
If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
request that NISSAN conduct a recall
campaign. However, Transport
Canada cannot become involved in
individual problems between you,
your dealer, or NISSAN.
You may contact Transport Canada’s
Defect Investigations and Recalls Divi-
sion toll free at 1-800-333-0510. You
may also report safety defects online
at: https://wwwapps.tc.gc.ca/Saf-
Sec-Sur/7/PCDB-BDPP/fc-
EMISSION CONTROL SYSTEM
WARRANTY REPORTING SAFETY DEFECTS
10-20Technical and consumer information

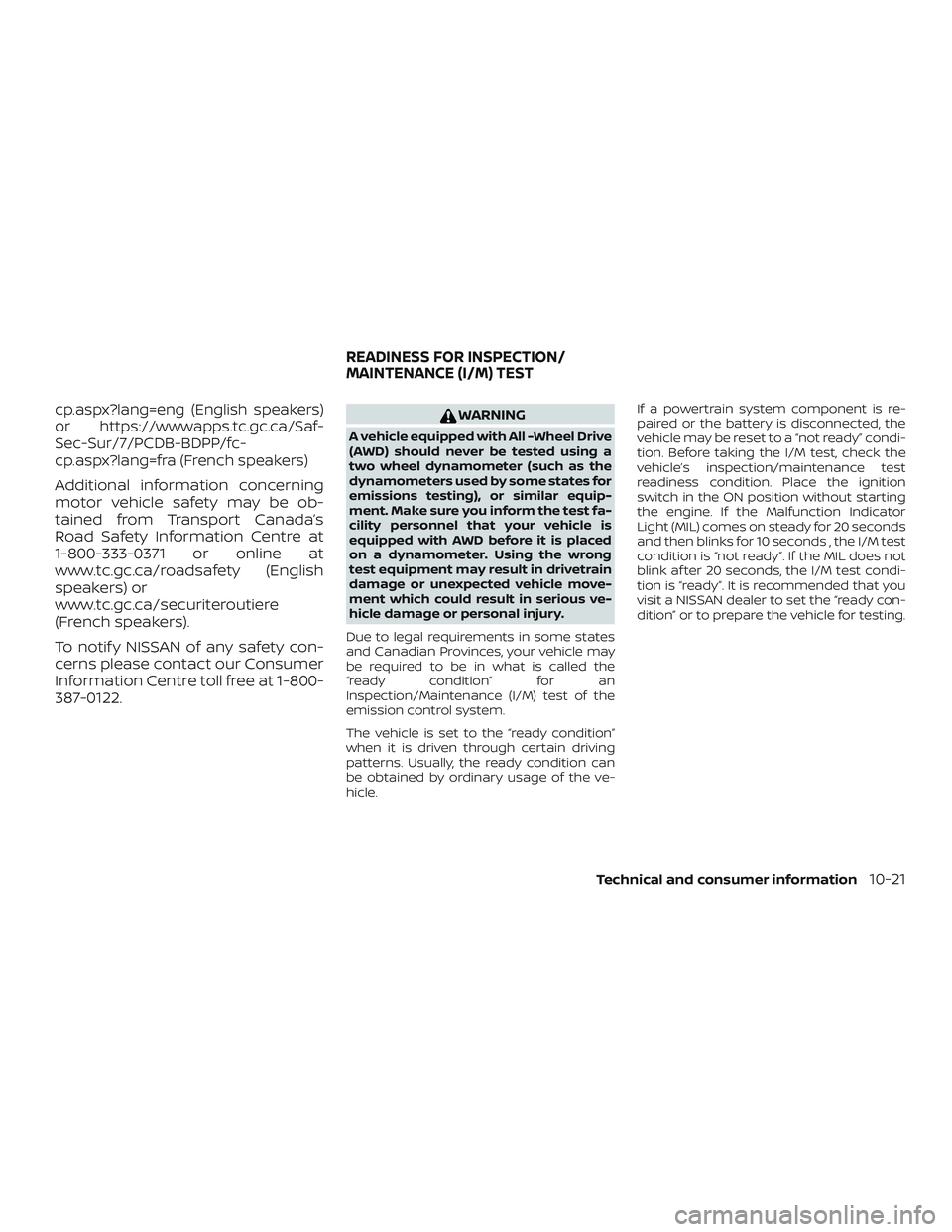

cp.aspx?lang=eng (English speakers)
or https://wwwapps.tc.gc.ca/Saf-
Sec-Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=fra (French speakers)
Additional information concerning
motor vehicle safety may be ob-
tained from Transport Canada’s
Road Safety Information Centre at
1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English
speakers) or
www.tc.gc.ca/securiteroutiere
(French speakers).
To notif y NISSAN of any safety con-
cerns please contact our Consumer
Information Centre toll free at 1-800-
387-0122.
WARNING
A vehicle equipped with All -Wheel Drive
(AWD) should never be tested using a
two wheel dynamometer (such as the
dynamometers used by some states for
emissions testing), or similar equip-
ment. Make sure you inform the test fa-
cility personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong
test equipment may result in drivetrain
damage or unexpected vehicle move-
ment which could result in serious ve-
hicle damage or personal injury.
Due to legal requirements in some states
and Canadian Provinces, your vehicle may
be required to be in what is called the
“ready condition” for an
Inspection/Maintenance (I/M) test of the
emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the ready condition can
be obtained by ordinary usage of the ve-
hicle. If a powertrain system component is re-
paired or the battery is disconnected, the
vehicle may be reset to a “not ready” condi-
tion. Before taking the I/M test, check the
vehicle’s inspection/maintenance test
readiness condition. Place the ignition
switch in the ON position without starting
the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds
and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not
blink af ter 20 seconds, the I/M test condi-
tion is “ready”. It is recommended that you
visit a NISSAN dealer to set the “ready con-
dition” or to prepare the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical and consumer information10-21

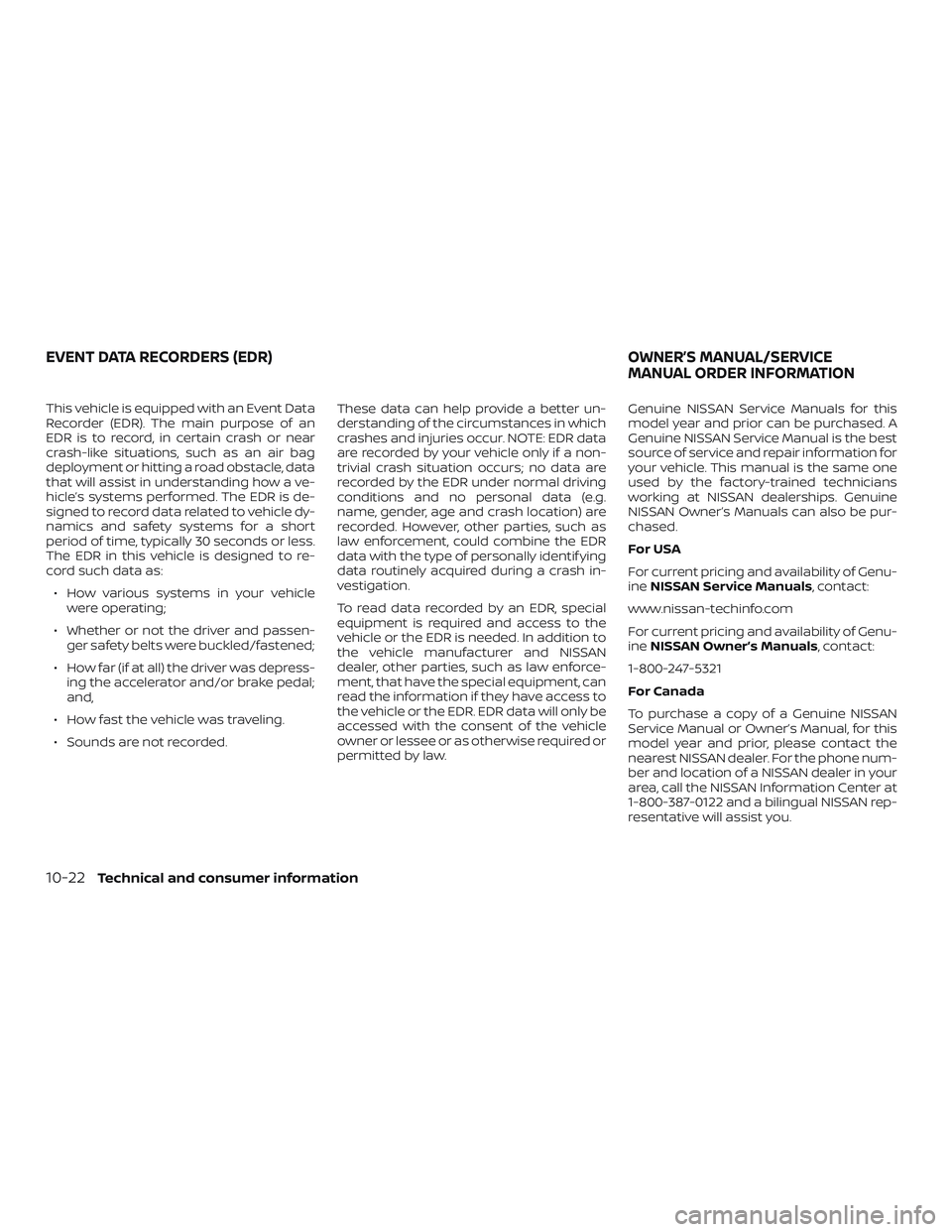

This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a ve-
hicle’s systems performed. The EDR is de-
signed to record data related to vehicle dy-
namics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to re-
cord such data as:∙ How various systems in your vehicle were operating;
∙ Whether or not the driver and passen- ger safety belts were buckled/fastened;
∙ How far (if at all) the driver was depress- ing the accelerator and/or brake pedal;
and,
∙ How fast the vehicle was traveling.
∙ Sounds are not recorded. These data can help provide a better un-
derstanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-
trivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data (e.g.
name, gender, age and crash location) are
recorded. However, other parties, such as
law enforcement, could combine the EDR
data with the type of personally identif ying
data routinely acquired during a crash in-
vestigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and NISSAN
dealer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only be
accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law. Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
Genuine NISSAN Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at NISSAN dealerships. Genuine
NISSAN Owner’s Manuals can also be pur-
chased.
For USA
For current pricing and availability of Genu-
ine
NISSAN Service Manuals, contact:
www.nissan-techinfo.com
For current pricing and availability of Genu-
ine NISSAN Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine NISSAN
Service Manual or Owner’s Manual, for this
model year and prior, please contact the
nearest NISSAN dealer. For the phone num-
ber and location of a NISSAN dealer in your
area, call the NISSAN Information Center at
1-800-387-0122 and a bilingual NISSAN rep-
resentative will assist you.
EVENT DATA RECORDERS (EDR) OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
10-22Technical and consumer information

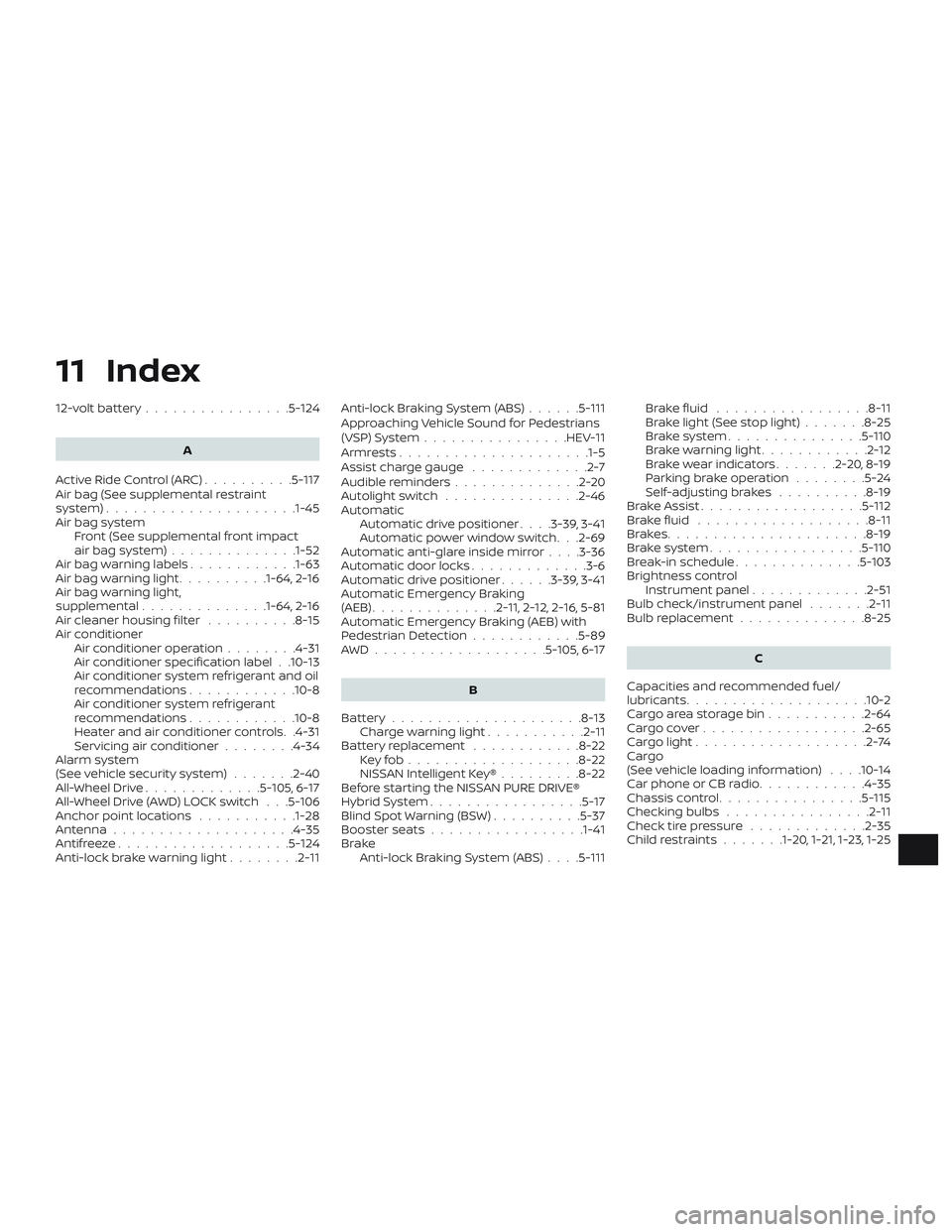

11 Index
12-voltbattery................5-124A
ActiveRideControl(ARC)..........5 -117
Air bag (See supplemental restraint
system) .................... .1-45
Air bag system Front (See supplemental front impact
airbagsystem)..............1-52
Air bag warning labels ............1-63
Airbagwarninglight..........1-64, 2-16
Air bag warning light,
supplemental ..............1-64, 2-16
Air cleaner housing filter ..........8-15
Air conditioner Air conditioner operation ........4-31
Air conditioner specification label . .10-13
Air conditioner system refrigerant and oil
recommendations ............10-8
Air conditioner system refrigerant
recommendations ............10-8
Heater and air conditioner controls. .4-31
Servicing air conditioner ........4-34
Alarm system
(See vehicle security system) .......2-40
All-Wheel Drive .............5-105,6-17
All-Wheel Drive (AWD) LOCK switch . . .5-106
Anchor point locations ...........1-28
Antenna ....................4-35
Antifreeze ...................5-124
Anti-lock brake warning light ........2-11Anti-lock Braking System (ABS)
......5-111
Approaching Vehicle Sound for Pedestrians
(VSP)System................HEV-11
Armrests.................... .1-5
Assist charge gauge .............2-7
Audible reminders ..............2-20
Autolightswitch ...............2-46
Automatic Automatic drive positioner ....3-39,3-41
Automatic power window switch . . .2-69
Automatic anti-glare inside mirror . . . .3-36
Automatic door locks .............3-6
Automatic drive positioner ......3-39,3-41
Automatic Emergency Braking
(AEB) ..............2 -11, 2-12, 2-16, 5-81
Automatic Emergency Braking (AEB) with
Pedestrian Detection ............5-89
AWD...................5-105,6-17
B
Battery.....................8-13 Charge warning light ...........2-11
Battery replacement ............8-22
Keyfob...................8-22
NISSAN Intelligent Key® .........8-22
Before starting the NISSAN PURE DRIVE®
HybridSystem.................5-17
Blind Spot Warning (BSW) ..........5-37
Booster seats .................1-41
Brake Anti-lock Braking System (ABS) ....5-111 Brakefluid .................8-11
Brakelight(Seestoplight).......8-25
Brakesystem...............5
-110
Brakewarninglight............2-12
Brakewearindicators.......2-20,8-19
Parking brake operation ........5-24
Self-adjustingbrakes ..........8-19
Brake Assist ..................5-112
Brakefluid ...................8-11
Brakes......................8-19
Brakesystem.................5 -110
Break-in schedule ..............5-103
Brightness control Instrument panel .............2-51
Bulb check/instrument panel .......
2
-11
Bulb replacement ..............8-25
C
Capacities and recommended fuel/
lubricants....................10-2
Cargoareastoragebin...........2-64
Cargocover..................2-65
Cargolight...................2-74
Cargo
(See vehicle loading information) . . . .10-14
Car phone or CB radio ............4-35
Chassis control ................5-115
Checking bulbs ................2-11
Check tire pressure .............2-35
Childrestraints.......1-20, 1-21, 1-23, 1-25

LATCH (Lower Anchors and Tethers for
CHildren)System..............1-25
Precautions on child
restraints .........1-23, 1-30, 1-36, 1-41
Top tether strap anchor point
locations...................1-28
Child restraint with top tether strap . . . .1-27
Child safety rear door lock ..........3-7
Chimes, audible reminders .........2-20
Cleaningexteriorandinterior......7-2,7-4
C.M.V.S.S. certification label .........10-12
Coldweatherdriving ............5-124
Console box ...................2-61
Console light ..................2-73
Continuously Variable Transmission
(CVT) .......................5-19
Continuously Variable Transmission
(CVT) fluid ..................8-11
Driving with Continuously Variable
Transmission (CVT) ............5-19
Controls Heater and air conditioner controls . .4-31
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Checking engine coolant level ......8-5
Checking inverter coolant level .....8-7
Corrosionprotection..............7-7
Cruisecontrol .................5-55
Cupholders...................2-62 D
Defroster switch Rear window and outside mirror
defrosterswitch..............2-45
Dimensions and weights ..........10-10
Dimmer switch for instrument panel . . .2-51
Display......................2-21
Door locks ..................3-4,3-5
Drive positioner, Automatic ......3-39,3-41
Driving Cold weather driving ..........5-124
Driving with Continuously Variable
Transmission (CVT) ............5-19
Precautions when starting and
driving..................5-4,5-12
Drivingthevehicle...............5-19
Dynamic driver assistance switch ....2-54
E
E-CALL (SOS) SWITCH .............2-57
ECO mode switch ...............5-25
Economy - fuel ................5-105
Efficientuseofyourvehicle........HEV-11
Emergency hybrid system shut off ....5-16
Emergency shut-off system .......HEV-4
Emission control information label . . . .10-12
Emission control system warranty . . . .10-20
Energy monitors ...............HEV-6
Engine Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Changing engine oil ............8-8 Changing engine oil filter
.........8-10
Checking engine coolant level ......8-5
Checking engine oil level .........8-7
Engine compartment check
locations...................8-3
Engine cooling system ..........8-4
Engine oil ...................8-7
Engine oil and oil filter
recommendation .............10-7
Engine oil viscosity .............10-7
Engine serial number ..........10-12
Engine specifications ...........10-9
EventDatarecorders............10-22
Exhaust gas (Carbon monoxide) .......5-4
Explanation of maintenance items .....9-2
Explanation of scheduled maintenance
items .......................9-5
Extended storage switch ..........2-59
Eyeglasscase................ .2-62
F
Flashers
(Seehazardwarningflasherswitch)....6-2
Flattire......................6-3
Floormatpositioningaid...........7-6
Fluid Brakefluid..................8-11
Capacities and recommended
fu

el/lubricants...............10-2
Continuously Variable Transmission
(CVT) fluid ..................8-11
Engine coolant ...............8-4
Engine oil ...................8-7
11-2

Invertercoolant...............8-6
Windshield-washer fluid.........8-12
F.M.V.S.S. certification label .........10-12
Foglightswitch................2-52
Front air bag system
(See supplemental restraint system) . . .1-52
Front-door pocket ..............2-60
Front power seat adjustment ........1-4
Frontseats....................1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-105
Fuel-filler door and cap ..........3-31
Fuel gauge ..................2-6
Fueloctanerating.............10-6
Fuel recommendation ..........10-4
Loose fuel cap warning .........2-35
Fuelefficientdrivingtips..........5-104
Fuel-filler door .................3-31
Fuel gauge ....................2-6
Fuses ......................8-20
Fusiblelinks...................8-20
G
Garage door opener, HomeLink® Universal
Transceiver ......2-75,2-76,2-77,2-78,2-78
Gascap .....................3-31
Gauge Fuel gauge ..................2-6
Odometer ..................2-5
Powermeter.................2-7
Speedometer ................2-4 Tachometer
.................2-6
Trip odometer ................2-5
General maintenance .............9-2
Glovebox....................2-61
H
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-46
Headlightcontrolswitch...........2-46
Headlights ...................8-23
Headrestraints..................1-7
Heatedseats..................2-53
Heated steering wheel switch .......2-54
Heater Heater and air conditioner controls . .4-31
Heater operation .............4-32
High-voltagecautions...........HEV-3
High voltage components ........HEV-12
Hill start assist system ............5-118
HomeLink® Universal
Transceiver ......2-75,2-76,2-77,2-78,2-78
Hood .......................3-23
Hook Luggage hook ...............2-64
Horn.......................2-52
Hybrid System Stops operating while driving ......6-11
Vehicle does not start ...........6-11
Hybrid vehicle characteristics ......HEV-13
Hybridvehicleprecautions........HEV-12 I
Ignition switch Push-button ignition switch .......5-14
Immobilizer system ...........2-42, 5-17
Important vehicle information label . . .10-12
In-cabinmicrofilter..............8-16
Increasing fuel economy ..........5-105
Indicator NISSAN Intelligent Key® battery discharge
indicator...................5-16
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ..............2-10, 2-11, 2-17
Informationdisplay............. .2-21
Inside automatic anti-glare mirror .....3-36
Instrument brightness control .......2-51
Instrument panel .............
0
-6,2-2
Instrument panel dimmer switch .....2-51
Intelligent Around View Monitor .......4-11
Intelligent Cruise Control (ICC) .......5-57
Intelligent Engine Brake (I-EB) .......5-116
Intelligent Key system Key operating range ............3-9
Key operation ................3-10
Mechanical key ...............3-3
Remote keyless entry operation ....3-13
Troubleshooting guide ..........3-18
Warning signals ..............3-18
Intelligent Lane Intervention (I-LI) ......5-31
Intelligent Trace Control (I-TC) .......5-115
Interiorlight ...............2-72,2-74
Inverter Checking inverter coolant level .....8-7
Inverter cooling system ..........8-6
11-3

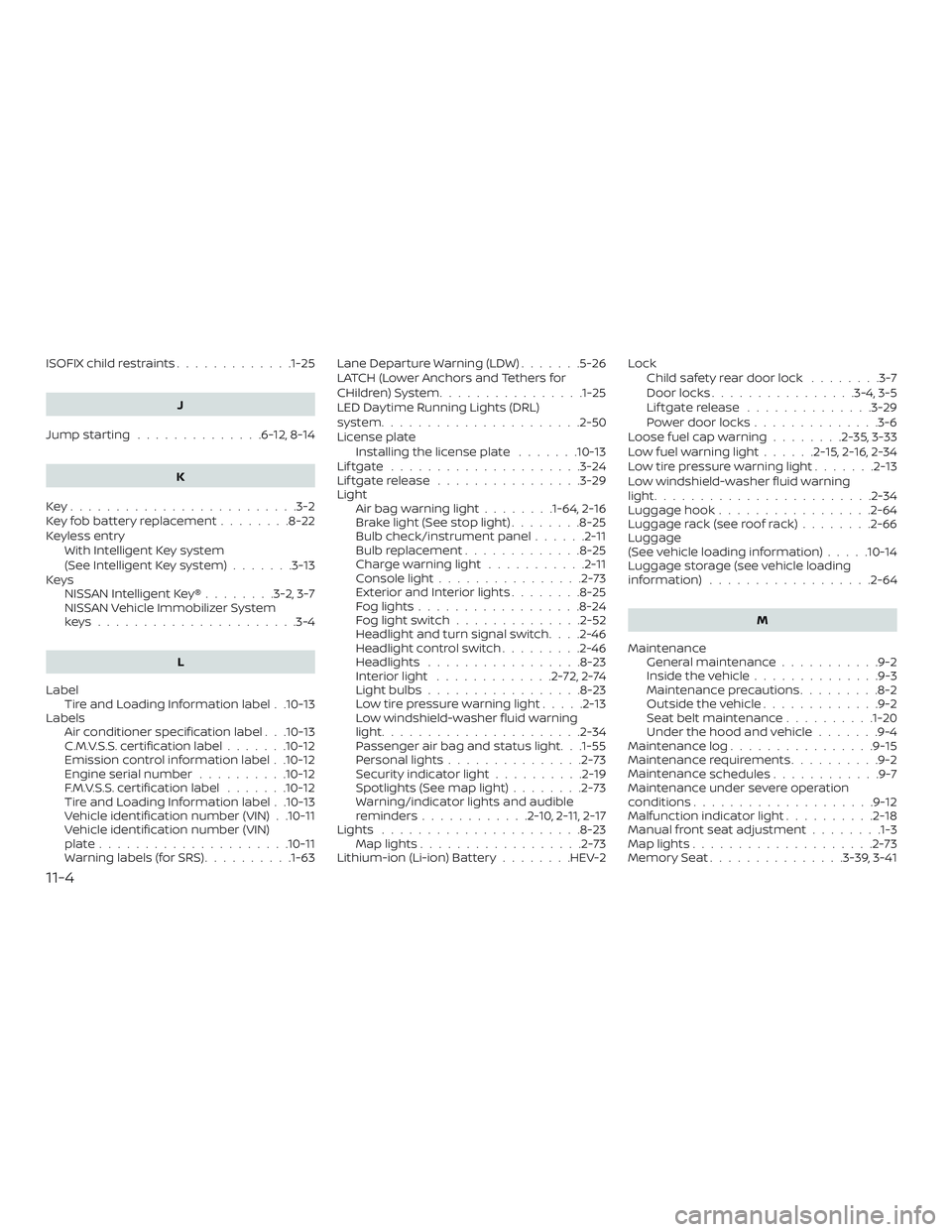

ISOFIX child restraints.............1-25
J
Jumpstarting..............6-12,8-14
K
Key.........................3-2
Key fob battery replacement ........8-22
Keyless entry With Intelligent Key system
(See Intelligent Key system) .......3-13
Keys NISSAN Intelligent Key® ........3-2,3-7
NISSAN Vehicle Immobilizer System
keys......................3-4
L
Label Tire and Loading Information label . .10-13
Labels Air conditioner specification label . . .10-13
C.M.V.S.S. certification label .......10-12
Emission control information label . .10-12
Engine serial number ..........10-12
F.M.V.S.S. certification label .......10-12
Tire and Loading Information label . .10-13
Vehicle identification number (VIN) . .10-11
Vehicle identification number (VIN)
plate.....................10-11
Warning labels (for SRS) ..........1-63Lane Departure Warning (LDW)
.......5-26
LATCH (Lower Anchors and Tethers for
CHildren)System................1-25
LED Daytime Running Lights (DRL)
system ......................2-50
License plate Installing the license plate .......10-13
Liftgate .....................3-24
Liftgaterelease ................3-29
Light Airbagwarninglight........1-64, 2-16
Brakelight(Seestoplight)........8-25
Bulb check/instrument panel ......2-11
Bulb replacement .............8-25
Charge warning light ...........2-11
Console light ................2-73
ExteriorandInteriorlights........8-25
Foglights..................8-24
Foglightswitch..............2-52
Headlight and turn signal switch ....2-46
Headlightcontrolswitch.........2-46
Headlights .................8-23
Interiorlight .............2-72,2-74
Lightbulbs.................8-23
Low tire pressure warning light .....2-13
Low windshield-washer fluid warning
light......................2-34
Passenger air bag and status light. . .1-55
Personal lights ...............2-73
Security indicator light ..........2-19
Spotlights(Seemaplight)........2-73
Warning/indicator lights and audible
reminders ............2-10,2 -11, 2-17
Lights ......................8-23 Maplights..................2-73
Lithium-ion(Li-ion)Battery........HEV-2 Lock
Child safety rear door lock ........3-7
Door locks ................3-4,3-5
Liftgaterelease ..............3-29
Power door locks ..............3-6
Loose fuel cap warning ........2-35,3-33
Lowfuelwarninglight......2-15,2-16,2-34
Low tire pressure warning light .......2-13
Low windshield-washer fluid warning
light........................2-34
Luggage hook .................2-64
Luggage rack (see roof rack) ........2-66
Luggage
(See vehicle loading information) .....10-14
Luggage storage (see vehicle loading
information) ..................2-64
M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-20
Under the hood and vehicle .......9-4
Maintenance log ................9-15
Maintenance requirements ..........9-2
Maintenanc e

schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-18
Manual front seat adjustment ........1-3
Maplights....................2-73
Memory Seat ...............3-39,3-41
11-4

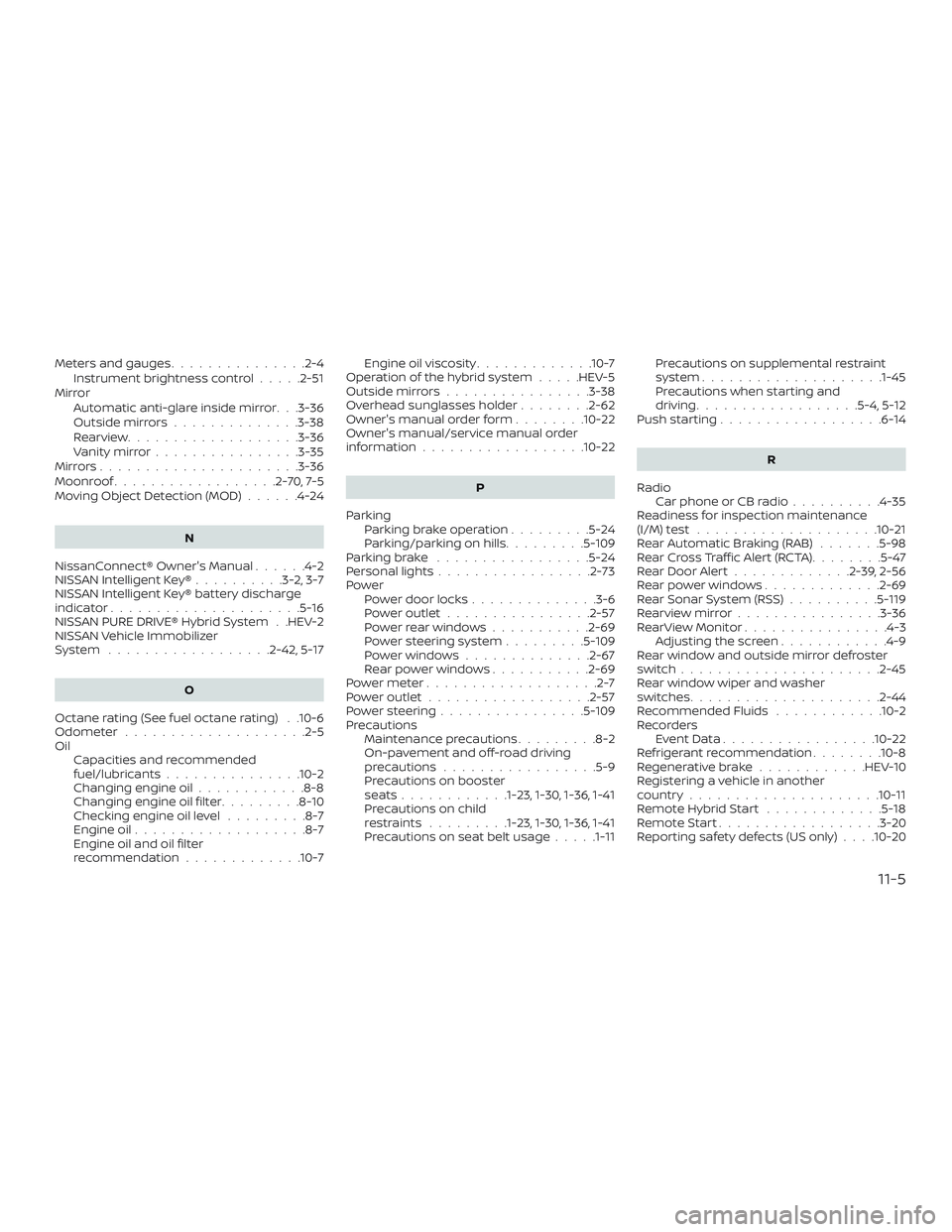

Meters and gauges...............2-4
Instrument brightness control .....2-51
Mirror Automatic anti-glare inside mirror. . .3-36
Outsidemirrors..............3-38
Rearview...................3-36
Vanitymirror................3-35
Mirrors......................3-36
Moonroof ..................2-70,7-5
Moving Object Detection (MOD) ......4-24
N
NissanConnect® Owner's Manual ......4-2
NISSAN Intelligent Key® ..........3-2,3-7
NISSAN Intelligent Key® battery discharge
indicator.....................5-16
NISSAN PURE DRIVE® Hybrid System . .HEV-2
NISSAN Vehicle Immobilizer
System ..................2-42,5-17
O
Octane rating (See fuel octane rating) . .10-6
Odometer ....................2-5
Oil Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-8
Changing engine oil filter .........8-10
Checking engine oil level .........8-7
Engine oil ...................8-7
Engine oil and oil filter
recommendation .............10-7 Engine oil viscosity
.............10-7
Operation of the hybrid system .....HEV-5
Outsidemirrors................3-38
Overhead sunglasses holder ........2-62
Owner's manual order form ........10-22
Owner's manual/service manual order
information..................10-22
P
Parking Parking brake operation .........5-24
Parking/parkingonhills.........5-109
Parkingbrake .................5-24
Personal lights .................2-73
Power Power door locks ..............3-6
Poweroutlet................2-57
Powerrearwindows...........2-69
Power steering system .........5-109
Powerwindows..............2-67
Rearpowerwindows...........2-69
Powermeter...................2-7
Poweroutlet..................2-57
Powersteering................5-109
Precautions Maintenance precautions .........8-2
On-pavement and off-road driving
precautions .................5-9
Precautions on booster
seats............1-23, 1-30, 1-36, 1-41
Precautions on child
restraints .........1-23, 1-30, 1-36, 1-41
Precautions on seat belt usage .....1-11Precautions on supplemental restraint
system
....................1-45
Precautions when starting and
driving ..................5-4,5-12
Push starting ..................6-14
R
Radio Car phone or CB radio ..........4-35
Readiness for inspection maintenance
(I/M) test ....................10-21
Rear Automatic Braking (RAB) .......5-98
RearCrossTrafficAlert(RCTA)........5-47
Rear Door Alert .............2-39,2-56
Rearpowerwindows............ .2-69
Rear Sonar System (RSS) ..........5-119
Rearviewmirror................3-36
RearViewMonitor................4-3 Adjustingthescreen............4-9
Rear window and outside mirror defroster
switch......................2-45
Rear window wiper and washer
switches .....................2-44
Recommended Fluids ............10-2
Recorders EventData.................10-22
Refrigerant recommendation ........10-8
Regenerative brake ............HEV-10
Registering a vehicle in another
c ountr

y.....................10-11
Remote Hybrid Start .............5-18
Remote Start ..................3-20
Reporting safety defects (US only) . . . .10-20
11-5

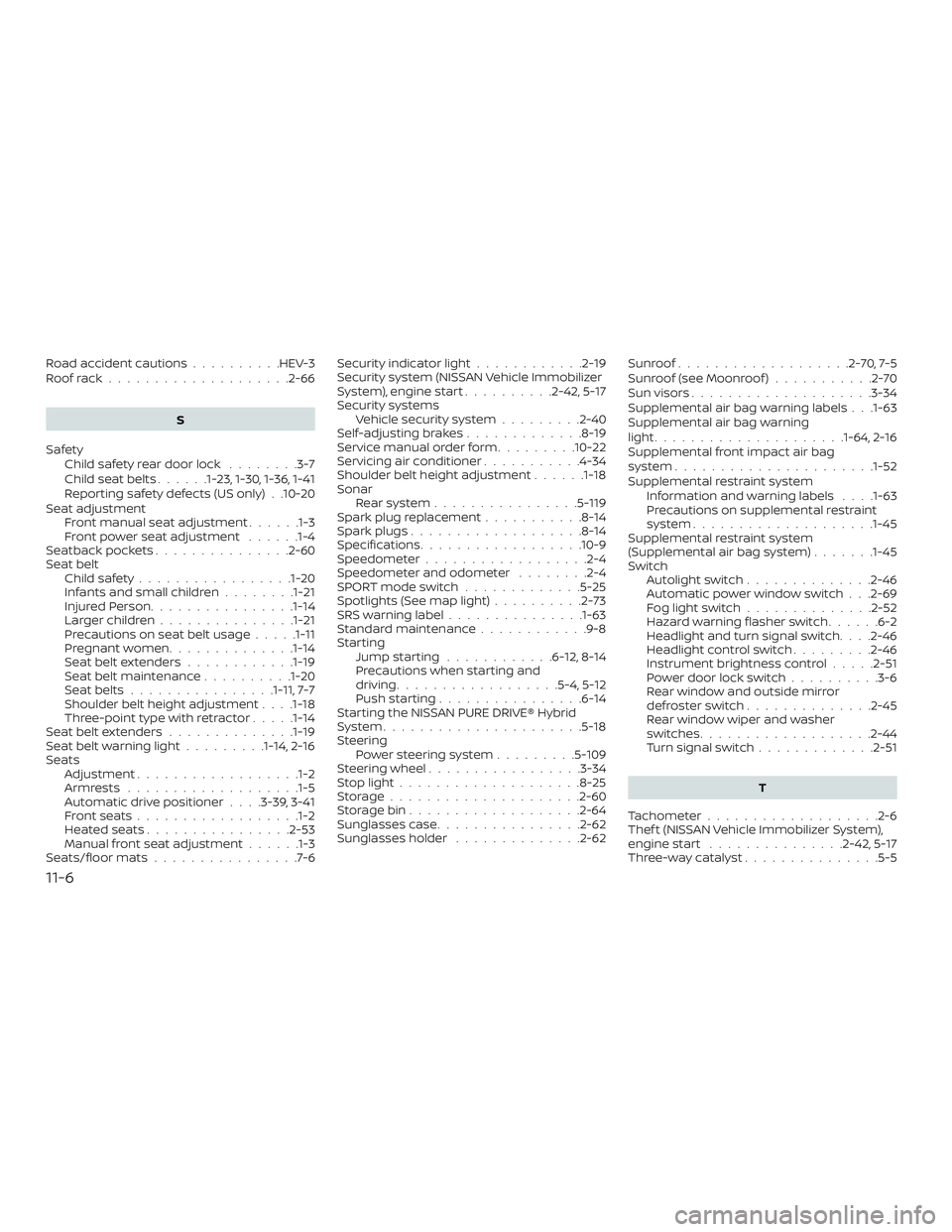

Road accident cautions..........HEV-3
Roofrack....................2-66
S
Safety Child safety rear door lock ........3-7
Childseatbelts......1-23, 1-30, 1-36, 1-41
Reporting safety defects (US only) . .10-20
Seat adjustment Front manual seat adjustment ......1-3
Front power seat adjustment ......1-4
Seatback pockets ...............2-60
Seat belt Childsafety.................1-20
Infants and small children ........1-21
InjuredPerson............... .1-14
Largerchildren.............. .1-21
Precautions on seat belt usage .....1-11
Pregnant women ..............1-14
Seat belt extenders ............1-19
Seat belt maintenance ..........1-20
Seatbelts................1-11, 7-7
Shoulder belt height adjustment . . . .1-18
Three-pointtypewithretractor.....1-14
Seat belt extenders ..............1-19
Seatbeltwarninglight.........1-14, 2-16
Seats Adjustment ..................1-2
Armrests ...................1-5
Automatic drive positioner ....3-39,3-41
Frontseats..................1-2
Heatedseats................2-53
Manual front seat adjustment ......1-3
Seats/floormats................7-6 Security indicator light
............2-19
Security system (NISSAN Vehicle Immobilizer
System), engine start ..........2-42,5-17
Security systems Vehicle security system .........2-40
Self-adjustingbrakes.............8-19
Service manual order form .........10-22
Servicing air conditioner ...........4-34
Shoulder belt height adjustment ......1-18
Sonar Rear system ................5 -119
Spark plug replacement ...........8-14
Spark plugs ...................8-14
Specifications ..................10-9
Speedometer ..................2-4
Speedometer and odometer ........2-4
SPORT mode switch .............5-25
Spotlights(Seemaplight)..........2-73
SRS warning label ...............1-63
Standard maintenance ............9-8
Starting Ju

mpstarting............6-12,8-14
Precautions when starting and
driving..................5-4,5-12
Push starting ................6-14
Starting the NISSAN PURE DRIVE® Hybrid
System......................5-18
Steering Powersteeringsystem.........5-109
Steering wheel .................3-34
Stoplight....................8-25
Storage.....................2-60
Storagebin...................2-64
Sunglasses case ................2-62
Sunglasses holder ..............2-62 Sunroof
...................2-70, 7-5
Sunroof (see Moonroof ) ...........2-70
Sunvisors................... .3-34
Supplemental air bag warning labels . . .1-63
Supplemental air bag warning
light.....................1-64, 2-16
Supplemental front impact air bag
system......................1-52
Supplemental restraint system Information and warning labels . . . .1-63
Precautions on supplemental restraint
system ....................1-45
Supplemental restraint system
(Supplemental air bag system) .......1-45
Switch Autolightswitch..............2-46
Automatic power window switch . . .2-69
Foglightswitch..............2-52
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-46
Headlightcontrolswitch.........2-46
Instrument brightness control .....2-51
Power door lock switch ..........3-6
Rear window and outside mirror
defrosterswitch..............2-45
Rear window wiper and washer
switches ...................2-44
Turn signal switch .............2-51
T
Tachometer ...................2-6
Thef t (NISSAN Vehicle Immobilizer System),
engine start ...............2-42, 5-17
Three-waycatalyst...............5-5
11-6
